Ecler WARM2/WARM4 Analog Rotary DJ Mixers - 4-Channels

Ecler WARM2/WARM4 Analog Rotary DJ Mixers

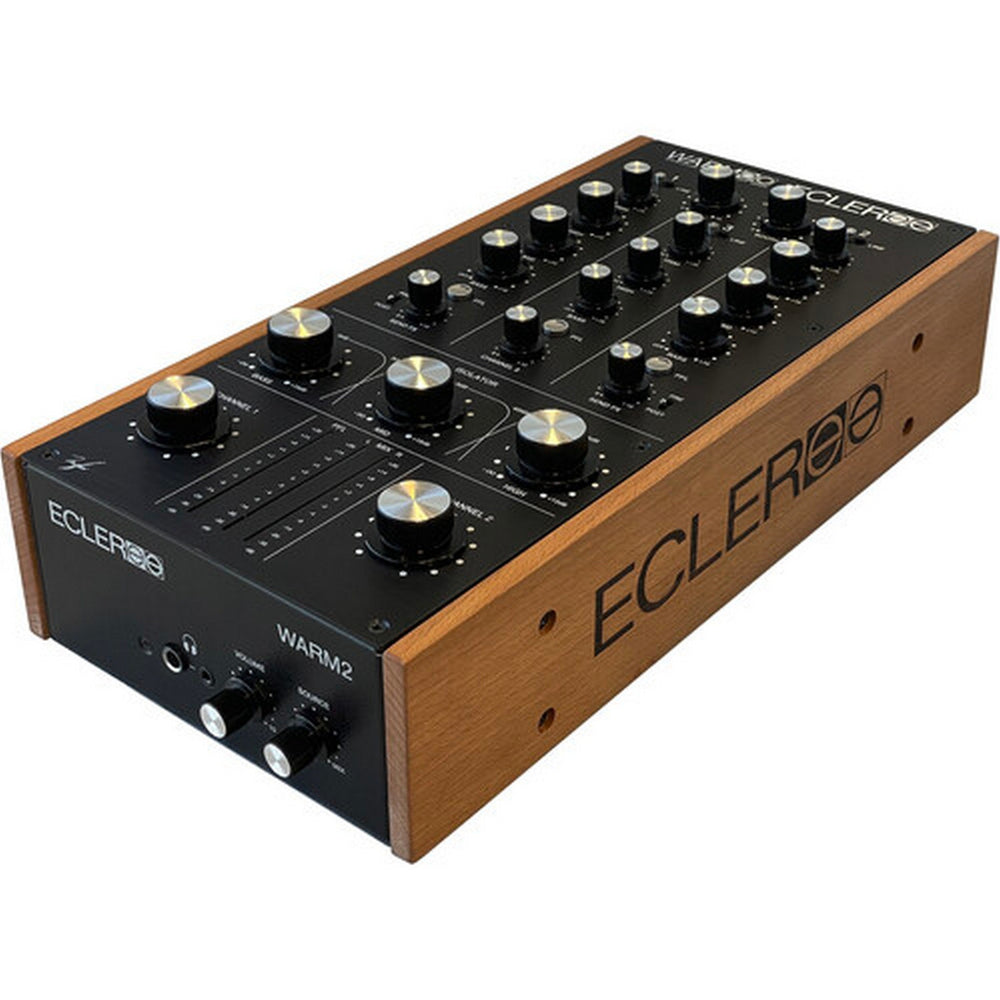

The Ecler WARM2/WARM4 Analog Rotary DJ Mixer series provides tactile rotary control for professional DJ sets, clubs, studios, and mobile performances. Choose the compact WARM2 for two primary phono/line channels plus a mic/line channel, or select the WARM4 for four phono/line channels, two microphone inputs, and expanded output routing.

Both versions combine rotary channel controls with three-band channel equalization and a fourth-order isolator, a steep 24 dB-per-octave circuit for cutting or boosting broad frequency bands. The WARM2 suits DJs building a compact two-channel rotary mixer setup, while the WARM4 supports larger club systems, multiple decks, and more complex analog DJ workflows.

Each mixer is designed and manufactured in Barcelona with Alps potentiometers, solid-aluminum control knobs, wooden side panels, and universal AC power support. Balanced and unbalanced master connections simplify integration with professional sound systems, while booth, record, headphone, and external effects connections support monitoring, recording, and performance processing. The WARM4 also carries FCC certification.

Key Features

• Two Model Configurations: Choose the compact WARM2 2+1-channel layout or the expanded four-channel WARM4 configuration.
• Rotary Mixing Controls: Alps potentiometers provide precise level adjustment for smooth blends and gradual transitions.
• Flexible Source Connections: Connect turntables, line-level players, microphones, and an external effects processor.
• Fourth-Order Isolator: Three large rotary controls shape bass, midrange, and treble with up to 24 dB-per-octave filtering.
• Per-Channel Equalization: Shape individual sources before they reach the master mix or system-wide isolator.
• Professional Output Routing: House, booth, record, effects-send, and headphone outputs accommodate club and studio workflows.
• WARM4 Subharmonic Synthesis: Selectable per-channel processing generates and reinforces ultra-low frequencies from 25 to 60 Hz.
• Durable Construction: Solid-aluminum knobs, wooden side panels, and internally mounted analog circuitry support professional use.

Technical Specifications

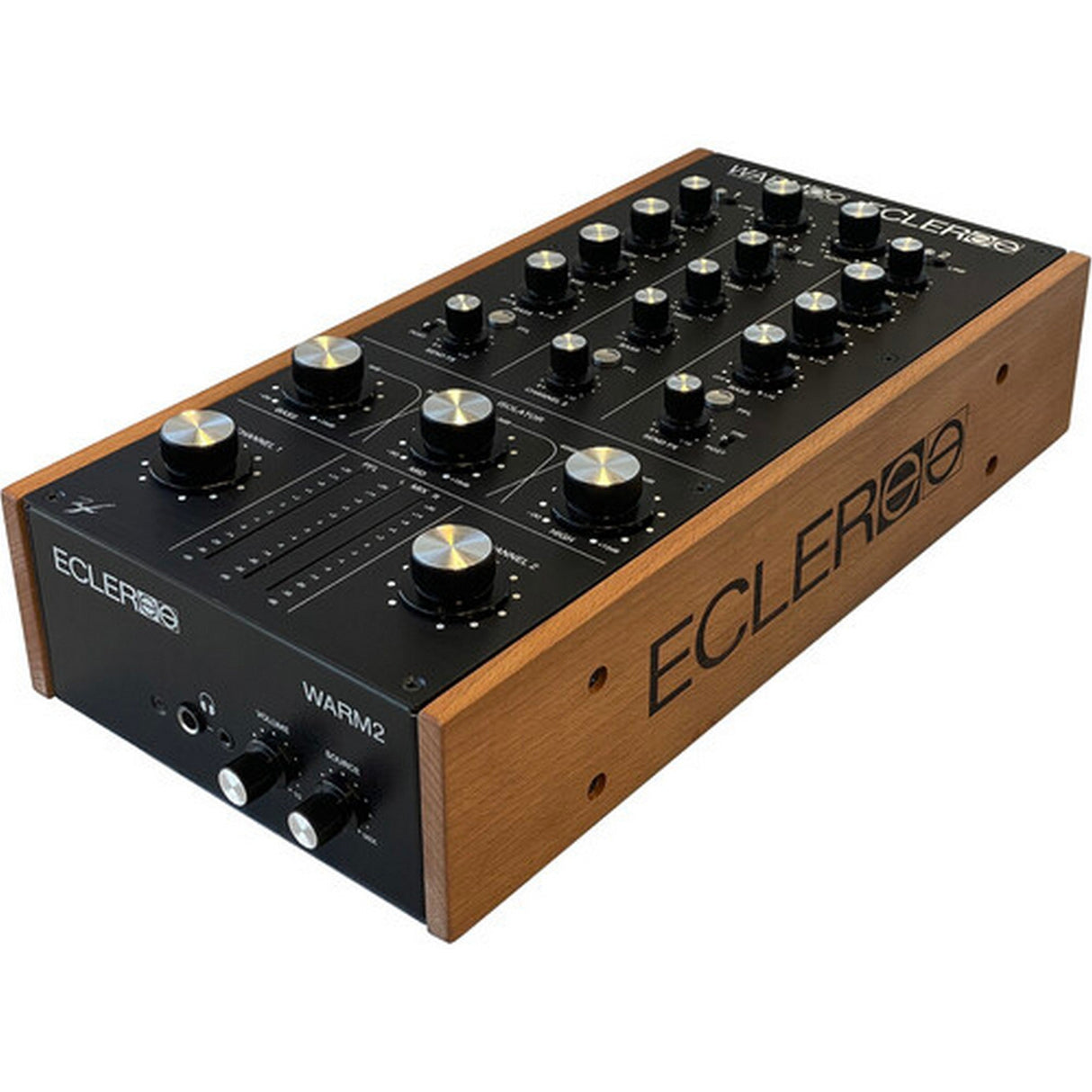

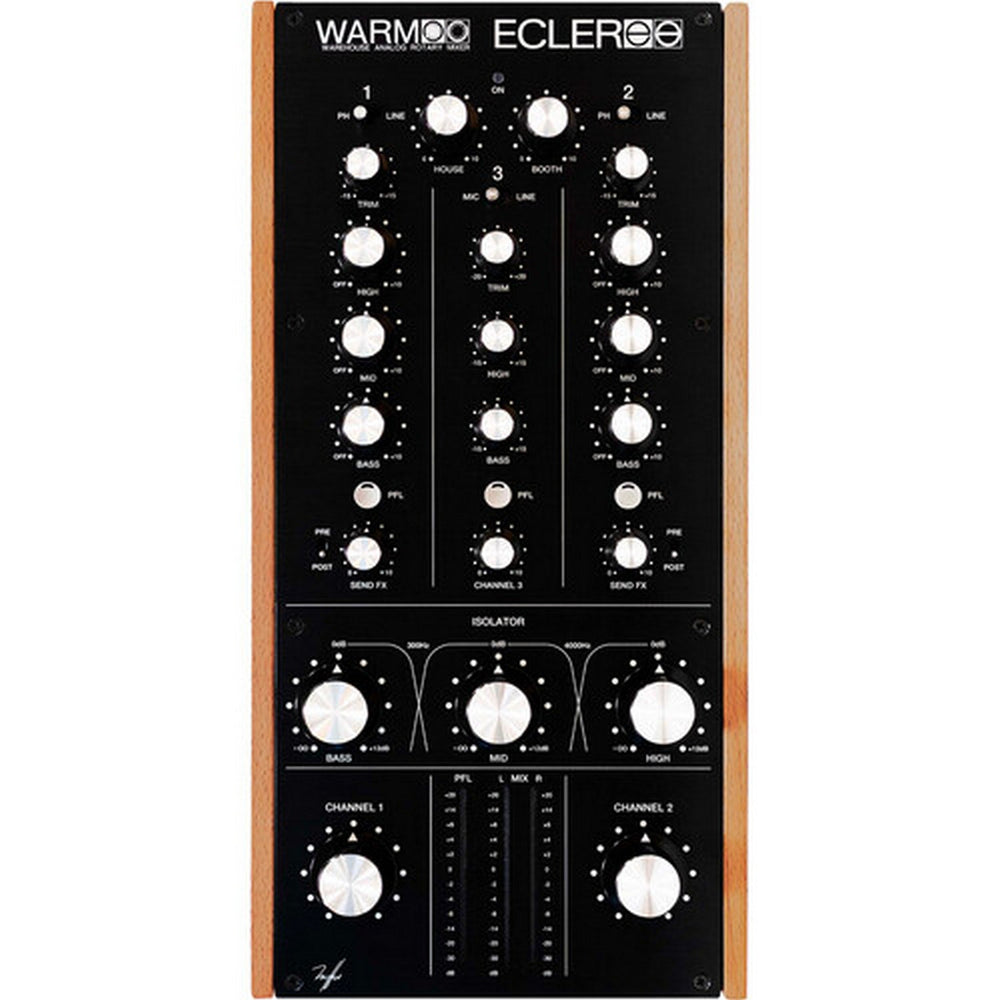

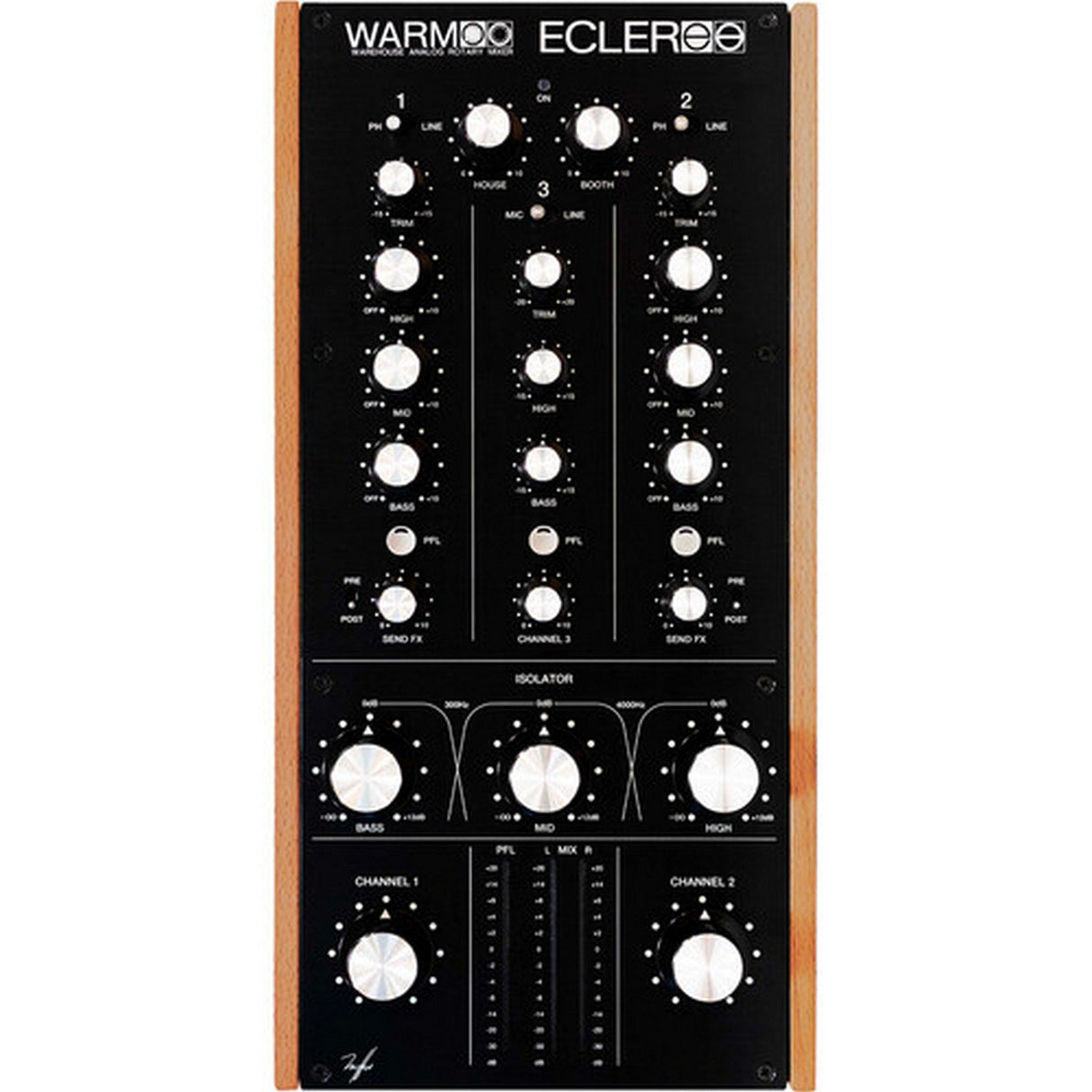

WARM2 Two-Channel Variant

• Mixing Configuration: Two main phono/line channels plus one microphone/line channel

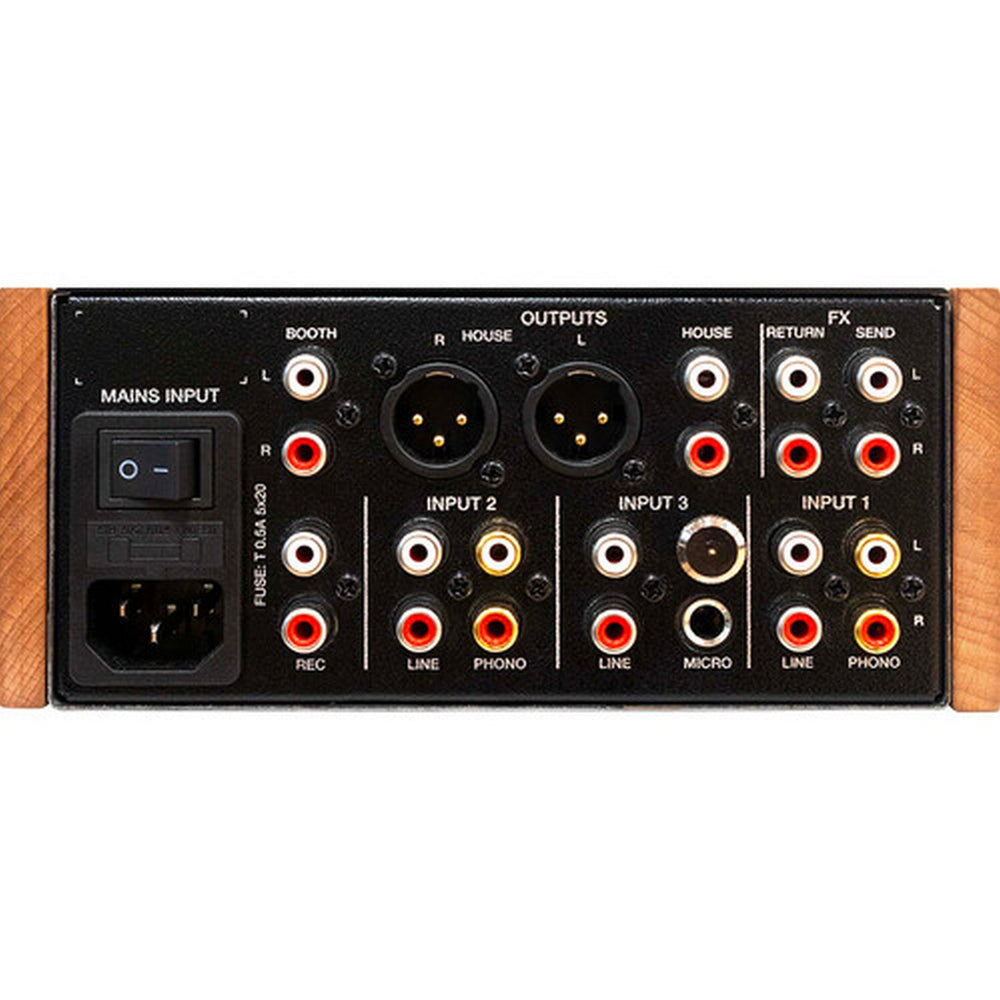

• Line Inputs: Three stereo unbalanced RCA inputs
• Phono Inputs: Two stereo unbalanced RCA inputs
• Microphone Input: One balanced 1/4-inch TRS input
• Effects Return: One stereo unbalanced RCA input
• Line Input Sensitivity and Impedance: 0 dBV at 50 kilohms
• Phono Input Sensitivity and Impedance: -40 dBV at 50 kilohms
• Microphone Input Sensitivity and Impedance: -50 dBV at greater than 1 kilohm
• Effects Return Sensitivity and Impedance: 0 dBV at greater than 6 kilohms
• Line Frequency Response: 10 Hz to 30 kHz, -1 dB
• Microphone Frequency Response: 10 Hz to 25 kHz, -1 dB
• Phono Frequency Response: RIAA within +/-0.5 dB
• Effects Return Frequency Response: 10 Hz to 50 kHz, -1 dB
• Line THD+N: Less than 0.006%
• Microphone THD+N: Less than 0.9%
• Phono THD+N: Less than 0.08%
• Effects Return THD+N: Less than 0.005%
• Microphone CMRR: Greater than 70 dB at 1 kHz
• Line Signal-to-Noise Ratio: Greater than 99 dB
• Microphone Signal-to-Noise Ratio: Greater than 85 dB
• Phono Signal-to-Noise Ratio: Greater than 98 dB
• Effects Return Signal-to-Noise Ratio: Greater than 100 dB
• Channel 1-2 Trim Range: +/-15 dB
• Channel 3 Trim Range: +/-20 dB
• Channel 1-2 Bass EQ: +10/-30 dB
• Channel 1-2 Mid EQ: +10/-25 dB
• Channel 1-2 Treble EQ: +10/-30 dB
• Channel 3 Bass and Treble EQ: +/-15 dB
• Channel EQ Crossover Frequencies: 200 Hz and 6.8 kHz with 12 dB-per-octave slopes
• Isolator Bass Range: +12/-70 dB
• Isolator Mid Range: +12/-40 dB
• Isolator Treble Range: +12/-70 dB
• Isolator Crossover Frequencies: 300 Hz and 4 kHz with 24 dB-per-octave slopes

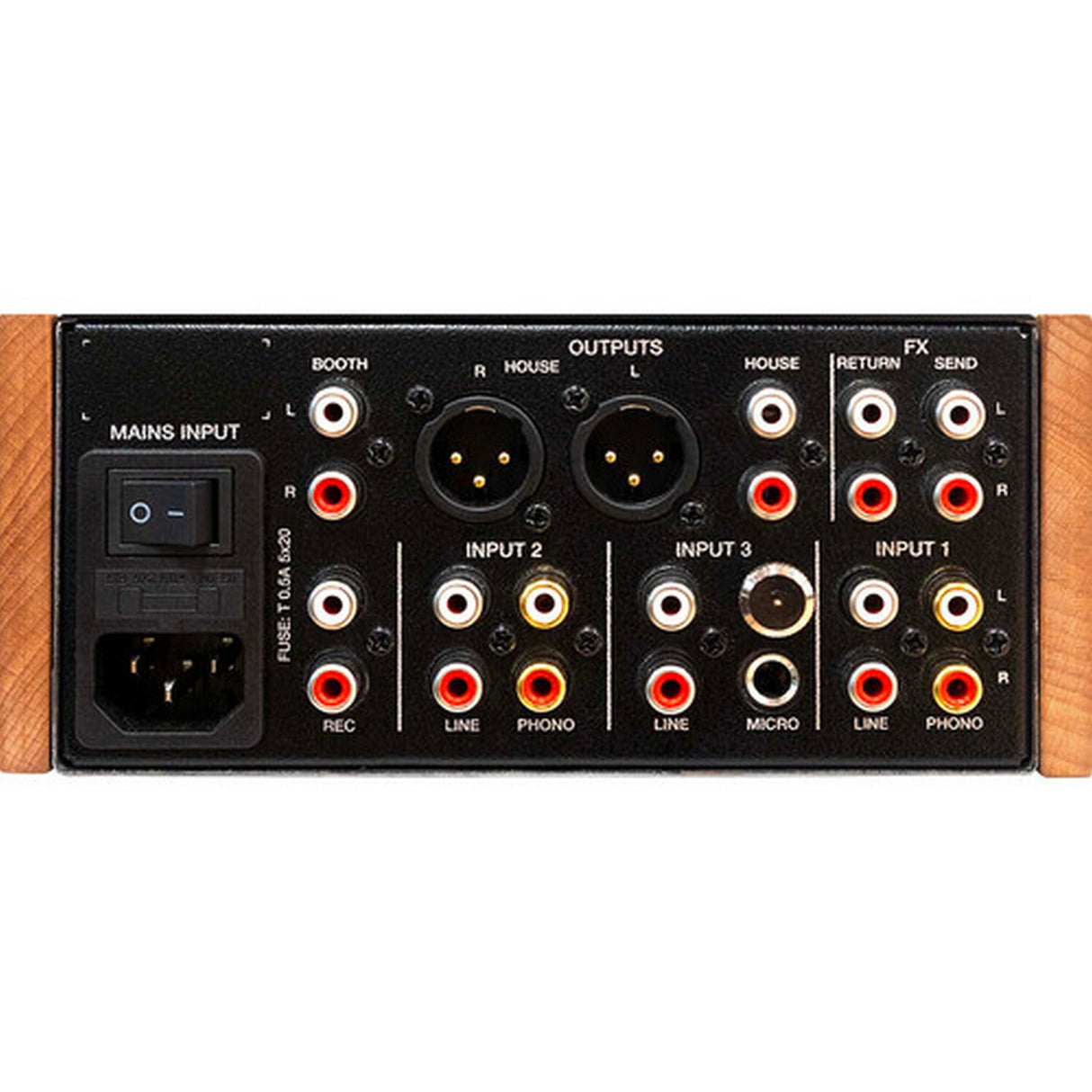

• Balanced House Output: Stereo XLR, 0 dBV into 600 ohms
• Unbalanced House Output: Stereo RCA, 0 dBV into 2.2 kilohms
• Booth Output: Stereo RCA, 0 dBV into 2.2 kilohms
• Record Output: Stereo RCA, 0 dBV into 10 kilohms
• Effects Send: Stereo RCA, 0 dBV into 2.2 kilohms

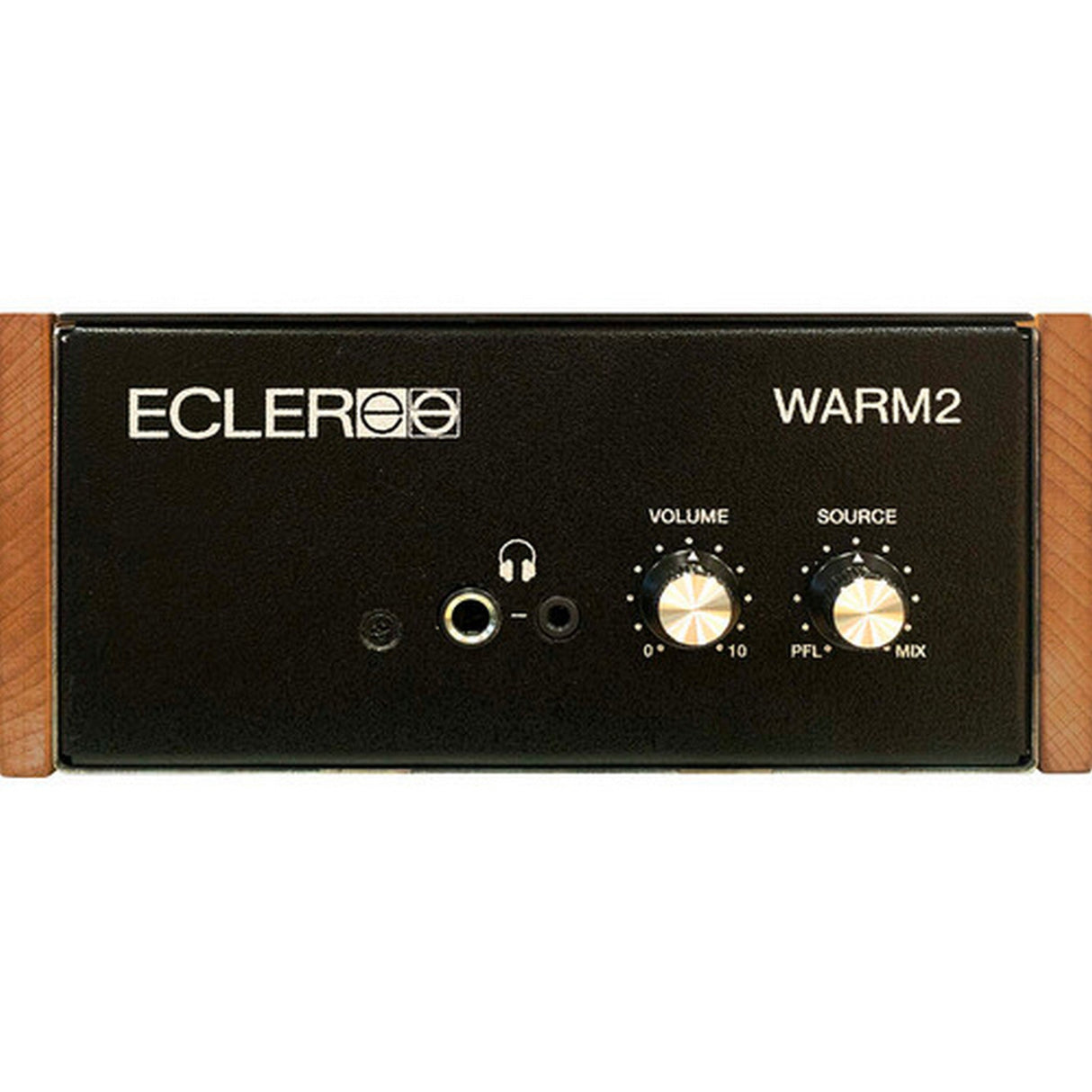

• Headphone Outputs: 1/4-inch and 3.5 mm stereo jacks
• Recommended Headphone Impedance: 200 to 600 ohms
• Maximum Undistorted Output: 21 dBV / 23 dBu
• Selectable House and Booth Level: Internal setting supports 0 dBV or +12 dBV output
• Metering: 12-segment MIX and PFL LED meters from -30 to +20 dBV
• Microphone Phantom Power: 18 VDC, 5 mA maximum, enabled by default
• Effects Routing: Send-level control with pre-fader or post-fader selection
• Control Components: Alps Blue Velvet rotary potentiometers
• AC Input: 90 to 264 VAC, 47 to 63 Hz
• Power Consumption: 30 VA
• Operating Temperature: 23 to 113 degrees Fahrenheit
• Operating Humidity: 20% to 90% RH, noncondensing
• Dimensions: 15.7 x 7.2 x 3.9 inches
• Weight: 7.9 pounds

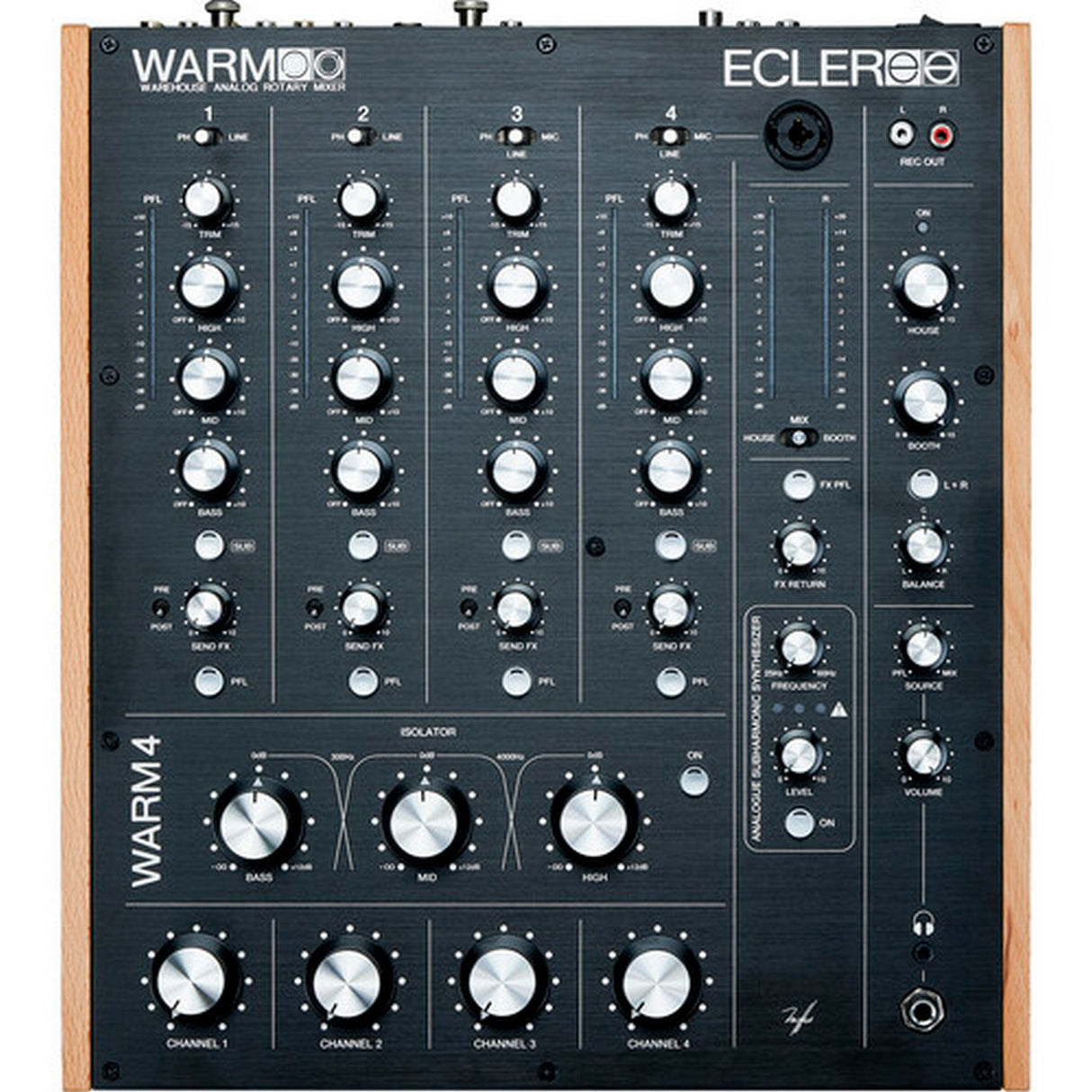

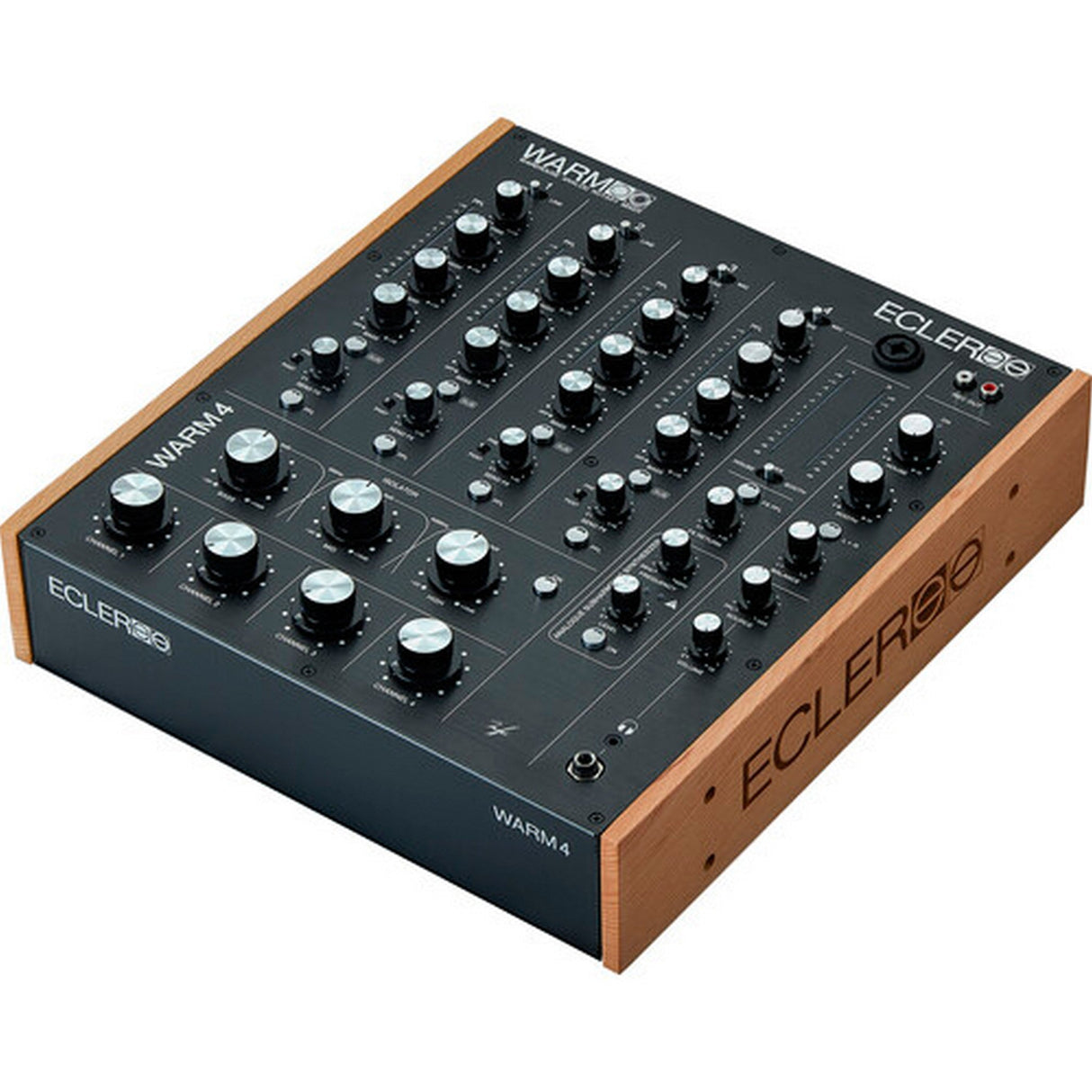

WARM4 Four-Channel Variant

• Mixing Configuration: Four phono/line channels with two balanced microphone inputs

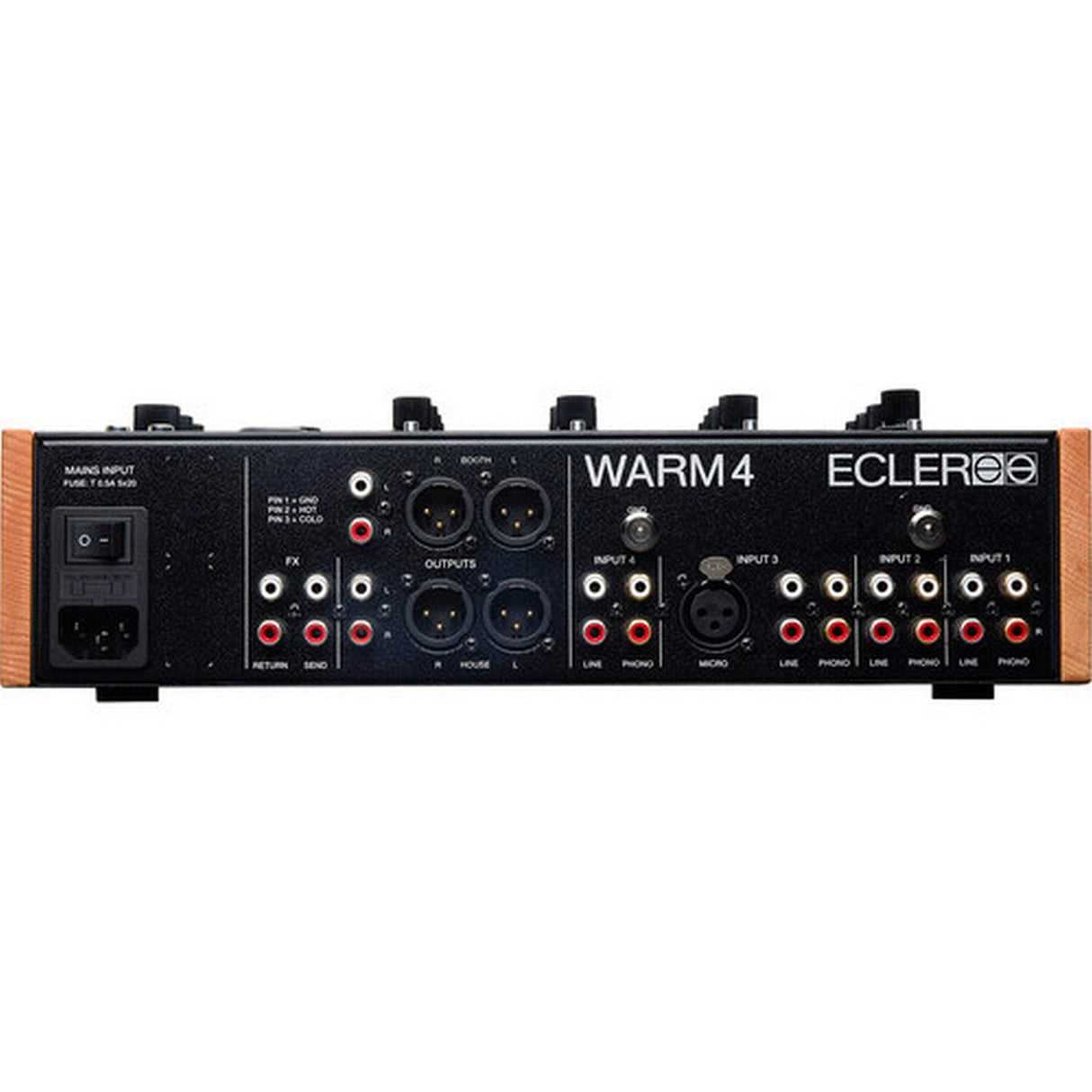

• Line Inputs: Four stereo unbalanced RCA inputs
• Phono Inputs: Four stereo unbalanced RCA inputs
• Microphone Input 3: Balanced 3-pin XLR input
• Microphone Input 4: Balanced XLR and 1/4-inch TRS combo input
• Effects Return: One stereo unbalanced RCA input
• Line Input Sensitivity and Impedance: 0 dBV at 50 kilohms
• Phono Input Sensitivity and Impedance: -40 dBV at 50 kilohms
• Microphone Input Sensitivity and Impedance: -50 dBV at greater than 1 kilohm
• Effects Return Sensitivity and Impedance: 0 dBV at greater than 6 kilohms
• Line Frequency Response: 10 Hz to 30 kHz, -1 dB
• Microphone Frequency Response: 10 Hz to 25 kHz, -1 dB
• Phono Frequency Response: RIAA within +/-0.5 dB
• Effects Return Frequency Response: 10 Hz to 50 kHz, -1 dB
• Line THD+N: Less than 0.004%
• Microphone THD+N: Less than 0.7%
• Phono THD+N: Less than 0.06%
• Effects Return THD+N: Less than 0.001%
• Microphone CMRR: Greater than 75 dB at 1 kHz
• Line Signal-to-Noise Ratio: Greater than 105 dB
• Microphone Signal-to-Noise Ratio: Greater than 90 dB
• Phono Signal-to-Noise Ratio: Greater than 100 dB
• Effects Return Signal-to-Noise Ratio: Greater than 110 dB
• Channel Trim Range: +/-15 dB
• Channel Bass EQ: +10/-30 dB
• Channel Mid EQ: +10/-25 dB
• Channel Treble EQ: +10/-30 dB
• Channel EQ Crossover Frequencies: 200 Hz and 6.8 kHz with 12 dB-per-octave slopes
• Isolator Bass Range: +12/-70 dB
• Isolator Mid Range: +12/-40 dB
• Isolator Treble Range: +12/-70 dB
• Isolator Crossover Frequencies: 300 Hz and 4 kHz with 24 dB-per-octave slopes
• Subharmonic Input Filter: Selectable from 50 to 120 Hz
• Subharmonic Synthesis Range: 25 to 60 Hz
• Subharmonic Maximum Output: +12 dBV
• Balanced House Output: Stereo XLR, 0 dBV into 600 ohms
• Unbalanced House Output: Stereo RCA, 0 dBV into 2.2 kilohms
• Balanced Booth Output: Stereo XLR, 0 dBV into 2.2 kilohms
• Unbalanced Booth Output: Stereo RCA, 0 dBV into 2.2 kilohms
• Record Output: Stereo RCA, 0 dBV into 10 kilohms
• Effects Send: Stereo RCA, 0 dBV into 2.2 kilohms
• Headphone Outputs: 1/4-inch and 3.5 mm stereo jacks
• Recommended Headphone Impedance: 200 to 600 ohms
• Maximum Undistorted Output: 21 dBV / 23 dBu
• Selectable House and Booth Level: Internal setting supports 0 dBV or +12 dBV output
• Effects Routing: Independent send level and pre-fader or post-fader selection for each channel
• Effects Return Controls: Return level and PFL monitoring
• Input Meter: 12-segment LED display from -38 to +10 dBV
• House, Mix, and Booth Meter: 12-segment LED display from -30 to +20 dBV
• Subharmonic Meter: Three-segment LED display at -20, 0, and +4 dBV
• Microphone Phantom Power: 18 VDC, 5 mA maximum, enabled by default
• Control Components: Alps Blue Velvet and Alps RK09L rotary potentiometers
• Power Supply: Internal universal power supply
• AC Input: 90 to 264 VAC, 47 to 63 Hz
• AC Connector: 15 A IEC inlet
• Power Consumption: 39 VA
• Operating Temperature: 23 to 113 degrees Fahrenheit
• Operating Humidity: 20% to 90% RH, noncondensing
• Storage Temperature: 14 to 122 degrees Fahrenheit
• Storage Humidity: Less than 90% RH, noncondensing
• Installation: Desktop or optional rack mounting
• Certification: FCC
• Dimensions (W x H x D): 13.4 x 3.2 x 14.7 inches
• Weight: 11.7 pounds
• Shipping Dimensions (W x H x D): 19.5 x 6.9 x 17.1 inches
• Shipping Weight: 14.9 pounds

What's In the Box

WARM2

• Ecler WARM2 analog rotary mixer
• IEC mains connector
• Four RCA protection caps
• First Steps Guide

WARM4

• Ecler WARM4 analog rotary mixer
• IEC mains connector
• Eight RCA protection caps
• First Steps Guide
