Electro-Voice EVID-EC4.2 4-Inch Ceiling Speaker, Pair

Electro-Voice EVID-EC4.2 4-Inch Ceiling Speaker, Pair

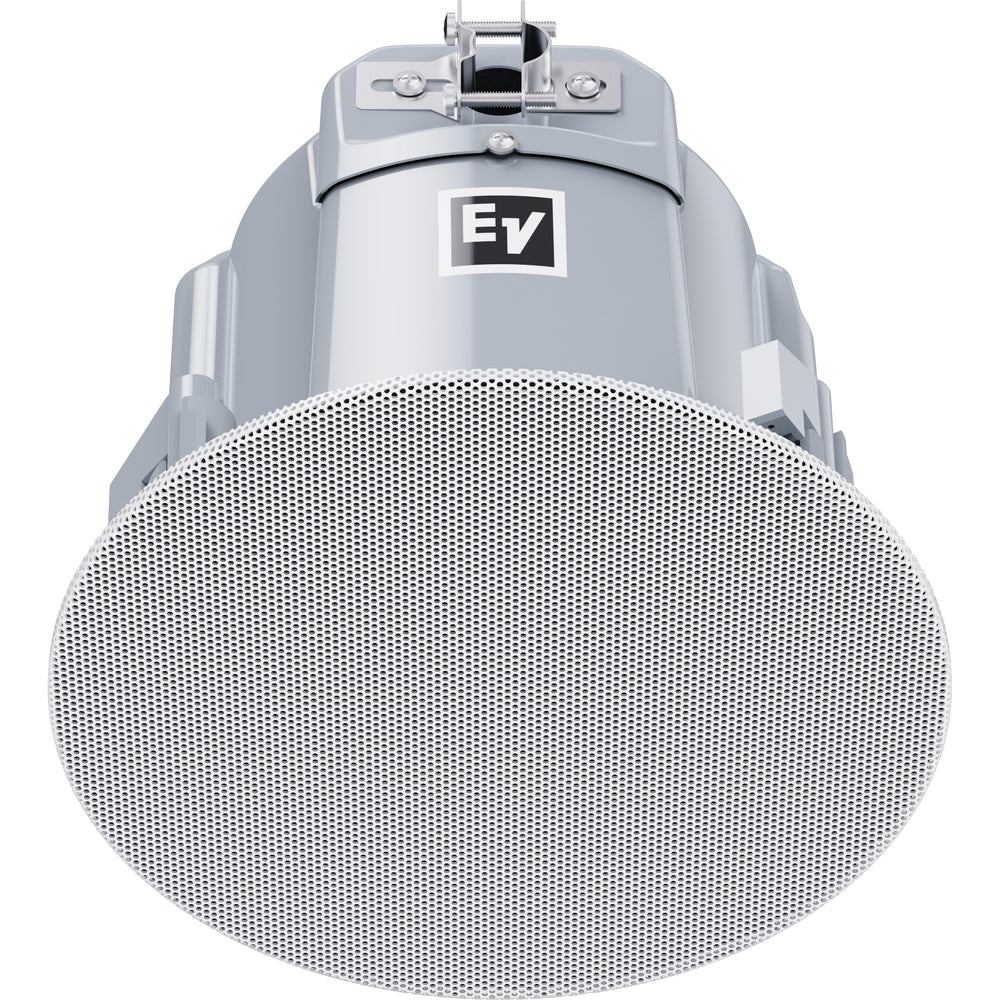

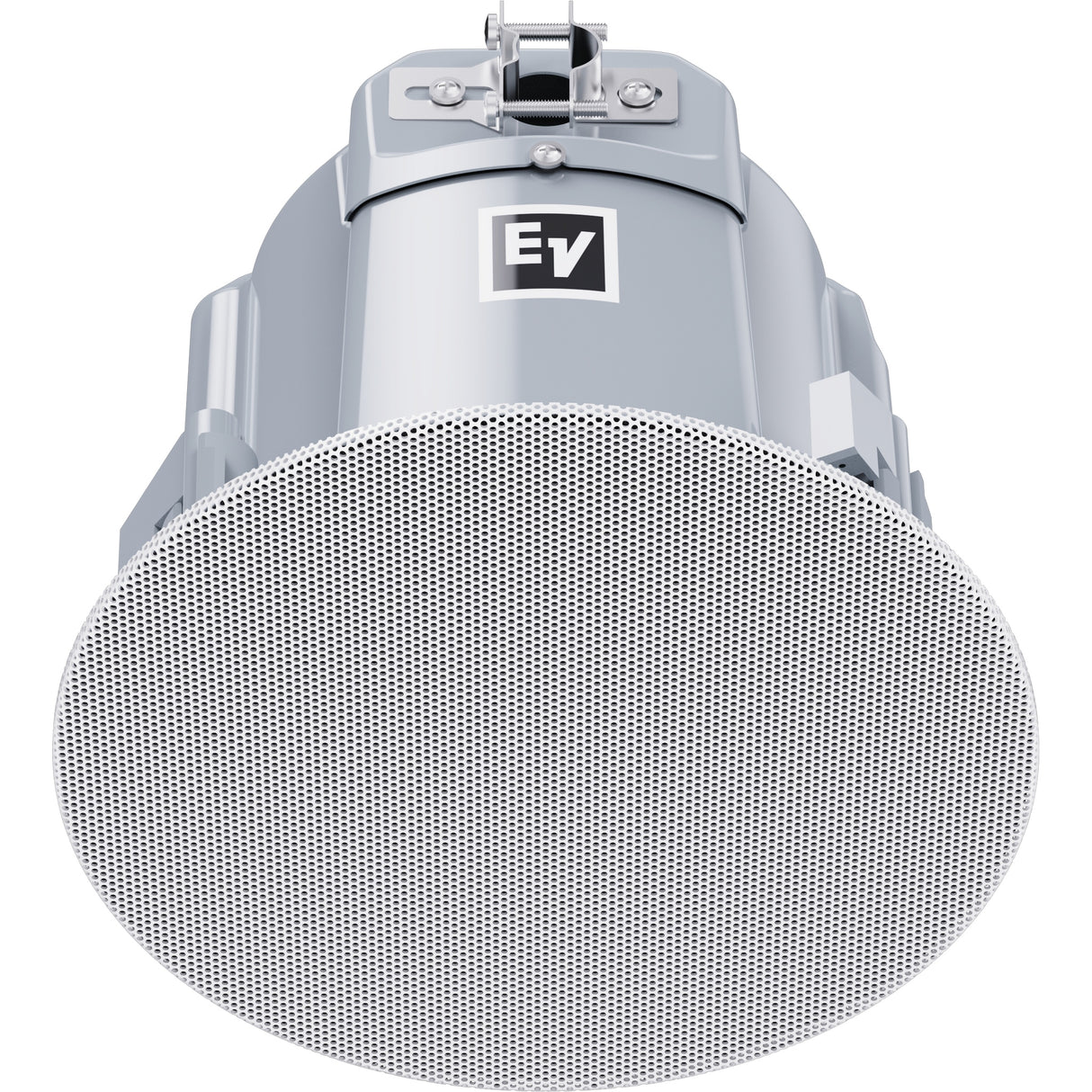

The Electro-Voice EVID-EC4.2 is a compact 4-inch two-way ceiling speaker engineered for clear speech and balanced background music in commercial spaces. Its bezel-less magnetic grille blends into modern interiors while the coaxial design helps maintain uniform coverage and intelligibility across the room.

Flexible power options include selectable 70V/100V transformer taps and an 8 ohm bypass, so it integrates easily into distributed audio systems or standard low-impedance designs. Installers benefit from a front-baffle tap selector and the included tile bridge and C-ring for fast, secure drop-ceiling mounting.

With wide 130-degree conical coverage and strong continuous output, the EVID-EC4.2 is ideal for retail, hospitality, education, worship, and corporate environments where low-profile aesthetics and dependable performance are required.

Key Features

• 4-inch coaxial two-way design for balanced music and intelligible speech
• Selectable 70V/100V taps plus 8 ohm bypass for flexible system integration

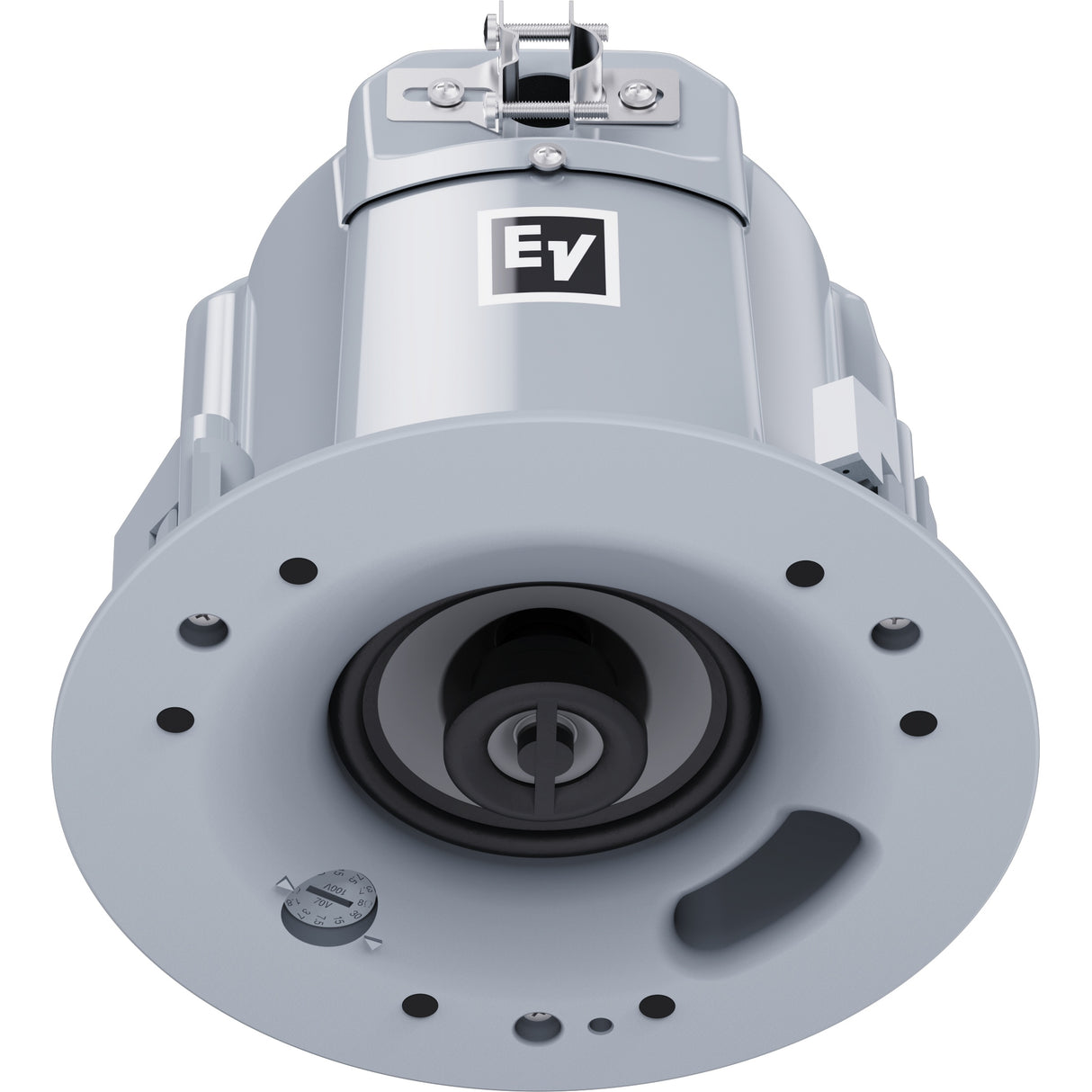

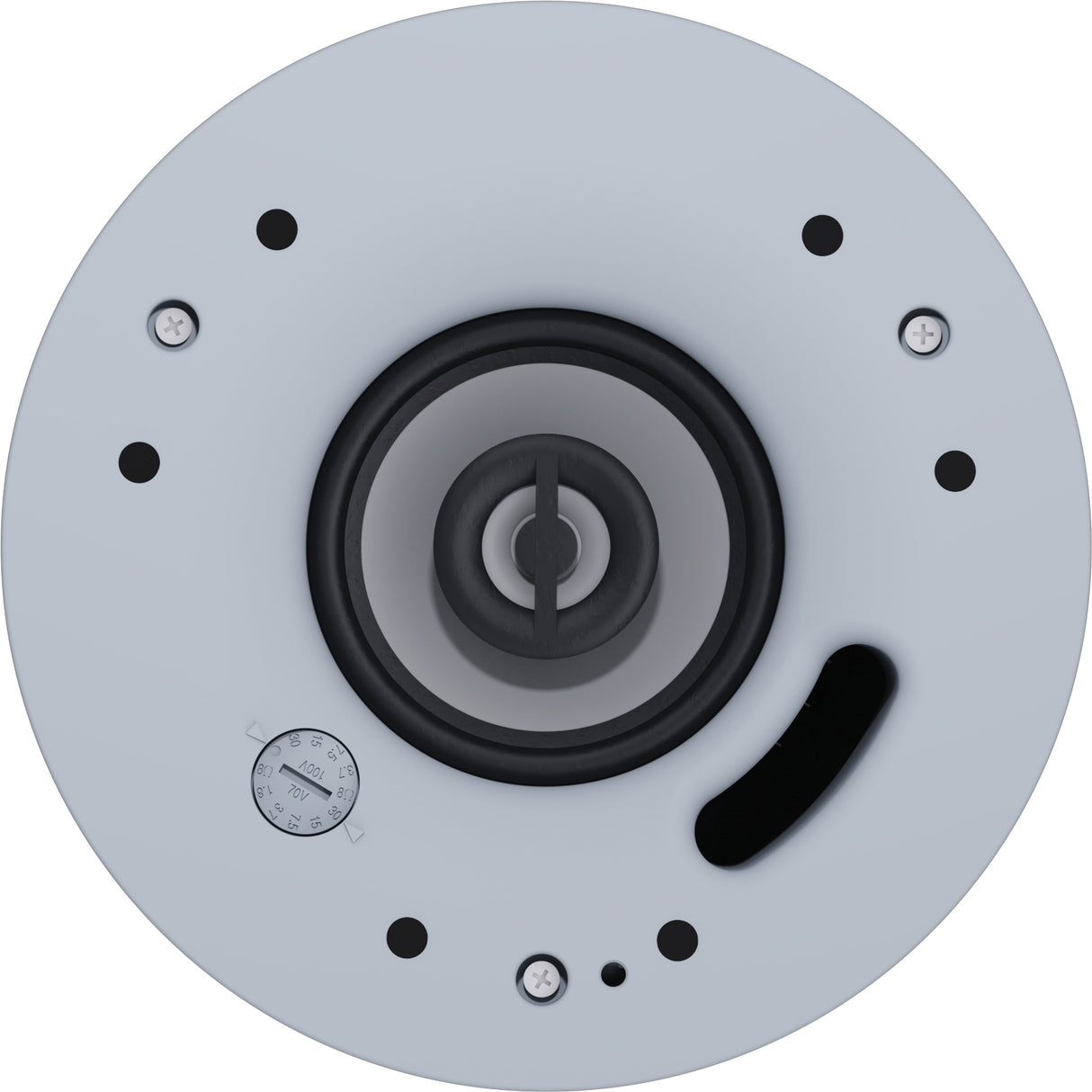

• Front-baffle wattage selector for quick adjustments during installation

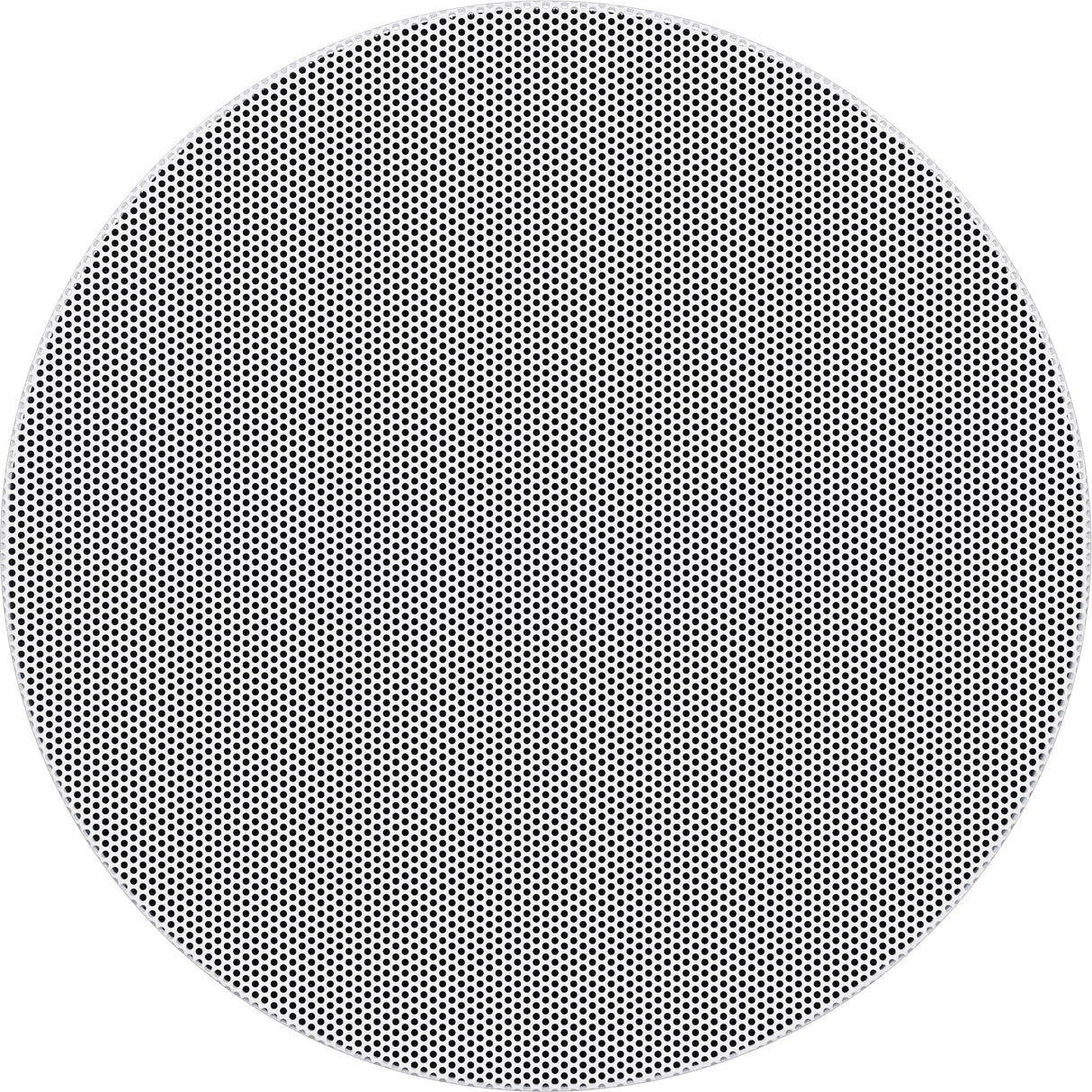

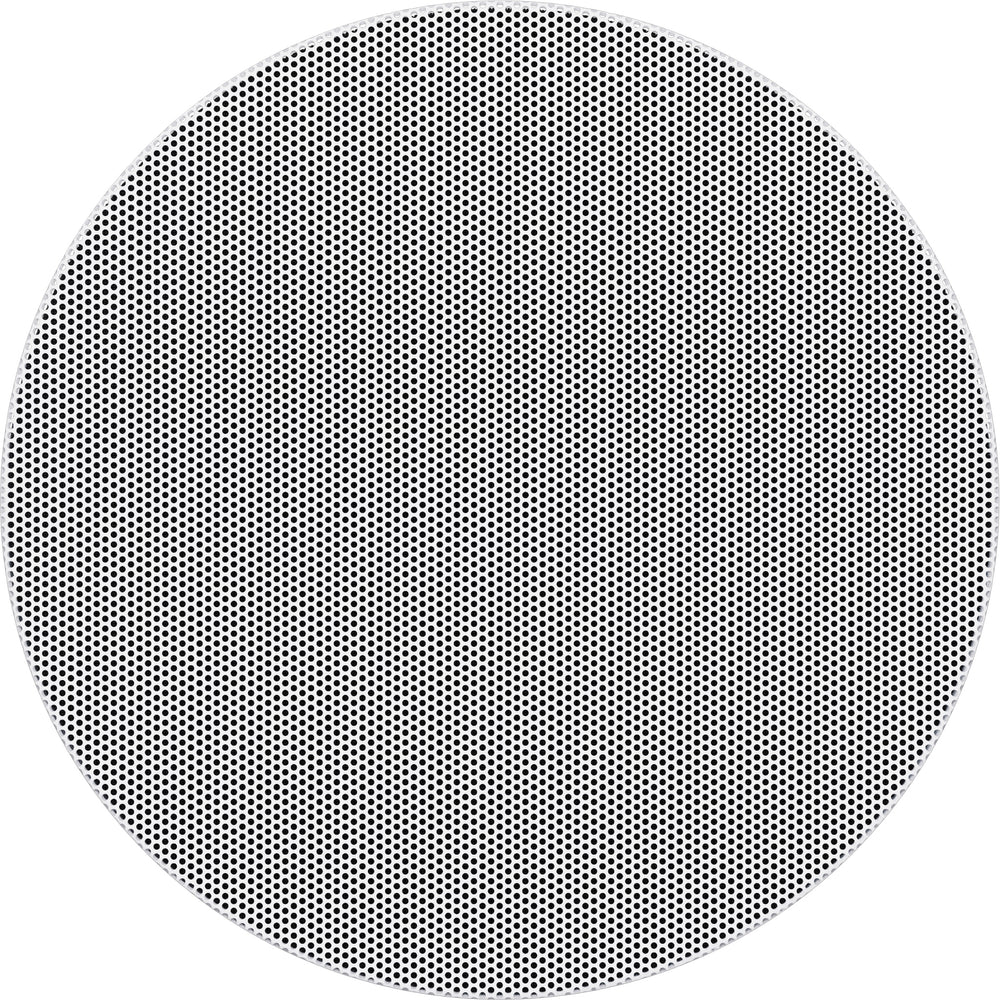

• Bezel-less magnetic grille with clean, low-profile appearance
• Includes tile bridge and mounting ring for secure drop-ceiling installs
• Safety rated for commercial use (UL/CSA) and suitable for air-handling spaces

Technical Specifications

• Frequency Range (-10 dB): 80 Hz – 20 kHz
• Sensitivity (1 W/1 m): 89 dB SPL
• Maximum SPL (Continuous/Peak): 106 dB / 112 dB
• Power Handling (Continuous/Peak): 50 W / 200 W
• Nominal Impedance: 8 ohm (bypass)
• Transformer Taps 70 V: 30 W, 15 W, 7.5 W, 3.75 W, 1.88 W
• Transformer Taps 100 V: 30 W, 15 W, 7.5 W, 3.75 W
• Coverage Angle: 130° conical

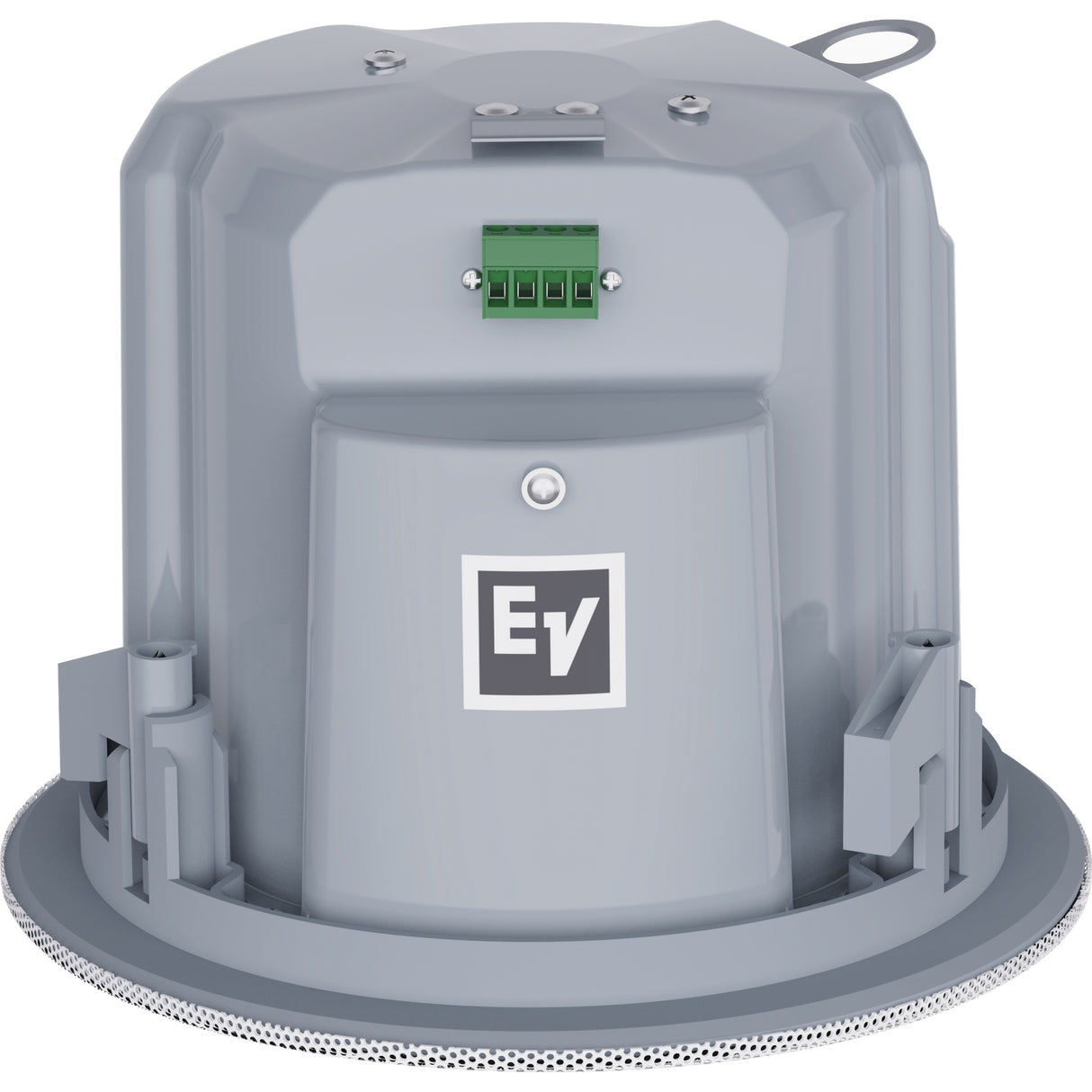

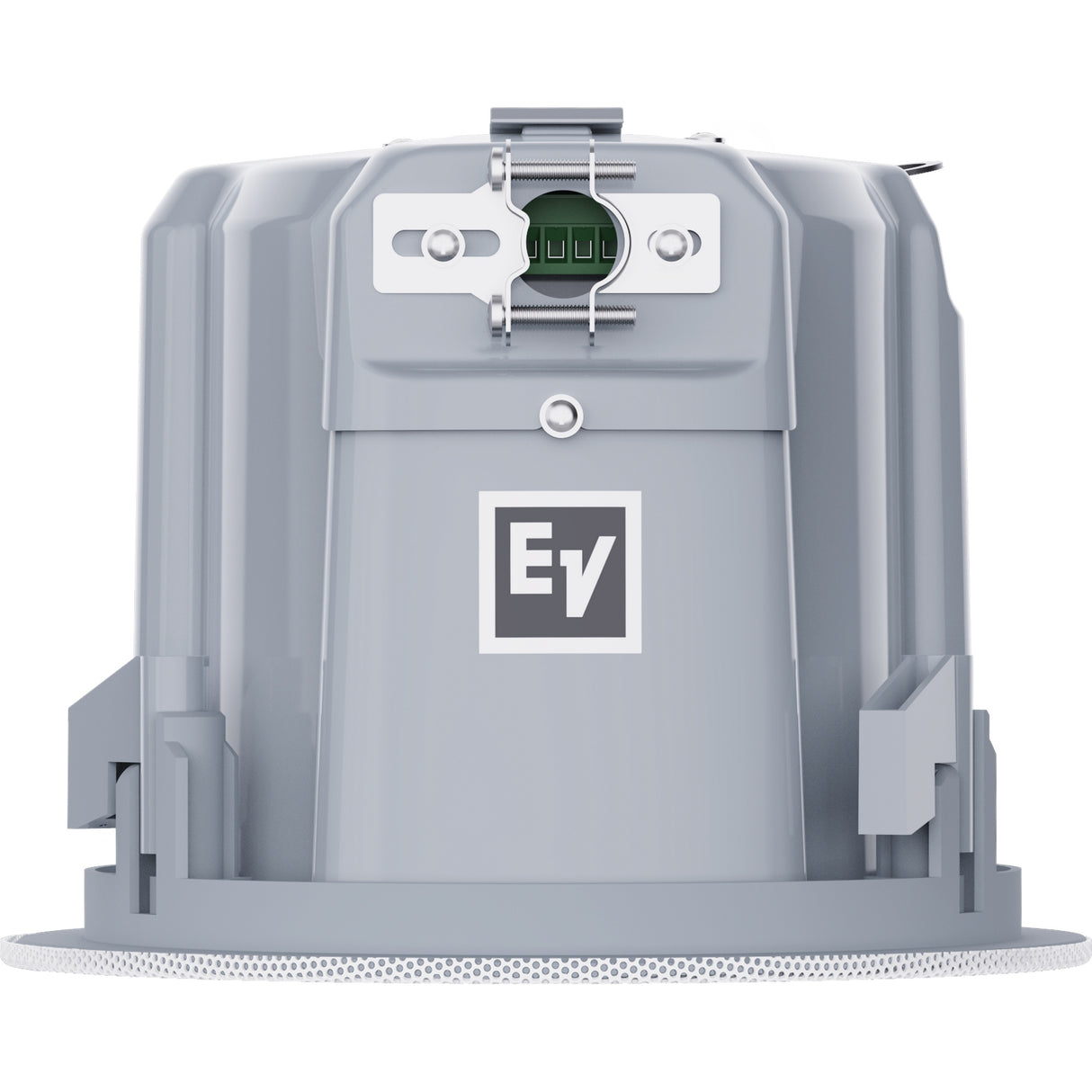

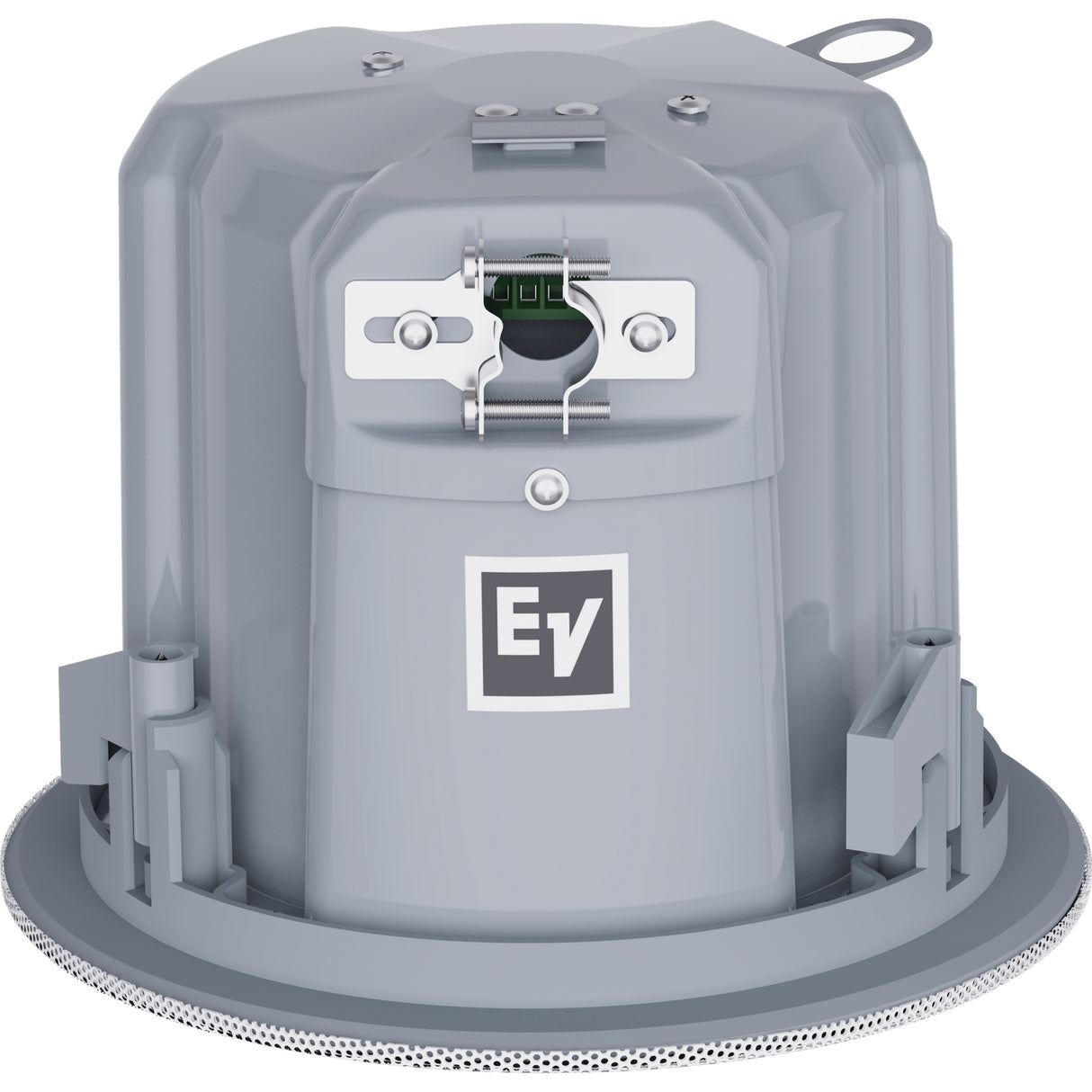

• Connector Type: 4-pin Euroblock with pass-through
• Cutout Diameter: 7.2 in
• Ceiling Thickness Range: 0.5 in – 1.5 in
• Color: White
