Electro-Voice EVID-EC6.2E 6.5-Inch Ceiling Speaker, Pair

Electro-Voice EVID-EC6.2E 6.5-Inch Ceiling Speaker, Pair

The Electro-Voice EVID-EC6.2E is a 6.5-inch two-way ceiling loudspeaker engineered for clear paging and rich background music in commercial installations. Its bezel-less magnetic grille blends into modern interiors, while the coaxial driver delivers balanced, intelligible sound across a wide listening area—even at lower volumes.

Designed for flexible system design and faster installs, the EC6.2E includes selectable 70-volt and 100-volt transformer taps plus an 8-ohm bypass. A front-baffle wattage selector enables quick tuning without removing the grille, and the included tile bridge and C-ring support secure, code-friendly mounting in drop ceilings.

Voice-alarm readiness (EN54-24) and broad commercial safety certifications make the EC6.2E a dependable choice for retail, hospitality, education, corporate, transportation hubs, and public spaces that require reliable performance and compliance.

Key Features

• 6.5-inch coaxial two-way design for intelligible speech and full-range music
• Selectable 70V/100V taps plus 8-ohm bypass with front-baffle wattage switch

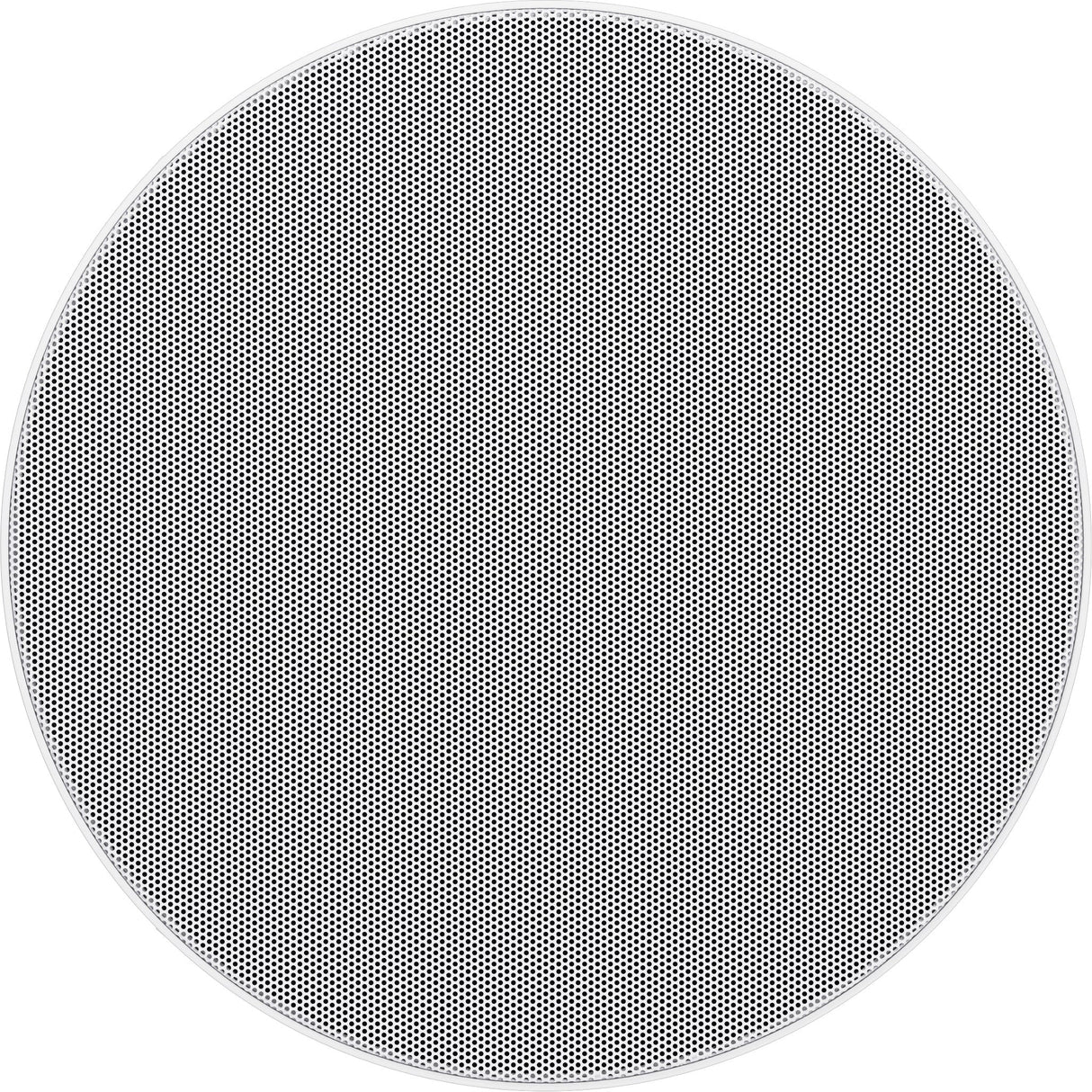

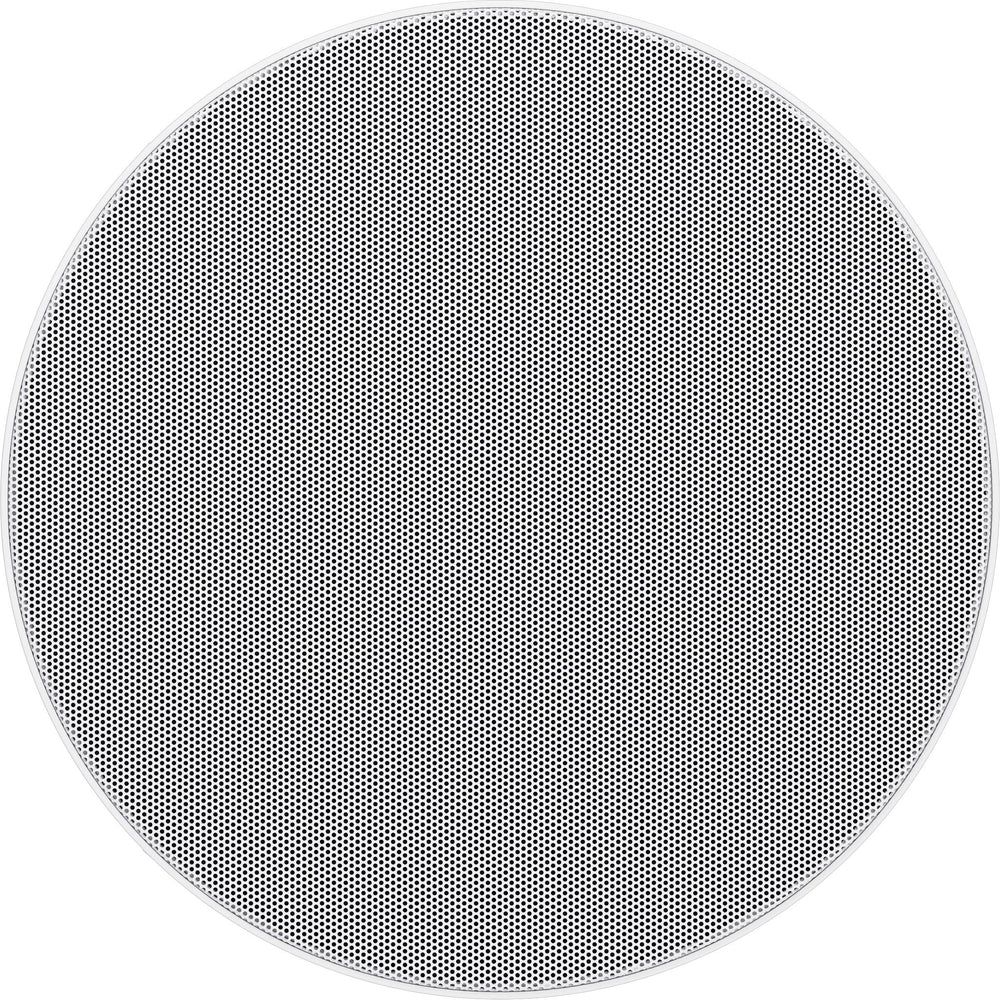

• Bezel-less magnetic grille for low-profile, modern ceiling integration
• Includes tile bridge and C-ring for fast, secure drop-ceiling installation
• Wide 110-degree conical coverage for even sound dispersion
• Voice-alarm ready with EN54-24 certification and additional commercial safety ratings

Technical Specifications

• Frequency Range (-10 dB): 85 Hz – 20 kHz
• Sensitivity (1 W/1 m): 92 dB SPL
• Maximum SPL (Continuous/Peak): 107 dB / 113 dB
• Power Handling (Continuous/Peak): 30 W / 120 W
• Nominal Impedance: 8 ohm (bypass)
• Transformer Taps 70 V: 30 W, 15 W, 7.5 W, 3.75 W, 1.88 W
• Transformer Taps 100 V: 30 W, 15 W, 7.5 W, 3.75 W
• Coverage Angle: 110-degree conical
• Connector Type: 4-pin Euroblock with pass-through
• Cutout Diameter: 10.7 in
• Mounting Depth: approximately 5.9 in
• Grille/Enclosure: Powder-coated steel grille; steel back can
• Certifications: EN54-24, UL 1480A, UL 2043, CSA C22.2 No. 205, IEC 62368-1
• Ingress Rating: IP34 (indoor)
• Operating Temperature: 32 °F – 122 °F (0 °C – 50 °C)
