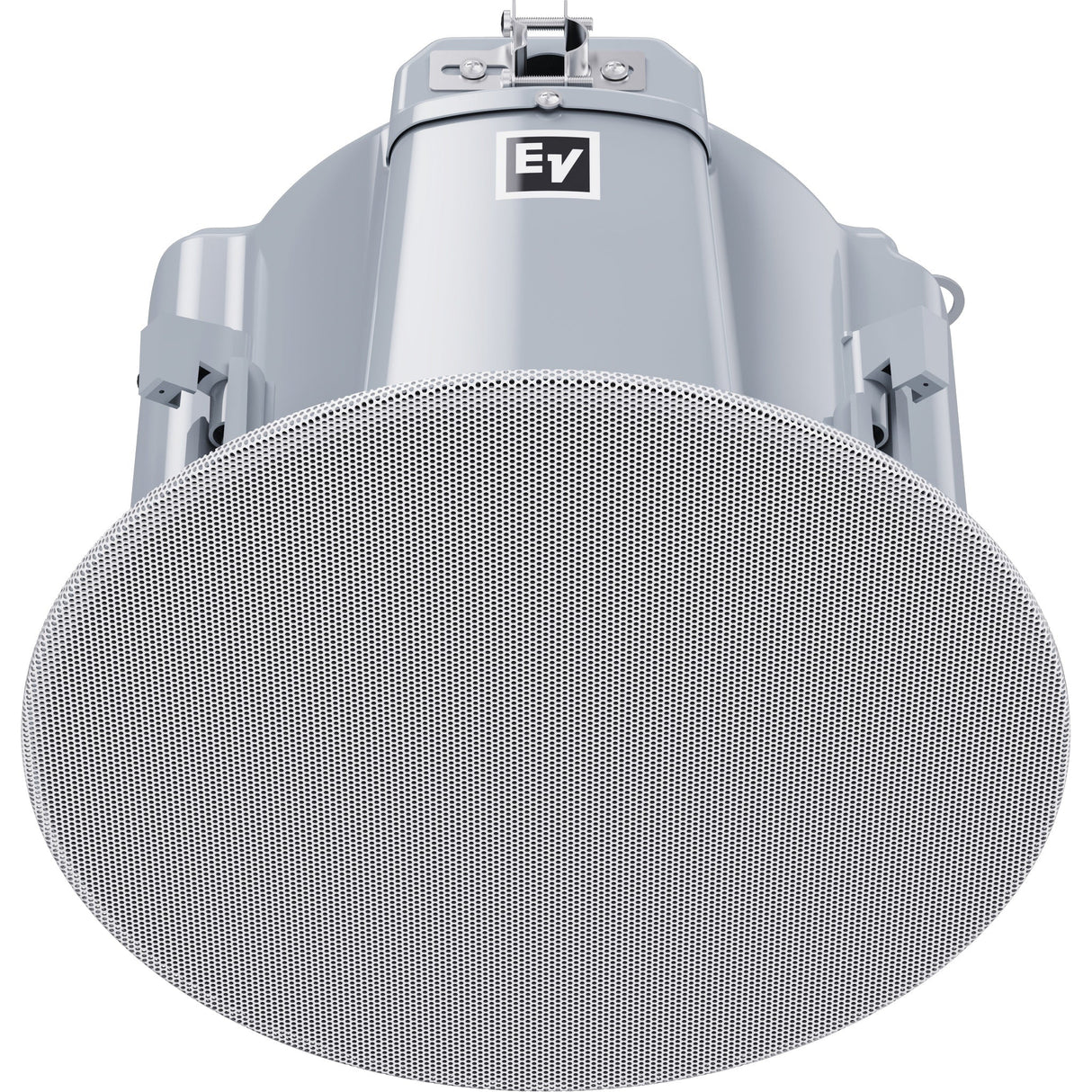

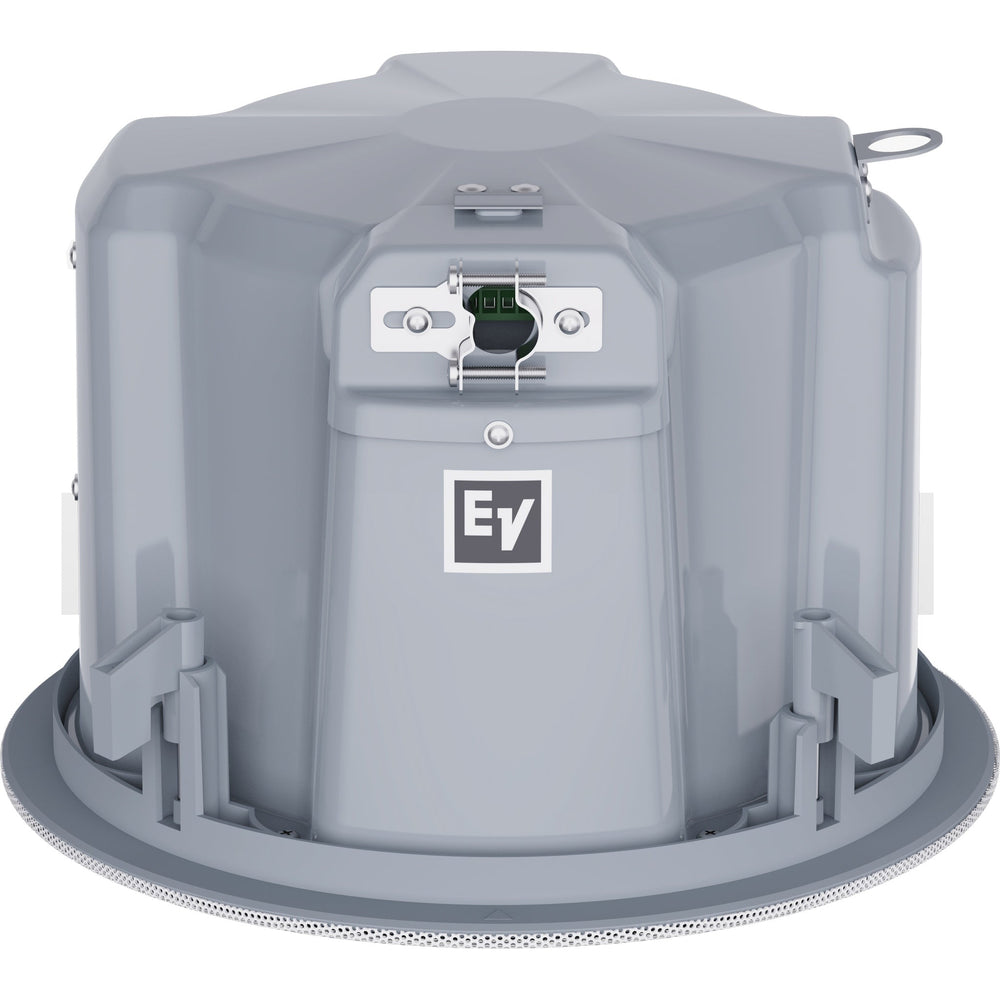

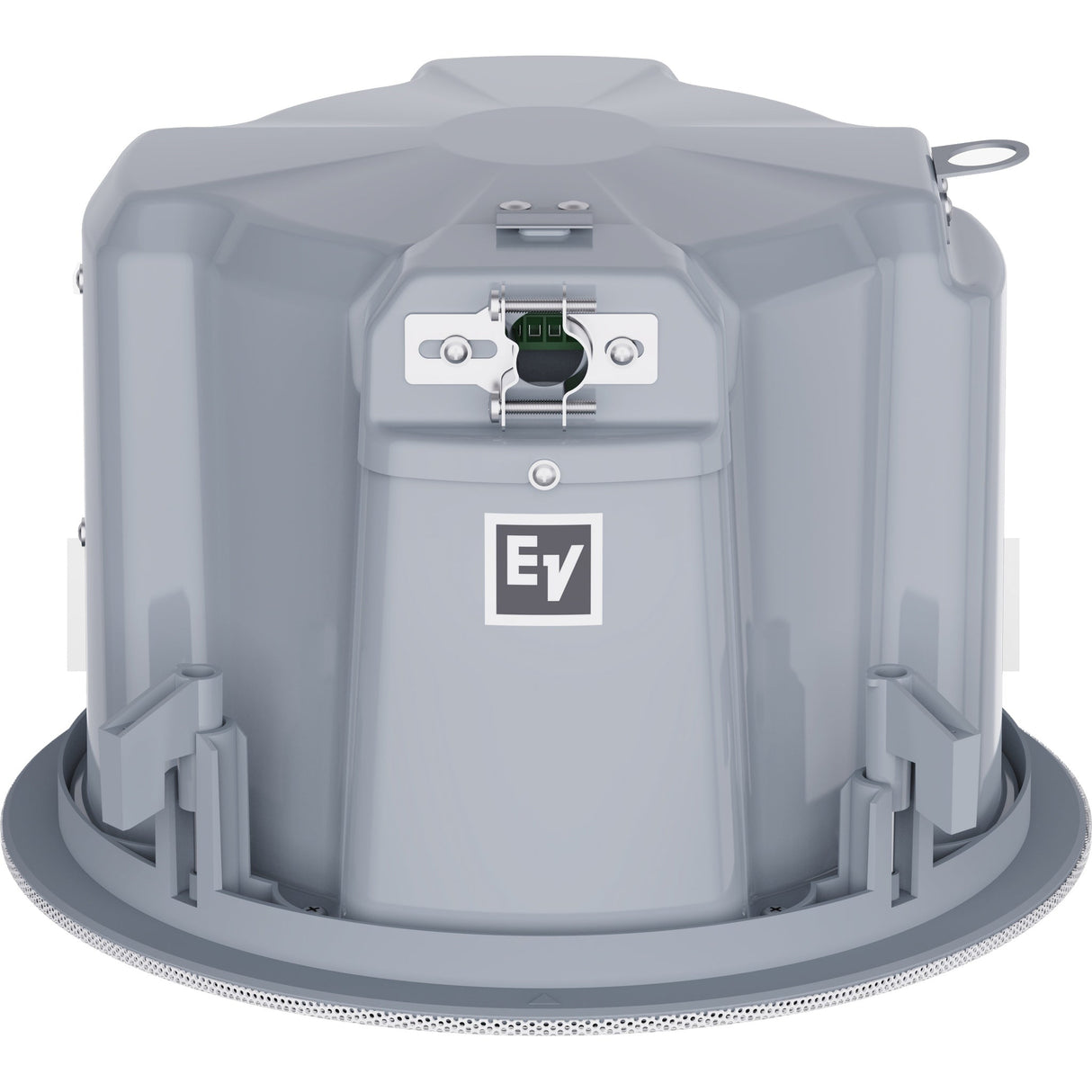

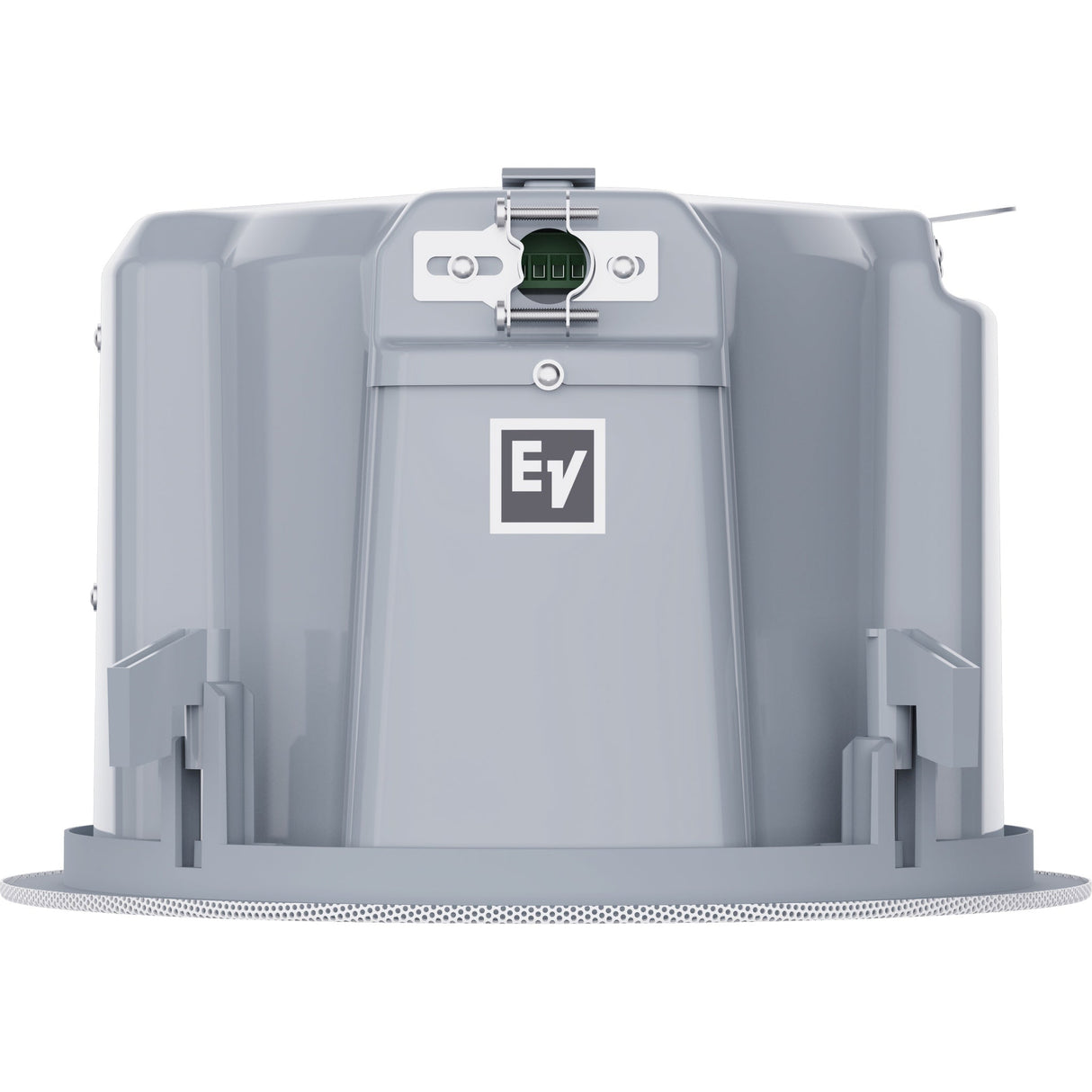

Electro-Voice EVID-EC8.2 8-Inch Ceiling Speaker, Pair

Electro-Voice EVID-EC8.2 8-Inch Ceiling Speaker, Pair

The Electro-Voice EVID-EC8.2 is a high-performance 8-inch two-way ceiling speaker designed for commercial environments that demand clear voice reproduction and rich background music. Its clean, bezel-less magnetic grille blends into modern interiors while the robust driver design delivers dependable, full-range sound in larger rooms and open areas.

Flexible power options let you deploy the EC8.2 in distributed 70V or 100V systems or as a direct 8 ohm loudspeaker. Installers get faster, cleaner installs with the included tile bridge and mounting ring plus a front-baffle tap switch for quick wattage adjustments without removing the grille.

With strong output, wide coverage, and safety certifications for commercial use, the EVID-EC8.2 is a reliable choice for retail, hospitality, education, houses of worship, and corporate spaces.

Key Features

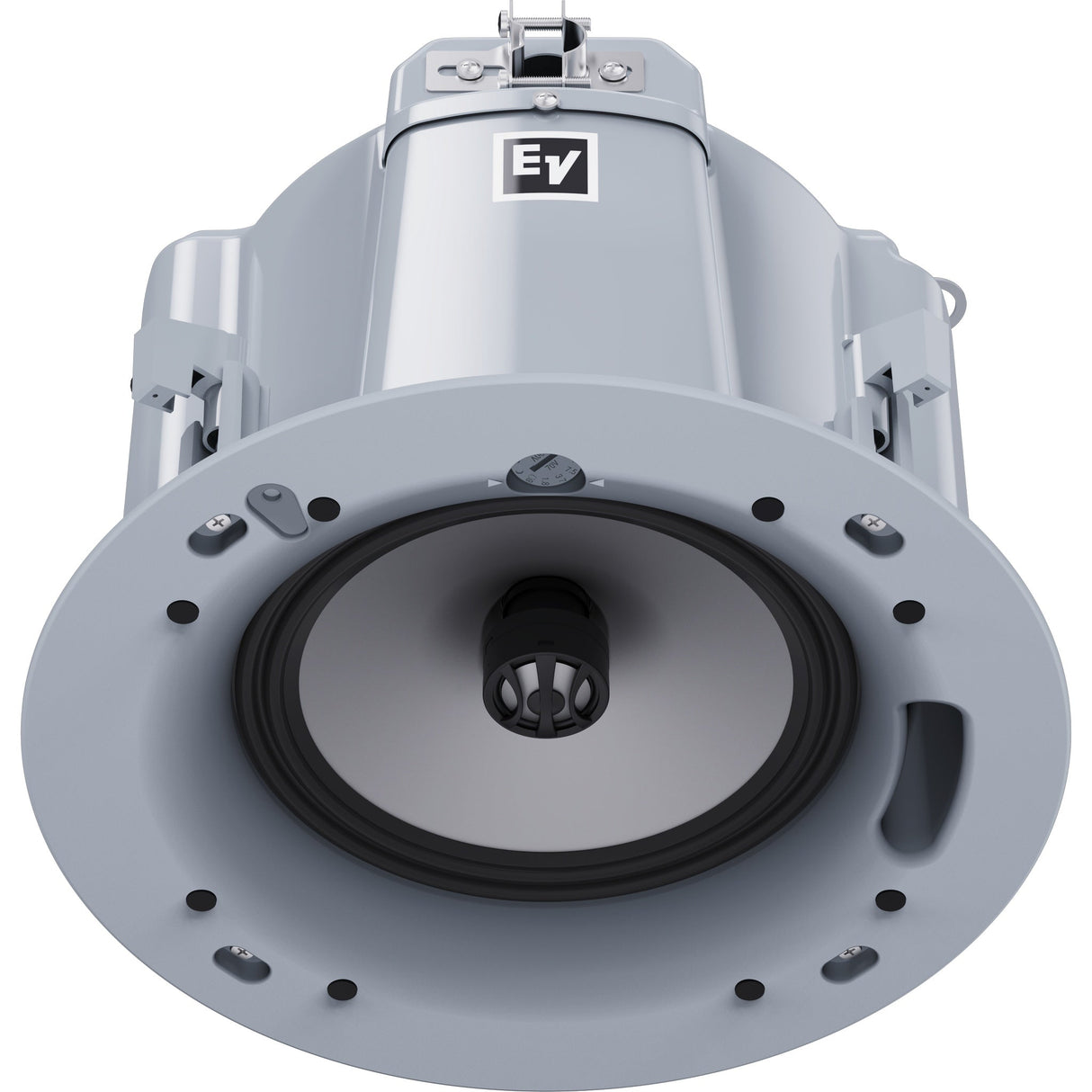

• 8-inch woofer with 1-inch high-frequency driver for full-range clarity
• Select 70V or 100V transformer taps or use 8 ohm bypass
• High output with balanced response for music and speech

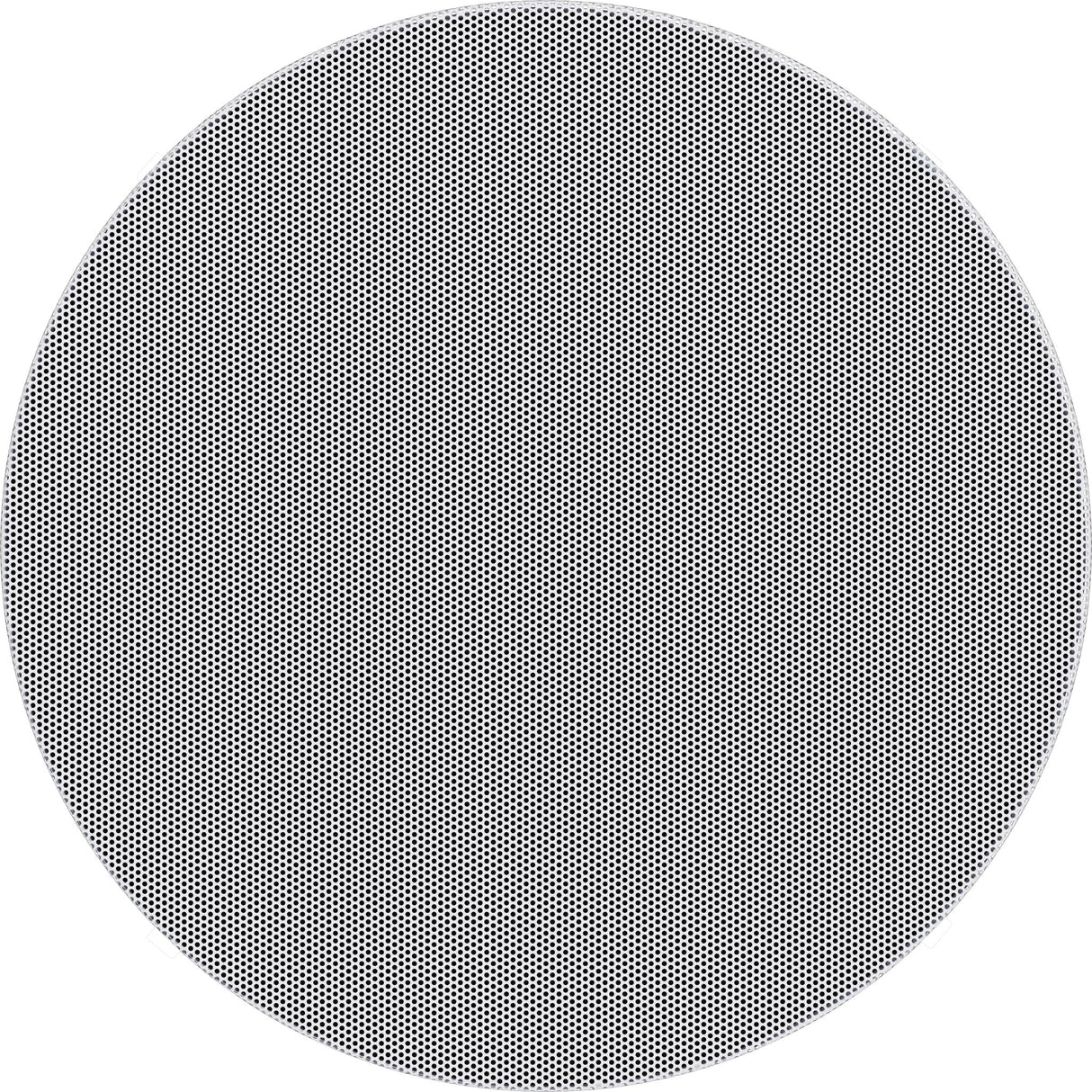

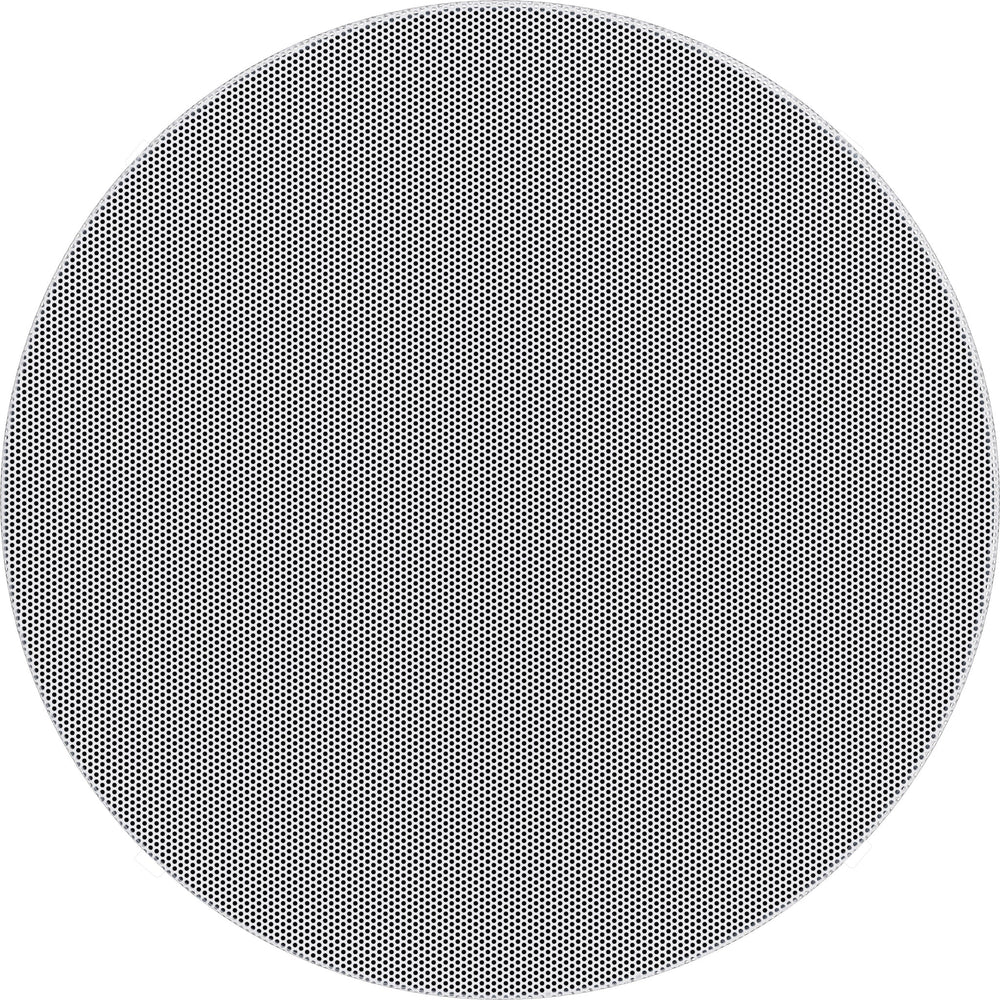

• Bezel-less magnetic grille for low-profile, modern aesthetics

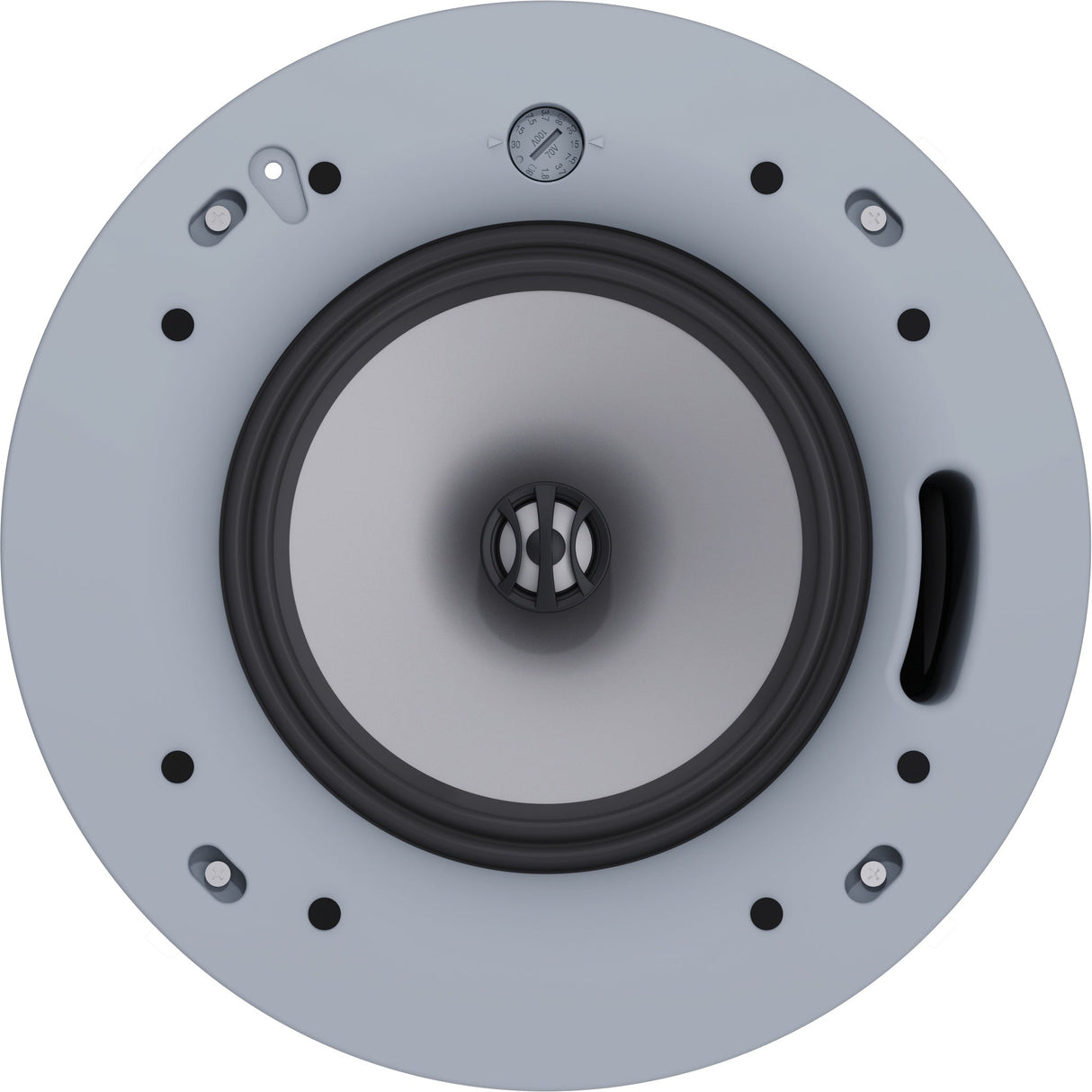

• Front-baffle tap switch for fast system tuning during install
• Includes tile bridge and mounting ring for secure drop-ceiling mounting
• Commercial safety certifications suitable for plenum spaces

Technical Specifications

• Frequency Response (-10 dB): 75 Hz – 20 kHz
• Sensitivity (1 W/1 m): 92 dB SPL
• Power Handling (Continuous/Peak): 70 W / 280 W
• Nominal Impedance: 8 ohm (bypass)
• Transformer Taps 70 V: 30 W, 15 W, 7.5 W, 3.75 W, 1.88 W
• Transformer Taps 100 V: 30 W, 15 W, 7.5 W, 3.75 W
• Maximum SPL (Peak): 116 dB
• Coverage Angle: 90° conical
• Cutout Diameter: 10.7 in
• Overall Diameter × Depth: 11.9 in × 7.8 in
• Mounting Depth: 7.6 in
• Color: White
• Weight: 10.6 lb
