Elgato Full Production Studio Bundle

Elgato Full Production Studio Bundle

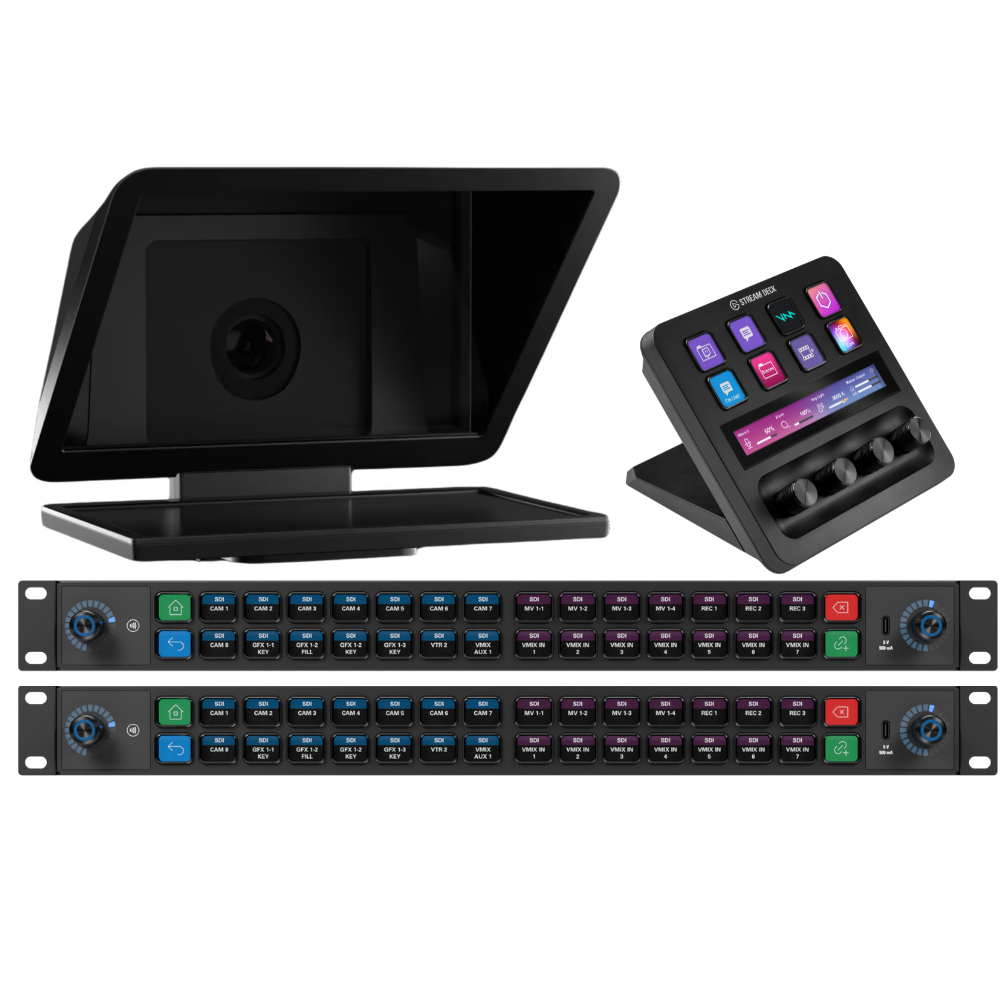

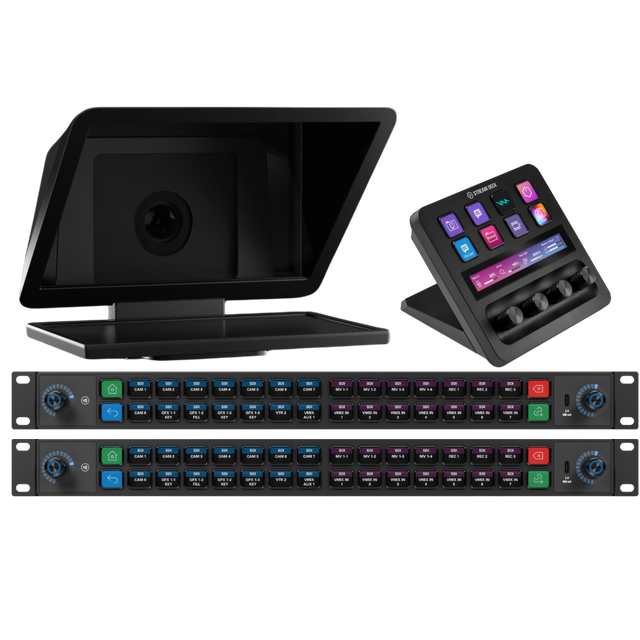

Built for high-end live production, streaming, and broadcast workflows, the Elgato Full Production Studio Bundle combines two Stream Deck Studio control surfaces, a Prompter XL teleprompter, and a Stream Deck + console. Production teams gain rapid, customizable command of switching, audio, and graphics while presenters read scripts clearly on camera, making the bundle a scalable foundation for polished, broadcast-ready output.

The Bitfocus-powered Studio units each carry 32 customizable LCD keys and two 360-degree encoders, with RJ45 Ethernet PoE+ or USB-C PD power options. Prompter XL displays scripts on a 15.6-inch 1920 x 1080, 600-nit screen, doubles as an auxiliary monitor, and ships with nine step-up rings. Stream Deck + contributes 8 LCD keys, four push-function dials, and an LCD touch strip for hands-on audio mixing and fine adjustments.

Key Features

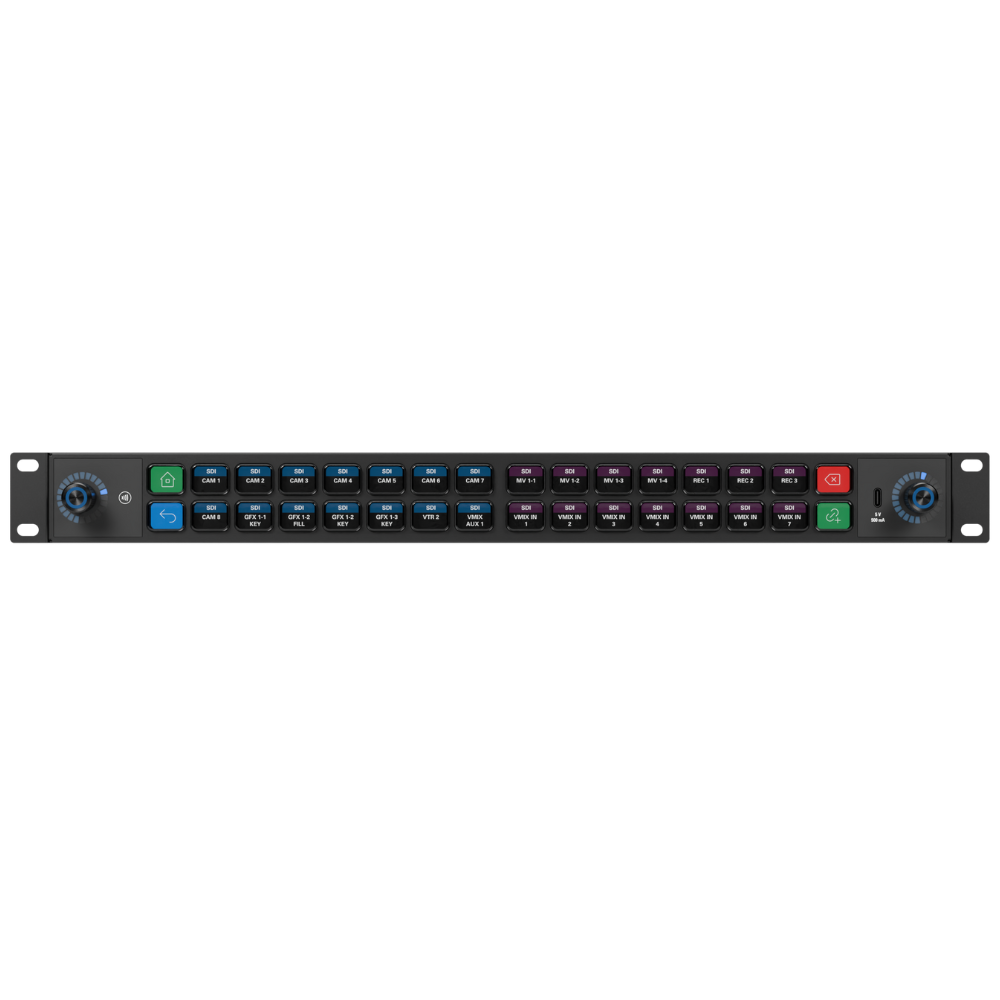

• Two Stream Deck Studio surfaces with 32 LCD keys each, powered by Bitfocus software

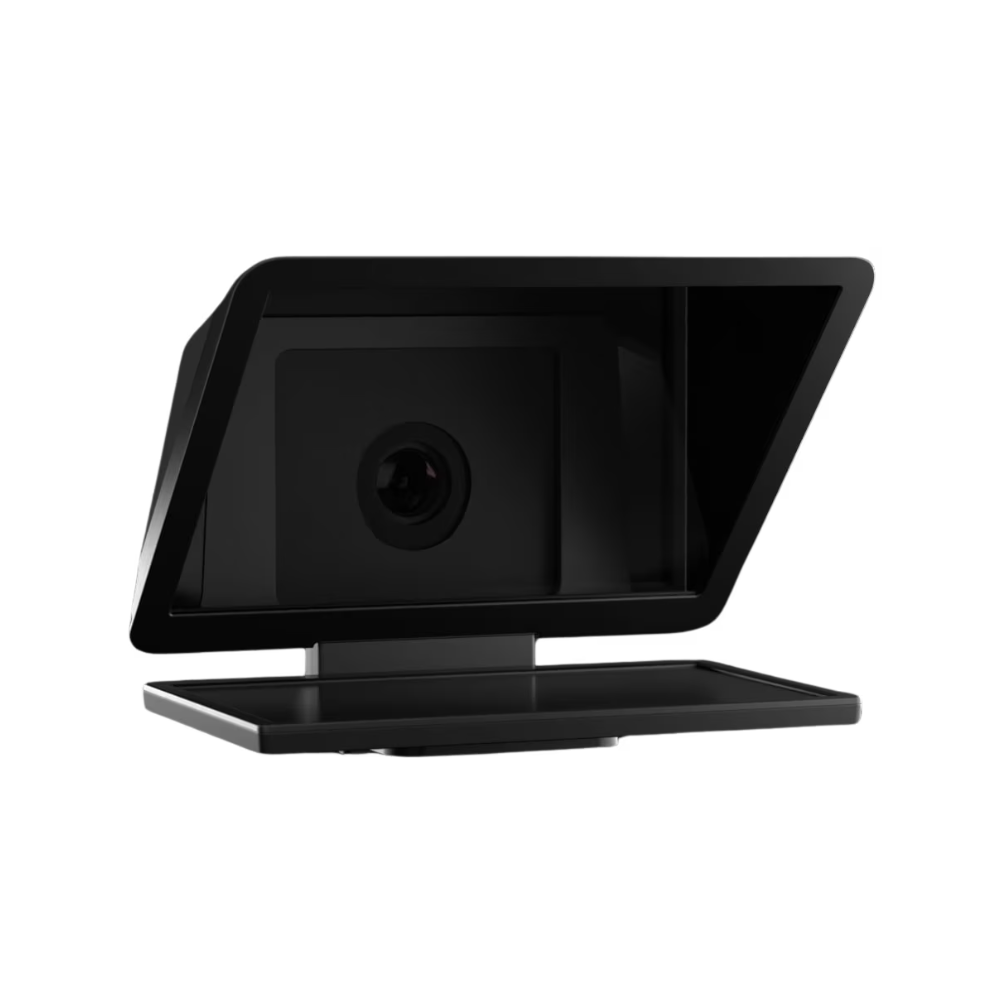

• Prompter XL with 15.6-inch 1920 x 1080, 600-nit display that doubles as an auxiliary monitor

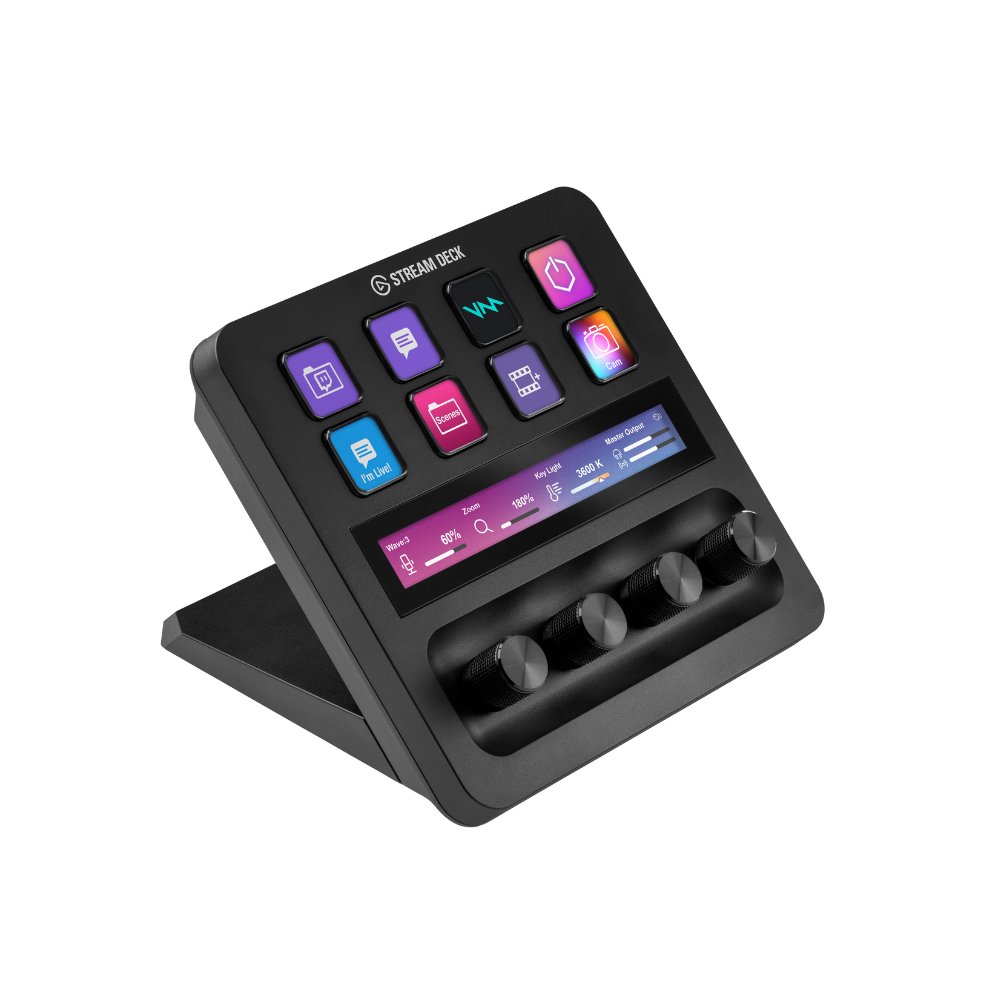

• Stream Deck + with 8 LCD keys, four 360-degree dials, and an LCD touch strip
• RJ45 Ethernet PoE+ (802.3at Class 4) or USB-C PD power for the Studio units
• Seamless integration with hundreds of production tools and devices
• Includes rack mounting hardware, beamsplitter glass, camera bracket, and nine step-up rings

Specifications

• KEY: 32 x customizable LCD keys
• DIALS: 2 x 360° encoders with push function, LED indicator, and LED ring
• INTERFACE: RJ45 Ethernet PoE+ (100 Mb/s), USB-C
• POWER: RJ45 Ethernet PoE+ (802.3at Class 4), USB-C PD 3.0 (9 V, 3 A) not included
• POWER CONSUMPTION: Up to 15 W
• WINDOWS: Windows 11 or newer
• MAC: macOS 13 or newer
• DISPLAY: 15.6" 1920 x 1080 px, 600 nit
• POWER CONSUMPTION: 15 watt
• STEP-UP RINGS: 49, 52, 55, 58, 62, 67, 72, 77, 82 mm
• WEIGHT: 3.37 kg | 7.43 lbs (with camera bracket) - 2.97 kg | 6.55 lbs (without camera bracket)
• DIMENSIONS (D x W x H): 493 x 396 x 295 mm | 19.4 × 15.6 × 11.6 in (with camera bracket) - 265 x 396 x 295 mm | 10.4 × 15.6 × 11.6 in (without camera bracket)
• Size: 140 x 138 x 110 mm / 5.5 x 5.4 x 4.3 in
• Weight: 465 g | 1 lb
• Keys: 8 x customizable LCD keys
• Multifunction Dials: 4 x 360° encoders with push function
• LCD touch panel: 108 x 14 mm / 4.2 x 0.5 in
• Interface: USB 2.0
• System Requirements: Windows 10 (64-bit) / macOS 10.13 or newer
• Stream Deck Studio
• Prompter XL
• Stream Deck +

What's Included

• 2x Stream Deck Studio Rack Mounting Brackets and Screws
• Quick Start Guide
• 1x Prompter XL Detachable monitor
• Beamsplitter glass
• Camera bracket
• Universal backplate
• Ring backplate
• Step-up rings (x9)
• Mounting screws
• Cleaning cloth
• USB C-to-C cable (200 cm | 87.7 in)
• Quick Start Guide
• 1x Stream Deck + USB-C to USB-C Cable
• Quick Start Guide
