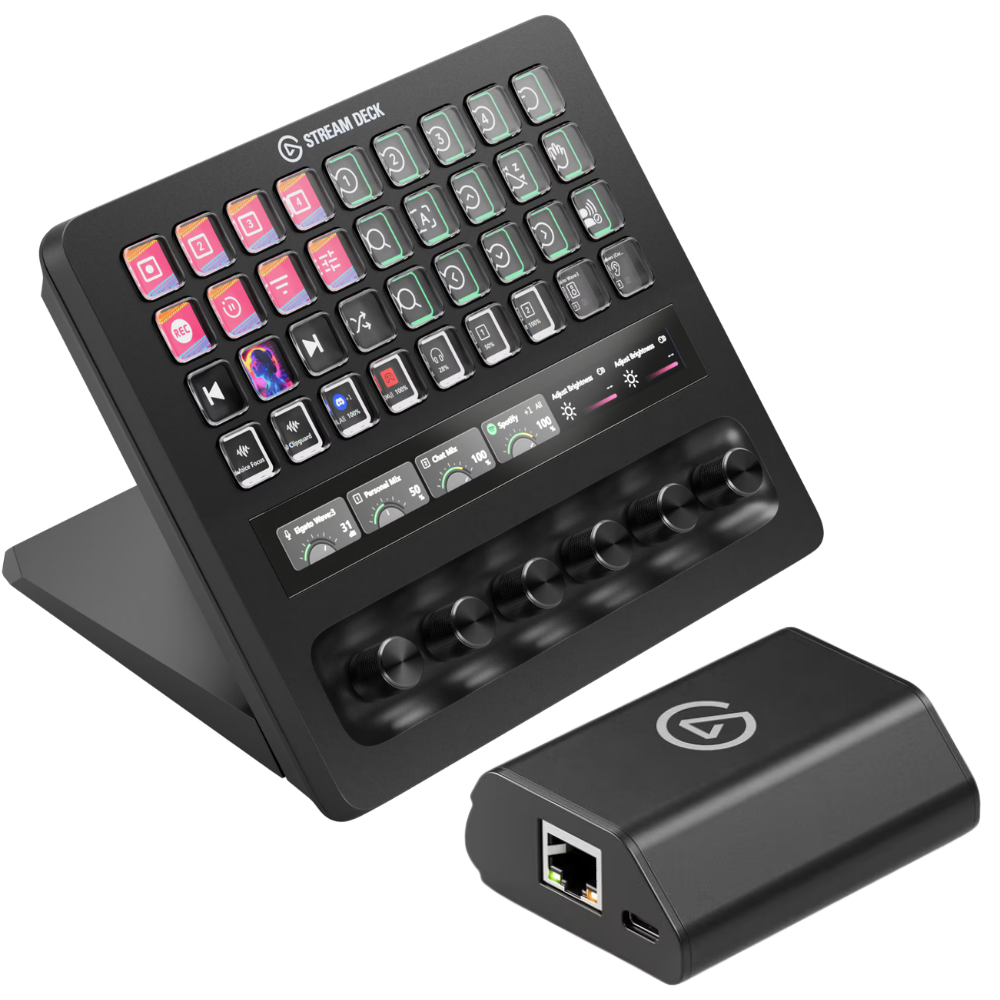

Elgato Stream Deck + XL and Stream Deck Network Dock

Elgato Stream Deck + XL and Stream Deck Network Dock

Pairing the Stream Deck + XL with the Stream Deck Network Dock, this bundle delivers a deep control surface and the freedom to deploy it anywhere on the network. The + XL provides 36 customizable LCD keys, six precision dials, and a touch strip with real-time feedback, centralizing app control, settings adjustment, and complex automation in a single hub.

The control surface connects over USB-C 3.0 and supports hundreds of integrations, with six 360-degree push encoders and a 161 x 14mm LCD touch strip for tactile adjustments. The Network Dock contributes PoE IEEE 802.3af connectivity or USB-C PD power on non-powered networks, freeing the controller from USB cable limits with no PC required at its location. Both components support Windows 11 and macOS 13 or newer.

Key Features

• Stream Deck + XL with 36 customizable LCD keys and an LCD touch strip
• Six 360-degree precision dials with push function for real-time adjustments
• Supports hundreds of integrations for app control and workflow automation
• Network Dock adds Ethernet with PoE IEEE 802.3af; no PC required at the controller
• USB-C PD powering option for non-powered networks
• Mounting bracket and USB-C cables included; limited 2-year manufacturer warranty

Specifications

• Keys: 36 customizable LCD keys
• Dials: 6x 360° encoders with push function
• Touch strip dimensions: 161 x 14 mm | 6.34 × 0.55 in
• LCD touch panel
• Connectivity: USB-C 3.0
• Product Dimensions mm (D × W × H): 205 × 147 × 175
• Product Dimensions in (D × W × H): 8.07 × 5.79 × 6.89
• Weight: 1085 g / 2.39 lbs
• System Requirements Windows 11 or newer
• macOS 13 or newer
• USB-C 3.0 port
• DIMENSIONS: 59 mm x 79 mm x 27 mm | 2.3 x 3.1 x 1.1 in (L x W x H)
• ETHERNET (RJ45): PoE IEEE 802.3af and non-powered networks
• POWER SUPPLY: USB-C, PD 3.0 or higher, 5 V, min. 0.9 A (4.5 W) for non-powered networks
• STREAM DECK: USB-C, USB 2.0, 5 V, max. 0.7 A (3.5 W)
• Windows OS: Windows 11 (64-bit) or later
• Mac OS: macOS 13 or newer
• *Network Dock is not compatible with first generation Stream Deck devices (R/N: 20GAA9901), Stream Deck Studio (R/N: 20GBO9901), or Stream Deck Pedal (R/N: 20GBF9901).
• Stream Deck + XL
• Network Dock

What's Included

• Stream Deck + XL USB C-to-C cable (150 cm | 59 in)
• Network Dock For Stream Deck Mounting Bracket
• Stream Deck XL Mount
• USB-C to USB-C Cable (15 Cm | 5.9 In)
• Quick Start Guide
• Warranty: Limited 2-Year Manufacturer Warranty
