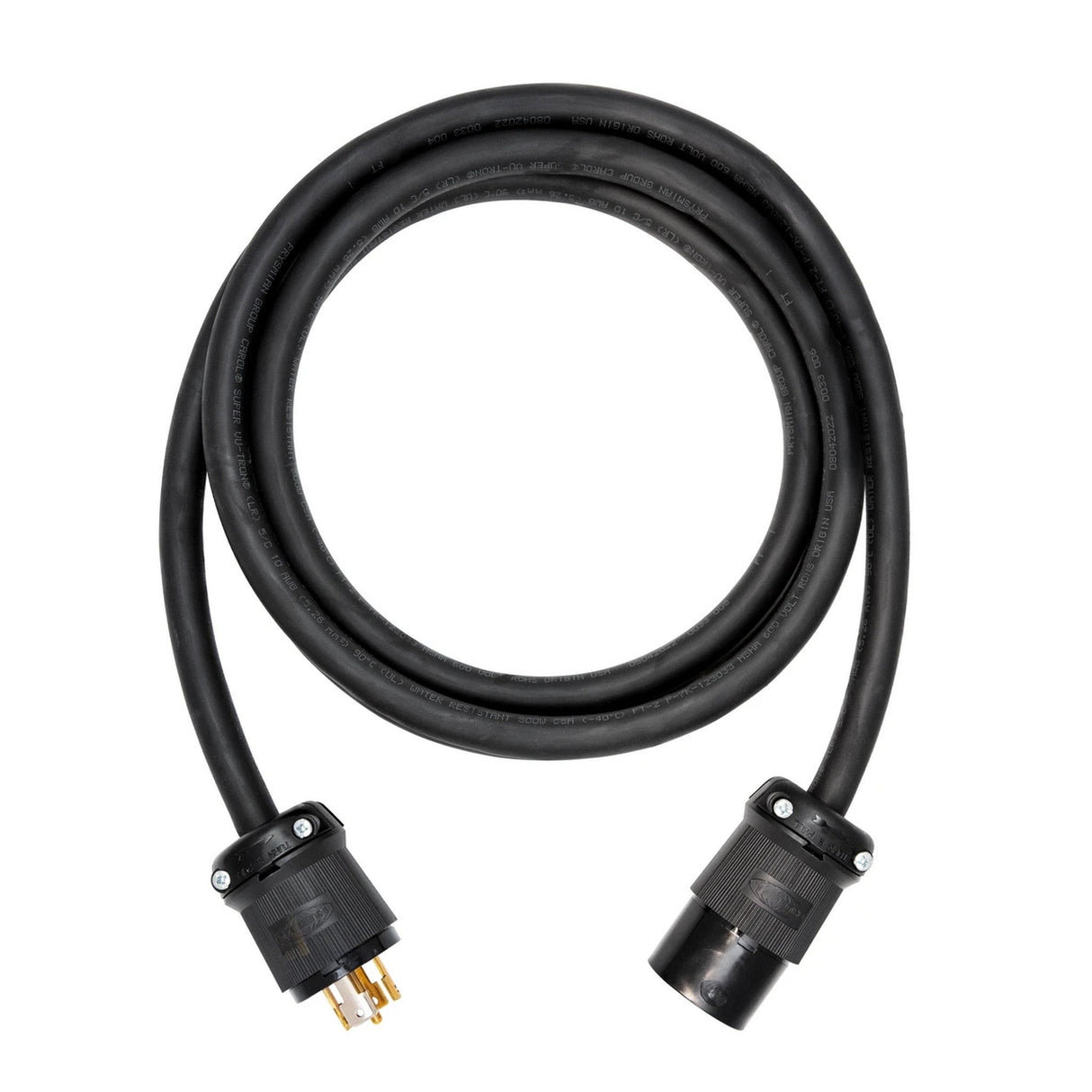

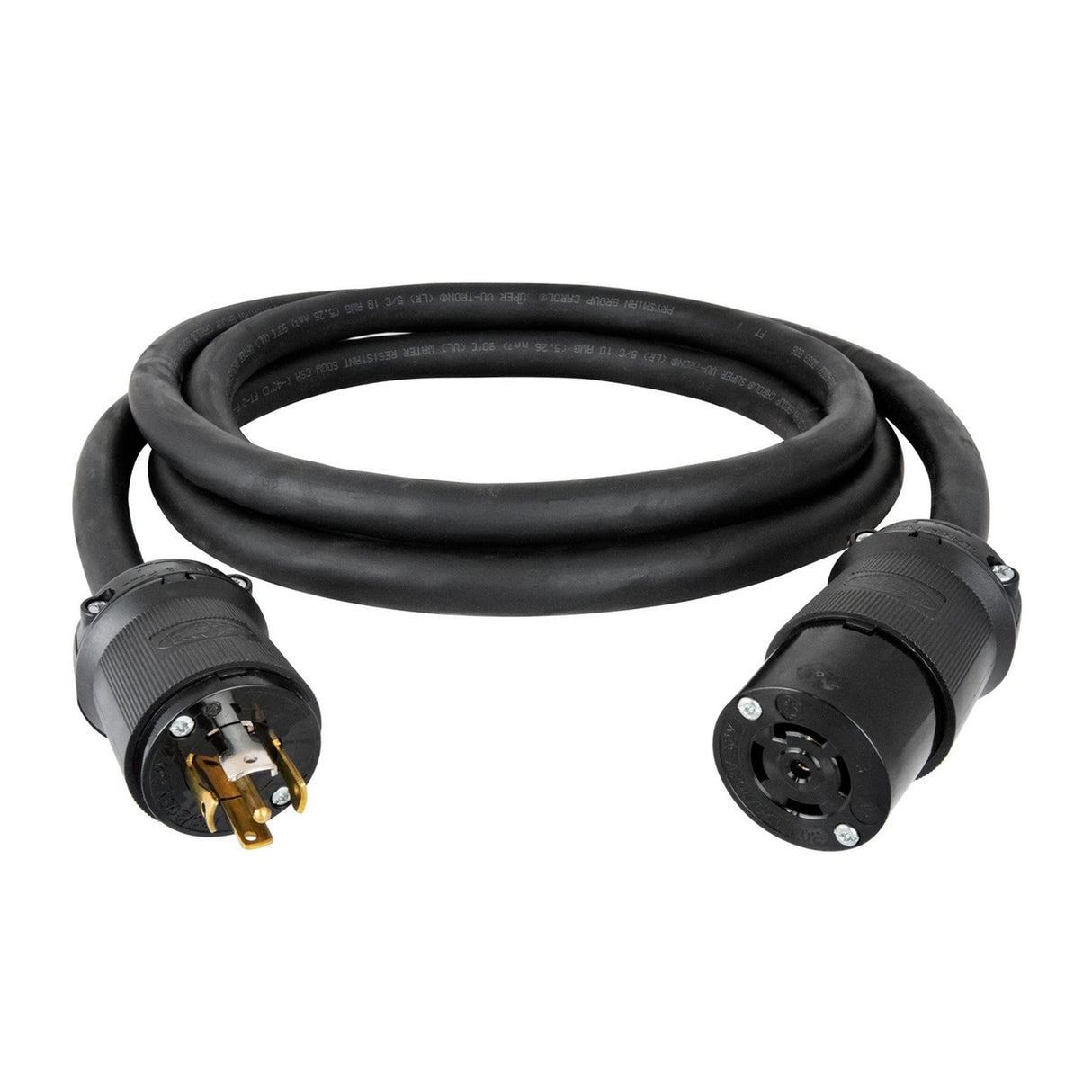

Elite Core PC10 Hand-Built 10 AWG L21-30 Power Cable - 10 Feet

Elite Core PC10 Hand-Built 10 AWG L21-30 Power Cable

The Elite Core PC10 Hand-Built 10 AWG Power Cable is an industrial-grade three-phase extension cable for temporary or permanent power distribution. Built with 10 AWG conductors, L21-30 connections, a Type SOOW jacket, and a 600 V rating, it provides a heavy-duty power path for demanding professional applications.

This umbrella listing covers 10, 15, 20, 25, 30, 35, 40, 50, 75, and 100 ft cable lengths, allowing installers and production teams to select the required reach without changing the core cable construction. Elite Core hand-builds the PC10 in Greenbrier, Arkansas, using flexible stranded copper conductors and an oil-, water-, and abrasion-resistant construction suited to repeated deployment.

The PC10 uses annealed copper conductors with EPDM insulation inside a 90°C Type SOOW outer jacket. Its 0.77" nominal outer diameter and extra-flexible stranding balance rugged construction with practical handling. The cable is rated for a maximum 20 A load at 600 V, while its components are identified as UL, CSA, and MSHA certified and RoHS compliant.

Key Features

• Multiple Length Options: Available in 10, 15, 20, 25, 30, 35, 40, 50, 75, and 100 ft configurations.
• 10 AWG Construction: Heavy-duty conductors support demanding three-phase power distribution applications.
• L21-30 Connectivity: Provides a male-to-female locking power connection for compatible equipment and distribution systems.
• 20 Amp Capacity: Supports a maximum current rating of 20 A with a 600 V cable rating.
• Type SOOW Jacket: Uses a rugged 90°C outer jacket designed to resist oil, water, abrasion, and repeated handling.
• Flexible Copper Conductors: Annealed 104/30 stranded copper construction supports easier routing and repeated deployment.
• Professional Construction: Hand-built at Elite Core's facility in Greenbrier, Arkansas, USA.
• Certified Components: Built with UL, CSA, and MSHA certified components that are identified as RoHS compliant.

Technical Specifications

• Brand: Elite Core
• Model: PC10
• Product Type: Industrial-grade three-phase power extension cable
• Cable Length Variants: 10 ft, 15 ft, 20 ft, 25 ft, 30 ft, 35 ft, 40 ft, 50 ft, 75 ft, 100 ft
• Wire Gauge: 10 AWG
• Connector Type: L21-30
• Connector Configuration: Male to female
• Power Configuration: 3-phase
• Maximum Current: 20 A
• Voltage Rating: 600 V
• Conductor Material: Annealed copper
• Conductor Construction: 104/30 stranded copper
• Insulation: 90°C EPDM
• Insulation Thickness: 0.045"
• Outer Jacket: 90°C Type SOOW
• Nominal Outer Diameter: 0.77"
• Jacket Thickness: 0.079"
• Jacket Properties: Oil, water, and abrasion resistant
• Stranding: Extra flexible
• Component Certifications: UL, CSA, MSHA
• Compliance: RoHS
• Assembly Location: Greenbrier, Arkansas, USA
