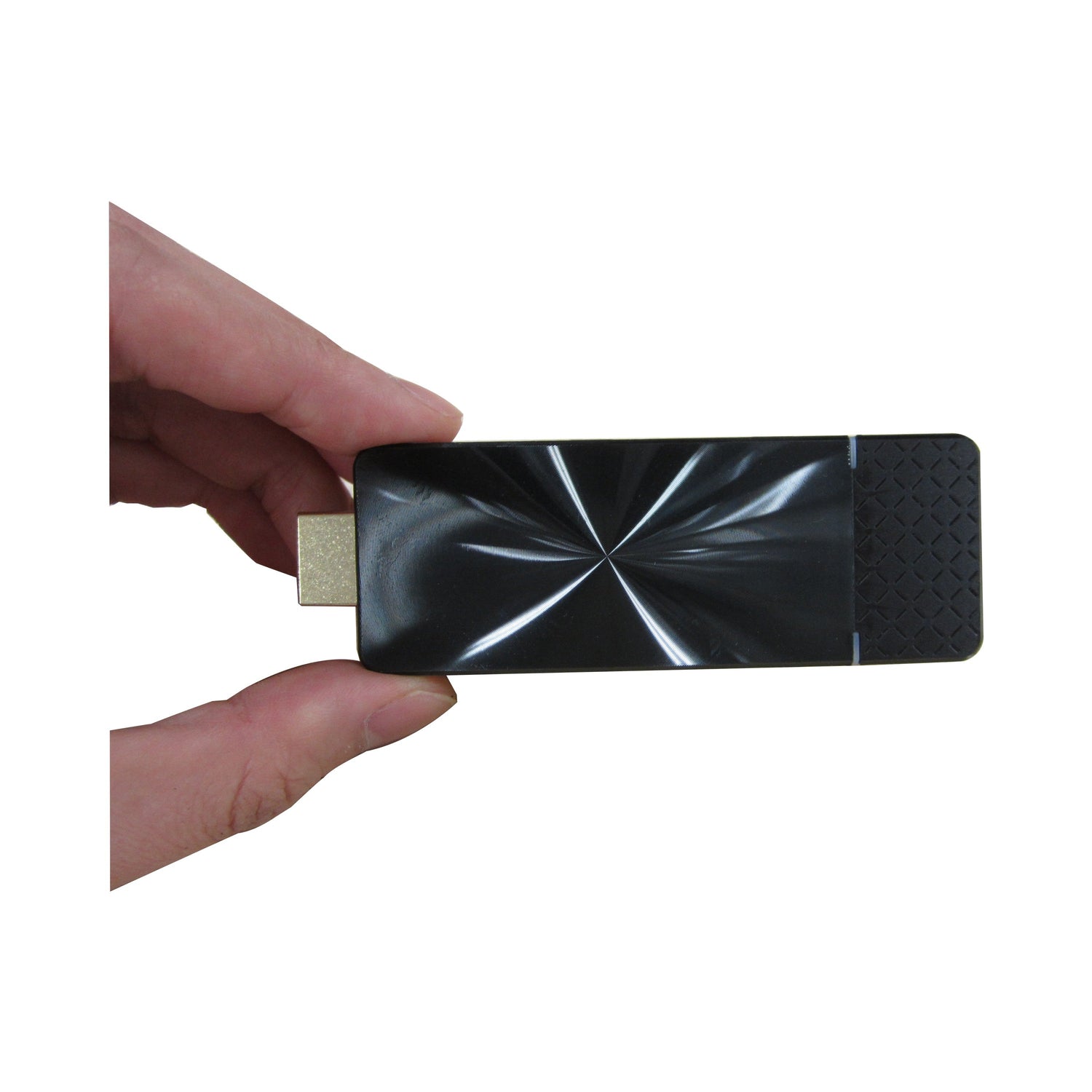

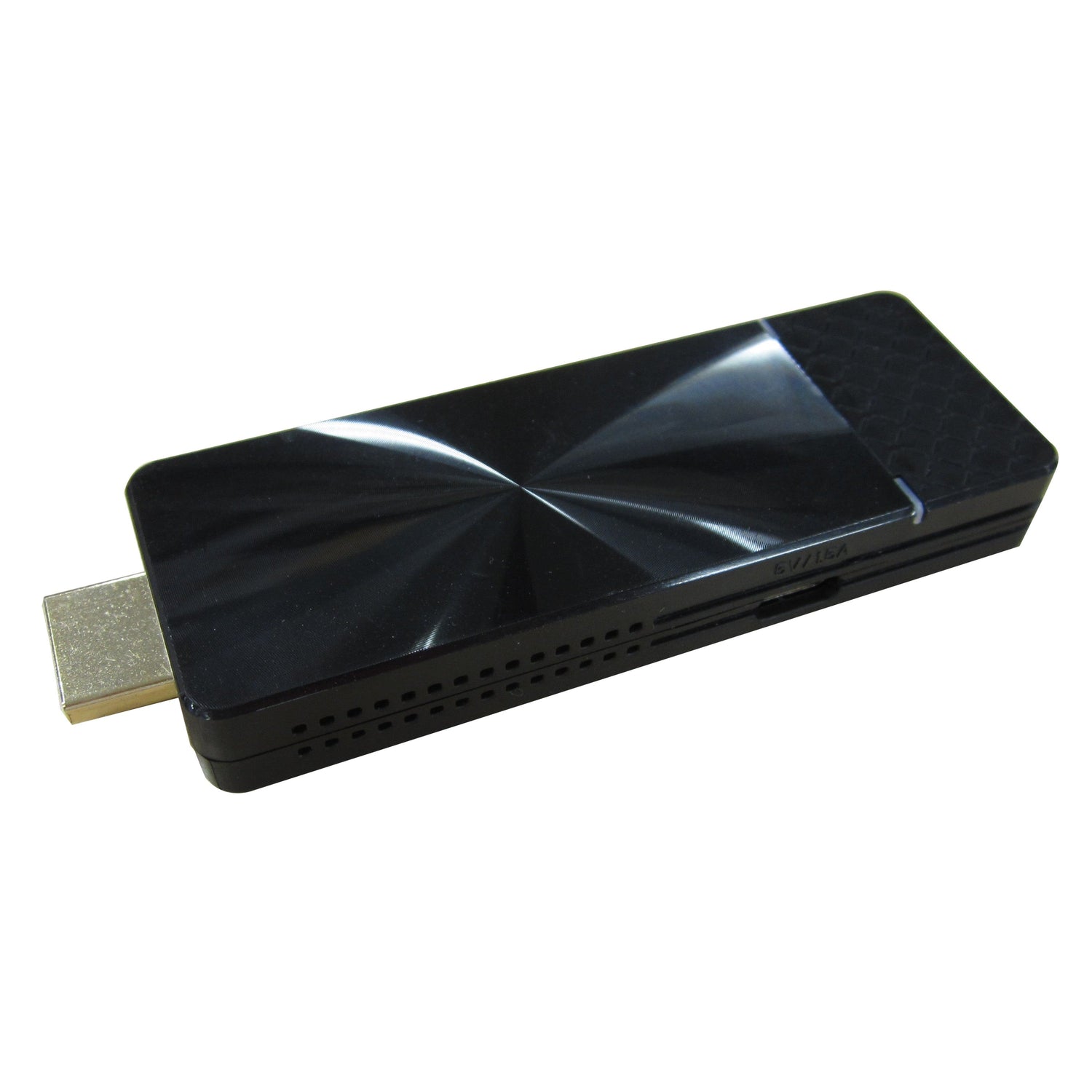

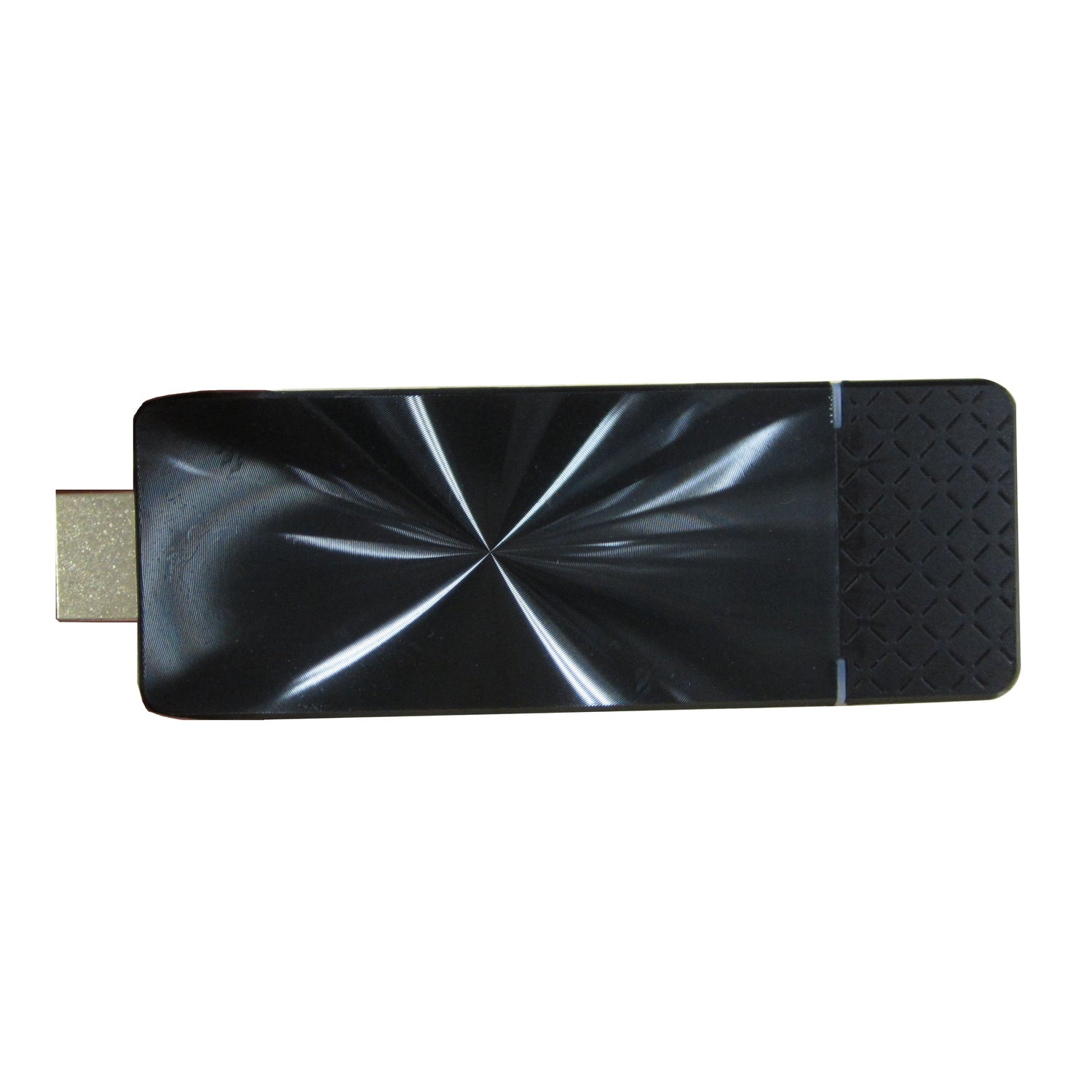

ELMO Cast 4K Wireless Streaming Receiver

Enhance your wireless presentation capabilities and provide your audience with an experience they’ll never forget. ELMO Cast effortlessly streams your multimedia presentation from any mobile device or ELMO STEM-CAM in up to 4K Ultra HD resolution.

ELMO Cast provides wireless video streaming in up to 4K Ultra HD resolution using the latest in Wi-Fi casting technology. The 5GHZ 802.11ac Wi-Fi radio with a high sensitivity 2T2R MIMO antenna offer the highest possible bandwidth. The highly efficient System on Chip (SoC) design and 1GB DDR3 memory mean a super low latency signal and minimal lag. ELMO Cast is HDMI 1.4 compliant to support 4K Ultra HD video and audio.

4K Ultra HD Multimedia Streaming
Stream your multimedia presentation from any mobile device or ELMO STEM-CAM in up to 4K Ultra HD resolution

Present From Any Mobile Device
Effortlessly present from any laptop, tablet or smartphone

Perfect For STEM-CAM
The perfect add-on for MA-1 and MO-2 STEM-CAM line of Visual Presenters. The STEM-CAM’s Miracast transmitter and built-in battery coupled with ELMO Cast allow educators to move around a classroom and wirelessly present 3D objects or student work and experiments

Technical Specifications

RESOLUTION
1280x720 (50/60P)
1920x1080 (24/50/60P)
3840x2160 (24/25/30P) *1
4096x2160 (24P) *1
<720p><1080p> Progressive 60Hz supported
<720i><1080i> Interlaced not supported
IMAGE OUTPUT TERMINAL
HDMI 1.4
WIRELESS BAND USED
5GHz: W52 (36,40,44,48ch)
2.4 GHz
COMMUNICATION RANGE
Approx. 98 feet (30 m)
(Depending on usage conditions)
POWER CONSUMPTION
5V / 1.5A
COMPATIBLE OS
Windows 8.1/10 (32-bit/64-bit) / Mac OS 10.11 / Android 4.4~ / iOS 10~ / All Chrome OS
EXTERNAL DIMENSIONS (W X D X H)
3.82 x 1.26 x 0.43 in. (97 x 32 x 11 mm)

WEIGHT
4.23 oz (120 g)
OPERATING TEMPERATURE
0 to 40 Degrees Celsius
