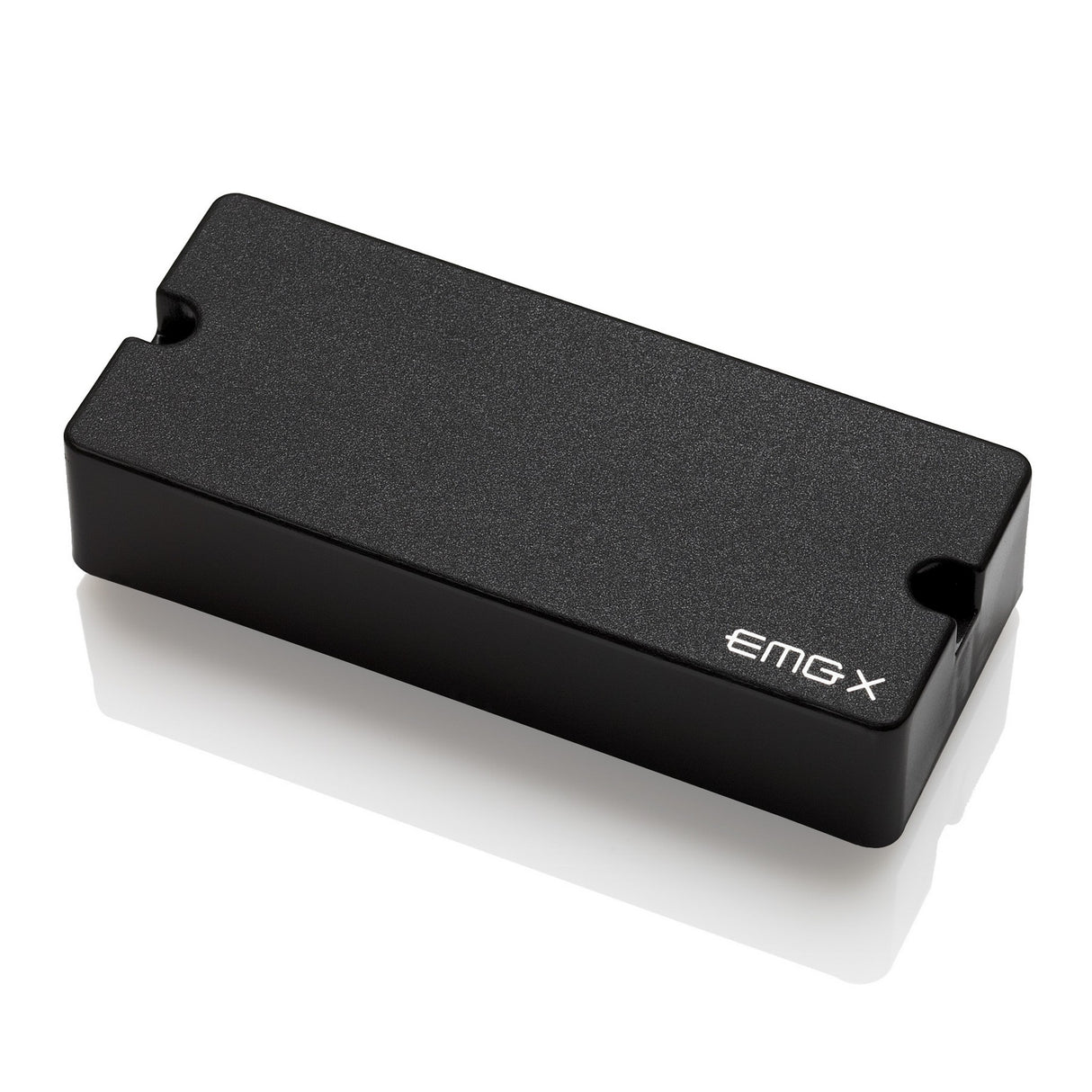

EMG 35TWX 4-String Ceramic/Steel Dual Mode Bass Pickup - Black

EMG 35TWX 4-String Ceramic/Steel Dual Mode Bass Pickup

The EMG 35TWX is a versatile bass pickup that combines two independent tonal options: a single-coil and a humbucker, both enhanced by EMG's X Series preamp for increased dynamic response and clarity. In single-coil mode, it utilizes the JCSX design, featuring ceramic and steel magnets to deliver a rich, warm tone. Switching to humbucker mode engages the CSX dual-coil configuration, producing a big, aggressive sound with a pronounced mid-range.

The X Series preamp provides the 35TWX with a broader dynamic range and increased headroom while maintaining traditional string-to-string balance. Additionally, the included Active Tone Control (VLPF) allows for high-frequency roll-off, similar to a passive tone control, resulting in a noiseless single-coil experience that bridges the gap between active and passive pickup characteristics.

For instruments equipped with two TWX pickups, it's recommended to avoid using EMG's BT or BQ Systems, as each pickup requires a push/pull pot for switching between single-coil and humbucker modes, rendering the balance control incompatible. Instead, consider using a DPDT toggle switch for single/dual coil output selection. The 35TWX is housed in a 3.5-inch (89mm) extended housing, suitable for four-string bass guitars. Ensure compatibility by comparing your existing pickups' measurements with EMG's specifications before purchasing.

Key Features

• Dual-mode operation: Single-coil (JCSX) and humbucker (CSX)
• X Series preamp for enhanced dynamic range and clarity
• Active Tone Control (VLPF) for high-frequency roll-off
• Ceramic and steel magnets for rich, warm, and aggressive tones
• 3.5-inch (89mm) extended housing suitable for four-string bass guitars

Technical Specifications

Model: 35-TW-X
Logo Color: Copper
Magnet Type: Ceramic/Steel
Resonant Frequency: 2.50 kHz
Output Voltage (String): 4.00 V
Output Voltage (Strum): 8.50 V
Output Noise (60 Hz): -109 dBV
Output Impedance: 2.00 kΩ
Current (@9V): 160 µA
Battery Life: 1500 hours
Maximum Supply Voltage: 27 V DC

What's Included

• 1 25k active tone pot (VLPF)
• 1 push/pull pot
• 1 battery bus
• 1 stereo output jack
• 1 pair of mounting screws
• 1 pickup cable
• 2 connect cables
• 1 output cable
• 1 battery cable
