Product Description:

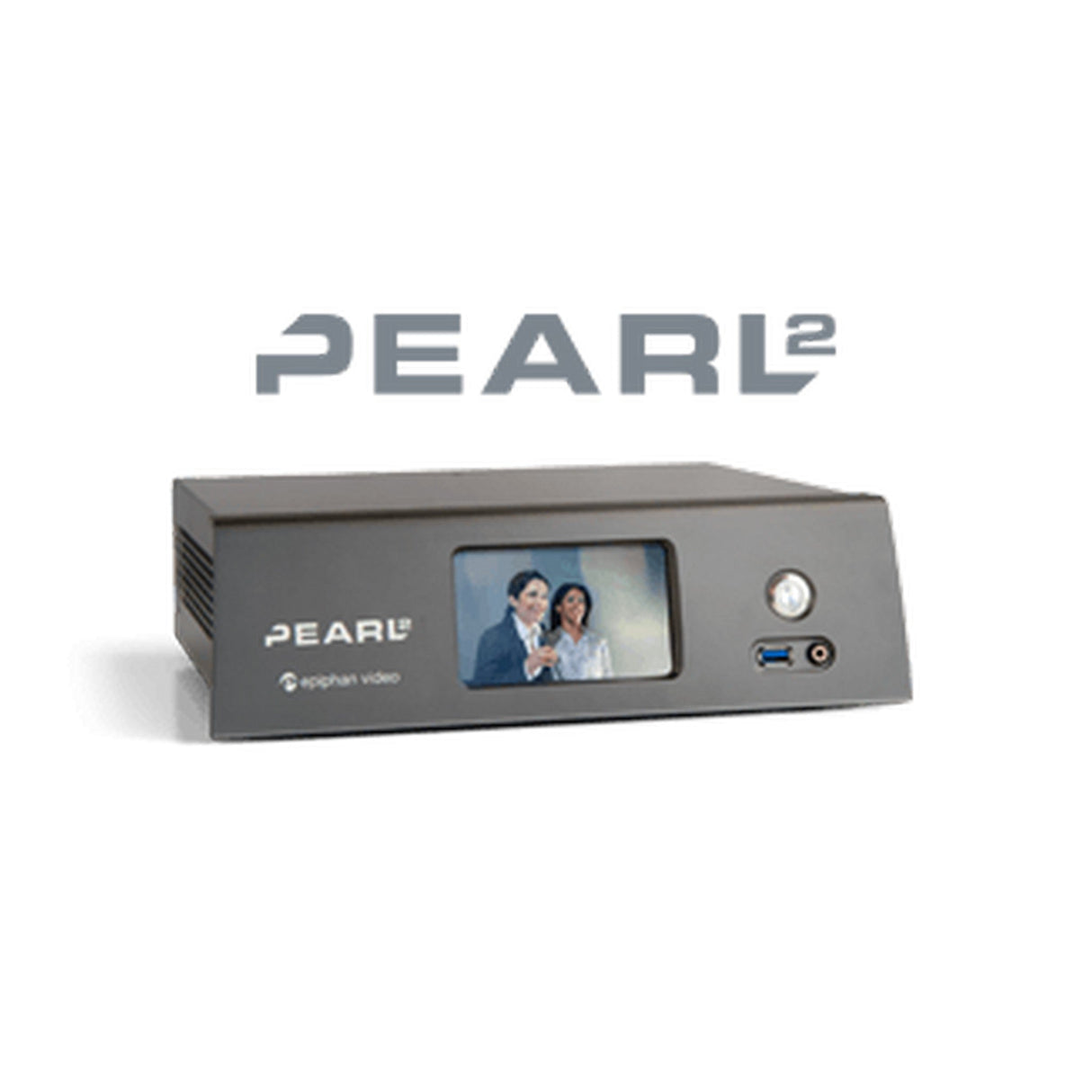

Epiphan Pearl 2 4K 2 Input Encoding Streaming Switcher System: The Epiphan Pearl-2 4K feature add-on enhances your streaming capabilities by providing 4K encoding functionality. This system allows you to create a 4K program using up to 2 4K inputs and 2 HD or IP camera inputs. Enjoy a reliable and straightforward live streaming experience with Pearl-2's integrated video production workflow, combining streaming, recording, and live switching all in one device.

Key Features:

• Three live video mixer models
• Stream 6 HD sources at 30 frames per second
• CDN and streaming server support
• Arrange sources into layouts
• Add custom branding
• Switch between layouts while streaming

Technical Specifications:

Video Inputs:

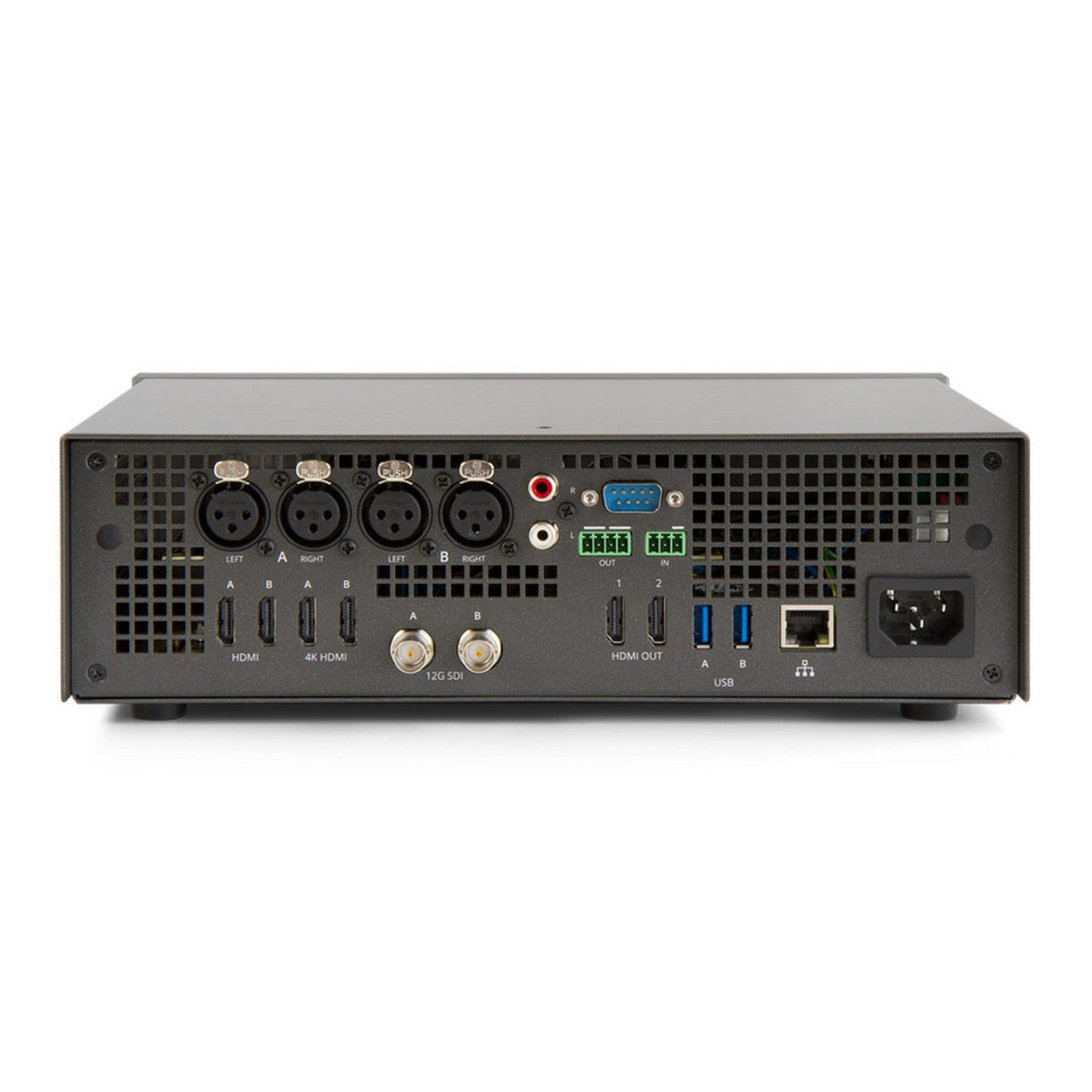

• Connectors: (2) 12G SDI, (2) HDMI / DVI, (2) 4K HDMI / DVI
• Resolutions: Supports nearly any input resolution up to 4096×2160
• HD Video Format Options: 4K HDMI, HDMI, 3G-SDI, 6G-SDI, 12G-SDI, HD-SDI, SD-SDI, DVI single link (through an adapter)

Audio Input:

• Connectors: (2) Stereo XLR, (1) Stereo RCA, (2) SDI audio, (4) HDMI audio
• Analog Audio Sensitivity: XLR Max signal - 12.3 V (RMS), RCA Max signal - 2.45 V (RMS)

Video Output:

• Connectors: (2) 4K HDMI out with audio
• Built-in Display: Front touch screen display for system information, confidence monitoring, and more

Audio Output:

• 3.5 mm Audio: Front-mounted jack for confidence monitoring

Video Encoding:

• Video Codecs: H.264, MPEG-4, Motion JPEG
• Video Bit Rates: Up to 20 Mb/s
• Output Frame Size: Configurable up to 4096x2160

Audio Encoding:

• Audio Codecs: MP3, PCM, AAC
• IP Network Interfaces: Connector (1) 10/100/1000 Ethernet RJ45
