Episode EA-COM-MXAMP-350 2-Channel 350W Commercial MixAmp

Episode EA-COM-MXAMP-350 2-Channel 350W Commercial MixAmp

The Episode EA-COM-MXAMP-350 2-channel 350W commercial MixAmp combines high-output amplification, audio mixing, DSP, and matrix routing in a compact half-rack chassis. It delivers 350W RMS per channel across selectable 70V, 100V, 8-ohm, or 4-ohm outputs for flexible business music, paging, and speech systems.

Built for restaurants, gyms, hospitality venues, retail stores, bars, and corporate spaces, this business audio amplifier supports balanced and unbalanced source connections. Installers can tune background music, foreground audio, microphone paging, and announcements with EQ, compression, gating, de-essing, feedback cancellation, ducking, and adjustable delay. The high-resolution color display and local web interface simplify setup and everyday operation.

Professional integration features include OvrC remote management, Control4 SDDP discovery, signal sensing, a configurable contact-closure input, and selectable priority routing. The ICEpower Class D platform provides efficient output in a 1/2 RU enclosure, while overload, overcurrent, short-circuit, temperature, ESD, and surge protections support dependable installed-audio performance. CE, FCC Class B, RoHS2, UL, and RCM compliance further suit commercial deployment.

Key Features

• Dual 350W Amplifier Channels: Supplies 350W RMS per channel with one or both channels driven.
• Selectable Speaker Outputs: Supports 70V, 100V, 8-ohm, and 4-ohm speaker systems for flexible commercial installations.
• Integrated SHARC DSP: Provides 20-band parametric EQ, shelf filters, microphone processing, routing, and delay control.
• Priority Audio and Ducking: Automatically reduces background program levels when paging or priority audio is detected.
• Flexible Source Connectivity: Accommodates microphone, line-level, balanced, and unbalanced analog sources.
• Remote Action Triggering: Uses a configurable 2-pin contact closure for messages, presets, muting, and source playback.
• Network Management: Supports local web configuration, OvrC remote management, and Control4 SDDP discovery.
• Compact Half-Rack Design: Fits professional equipment racks while occupying only 1/2 RU of rack width.

Technical Specifications

• Product Type: Commercial 2-channel mixer amplifier
• Manufacturer Model: EA-COM-MXAMP-350
• Amplifier Technology: ICEpower Class D power module
• Output Channels: 2 speaker-level channels
• Output Power at 4 Ohms: 350W RMS per channel, one or both channels driven
• Output Power at 8 Ohms: 350W RMS per channel, one or both channels driven
• 70V Output Power: 350W RMS per channel, one or both channels driven
• 100V Output Power: 350W RMS per channel at 90–92 Vrms, one or both channels driven
• Maximum System Output: 700W RMS for 5 seconds at 1 kHz
• Peak System Output: 1400W RMS for 10 ms at low impedance
• Output Selection: 70V, 100V, 8 ohms, or 4 ohms
• Speaker Output Connector: 4-pin 5.08 mm Euro connector with screw locks
• Speaker Output Pinout: Pin 1 CH1+, Pin 2 CH1−, Pin 3 CH2+, Pin 4 CH2−
• Frequency Response: 20 Hz to 20 kHz, ±2 dB
• Crosstalk: 55 dB minimum across the full audio range
• AES17 Dynamic Range: Greater than 98 dB at +20 dBu input; greater than 82 dB at −7.8 dBu input, A-weighted
• Total Harmonic Distortion: 0.8% THD+N at 92 Vrms and maximum load, one channel driven
• Interchannel Phase: ±5° maximum from 20 Hz to 20 kHz
• DSP Engine: SHARC
• Parametric EQ: 20 bands
• Tone Controls: High-shelf and low-shelf filters
• Priority Input: User-selectable with ducking
• Microphone Processing: Adjustable noise gate, de-esser, and feedback canceller
• EQ Presets: Episode speaker presets and user-saveable presets
• Audio Delay: Up to 50 ms, software adjustable
• Audio Processing Latency: Less than 30 ms
• Mono Input Summing: Supported
• Routing: Fully matrixed with multisource mixing
• Source Types: Microphone, line-level, balanced, and unbalanced analog
• Balanced Analog Input: 3-pin 3.5 mm Euro connector
• Balanced Input Level: +20 dBu to −7.8 dBu
• Maximum Balanced Input Level: +20 dBu, 7.75 Vrms, 10.95V peak
• Balanced Input Pinout: Pin 1 IN+, Pin 2 IN−, Pin 3 ground/chassis
• Unbalanced Input Type: RCA
• Remote Input: User-configurable 2-pin Euro connector
• Analog Input Signal Sensing: Supported
• Network Connection: RJ45, 1 Gbit 1000BASE-T
• Local Web Configuration: Supported
• Remote Management: OvrC enabled
• Control Integration: Control4 SDDP

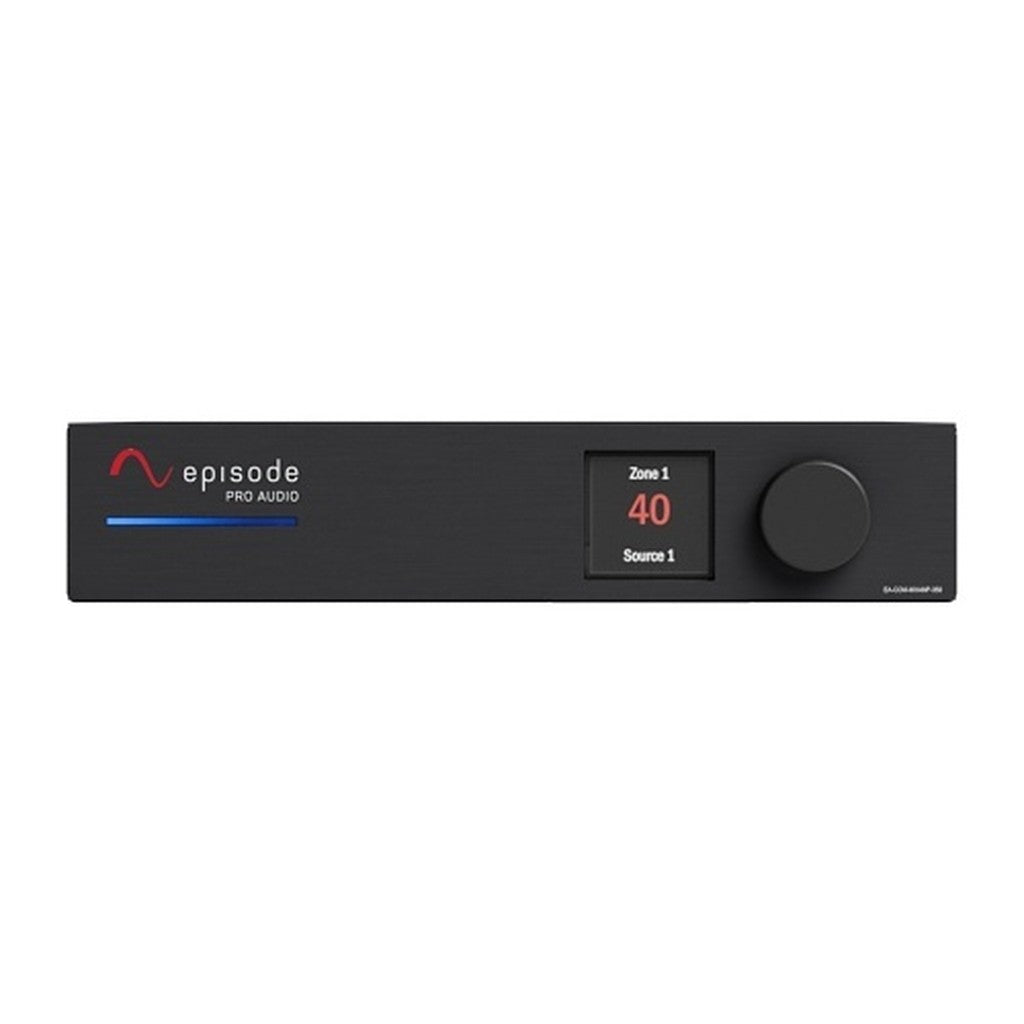

• Front Panel: High-resolution color display with light and dark modes
• Operating Modes: Standby/sleep, low-power, and always-on modes
• Standby Power Consumption: Less than 2W
• Power Supply: 100–240V AC, 50–60 Hz, auto-switching
• Power Connection: IEC-C14
• Rack Height: 1/2 RU
• Dimensions (W x H x D): 9.5" x 1.75" x 14"
• Weight: 6 lbs
• Operating Temperature: 14°F to 122°F, indoor use
• Storage Temperature: −22°F to 158°F
• Operating Humidity: 20–90% RH, noncondensing
• System Protection: Power-supply overload, overcurrent, short-circuit, and temperature protection
• ESD Protection: IEC 61000-4-2 Level 2 contact and Level 3 air-gap
• Surge Protection: IEC 61000-4-5 Class 3 with additional port-specific testing
• Certifications and Compliance: CE, FCC CFR Part 15 Subpart B Class B, RoHS2, UL, and RCM
• Limited Warranty: 5 years
