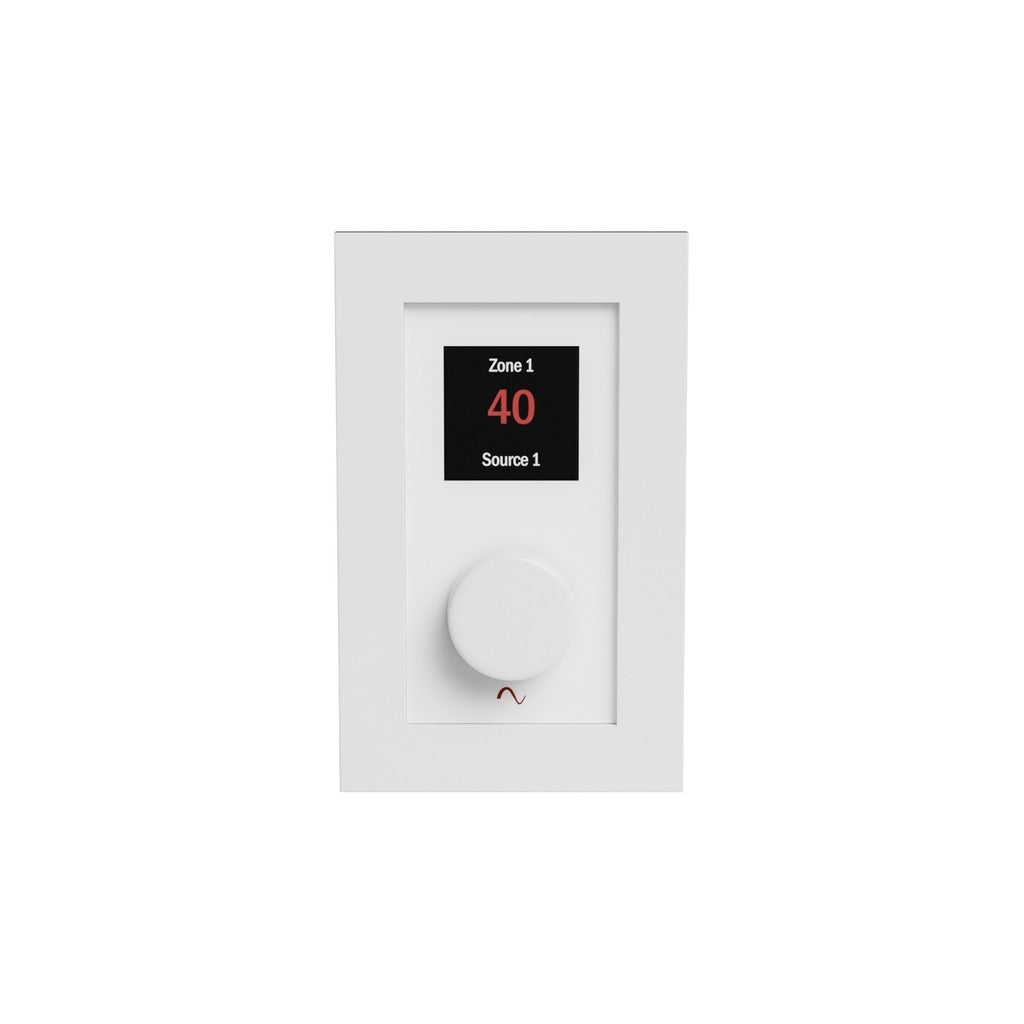

Episode EA-COM-WP-ZONE-WH Zone/Source Controller Wall Plate, White

The Episode EA-COM-WP-ZONE-WH is a PoE-powered zone and source controller wall plate for the Episode Business Music Solution DSP line, bringing enterprise-level audio control to restaurants, gyms, retail floors and other commercial spaces. From any controller on the network, staff can adjust any zone or any source through a crisp 1.54-inch full-color display and an intuitive rotary knob, while installers decide exactly which zones and sources each wall plate is allowed to touch.

Installation is a single CAT5e/6 run: the plate takes power and control over PoE, mounts to a junction box or straight into the wall with Episode's patented mounting system, and aligns cleanly in side-by-side multi-gang arrays. An IP54 rating means it shrugs off kitchens and indoor pool areas, and OvrC support gives integrators remote setup, monitoring and diagnostics. The metal enclosure ships with a scratch-resistant gloss white faceplate, and the platform is Control4 compatible.

Features

• Zone and source control for Episode Business Music Solution DSPs - control any zone or source from any controller
• 1.54" full-color 240x240 display with light and dark modes plus rotary control knob
• Single CAT5e/6 connection carries both power (PoE) and control
• IP54 rated for kitchens, indoor pools and other harsh indoor environments
• Installer-configurable access levels lock users out of selected zones or sources
• OvrC remote configuration, monitoring and diagnostics; Control4 compatible
• Patented mounting for j-box or direct wall install with clean multi-gang alignment
• Metal enclosure with included gloss white scratch-resistant faceplate

Technical Specifications

• Model: EA-COM-WP-ZONE-WH (UPC 842822064903)
• Display: 1.54" color, 240 x 240
• Power: PoE over CAT5e/6
• Rating: IP54; ESD IEC 61000-4-2 Level 2 contact / Level 3 air
• Operating temperature: 14-122 F
• Dimensions: 4" x 2.125" x 2.125"; weight 0.5 lb
• Compatibility: Episode Business Music DSPs (not the MixAmp); 2-year limited warranty

What's Included

• EA-COM-WP-ZONE-WH controller wall plate
• Gloss white faceplate
• Mounting hardware
