Episode EA-DYN-8D-100 Dynamic Series 8-Channel Class-D Multi-Zone Amplifier
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
The Episode EA-DYN-8D-100 Dynamic Series Class-D amplifier delivers clean, efficient multi-zone power for whole-home and light commercial audio systems. Eight amplifier channels provide up to 100 watts per channel (4 ohms; 50W RMS at 8 ohms), and any pair of channels can be bridged for 200 watts into 8 ohms when a larger room or higher-output speakers demand more headroom. Built on efficient Class-D amplification, the EA-DYN-8D-100 runs cool and quiet in the rack while achieving a signal-to-noise ratio greater than 103 dB and vanishingly low distortion.
Flexible input routing makes system design simple: each channel has its own analog input, and two global analog inputs plus global optical and coaxial (SPDIF) digital inputs let you distribute any two-channel source across any or all zones. Every zone also includes a dedicated subwoofer output with a 200 Hz crossover, so you can add low-end reinforcement anywhere without redesigning the system. Loop outputs allow easy expansion to additional amplifiers as the installation grows.
Installer-friendly touches round out the package: audio-sensing auto standby with 12V trigger in/out saves energy when no signal is present, per-channel gain controls make room balancing painless, and built-in surge protection (ESD tested to 15,000V, surge tested to 2,400V) protects the investment in real-world rack environments. The 2U chassis includes rack ears for a clean, professional installation, backed by Episode's 2-year limited warranty.
Features
- 8-channel Class-D multi-zone amplifier — 100W per channel at 4 ohms, 50W RMS at 8 ohms
- Bridgeable outputs: combine any two channels for 200W RMS into 8 ohms
- Global inputs: 2x analog plus optical and coaxial SPDIF digital, distributable to any or all zones
- Dedicated analog input per channel with adjustable gain for easy room balancing
- Subwoofer output for every zone (200 Hz crossover)
- Analog and optical/SPDIF loop outputs for system expansion
- Audio-sensing auto standby plus 3.5mm 12V trigger input and output
- Built-in surge protection — ESD tested to 15,000V, surge tested to 2,400V
- Rack-mountable 2U chassis with included rack ears
Technical Specifications
- Channels: 8
- Power Output: 100W per channel @ 4 ohms; 50W RMS per channel @ 8 ohms; 200W RMS bridged @ 8 ohms
- THD: < 0.05% @ 1W & 50W, 1 kHz
- Signal-to-Noise Ratio: > 103 dB
- Frequency Response: 20 Hz – 20 kHz (±2 dB at 1/8 power)

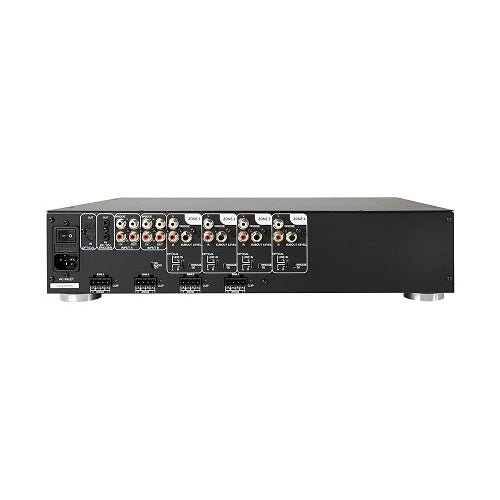

- Inputs: 1x analog per channel, 2x global analog, 1x global optical, 1x global coaxial SPDIF, 1x 3.5mm 12V trigger
- Outputs: speaker outputs x8, 1x analog subwoofer output per zone, 2x analog loop outputs, 1x optical/SPDIF loop output, 1x 3.5mm 12V trigger
- Rack Size: 2U full rack (rack ears included)
- Dimensions: 17.2 in W x 4.05 in H x 12.2 in D (437 x 103 x 310 mm)
- Weight: 14 lb
- Certifications: UL, CE, FCC
- Warranty: 2-year limited

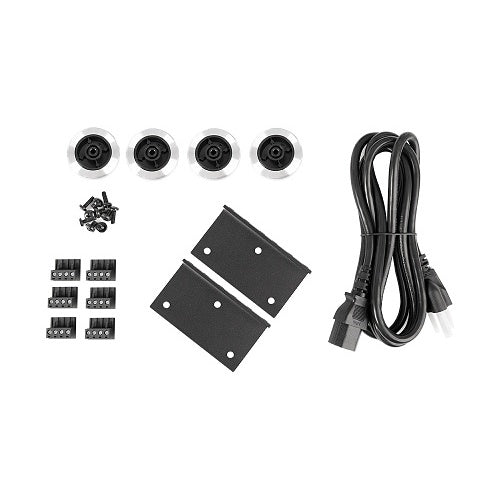

What's Included
- EA-DYN-8D-100 8-Channel Class-D Amplifier
- Rack ears
- Power cord
- Installation manual
