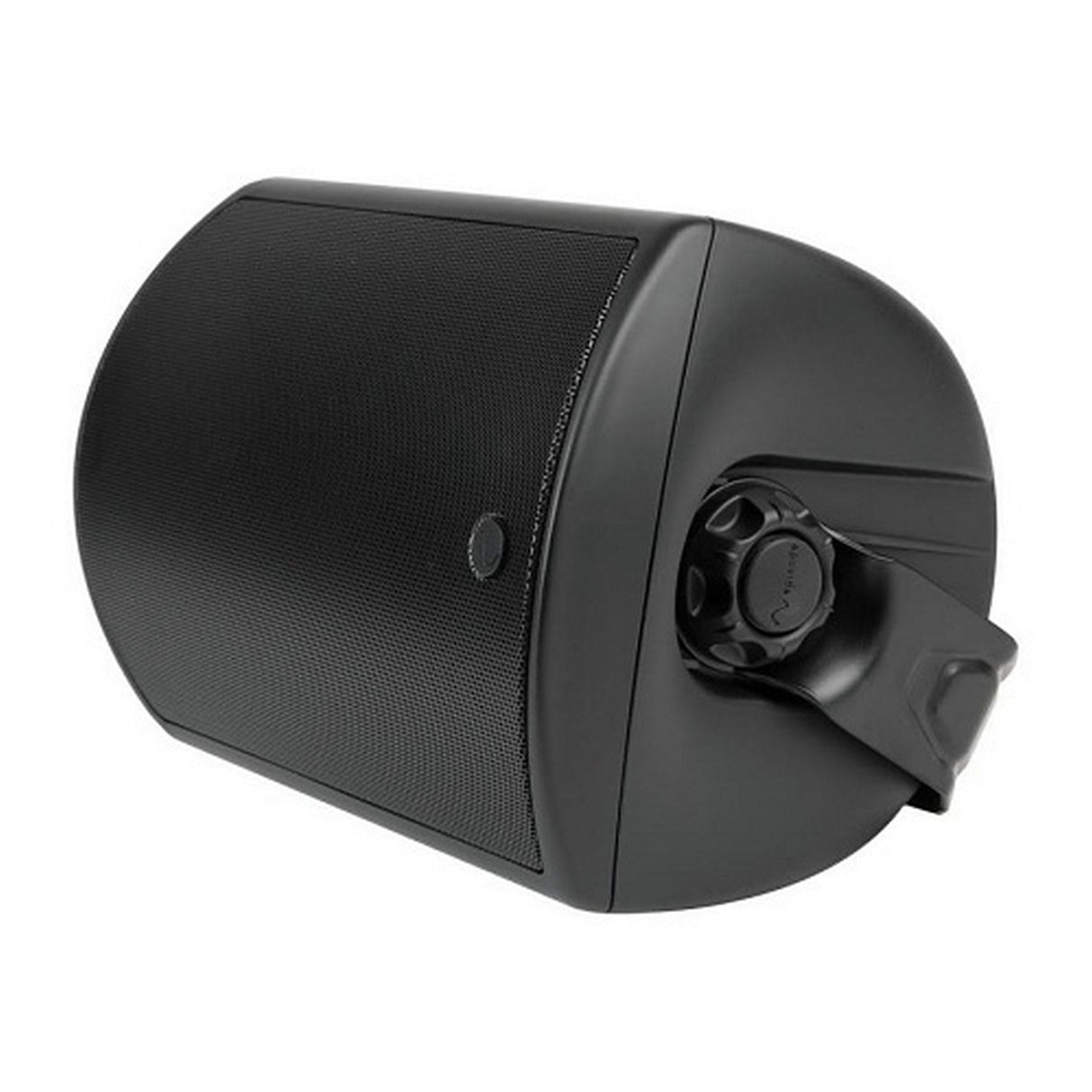

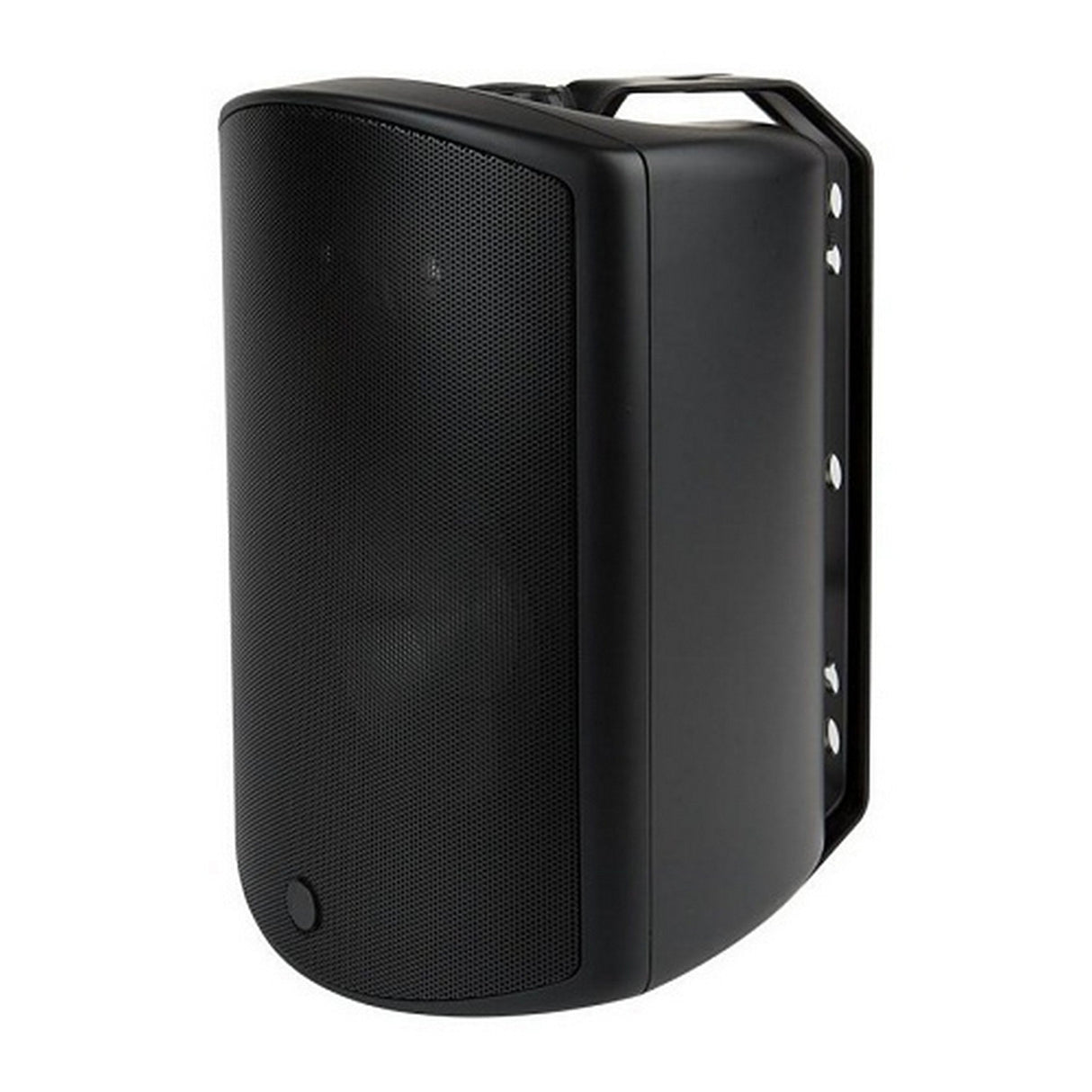

Episode ES-500-AW-DVC-6 All-Weather Dual Voice Coil Outdoor Speaker - Black

Episode ES-500-AW-DVC-6 Outdoor Speaker

The Episode ES-500-AW-DVC-6 outdoor speaker is a weather-resistant, dual-voice-coil surface-mount speaker designed to reproduce left and right stereo channels from one enclosure. Its 6-inch titanium-deposited polypropylene woofer, dual 0.75-inch pure-titanium dome tweeters, and 89 dB sensitivity provide wide-dispersion audio for patios, porches, and other outdoor listening areas.

This single-speaker stereo solution works well when space or installation requirements make a traditional stereo speaker pair impractical. Installers can use the adjustable easy-locking bracket for fast surface mounting and position the enclosure beneath eaves, on exterior walls, or around covered entertainment spaces. Gold-plated push terminals simplify speaker-wire connections while a protective cover adds moisture protection.

The Episode ES-500-AW-DVC-6 outdoor speaker provides separate 8-ohm inputs for its left and right channels and is designed for amplifiers capable of supporting an 8-ohm speaker load. Its outdoor-focused construction combines a UV-treated mineral-filled polypropylene cabinet, aluminum grille and bracket, stainless steel hardware, and an operating temperature range from -4°F to 140°F. Black and white variants share the same verified performance specifications.

Key Features

• Dual Voice Coil Stereo Design: Reproduces left and right channels through one speaker enclosure for space-efficient outdoor audio installations.
• 6-Inch Woofer: Uses a polypropylene cone with vacuum-deposited titanium for dependable full-range reproduction.
• Dual Titanium Tweeters: Two 0.75-inch pure-titanium dome tweeters provide wide stereo coverage from a single cabinet.
• Weather-Resistant Construction: Features a UV-treated mineral-filled polypropylene enclosure, aluminum grille and bracket, and stainless steel hardware.

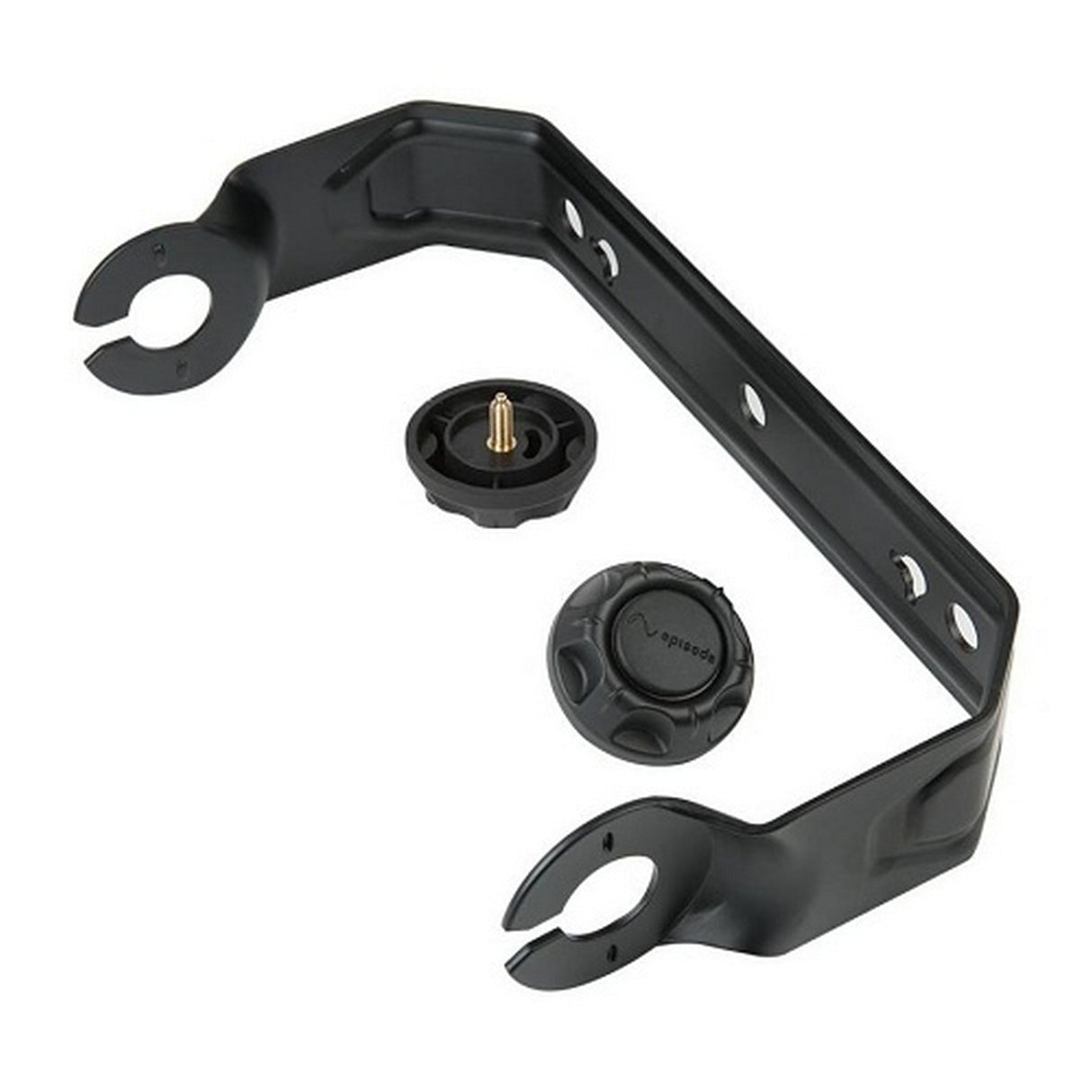

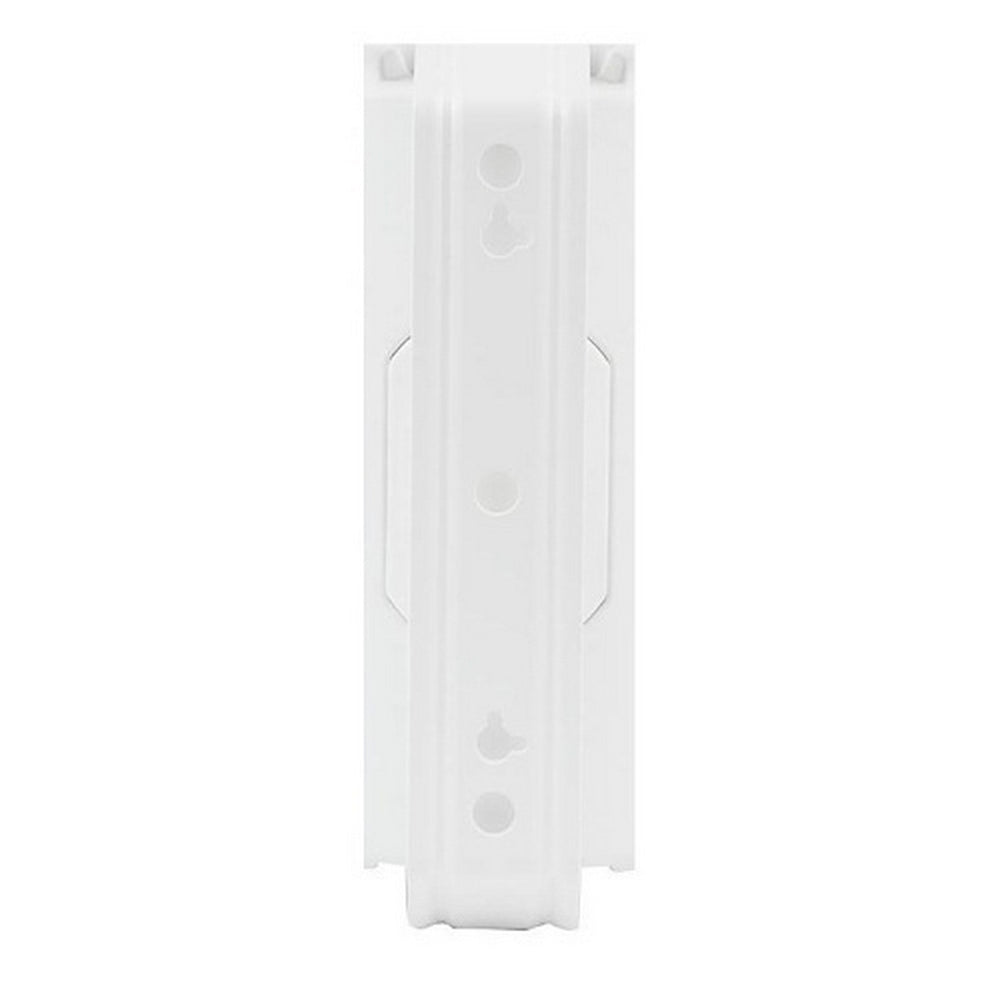

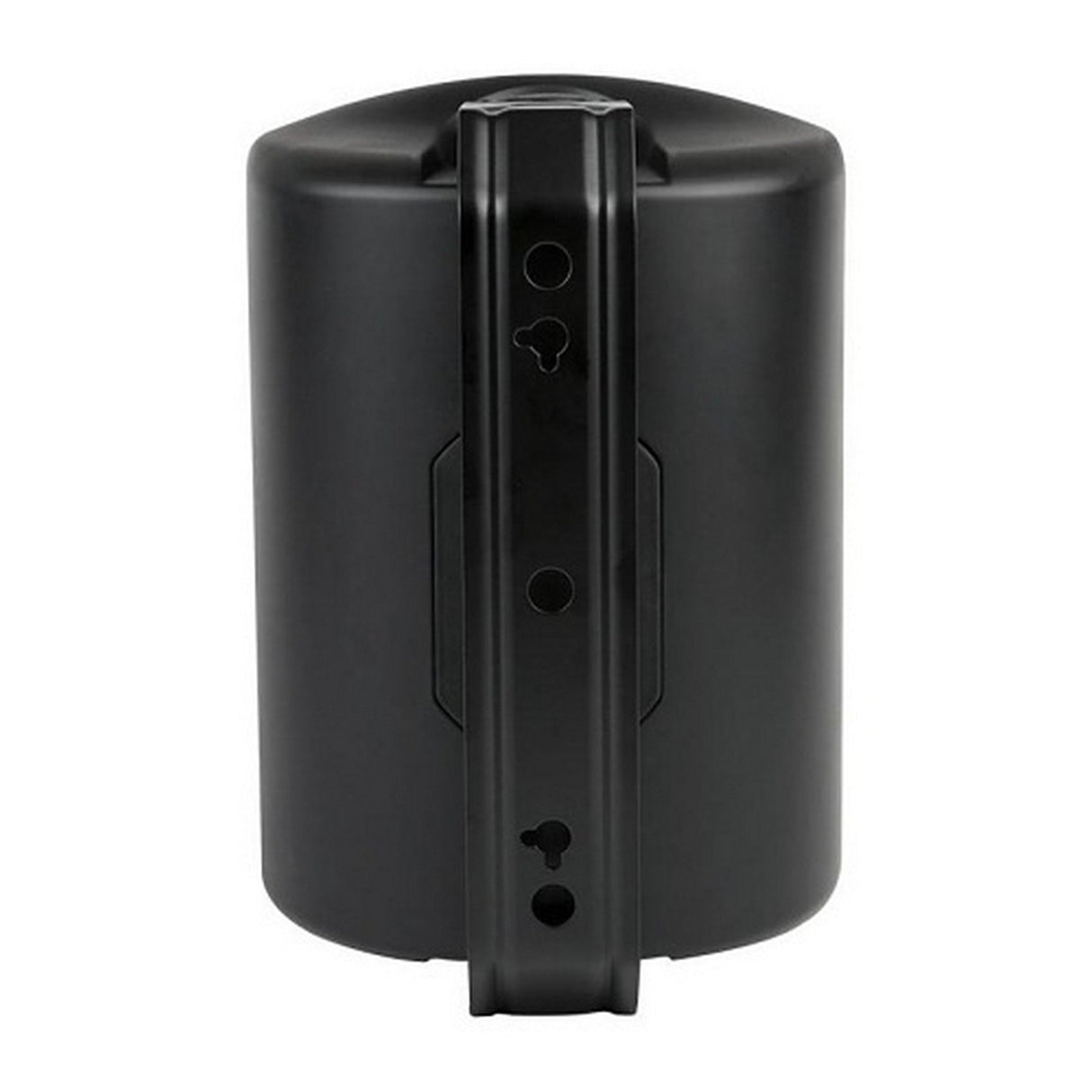

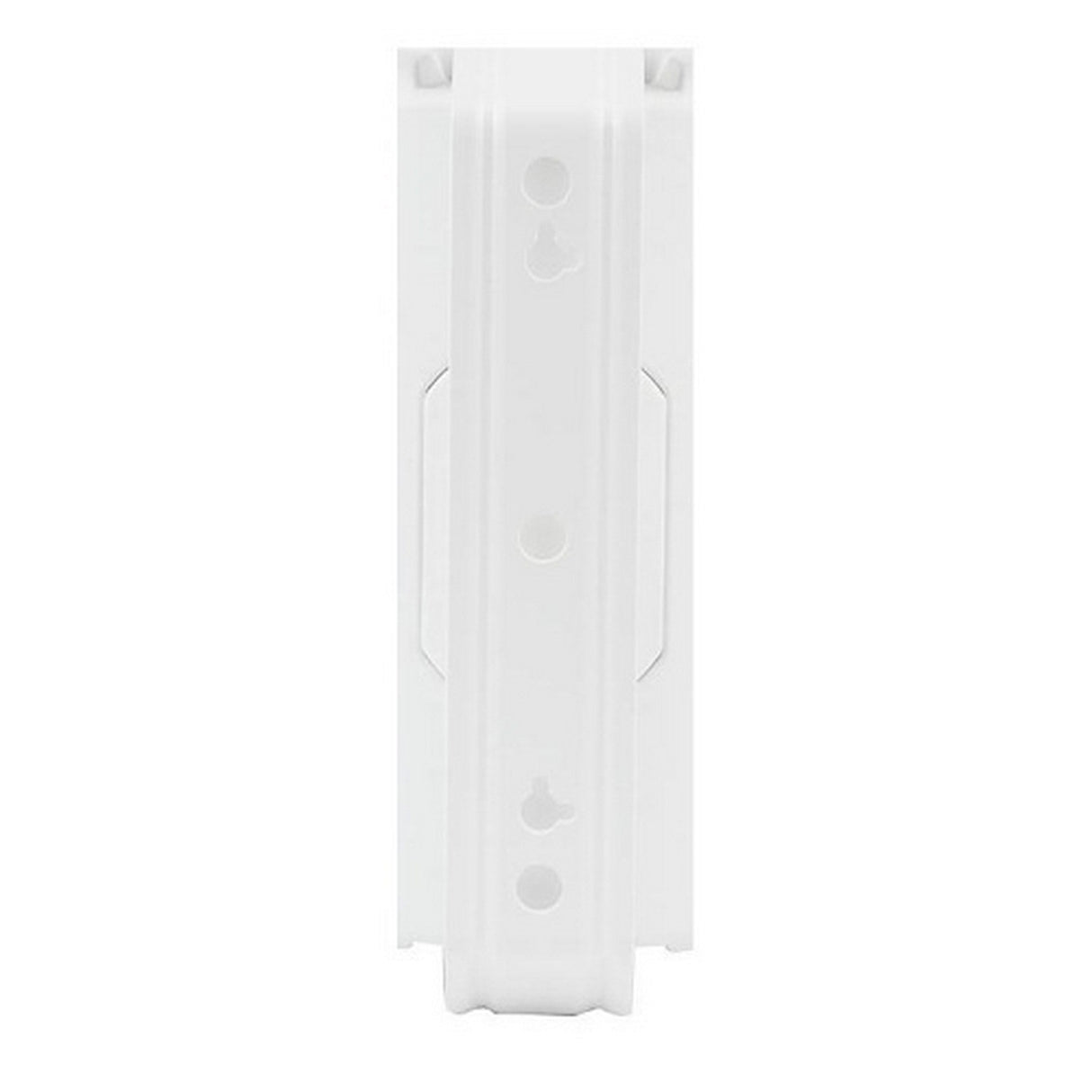

• Easy-Locking Mounting Bracket: Allows the bracket to be installed first before positioning and adjusting the speaker.

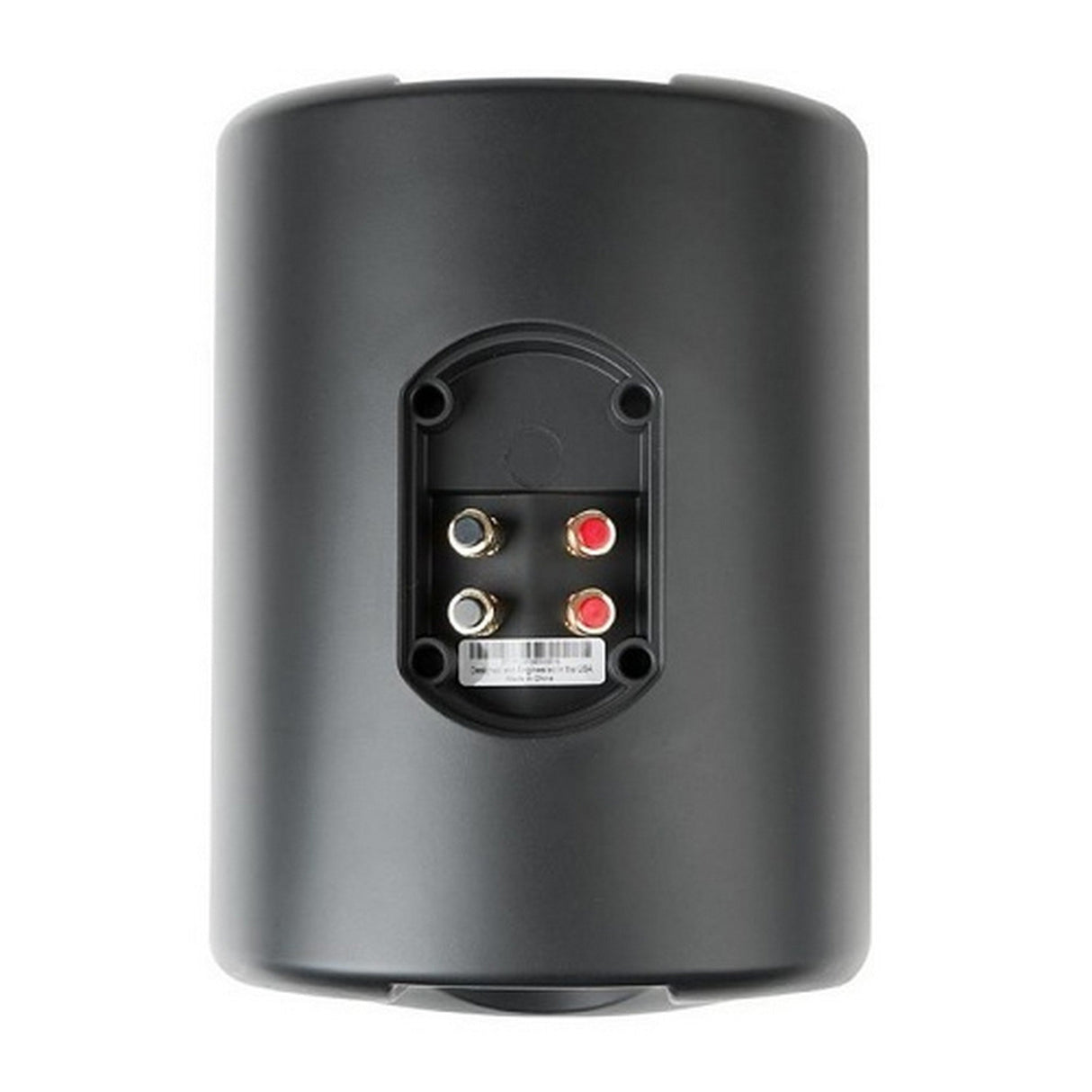

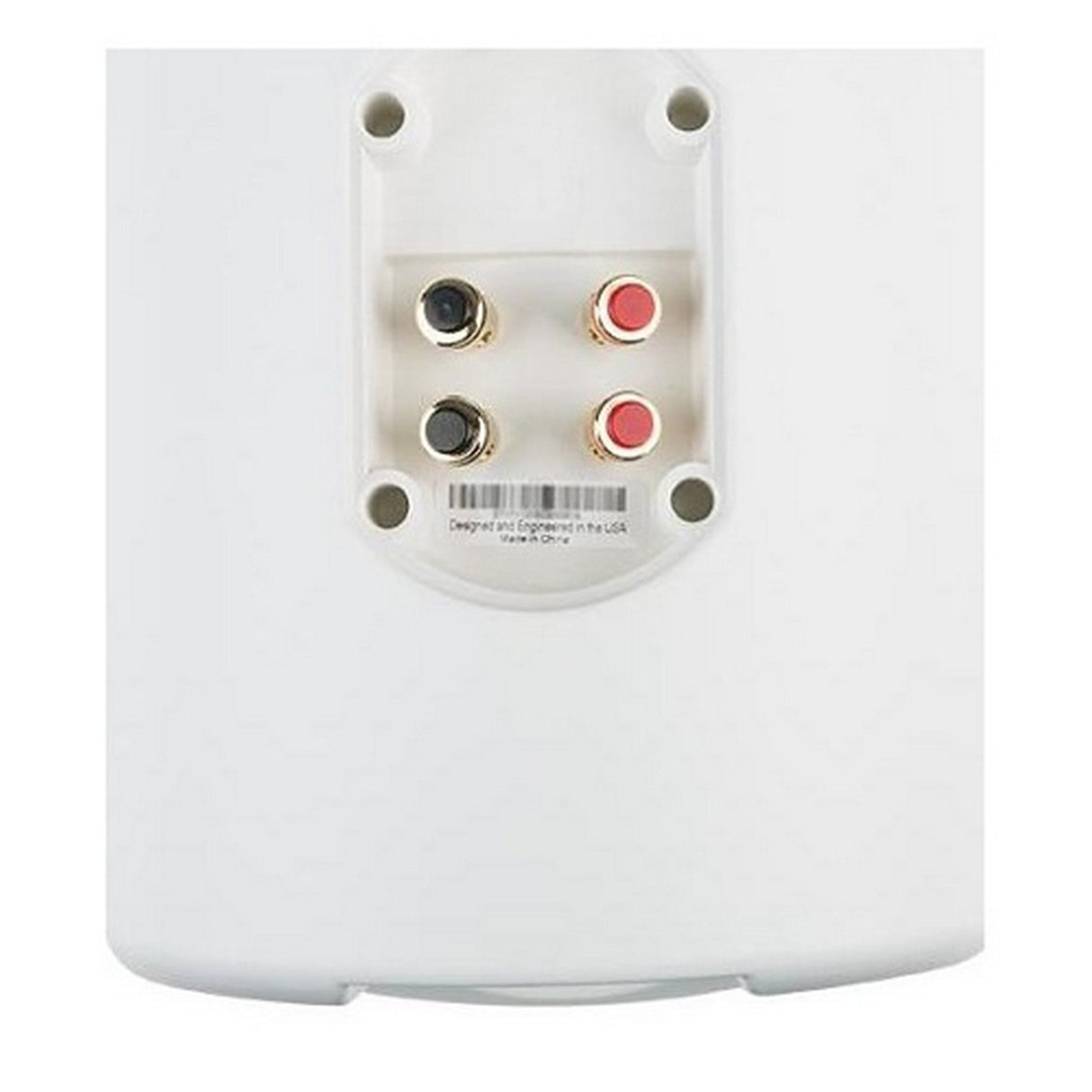

• Gold-Plated Push Terminals: Provide straightforward speaker-wire connections beneath a moisture-protective terminal cover.
• 8-Ohm Inputs: Separate left and right channel connections support standard amplifiers capable of an 8-ohm speaker load.

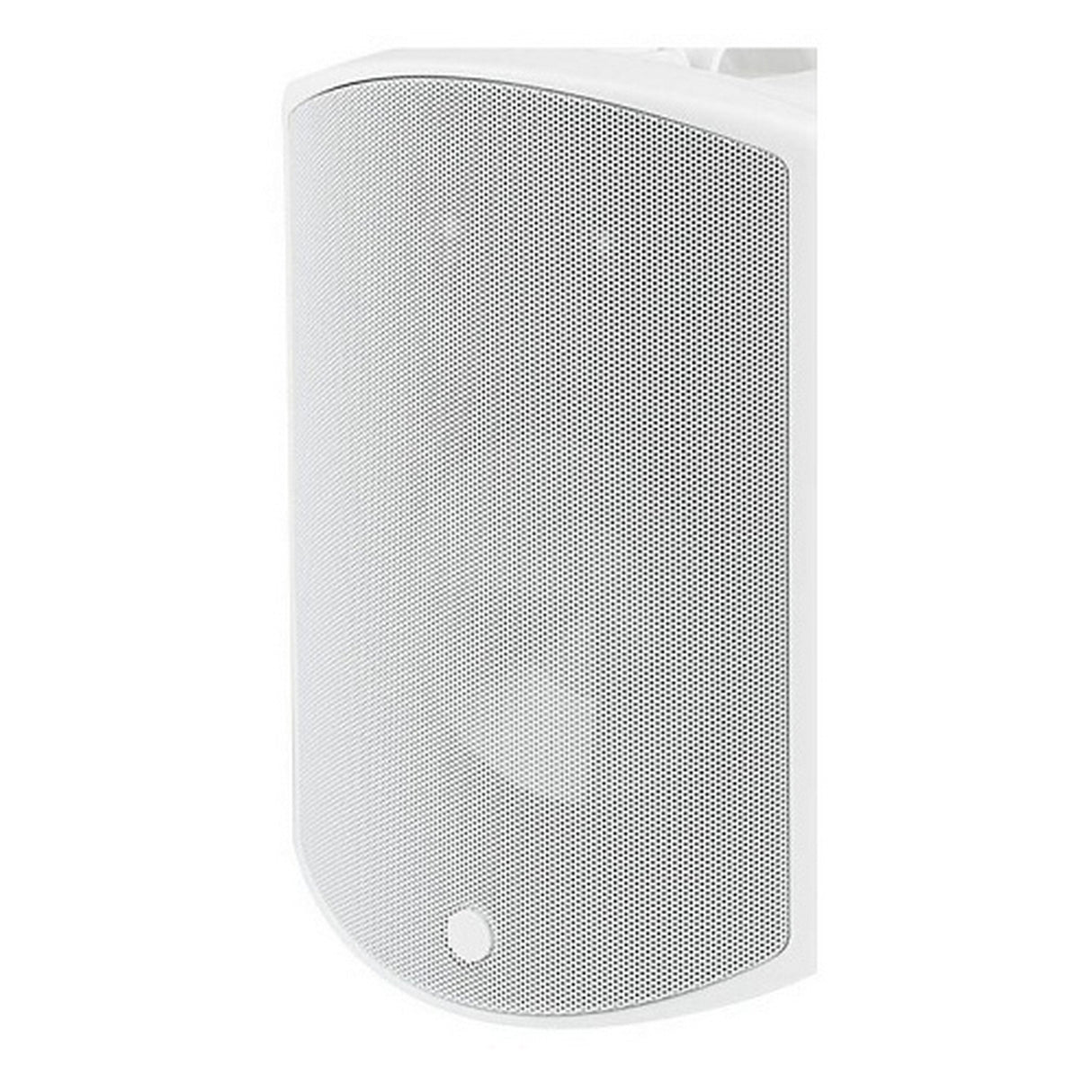

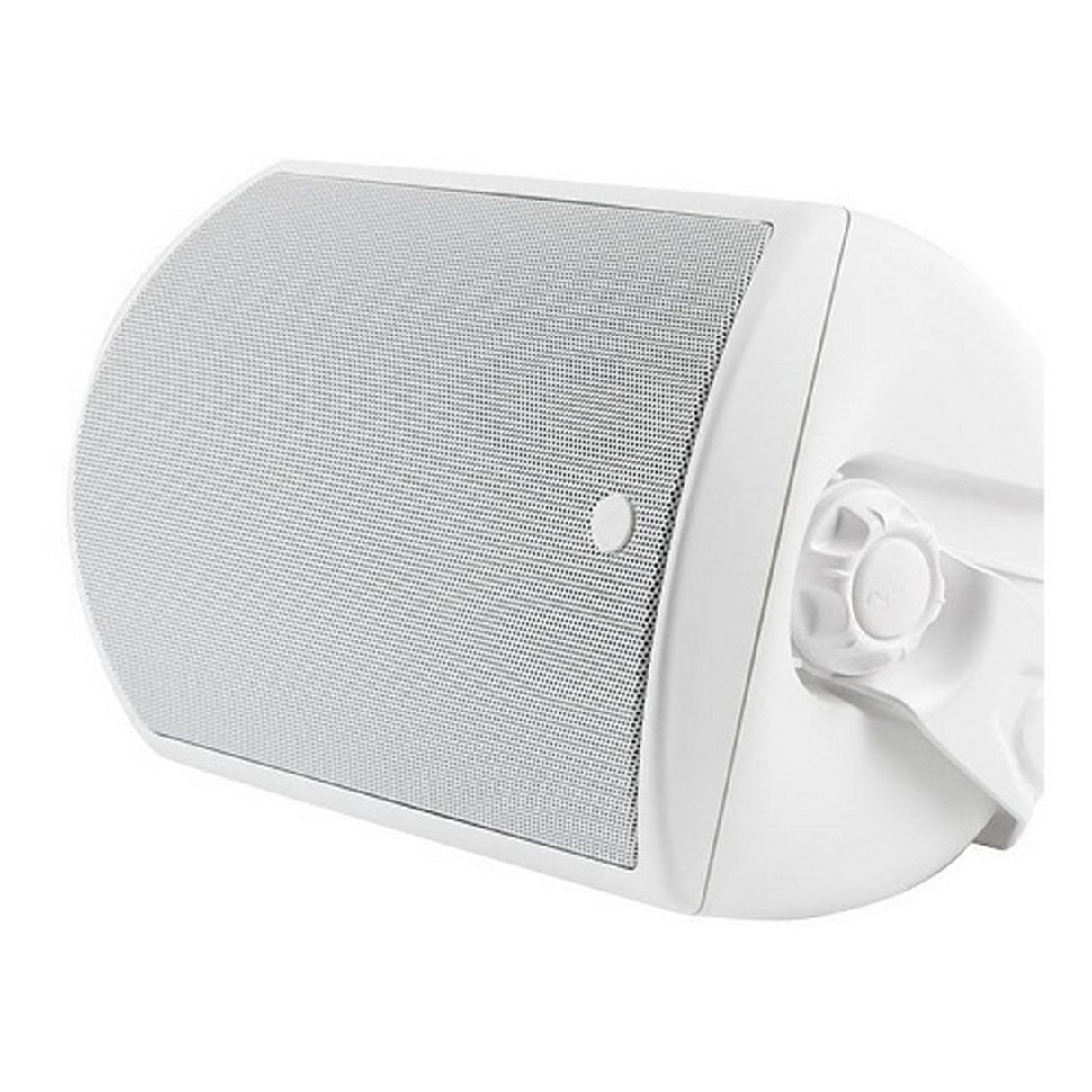

• Two Color Options: Available in black and white versions with matching acoustic and physical specifications.

Technical Specifications

• Brand: Episode
• Series: All-Weather 500 Series
• Base Model: ES-500-AW-DVC-6
• Black Model: ES-500-AW-DVC-6-BLK
• White Model: ES-500-AW-DVC-6-WHT
• Color Options: Black, White
• Product Type: Dual Voice Coil Surface-Mount Outdoor Speaker
• Sold As: Each
• Woofer: 6" polypropylene cone with vacuum-deposited titanium
• Tweeters: Dual 0.75" pure-titanium dome tweeters
• Nominal Impedance: 8 ohms per channel
• Frequency Response: 65 Hz to 20 kHz
• Crossover Frequency: 2.5 kHz
• Peak Power Handling: 165 W per channel
• Sensitivity: 89 dB
• Connectors: Gold-plated push terminals
• Channel Connections: Separate terminal sets for left and right channels
• Cabinet: UV-treated, mineral-filled polypropylene
• Grille and Bracket: Aluminum
• Hardware: Stainless steel bolts
• Operating Temperature: -4°F to 140°F
• Dimensions Without Bracket (W x H x D): 7.5" x 11.1" x 7.2"
• Dimensions With Bracket (W x H x D): 7.5" x 11.1" x 7.7"
• Weight: 7.5 lb
• Application: Outdoor
• Warranty: Limited Lifetime Warranty
