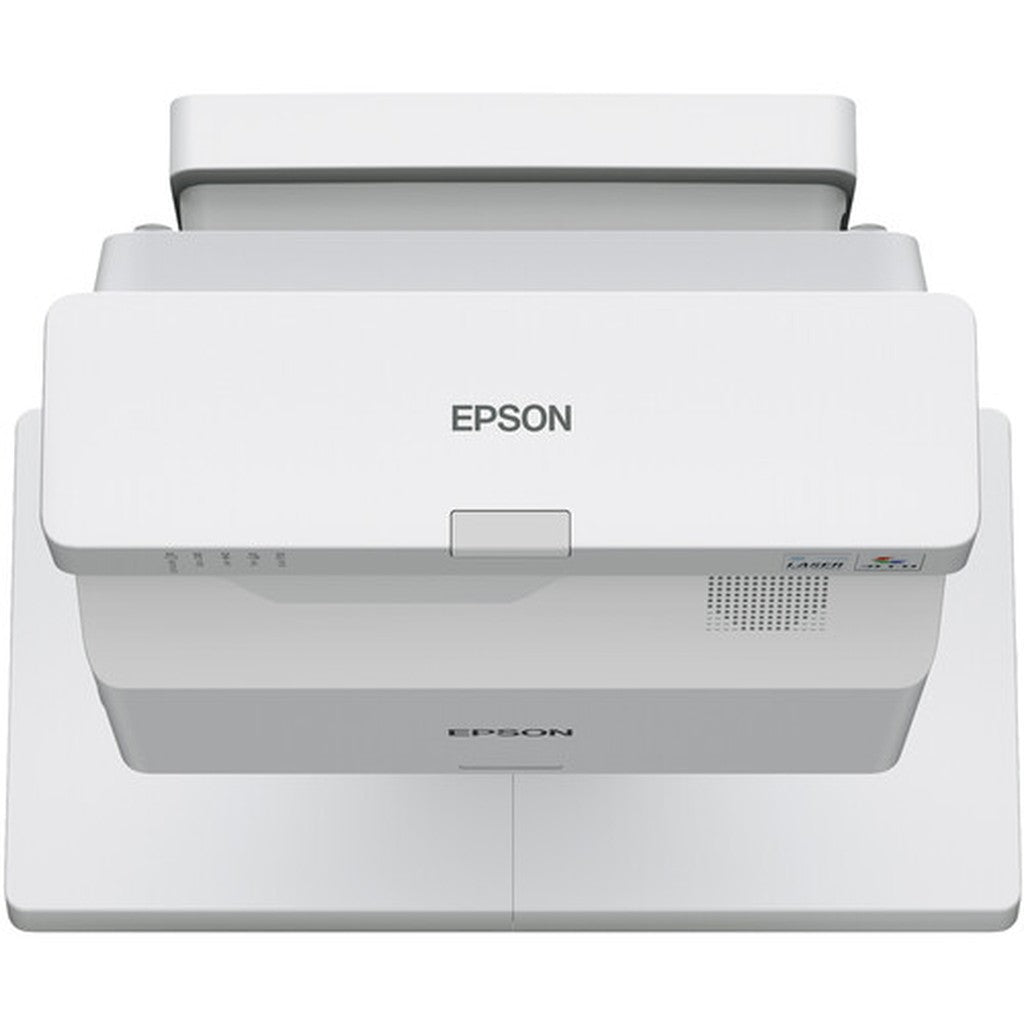

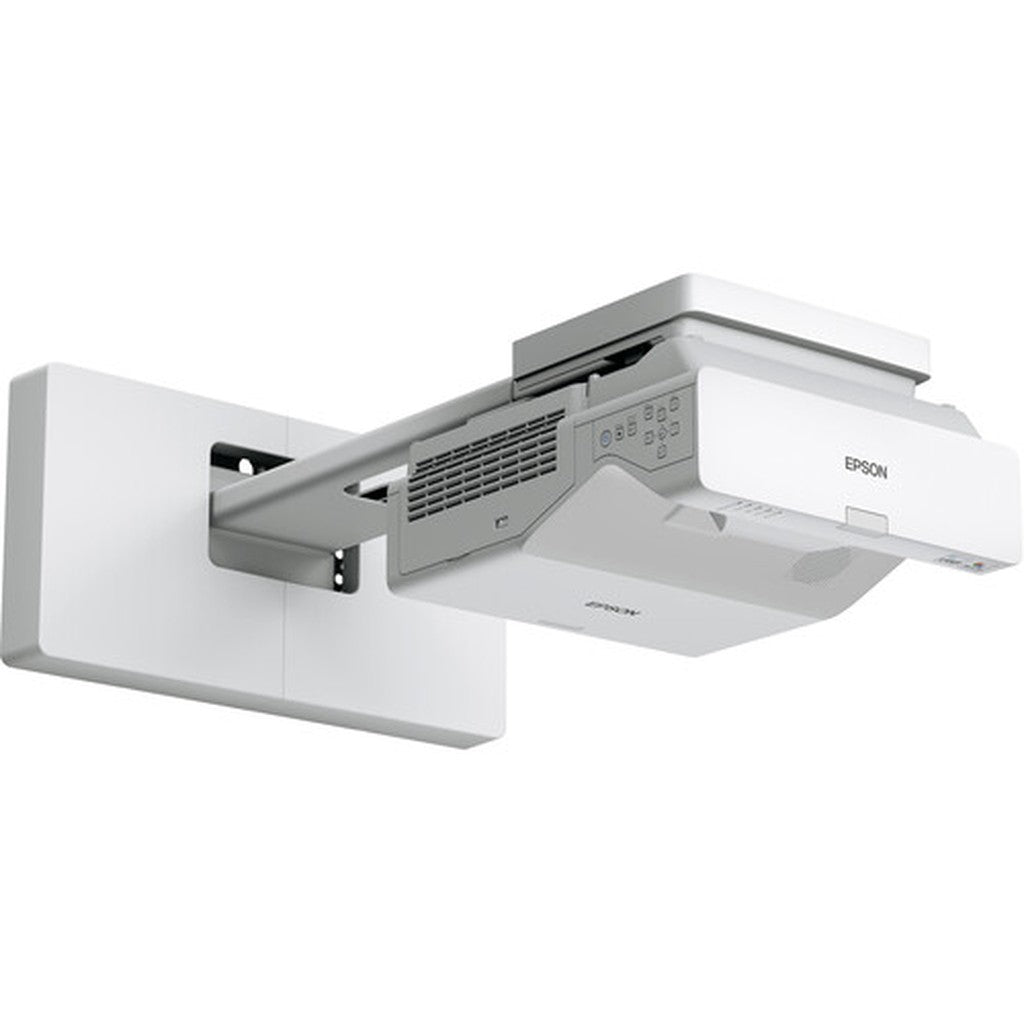

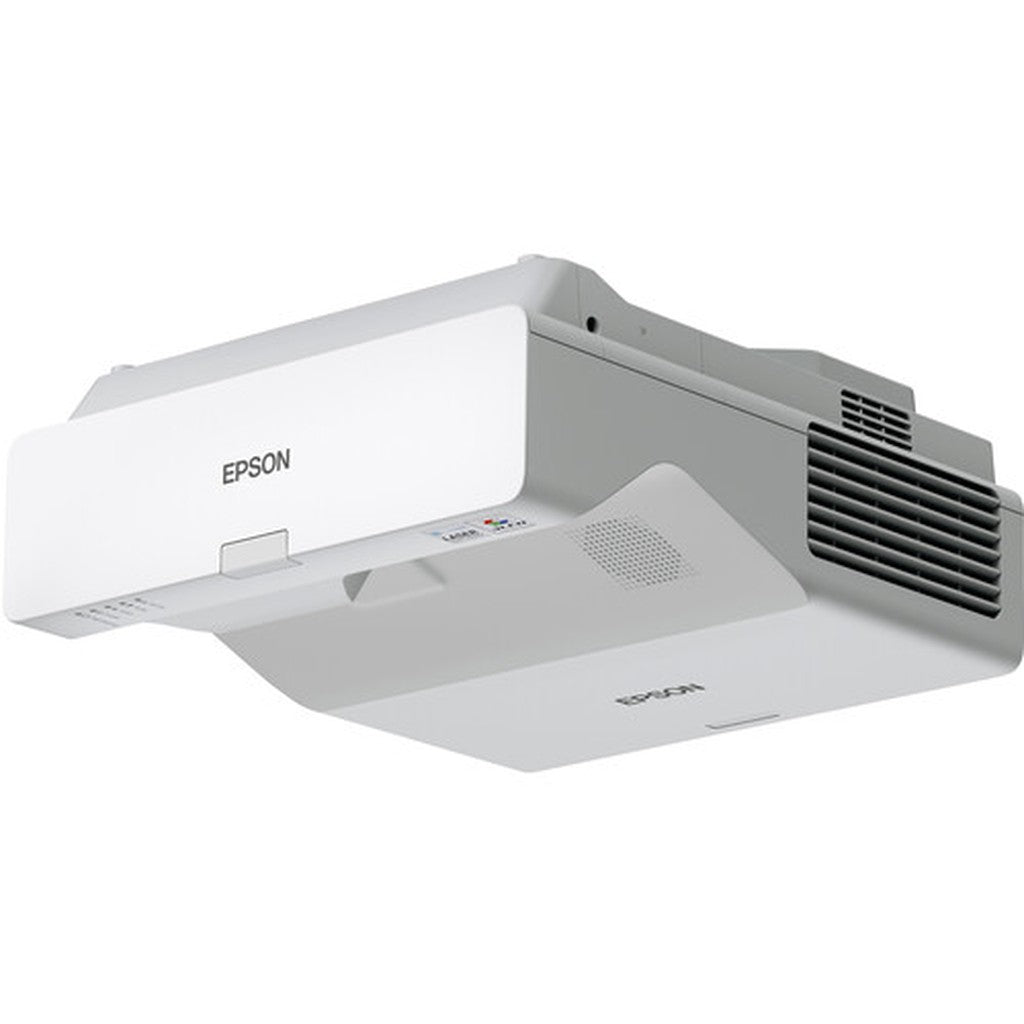

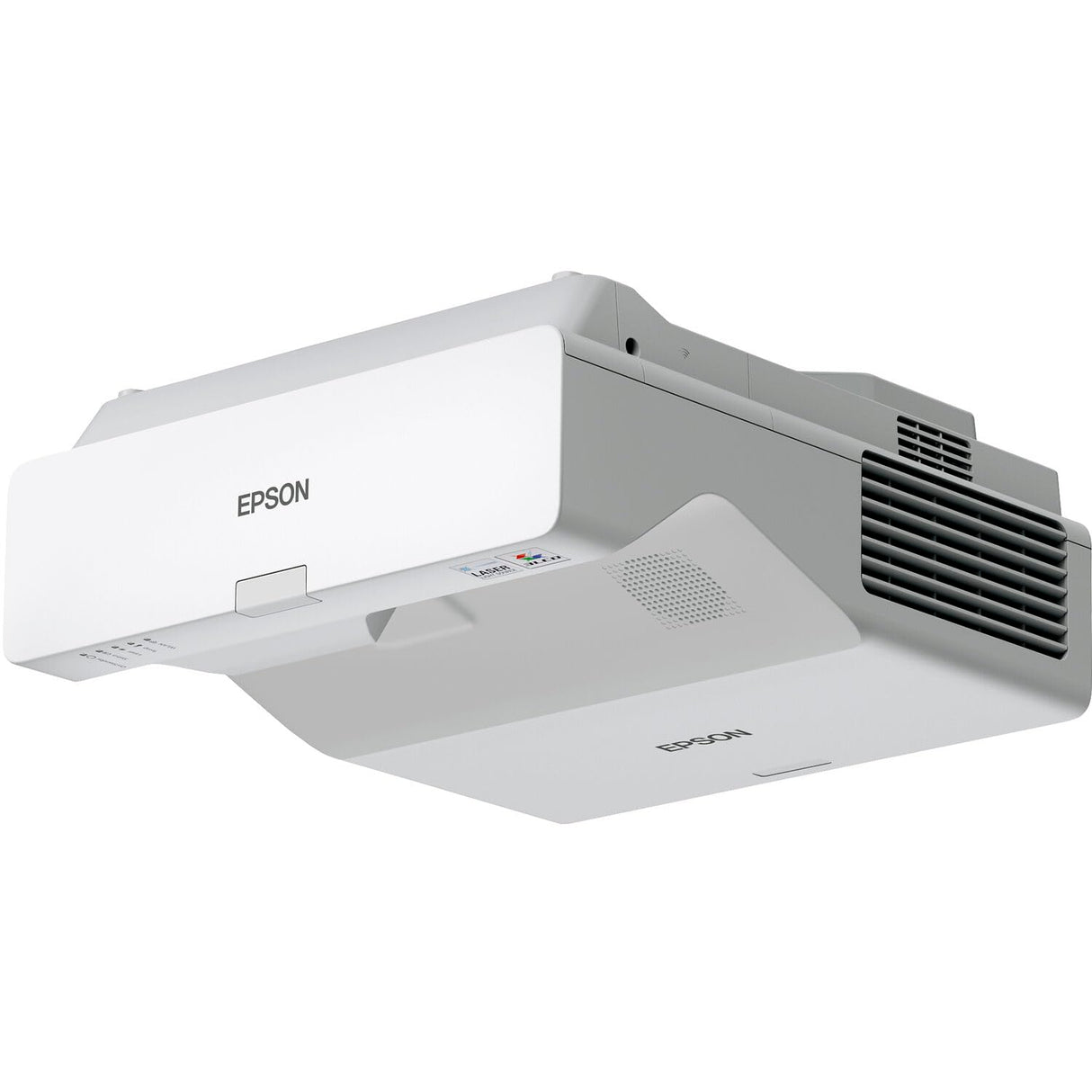

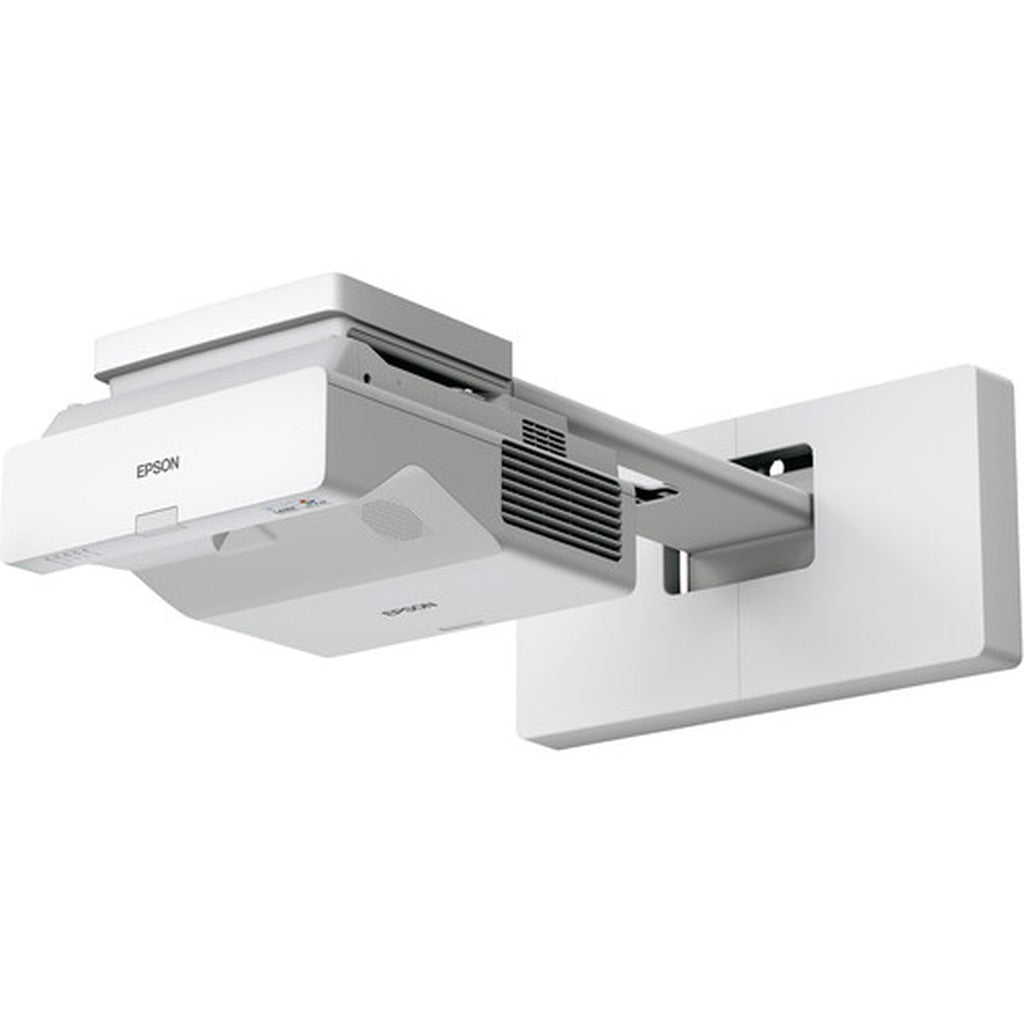

Epson BrightLink 760Wi WXGA Interactive Ultra-Short Throw Projector

Epson BrightLink 760Wi WXGA Interactive Ultra-Short Throw Projector

The Epson BrightLink 760Wi WXGA interactive ultra-short throw projector creates a bright, collaborative display measuring up to 100 inches. Its 3-chip 3LCD system produces 4,100 lumens of equal color and white brightness, while dual-pen interactivity and optional multi-touch support transform an existing wall or whiteboard into an engaging workspace.

Built for classrooms, training facilities, conference rooms, and collaborative business environments, the BrightLink 760Wi supports computer-based and PC-free annotation. Presenters can draw, save, print, and email whiteboard content without connecting a computer. Wireless casting supports compatible computers, Chromebooks, tablets, and mobile devices, with moderator controls for managing shared content from up to 50 connected devices.

The lamp-free laser light source provides up to 20,000 hours of operation in normal use and up to 30,000 hours in Extended Mode. Automatic image alignment and pen calibration streamline installation, while HDMI, USB, VGA, Ethernet, Miracast, and integrated wireless connectivity accommodate modern and legacy sources. A built-in 16W speaker completes an all-in-one interactive presentation system.

Key Features

• 4,100-Lumen 3LCD Display: Produces equally bright color and white output for readable presentations in rooms with ambient light.
• Ultra-Short Throw Projection: Creates a 68" to 100" image from only 15.4" to 23.6" away with a compatible mount.

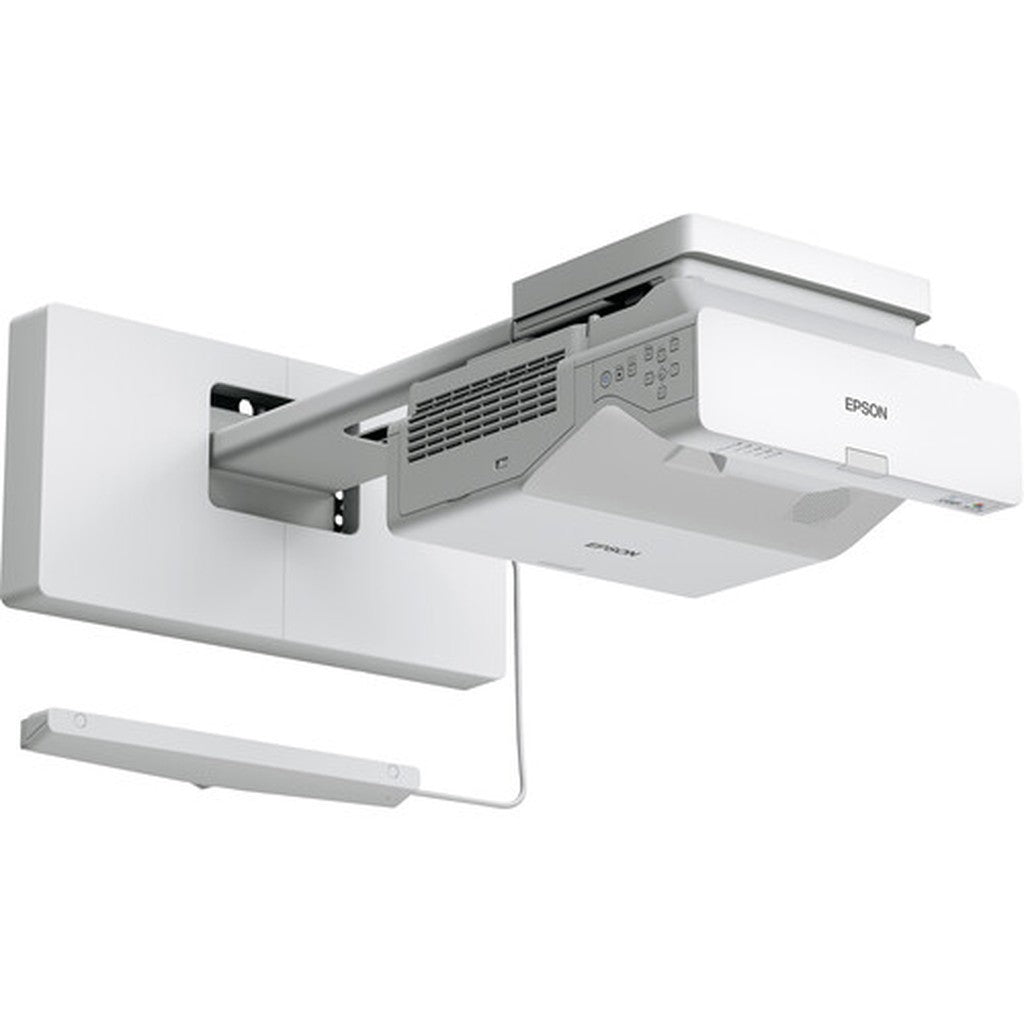

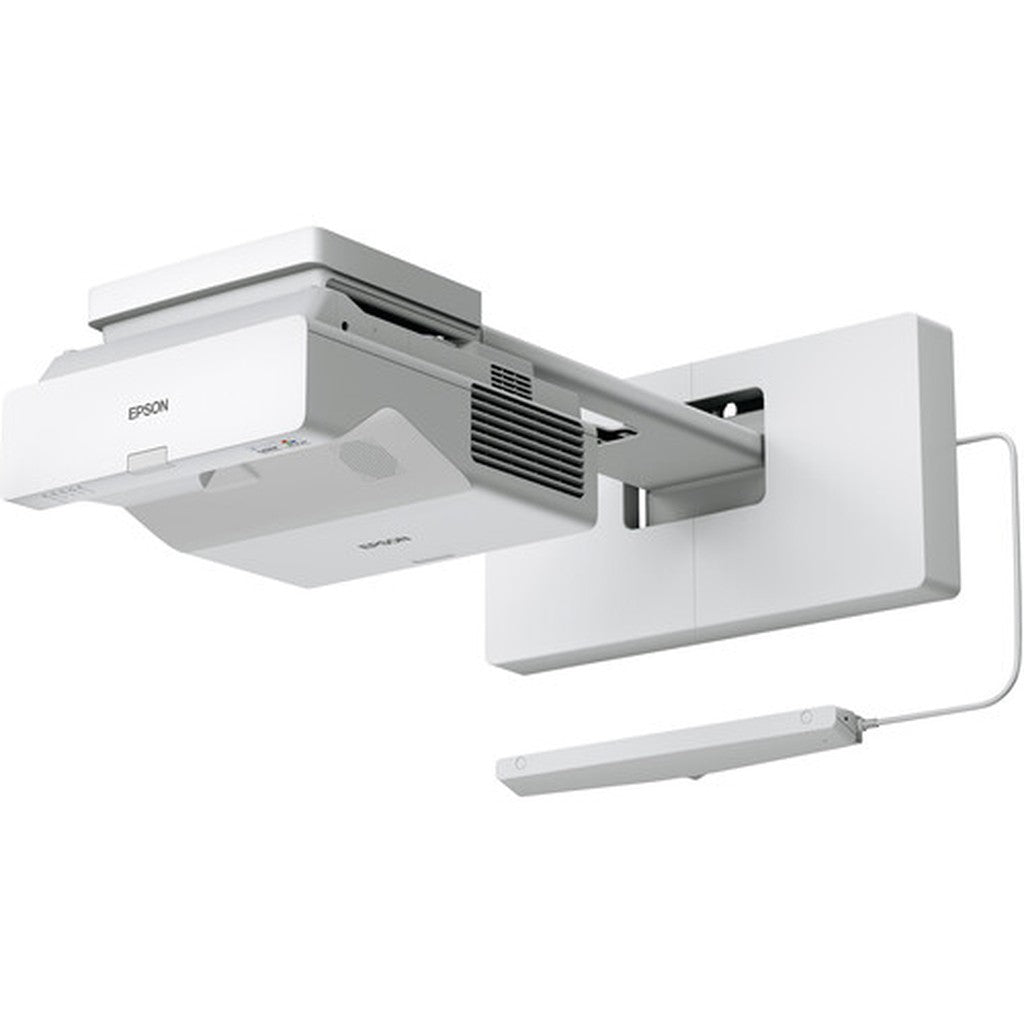

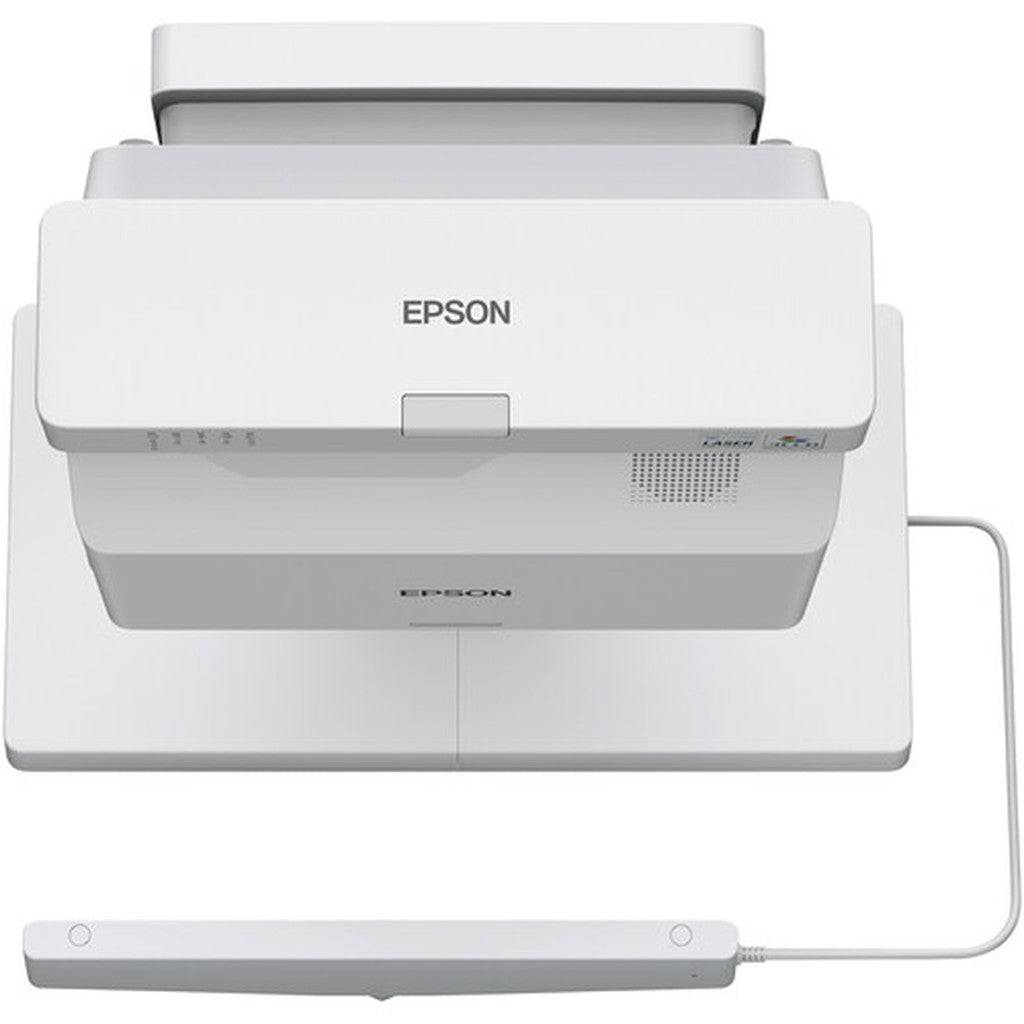

• Interactive Collaboration: Supports two interactive pens and up to six simultaneous touch points with the optional touch module.
• PC-Free Whiteboard: Draws, saves, prints, emails, and shares annotation content without requiring a connected computer.
• Wireless Content Sharing: Casts from compatible computers and mobile devices while supporting connections from up to 50 devices.
• Long-Life Laser Source: Provides up to 20,000 hours in normal operation and up to 30,000 hours in Extended Mode.
• Automatic Setup Tools: Simplifies installation with automatic image alignment, distortion correction, and pen calibration.

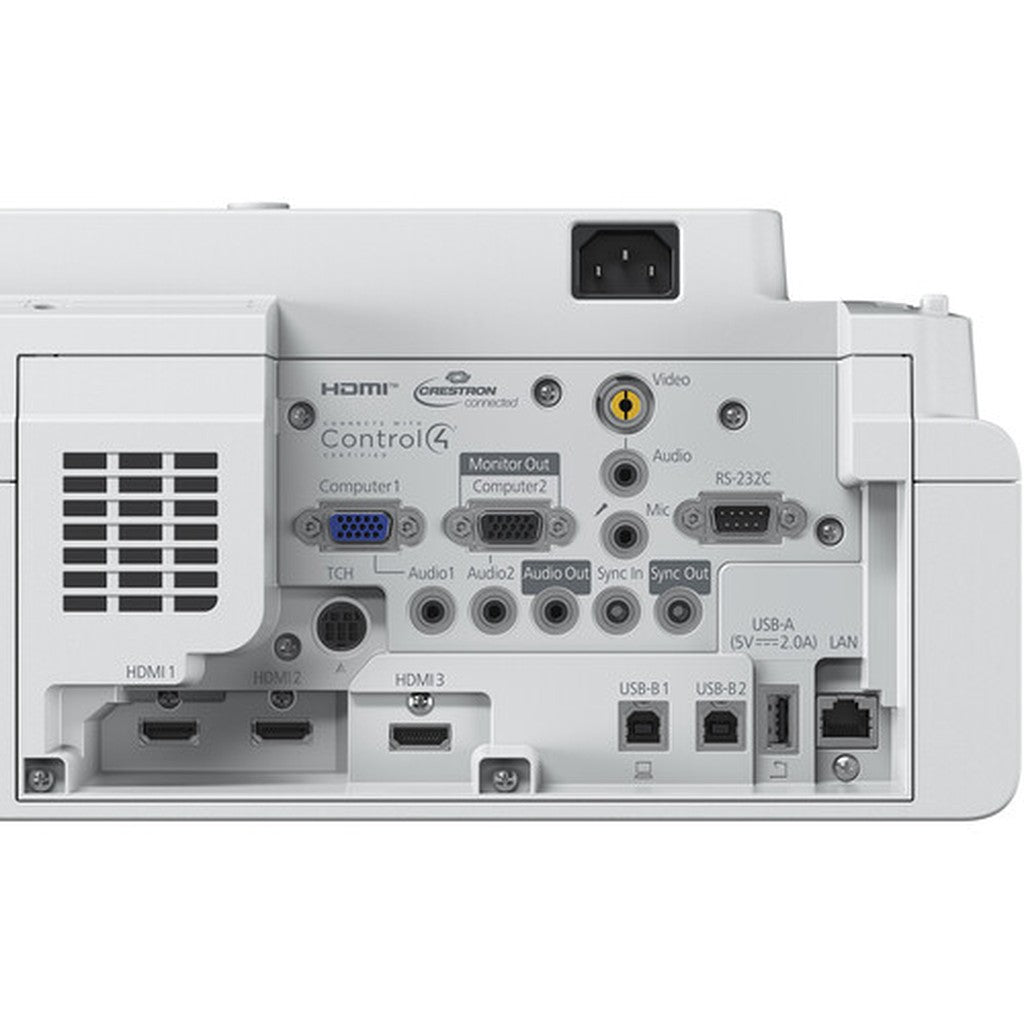

• Extensive Connectivity: Includes HDMI, VGA, composite video, USB, Ethernet, RS-232, audio, microphone, and interactive synchronization connections.

Technical Specifications

• Model: BrightLink 760Wi
• Manufacturer Part Number: V11HA80020
• Product Type: Interactive ultra-short throw laser projector
• Projection System: 3-chip 3LCD technology
• Driving Method: Poly-silicon TFT active matrix
• Pixel Count: 1,024,000 dots (1280 x 800) x 3
• Native Resolution: 1280 x 800 WXGA
• Native Aspect Ratio: 16:10
• Supported Aspect Ratios: 4:3 and 16:9
• Color Brightness: 4,100 lumens
• White Brightness: 4,100 lumens
• Contrast Ratio: Up to 2,500,000:1
• Color Reproduction: Up to 1.07 billion colors
• Light Source: Laser
• Light Source Life: Up to 20,000 hours
• Extended Mode Light Source Life: Up to 30,000 hours
• Projection Method: Front, rear, wall mount, or table mount
• Image Size: 68" to 100" diagonal in 16:10 format with the ELPMB62 mount
• Projection Distance: 15.4" to 23.6" with the ELPMB62 mount
• Throw Ratio: 0.27 to 0.37:1
• Focus: Manual
• Lens Aperture: f/1.6
• Focal Length: 3.7mm
• Digital Zoom: 1.00 to 1.35x
• Keystone Correction: Horizontal ±3° and vertical ±3°
• Interactive Technology: 850nm infrared
• Maximum Interactive Area: 100" diagonal in 16:10 format
• Pen Interactivity: Dual-user interactive pen support
• Finger-Touch Interactivity: Up to six touch points with the optional touch module
• PC-Free Annotation: Two pens and up to six fingers
• Interactive Modes: Computer interactivity, PC-free annotation, and whiteboard annotation
• PC Interactive Sources: USB, HDMI, VGA, LAN, and Miracast
• Calibration Method: Automatic or manual
• Wireless LAN: IEEE 802.11a/b/g/n/ac
• Wireless Frequency Bands: 2.4 and 5 GHz
• Wireless Security: Open, WPA2/WPA3-PSK, and WPA2/WPA3-EAP
• Supported EAP Types: PEAP, PEAP-TLS, EAP-TLS, and EAP-FAST
• HDMI Inputs: 3
• Composite Video Input: 1 RCA
• VGA Inputs: 1 D-Sub 15-pin
• VGA Monitor Output: 1 D-Sub 15-pin
• Audio Inputs: 3 x 3.5mm stereo
• Audio Output: 1 x 3.5mm stereo
• Microphone Input: 1 x 3.5mm
• USB-A Ports: 2, including a 5V/2A port for USB memory or a document camera
• USB-B Ports: 2 for USB display, audio, and interactivity
• Ethernet: 1 RJ45 LAN port
• Serial Control: 1 RS-232C port
• Interactive Synchronization: 3.5mm input and output
• Touch Module Connection: Dedicated connection port
• Built-In Speaker: 16W monaural
• Fan Noise: 37 dB Normal Mode; 27 dB Quiet Mode
• Input Power: 100–240V AC ±10%, 50/60Hz
• Power Consumption: 277W Normal Mode; 214W Quiet Mode
• Standby Consumption: 2W with communication on; 0.5W with communication off
• Operating Temperature: 41 to 104°F
• Security: Kensington lock provision, security anchor bar, and password protection
• Remote Operating Distance: Up to 19.7'
• RoHS Compliance: Yes
• Dimensions (W x D x H): 14.1" x 15.6" x 5.3", excluding feet
• Weight: 13.2 lbs
• Package Dimensions: 19.1" x 18.8" x 12.4"
• Package Weight: 19.37 lbs

What's In the Box

• Epson BrightLink 760Wi Interactive Ultra-Short Throw Laser Projector
• Quick Start Guide
• 6' Power Cable
• 16' USB-A to USB-B Cable
• Remote Control

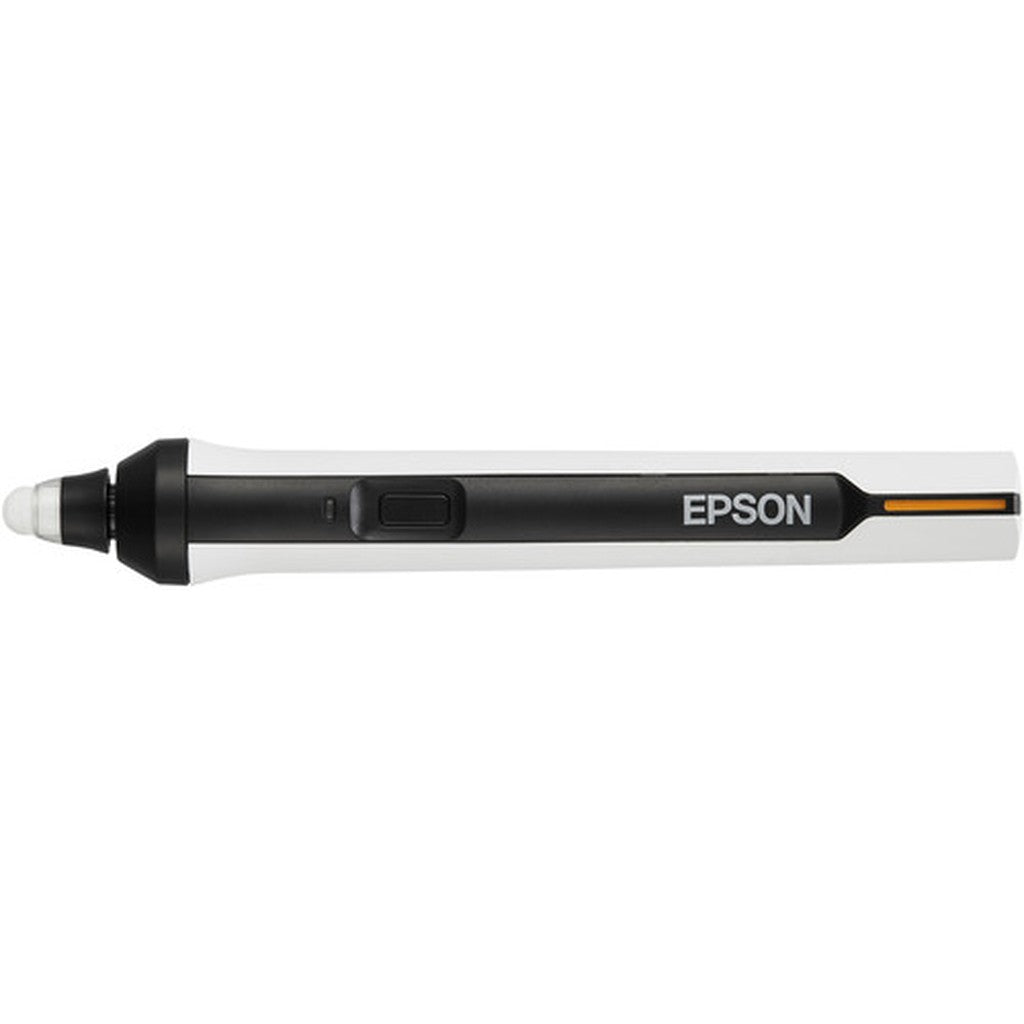

• 2 Interactive Pens

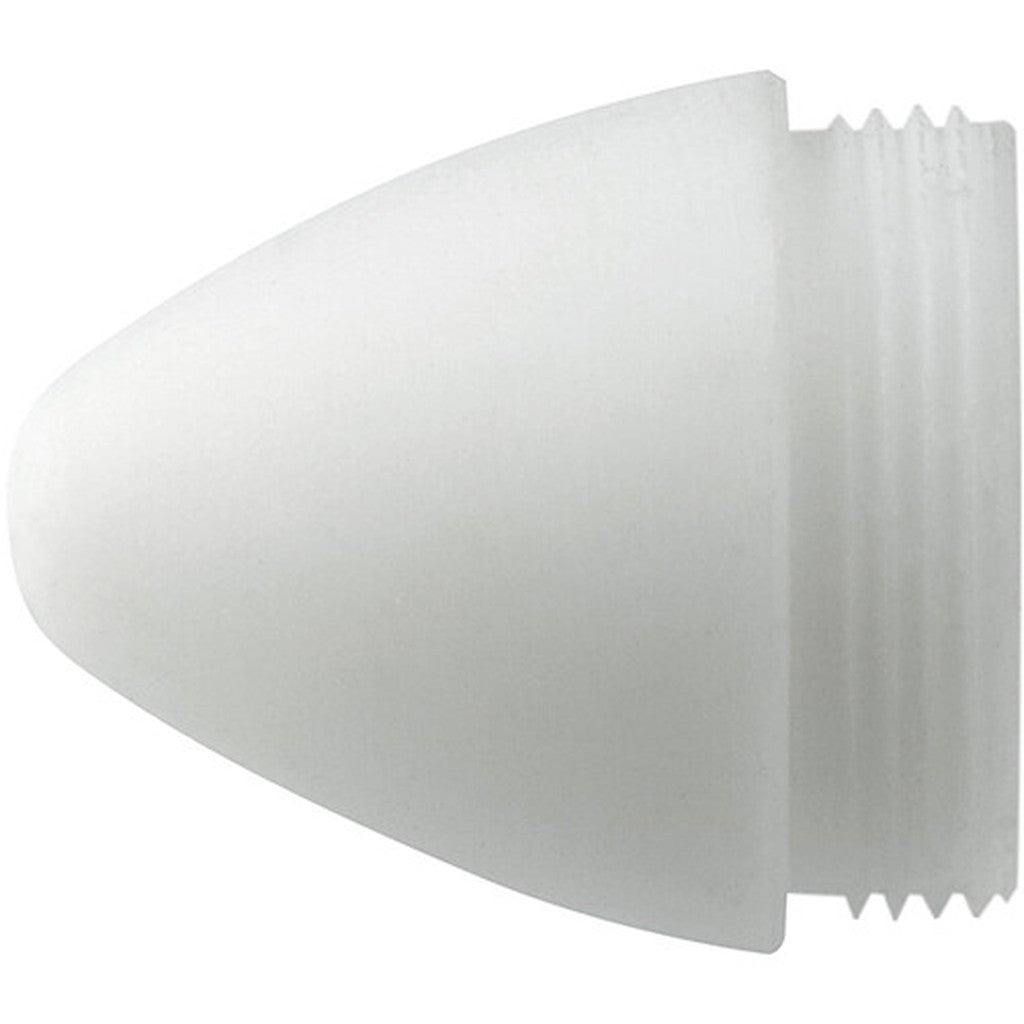

• 4 Soft Pen Tips
• 2 Hard Pen Tips
• Pen Tray
• 2 AA Batteries for the Interactive Pens
• 2 AA Batteries for the Remote Control
• Projector Feet
• Corner Markers
• Magnets for Corner Markers
