EtherWAN ED3501 Industrial 10/100BASE-TX Ethernet Extender
EtherWAN ED3501 Industrial 10/100BASE-TX Ethernet Extender

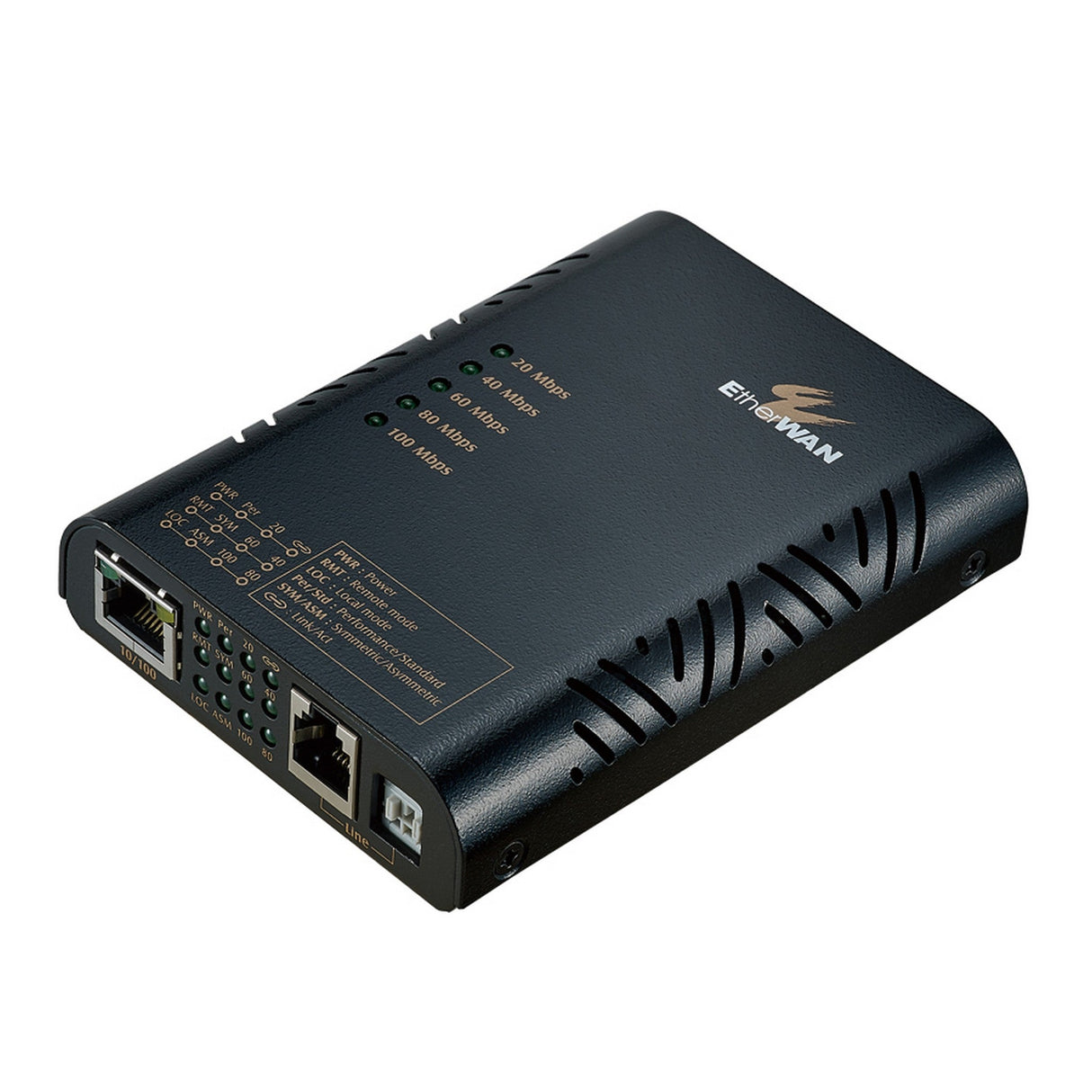

The ED3501 Ethernet extender allows the extension of IP services beyond normal Ethernet distance limitations without changing cables, breaking the 100-meter Ethernet barrier.
The ED3501's design features high shock, vibration, electrical noise immunity, an operating temperature range from -10Ā°C to 60Ā°C, and ruggedized aluminum housing. The ED3501 is the ideal Ethernet extender for environments where connectivity is crucial.
Technical Specifications
Ethernet Port
Port: One RJ-45 port
Speed: 10/100Mbps
Distance: 100 meters (328ft.)
Cable: 10BASE-T: UTP Cat. 3, 4, 5 (2-pair wire); 100BASE-TX: UTP Cat. 5 (4-pair wire)
Ethernet Extender Port
Port: One RJ-11/Terminal Block port
Speed: Up to 100Mbps
Distance: 2600 meters (8,530ft.)
Cable: Telephone wire 24AWG (0.5mm diameter, 1-pair wire) or larger
DIP Switch
DIP 1: Auto/Loc
DIP 2: SYM/ASM
DIP 3: Perf./Std.
LED Indicators
Per Unit: Power 1
Per 10/100TX Port: Link/Activity, full-duplex
Line Speed: 100/80/60/40/20Mbps and link below
SYM: Symmetric mode (distance <=1000m)
ASM: Asymmetric mode
RMT: Remote mode
LOC: Local mode
Per: On/Performance mode; Off/Standard mode
Standards
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x full duplex and flow control
Processing Type
Half-duplex back-pressure and full-duplex flow control
Auto-negotiation
Auto MDI/MDIX
Input
12VDC (DC Jack)
Power Consumption
4.56W max. 0.38A@12VDC
Protection
Over Current Protection
Reverse Polarity Protection
Casing Material
Aluminum
IP Rating
IP30
Dimensions
80.3 x 109.2 x 23.8mm (W x D x H)
3.16ā x 4.30ā x 0.94"
Weight
0.15kg (0.33lbs)
Operating Temp.
-10 to 60Ā°C (14 to 140Ā°F)
Storage Temp.
-20 to 70Ā°C (-4 to 158Ā°F)
Relative Humidity
5% to 95% (non-condensing)
Regulatory
ISO
Manufactured in ISO-9001 facility
EMI
FCC Part 15B Class A
VCCI Class A
EN 61000-6-4
EN 61000-3-3
EMS
EN 61000-6-2
EN 61000-4-2 (ESD)
EN 61000-4-3 (Radiated RFI)
EN 61000-4-4 (Burst)
EN 61000-4-5 (Surge)
EN 61000-4-6 (Induced RFI)
EN 61000-4-8 (Magnetic field)
Safety
UL 60950-1
EN 60950-1
IEC 60950-1
Vibration
IEC 60068-2-6 Fc
Shock
IEC 60068-2-27 Ea
Free Fall
FED STD 101C Method 5007.1
Warranty
Limited Lifetime
What's Included
Ethernet Extender
12VDC Power Adapter
Quick Install Guide
