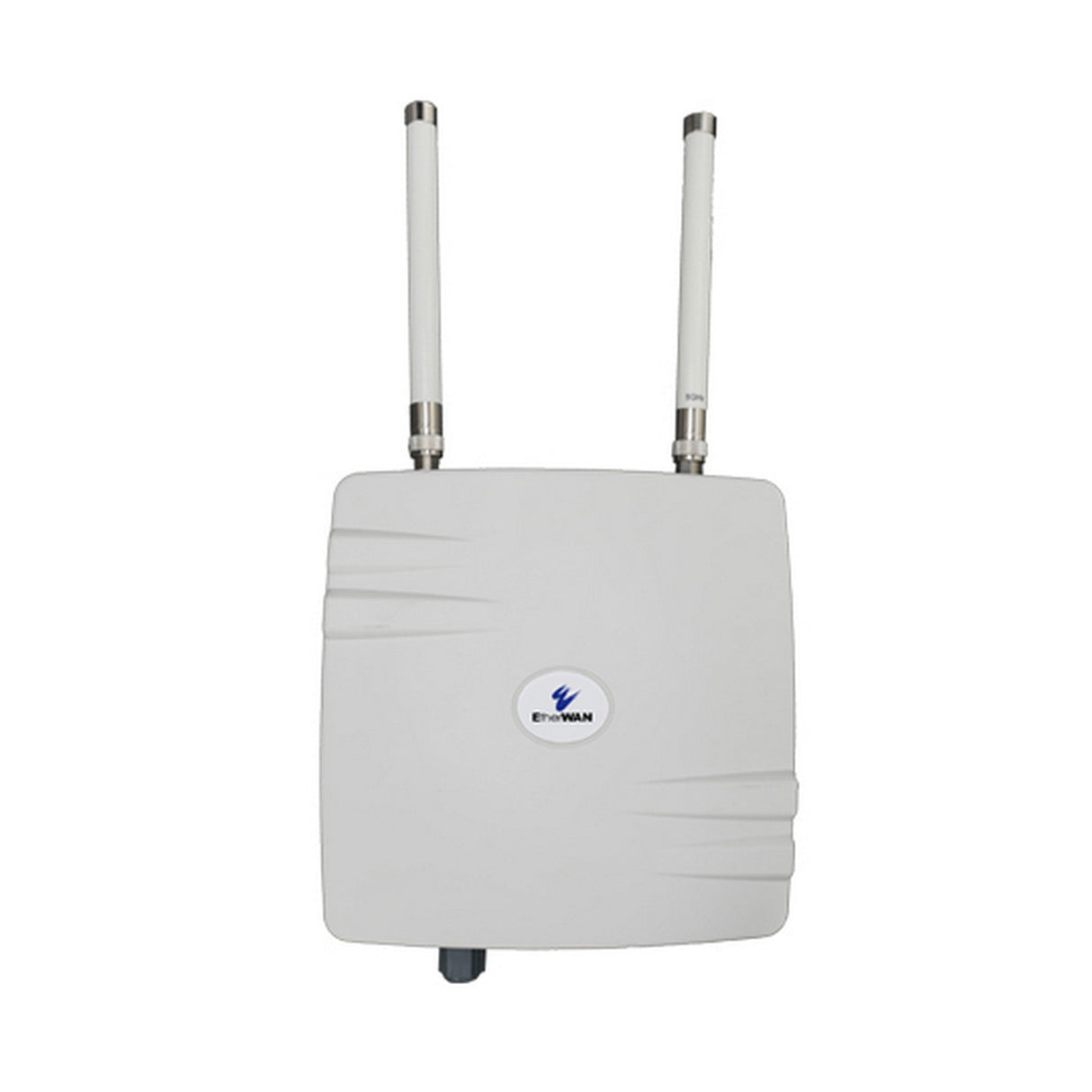

EtherWAN EW75000-08 Hardened IP67 Outdoor Wireless Access Point

The eWAV series is a family of hardened IP67 outdoor wireless access points (WAP) providing high-speed wireless connectivity for harsh and demanding environments. Comprised of high-power, long-range single and dual-band IEEE 802.11ac MIMO wireless radios with gigabit IEEE 802.3at PoE connectivity, the series is hardened against extreme temperatures and water ingress.

eWAV delivers the power and range (up to 20 miles) to wirelessly connect remote networks, or extend existing networks in an efficient and cost-effective way. It supports 5GHz 802.11a/n/ac for long-distance Point-to-Point and Point-to-Multi-Point connections with up to 867Mbps transmission speeds.

Key Features

• Design for Point-to-Point and Point-to-Multipoint wireless backhaul applications
• IEEE 802.11a/n/ac providing high throughput data transmission on 5GHz up to 866Mbps
• IEEE 802.11b/g/n providing local access on 2.4GHz up to 300Mbps
• 2 x 2 MIMO antennas with high gains
• Hardened grade with IP67 protection
• Wide operating temperature range for extreme environments
• Fanless and ruggedized outdoor IP67 enclosure
• Comprehensive and advanced software features
• Static routing, RIP v1/v2 and OSPF v2
• Built in Stateful Firewall and RADIUS for security control
• RF strength LEDs and Bandwidth Tester to ease installation effort

Technical Specifications

Standards
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.11a/n/ac Wireless LAN
Performance
Wireless transmission rate 5GHz:
11a: 108Mbps, 11n: 300Mbps, 11ac: 866Mbps
2.4GHz:
11b: 22Mbps, 11g: 108Mbps, 11n: 300Mbps
Ethernet data rate
Up to 540Mbps (LAN to wireless 11ac)
RF channels
2 Non-overlapping
Frequency range
5GHz: 5150-5250MHz and 5725-5850MHz
2.4GHz: 2412-2462MHz
Channel width
5GHz: 10MHz, 20MHz, 40MHz, 80MHz
2.4GHz: 5MHz, 10MHz, 20MHz, 40MHz
Data security
256-bit AES-CCM
Input
48VDC PoE Including Passive PoE, Telecom PoE, 802.3af and 802.3at
Power Consumption
13W Max.
Casing
Aluminum Case
IP67
Dimensions
EW75200-0804: 270 x 765 x 76mm (W x H x D) (10.63" x 30.12" x 3")
EW75200-1304, EW75000-08: 270 x 565 x 76mm (10.63" x 22.25" x 3")
Weight
EW75000-08: 3.5lbs.
EW75200-0804: 4.5lbs.
EW75200-1304: 4.2lbs.
Installation
Pole/Wall Mounting
Ethernet Port
10/100/1000BASE-TX PoE
Operating Temperature
-40 to 75°C (-40 to 167°F)
Storage Temperature
-45 to 85°C (-49 to 185°F)
Ambient Relative Humidity
5% to 95% (non-condensing)
Regulatory Approvals
ISO
Manufactured in an ISO 9001 facility

EMI
FCC Part 15B Class A
FCC Part 15C

Environmental Test Compliance
IEC 60068-2-6 Fc (Vibration Resistance)
FED STD 101C Method 5007.1 (Free fall w/package)
