EtherWAN  |  SKU: ETH-ETHERWANEX73924E0VB

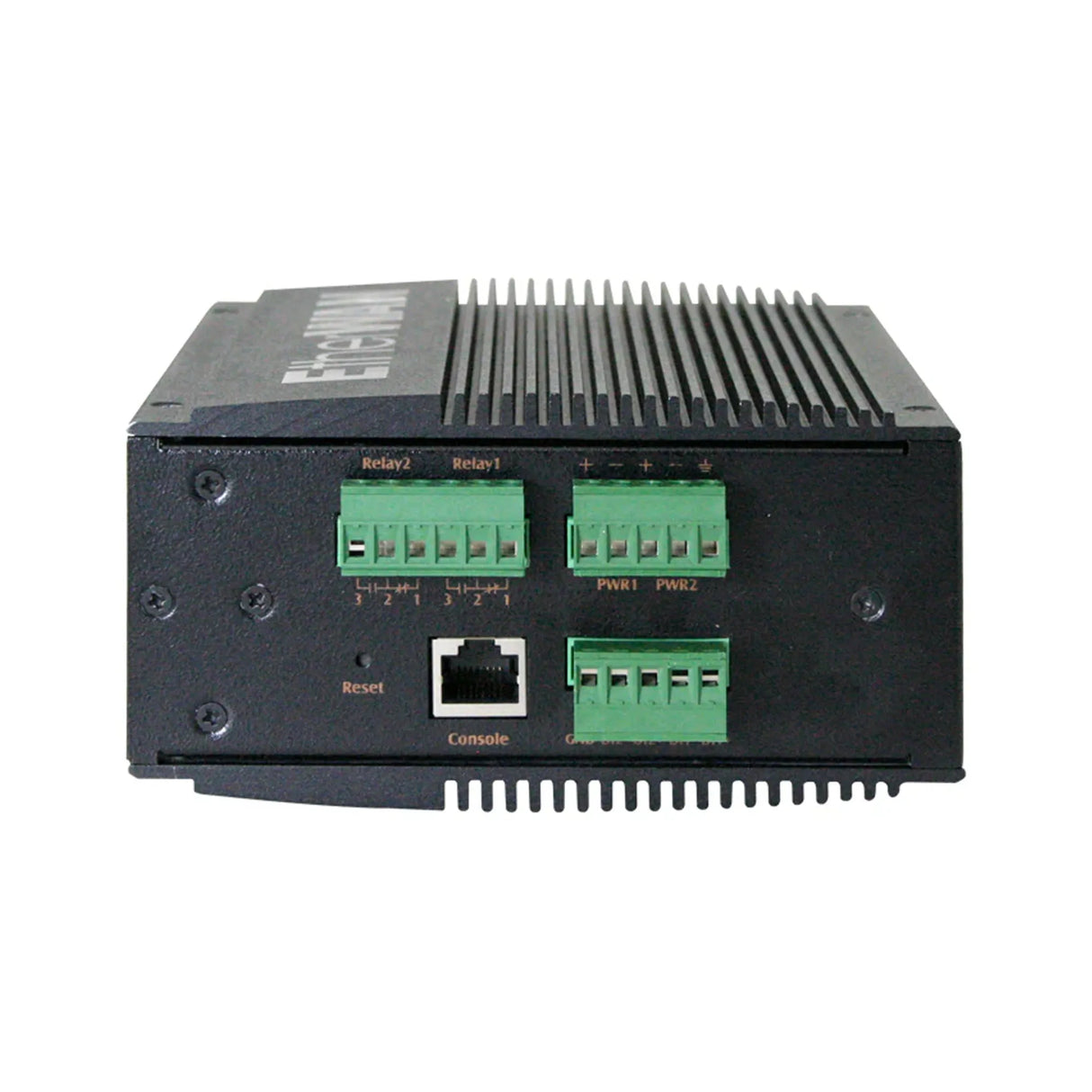

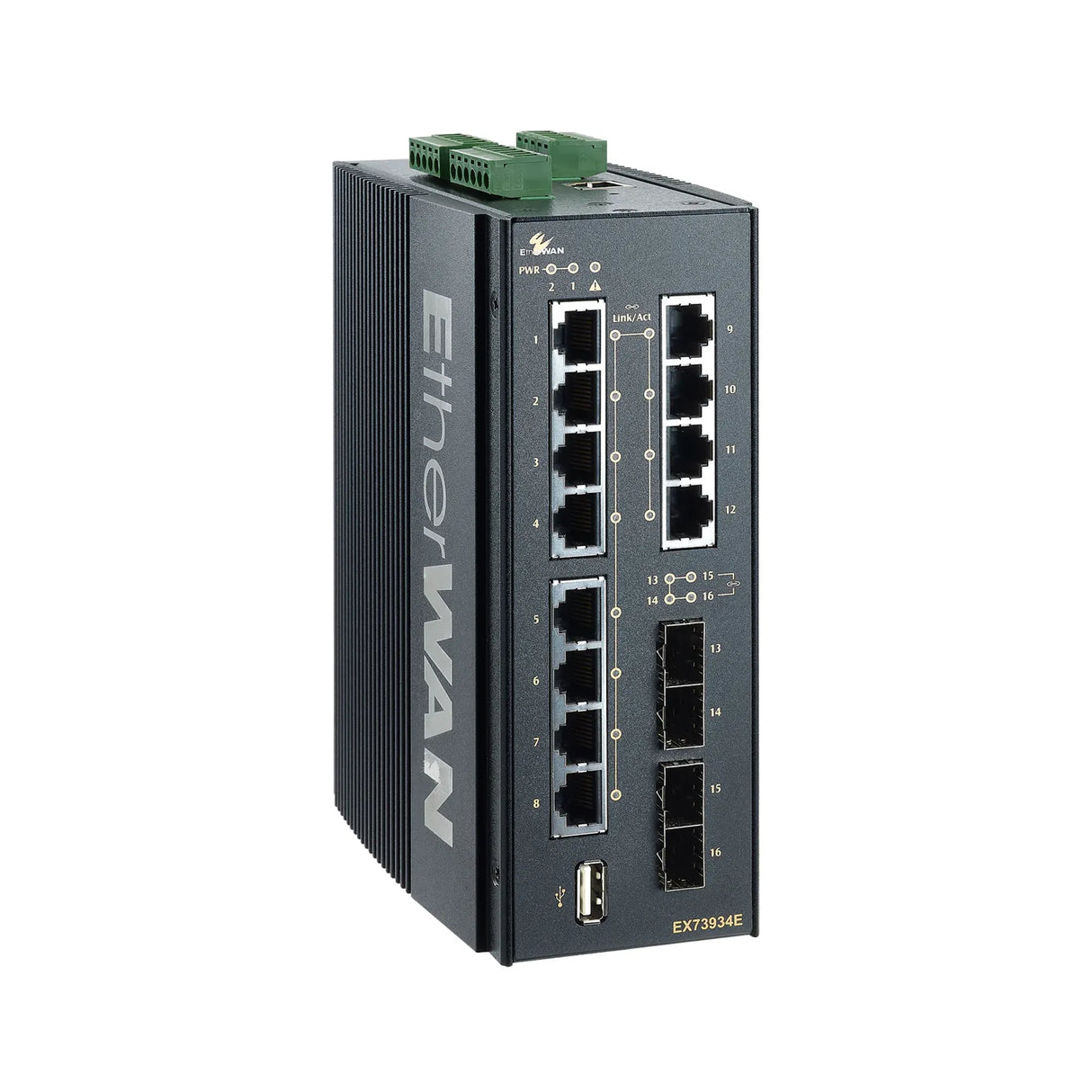

EtherWAN EX73924E-0VB 8-Port 10/100/1000BASE-T with 4 Dual-Rate Gigabit SFP Ports

$1,72250

Free Shipping

Estimated Shipping Widget will be displayed here! (with custom color)

EtherWAN EX73924E-0VB 8-Port 10/100/1000BASE-T with 4 Dual-Rate Gigabit SFP Ports is backordered and will ship as soon as it is back in stock.

Condition: New



EtherWAN EX73924E-0VB 8-Port 10/100/1000BASE-T with 4 Dual-Rate Gigabit SFP Ports

EtherWAN's EX73900E series is a hardened DIN-rail mounted managed Ethernet switch platform. Equipped with up to 12 gigabit Ethernet and 4 dual-rate gigabit SFP ports, the EX73900E series provides flexibility, speed, and reliability to support networks for urban infrastructure, transportation, security, power substations, and other areas where connectivity is crucial.

Key Features

  • 8 or 12 10/100/1000BASE-T(X) ports for High bandwidth connections
  • Up to 4 Dual-rate 100/1000BASE SFP uplink ports for fiber connections
  • Full capacity switching running at full duplex
  • Hardened-Grade for Non-Ventilated & Harsh Environments
  • Wide operating temperature range -40 to 75°C (-40 to 167°F)
  • Fanless operation
  • High impact, thermal shock, and electrical noise resistance
  • Lite Layer 3 Functionality
  • Static routing, RIP v1/v2, and OSPF support
  • Redundancy with VRRP
  • Reduces amount of broadcast traffic
  • IEC 61850-3/IEEE 1613 certified for power substations
  • NEMA TS2 rated
  • UL certified for safety
  • Management/Security Features
  • Port control
  • Dying gasp feature provides SNMP trap upon power off
  • Configure and monitor with eVue™ and eLite™ network management tools
  • Support
  • Complimentary Technical Support
  • Free Firmware Upgrades
  • Limited Lifetime Warranty

Technical Specifications

Ethernet
8 or 12 x 10/100/1000BASE-T(X)
2 or 4 x 100/1000BASE SFP
Console
1 x RJ45
Config Backup
1 x USB (Type A Connector)
Digital Input
2 x Digital Input
Wet Contact: 0-3V for State 0; 13-30V for State 1; Max Input Current: 8mA
Dry Contact: Logic Level 1–Close to GND; Logic Level 0-Open
Alarm Contact
2 x Relay output, current capacity 0.6A/30VDC
LED Indicators
Per Unit: Power 1, Power 2, Alarm
Per Port: Link/Activity
Standards
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3ab 1000BASE-T
IEEE 802.3ad link aggregation control
IEEE 802.3z 1000BASE-SX/1000BASE-LX
IEEE 802.3x full duplex and flow control
IEEE 802.1D STP
IEEE 802.1p QoS
IEEE 802.1Q Tag VLANs
IEEE 802.1s MSTP
IEEE 802.1w RSTP
IEEE 802.1x PNAC
IEEE 802.1ab LLDP
IEEE 1588v2 PTP
Forward/Filtering Rate
14,880pps for 10Mbps
148,810pps for 100Mbps
1,488,100pps for 1000Mbps
Processing Type
Store-and-forward
Auto-negotiation
Half-duplex back-pressure and full-duplex flow control
Auto MDI/MDIX
System Memory
2Gb DDR3 SDRAM
Flash Storage
1Gb
Input
12-48VDC Redundant (Terminal block)
Power Consumption
20W Max
Protection
Reverse Polarity Protection
Overload Current Protection
Casing Material
Aluminum
IP Rating
IP40

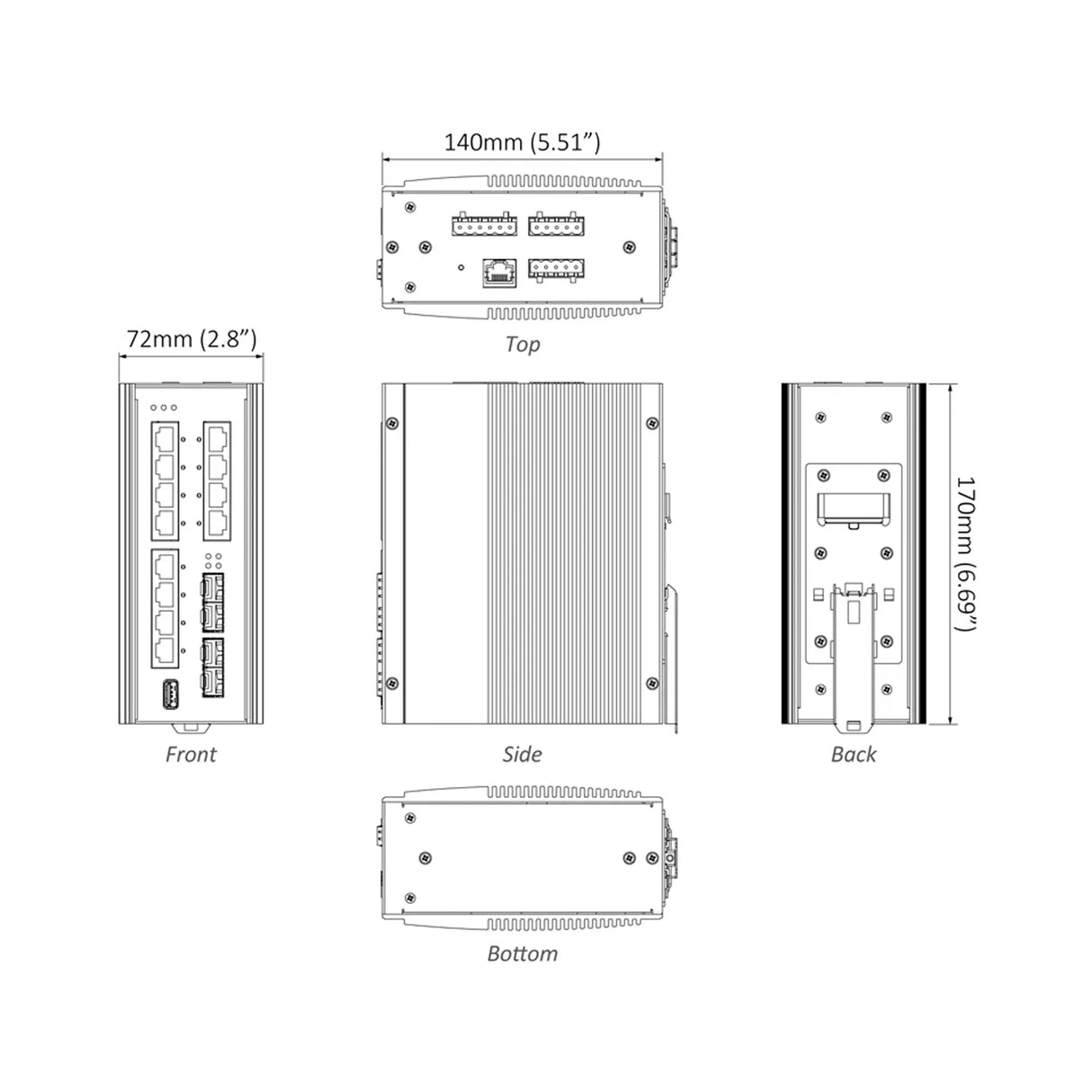

Dimensions
72 x 140 x 170mm (W x D x H)
2.8" x 5.5" x 6.7"
Weight
1.4kg (3.08lbs)
Installation Type
DIN-rail mounting
Operating Temp.
-40 to 75°C (-40 to 167°F)
Storage Temp.
-45 to 85°C (-49 to 185°F)
Relative Humidity
5% to 95% (non-condensing)
ISO
Manufactured in ISO-9001 facility
EMI
FCC Part 15B Class A
VCCI Class A
EN 61000-6-4
EN 61000-3-2
EN 61000-3-3
EMS
EN 61000-6-2
EN 61000-4-2 (ESD)
EN 61000-4-3 (Radiated RFI)
EN 61000-4-4 (Burst)
EN 61000-4-5 (Surge)
EN 61000-4-6 (Induced RFI)
EN 61000-4-8 (Magnetic field)
Safety
UL 61010
Traffic
NEMA TS2
Rail
EN 50121-4
Power Substation
IEC 61850-3/IEEE 1613
Vibration
IEC 60068-2-6
Shock
IEC 60068-2-27
Free Fall
FED STD 101C Method 5007.1
Warranty
Limited Lifetime
What's Included
Ethernet Switch
1 Console Cable
Mounting brackets, screws
Quick install guide
