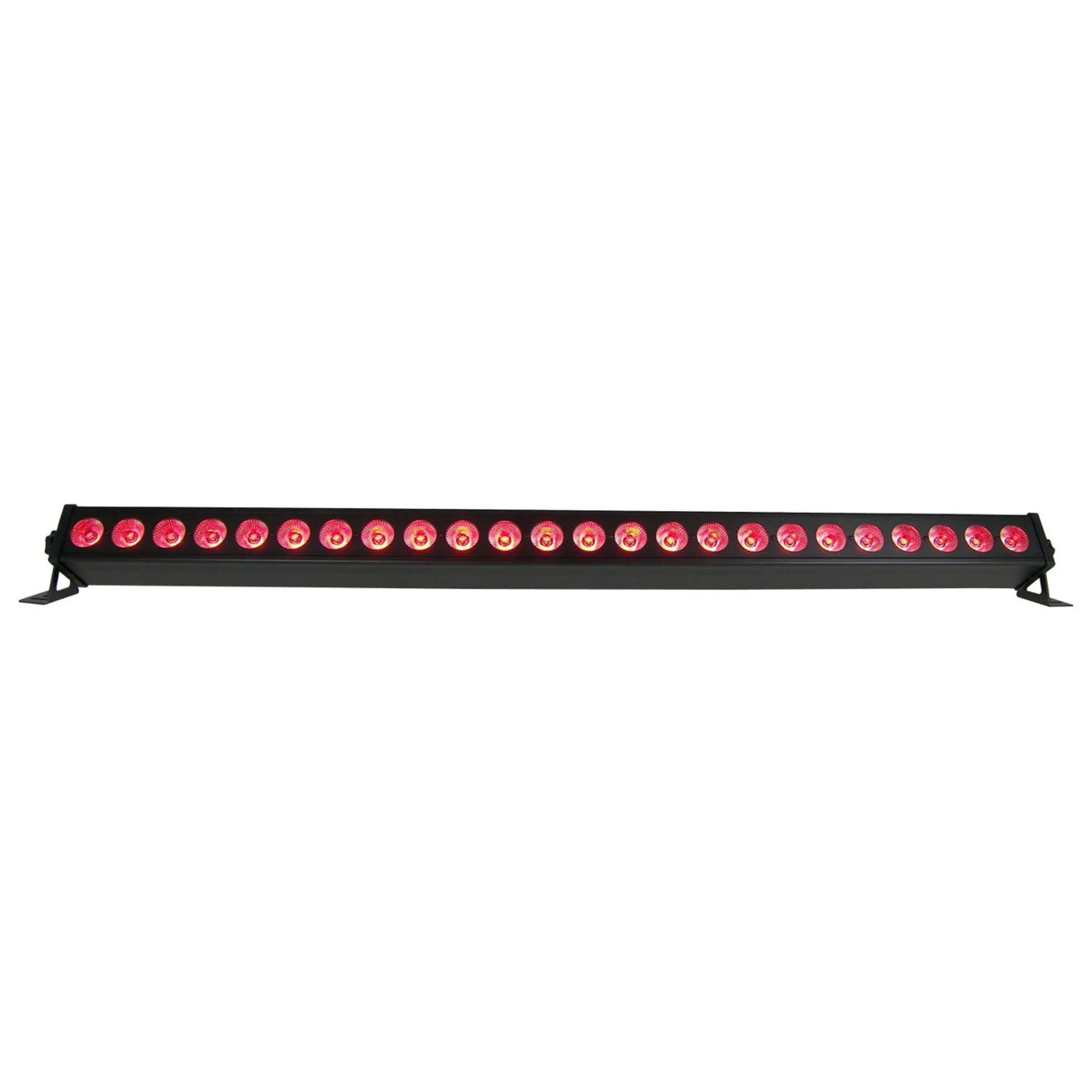

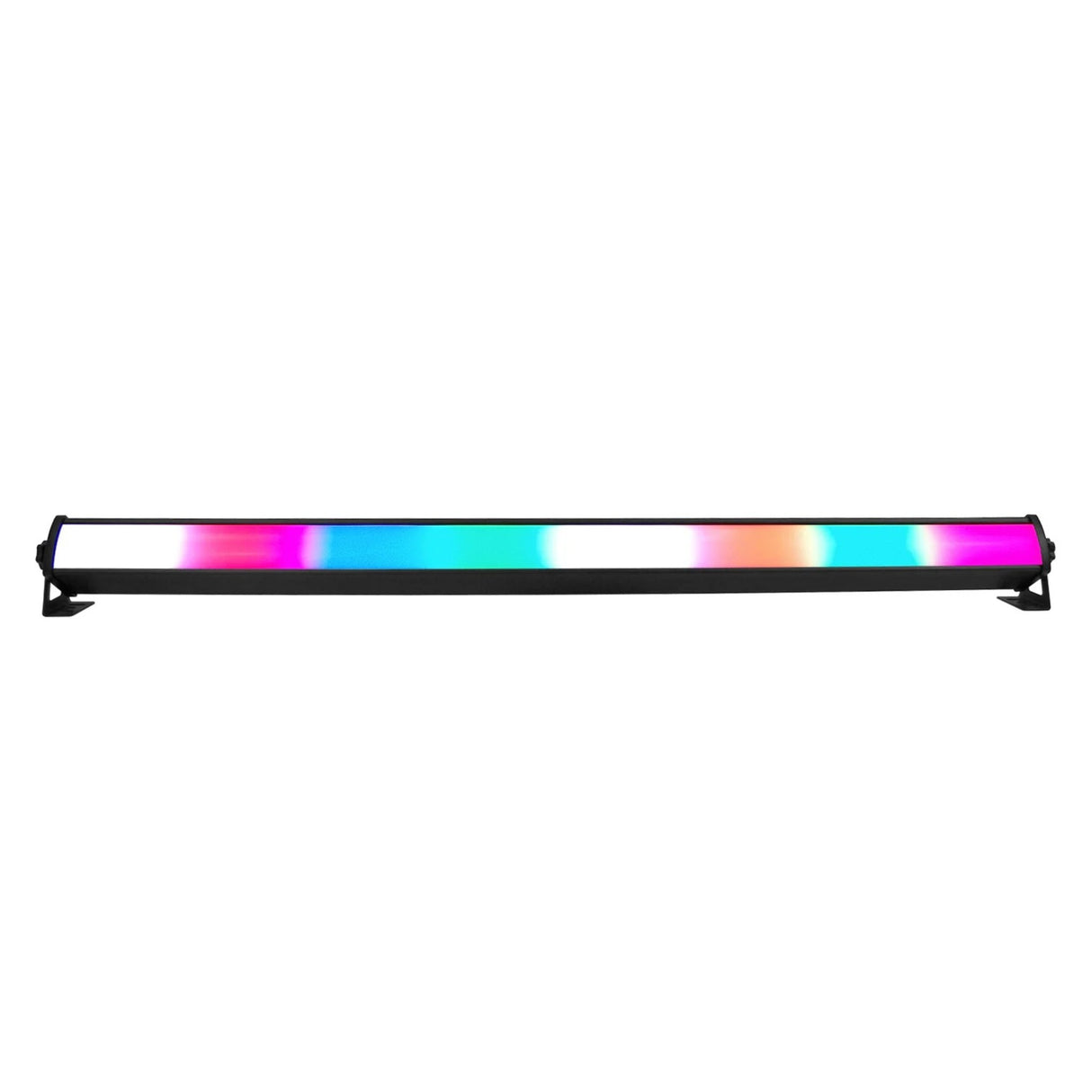

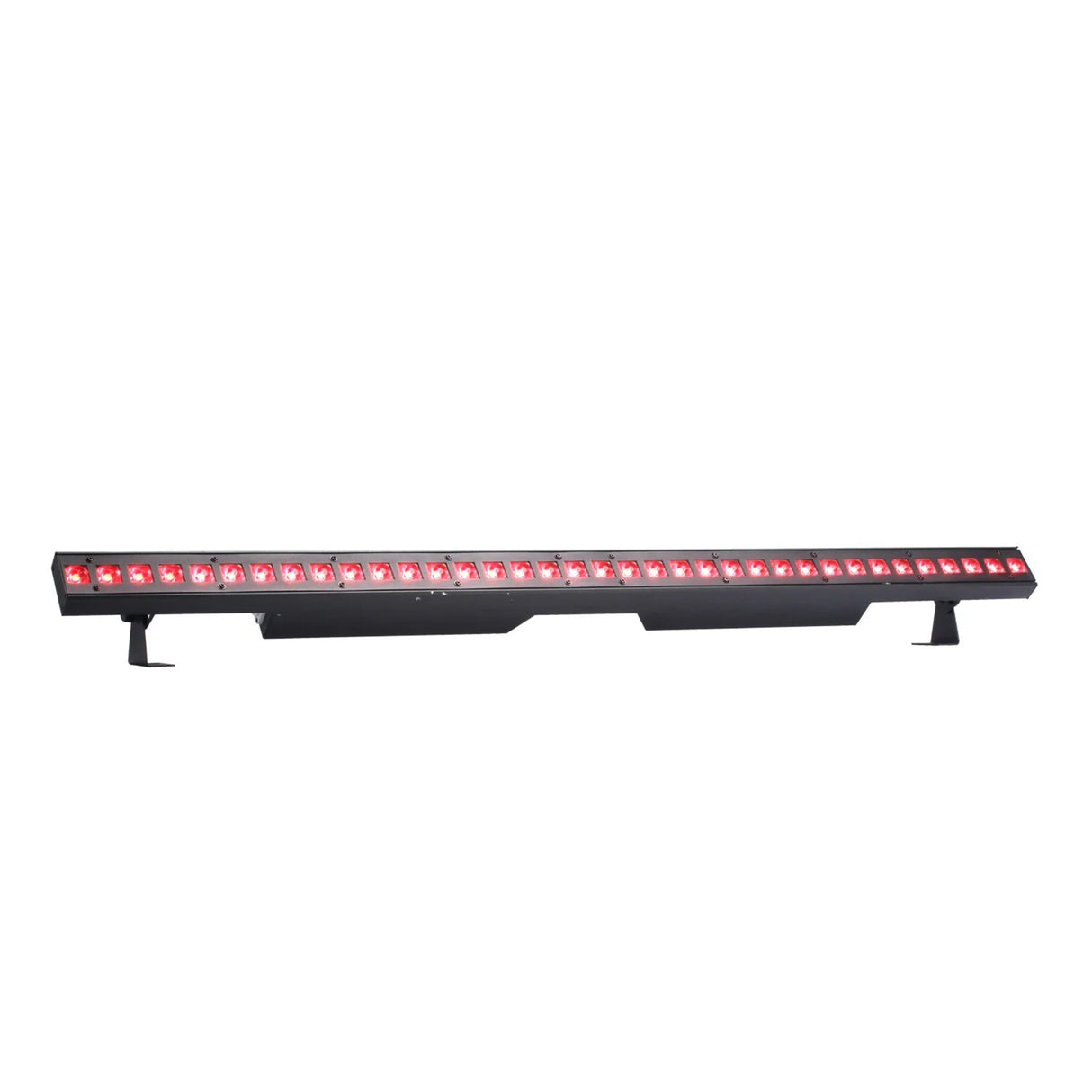

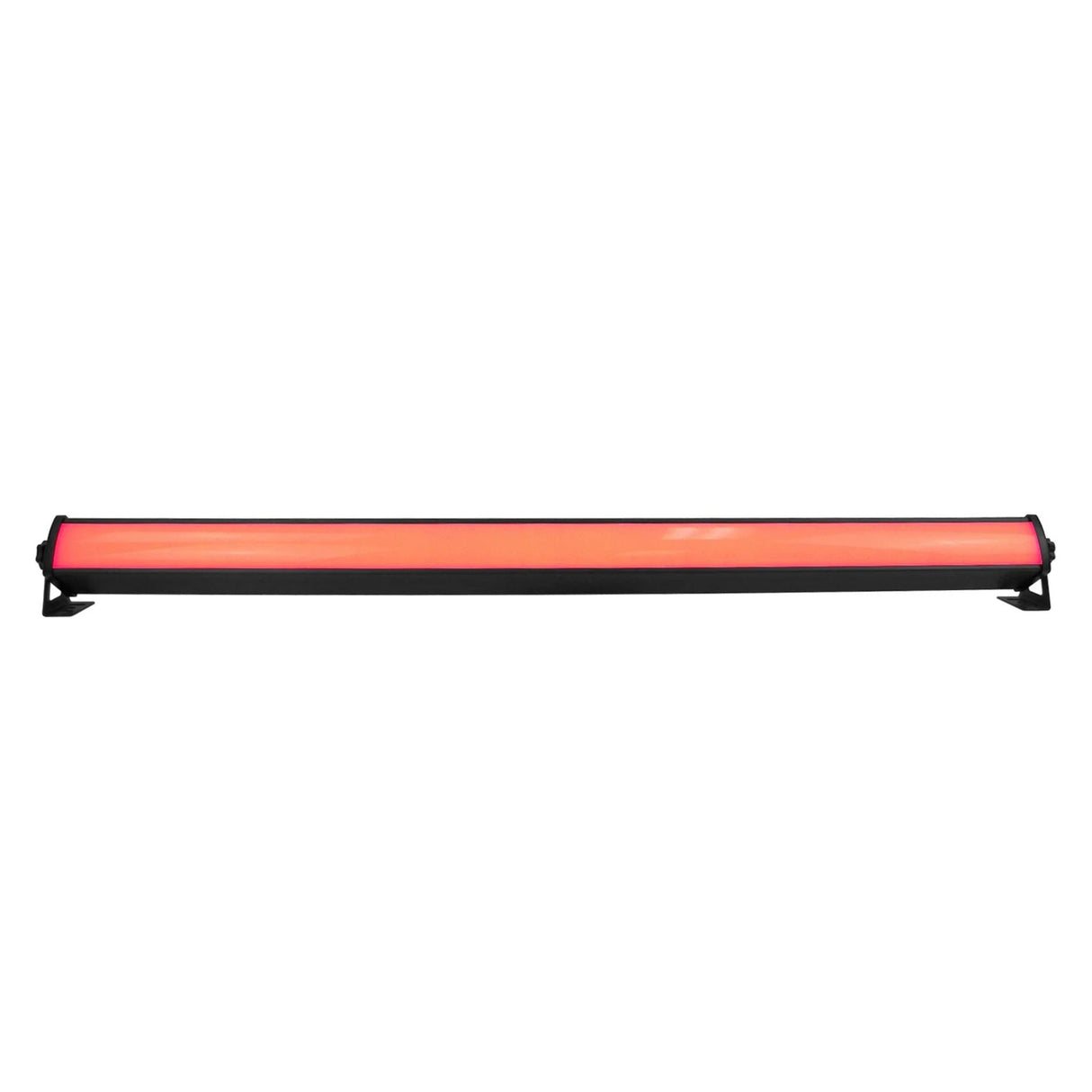

Event Lighting BAR24X4FXL Lite Series Pixel Bar with 24×4W RGBW LEDs & 120×0.2W RGB LEDs

Event Lighting BAR24X4FXL Lite Series Pixel Bar

The Event Lighting BAR24X4FXL Lite Series Pixel Bar is a professional LED effect fixture designed for lighting designers who want dynamic visual effects and powerful stage illumination. Built for indoor applications such as clubs, stages, concerts, and studio environments, this pixel bar combines high-output RGBW wash lighting with vibrant pixel aura effects for immersive visual impact.

The fixture features 24 high-output 4W RGBW LEDs that deliver a bright and evenly distributed wash effect across the stage. Complementing the main wash, an additional array of 120 RGB LEDs creates detailed aura and pixel mapping effects that add depth and movement to lighting designs.

Designed for professional lighting control environments, the BAR24X4FXL supports multiple DMX channel configurations ranging from simple operation to advanced pixel-level control. It also offers flexible operation modes including DMX, auto, sound active, manual, and master/slave configurations, making it suitable for both programmed shows and standalone operation.

The durable aluminum housing ensures reliable performance in professional installations, while IEC power connections allow for easy power linking between fixtures. With a long LED lifespan and versatile control options, the BAR24X4FXL is an ideal solution for clubs, touring productions, and entertainment venues seeking vibrant pixel lighting effects.

Key Features

• Dual LED Lighting System: Combines 24 × 4W RGBW LEDs for powerful wash lighting with 120 × 0.2W RGB LEDs for aura and pixel effects.
• Dynamic Pixel Effects: Ideal for eye-catching visual effects, stage backlighting, and audience engagement.
• Multiple Control Modes: Supports DMX, auto, manual, sound active, master/slave, and RDM operation.
• Advanced DMX Channel Options: Multiple channel configurations (8 / 15 / 40 / 80 / 128) allow simple or complex lighting control.
• Professional Stage Lighting Design: Perfect for clubs, concert stages, production studios, and entertainment venues.
• Durable Aluminum Housing: Rugged construction designed for professional installations and frequent use.
• Power Linking Capability: IEC power input and output simplify multi-fixture setups.
• Long LED Lifespan: Rated for approximately 50,000 hours of operation.

Technical Specifications

• Model: BAR24X4FXL
• Series: Lite Series
• Light Source: 24 × 4W RGBW LEDs + 120 × 0.2W RGB LEDs
• Beam Angle: 45° (RGBW LEDs) / 25° (RGB LEDs)
• LED Lifespan: 50,000 Hours
• DMX Channels: 8 / 15 / 40 / 80 / 128
• Control Modes: DMX, Auto, Manual, Sound Active, Master/Slave, RDM
• Data Connection: 3-pin XLR Input / Output
• Power Connection: IEC Input / Output
• Input Voltage: 110–240V AC, 50/60Hz
• Power Consumption: 150W
• IP Rating: IP20 (Indoor Use)
• Housing Material: Aluminum
• Finish: Black
• Product Dimensions: 43.3 × 5.9 × 4.7 inches
• Product Weight: 10 lbs

Optional Accessories

• XSTANDM8 Vertical Free-Stand
