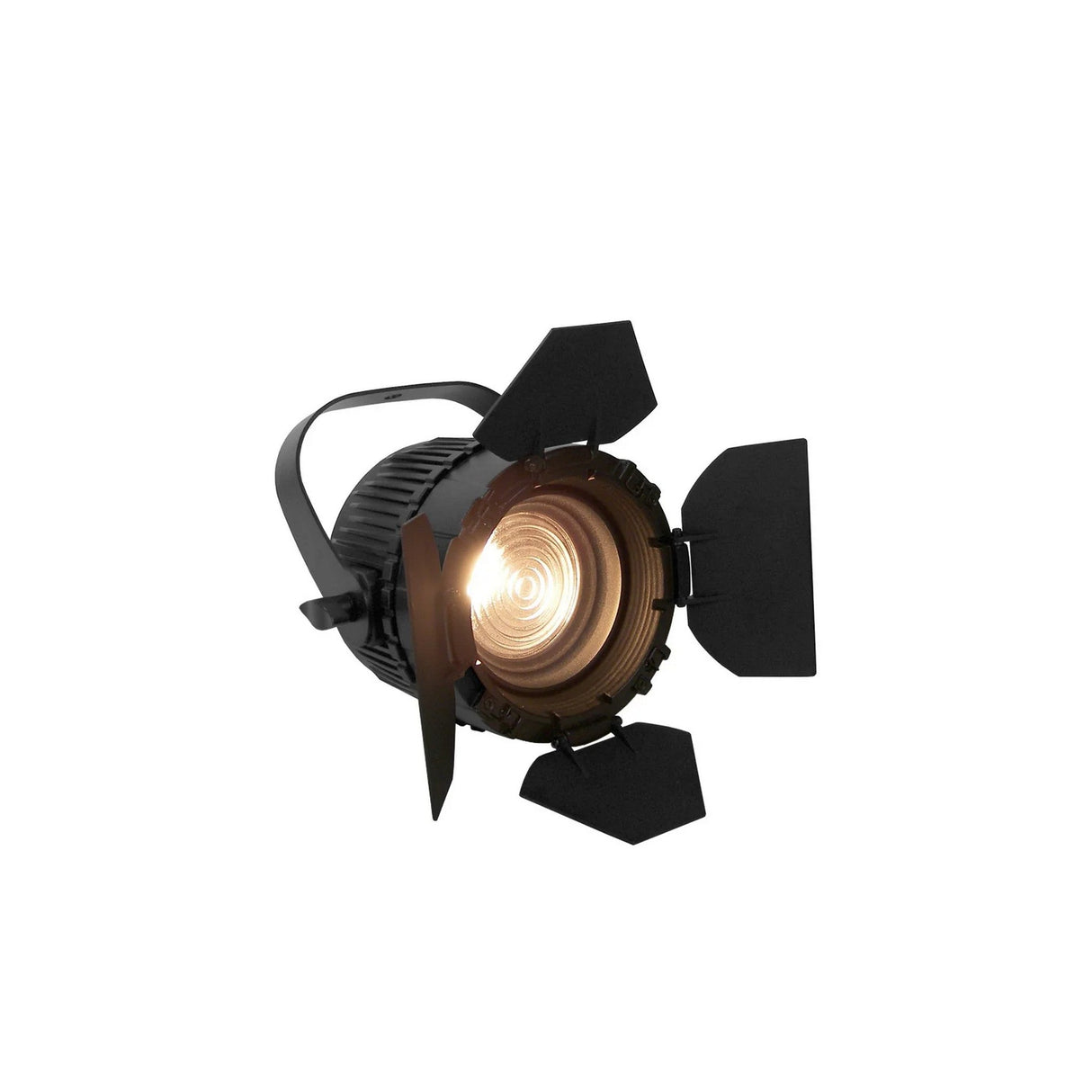

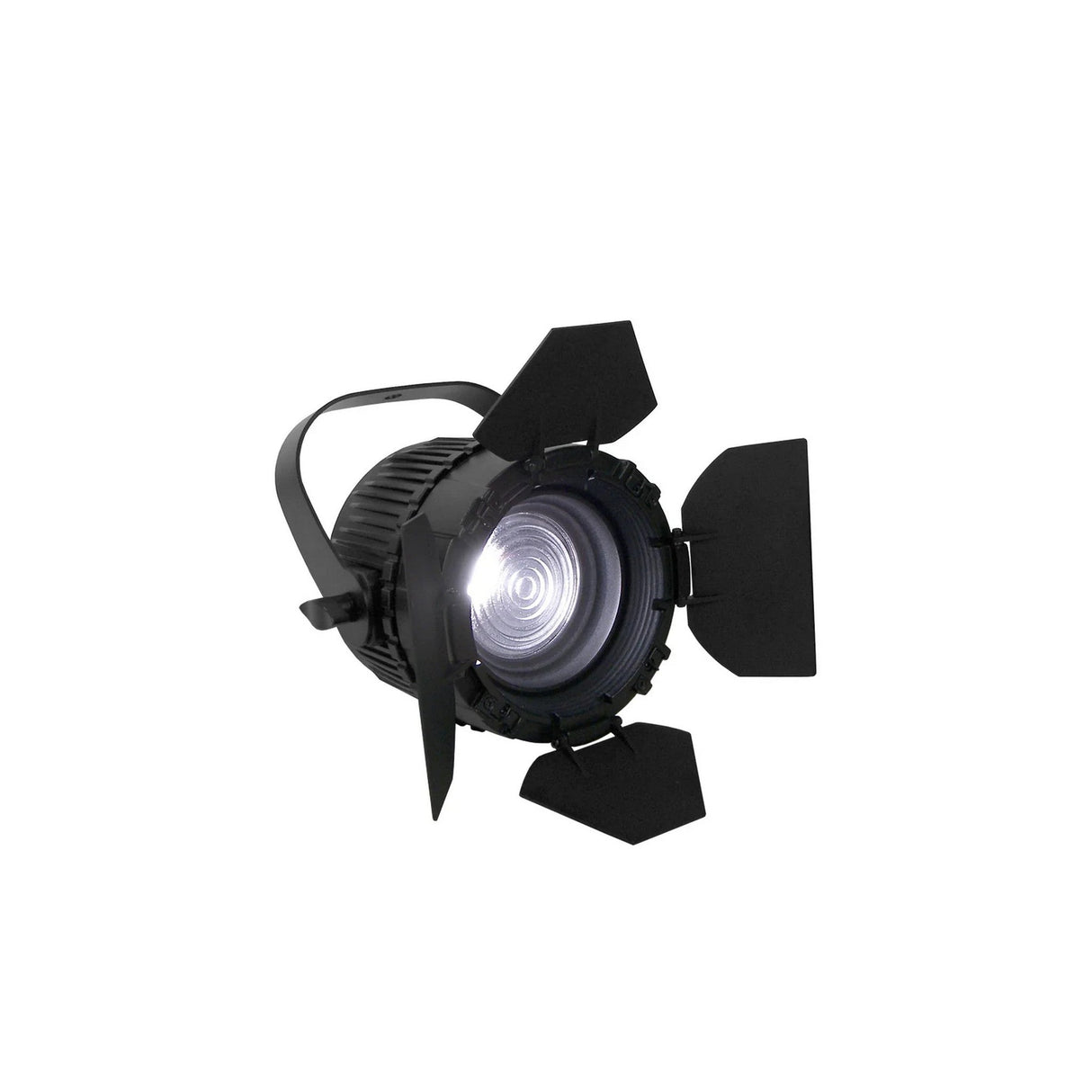

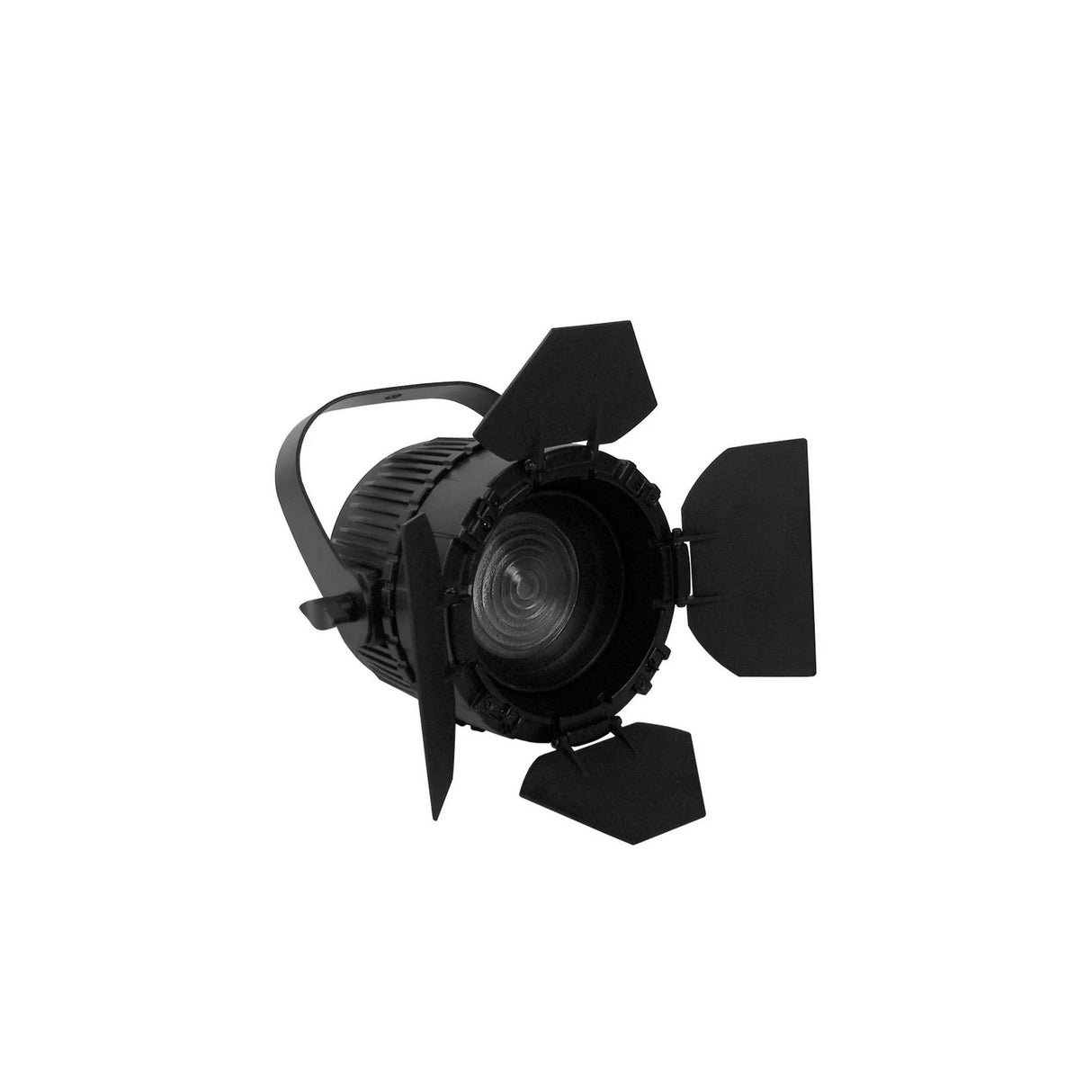

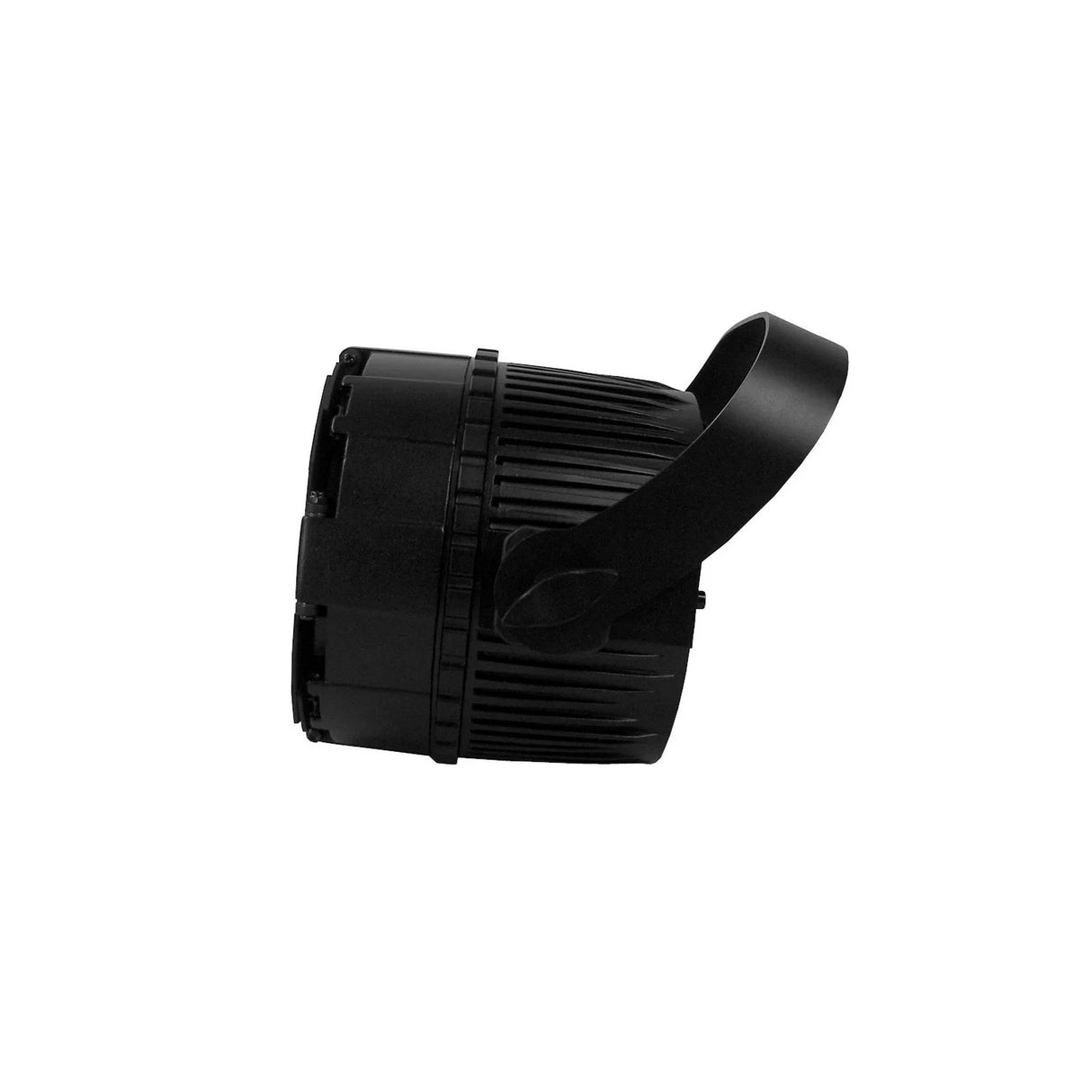

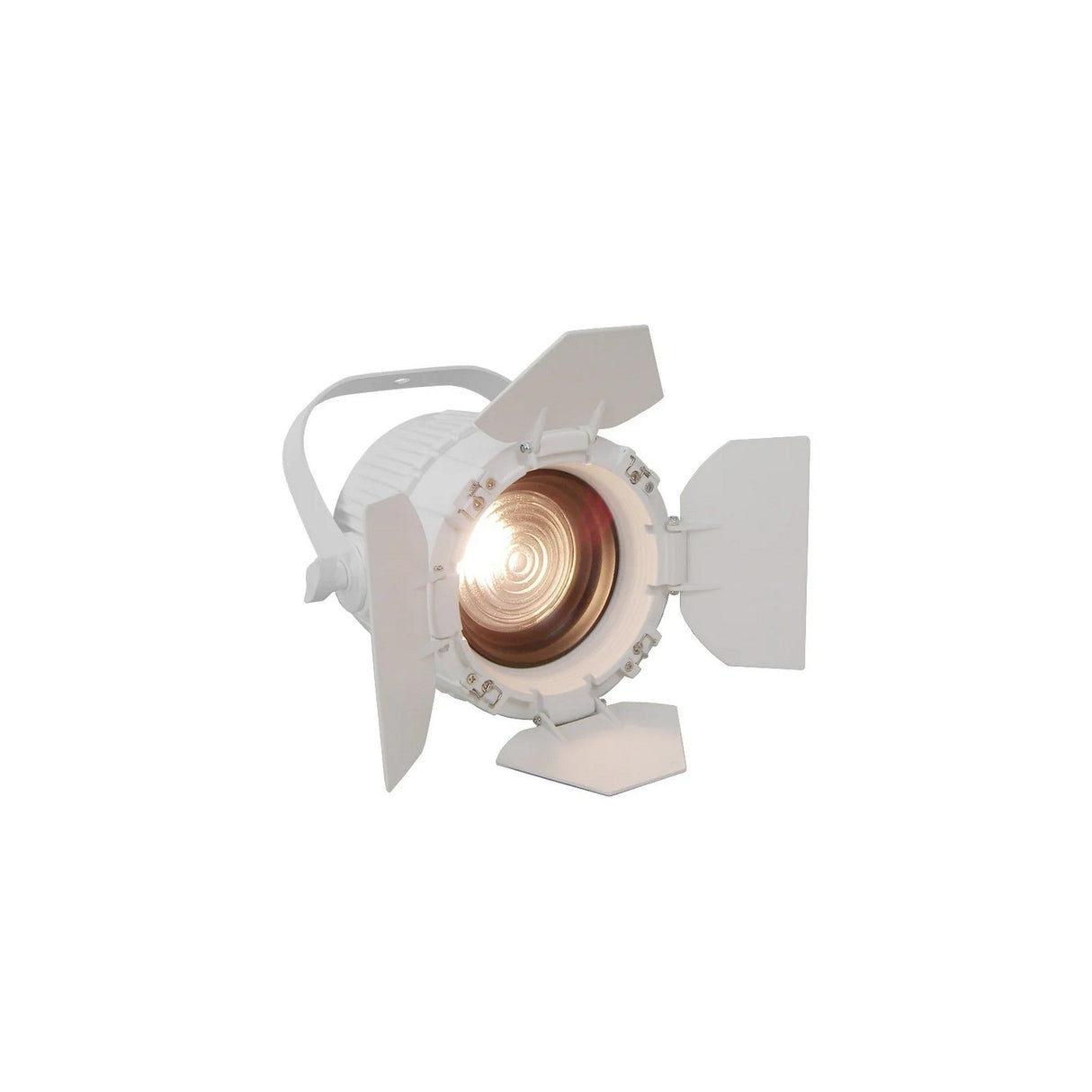

Event Lighting F96VW Variable White Fresnel with Manual Zoom
The Event Lighting F96VW Variable White Fresnel with Manual Zoom is a fanless LED Fresnel for stage, studio, venue, and production lighting. It combines 2 x 48W COB LEDs, warm white 2700K and cool white 5700K output, CRI 95+ color rendering, 16-bit dimming, and a manual 20° to 50° zoom range.
Built for theaters, houses of worship, production studios, event spaces, and rental lighting rigs, the F96VW delivers controllable white light with smooth dimming and quiet operation. For buyers looking to purchase a variable white Fresnel light, add a manual zoom LED Fresnel, or build a DMX-controlled studio lighting setup, it offers practical beam control in a compact die-cast aluminum housing.
The fixture supports manual, master/slave, DMX, and optional WDMX operation through a 4-button LCD control panel. Available color options include Black and White, making it suitable for dark stage environments, bright architectural interiors, houses of worship, and installed AV spaces where fixture finish matters.
Key Features
- Variable White COB Engine: Uses 2 x 48W COB LEDs with warm white 2700K and cool white 5700K output.
- High Color Accuracy: CRI 95+ helps render skin tones, scenery, and set pieces with natural detail.
- Manual Zoom Fresnel: Adjusts from a 20° beam to a 50° beam for spot or wider wash coverage.
- 16-Bit Dimming: Provides smooth 0-100% intensity control for theatrical fades and studio adjustments.
- Fanless Cooling: Runs quietly with temperature protection for sound-sensitive environments.
- DMX512 Control: Supports 1, 2, and 7-channel DMX modes for simple or detailed programming.
- True1 Power Linking: Features True1 power in/out connections for professional power distribution.
- Included Beam Accessories: Comes with a barn door and gel clip for light shaping and filter use.
Technical Specifications
- Product Type: Variable White Fresnel with Manual Zoom
- Model: F96VW

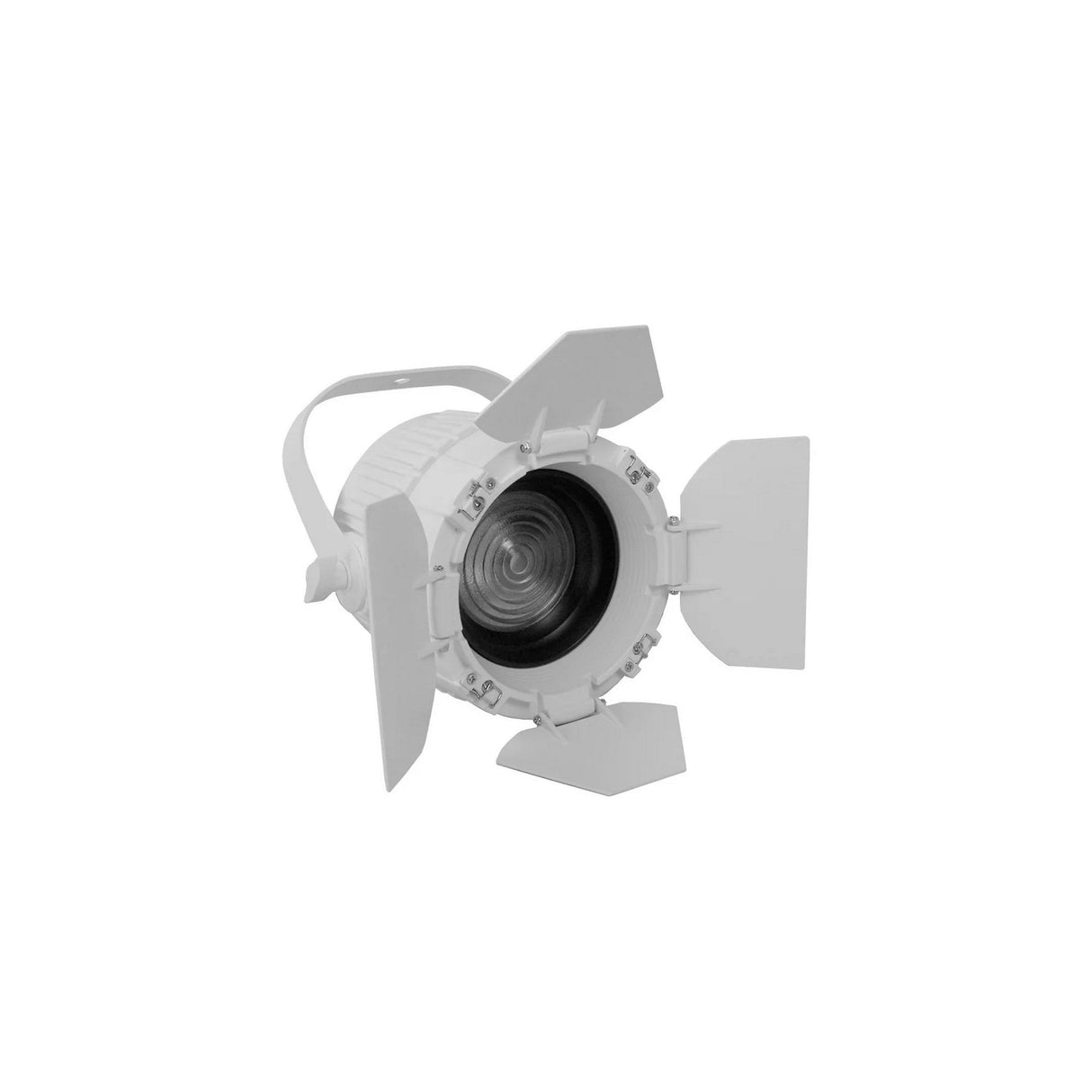

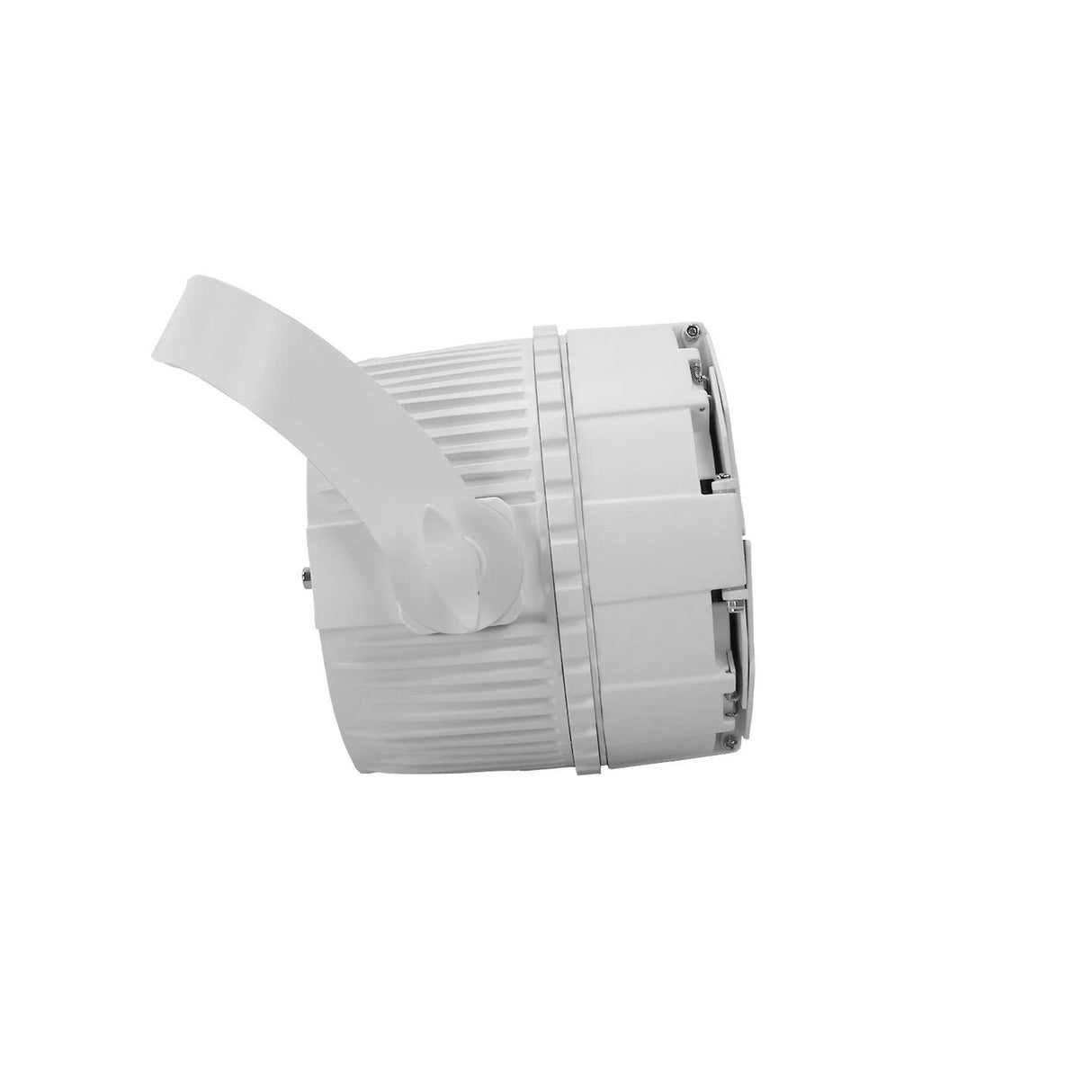

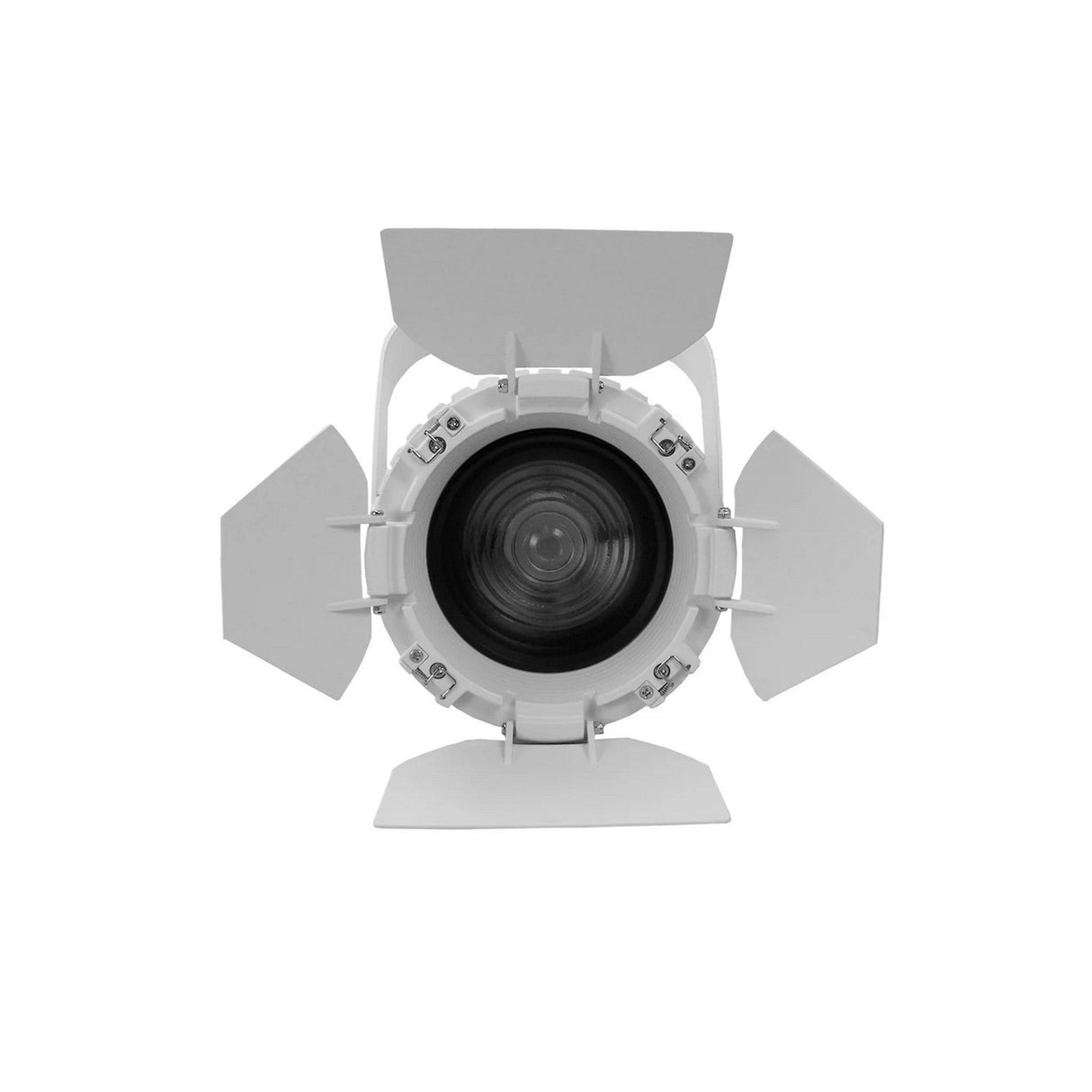

- Available Color Options: Black or White
- Light Source: 2 x 48W cool white 5700K and warm white 2700K COB LEDs
- CRI: 95+
- Beam Angle: 20° to 50°
- Field Angle: 50° to 67°
- Output: 1,230 lux at 3 m / 9.8 ft at 20°; 395 lux at 3 m / 9.8 ft at 50°
- Lens: 80mm Fresnel
- PWM: 1,200 Hz
- LED Lifespan: 50,000 hours
- Dimming: 0-100%, 16-bit
- Strobe: 1-25 Hz
- Zoom: Manual, 20° to 50°
- Barn Door: Included
- Gel Clip: Included
- Power Supply: 100-240 V AC, 50/60 Hz
- Power Consumption: 75 W

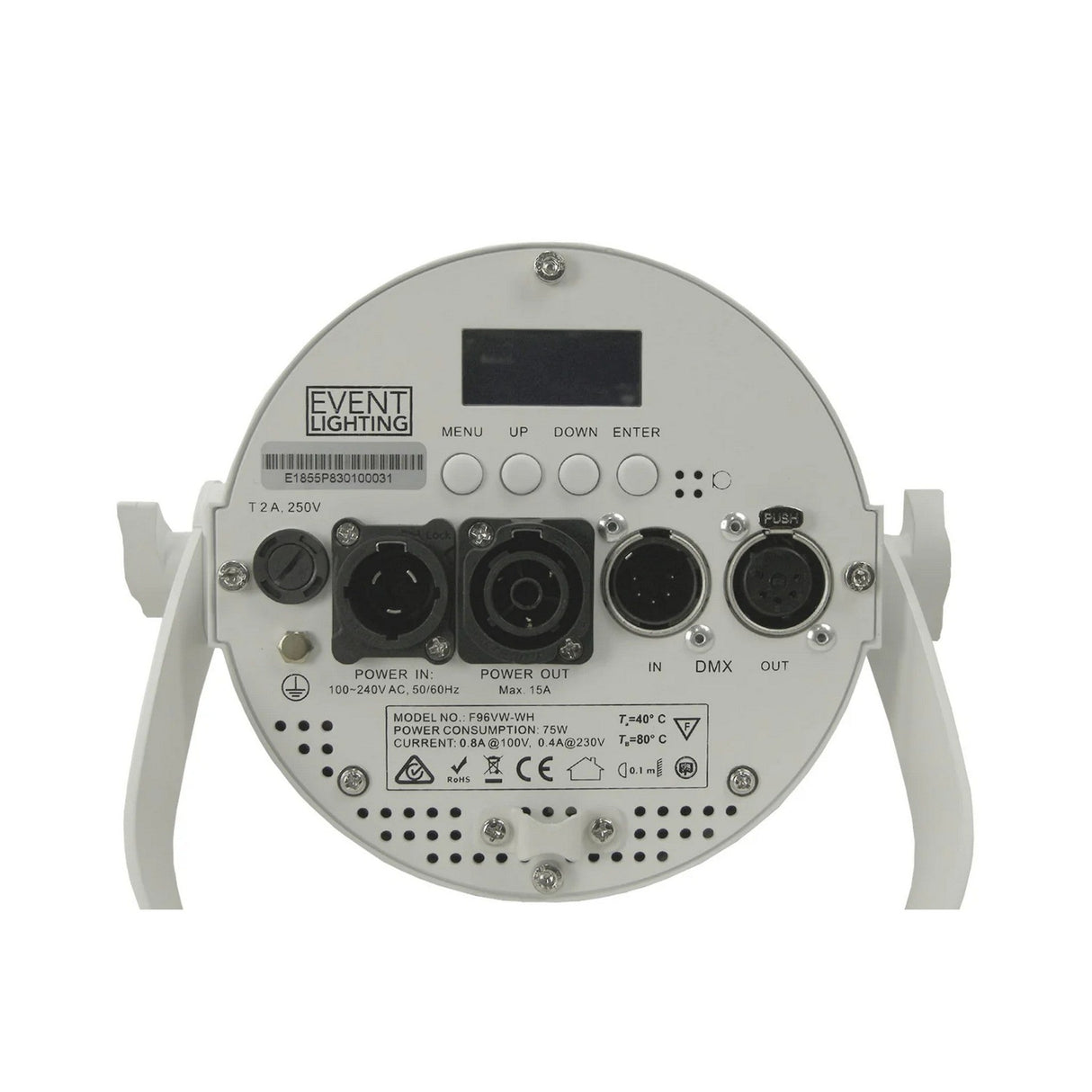

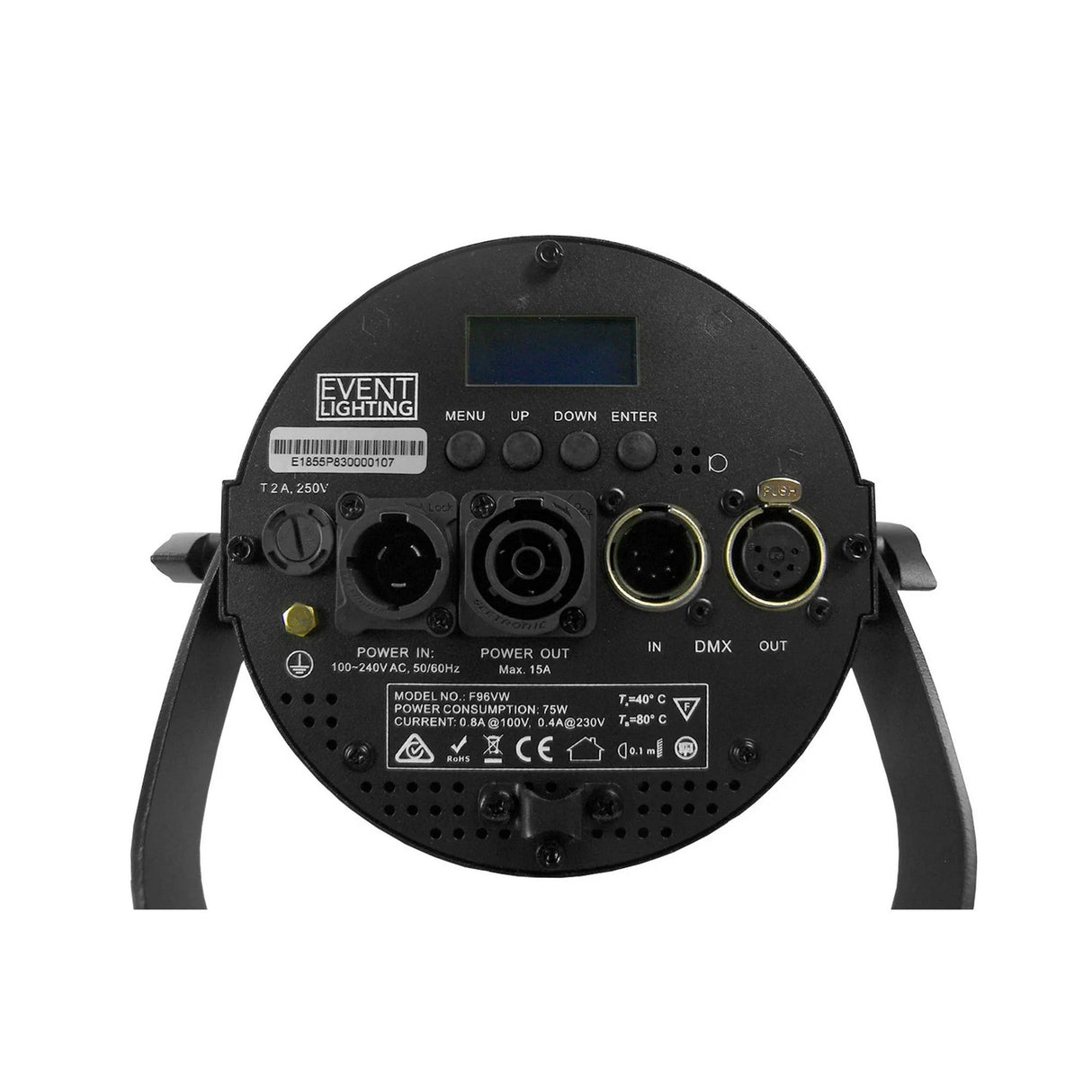

- Power Connection: True1 in/out
- Operational Modes: Manual, master/slave, DMX, optional WDMX
- Display: 4-button LCD control panel
- Control Protocol: DMX512
- DMX Channel Modes: 1 / 2 / 7
- Control Interface: 5-pin XLR in/out
- Housing Material: Die-cast aluminum
- Finish: Matte black or matte white
- Cooling: Fanless cooling with temperature protection
- Dimensions: 7.95" x 5.47" x 7.60"
- Weight: 5.1 lbs
What's Included
- Event Lighting F96VW Variable White Fresnel with Manual Zoom
- Barn Door
- Gel Clip
