Event Lighting Lite BAR224FXL 224 RGB LED Bar with 16-Segment DMX Control

Event Lighting Lite BAR224FXL RGB LED Bar with 16-Segment Control

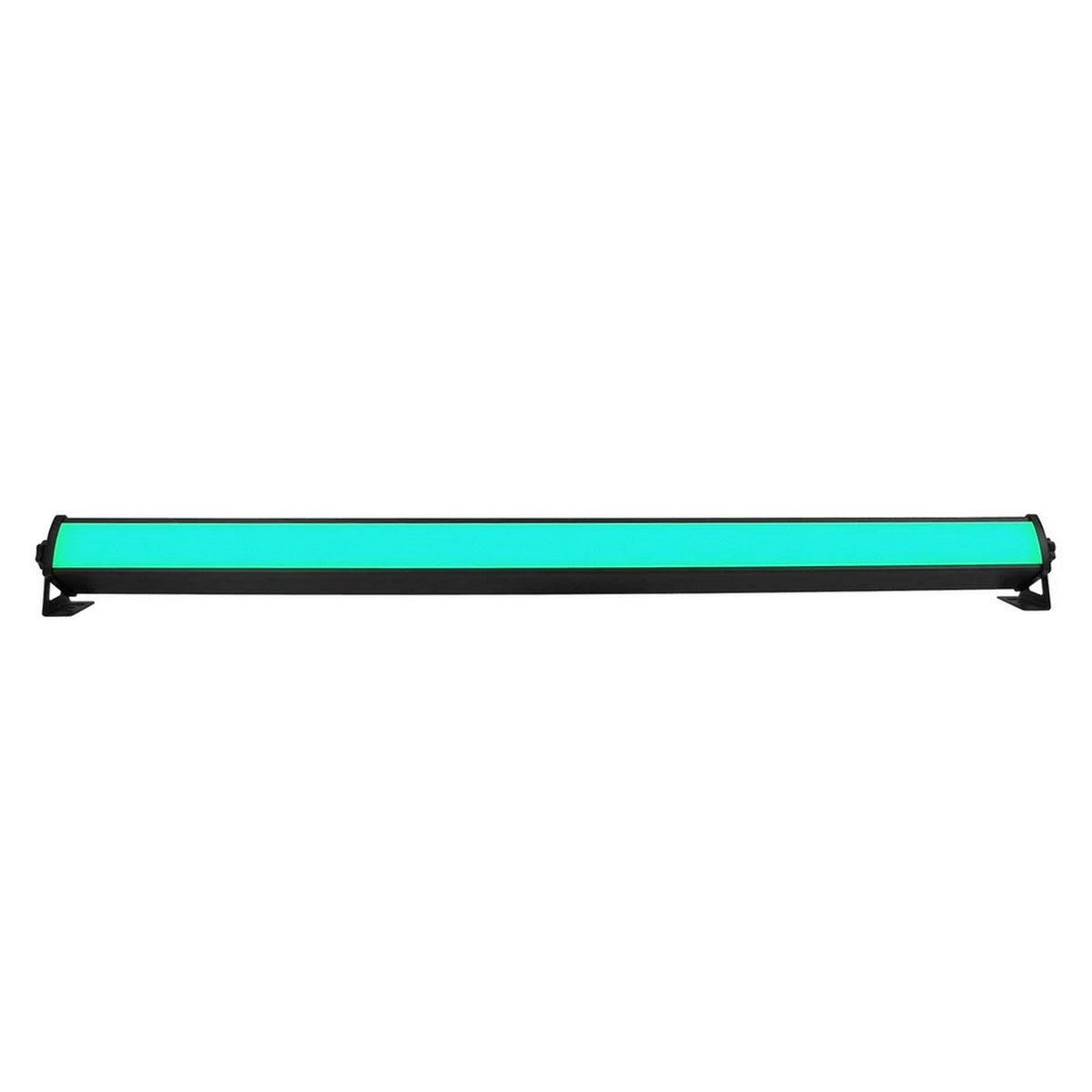

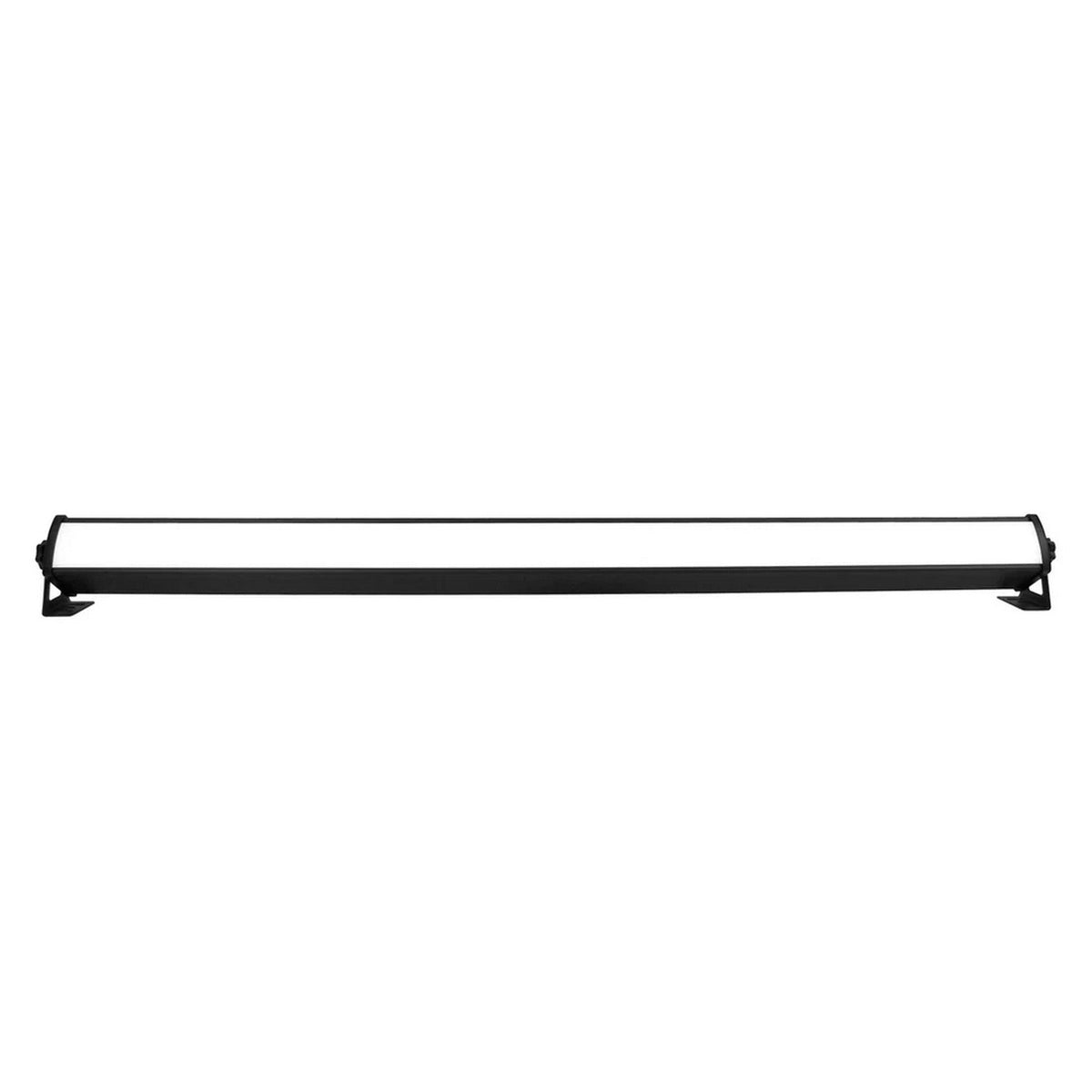

The Event Lighting Lite BAR224FXL RGB LED Bar is a versatile lighting fixture featuring 224 SMD 5050 RGB LEDs for colorful stage washes and animated effects. Its 16 controllable segments create dynamic color patterns, while a wide 90-degree beam provides broad illumination. Six DMX channel configurations accommodate basic color mixing and detailed lighting programming.

Designed for professional DJs, mobile entertainers, event venues, and stage technicians, this LED effect bar delivers flexible lighting for live performances and entertainment environments. Create synchronized RGB lighting effects for concerts, colorful backdrops for stage productions, or sound-responsive illumination for parties and clubs. With 54 built-in programs, adjustable effect speeds, and integrated strobe functions, the BAR224FXL provides creative lighting options without requiring extensive programming.

The fixture integrates with DMX512 lighting systems through its 3-pin XLR input and output connections. Operators can also select automatic, manual, sound-active, or master/slave operation for standalone and synchronized installations. Its 10,000 Hz pulse-width modulation (PWM) frequency supports consistent LED output, while adjustable dimming provides intensity control. The IP20-rated housing is intended for dry indoor environments. For vertical floor-standing applications, the separately available XSTANDM8 mounting accessory provides another installation option.

Key Features

• 224 RGB LEDs: SMD 5050 three-in-one LEDs produce red, green, and blue lighting effects with adjustable color combinations.

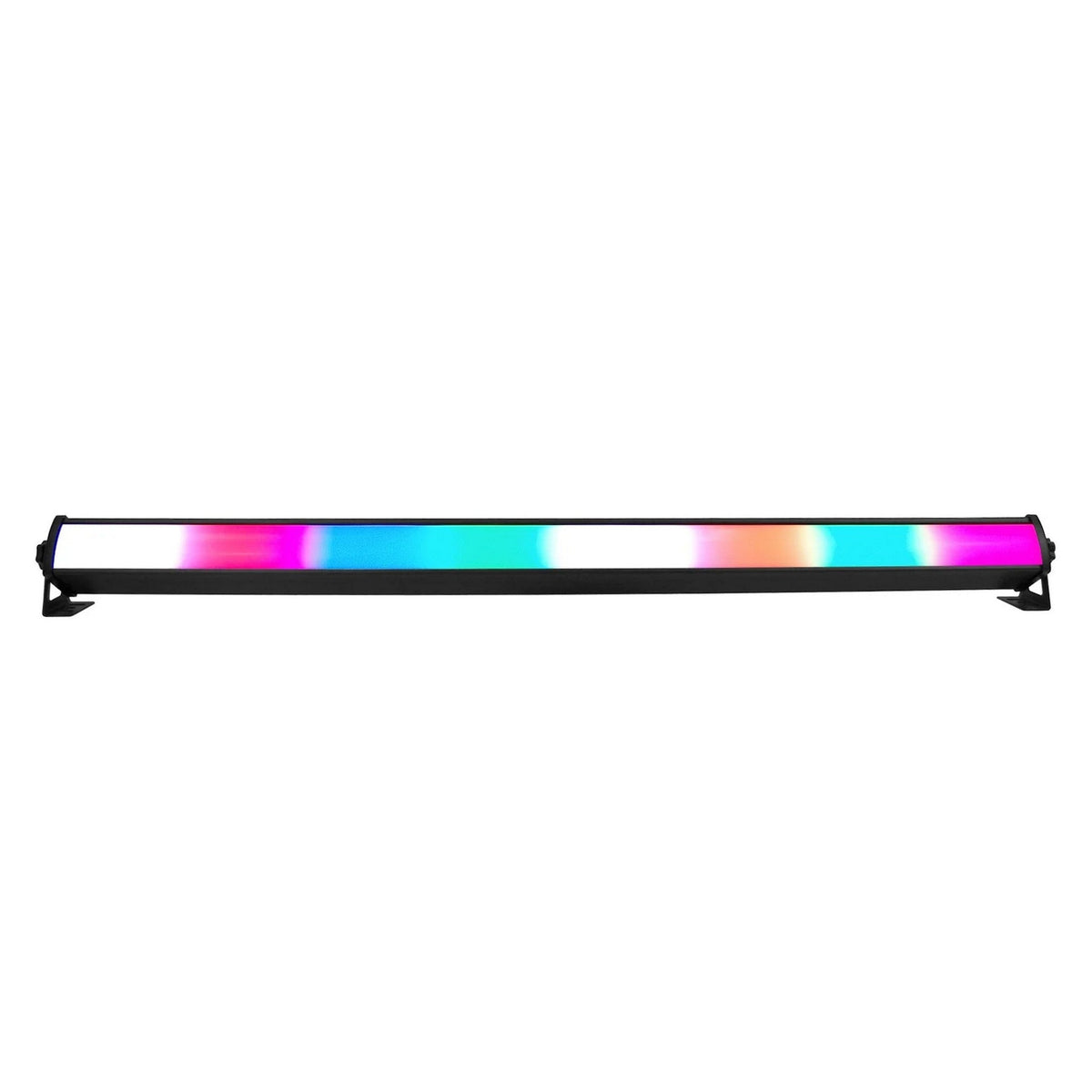

• 16-Segment Control: Independently controllable lighting sections enable animated patterns, color transitions, and coordinated visual effects.
• Wide 90-Degree Beam: Provides broad light distribution for stage backdrops, entertainment spaces, and decorative illumination.
• Six DMX Channel Modes: Supports 3, 5, 8, 24, 48, and 53 channels for flexible integration with professional lighting controllers.
• Multiple Operating Modes: DMX, automatic, manual, sound-active, and master/slave functions accommodate programmed and standalone operation.
• 54 Built-In Programs: Select preset lighting shows with adjustable playback speed and flashing effects for different performance environments.
• 10,000 Hz PWM: High-frequency LED modulation supports consistent dimming and reduces visible flicker during operation.
• DMX Connectivity: 3-pin XLR input and output connections simplify integration with compatible DMX512 lighting systems.

Technical Specifications

General Information

• Brand: Event Lighting Lite
• Model: BAR224FXL
• Product Type: RGB LED Effect Bar
• Lighting Technology: Surface-Mounted Device (SMD) LEDs
• Light Source: 224 x SMD 5050 RGB LEDs
• LED Configuration: RGB 3-in-1
• Color System: Red, Green, Blue (RGB)
• Controllable Segments: 16
• Beam Angle: 90 degrees
• PWM Frequency: 10,000 Hz
• LED Rated Lifespan: 50,000 hours

Lighting Effects and Control

• Control Protocol: DMX512
• DMX Channel Modes: 3 / 5 / 8 / 24 / 48 / 53
• Operating Modes: DMX, automatic, manual, sound active, master/slave
• Built-In Programs: 54 programmable shows
• Program Speed: 10 selectable settings
• Sound Sensitivity: 9 adjustable levels
• Dimming Range: 0-100%
• Strobe Function: Adjustable flashing speed
• Segment Control: 16 individually controllable RGB sections

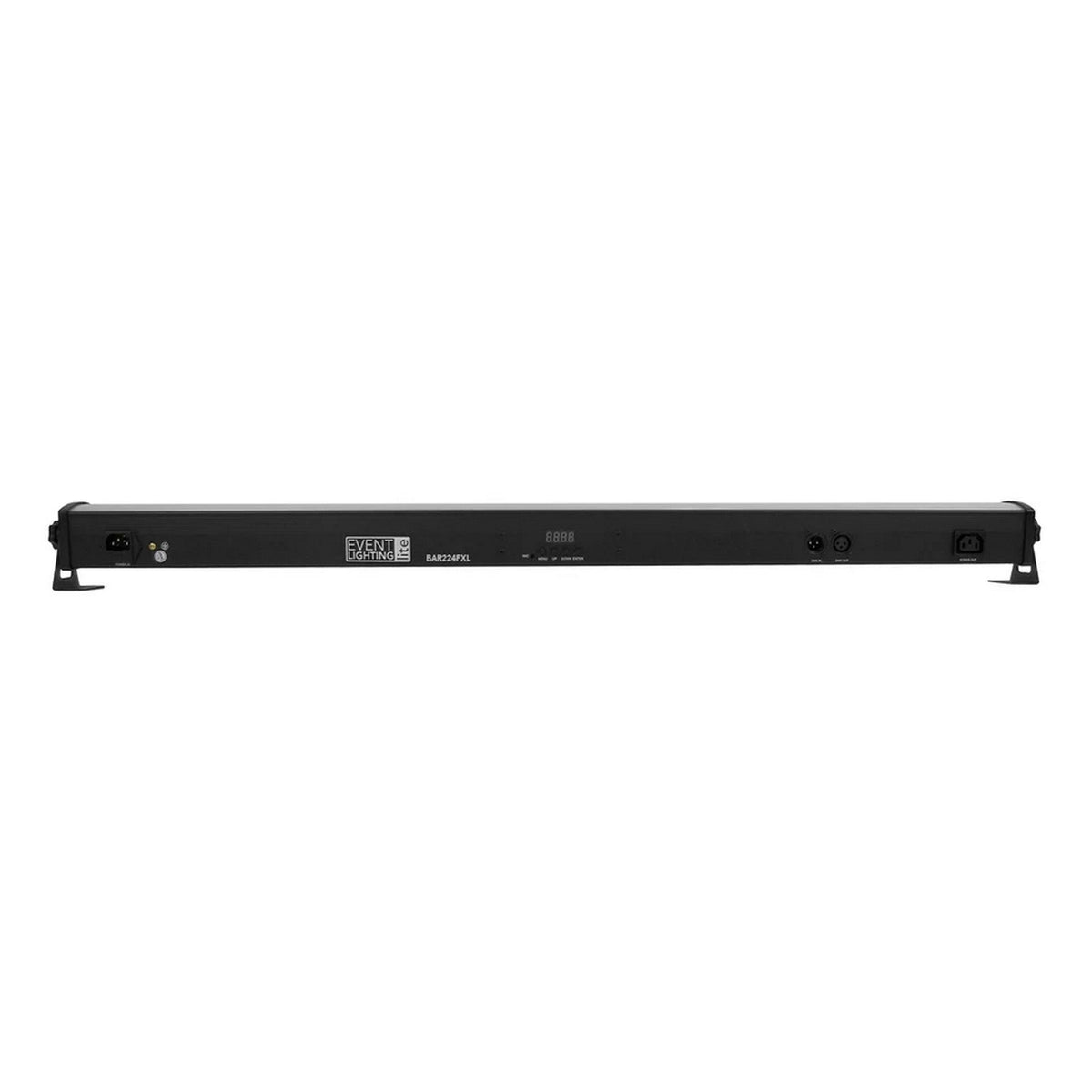

• Control Interface: 3-pin XLR input and output

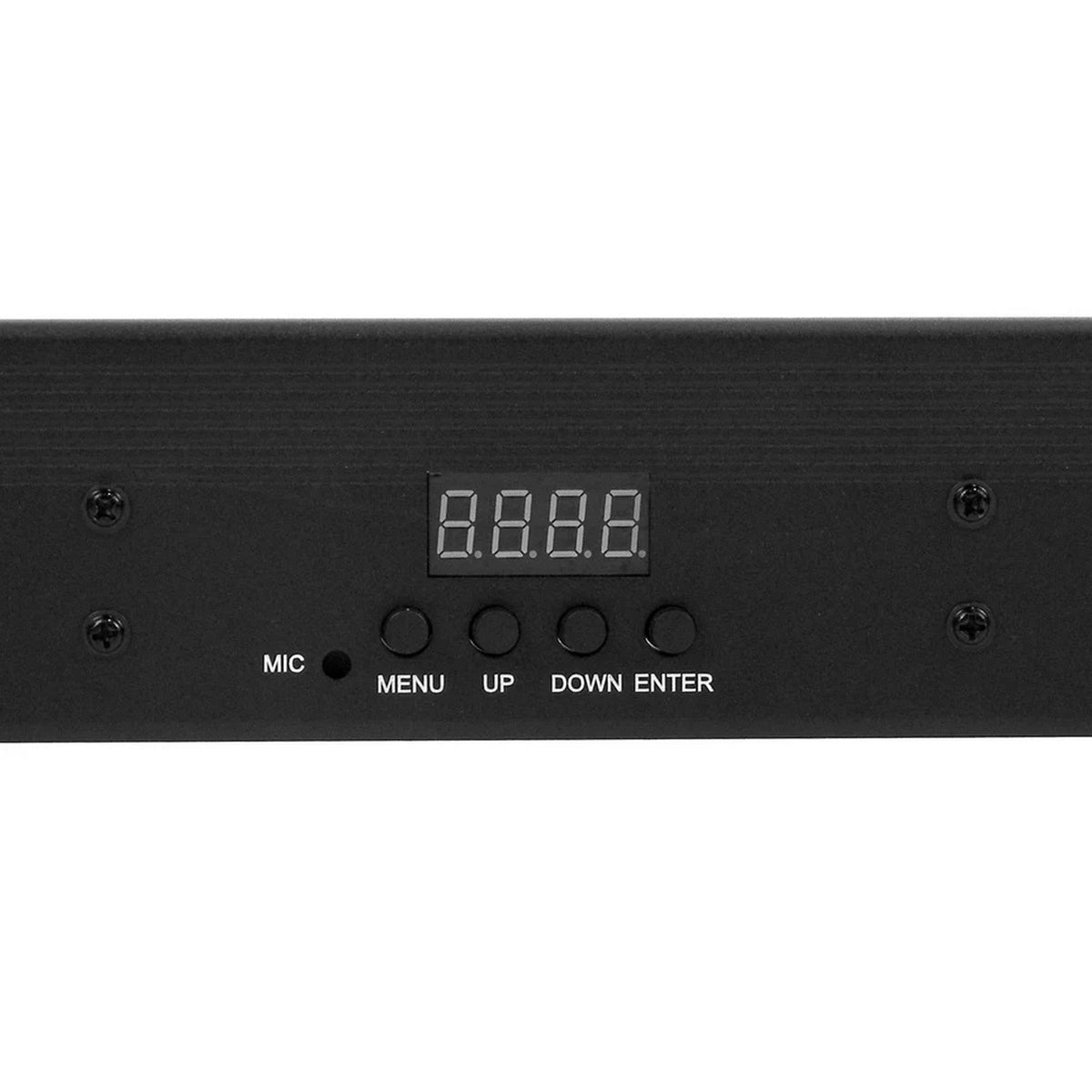

• Onboard Controls: Four-button LED control panel
• Display Functions: DMX addressing, operating modes, effect selection, and fixture settings

Power and Electrical

• Input Voltage: 110-240V AC
• Frequency: 50/60 Hz
• Power Consumption: 150W
• Power Supply: Automatic voltage switching
• Power Connections: IEC input and output
• Maximum Power Linking: 8A

Physical Specifications

• Housing Material: Aluminum
• Housing Finish: Matte Black
• IP Rating: IP20
• Recommended Environment: Indoor use
• Maximum Ambient Operating Temperature: 104 degrees F
• Dimensions (L x W x H): 43.3" x 2.4" x 2.4"
• Net Weight: 7.7 lbs
• Mounting: Supports bracket-mounted installation

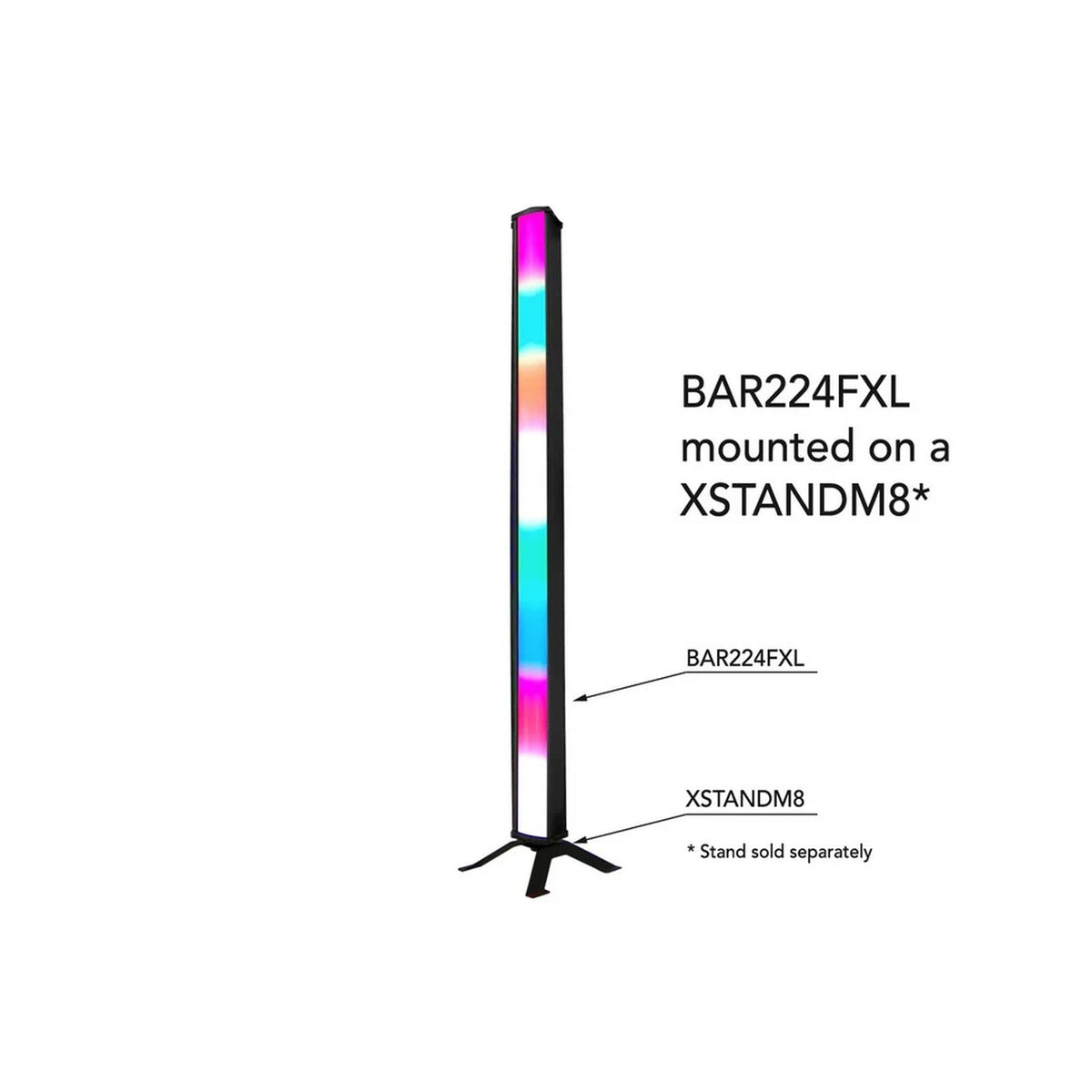

• Optional Accessory: XSTANDM8 vertical floor stand (sold separately)
• Manufacturer Warranty: 2 years
