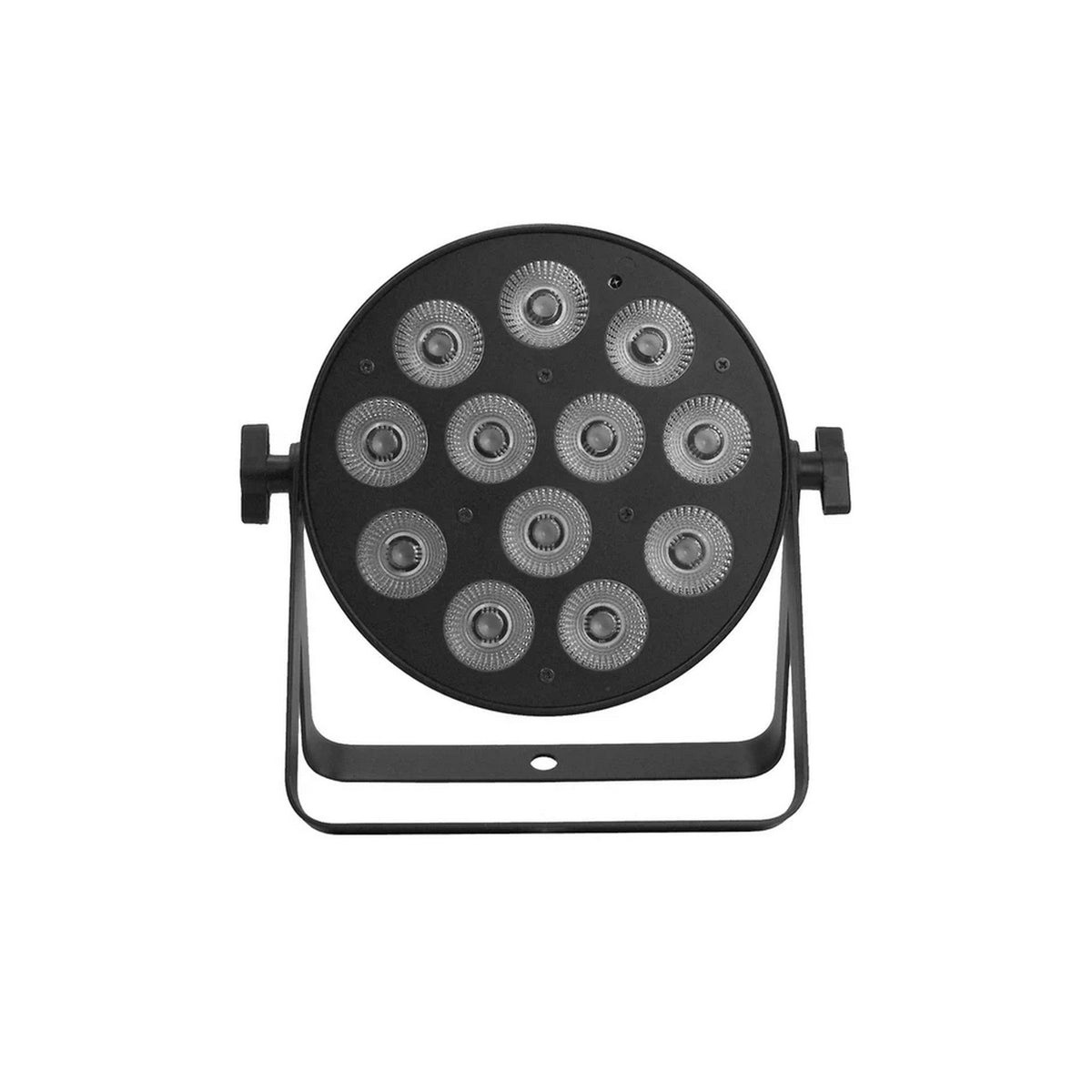

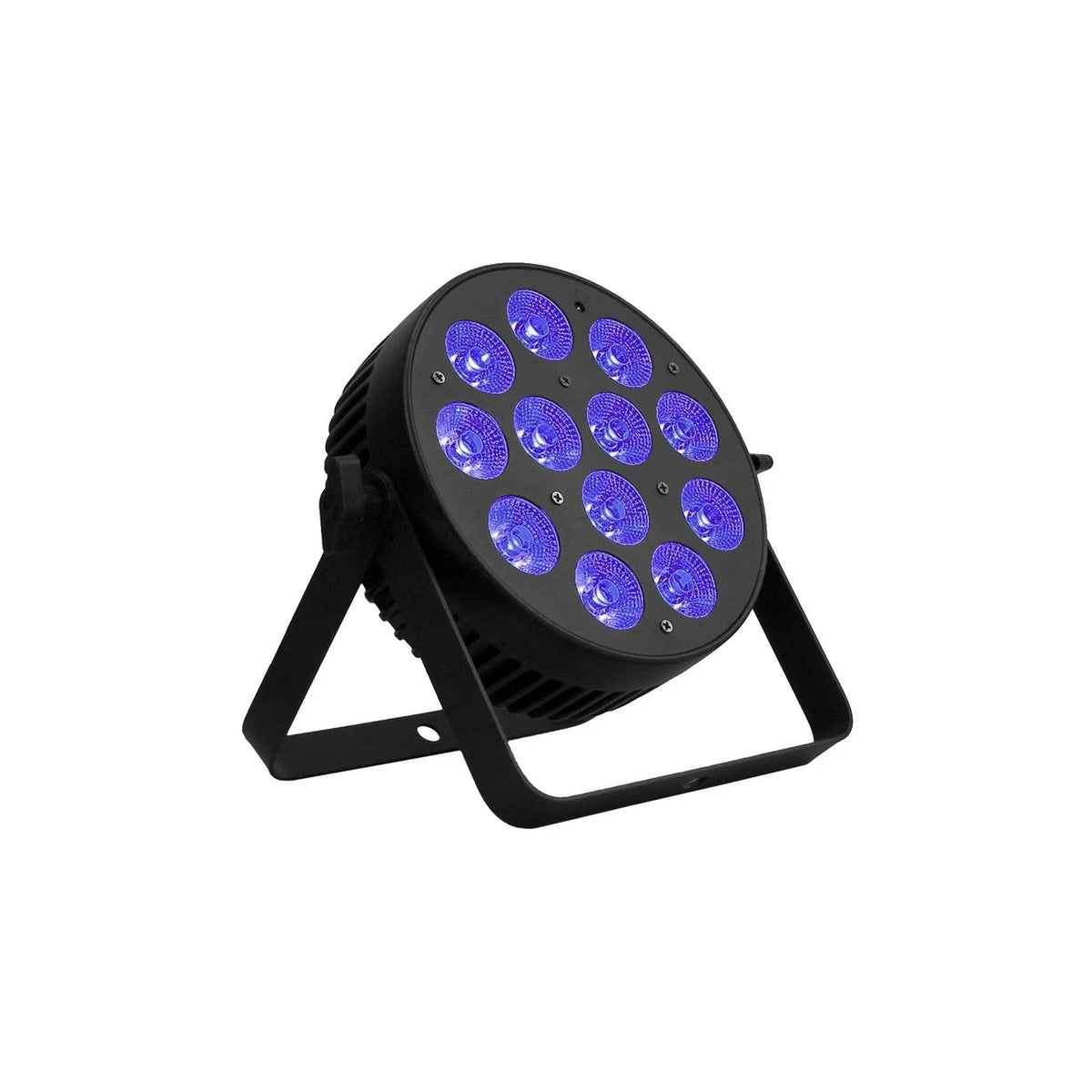

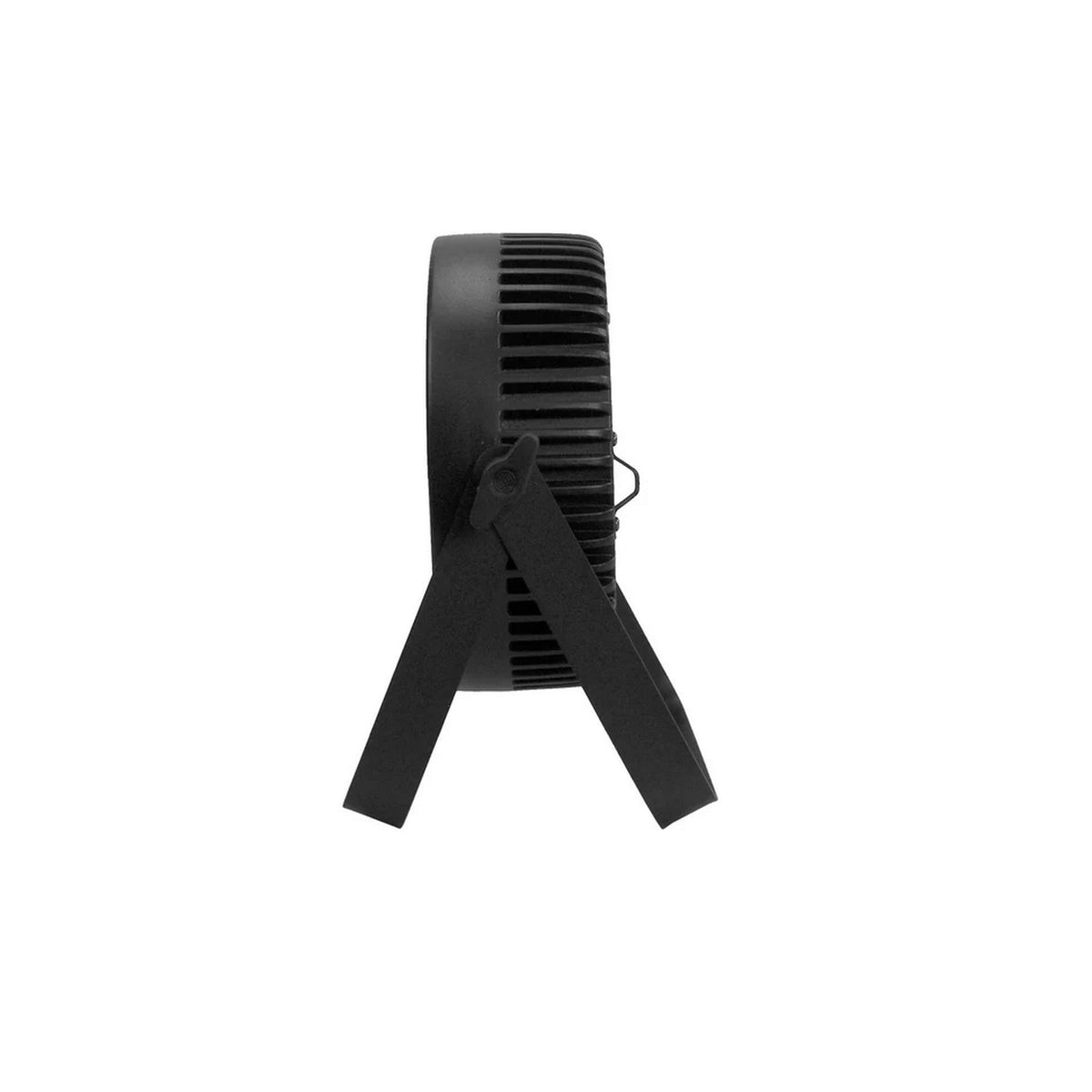

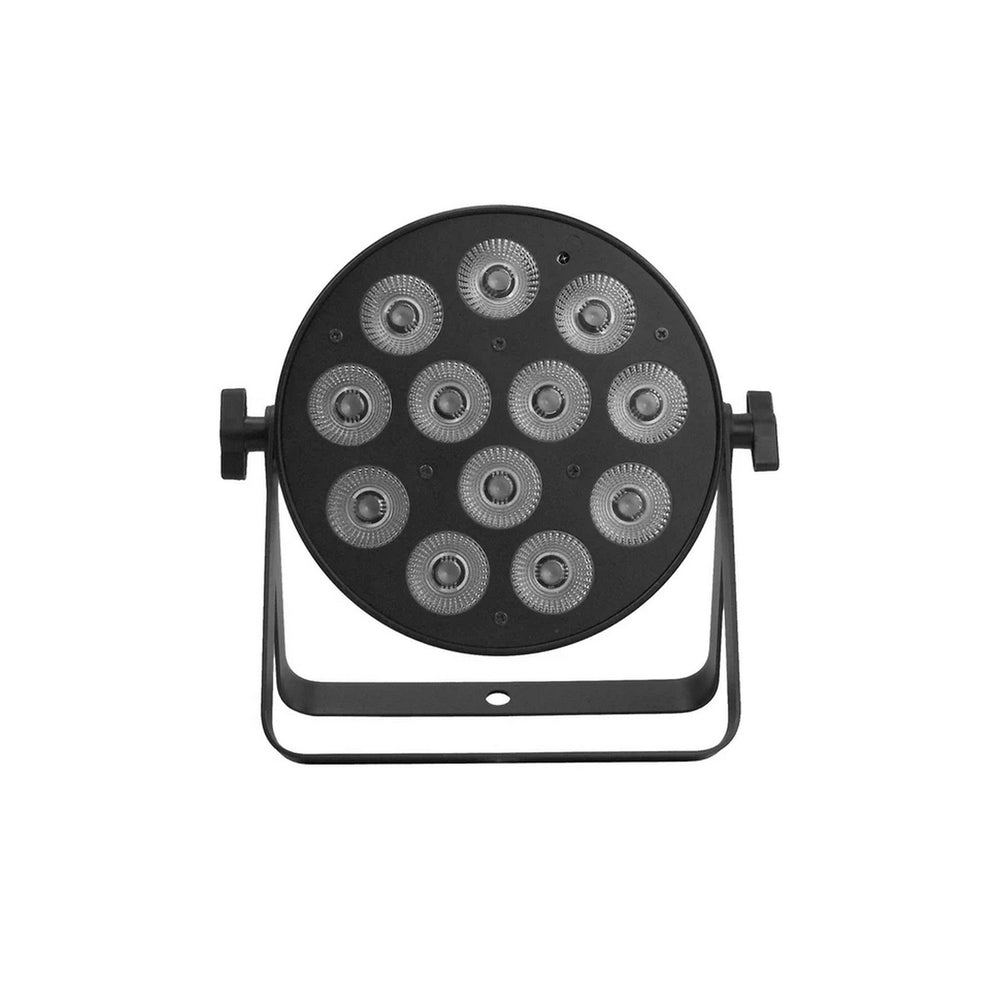

Event Lighting Lite PAR12X4UVL UV LED PAR Light

Event Lighting Lite PAR12X4UVL UV LED PAR Light

The Event Lighting Lite PAR12X4UVL UV LED PAR Light is an indoor ultraviolet lighting fixture equipped with twelve 4W UV LEDs. Its 40-degree beam produces blacklight effects that illuminate fluorescent materials, making it suitable for stages, dance floors, and themed events. A fanless aluminum housing enables quiet operation, while adjustable dimming provides precise control over UV intensity.

Designed for mobile DJs, nightclubs, entertainment venues, and event production professionals, this compact UV PAR light delivers ultraviolet effects without requiring complex lighting equipment. The fixture supports DMX512 control with selectable 1-channel and 2-channel configurations, allowing integration into existing lighting systems. Automatic, manual, sound-active, and master/slave modes provide additional flexibility for standalone setups and synchronized lighting installations. Its adjustable 1-20 Hz strobe function adds flashing effects for dance parties, live performances, and other entertainment applications.

The PAR12X4UVL combines professional lighting connectivity with practical installation features. Its die-cast aluminum construction provides a durable enclosure, while passive cooling eliminates operating noise from internal fans. The 20,000 Hz pulse-width modulation (PWM) frequency supports high-frequency LED control. An integrated four-button interface and four-digit LED display simplify configuration, and 3-pin XLR connectors accommodate DMX signal routing. IEC power input and output connections facilitate power distribution between compatible fixtures. Designed for dry indoor environments, this IP20-rated UV lighting fixture includes a two-year manufacturer warranty.

Key Features

• 12 x 4W UV LEDs: Dedicated ultraviolet light sources create blacklight effects that enhance fluorescent decorations, costumes, and stage materials.
• 40-Degree Beam Angle: Provides focused UV illumination for dance floors, performance areas, and decorative lighting installations.
• Flexible DMX512 Control: Selectable 1-channel and 2-channel modes support straightforward integration with compatible lighting consoles and controllers.
• Multiple Operating Modes: Choose DMX, manual, automatic, sound-active, or master/slave operation for different lighting applications.
• Adjustable UV Dimming and Strobe: Control brightness from 0-100% and select strobe frequencies between 1 and 20 Hz.
• Fanless Aluminum Housing: Die-cast construction with passive cooling supports quiet operation during performances and installations.
• 20,000 Hz PWM Frequency: High-frequency LED modulation supports controlled intensity adjustment and consistent lighting output.

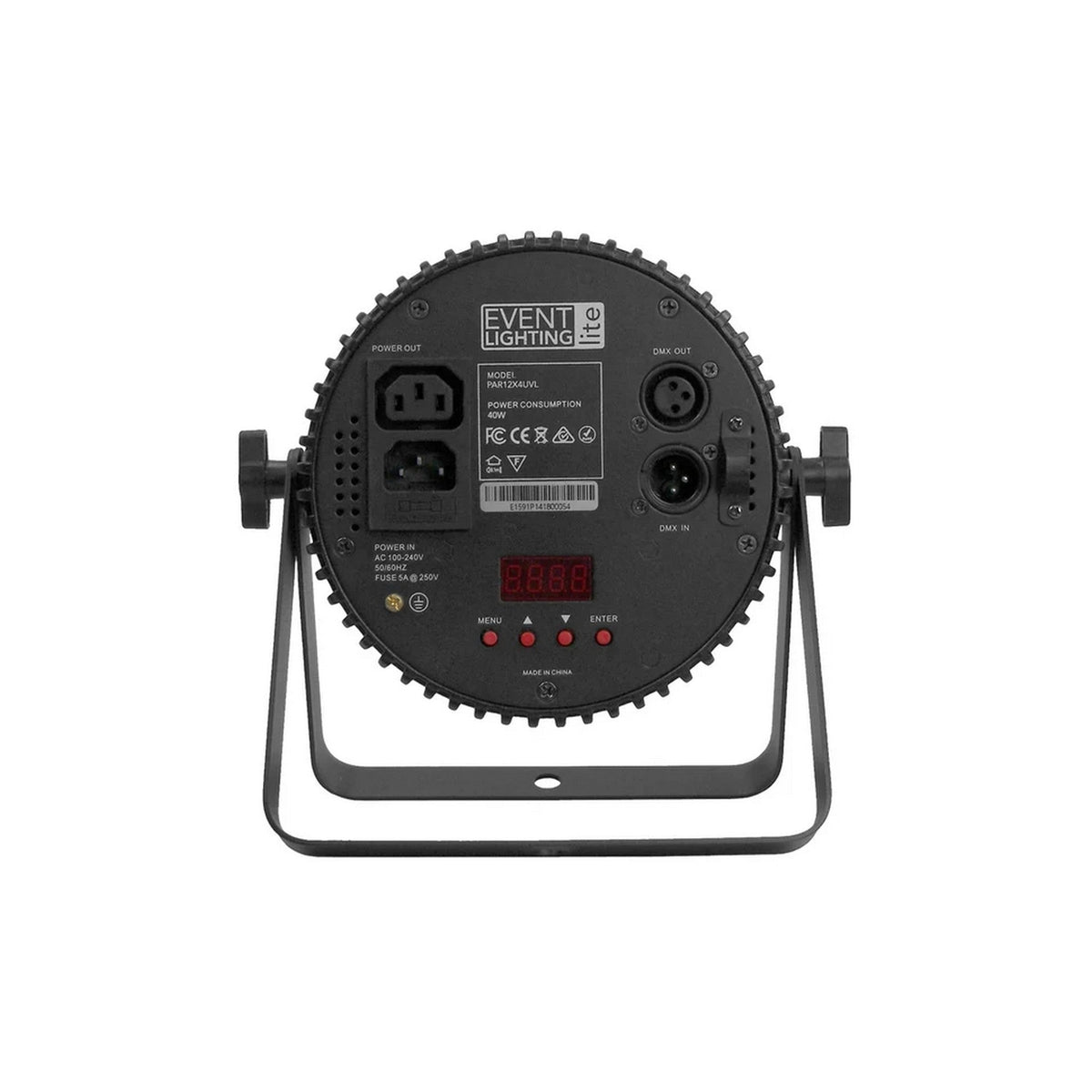

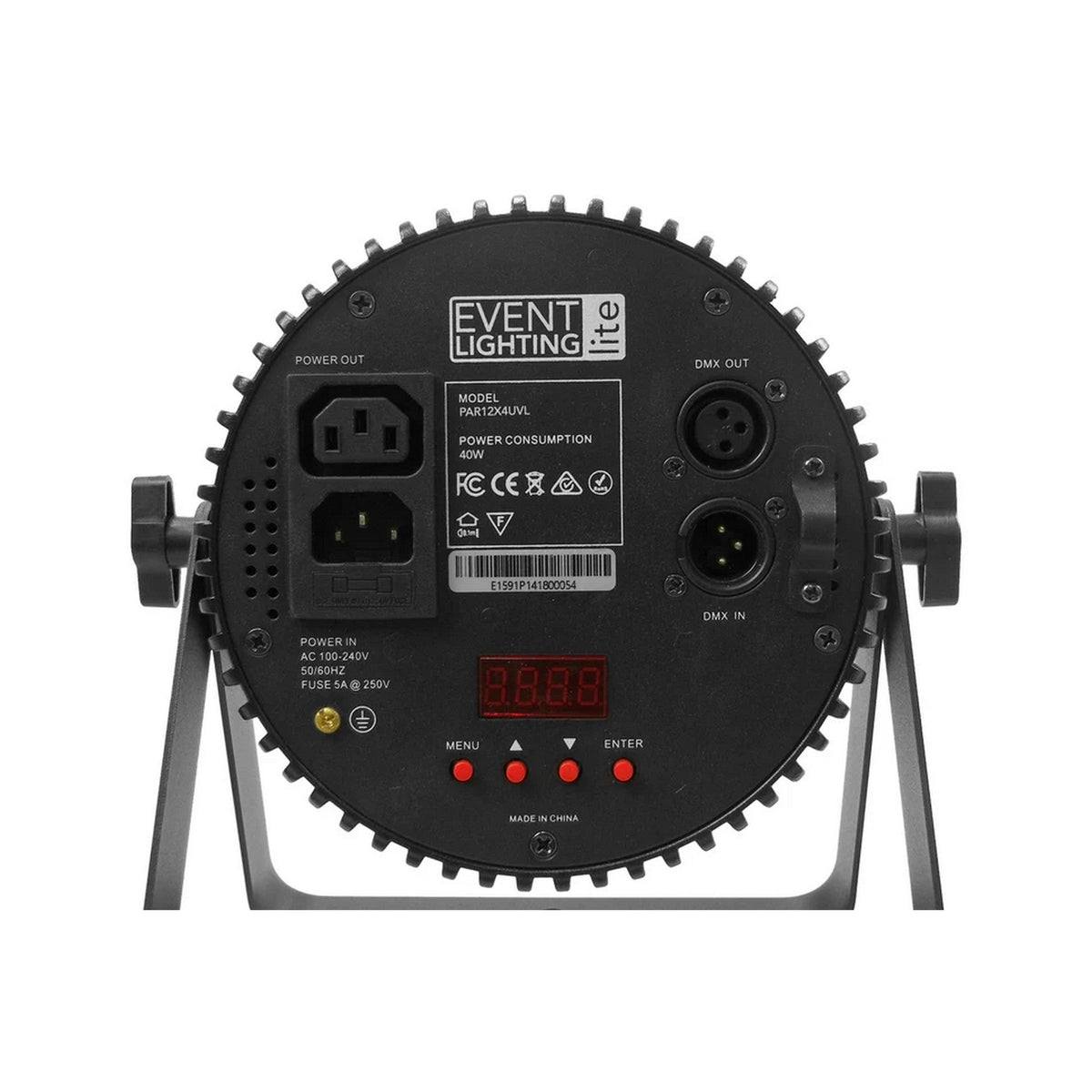

• Convenient Power and DMX Connections: IEC power input/output and 3-pin XLR DMX connections simplify integration into professional lighting systems.

Technical Specifications

General Information

• Brand: Event Lighting Lite
• Model: PAR12X4UVL
• Product Type: Indoor UV LED PAR Light
• Lighting Application: Ultraviolet Stage and Effect Lighting
• Light Source: 12 x 4W UV LEDs
• LED Quantity: 12
• Individual LED Power: 4W
• Light Color: Ultraviolet (UV)
• Beam Angle: 40 degrees
• PWM Frequency: 20,000 Hz
• Rated LED Lifespan: 50,000 hours

Lighting Effects and Dimming

• Dimming Range: 0-100%
• Strobe Frequency: 1-20 Hz
• UV Intensity Control: Adjustable
• Dimmer Speed: Adjustable through the onboard menu

Control and Connectivity

• Control Protocol: DMX512
• DMX Channel Modes: 1 / 2
• Operating Modes: DMX, Manual, Automatic, Sound Active, Master/Slave
• DMX Input: 3-Pin XLR
• DMX Output: 3-Pin XLR
• Control Interface: Four-Button Control Panel
• Display: Four-Digit LED Display
• DMX Addressing: Adjustable Through Onboard Controls
• Display Configuration: Selectable Display On/Off
• Factory Reset: Supported Through Onboard Menu

Power Requirements

• Input Voltage: 100-240V AC
• Input Frequency: 50/60 Hz
• Power Consumption: 50W
• Power Input: IEC
• Power Output: IEC
• Included Power Accessory: IEC Piggyback Cable

Physical Specifications

• Housing Material: Die-Cast Aluminum
• Housing Finish: Matte Black
• Cooling System: Fanless Passive Cooling
• IP Rating: IP20
• Operating Environment: Indoor Use
• Maximum Operating Temperature: 104 degrees F
• Recommended Ventilation Clearance: 19.7"
• Mounting: Bracket Mounting

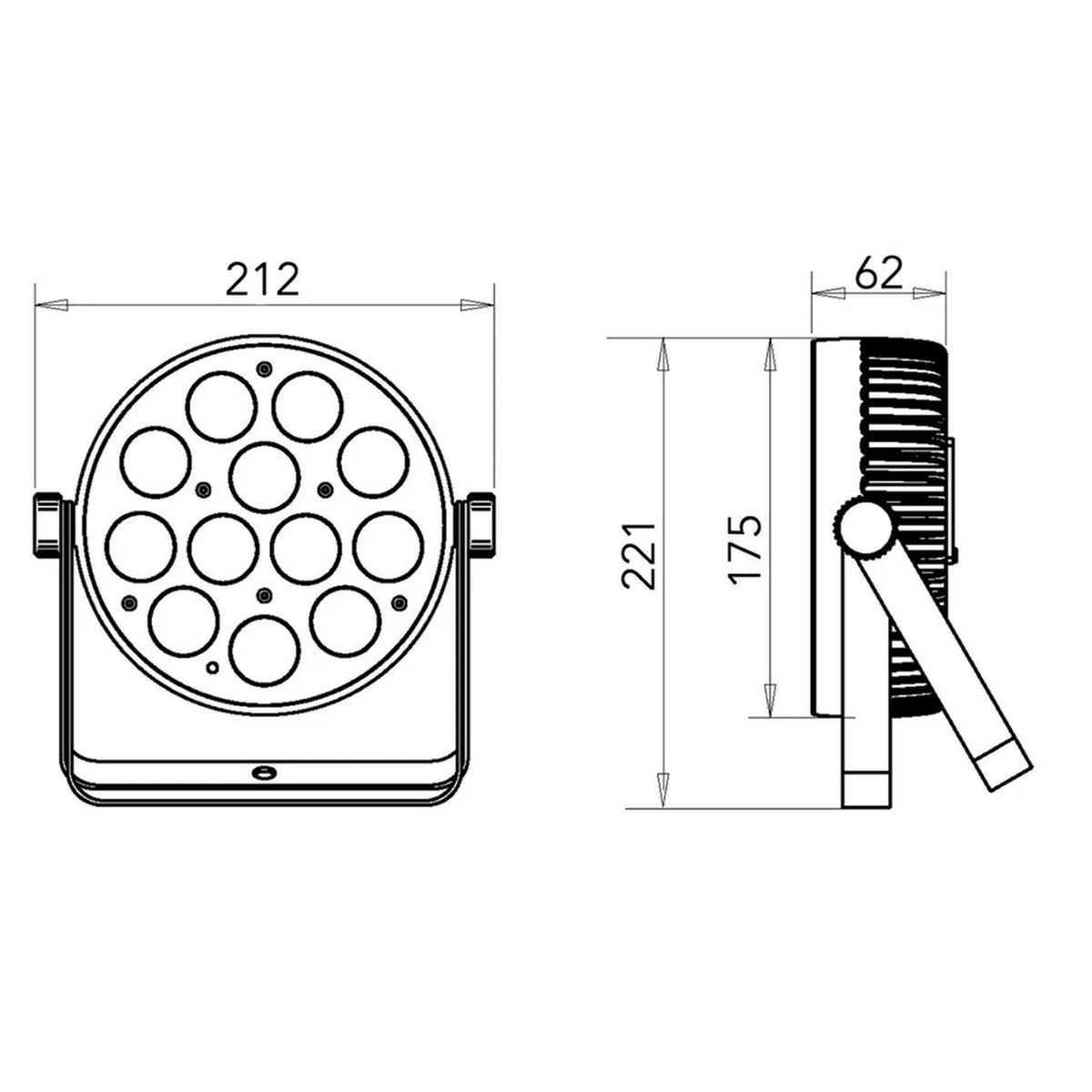

• Dimensions (L x W x H): 8.7" x 8.3" x 2.4"
• Net Weight: 4.1 lbs
• Optional Carry Bag: PAR12LBAG (Sold Separately)
• Manufacturer Warranty: 2 Years

What's in the Box

• IEC Piggyback Power Cable
