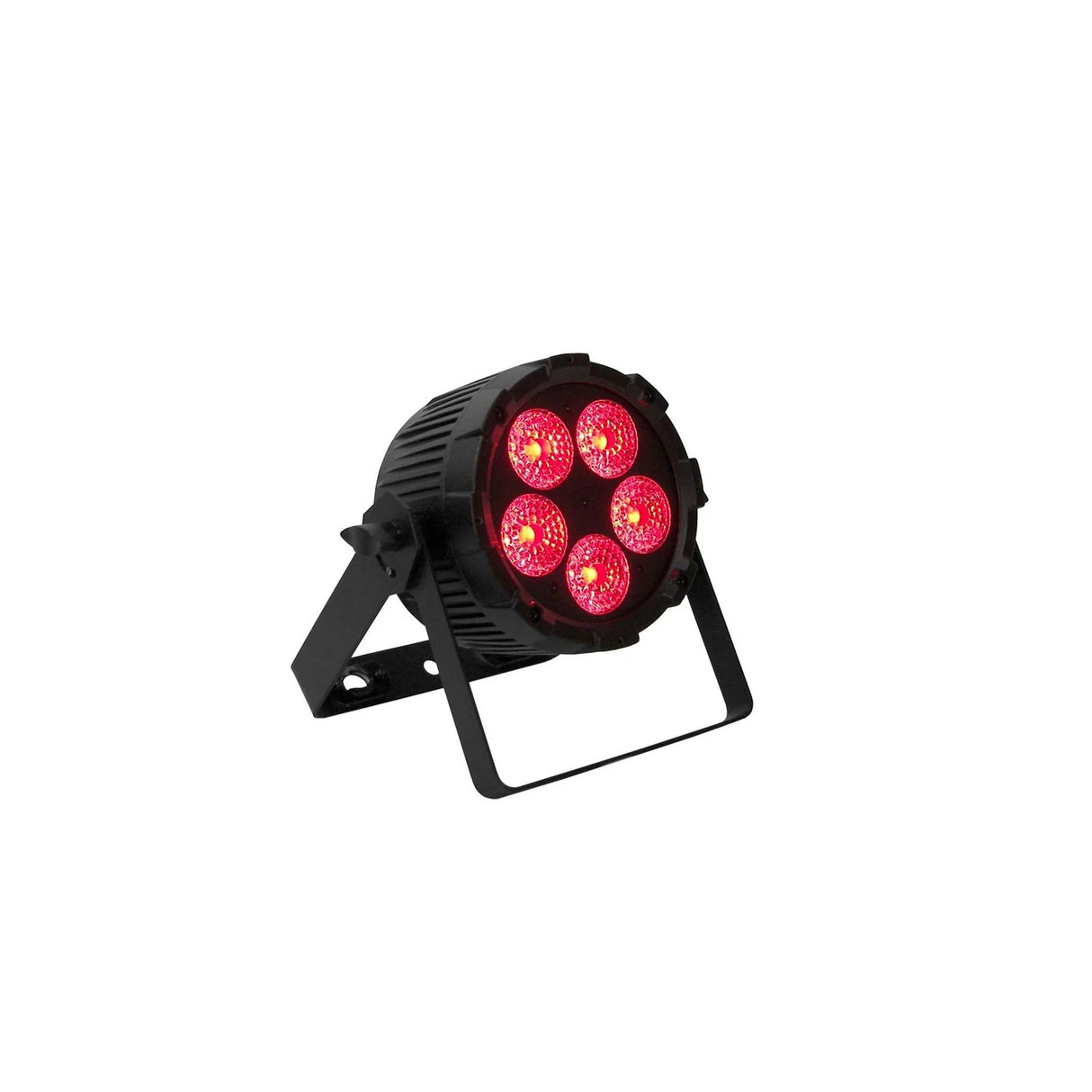

Event Lighting PAR5H Indoor RGBWA+UV LED Pro Par
The Event Lighting PAR5H Indoor RGBWA+UV LED Pro Par is a compact fanless parcan with 5 x 12W RGBWA+UV LEDs, 1,420 lux output at 2 meters, DMX512 control, True1 power in/out, and a standard 30° beam angle. It delivers flexible color mixing for stage, venue, worship, and event lighting applications.
Built for live production, houses of worship, rental setups, performance venues, and installed lighting systems, the PAR5H provides saturated color, UV effects, smooth dimming, and quiet operation in a die-cast aluminum housing. For buyers looking to purchase an indoor RGBWA+UV LED par, add a fanless DMX wash fixture, or build a compact stage lighting rig, it offers strong output with streamlined control.

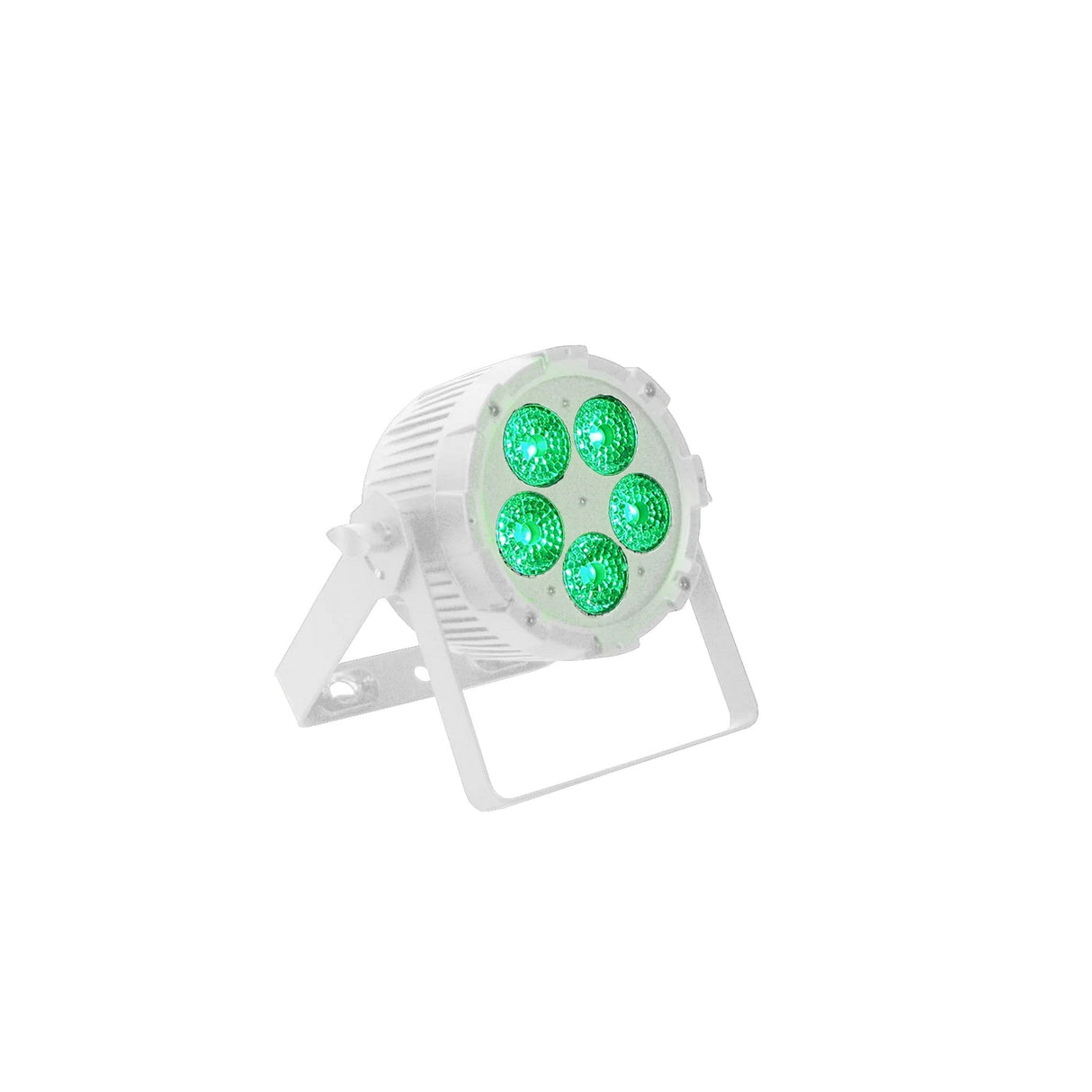

The fixture supports DMX, optional WDMX, auto run, sound active, master/slave, manual color control, and static color operation through a 4-button LCD control panel. Available color options include Black and White, with the black model listed as PAR5H and the white colorway listed as PAR5H-WH for architectural installs, bright interiors, and clean venue designs.
Key Features
- RGBWA+UV LED Engine: Uses 5 x 12W 6-in-1 LEDs for rich color mixing, amber tones, white output, and UV effects.
- Compact Indoor Wash: Produces 1,420 lux at 2 meters for stage, venue, worship, and event lighting applications.
- Standard 30° Beam: Provides balanced wash coverage, with optional 40°, 25°, and 15° beam accessories available.
- Fanless Cooling: Runs quietly for theaters, worship spaces, studios, and sound-sensitive installations.
- DMX512 Control: Supports multiple channel modes for simple operation or detailed lighting programming.
- Flexible Operation Modes: Includes DMX, optional WDMX, auto run, sound active, master/slave, manual color, and static color control.
- True1 Power Linking: Features True1 power in/out connections for clean professional power distribution.
- Quick Rigging: Includes an omega bracket with 1/4-turn quick locks for fast mounting.
Technical Specifications
- Product Type: Indoor RGBWA+UV LED Pro Par
- Model: PAR5H
- Available Color Options: Black or White
- Black Colorway SKU: PAR5H

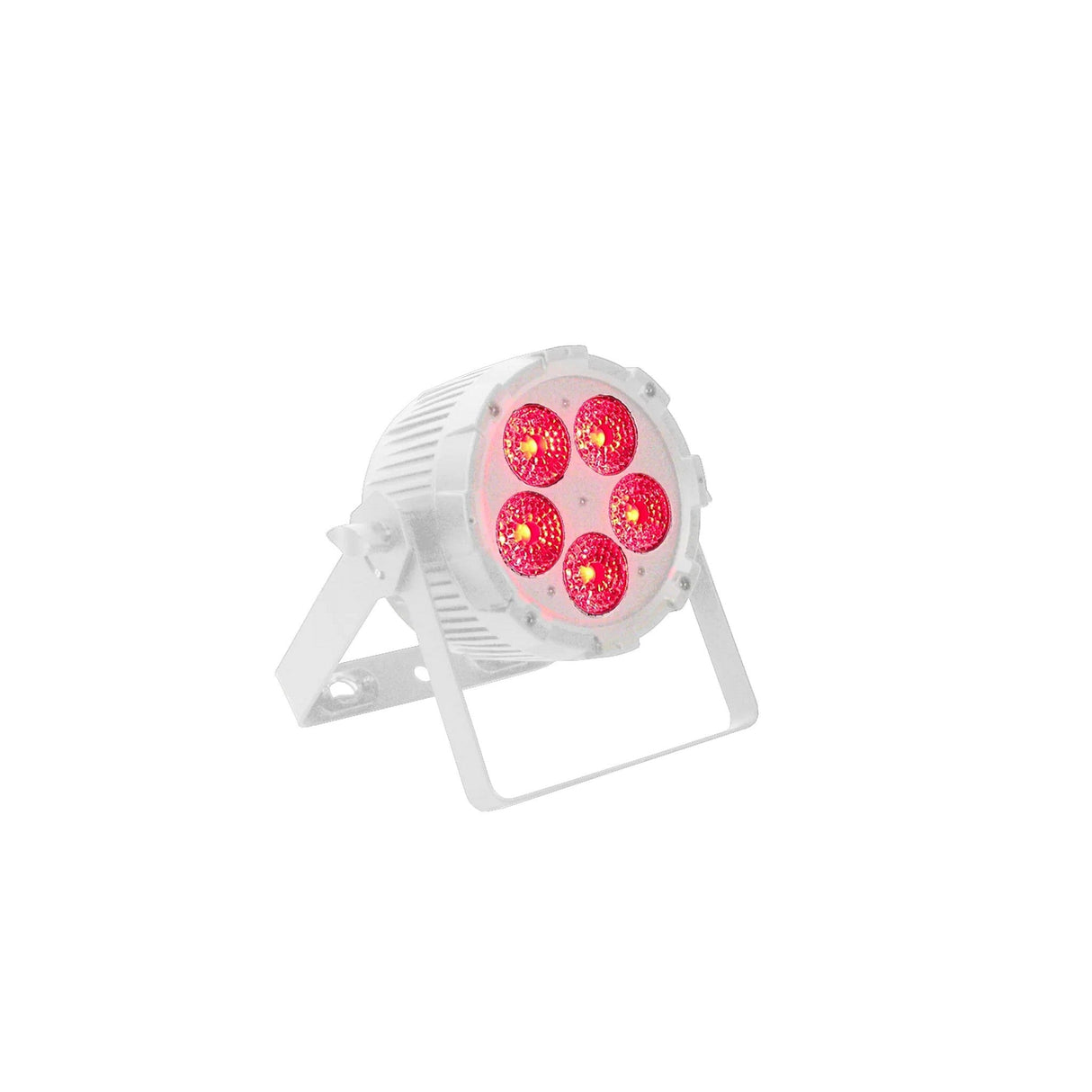

- White Colorway SKU: PAR5H-WH

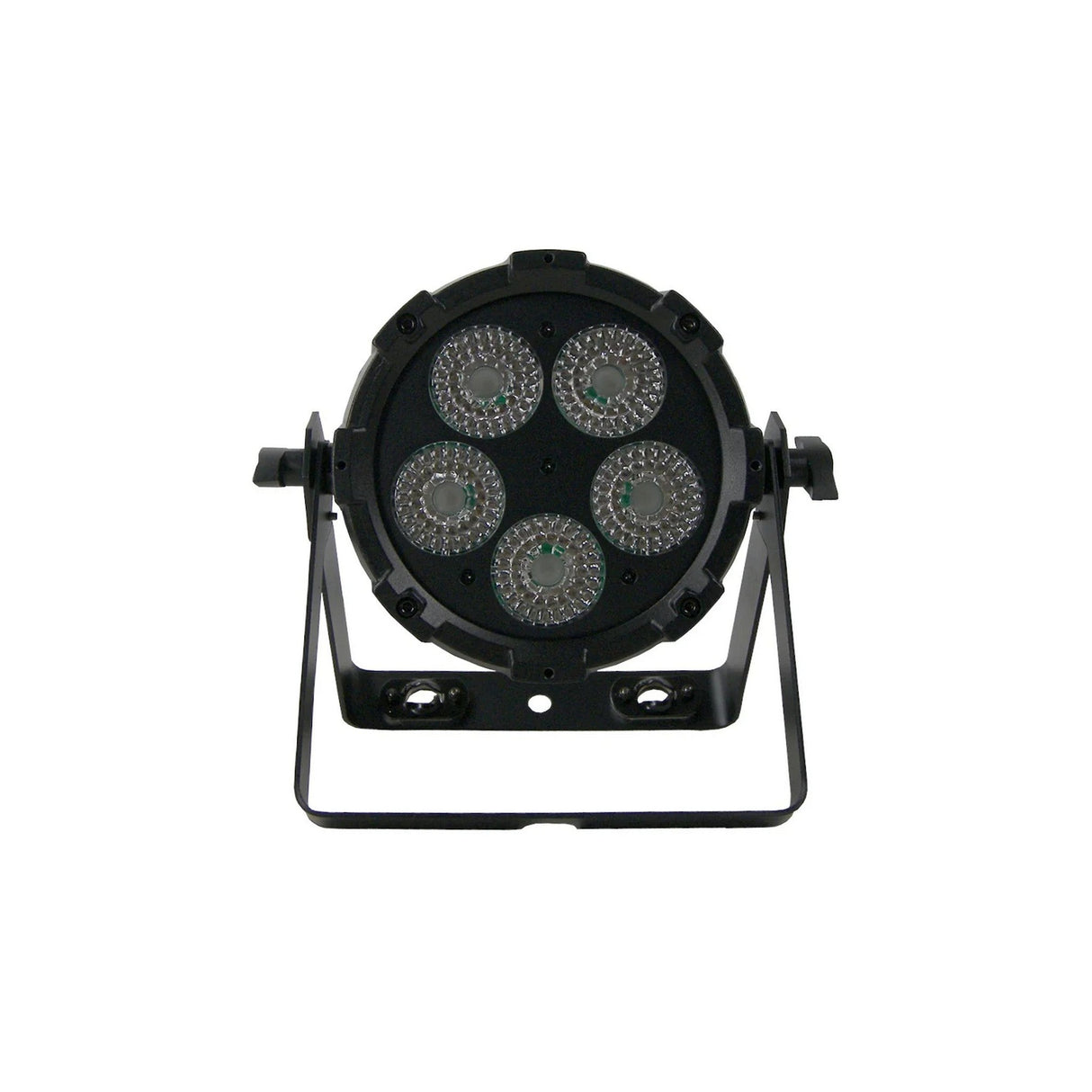

- Light Source: 5 x 12W RGBWA+UV 6-in-1 LEDs
- Beam Angle: 30° standard; 40°, 25°, and 15° optional

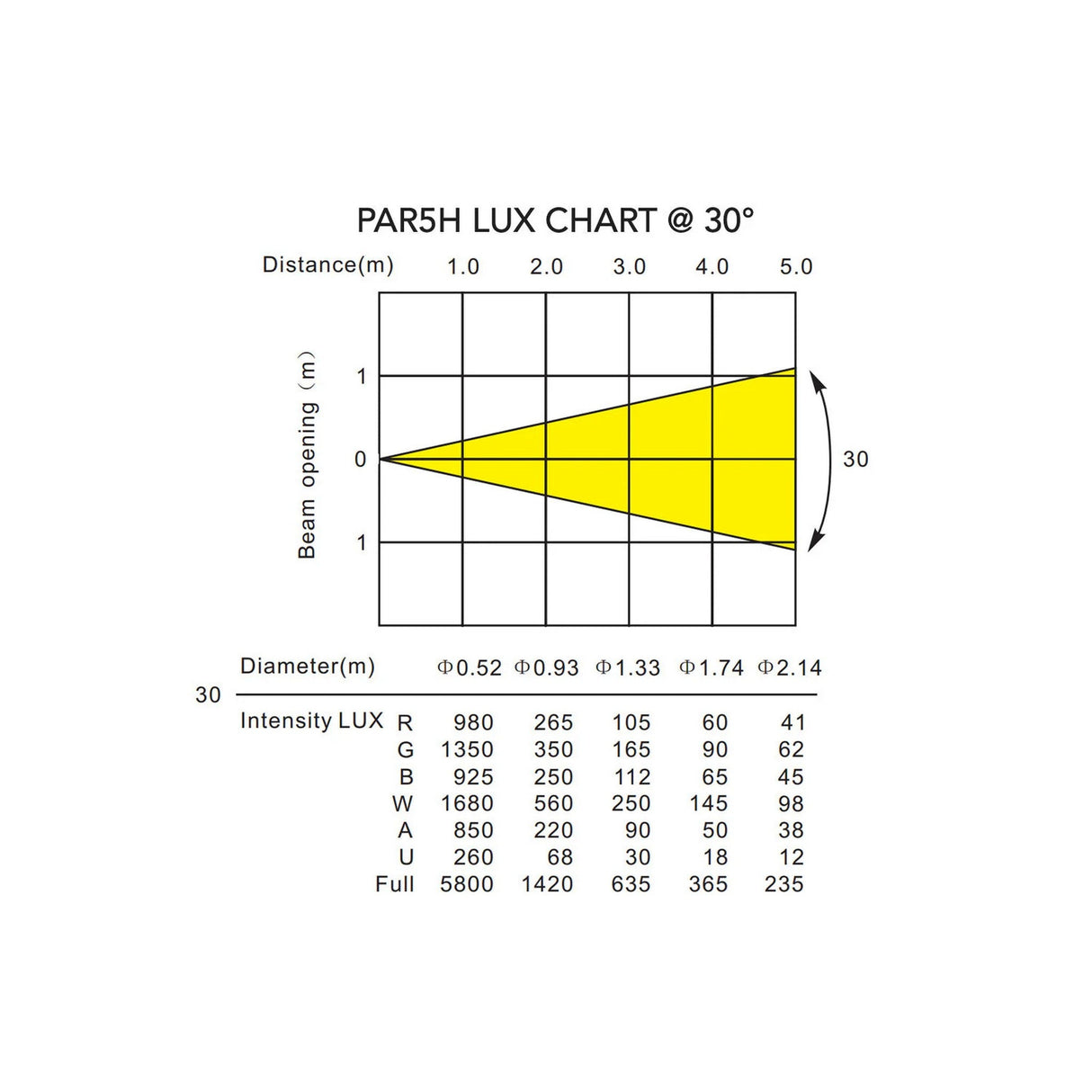

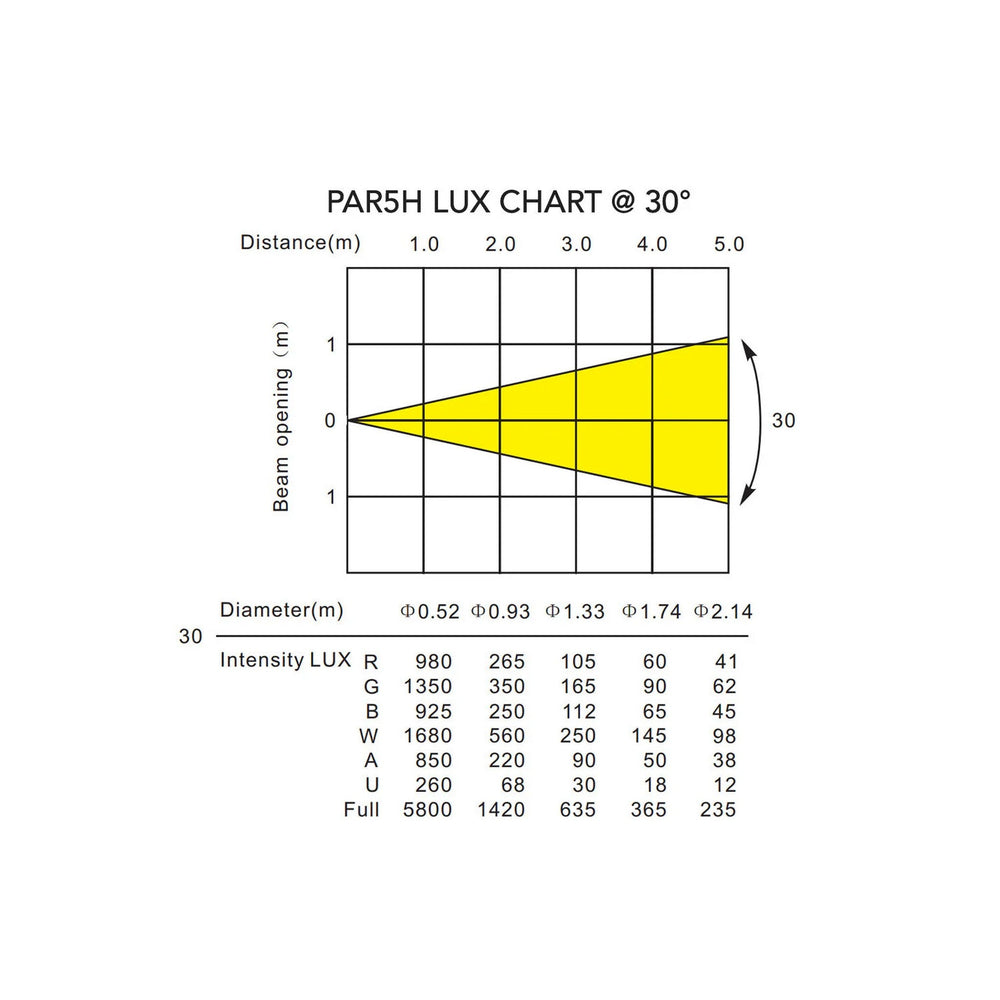

- Output: 1,420 lux at 2.0 m, full on
- PWM: 2,940 Hz
- LED Life: 50,000 hours
- Dimming: 5 x 16-bit dimming curves
- Strobe: 1-30 Hz
- Input Voltage: 100-240 V AC, 50/60 Hz
- Power Consumption: 50 W

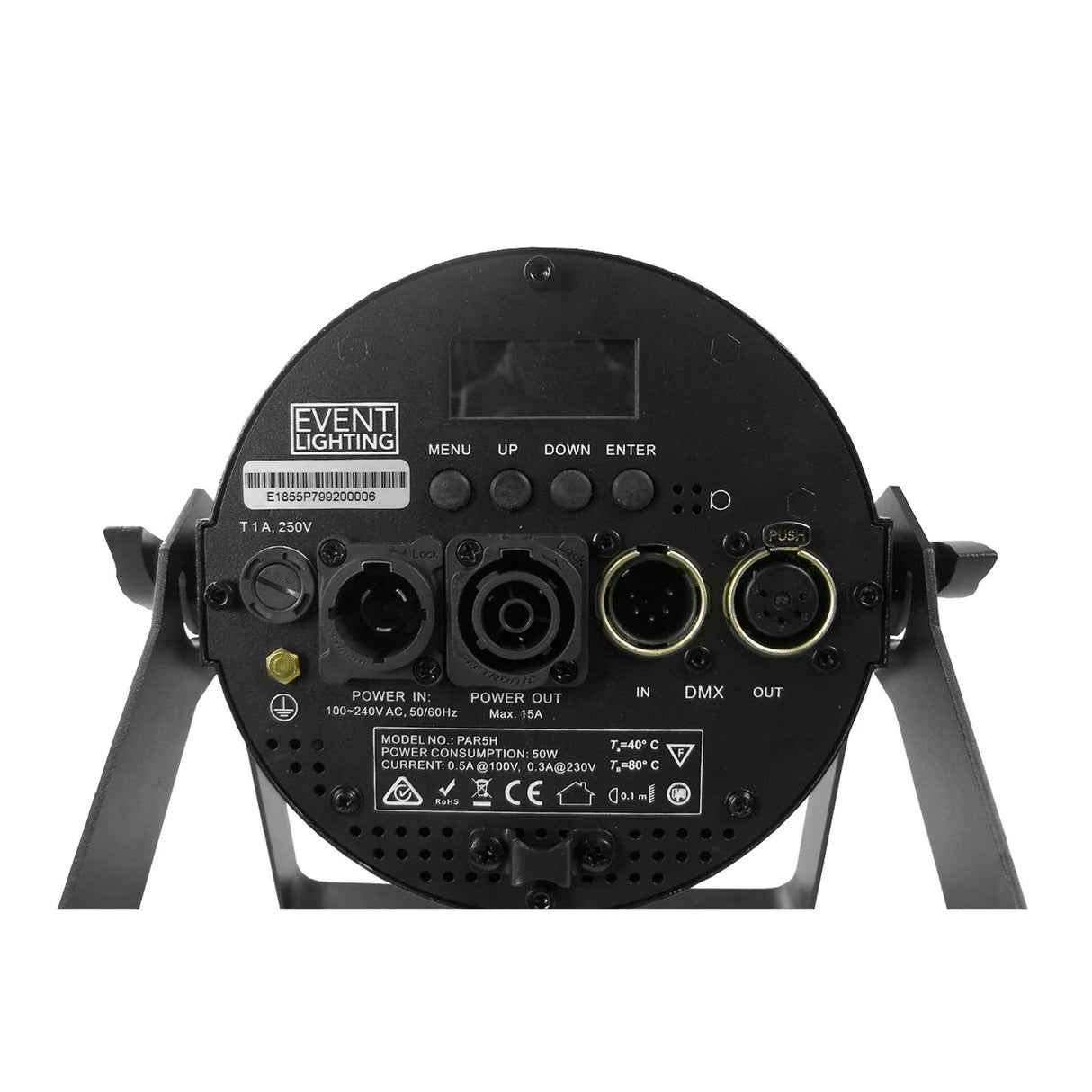

- Power Connection: True1 in/out
- Operational Modes: DMX, optional WDMX, auto run, sound active, master/slave, manual color control, static color control
- Display: 4-button LCD control panel
- DMX Protocol: DMX512
- DMX Channel Modes: 1 / 2 / 3 / 4W / 4A / 6 / 8 / 12 / 14
- DMX Interface: 5-pin XLR in/out
- Housing Material: Die-cast aluminum
- Finish: Matte black or matte white
- Cooling: Fanless
- Rigging: 1 x omega bracket with 1/4-turn quick locks
- Compatible Gel Frame: PAR5GELFR
- Compatible Frost Filter: PAR5FROST
- Compatible Barndoor Kit: PAR5BDKIT; PAR5BDKIT-WH for white colorway
- Compatible Wireless Receiver: CRMXTRXII

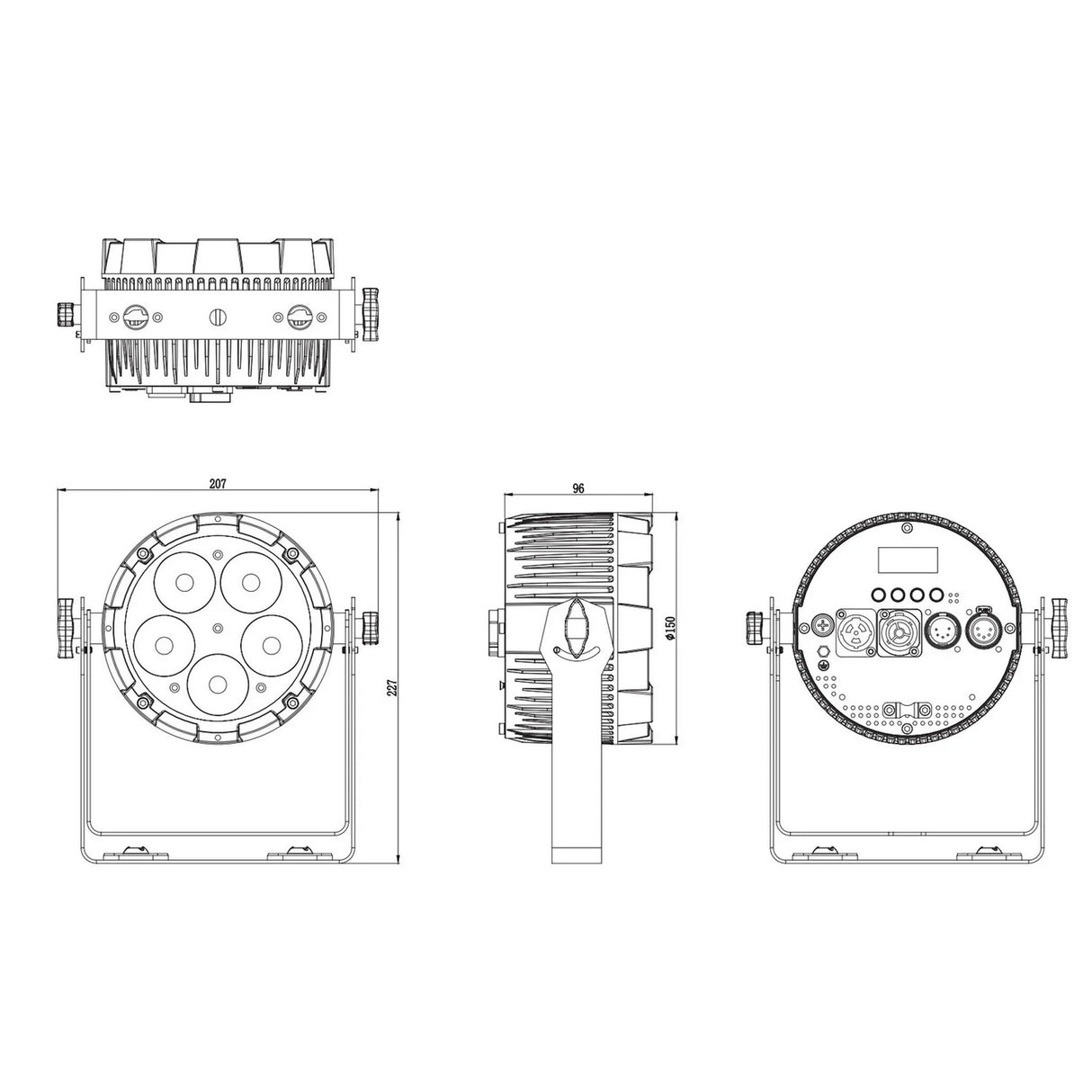

- Dimensions: 8.15" x 8.94" x 4.72"
- Weight: 4.2 lbs
What's Included
- Event Lighting PAR5H Indoor RGBWA+UV LED Pro Par
- Omega Bracket
