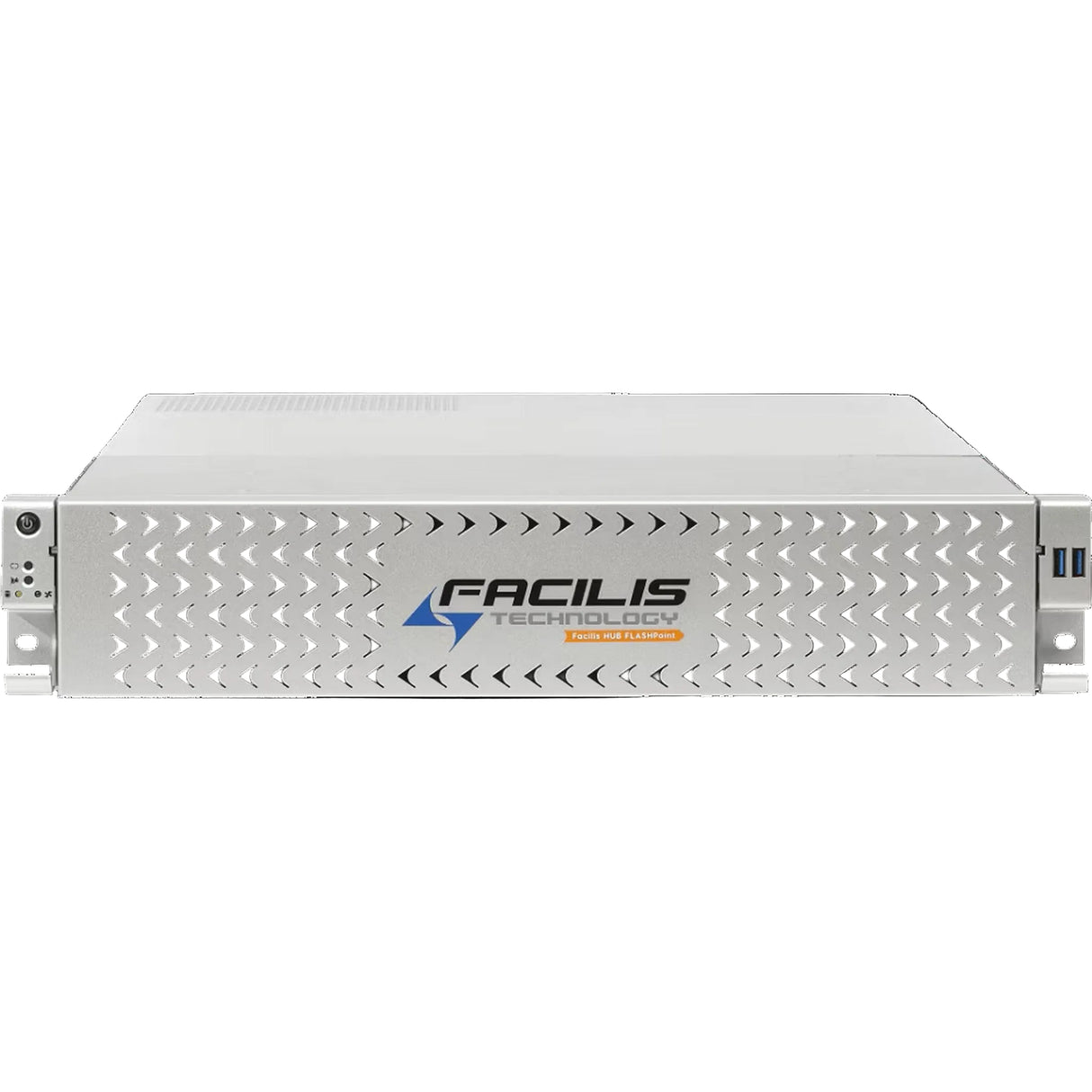

Facilis HUB FLASHPoint 24S SSD Shared Storage Server

Facilis HUB FLASHPoint 24S SSD Shared Storage Server

The Facilis HUB FLASHPoint 24S SSD Shared Storage Server is a 2U flash-storage system engineered for collaborative video editing and post-production. Its 24 SSDs operate through 12Gb SAS controllers and deliver a 6GB/sec benchmark, supporting demanding multi-user workflows from compressed 4K editing through uncompressed UHD finishing.

Designed for post-production facilities, broadcasters, production studios, and creative teams, the FLASHPoint 24S combines high aggregate throughput with the Facilis Shared File System. Virtual Volumes provide centrally managed project storage that behaves like local storage at connected workstations, helping editors and other users collaborate across applications and operating systems without relying on conventional NAS workflows.

The system supports dual-port Fibre Channel and high-speed Ethernet connectivity, allowing facilities to build direct-attached or switched environments around existing infrastructure. Facilis Console provides centralized storage and permissions management, while available expansion slots support additional connectivity. Current manufacturer documentation confirms 24TB, 48TB, and 96TB FLASHPoint 24S capacities and detailed performance ratings across professional production codecs.

Key Features

• 24-SSD Flash Storage: Uses 24 solid-state drives connected through 12Gb SAS controllers for high-performance collaborative storage.
• 6GB/sec Benchmark: Delivers aggregate throughput suited to demanding media production and post-production environments.
• High Stream Counts: Supports documented multi-stream UHD, 8K RED, 4K DNxHR, ProRes, XAVC, and HD workflows.
• Shared File System: Enables multiple workstations and operating systems to access centrally managed production storage.
• Flexible Connectivity: Supports dual-port Fibre Channel or Ethernet interfaces ranging through 100GbE.
• Virtual Volumes: Allows project-based storage volumes to appear and operate like local drives on connected workstations.
• Facilis Console: Centralizes volume creation, permissions, bandwidth monitoring, users, groups, and workstation access.
• Compact 2U Design: Houses 24 SSDs in a rackmount chassis measuring 22" deep and weighing 28 lb with drives.

Technical Specifications

Storage

• Model: HUB FLASHPoint 24S
• Storage Type: Solid-State Shared Storage Server
• Drives Per Unit: 24 SSDs
• Storage Controller: 12Gb SAS Controllers
• Available Capacities: 24TB, 48TB, 96TB
• Performance Benchmark: 6GB/sec

Shared Storage Performance

• UHD DPX 2160p Streams: 5
• 8K RED 16:9 7:1 24p Streams: 20
• 4K DNxHR HQ / ProRes HQ 24p Streams: 50
• UHD XAVC 480 Streams: 80
• HD ProRes HQ / DNxHD 220 Streams: 150
• HD ProRes SQ / DNxHD 145 Streams: 200
• XDCAM HD 50Mb Streams: 250+

Connectivity

• Fibre Channel Options: Dual-port 16Gb, 32Gb, or 64Gb FC
• Ethernet Options: Dual-port 10GbE, 25GbE, 40GbE, 50GbE, or 100GbE
• Video Output: SXGA via 15-pin D-Sub
• Available PCIe Expansion Slots: 4

Storage Management

• File System: Facilis Shared File System
• Volume Management: Virtual Volumes
• Management Interface: Facilis Console
• User Management: Supports users, groups, workstation permissions, and Active Directory integration
• Bandwidth Monitoring: Real-time monitoring by workstation and volume

Power and Environmental

• Power Supply: 2 x 350W N+1
• Power Input: 100-240 VAC, 50-60Hz, auto switching
• Startup Power Draw: 107W
• Idle Power Draw: 107W
• Active Power Draw: 137W
• Thermal Output: 500 BTU/hr
• Minimum Operating Temperature: 41°F
• Maximum Operating Temperature: 86°F
• Operating Environment: Non-condensing

Physical Specifications

• Rack Space: 2U
• Dimensions: 22" D x 19" W x 3.5" H
• Weight with Drives: 28 lb
