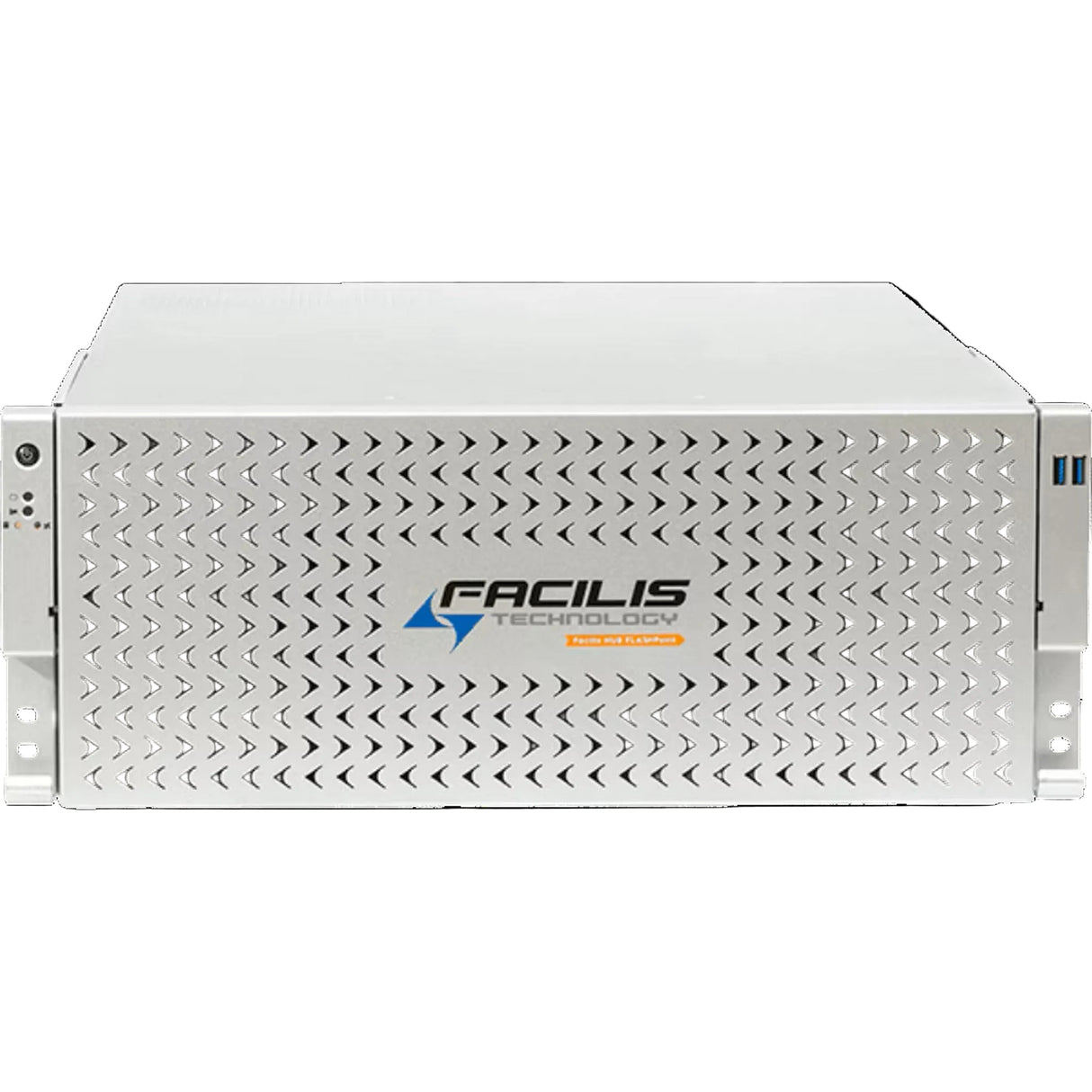

Facilis HUB FLASHPoint 48S SSD Shared Storage Server

Facilis HUB FLASHPoint 48S SSD Shared Storage Server

The Facilis HUB FLASHPoint 48S SSD Shared Storage Server is a 4U flash-storage platform built for demanding collaborative video and audio workflows. Its 48 solid-state drives operate through a 12Gb Serial Attached SCSI controller, delivering a manufacturer-rated 10-12GB/sec benchmark depending on connectivity for high-bandwidth post-production environments.

Available in 48TB, 96TB, and 192TB capacities, the system targets editors, colorists, broadcasters, and production teams working with high-resolution media. Documented performance reaches eight UHD DPX streams, 83 4K DNxHR HQ or ProRes HQ streams, and more than 400 XDCAM HD 50Mb streams. Virtual Volumes simplify shared project storage across connected workstations.

The FLASHPoint platform supports dual-port 16/32/64Gb Fibre Channel and dual-port 10/25/40/50/100Gb Ethernet connectivity, with up to 16 direct clients supported through 10Gb connections. The Facilis Shared File System, Admin Console, Bandwidth Priority, FastCache, and expansion capabilities help production facilities manage collaborative storage, permissions, bandwidth, and changing workflow requirements.

Key Features

• 48-SSD Architecture: Combines 48 solid-state drives with a 12Gb SAS controller for high-throughput shared media storage.
• 10-12GB/sec Benchmark: Provides manufacturer-rated aggregate performance that varies with the installed connectivity configuration.
• 48TB to 192TB Capacities: Offers documented 48TB, 96TB, and 192TB configurations for different production requirements.
• High Stream Counts: Supports demanding UHD, 8K RED, 4K DNxHR, ProRes, XAVC, and HD media workflows.
• Flexible Client Connectivity: Supports Fibre Channel and Ethernet interfaces through 100GbE for direct or switched environments.
• Shared File System: Enables collaborative read/write access across multiple workstations and professional production applications.
• Bandwidth Priority: Helps prioritize critical workflows without unnecessarily restricting available performance.
• 4U Rackmount Design: Houses 48 SSDs in a 19-inch rack-compatible chassis with redundant power supplies.

Technical Specifications

Storage and Performance

• Model: HUB FLASHPoint 48S
• Product Type: SSD Shared Storage Server
• Drives Per Unit: 48 SSDs
• Storage Controller: 12Gb SAS Controller
• Available Capacities: 48TB, 96TB, 192TB
• Performance Benchmark: 10-12GB/sec, connectivity dependent

Shared Storage Stream Performance

• UHD DPX 2160p: 8 streams
• 8K RED 16:9 7:1 24p: 33 streams
• 4K DNxHR HQ / ProRes HQ 24p: 83 streams
• UHD XAVC 480: 133 streams
• HD ProRes HQ / DNxHD 220: 250 streams
• HD ProRes SQ / DNxHD 145: 300+ streams
• XDCAM HD 50Mb: 400+ streams

Connectivity and Expansion

• Fibre Channel Options: Dual-port 16Gb, 32Gb, or 64Gb FC
• Ethernet Options: Dual-port 10GbE, 25GbE, 40GbE, 50GbE, or 100GbE
• Direct Client Support: Up to 16 direct clients over 10Gb connectivity
• Video Output: SXGA via 15-pin D-Sub
• Available PCIe Expansion Slots: 3

Storage Management

• File System: Facilis Shared File System
• Volume Technology: Virtual Volumes
• Management: Facilis Admin Console
• Bandwidth Management: Bandwidth Priority
• Client Caching: FastCache support
• Hybrid Expansion: Supports FLASHPoint HYBRID configurations with DynaMirror Storage Tiering and compatible mechanical-drive expansions

Power and Environmental

• Power Supply: 2 x 600W N+1
• Power Input: 100-240 VAC, 50-60Hz, auto switching
• Startup Power Draw: 650W
• Idle Power Draw: 175W
• Active Power Draw: 217W
• Thermal Output: 750 BTU/hr
• Operating Temperature: 41°F to 86°F, non-condensing

Physical Specifications

• Rack Space: 4U
• Dimensions: 26" D x 19" W x 7" H
• Weight with Drives: 65 lb
