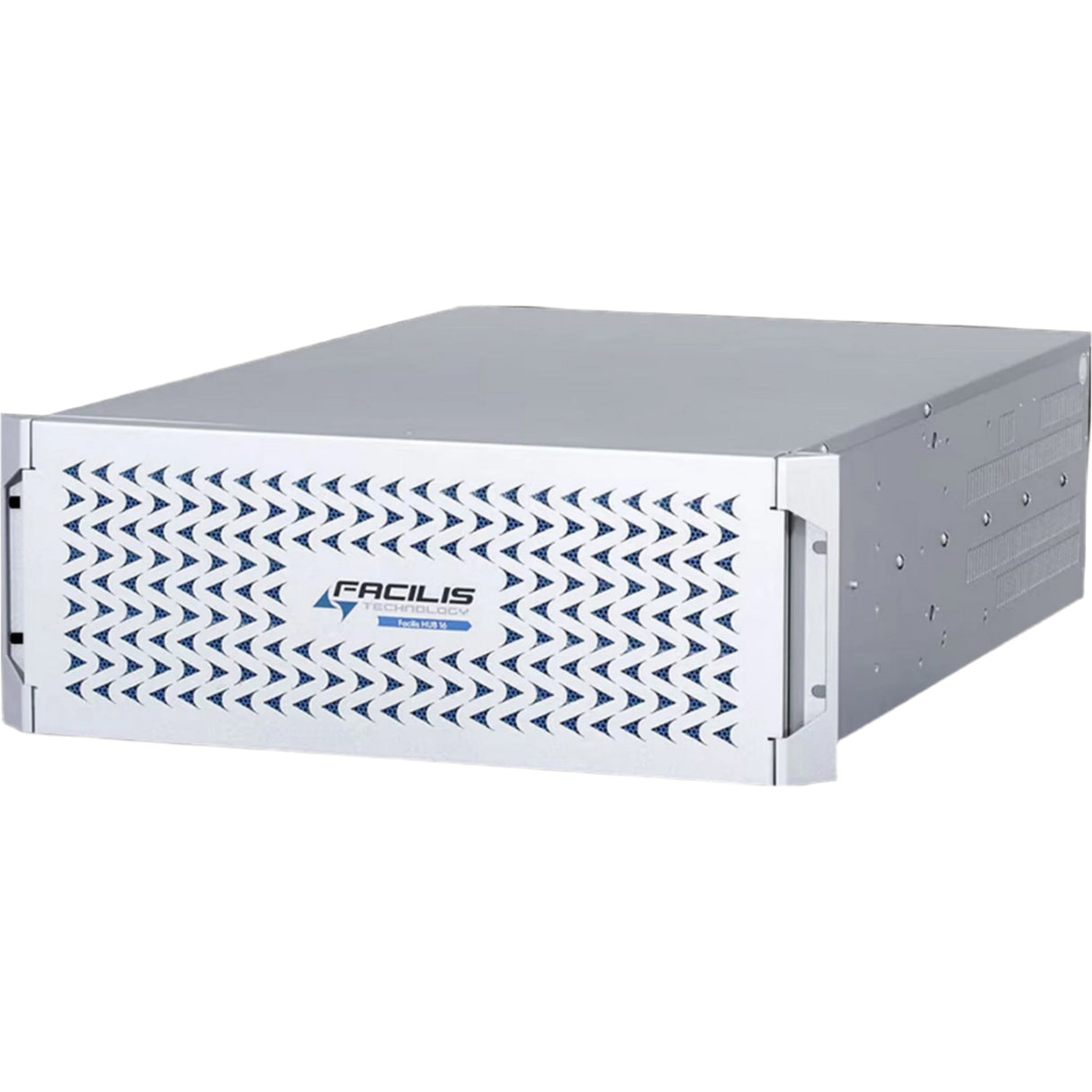

Facilis HUB 16: The Ultimate Video Editing Storage Solution

The Facilis HUB 16 redefines collaborative video editing with its advanced shared storage capabilities. Designed for post-production workflows, this storage server provides a streamlined, flexible solution for managing complex projects. With multiple capacity options ranging from 64TB to 352TB, it accommodates everything from 4K film color grading to low-bitrate craft editorial workflows. Its seamless integration across diverse operating systems and applications makes it an essential tool for creative teams.

Featuring the powerful Facilis Shared File System, the HUB 16 ensures efficient file sharing and accessibility. Virtual volumes function like local drives, offering flexibility in read/write permissions. Integrated tools like the Facilis Admin Console simplify volume management and permissions. Additional benefits include the FastTracker Asset Management system, which enables efficient file tracking, proxy creation, and AI tagging for enhanced productivity.

With industry-leading performance benchmarks, the HUB 16 delivers speeds up to 2GB/sec, ensuring fast, reliable data transfers. Its robust design, equipped with a 12Gb SAS Controller and support for up to 16 drives, ensures high availability and scalability for growing teams. Whether you're editing UHD, 4K, or 8K content, the HUB 16 is engineered to keep up with demanding workflows.

Key Features

• Capacity options: 64TB, 96TB, 128TB, 192TB, 256TB, and 352TB.
• Facilis Shared File System for multi-platform environments.
• Support for virtual volumes and advanced volume management tools.
• FastTracker Asset Management for efficient file tracking and AI tagging.
• High-speed performance with benchmarks up to 2GB/sec.
• Integrated support for 4K and 8K video editing workflows.

Technical Specifications

Model Name: Facilis HUB 16
Power Supply: 2 x 350W (n+1)
Power Input: 100-240 VAC, 50-60Hz, Auto-switching
Video Out: SXGA (15-pin D-Sub)
Connectivity Options:
- Dual-port 16/32/64Gb FC
- Dual-port 10/25/40/50/100 GbE
Available Expansion PCIe Slots: 5
Physical Dimensions: D (26”) x W (19”) x H (7”)
Weight (with drives): 70 lbs
Rack Space: 4U
Drives per Unit: 16
Capacity Options: 64TB, 96TB, 128TB, 192TB, 256TB, 352TB
Performance (Hours of Storage):
- UHD DPX 2160p: 2
- 8K RED 16:9 7:1 24p: 7
- 4K DNxHR HQ ProRes HQ 24p: 11
- UHD XAVC 480: 16
- HD ProRes HQ DNxHD 220: 24
- HD ProRes SQ DNxHD 145: 36
- XDCAM HD 50Mb: 75
Ambient Operating Temperature:
- Max Ambient Temp: 86°F
- Min Ambient Temp: 41°F
- Non-condensing
Power Draw (BTUs):
- Startup: 650W
- Idle: 176W
- Active: 217W (750 BTU/hr)

What’s Included

• Facilis HUB 16 Unit with 16 HDD bays.
• Facilis Shared File System software.
• Admin Console management tool.
• FastTracker Asset Management software.
• Dual power supply units (2 x 350W).
