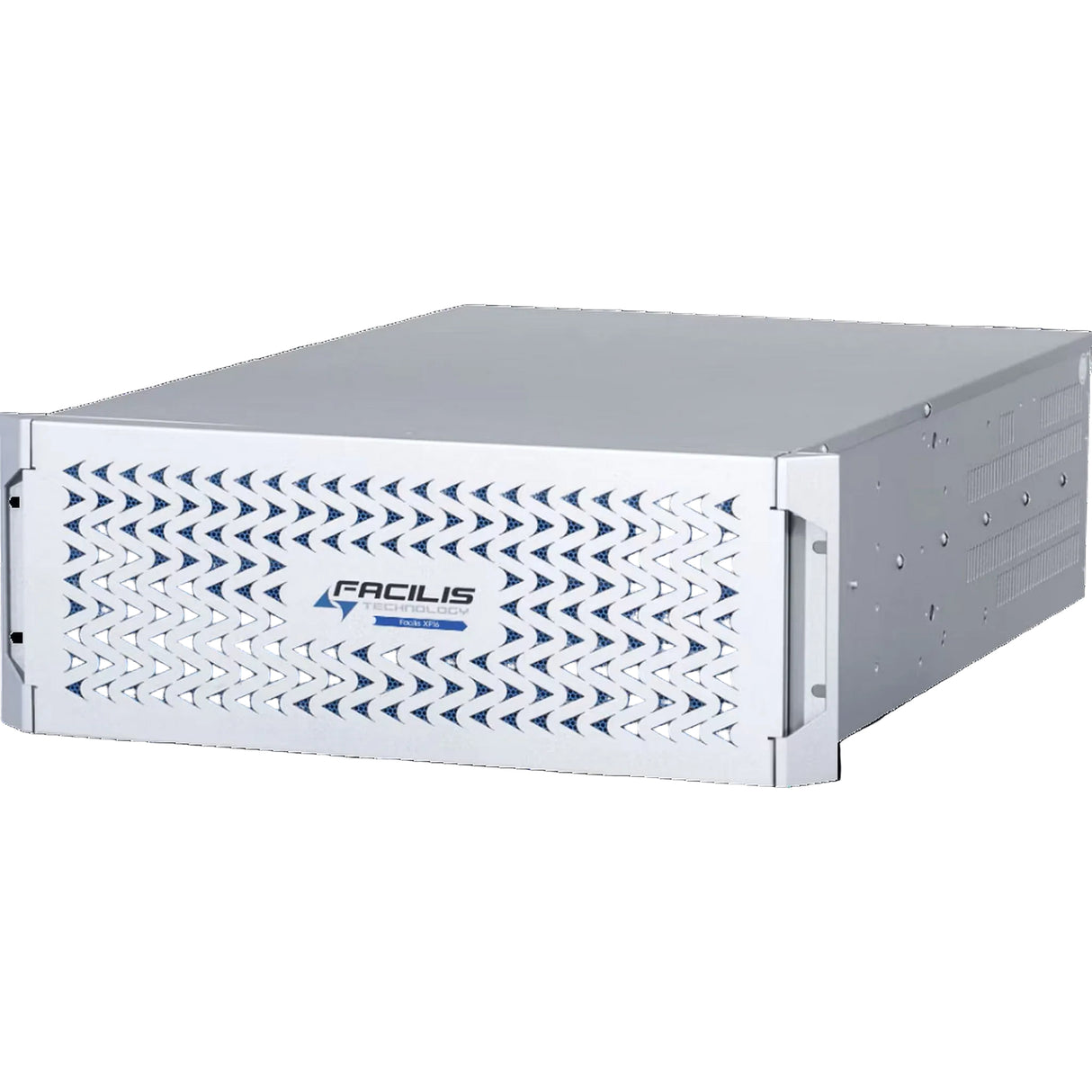

Facilis XP Expansion Storage Chassis for HUB Systems

Facilis XP Expansion Storage Chassis for HUB Systems

The Facilis XP Expansion Storage Chassis expands an existing Facilis HUB shared storage system without requiring a separate storage server. Current configurations include XP16 and XP24 hard-drive models plus XP24F and XP48F solid-state models, using multi-port 12Gbps SAS connectivity to add scalable production storage for collaborative media workflows.

Designed for post-production facilities, broadcasters, studios, and other teams with growing media libraries, the XP family adds capacity while remaining integrated with the existing HUB environment. HDD configurations provide higher-capacity expansion for large project libraries and archives, while flash configurations support workflows where increased storage performance is a priority.

Current manufacturer documentation specifies 16 or 24 HDDs and 24 or 48 SSDs, with capacities ranging from 24TB through 720TB depending on model. Aggregate benchmarks range from 2GB/sec to 10GB/sec. Each expansion chassis is supplied as a turnkey package with installed drives, a 12G SAS card, and required cables for connection to a compatible Facilis storage system.

Key Features

• Expandable HUB Storage: Adds capacity to an existing Facilis shared storage environment without requiring a complete replacement server.
• HDD and SSD Options: Supports XP16 and XP24 hard-drive configurations plus XP24F and XP48F flash-storage configurations.
• 12Gbps SAS Connectivity: Uses multi-port SAS controllers for high-bandwidth connections between the expansion chassis and compatible HUB hardware.
• Wide Capacity Range: Current configurations span from 24TB flash storage through 720TB HDD storage depending on model.
• Up to 10GB/sec Benchmark: Performance scales from 2GB/sec to 10GB/sec according to the selected expansion configuration.
• Redundant Power: Verified XP16 and XP24 chassis use dual 600W N+1 power supplies for increased operational resilience.
• Rackmount Deployment: XP16 and XP24 models use standard 4U, 19-inch rack-compatible enclosures.
• Turnkey Configuration: Manufacturer documentation specifies the chassis, drives, 12G SAS card, and cables as part of the expansion package.

Technical Specifications

Expansion Models

• Product Family: Facilis XP Expansion Storage
• Current Models: XP16, XP24, XP24F, XP48F
• Storage Media: HDD or SSD, model dependent
• XP16 Drive Count: 16 HDDs
• XP24 Drive Count: 24 HDDs
• XP24F Drive Count: 24 SSDs
• XP48F Drive Count: 48 SSDs
• Storage Interface: 12Gbps SAS Controllers

Capacity and Performance

• XP16 Capacity Range: 64TB to 480TB
• XP24 Capacity Range: 96TB to 720TB
• XP24F / XP48F Capacity Range: 24TB to 192TB
• Family Benchmark Range: 2GB/sec to 10GB/sec

XP16 Physical and Electrical Specifications

• Power Supply: 2 x 600W N+1
• Power Input: 100-240 VAC, 50-60Hz, auto switching
• Host Connectivity: Dual- or quad-port 12Gbps SAS
• Video Output: None
• Available PCIe Expansion Slots: None
• Rack Space: 4U
• Dimensions: 26" D x 19" W x 7" H
• Weight with Drives: 65 lb
• Operating Temperature: 41°F to 86°F, non-condensing
• Startup Power Draw: 650W
• Idle Power Draw: 175W
• Active Power Draw: 217W
• Thermal Output: 750 BTU/hr

XP24 Physical and Electrical Specifications

• Power Supply: 2 x 600W N+1
• Power Input: 100-240 VAC, 50-60Hz, auto switching
• Host Connectivity: Dual- or quad-port 12Gbps SAS
• Video Output: None
• Available PCIe Expansion Slots: None
• Rack Space: 4U
• Dimensions: 26" D x 19" W x 7" H
• Weight with Drives: 70 lb
• Operating Temperature: 41°F to 86°F, non-condensing
• Startup Power Draw: 650W
• Idle Power Draw: 175W
• Active Power Draw: 217W
• Thermal Output: 750 BTU/hr

What's In the Box

• Facilis XP Expansion Chassis
• Drives for Selected Configuration
• 12G SAS Card
• Cables
