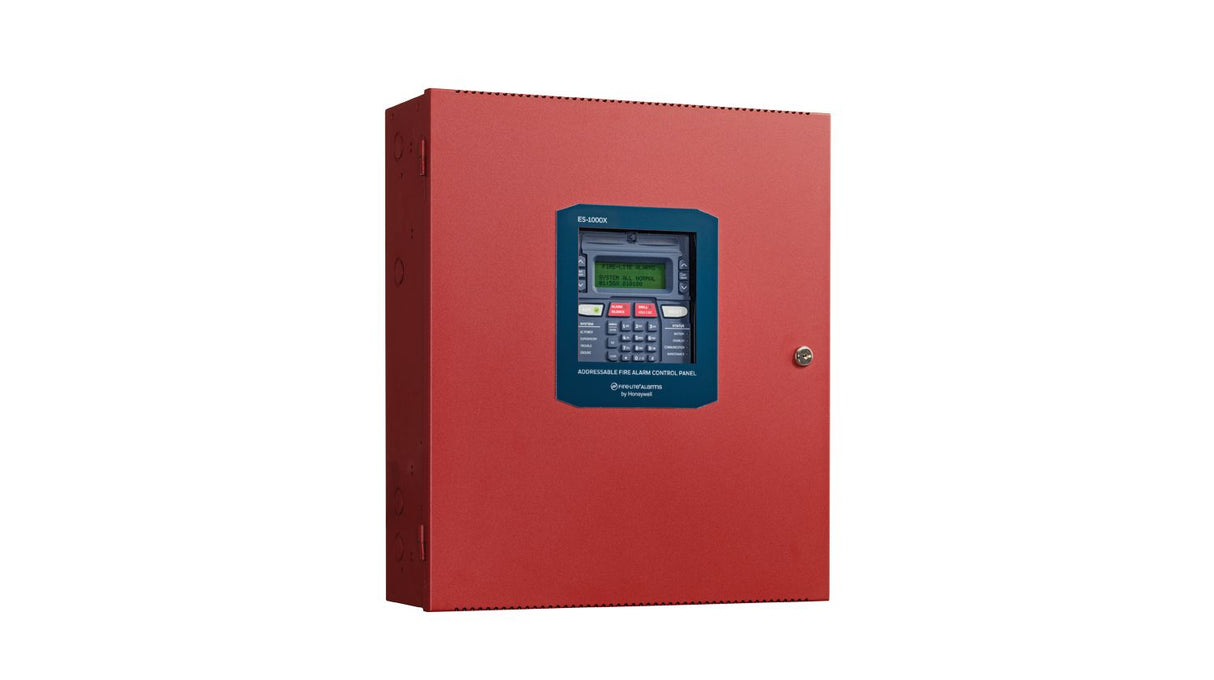

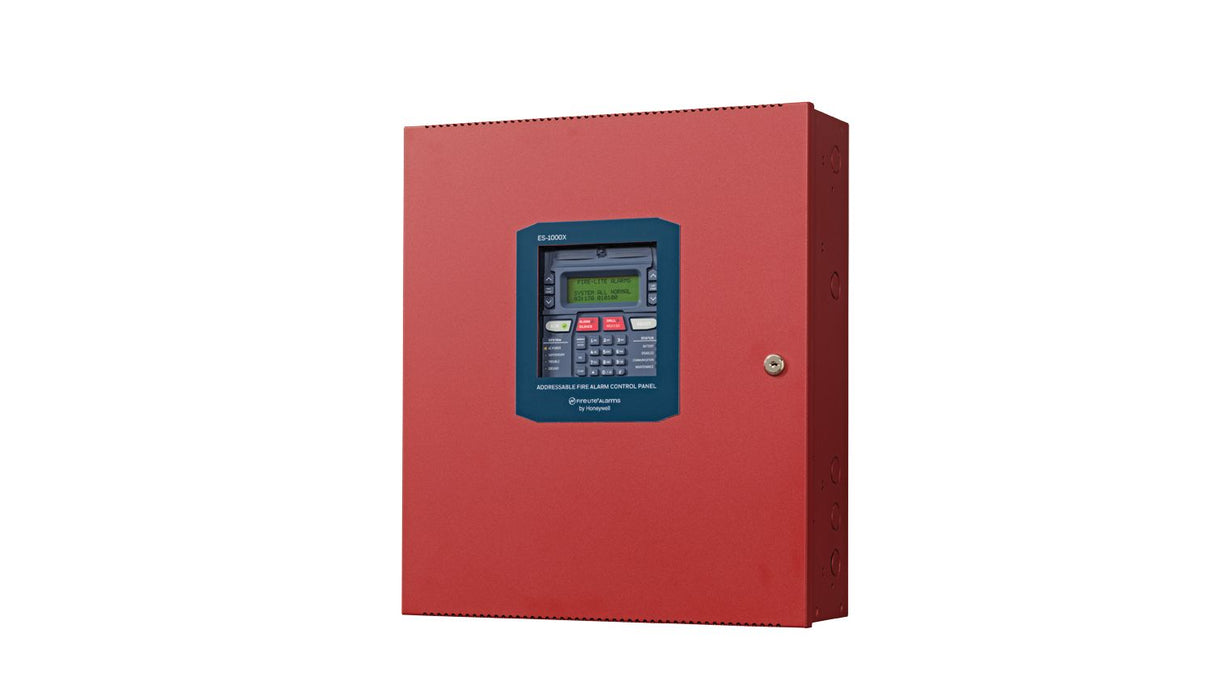

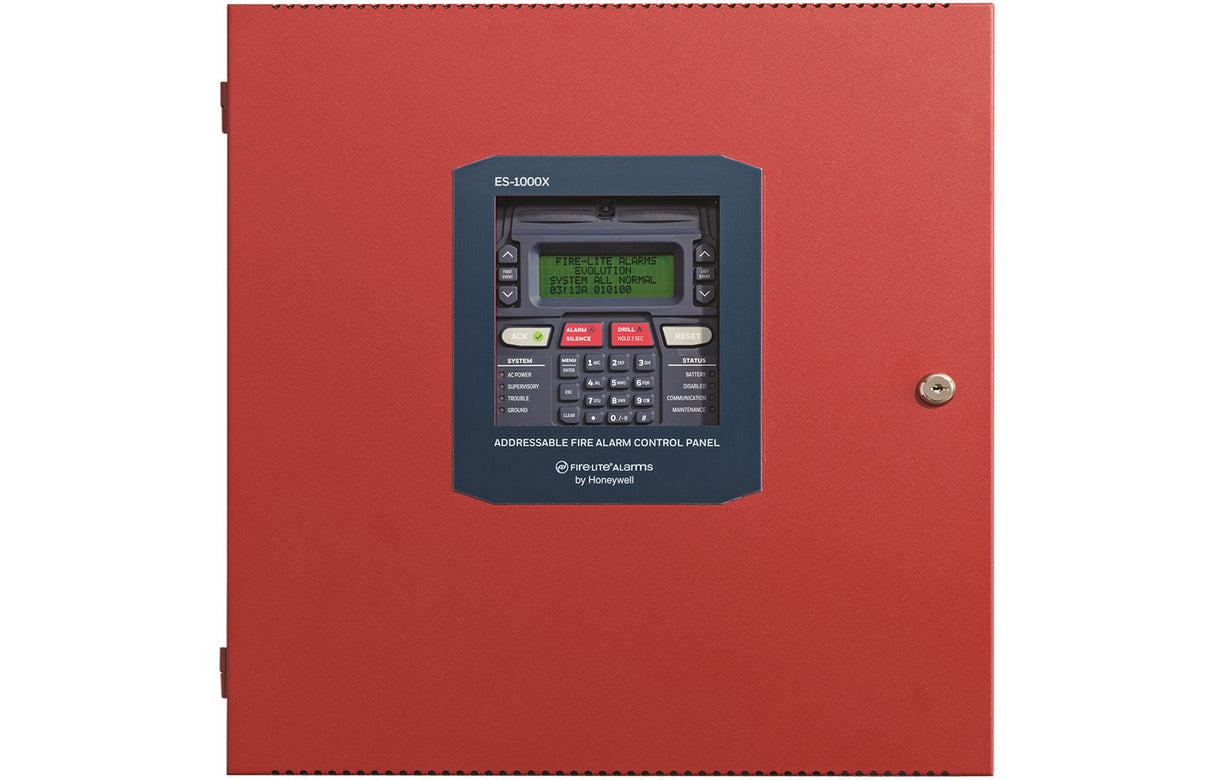

Fire-Lite Alarms ES-1000X 954-Point Addressable Fire Alarm Control Panel

The Fire-Lite Alarms ES-1000X is an intelligent addressable fire alarm control panel (FACP) from the Endurance Series, built for larger and more complex commercial life-safety installations. Shipping with a pre-installed loop card, the ES-1000X supports up to 318 addressable devices per Signaling Line Circuit (159 detectors and 159 modules) and expands to three loops with optional SLC-3LS loop expander cards, for a total capacity of 954 addressable points. Fire-Lite's LiteSpeed polling protocol keeps response times fast across SLC runs of up to 10,000 feet on twisted, unshielded wire, and the panel supports Class B, Class A and Class X circuit configurations.

Central-station reporting is handled by a pre-installed IPOTS-COM communicator that transmits alarms, troubles, AC loss and other system status over both Ethernet IP and a standard POTS telephone line. Reporting alarms over the internet removes the need for two dedicated business phone lines, while the secondary telephone line can be retained as backup. Optional CLSS Pathway and GSM cellular communicators are available where dual-path or sole-path wireless reporting is required, and the panel is compatible with SWIFT wireless devices for areas where running SLC wire is impractical.

For installers and service technicians, the ES-1000X is designed around fast commissioning and easy maintenance. Auto-programming (learn mode) shortens installation time and flags two devices set to the same address, four programmable function keys put common tasks a single press away, and the integral 80-character backlit LCD plus 16-key alphanumeric keypad allow full programming at the panel. Entire programs, history files, walk-test data and system voltages can be uploaded or downloaded through the USB port using the FS-Tools utility, so databases can be built offline in the office and loaded on site. Listed to UL 864 10th edition and supporting multi-criteria smoke, heat and CO detection, it is a strong fit for schools, healthcare, hospitality, retail and multi-tenant commercial buildings.

Features

• Intelligent addressable fire alarm control panel with 954-point capacity and a pre-installed loop card
• Listed to UL Standard 864, 10th edition
• Pre-installed IPOTS-COM Ethernet IP and POTS central station communicator
• Optional CLSS Pathway or GSM cellular central station communicators
• Compatible with SWIFT wireless devices, including a wireless gateway, detectors, modules and pull stations
• Four independently programmable, built-in Class A or Class B NAC circuits
• Selectable strobe synchronization for System Sensor, Wheelock and Gentex devices
• Continuous, March Time, Temporal or California code output with two-stage capability
• Four programmable function keys plus Acknowledge, Alarm Silence, Drill and Reset
• Two programmable Form-C relays and one fixed trouble relay
• Integral 80-character backlit LCD display and 16-key alphanumeric keypad
• Built-in programmer with auto-programming (learn mode) that reports duplicate device addresses
• Multi-criteria detection (smoke, heat and CO) with programmable response, plus addressable sounder base support
• LiteSpeed polling protocol; SLC runs up to 10,000 ft (3,000 m) on twisted, unshielded wire
• Meets NFPA Class B, Class A and Class X SLC requirements
• Automatic detector sensitivity testing and automatic device type-code verification (NFPA 72 compliant)
• Maintenance alert warns when smoke detector dust accumulation is excessive
• One-person audible or silent walk test with walk-test log and printout
• PAS (Positive Alarm Sequence) and Pre-signal per point; alarm verification per detector point
• Real-time clock/calendar with automatic daylight saving control and a 1,000-event history file
• Supports up to 16 ANN-Bus annunciators (8 per ANN-Bus)
• Upload/download of program and data via USB with the FS-Tools programming utility, including offline programming

Technical Specifications

• Point capacity: 954 addressable points
• Maximum intelligent signaling line circuits (SLC): 3
• Addressable device capacity per loop: 318 (159 detectors and 159 modules)
• Programmable software zones: 256
• Annunciators supported: 16
• AC power: 120/240 VAC, 50/60 Hz, 2.4 A; minimum 14 AWG (2.00 mm2) wire with 600 V insulation, non-power-limited, supervised
• Battery: minimum system battery 18 AH; maximum charger capacity 55 AH; cabinet holds up to two 26 AH batteries
• Notification appliance circuits: four, Class A or Class B, power-limited and supervised; 3.0 A special application, 300 mA regulated maximum signaling current per circuit
• NAC end-of-line resistor: 4.7k ohm, 1/2 watt (P/N 71252) for Class B; system supports a 1.9k to 22k ohm ELR range
• Maximum total 24 VDC system power shared between all NAC and auxiliary power circuits: 8.0 A
• Relays: two programmable Form-C plus one fixed trouble relay; 2.0 A @ 30 VDC (resistive), 0.5 A @ 30 VAC (resistive), non-power-limited, non-supervised
• Communication loop: supervised and power-limited
• Display: integral 80-character backlit LCD; 16-key alphanumeric keypad
• History file: 1,000 events
• Door dimensions: 20.30 in H x 20.57 in W x 0.72 in D (51.56 x 52.25 x 1.82 cm)
• Backbox dimensions: 20.00 in H x 20.50 in W x 6.755 in D (50.8 x 52.07 x 13.34 cm)
• Shipping dimensions: 22.0625 in H x 23.875 in W x 7.75 in D (53.088 x 60.643 x 19.69 cm)
• Shipping weight: 41.0 lbs (18.6 kg)
• Operating environment: 32 to 120 degrees F (0 to 49 degrees C), 93% +/- 2% RH non-condensing
• Agency listings: UL S624; CSFM 7165-0075:0500; FDNY COA #2023-TMCOAP-006158-CERT
• Country of origin: USA

What's Included

• ES-1000X main circuit board with display
• Pre-installed IPOTS-COM dual-path (IP and POTS) communicator
• Chassis with transformer
• Backbox with dress panel and door
• Plastic bag containing screws, cables and cabinet key
