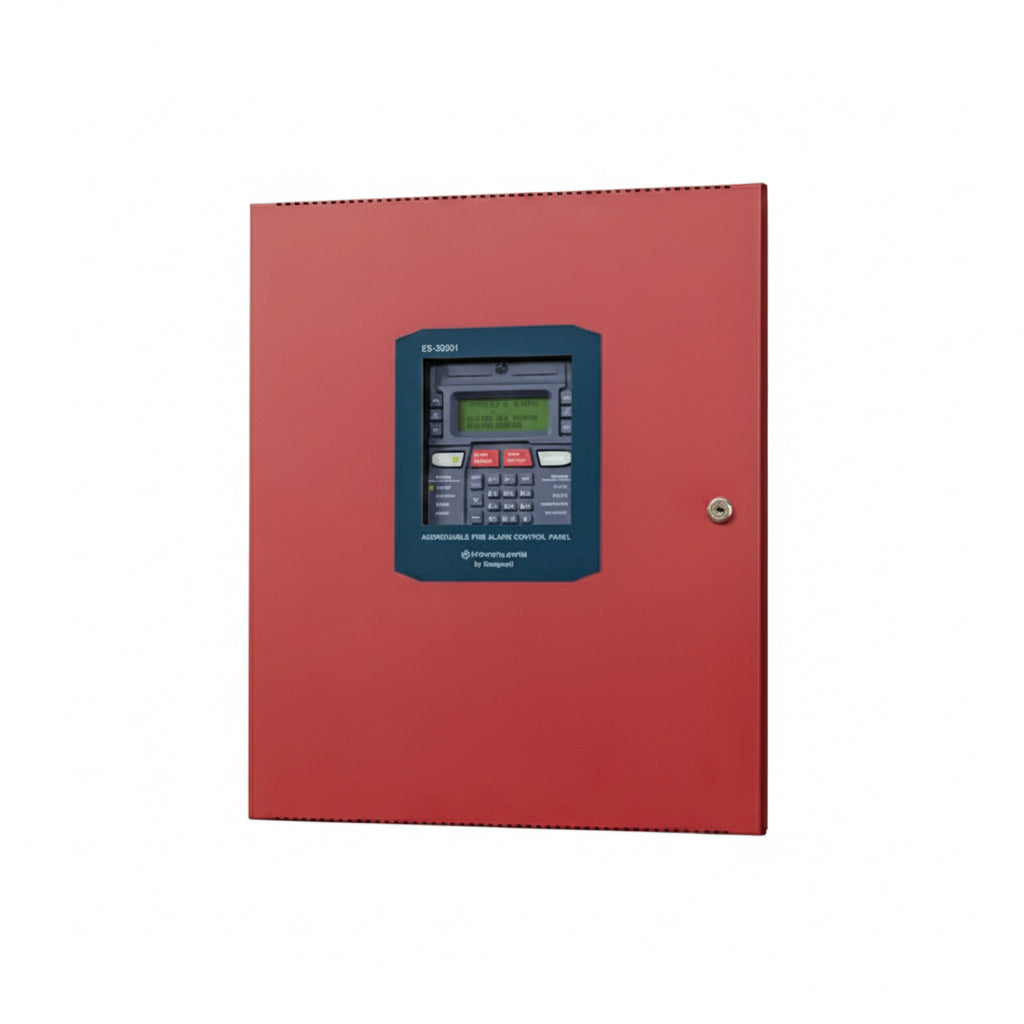

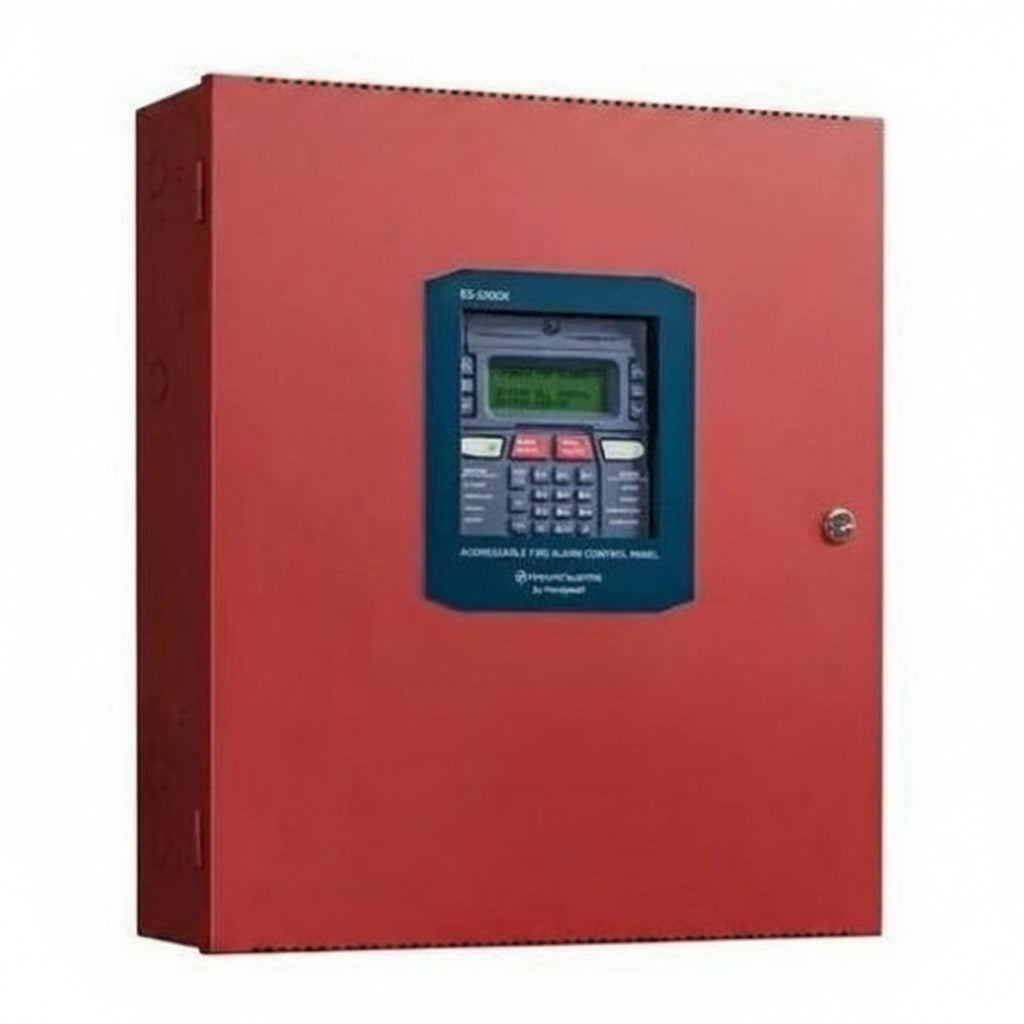

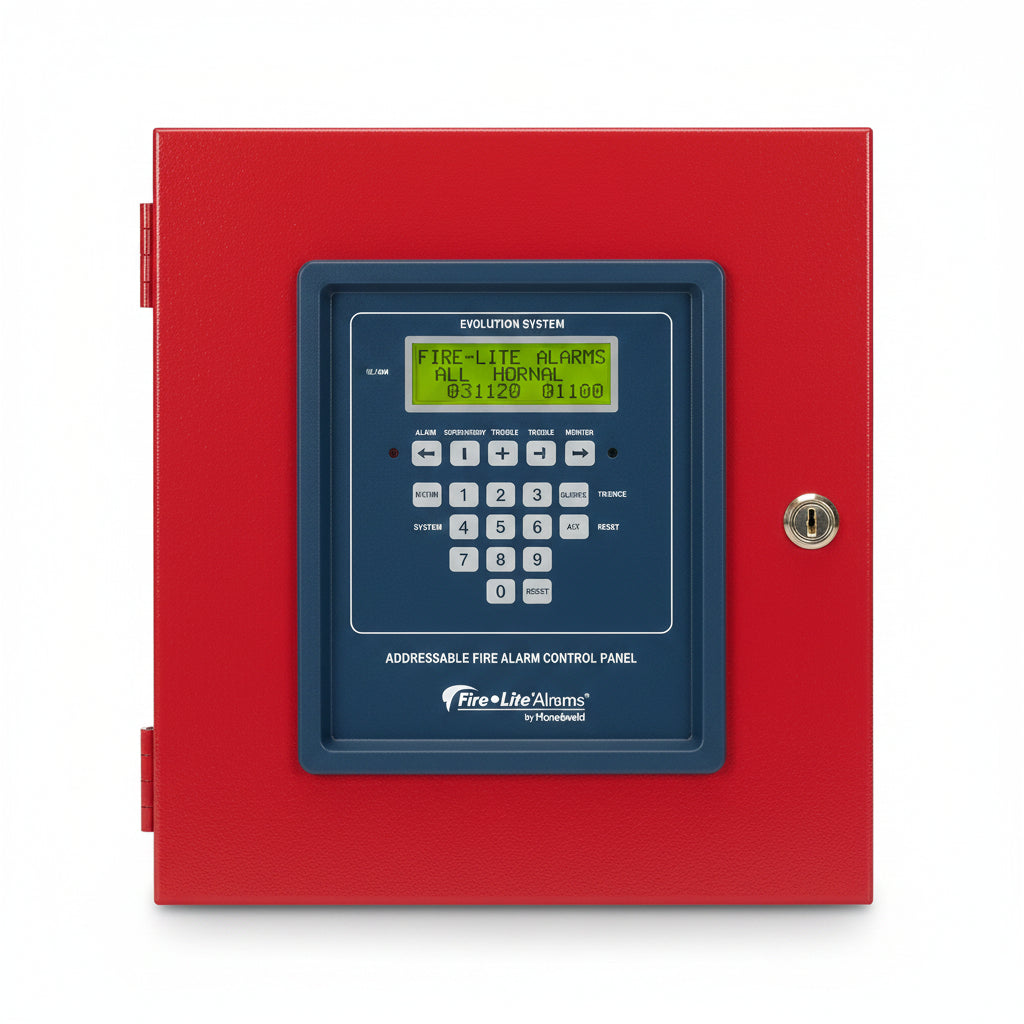

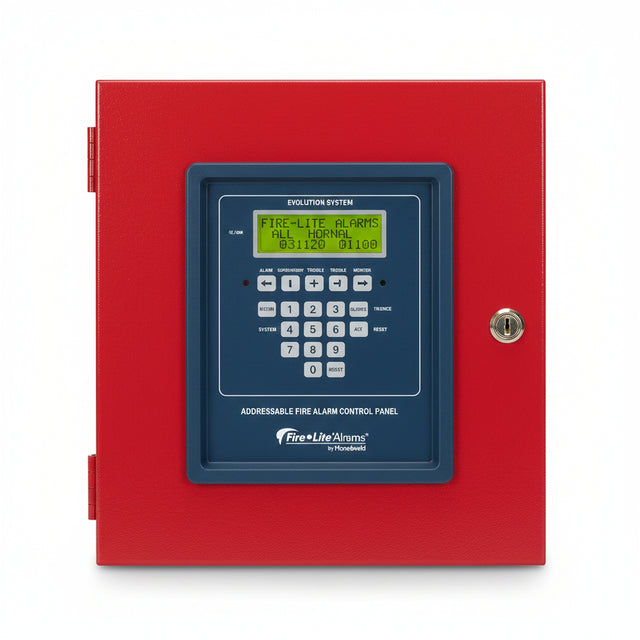

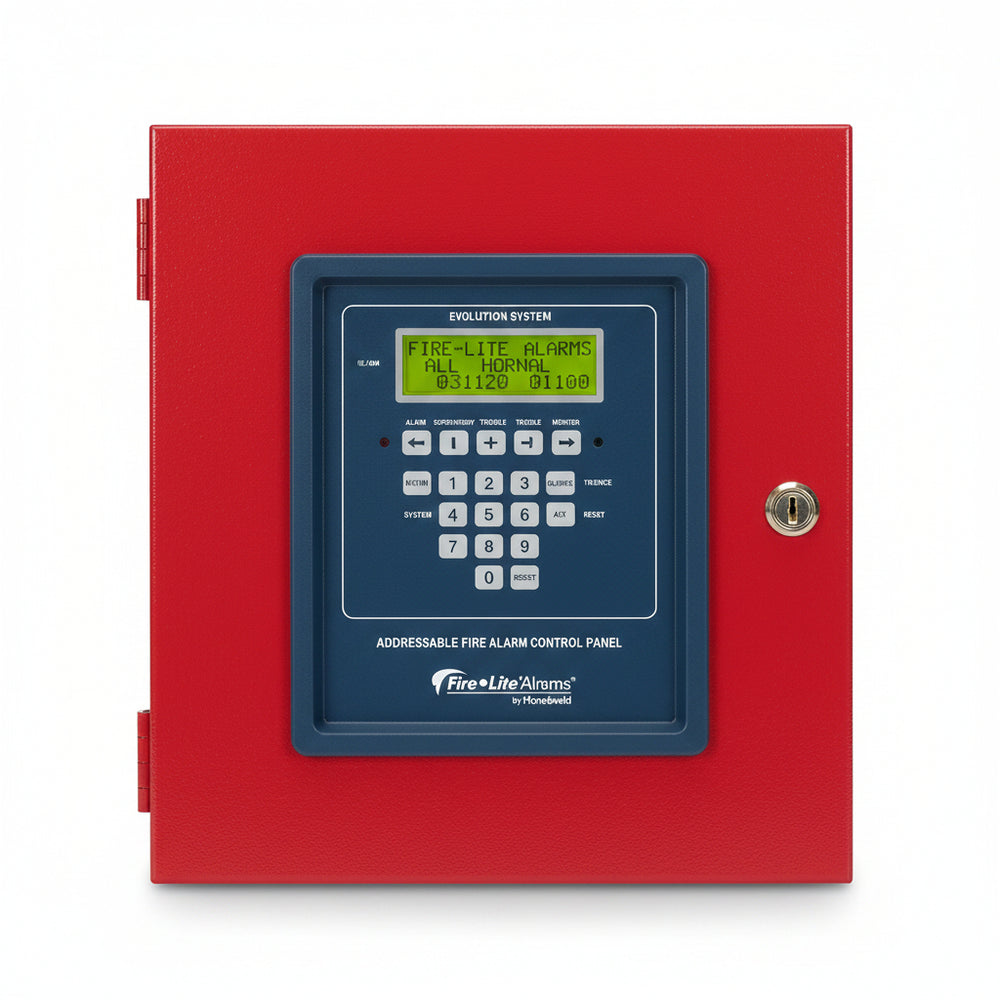

Fire-Lite ES-1000X 954-Point Addressable Fire Alarm Control Panel

Fire-Lite ES-1000X Fire Alarm Control Panel

Fire-Lite ES-1000X Fire Alarm Control Panel is a 954-point intelligent addressable FACP for larger commercial life-safety systems. It includes one Signaling Line Circuit (SLC) and a preinstalled IP/POTS communicator, then expands to three SLC loops with optional SLC-3LS cards for up to 954 addressable devices.

Designed for schools, healthcare facilities, warehouses, campuses, and other complex buildings, this 954-point fire alarm control panel supports 318 devices per loop: 159 detectors and 159 modules. Installers seeking an addressable panel with IP communicator gain USB database transfer, firmware updates, auto-programming, four programmable function keys, and a 1,000-event history file.

The ES-1000X supports addressable smoke, heat, and carbon monoxide detection, SWIFT wireless devices, 16 ANN-Bus annunciators, and four Class A or Class B notification appliance circuits. It is listed to UL 864, 10th edition, and carries UL, ULC, CSFM, FDNY, and FM approvals for professional fire alarm installations. It directly replaces the MS-9600UDLS.

Key Features

• 954-Point System Capacity: Supports larger and more complex installations with up to 954 addressable devices across three SLC loops.
• Expandable SLC Architecture: Includes one 318-device loop and accepts up to two optional SLC-3LS loop expander cards.
• Dual-Path Communications: Uses a preinstalled IPOTS-COM communicator for Ethernet IP and POTS central-station reporting.
• Four Programmable NAC Circuits: Configures each notification appliance circuit for Class A or Class B operation.
• Streamlined Programming: Supports auto-programming, USB database transfer, firmware updates, and FS-Tools configuration.
• Multi-Criteria Detection: Works with compatible addressable devices that combine smoke, heat, and carbon monoxide sensing.
• SWIFT Wireless Support: Integrates compatible wireless devices through the built-in SWIFT display driver and annunciator.
• On-Panel System Management: Provides an 80-character backlit LCD, programmable function keys, status indicators, and a 1,000-event history.

Technical Specifications

Product Details

• Brand: Fire-Lite Alarms by Honeywell
• Manufacturer Part Number: ES-1000X
• Distributor Part Number: FL-ES1000X
• Product Type: Intelligent addressable fire alarm control panel
• Connectivity: Wired
• Legacy Replacement: MS-9600UDLS
• Country of Origin: USA

System Capacity

• Total Addressable Device Capacity: Up to 954 devices
• Installed SLC Loops: 1
• Maximum SLC Loops: 3
• Devices per SLC Loop: 318 total, including 159 detectors and 159 modules
• Software Zones: 256
• Annunciator Capacity: Up to 16, with 8 per ANN-Bus
• Maximum SLC Wiring Distance: 10,000 ft in LiteSpeed mode with twisted, unshielded wire
• SLC Circuit Classes: NFPA Class A, Class B, and Class X
• Event History: 1,000 events

Communications and Programming

• Built-In Communicator: Preinstalled IPOTS-COM Ethernet IP and POTS central-station communicator
• Optional Communications: Compatible CLSS or GSM central-station communicators
• Programming: Built-in programmer and optional FS-Tools utility
• Program Transfer: USB upload and download using a compatible flash drive
• Firmware Updates: USB flash-drive support
• Offline Programming Connection: Ethernet
• Display: Integral 80-character backlit LCD
• Function Keys: 4 programmable keys
• Wireless Compatibility: SWIFT wireless devices

Notification Circuits and Relays

• Notification Appliance Circuits: 4 independently programmable Class A or Class B circuits
• Maximum NAC Current: 3 A special application or 300 mA regulated per circuit
• Shared 24 VDC System Power: 8 A maximum across NAC and auxiliary power circuits
• Strobe Synchronization: Selectable synchronization for compatible System Sensor, Wheelock, and Gentex devices
• Programmable Relays: 2 Form-C relays
• Fixed Relays: 1 trouble relay
• Relay Contact Rating: 2 A at 30 VDC or 0.5 A at 30 VAC, resistive
• Class B NAC End-of-Line Resistor: 4.7 kOhm, 0.5 W
• Supported ELR Range: 1.9 kOhm to 22 kOhm

Power and Battery

• AC Input: 120/240 VAC, 50/60 Hz, 2.4 A
• Minimum AC Wire Size: 14 AWG with 600 V insulation
• Minimum System Battery Capacity: 18 Ah
• Maximum Battery Charger Capacity: 55 Ah
• Internal Battery Capacity: Up to two 26 Ah batteries

Environmental and Physical Specifications

• Operating Temperature: 32°F to 120°F
• Recommended Ambient Temperature: 60°F to 80°F
• Relative Humidity: 93% +/- 2%, noncondensing, at 90°F +/- 3°F
• Door Dimensions: 20.3" H x 20.6" W x 0.7" D
• Backbox Dimensions: 20" H x 20.5" W x 6.8" D
• Shipping Dimensions: 22.1" H x 23.9" W x 7.8" D
• Shipping Weight: 41 lb

Standards and Approvals

• UL Standard: UL 864, 10th edition
• UL Listing: S624
• ULC Listing: S624
• CSFM Listing: 7165-0075:0500
• FDNY Approval: COA 2023-TMCOAP-006158-CERT
• FM Approval: FM Approved
• NFPA 72 Applications: Local, auxiliary, remote station, proprietary, central station, DAC, and PSDN systems

What's In the Box

• ES-1000X main circuit board with display
• Preinstalled IPOTS-COM communicator
• Chassis with transformer
• Backbox with dress panel and door
• Hardware bag with screws, cables, and key
