Galaxy Audio AS-1206 4-Pack Wireless In-Ear Monitors (D Band)
The Galaxy Audio AS-1206 4-Pack is a high-performance UHF wireless in-ear monitor system engineered to deliver crystal-clear stereo or mono mixes to up to four performers. This D-band system (584–607 MHz) includes a half-rack AS-1200T transmitter and four AS-1200R bodypack receivers, each with EB6 balanced-armature earbuds, making it ideal for bands, ensembles, and professional live sound applications.
With 210 user-selectable UHF channels, balanced XLR/¼" combo inputs, and independent input level controls, the AS-1206 system offers reliable frequency coordination and flexibility. Receivers are lightweight, belt-ready, and powered by two AA batteries for extended operation. The backlit LCD on each unit provides easy navigation and setup, even in low-light environments.
Perfect for complex stage environments where multiple performers need personalized, wireless in-ear mixes without the clutter or volume of traditional wedges.
Key Features
- System: UHF wireless in-ear monitor system — 1 transmitter + 4 bodypack receivers
- Frequency Band: D band (584–607 MHz)
- Channels: 210 user-selectable UHF frequencies
- Transmitter I/O: 2 × XLR/¼" combo line inputs with independent gain; front ¼" headphone output
- Receiver Output: 1/8" (3.5 mm) stereo jack; compatible with standard earbuds
- RF Power & Range: 10 mW output; up to 300' (92 m) typical range
- Power: Transmitter: external 12–18 V DC; Receivers: 2 × AA (≈ 5 hr alkaline)
- Display & Controls: Backlit LCDs with AF/RF metering, group/channel, battery indicator, and lock
- Included Earbuds: EB6 balanced-armature earbuds (one pair per receiver)
- Rackmount: Half-rack transmitter with rack ears and removable BNC antenna
- Durability: Rugged transmitter and receivers with built-in limiter for hearing protection
Technical Specifications
- System Band: UHF
- Frequency Range: 584–607 MHz (D band)
- Selectable Frequencies: 210
- RF Output: 10 mW
- Operating Range: Up to 300' / 92 m
- Audio Response: 70 Hz – 13.5 kHz (±3 dB)
- Total Harmonic Distortion: < 1 % @ 1 kHz
- Signal-to-Noise Ratio: > 80 dBA
- Dynamic Range: > 88 dB (A-weighted)
- Maximum Deviation: ± 15 kHz
- Transmitter Dimensions: 1.50" × 8.30" × 3.78" (3.81 × 21.08 × 9.60 cm)
- Transmitter Weight: 22.0 oz (1.375 lb / 0.624 kg)
- Receiver Dimensions: 3.73" × 2.54" × 1.00" (9.47 × 6.45 × 2.54 cm)
- Receiver Weight: 3.2 oz (0.200 lb / 0.091 kg) without batteries
- Operating Temperature: 14 °F – 122 °F (–10 °C – 50 °C)

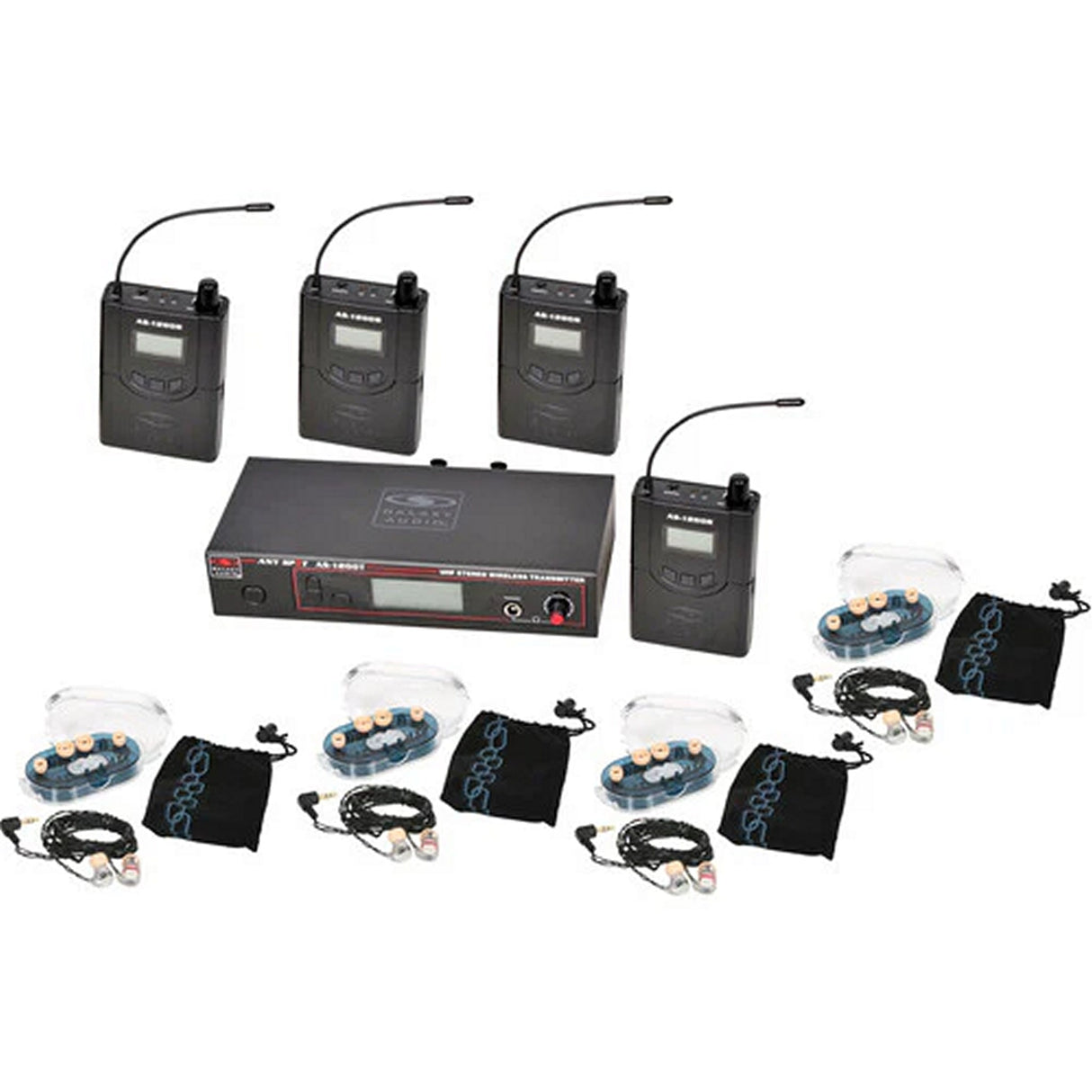

What's Included
- AS-1200T half-rack transmitter with rack ears
- Four AS-1200R bodypack receivers
- EB6 balanced-armature earbuds (pair per receiver)
- Removable BNC antenna
- External 12–18 V DC power supply
