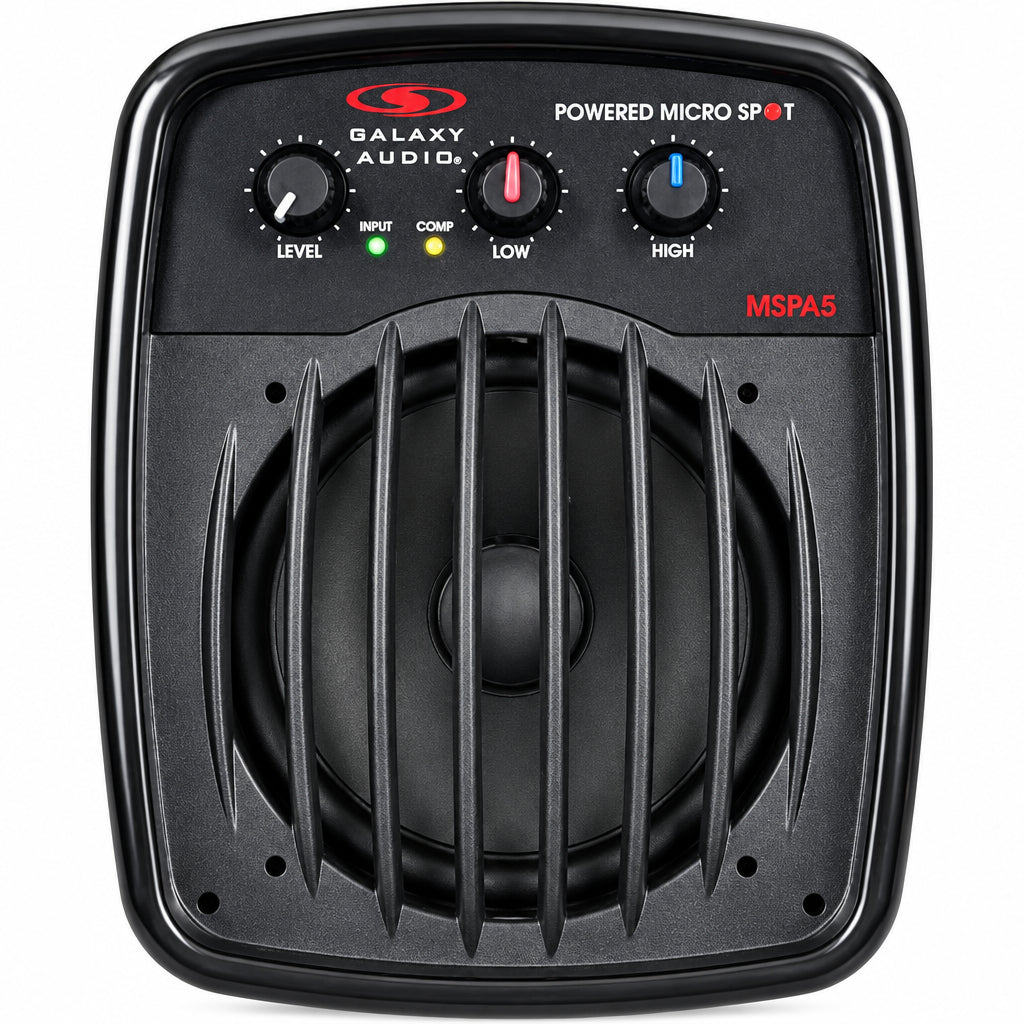

Galaxy Audio MSPA5 100W Powered Micro Spot PA System

Galaxy Audio MSPA5 Powered Micro Spot PA System

The Galaxy Audio MSPA5 Powered Micro Spot PA System combines a 100-watt internal amplifier, 5-inch ceramic full-range driver, and onboard tone control in a compact monitor built for clear voice reinforcement. It accepts microphone and line-level sources through XLR, 1/4-inch, and stereo-summing 1/8-inch inputs, with switchable +48V phantom power for compatible condenser microphones.

Designed for churches, classrooms, courtrooms, fixed installations, and stage monitoring, the MSPA5 suits users who need a small powered PA speaker without a separate amplifier. A built-in compressor/limiter helps control peaks, while the 20 dB pad accommodates hotter line-level signals. Front-panel level and tone controls make adjustments practical for personal vocal monitoring, microphone stand placement, or wall-mounted speech reinforcement.

The 160 Hz to 20 kHz frequency response, 108 dB maximum SPL, and 88 dB sensitivity support speech, vocals, playback, and close-range monitoring. High-impact ABS construction keeps the enclosure compact at 4.3 lb, while built-in yoke mounting points work with the included wall/stand bracket kit. The internal 120-230 VAC power supply simplifies deployment in professional audio systems.

Key Features

• 100W Internal Amplifier: Provides integrated amplification without requiring a separate external power amp.
• 5-Inch Ceramic Driver: Uses a compact full-range driver designed for vocal and speech reinforcement.
• Flexible Audio Inputs: Accepts balanced XLR, balanced 1/4-inch, and stereo-summing 1/8-inch sources.
• +48V Phantom Power: Supports compatible condenser microphones directly through the balanced XLR input.
• 2-Band Equalizer: Provides low- and high-frequency adjustment from the front panel for fast tonal control.
• Built-In Compressor/Limiter: Helps manage signal peaks and reduce the risk of overdriving the speaker.
• 20 dB Input Pad: Accommodates higher-level signals when using the XLR connection with line-level equipment.
• Flexible Mounting: Built-in yoke points and the included bracket kit support stand or fixed-installation placement.

Technical Specifications

• Product Type: Powered compact personal monitor and PA speaker
• Speaker Configuration: 1 x full-range loudspeaker
• Amplifier Output: 100W at 16 ohms
• Driver: 1 x 5" ceramic full-range driver
• Nominal Impedance: 16 ohms
• Frequency Response: 160 Hz to 20 kHz
• Sensitivity: 88 dB, 1W at 1 m
• Maximum SPL: 108 dB
• Equalization: 2-band center-detent EQ; low at 200 Hz, high at 10 kHz
• Input Connections: 1 x balanced 1/4-inch, 1 x balanced XLR, 1 x 1/8-inch stereo-summing input
• Phantom Power: +48 VDC, switchable
• Input Pad: 20 dB
• Dynamic Processing: Built-in compressor/limiter
• Controls: Input level, high frequency, low frequency, 20 dB pad, phantom power
• Indicators: Power LED, compressor LED
• Power Requirements: Internal power supply, 120-230 VAC, 1.5 A, 50/60 Hz
• AC Power Connection: IEC input
• Enclosure Material: High-impact ABS plastic
• Mounting/Rigging: Built-in yoke bracket points
• Color: Black
• Dimensions: 6.3 x 6 x 7.5" (H x W x D)
• Weight: 4.3 lb

What's In the Box

• Galaxy Audio MSPA5 Powered Micro Spot
• Yoke bracket
• SA-1 microphone stand adapter
• Mounting screws, washers, and bracket hardware
• Rubber feet
• IEC power cable
• Quick start guide
