Gefen  |  SKU: GEF-EXTUHD6001SC

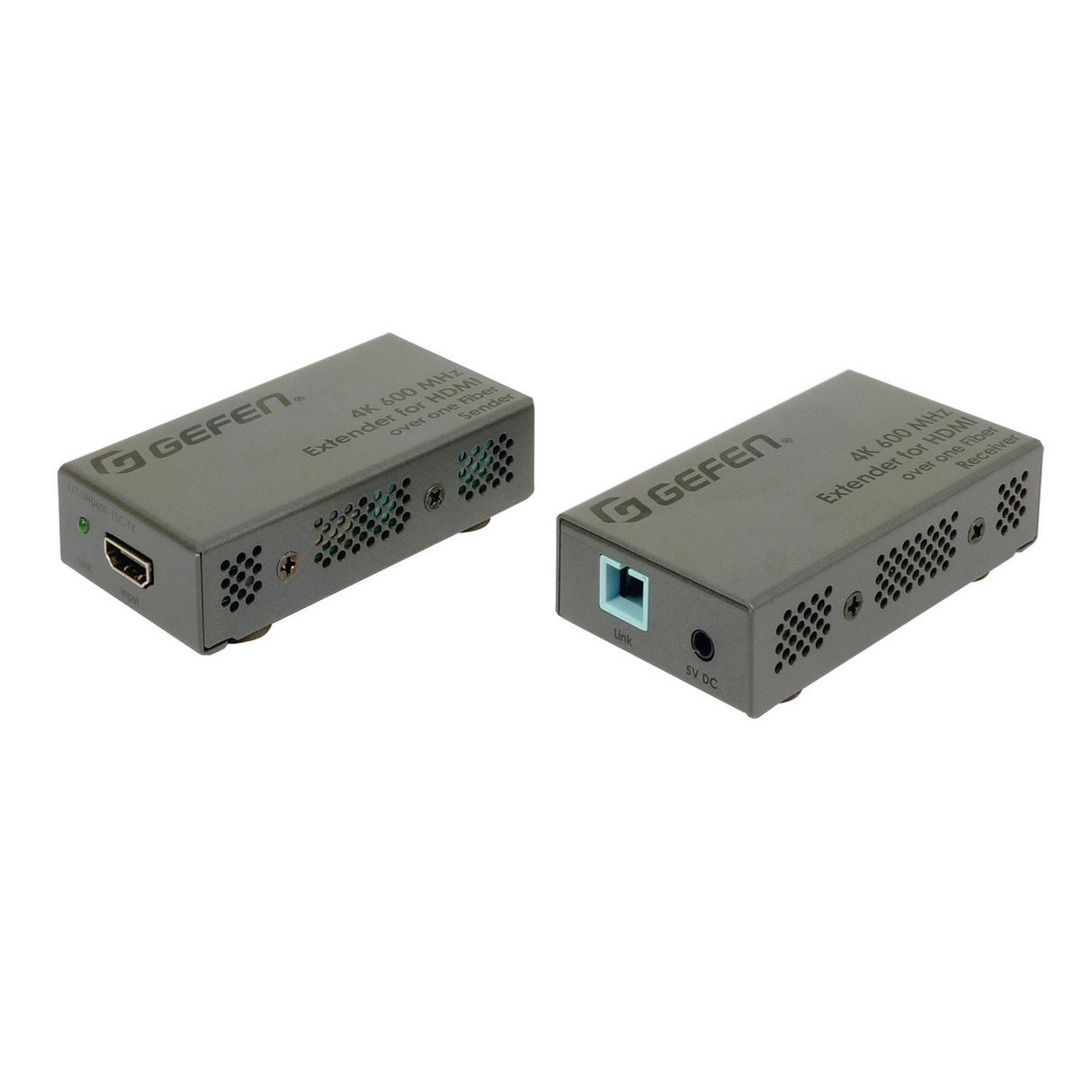

Gefen EXT-UHD600-1SC 4K Ultra HD 600 MHz Extender for HDMI over Fiber-Optic Cable

$3,10905
Shipping calculated at checkout.

Condition: New



Description

Gefen EXT-UHD600-1SC 4K Ultra HD 600 MHz Extender for HDMI over Fiber-Optic Cable

The Gefen EXT-UHD600-1SC is a compact and high-performance solution for extending uncompressed, full-bandwidth HDMI 2.0 audio/video with HDR, up to 200 meters (660 feet), over a single strand of SC-terminated 50/125 m OM3 or better multi-mode fiber-optic cable. It supports 18.2 Gbps of bandwidth and 600 MHz TMDS Clock frequency, the highest specified under the HDMI 2.0 standard. Full bandwidth support allows the Gefen extender to accommodate resolutions up to 4K Cinema-DCI (4096 x 2160 up to 60 Hz 4:4:4), and 4K Ultra HD (3860 x 2160 up to 60 Hz, 4:4:4) along with HDR (High Dynamic Range). HDCP 2.2 and the legacy HDCP 1.4 are both supported. The EXT-UHD600-1SC also supports 1080p Full HD, WUXGA (1920 x 1200), 3DTV, and Deep Color (up to 1080p resolution). Highest performance multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats, such as Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio are passed through to the HDMI outputs.

Key Features

  • Supports 18.2 Gbps bandwidth and 600 MHz TMDS clock
  • Extension up to 200m (660 feet) over one SC-terminated multi-mode OM3 or better (50/125um) fiber-optic cable
  • Supports resolutions up to 4K Cinema-DCI (4096 x 2160 up to 60 Hz, 4:4:4), 4K Ultra HD (3860 x 2160 up to 60 Hz, 4:4:4) with HDR, 1080p Full HD, and WUXGA (1920x1200)
  • Supports HDCP 2.2 and 1.4
  • Supports HDR (High Dynamic Range) 10-bit Deep Color at 4K 60 Hz 4:2:0 and 4K 24 Hz 4:4:4
  • Supports 12-bit Deep Color at 1080p Full HD (60 Hz 4:4:4)
  • 3DTV pass-through
  • Lip Sync pass-through
  • Supports uncompressed LPCM digital audio up to 7.1 channels
  • Supports up to 7.1 channels of HBR (High Bit Rate) digital audio including Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio
  • Supports the use of DVI sources and DVI displays up to 1080p Full HD and WUXGA (1920x1200), with Gefen CAB-
  • DVI2HDMI-LCK DVI-to-HDMI cables (not included)
  • Sturdy metal construction of the enclosures help provide immunity against
  • Electro-Magnetic Interference (EMI) and radiated noise (RFI).
  • Plug & Play - no configuration or set-up required for most applications
  • Compact enclosures are easy to install and can be hidden away

Technical Specifications

Shipping Info
Length
2.25 (Inches)
Width
14 (Inches)
Height
7.2 (Inches)
Weight
2.5 (Lbs)
UPC
888814999945
Maximum TMDS Clock
600 MHz
Total Signal Bandwidth/Data Rate
18.2 Gbps
Video Input connector
(1) HDMI Type A 19-pin female
Video Output connector
(1) HDMI Type A 19-pin female
Link connector (Sender/Receiver)
(1) Type SC
Link Indicator (Sender/Receiver)
(1) LED, green
Power Supply connector (Sender/Receiver)
(1) 5V DC 3.5mm barrel/1.3mm pin
Power Consumption
Sender: 3.2W, Receiver: 2.8W
Optical Power Budget
6.5 dB
Storage Humidity
10% to 85% RH, non-condensing
MTBF
50000 hours
Dimensions (W x H x D, Sender/Receiver, not including connectors)
1-3/4" x 7/8" x 3-1/8" (45mm x 22mm x 79mm)
Net Weight (Sender/Receiver)
3.2 oz. (0.1 kg) each
Shipping Weight
2.5 lbs (1.2 kg)
