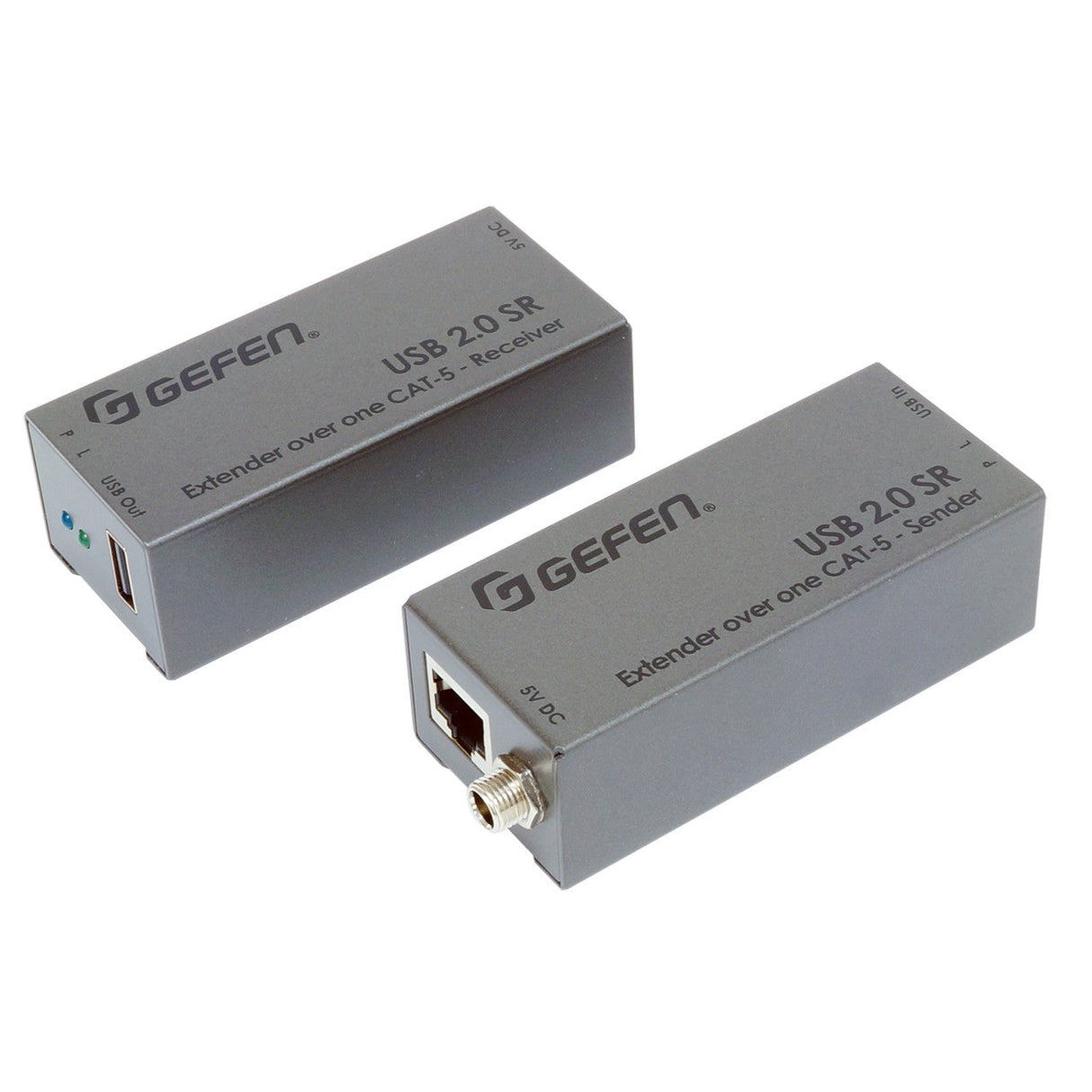

Gefen EXT-USB2.0-SR USB 2.0 Extender Over One Cat-5 Cable
Extend USB 2.0 up to 50 meters/165 feet, over a single CAT-5, Gefen’s EXT-USB2.0-SR extends high-speed USB devices over a single CAT-5e cable, up to 50 meters/165 feet. It works with all major operating systems -- Windows, macOS and Linux. No software drivers are required. The Sender and Receiver units install in minutes without any configuration, and support USB versions 2.0 and 1.1 - essential for high-performance applications such as digital imaging and interactive gaming.
Key Features
- Extends USB 2.0 peripherals up to 165ft (50m) away from a computer
- Supports USB 1.1 and 2.0
- Uses industry-standard CAT-5e or better cable
- Supports all major operating systems -- Windows, macOS and Linux
- True plug-and-play, 100% hardware solution with no drivers required
- Can support the full 480 Mbps speed of USB 2.0
- Receiver supports a powered USB connection up to 2A at 5V
- Sturdy metal construction of the enclosures help provide immunity against Electro-Magnetic Interference (EMI) and radiated noise (RFI)
- Compact enclosures are easy to install and can be hidden away
Technical Specifications
USB 2.0 Speed
Up to 480 Mbps
Link Connectors (Sender/Receiver)
RJ-45, Shielded
USB Connector (Sender)
(1) USB type B
USB Connector (Receiver)
(1) USB type A
USB Port Current Capability (Receiver)
2A at 5V DC
Link Indicator (Sender/Receiver)
(1) LED, green
Power Indicator (Sender/Receiver)
(1) LED, blue
Power Supply Connectors (Sender/Receiver)
Locking-type, 5.5mm barrel/2.5mm pin
Power Supply Voltage (Sender/Receiver)
5V DC
Power Consumption (Sender/Receiver)
0.65W/0.8W (maximum)
Operating Temperature
+32F to +122F (0C to +50C)
Storage Temperature
-4F to 158F (-20C to 70C)
Operating Humidity
5% to 90% relative humidity, non-condensing
Storage Humidity
0% to 95% relative humidity, non-condensing
MTBF
50000 hours
Dimensions (W x H x D) (Sender/Receiver)
3.4" x 1.1" x 1.5" (85mm x 28mm x 38mm)
Net Weight (Sender/Receiver)
0.3 lbs. (0.13 kg)
Shipping Weight
2.2 lbs. (1 kg)
Length
1.5 (Inches)
Width
3.4 (Inches)
Height
1.1 (Inches)
Weight
2.2 (Lbs)
Unit of Measure
Set
UPC
888814999969
