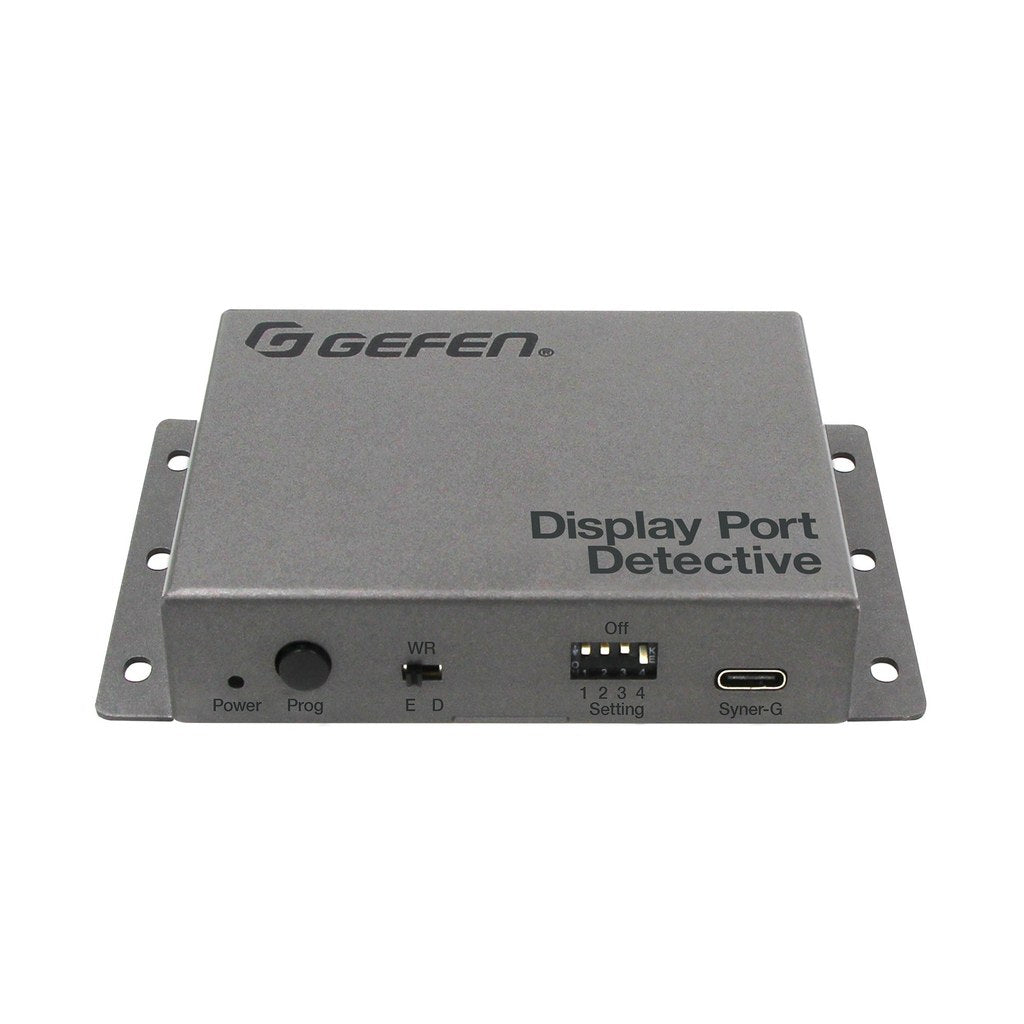

Gefen GF-EDD-DP 8K DisplayPort EDID Detective with EDID Control & 8K Support
The Gefen GF-EDD-DP DisplayPort EDID Detective captures and stores display EDID data, then maintains stable source-to-display communication when a monitor is powered off, switched away, or routed through complex AV systems. It supports DisplayPort 1.4, 32.4 Gbps HBR3 bandwidth, and resolutions up to 8K at 30 Hz.
Use this 8K DisplayPort EDID Detective for workstations, control rooms, broadcast systems, AV racks, and matrix-routed display environments that need reliable handshaking. It helps prevent blank screens, mismatched resolutions, and display reconfiguration issues in professional DisplayPort EDID management workflows.
Five factory-loaded Gefen EDID profiles and three user-programmable memory banks give integrators flexible setup options. Auxiliary channel re-clocking, active HPD, and active Link Training maintain signal integrity, while the write-enable switch protects stored EDIDs from accidental overwriting in critical installations.
DisplayPort EDID Management Features
- 8K DisplayPort Support: Maintains reliable DisplayPort 1.4 communication up to 8K at 30 Hz and 4K at 60 Hz.
- 32.4 Gbps Bandwidth: Supports HBR3 signal bandwidth for high-resolution DisplayPort source and display workflows.
- Advanced EDID Control: Includes five factory-loaded Gefen EDID profiles and three user-programmable memory banks.
- Signal Stability: Uses auxiliary channel re-clocking, active HPD, and active Link Training to reduce handshake failures.
- HDR Format Support: Preserves HDR10, HDR10+, Dolby Vision, and HLG video formats through DisplayPort systems.
- Immersive Audio Support: Passes Dolby Atmos and DTS:X audio formats for compatible AV systems.
- USB-C Programming: Provides USB-C access for EDID programming, firmware updates, and field service.
- Write Protection: A two-position write-enable switch helps protect stored EDID profiles from accidental overwriting.
Technical Specifications
- Brand: Gefen
- Model: GF-EDD-DP
- Product Type: DisplayPort EDID Detective with EDID control
- Maximum Resolution: 8K at 30 Hz, 7680 x 4320
- Supported 4K Resolution: 4K at 60 Hz, 3840 x 2160
- Video Bandwidth: 32.4 Gbps HBR3
- DisplayPort Compliance: DisplayPort 1.4
- HDCP Compliance: HDCP 2.3, 2.2, and 1.x
- HDR Support: HDR10, HDR10+, Dolby Vision, HLG
- Audio Format Support: Dolby Atmos and DTS:X

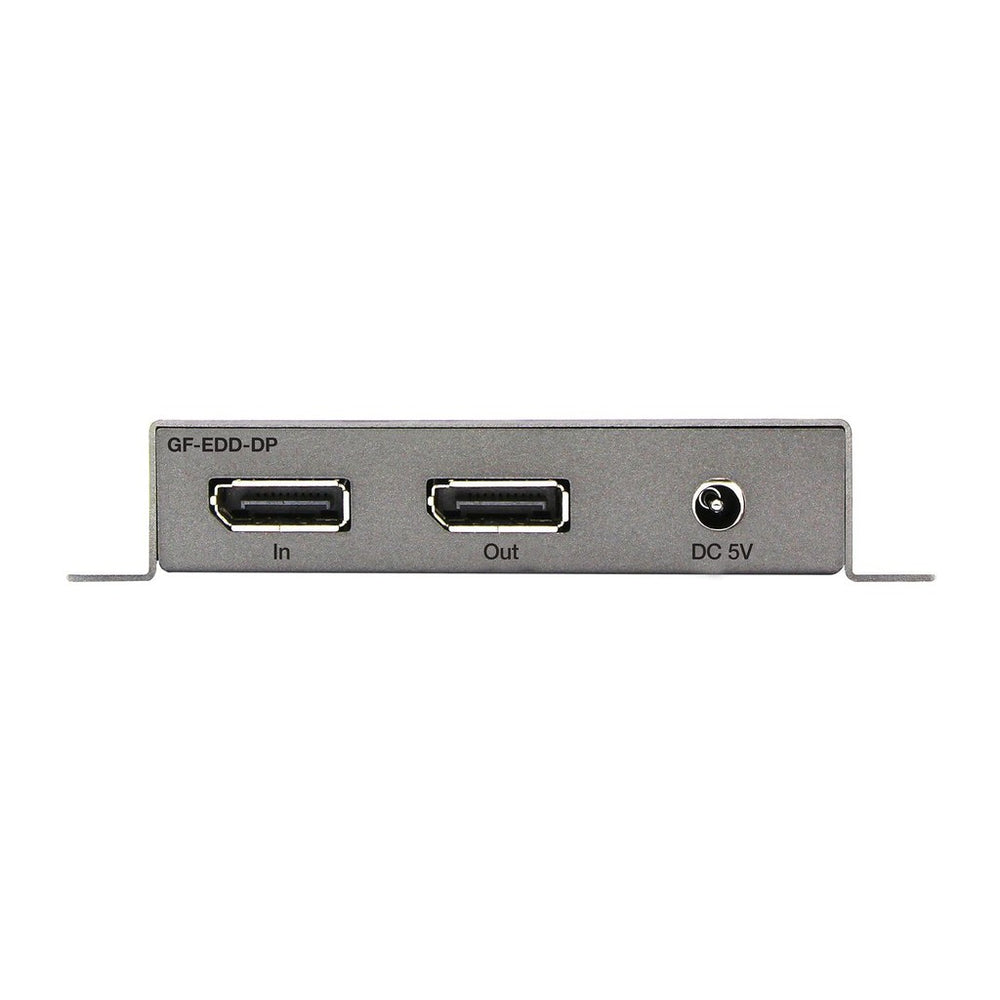

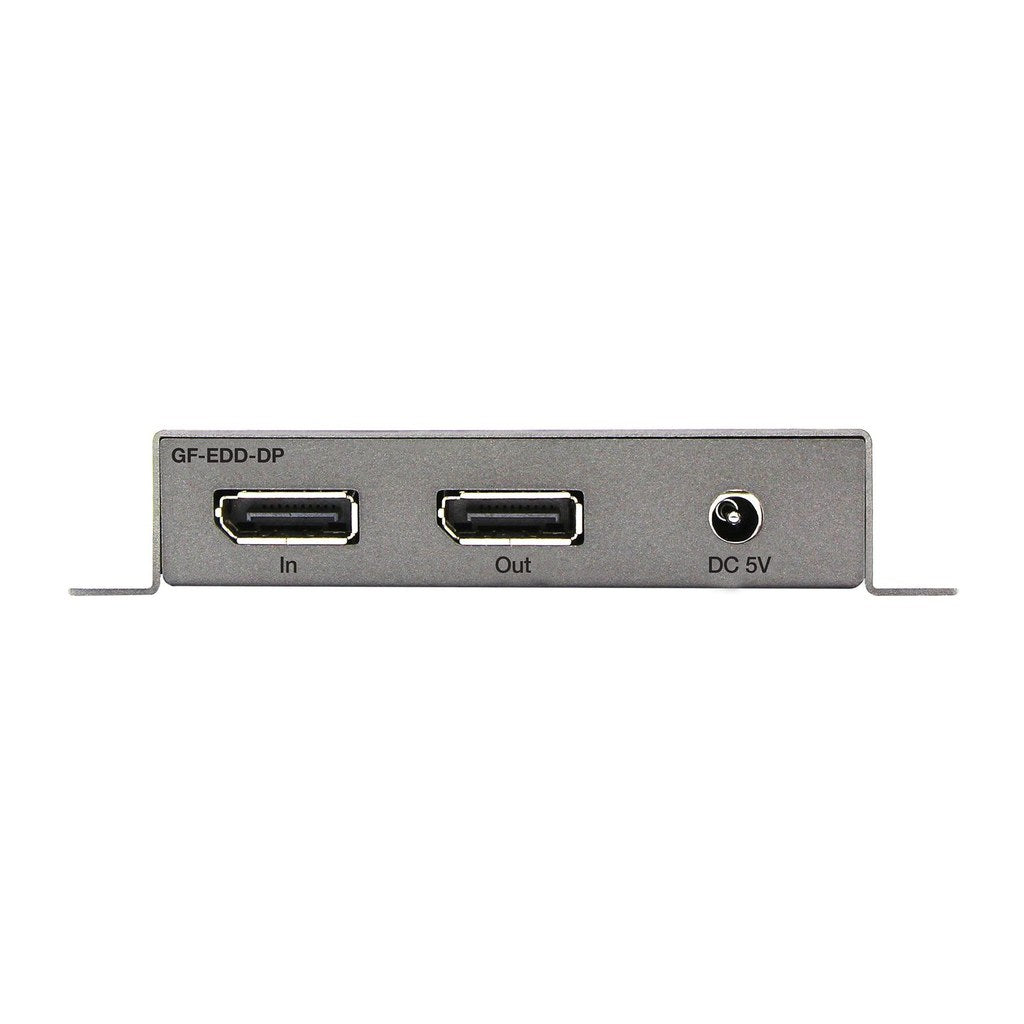

- Video Input: 1 x DisplayPort 20-pin female connector
- Video Output: 1 x DisplayPort 20-pin female connector
- Control Port: 1 x USB-C port for EDID programming and firmware updates
- Factory EDID Profiles: 5 pre-loaded Gefen EDID profiles
- User-Programmable Memory: 3 user-programmable memory banks

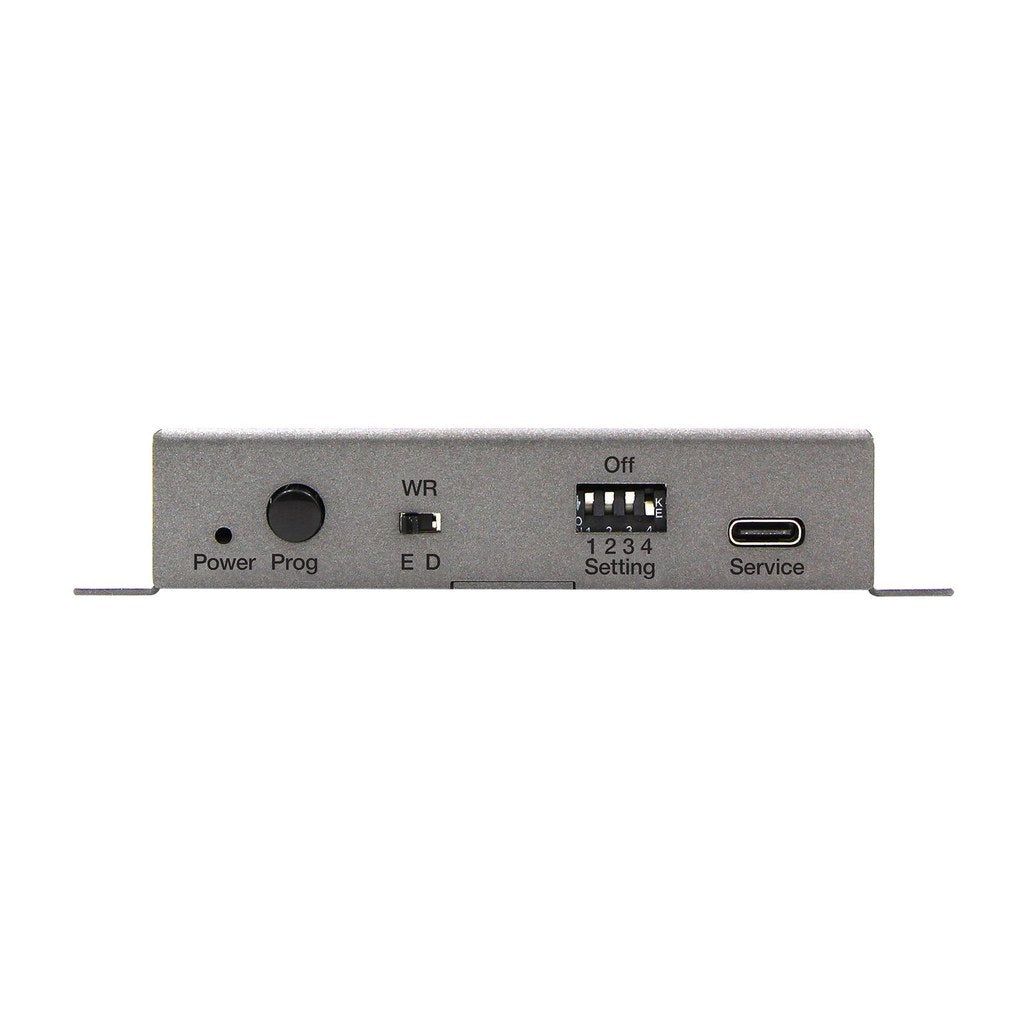

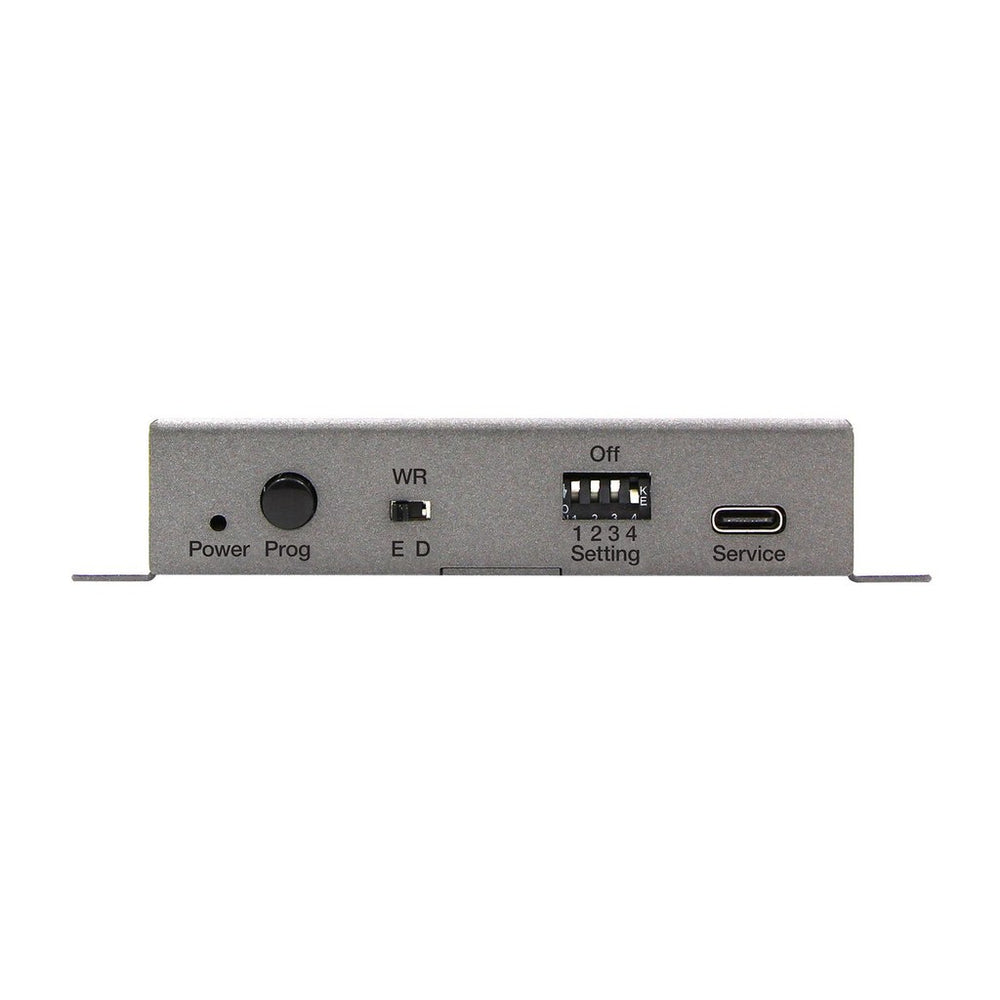

- Program Button: 1 x tact-type button
- DIP Switches: 1 x recessed 4-position settings switch and 1 x 2-position write-enable switch
- Signal Integrity Features: Auxiliary channel re-clocking, active HPD, active Link Training maintenance
- Indicators: Bi-color green/red LED for power, HPD, and EDID status
- Power Requirement: 5V/1A DC input with multi-region support
- USB Power: USB bus power for EDID programming
- Power Consumption: Less than 3W typical
- Operating Temperature: 32°F to 122°F
- Operating Humidity: 20% to 90% RH, non-condensing
- Enclosure: Metal, surface-mountable
- Dimensions: 3.54" W x 2.83" H x 0.79" D
- Weight: 0.40 lbs
