Description

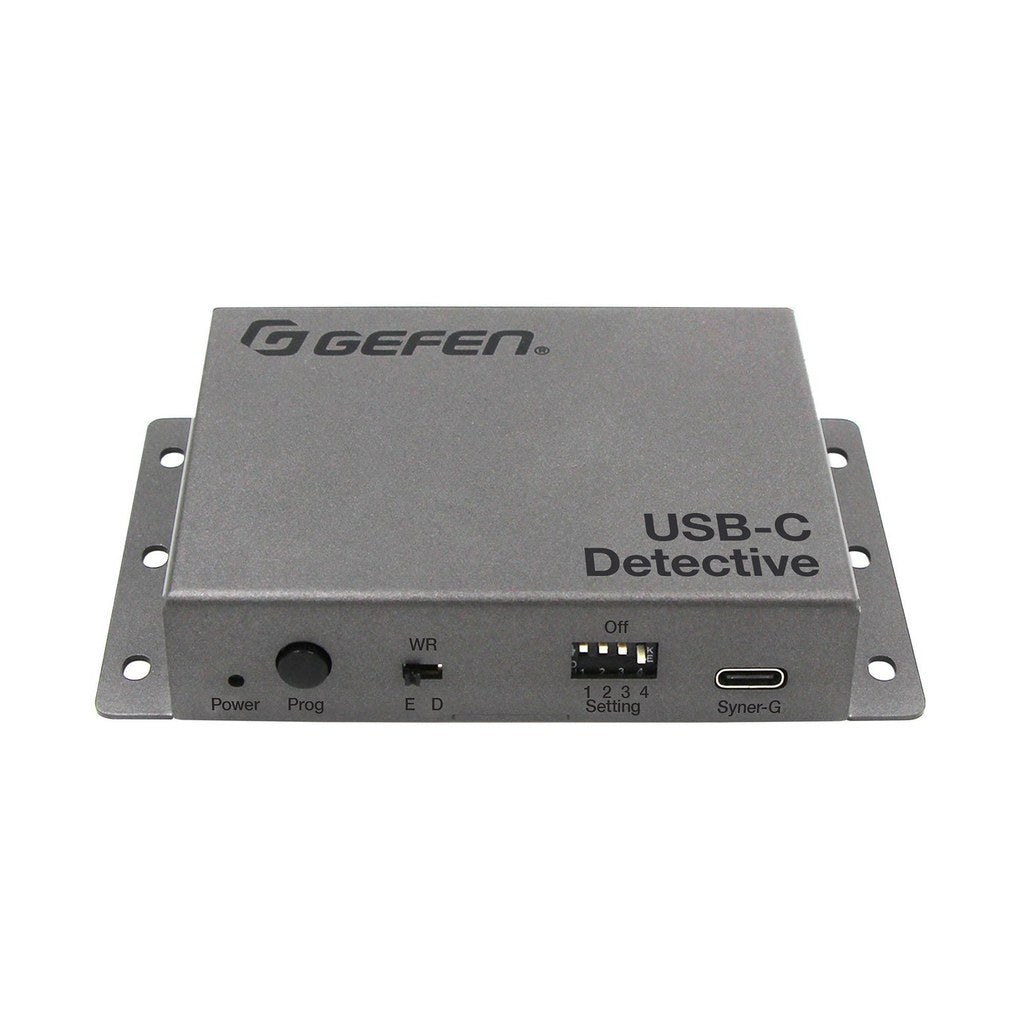

Gefen GF-EDD-UC 8K USB-C EDID Detective with EDID Control & 8K Support
The Gefen GF-EDD-UC 8K USB-C EDID Detective captures and stores display EDID data to keep USB-C video sources communicating reliably with connected displays. It supports USB-C DisplayPort Alt Mode video up to 8K at 30 Hz and 4K at 60 Hz with 32.4 Gbps HBR3 bandwidth.
Use this USB-C EDID Detective for conference rooms, classrooms, hybrid workspaces, control rooms, and AV racks where displays are powered off, switched, or shared between devices. It helps prevent blank screens, resolution resets, and desktop rearrangement in USB-C video EDID management workflows.
The GF-EDD-UC includes five factory-loaded EDID banks, three user-programmable EDID slots, and DIP switch selection for flexible system setup. Auxiliary channel re-clocking, persistent Hot Plug Detection, HDCP 2.3 pass-through, and USB 2.0 data pass-through support dependable professional AV integration.
USB-C EDID Management Features
- 8K USB-C Video Support: Maintains stable USB-C DisplayPort Alt Mode video up to 8K at 30 Hz and 4K at 60 Hz.
- 32.4 Gbps HBR3 Bandwidth: Supports high-bandwidth video workflows for modern USB-C sources and displays.
- Advanced EDID Control: Provides five factory-loaded EDID banks and three user-programmable EDID slots.
- Signal Stability: Uses auxiliary channel re-clocking and persistent Hot Plug Detection to reduce handshake interruptions.
- USB 2.0 Pass-Through: Passes USB 2.0 data at 480 Mbps through compatible USB-C connections.
- HDR Format Support: Supports HDR10, Dolby Vision, and HLG formats for high-dynamic-range display systems.
- Secure Configuration: Includes a 2-position write-enable DIP switch to help protect stored EDID profiles.
- Professional Metal Enclosure: Uses a durable, surface-mountable chassis for commercial AV installations.
Technical Specifications
- Brand: Gefen
- Model: GF-EDD-UC
- Product Type: USB-C EDID Detective with EDID control
- Maximum Resolution: 8K at 30 Hz and 4K at 60 Hz
- Maximum 8K Resolution: 7680 x 4320
- Maximum 4K Resolution: 3840 x 2160
- Video Bandwidth: 32.4 Gbps HBR3
- Video Compatibility: USB-C DisplayPort Alt Mode
- HDCP Support: HDCP 2.3 pass-through
- HDR Support: HDR10, Dolby Vision, HLG

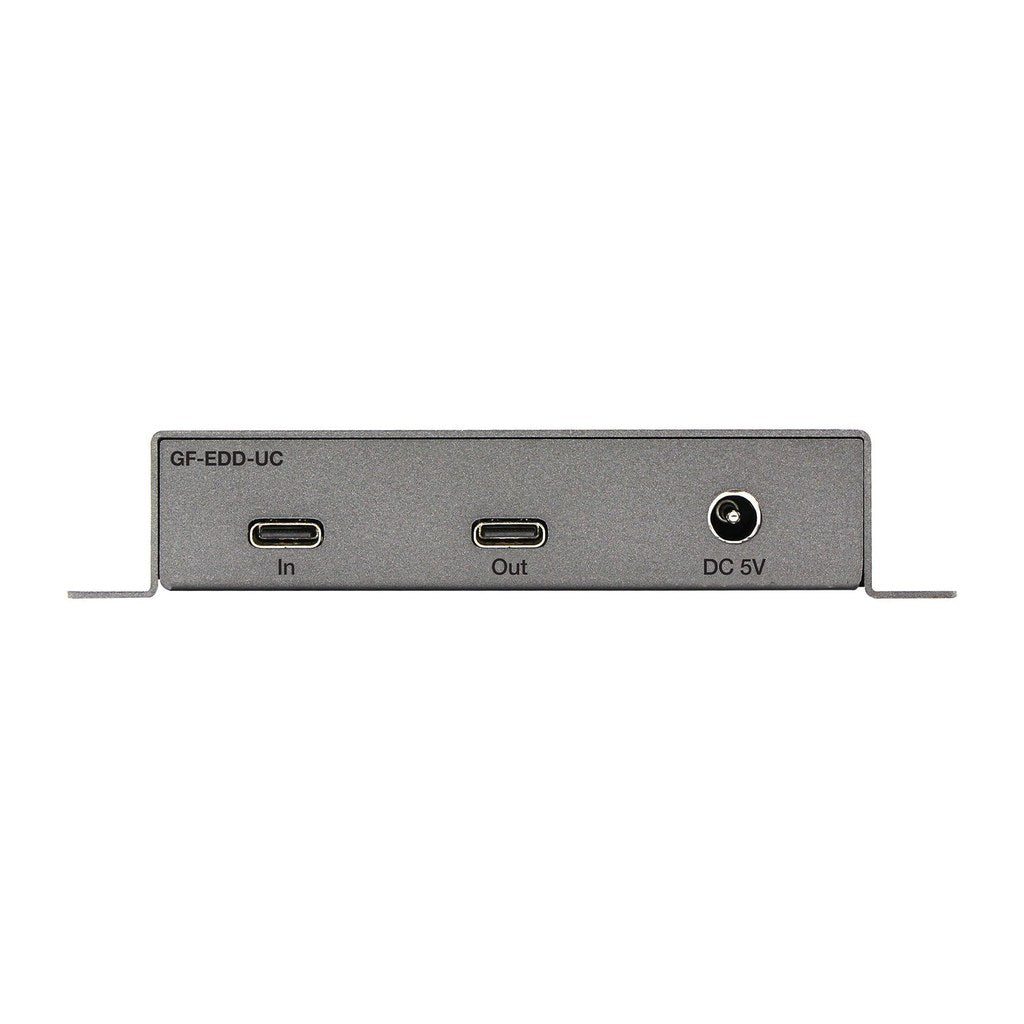

- Video Input: 1 x USB-C 24-pin female
- Video Output: 1 x USB-C 24-pin female
- USB Data: USB 2.0 pass-through at 480 Mbps
- Factory EDID Profiles: 5 pre-loaded EDID banks
- Programmable EDID Banks: 3 user-programmable EDID slots

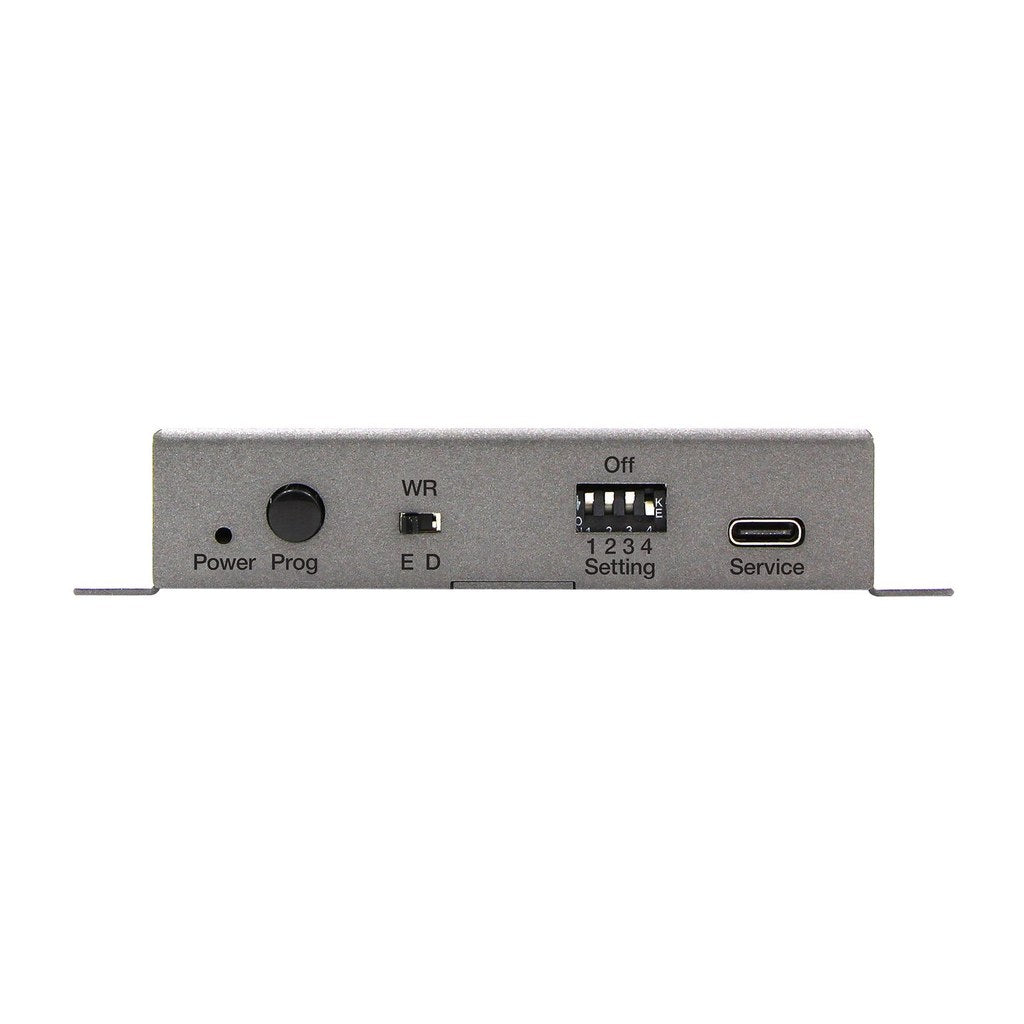

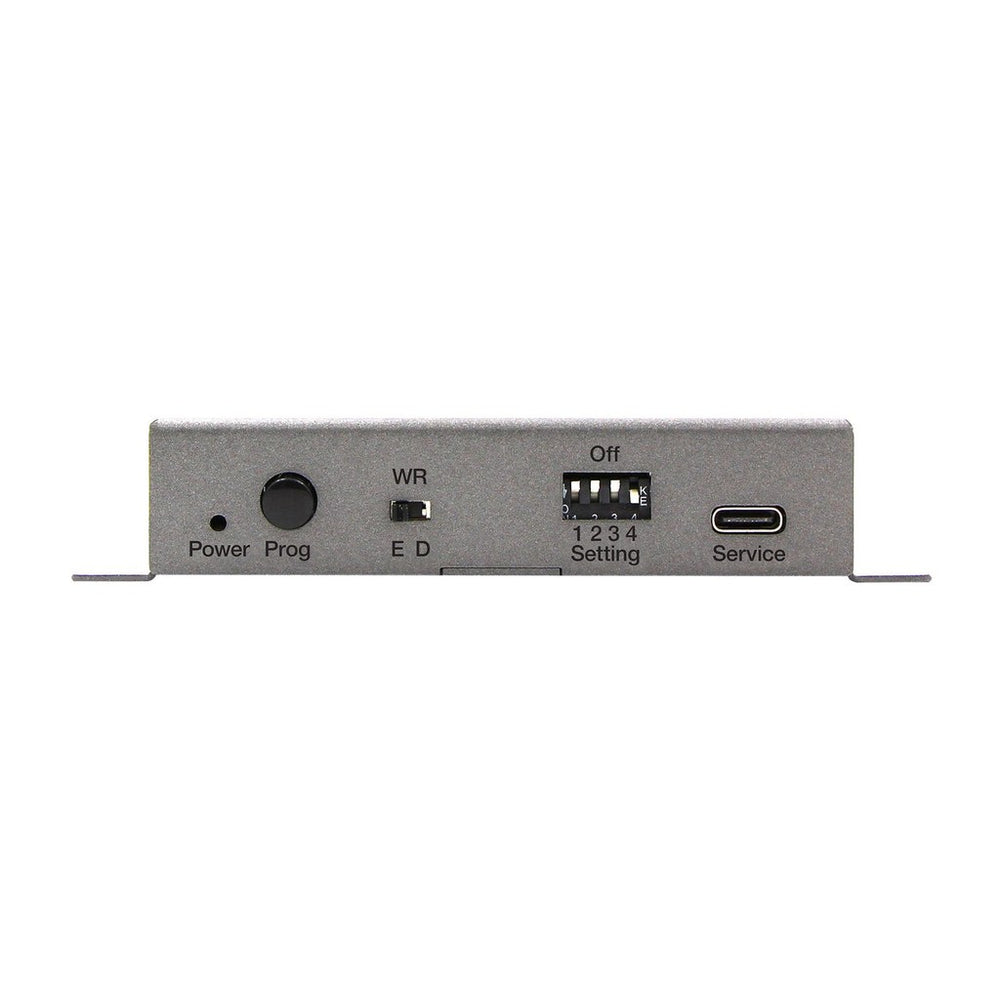

- EDID Capture: Front-panel program button for direct EDID capture
- Write Protection: 2-position DIP switch
- Bank Selection: 4-position recessed DIP switch
- Service Port: 1 x USB-C port for firmware updates and EDID management
- Status Indicator: Power and status LED
- Signal Integrity Features: Auxiliary channel re-clocking and persistent Hot Plug Detection
- Power Requirement: 5V/1A DC input with multi-region power supply
- Programming Power: USB bus power supported
- Power Consumption: Less than 3W typical
- MTBF: 50,000 hours
- Operating Temperature: 32°F to 122°F
- Storage Temperature: -4°F to 158°F
- Operating Humidity: 20% to 90% RH, non-condensing
- Standards: USB-C DisplayPort Alt Mode compliant
- Compatibility Note: Does not support USB-C devices with HDMI Alt Mode only
- Enclosure: Metal, surface-mountable
- Dimensions: 3.54" W x 2.83" H x 0.79" D
- Weight: 0.40 lbs
- Warranty: 3-year limited warranty
