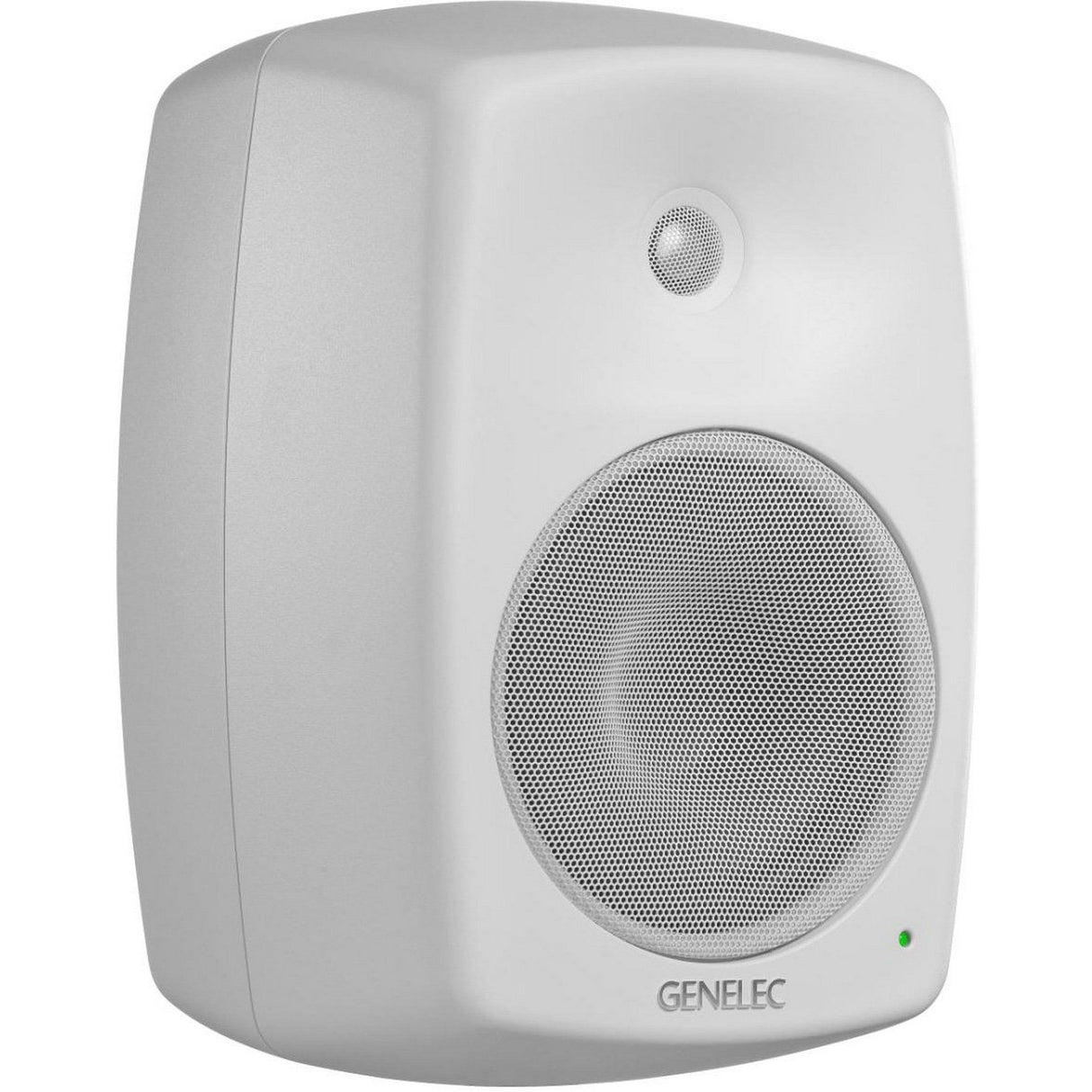

Genelec 4040AWM 6.5-Inch Studio Monitor, Mystic White, SIngle
Genelec 4040AWM 6.5-Inch Studio Monitor, Mystic White, SIngle
Free Shipping
Genelec 4040AWM 6.5-Inch Studio Monitor, Mystic White, SIngle
The Genelec 4040A active loudspeaker contains drivers, power amplifiers, active crossover filters and protection circuitry in an integrated design. The advanced Directivity Control Waveguide (DCW) provides excellent frequency balance in challenging acoustic environments. Combined with the Genelec Minimum Diffraction Enclosure (MDE) which is made of die-cast aluminium and shaped to reduce edge diffraction, the system provides outstanding audio quality. It features Genelec Intelligent Signal Sensing (ISS) circuitry which switches the loudspeaker to standby when no audio input is detected (ErP 2013 Directive). The 4040A is the perfect indoor solution for large theatres, restaurants, conference rooms, museums, art galleries, sport centres and more.
Designer Tools and CAD Simulation
Every building design and specification process is today done in conjunction with CAD/BIM software. The advantage of BIM software is that it enables evaluation and specification as early in the process as possible. BIM objects assist the designer/engineers in their work in a way that they become an integrated part of the BIM model (product model). Today CAD symbols are replaced by BIM objects. BIM objects still carry 2D and 3D presentations like a CAD symbol would, but they also carry so much more. BIM object products are visible in every drawing, visualisation and even bill of materials can be extracted from the BIM systems using ArchiCAD or Revit software.
Key Features
- Directivity Control Waveguide (DCW) Technology
- Minimum Diffraction Enclosure (MDE) Technology
- Reflex Port Design
- Room Response Compensation
- Optimized Amplifiers
- Active Crossovers
- Protection Circuitry
- Intelligent Signal Sensing (ISS) Technology
- Versatile Mountings
Technical Specifications
SPL
109 dB
Frequency response
50 Hz - 25 kHz (-6 dB)
Accuracy of frequency response
+/- 3 dB (55 Hz - 20 kHz)
Driver dimension
Woofer 6.5 inch + Tweeter ¾ inch metal dome + DCW
Amplifier power
Woofer 120 W + Tweeter 120 W
Dimensions
H 350 x W 237 x D 223 mm, 13 13/16 x 9 3/8 x 8 13/16 inch
Weight
9.9 kg / 22 lb
Connections
1 x balanced Euroblock input connector
