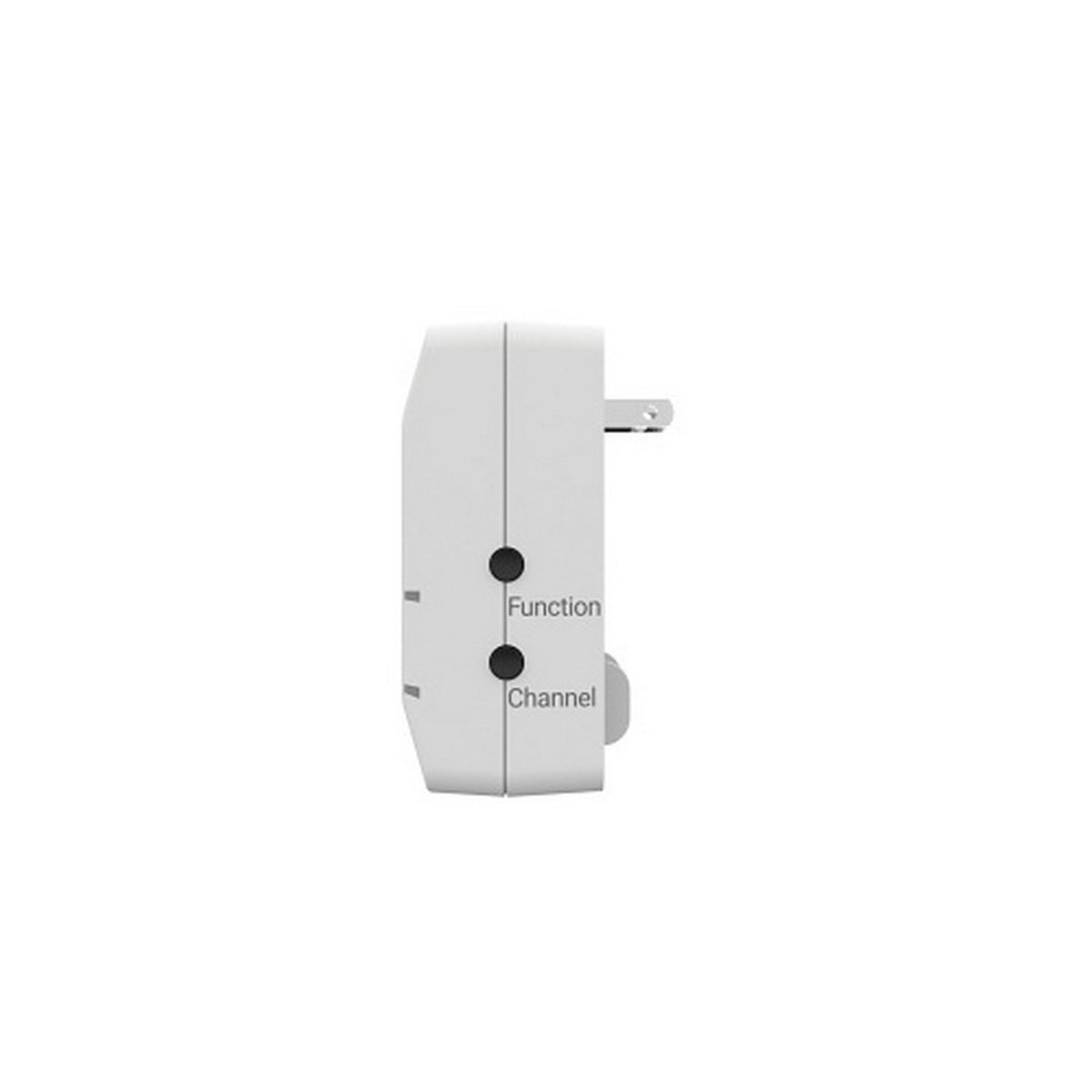

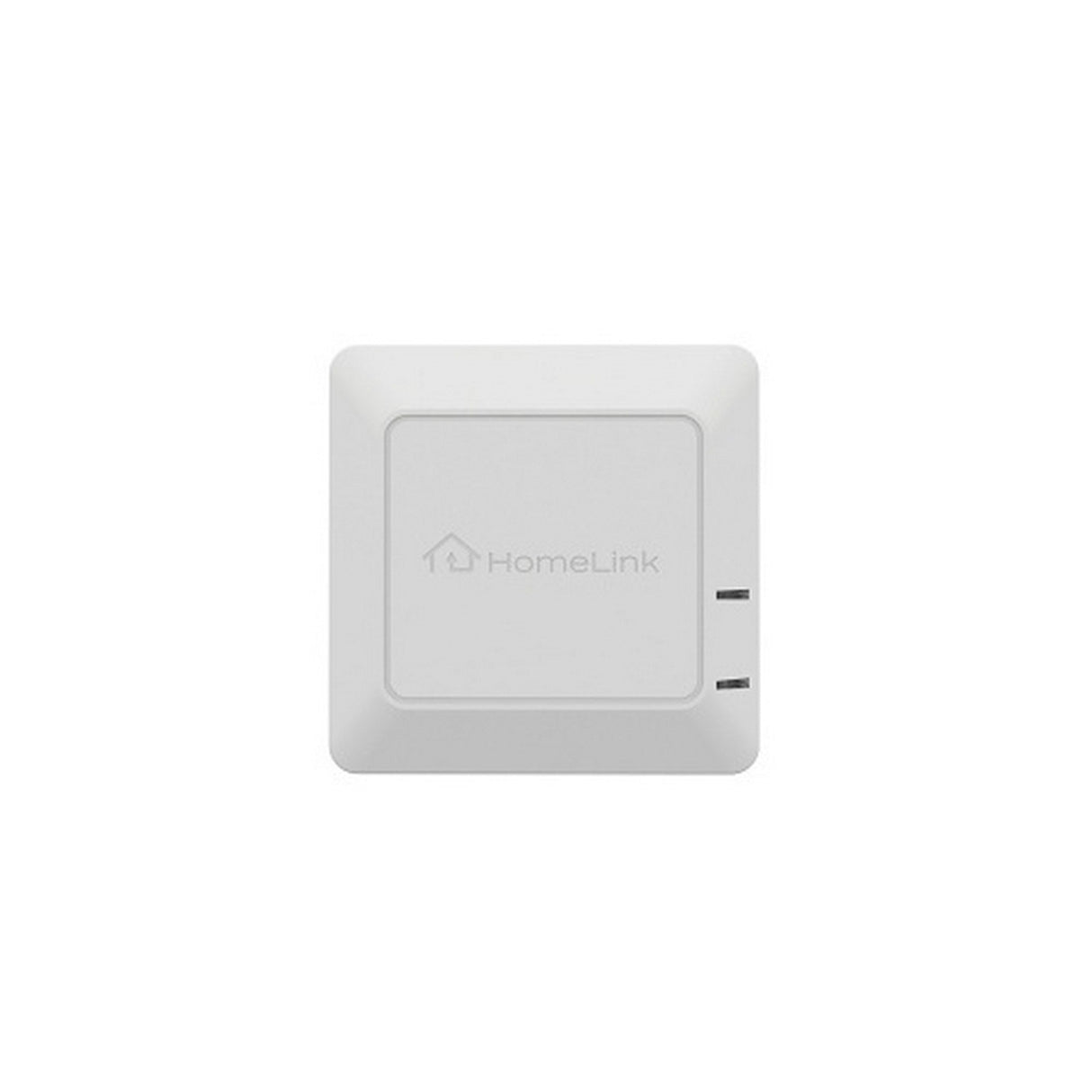

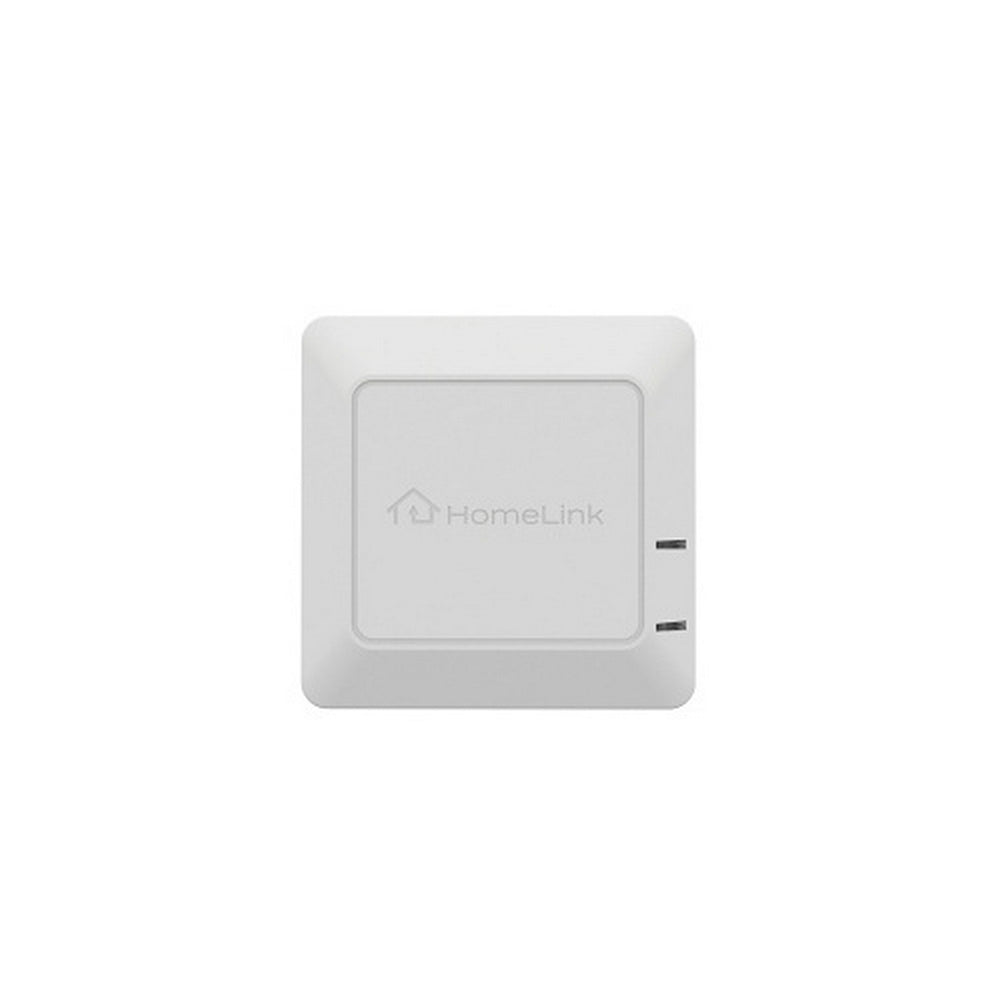

Gentex HomeLink 901-1657-001 Smart Home Connector

Gentex HomeLink 901-1657-001 Smart Home Connector

The Gentex 901-1657-001 Smart Home Connector bridges HomeLink-equipped vehicle controls with a Z-Wave smart home network. It lets compatible in-vehicle buttons trigger up to six programmed scenes for connected lighting, locks, thermostats, and other actions while also supporting direct scene control from the included handheld remote.

Designed for residential automation, attached garages, entryways, and professionally managed smart homes, the plug-in connector provides a practical HomeLink connector for garage and entry automation without adding another control interface inside the vehicle. SmartStart simplifies compatible Z-Wave enrollment, while Z-Wave Long Range support can extend connectivity when the controller and installation support that mode.

The connector is Z-Wave certified and supports S2 security, standard Z-Wave interoperability, firmware updates over RF, and both professional and DIY installation workflows. It operates from a standard 120 VAC indoor outlet and works with other certified Z-Wave devices regardless of manufacturer. Gentex owns the HomeLink brand, and the system carries Z-Wave certification number ZC14-26010572.

Key Features

• Vehicle-to-Home Control: Uses compatible HomeLink buttons in a vehicle to activate programmed Z-Wave smart home scenes.
• Six Programmable Scenes: Assign up to six channels to separate automation routines for lighting, locks, climate, and other connected functions.
• Z-Wave S2 Security: Supports authenticated and unauthenticated S2 security classes for protected network inclusion and communication.
• SmartStart Support: Allows compatible controllers to add the connector using its Z-Wave DSK QR code with minimal manual setup.
• Z-Wave Long Range: Supports LR operation when enrolled through a compatible SmartStart and Long Range system.
• Included Handheld Remote: Programs compatible vehicle HomeLink buttons and can directly trigger configured Z-Wave scenes.
• Cross-Manufacturer Interoperability: Operates on Z-Wave networks with certified devices from other manufacturers.
• Indoor Plug-In Installation: Connects directly to a standard U.S. 120 VAC wall outlet without a separate external power adapter.

Technical Specifications

Product and Installation

• Manufacturer: Gentex Corporation
• Brand: HomeLink
• Manufacturer Part Number: 901-1657-001
• Product Identifier: HLSHCA
• Product Line: Connected
• Product Type: HomeLink RF-to-Z-Wave bridge
• Programmable Scenes: Up to 6
• Installation: Standard U.S. wall outlet
• Power: 120 VAC
• Installation Environment: Indoor use only
• Firmware Updates: Consumer-updatable over RF
• Limited Warranty: 18 months from date of manufacture, subject to applicable law
• Compliance: FCC Part 15 Class B

Z-Wave Specifications

• Z-Wave Certification Number: ZC14-26010572
• Z-Wave Version: 7.23.1
• Hardware Platform: EFR32ZG23B
• OEM Version: HW 01, FW 10.25:02.04:00.00
• Library Type: END_NODE_ENHANCED_232
• Device Type: Central Scene DT
• Role Type: Always-on enhanced end node
• Manufacturer ID: 0x0467
• Product Type ID: 0x0004
• Product ID: 0x0006
• User Icon: 0x1600
• Installer Icon: 0x1600
• Standard Z-Wave Radio Range: Approximately 246 ft
• Z-Wave Long Range: Approximately 2,297 ft
• U.S. Z-Wave Frequencies: 916.00 MHz and 908.40 MHz
• U.S. Z-Wave Long Range Frequencies: 912.00 MHz and 920.00 MHz
• S2 Security Classes: S2 Authenticated and S2 Unauthenticated
• SmartStart: Supported
• Network-Wide Inclusion: Supported
• Explorer Frames: Supported
• Association Groups: 7 total, including Lifeline and Scene 1 through Scene 6
• Maximum Nodes per Association Group: 5
• Supported Command Classes: Central Scene V3, Configuration V4, Association V2, Association Group Information V3, Device Reset Locally V1, Firmware Update Meta Data V5, Indicator V3, Manufacturer Specific V2, Multi Channel Association V3, Version V3, Z-Wave Plus Info V2, Security V1, Security 2 V1, Supervision V1, Transport Service V2, and Powerlevel V1
• Operating Region: United States

What's In the Box

• HomeLink Smart Home Connector
• Handheld remote with batteries
• User Manual
