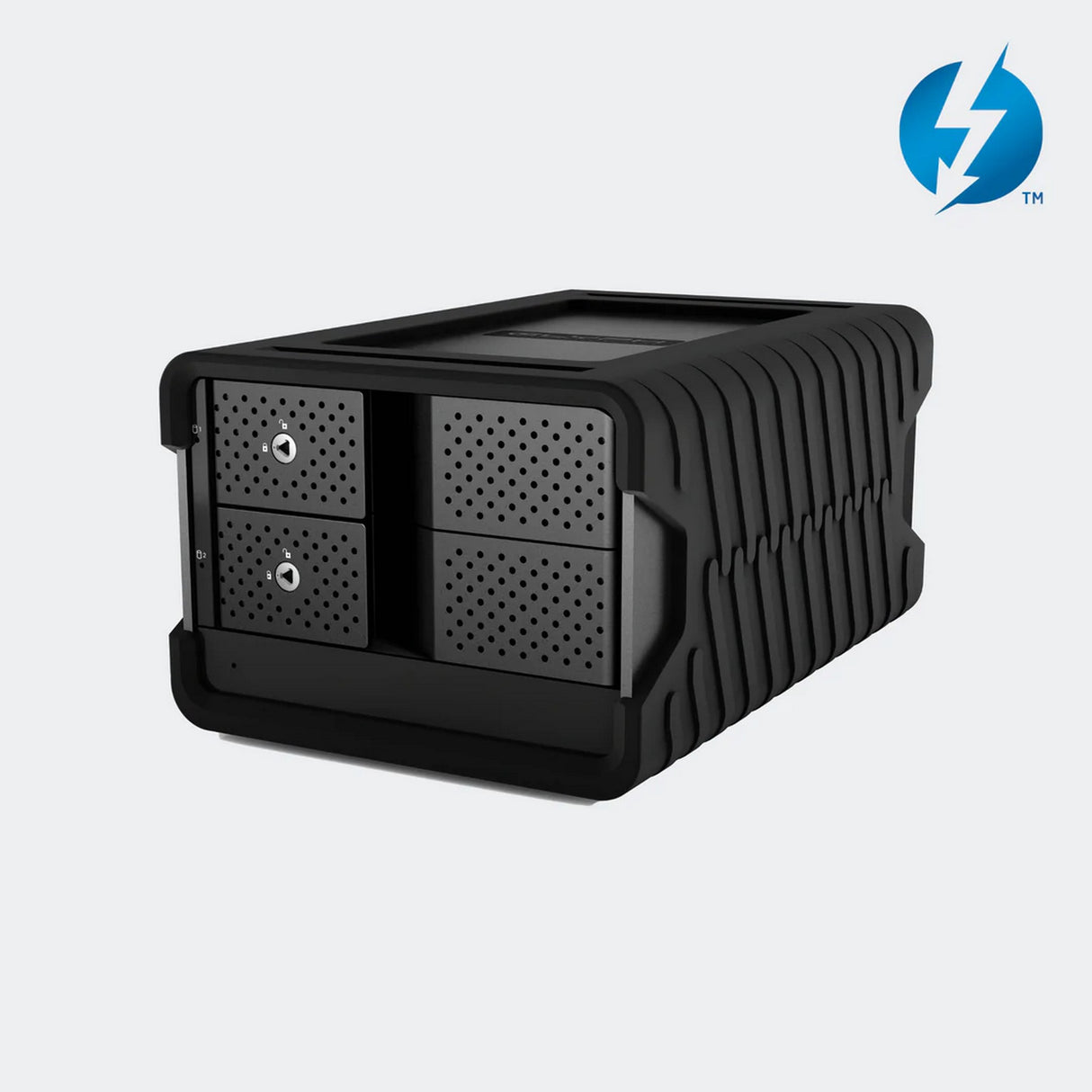

Glyph Blackbox PRO RAID 2-Bay Thunderbolt 3 RAID Array, 16TB

Glyph Blackbox PRO RAID 2-Bay Thunderbolt 3 RAID Array, 16TB

The Glyph Technologies 16TB Blackbox PRO RAID 2-Bay Thunderbolt 3 RAID Array is a professional desktop storage solution designed for business professionals, audio engineers, video editors, photographers, content creators, and production teams that need high-capacity, reliable storage for large files and important assets. Built with two 8TB 7200 rpm enterprise-grade hard drives, this 2-bay RAID array provides 16TB of total storage capacity for demanding workflows, media libraries, project archives, backups, and mission-critical creative work.

With two 40 Gb/s Thunderbolt 3 ports, the Blackbox PRO RAID delivers fast data transfer speeds up to 550 MB/s while also supporting daisy-chaining for up to five additional devices through a single cable connected to your computer. This makes it a strong choice for streamlined desktop setups where high-capacity storage, additional connected devices, and efficient cable management are all important. The built-in DisplayPort allows users to connect a 4K monitor directly to the RAID array, helping reduce desktop clutter and simplify professional workstation setups.

The Blackbox PRO RAID supports hardware RAID 0, RAID 1, JBOD, and SPAN configurations, giving users flexibility to prioritize maximum speed, redundancy, or independent drive access depending on the workflow. It comes preconfigured in RAID 0 and preformatted for macOS, with Time Machine compatibility right out of the box. The drive can also be used with Windows after reformatting, and RAID settings can be changed using switches on the back of the unit.

Designed for demanding workflows and mission-critical projects, the Glyph Blackbox PRO RAID features an aluminum construction that acts as a heatsink to help keep the internal drives at an optimal temperature for higher sustained speeds. Locking bay doors help keep the drives securely in place and prevent unauthorized access, while the included removable cover, external power supply, Thunderbolt 3 cable, and comprehensive Glyph warranty coverage make it a complete professional RAID storage solution.

Key Features

• 16TB total storage capacity for professional media, backup, and production workflows
• Includes 2 x 8TB 3.5" 7200 rpm enterprise-grade SATA hard drives
• Two 40 Gb/s Thunderbolt 3 ports for fast data transfer and device daisy-chaining
• Supports daisy-chaining up to five additional devices through a single cable
• Transfer speeds up to 550 MB/s
• Built-in DisplayPort for connecting a 4K monitor directly to the RAID array
• Hardware RAID support for RAID 0, RAID 1, JBOD, and SPAN workflows
• Preconfigured in RAID 0 for maximum speed
• Formatted for macOS and Time Machine ready out of the box
• Can be used with Windows after reformatting
• RAID configuration can be changed using switches on the back of the unit
• Aluminum shell acts as a heatsink for improved sustained performance
• Locking bay doors help keep drives secure
• Kensington security slot for added physical security
• Includes Glyph’s 3-2-1 warranty coverage

Technical Specifications

Key Specs

Storage Capacity: 16TB
Included Drives: 2 x 8TB 3.5" HDD, 7200 rpm
RAID Support: Yes; supported RAID modes include RAID 0, RAID 1, and JBOD; preconfigured in RAID 0
Number of Bays: 2 x 3.5" SATA III
Inputs/Outputs: 2 x USB-C Thunderbolt 3 ports, 40 Gb/s; 1 x DisplayPort
Transfer Rates: Up to 550 MB/s

Drives

Storage Capacity: 16TB
Included Drives: 2 x 8TB 3.5" HDD, 7200 rpm
Drive Class: Enterprise-grade hard drives
RAID: Hardware RAID support for RAID 0, RAID 1, JBOD, and SPAN
Default RAID Configuration: RAID 0
RAID Configuration Control: RAID settings may be changed using switches on the back of the unit
Storage Capacity Note: Storage capacity depends on the RAID mode used

General

Number of Bays: 2 x 3.5" SATA III
Inputs/Outputs: 2 x USB-C Thunderbolt 3 ports, 40 Gb/s; 1 x DisplayPort
Daisy-Chain Support: Up to five additional devices
Display Support: Built-in DisplayPort for connecting a 4K monitor
Media Card Slots: No
PCI Expansion: No

Software

OS Compatibility: macOS and Windows
Default OS Support: macOS
Windows Compatibility: Compatible with Windows via reformat
Time Machine Compatibility: Time Machine ready out of the box

Security

Encryption: No
Security Features: Kensington security slot and lockable bay door

Physical

Cooling: 1 x fan
Material of Construction: Aluminum
Thermal Design: Rugged aluminum shell acts as a heatsink to help keep the internal hard drives at optimal temperature
Dimensions: 8.25" x 5.5" x 4.25"
