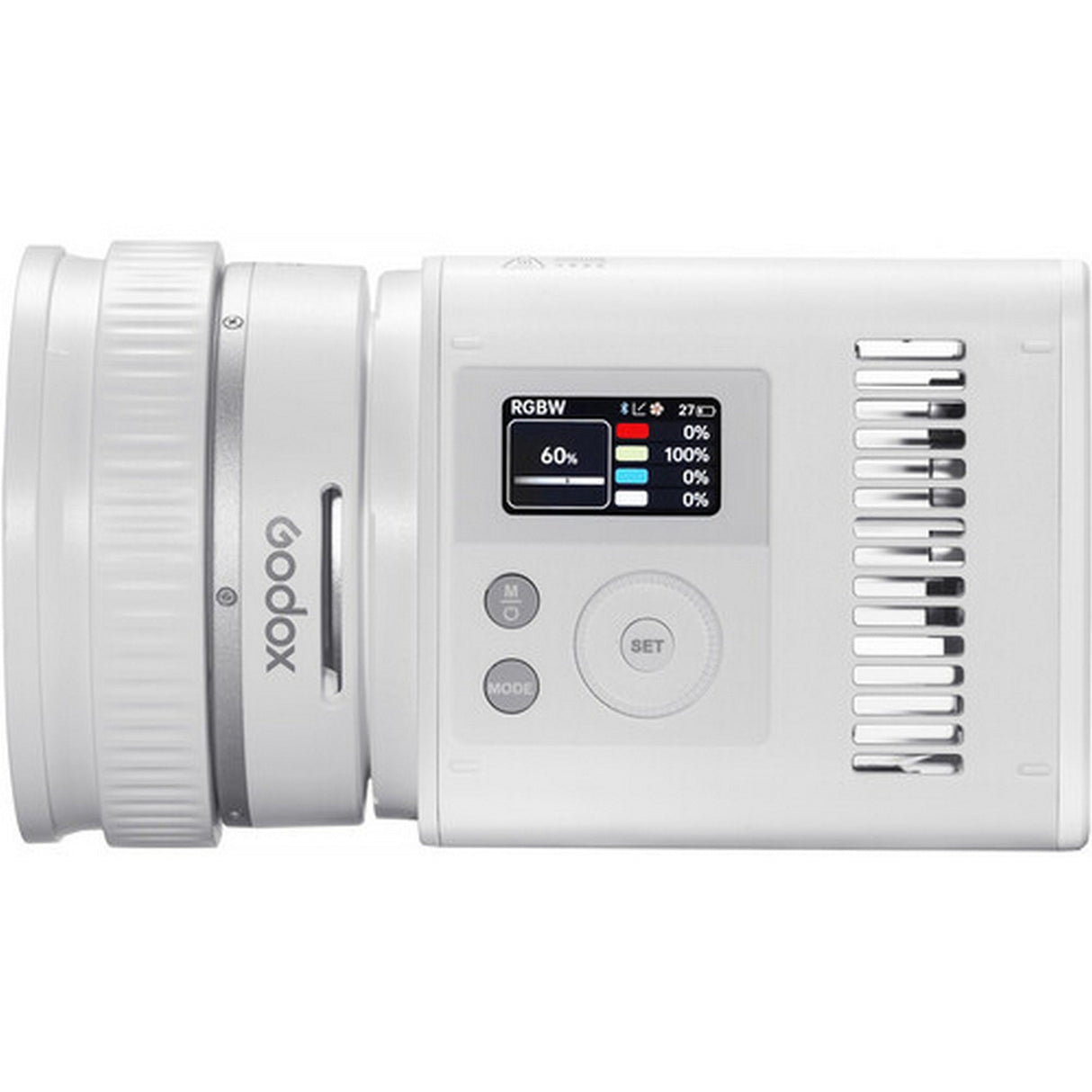

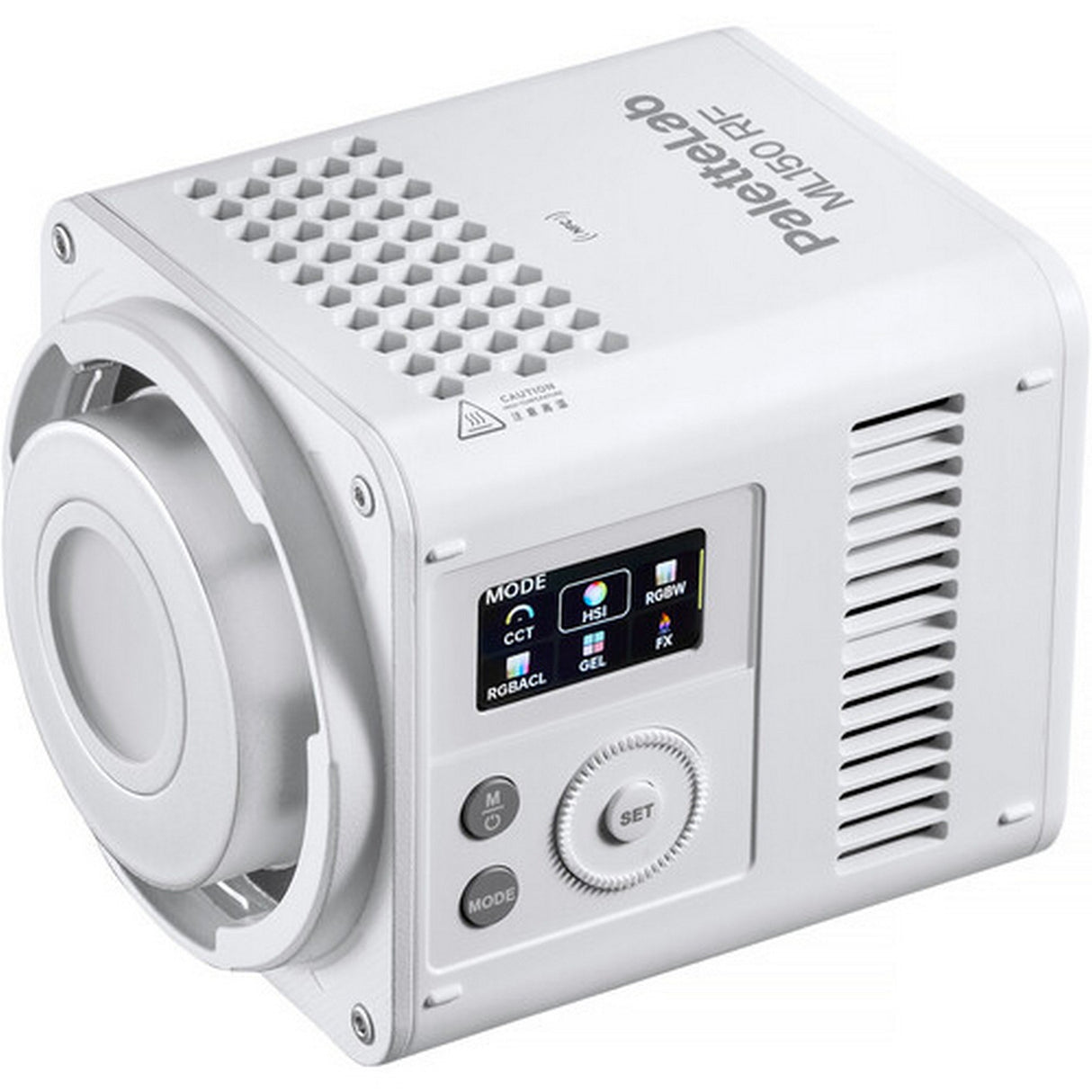

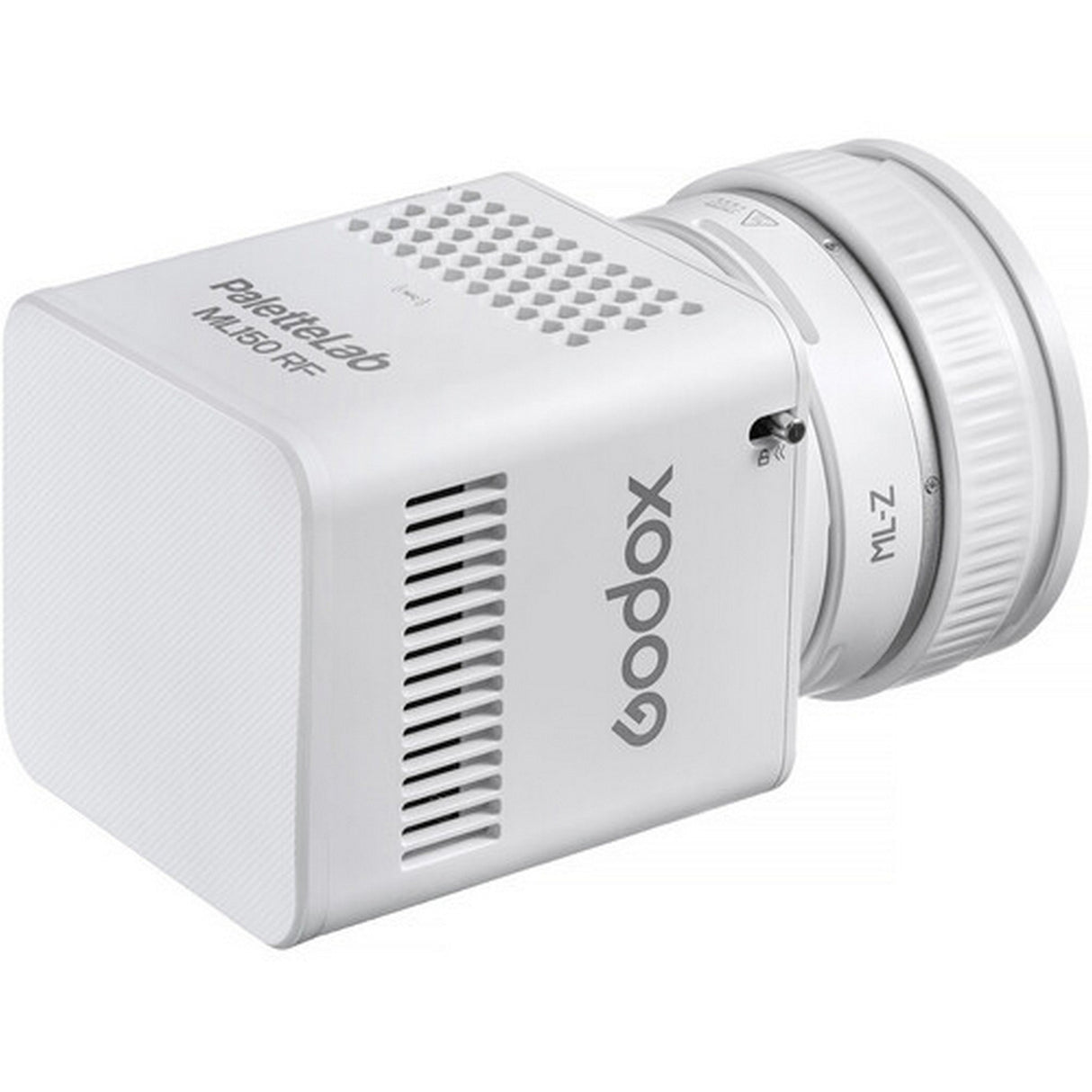

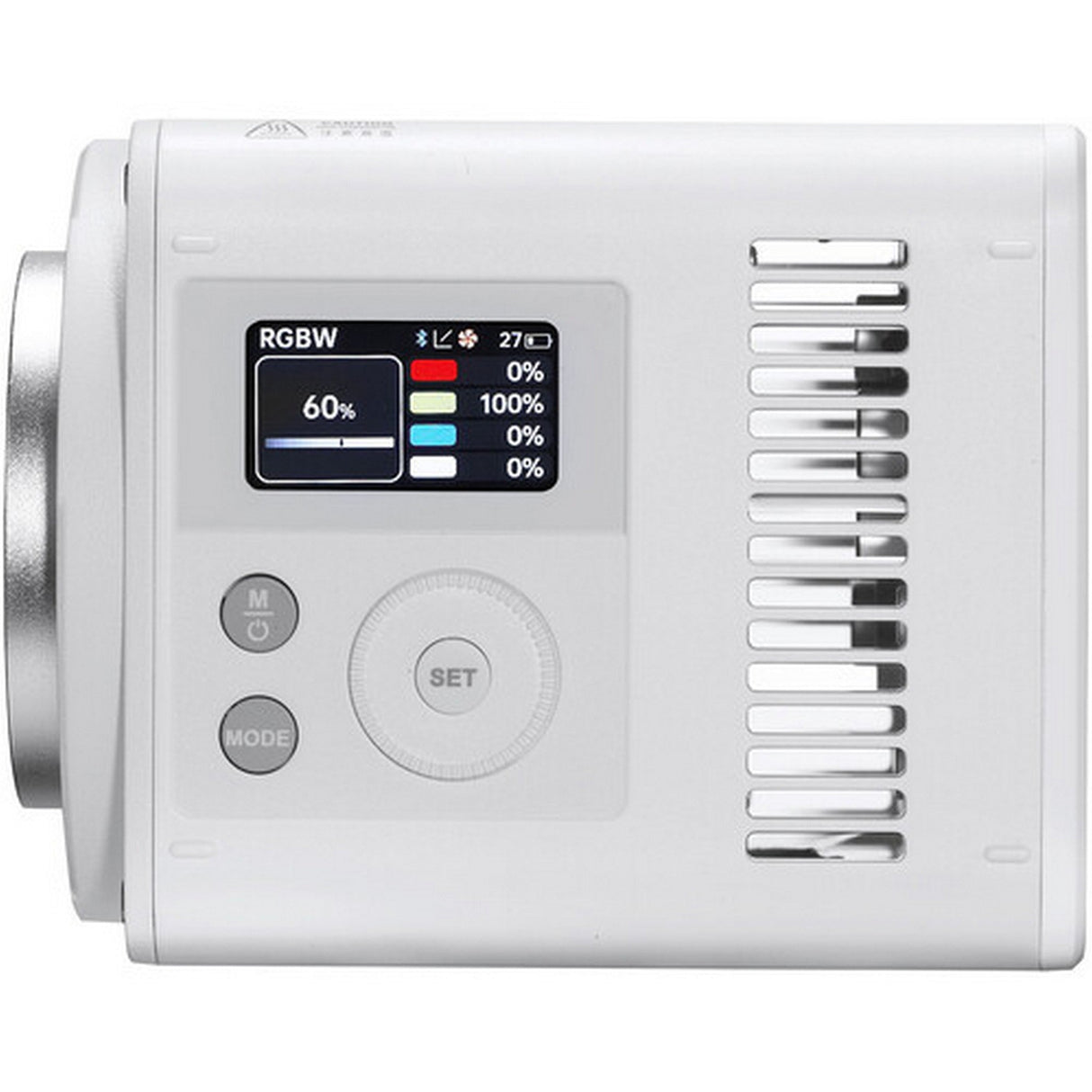

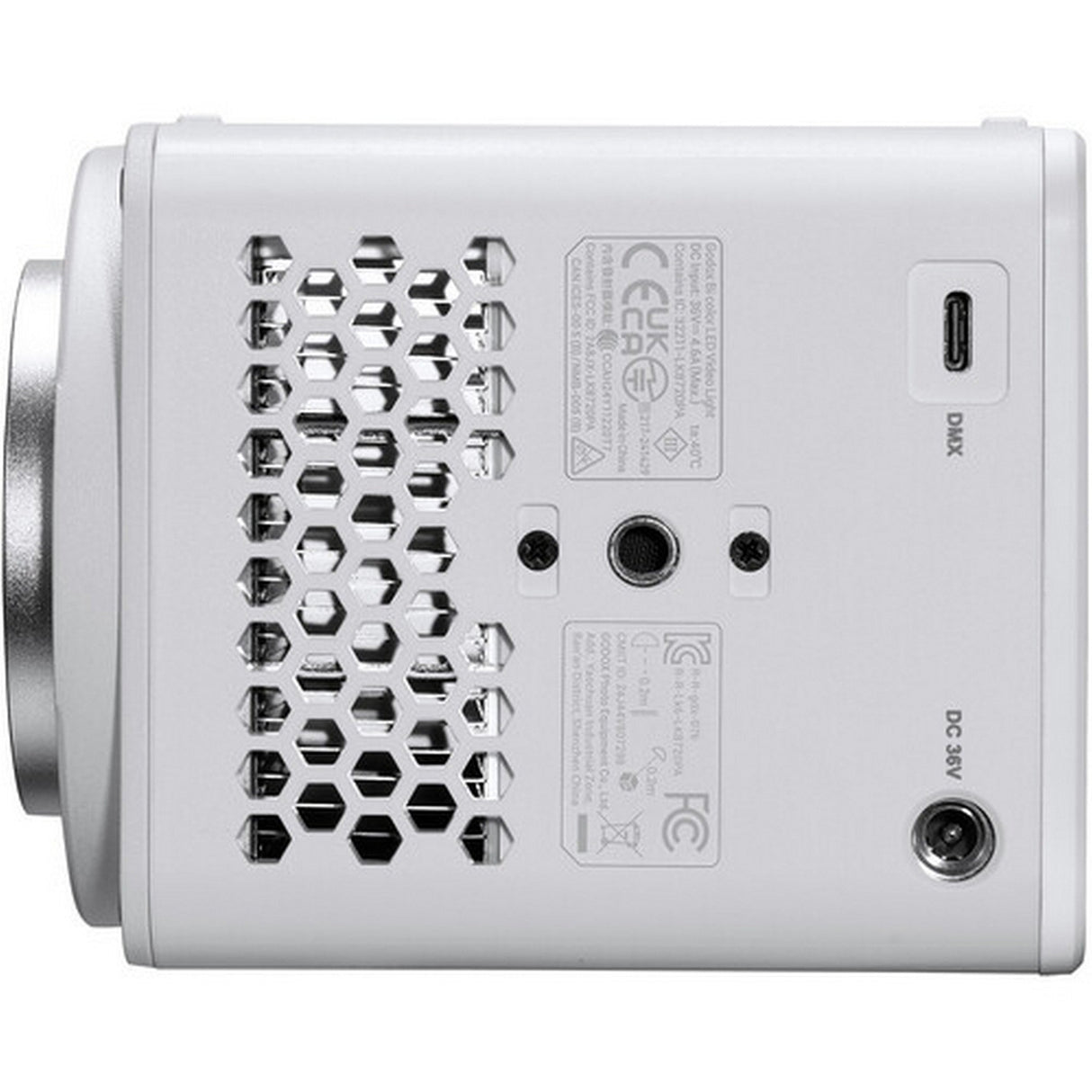

Godox ML150 RF PaletteLab RGB LED Light - White

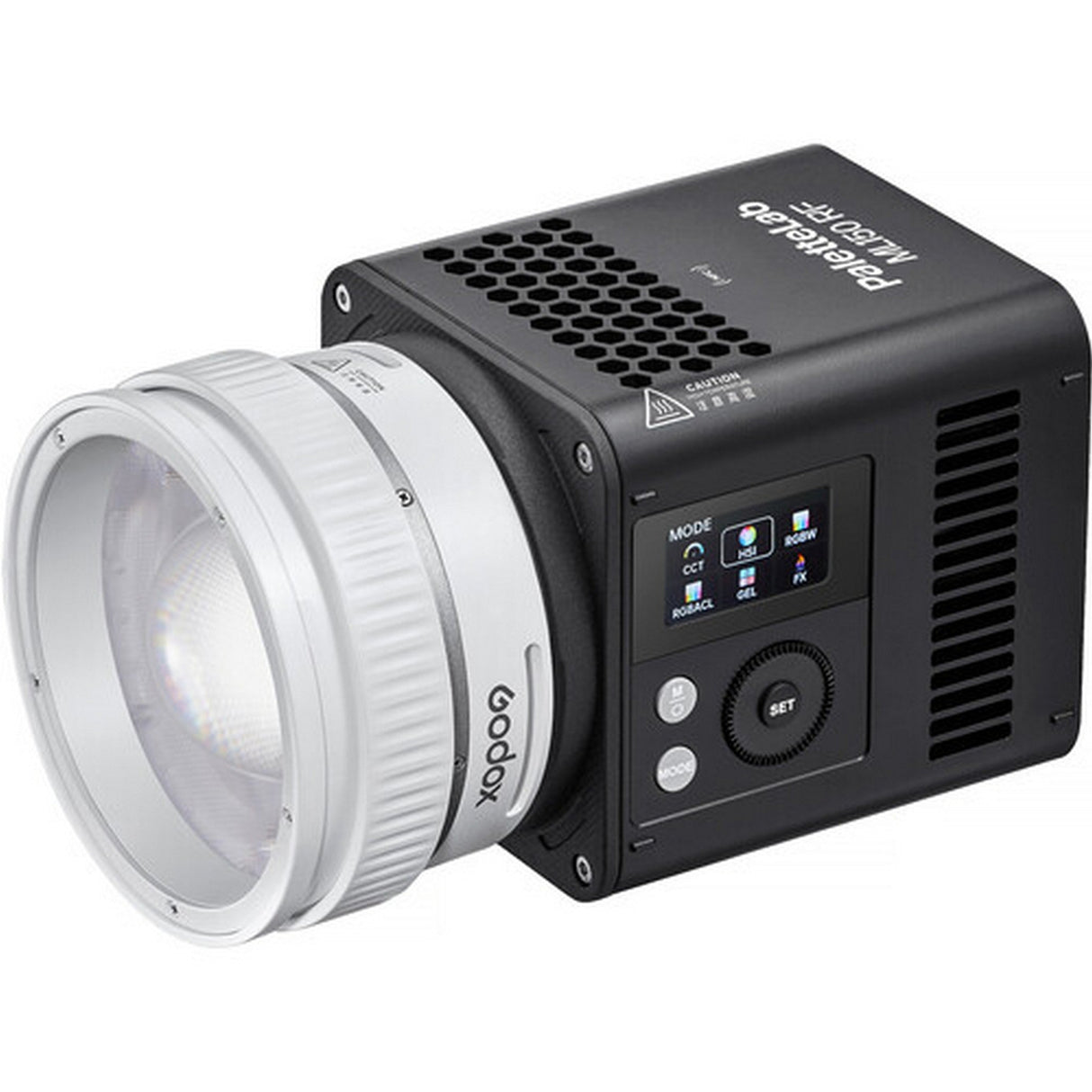

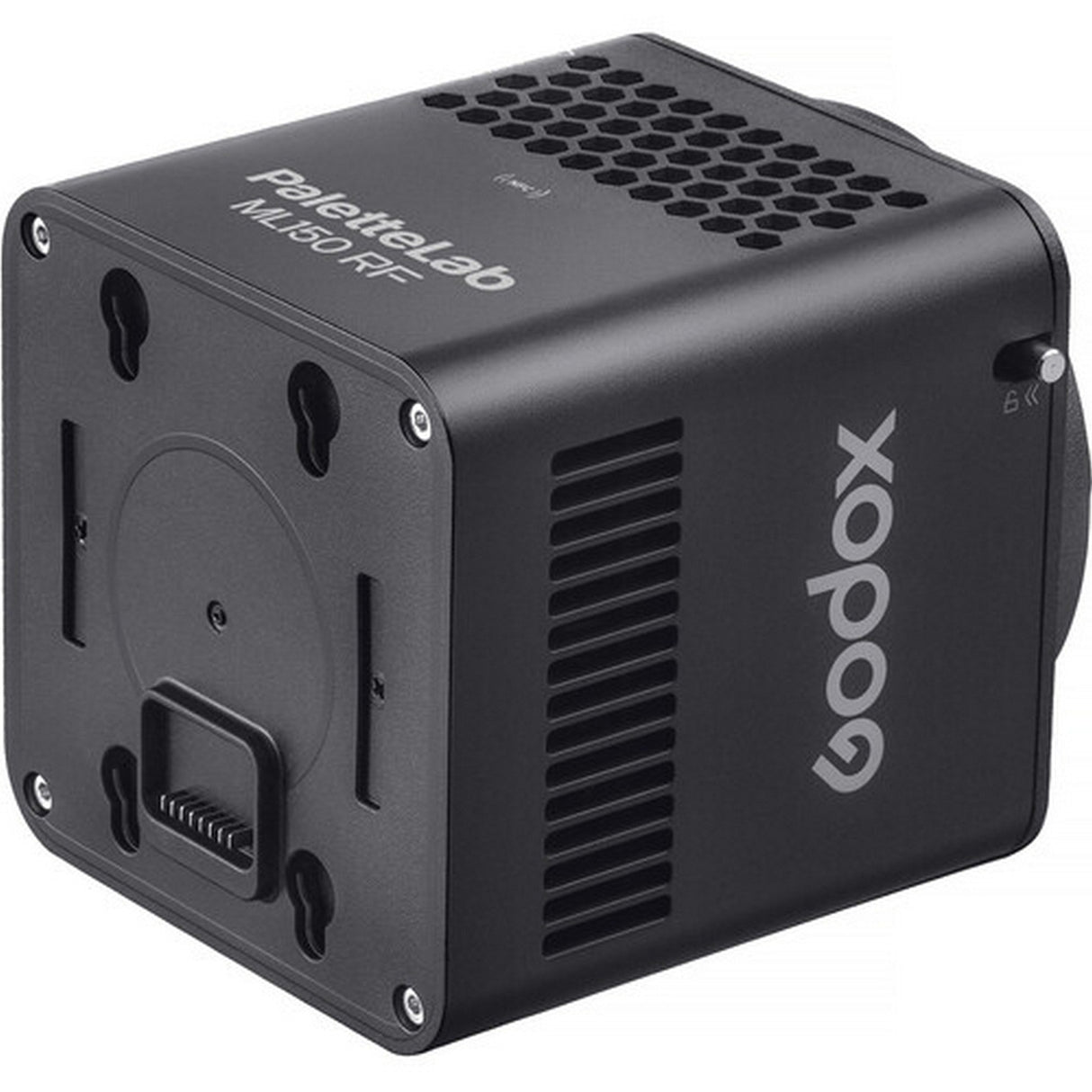

Godox ML150 RF PaletteLab RGB LED Light - Black / White

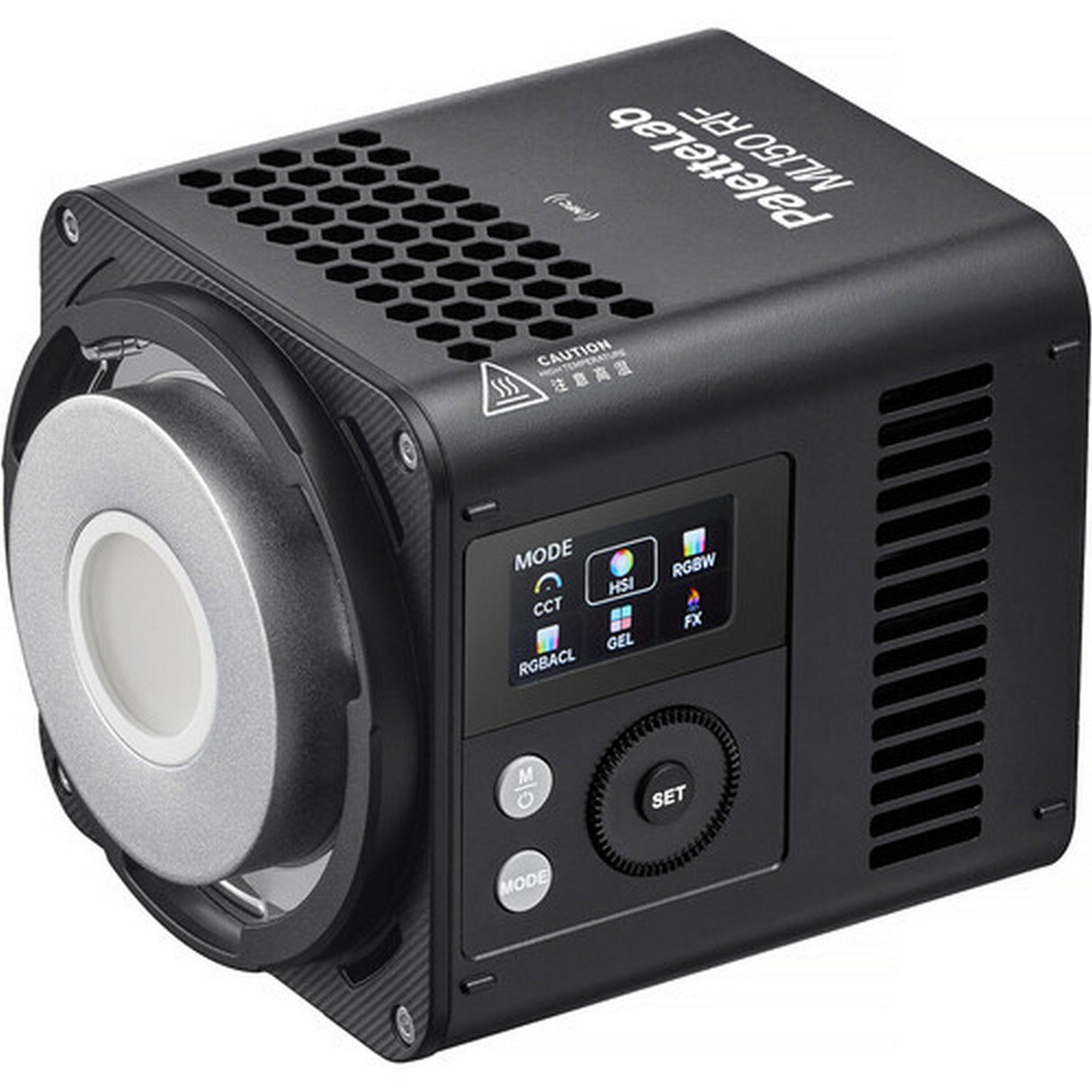

The Godox ML150 RF PaletteLab RGB LED Light is a compact 165W full-color fixture for video, photography, and location production. Available in black or white, it combines an 1800K to 10,000K CCT range, full RGB control, CRI and TLCI ratings of approximately 96, and up to 14,000 lux at 3.3' with its zoom lens reflector.

The PaletteLab color engine supports CCT, HSI, RGBW, Gel, FX, and XY workflows for precise creative lighting across changing production requirements. Green-magenta adjustment spans -100% to +100%, while four dimming curves and 14 built-in effects expand on-set control. The compact ML150 RF suits interviews, product work, portraits, filmmaking, content creation, and portable full-color lighting setups where both output and mobility matter.

Control options include onboard adjustment, the Godox Light app over Bluetooth, NFC pairing, and wired DMX/RDM. Optional TimoLink hardware adds CRMX control. The modular fixture accepts AC power and supports compatible battery configurations for location work, while the Godox Mount provides access to compact lighting modifiers. Both color variants share the same optical, electrical, control, dimensional, and performance specifications.

Available Color Variants

• Black: ML150 RF black finish

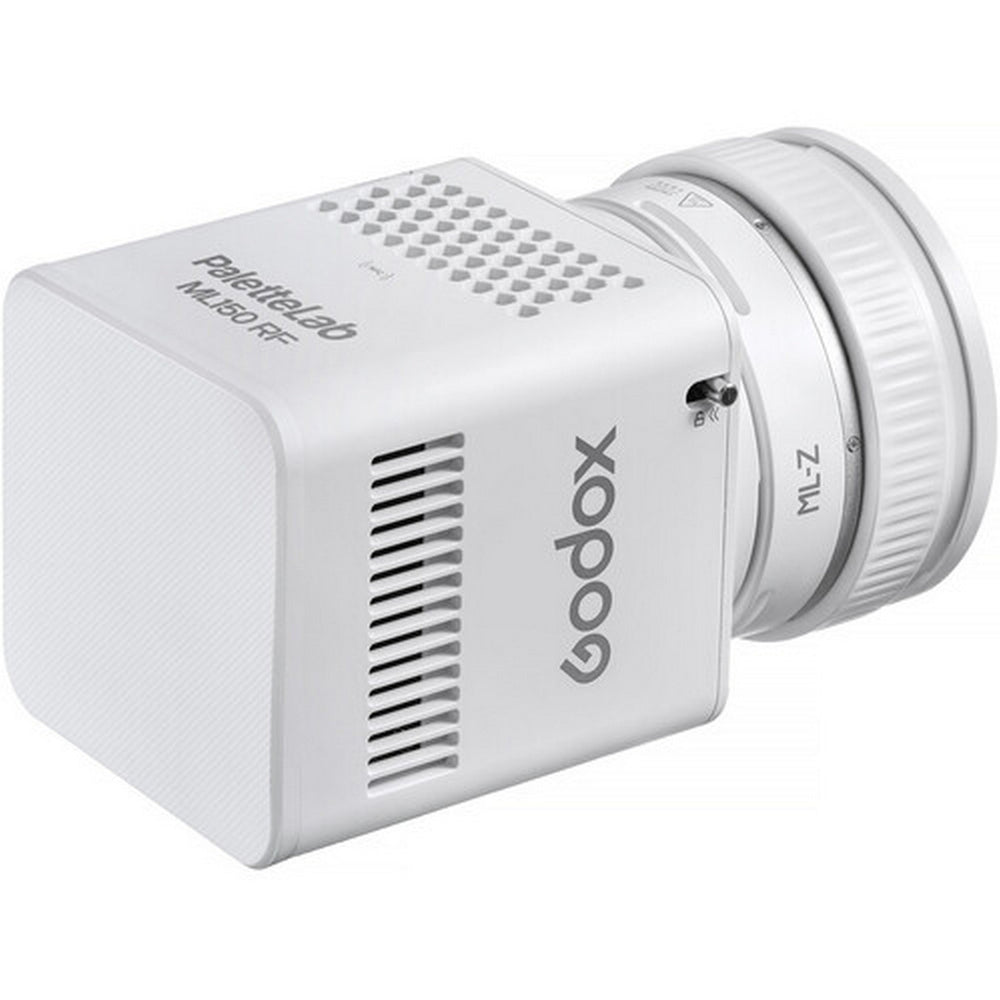

• White: ML150 RF white finish

Key Features

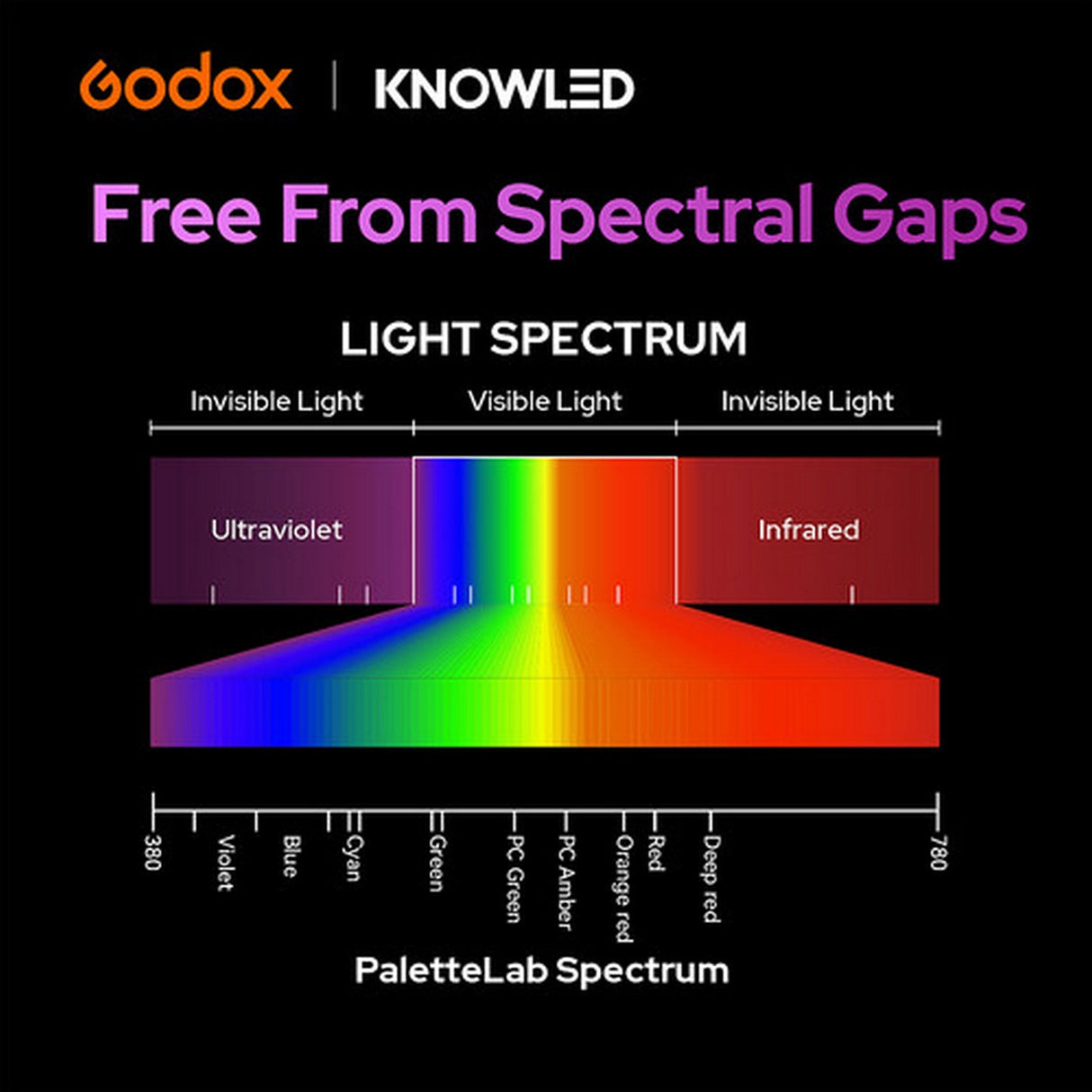

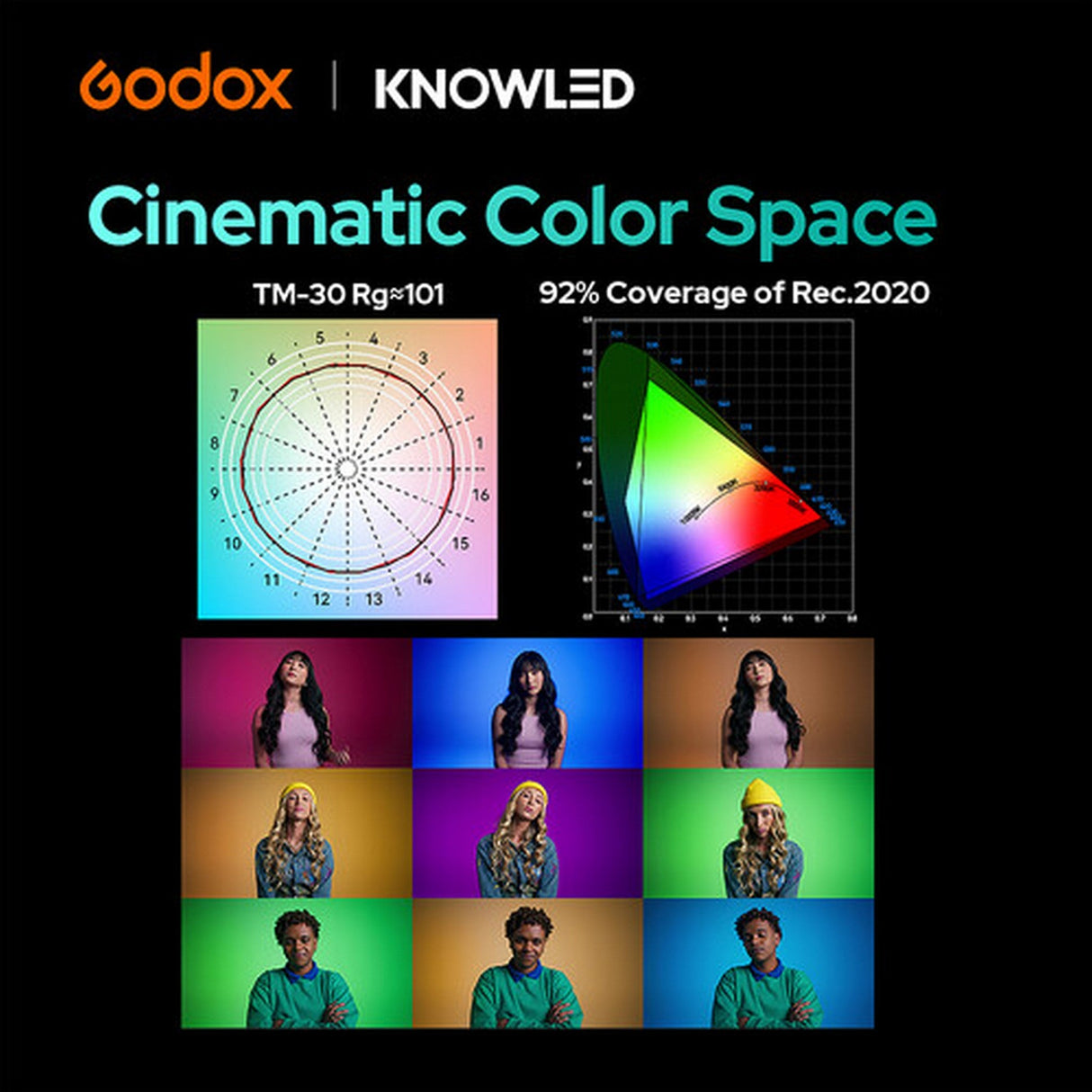

• PaletteLab Full-Color Engine: Provides full-spectrum control with CCT, HSI, RGBW, Gel, FX, and XY operating modes.
• 1800K to 10,000K CCT: Covers an extended range from very warm illumination through cool daylight-balanced output.
• 14,000 Lux Output: Produces up to 14,000 lux at 3.3' and 5600K using the included zoom lens in its spot setting.

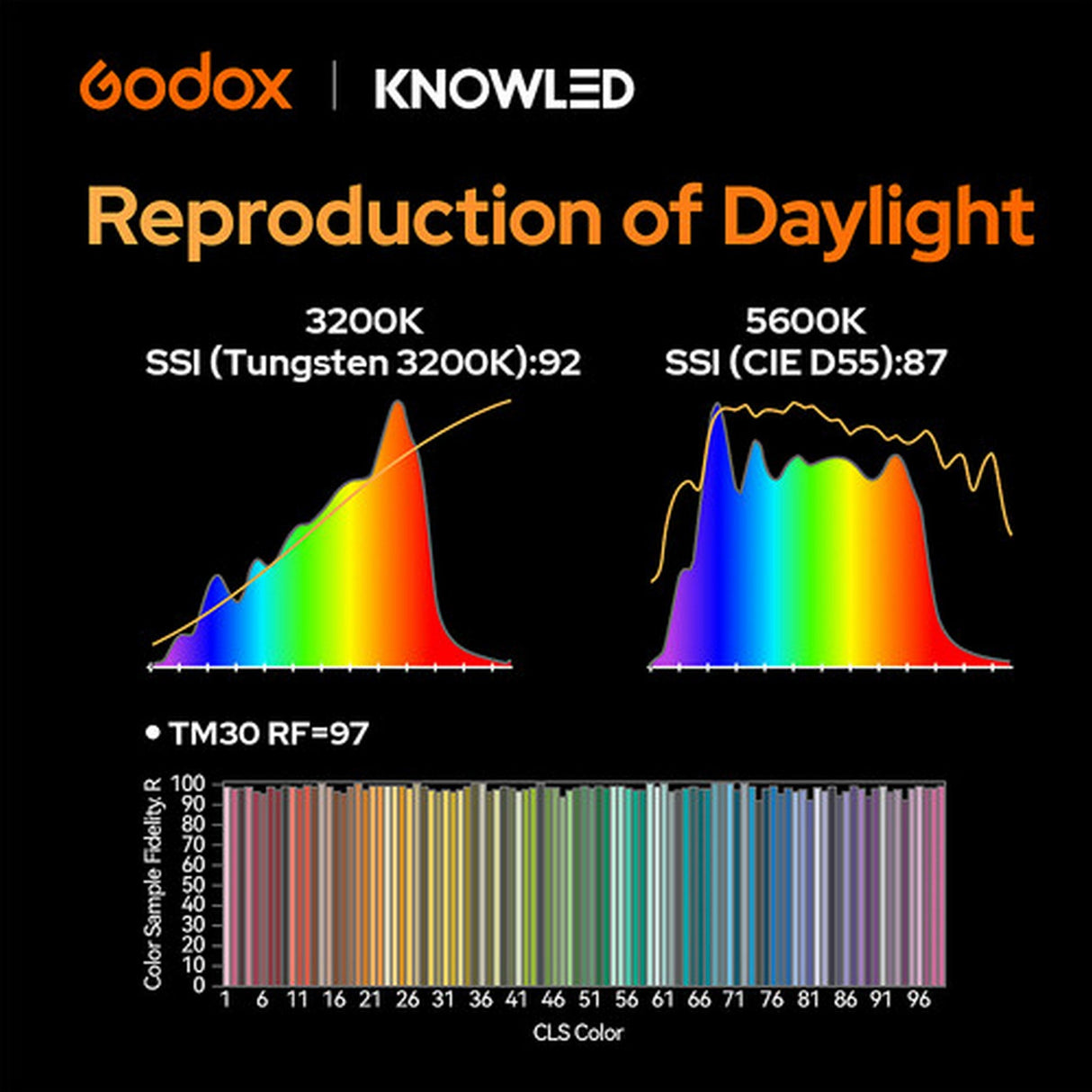

• High Color Accuracy: Delivers approximately CRI 96 and TLCI 96 for consistent color reproduction in camera.
• Professional Control Options: Supports onboard control, Bluetooth app operation, NFC pairing, and wired DMX/RDM integration.
• Flexible Power: Runs from AC power and supports compatible portable battery solutions for location production.
• Godox Mount: Accepts compatible compact reflectors, softboxes, projection attachments, Fresnel accessories, and other light modifiers.
• Black or White: Identical performance is available in two fixture finishes for different studio and equipment setups.

Technical Specifications

Light and Color

• Product Type: Full-color LED monolight
• Model: ML150 RF
• Available Colors: Black / White
• Maximum Power Consumption: 165W
• CCT Range: 1800K to 10,000K
• Green-Magenta Adjustment: -100% to +100%
• Brightness Range: 0 to 100%
• Color Modes: CCT / HSI / RGBW / Gel / FX / XY
• CRI: Approximately 96
• TLCI: Approximately 96
• Dimming Curves: Linear / S-Curve / Exponential / Logarithmic
• FX Modes: 14
• FX Effects: Flash / Lightning / Cloudy / Broken Bulb / TV / Candle / Fire / Fireworks / Explosion / Welding / Cop Car / SOS / RGB Cycle / Party

Photometrics

• Unmodified Output at 3200K, 3.3': 4870 lux
• Unmodified Output at 3200K, 6.6': 1200 lux
• Unmodified Output at 3200K, 9.8': 556 lux
• Unmodified Output at 5600K, 3.3': 4940 lux
• Unmodified Output at 5600K, 6.6': 1230 lux
• Unmodified Output at 5600K, 9.8': 565 lux
• Spot Lens Output at 3200K, 3.3': 13,800 lux
• Spot Lens Output at 3200K, 6.6': 3300 lux
• Spot Lens Output at 3200K, 9.8': 1460 lux
• Spot Lens Output at 5600K, 3.3': 14,000 lux
• Spot Lens Output at 5600K, 6.6': 3350 lux
• Spot Lens Output at 5600K, 9.8': 1480 lux
• Flood Lens Output at 3200K, 3.3': 11,800 lux
• Flood Lens Output at 3200K, 6.6': 2860 lux
• Flood Lens Output at 3200K, 9.8': 1240 lux
• Flood Lens Output at 5600K, 3.3': 12,000 lux
• Flood Lens Output at 5600K, 6.6': 2880 lux
• Flood Lens Output at 5600K, 9.8': 1260 lux

Control and Connectivity

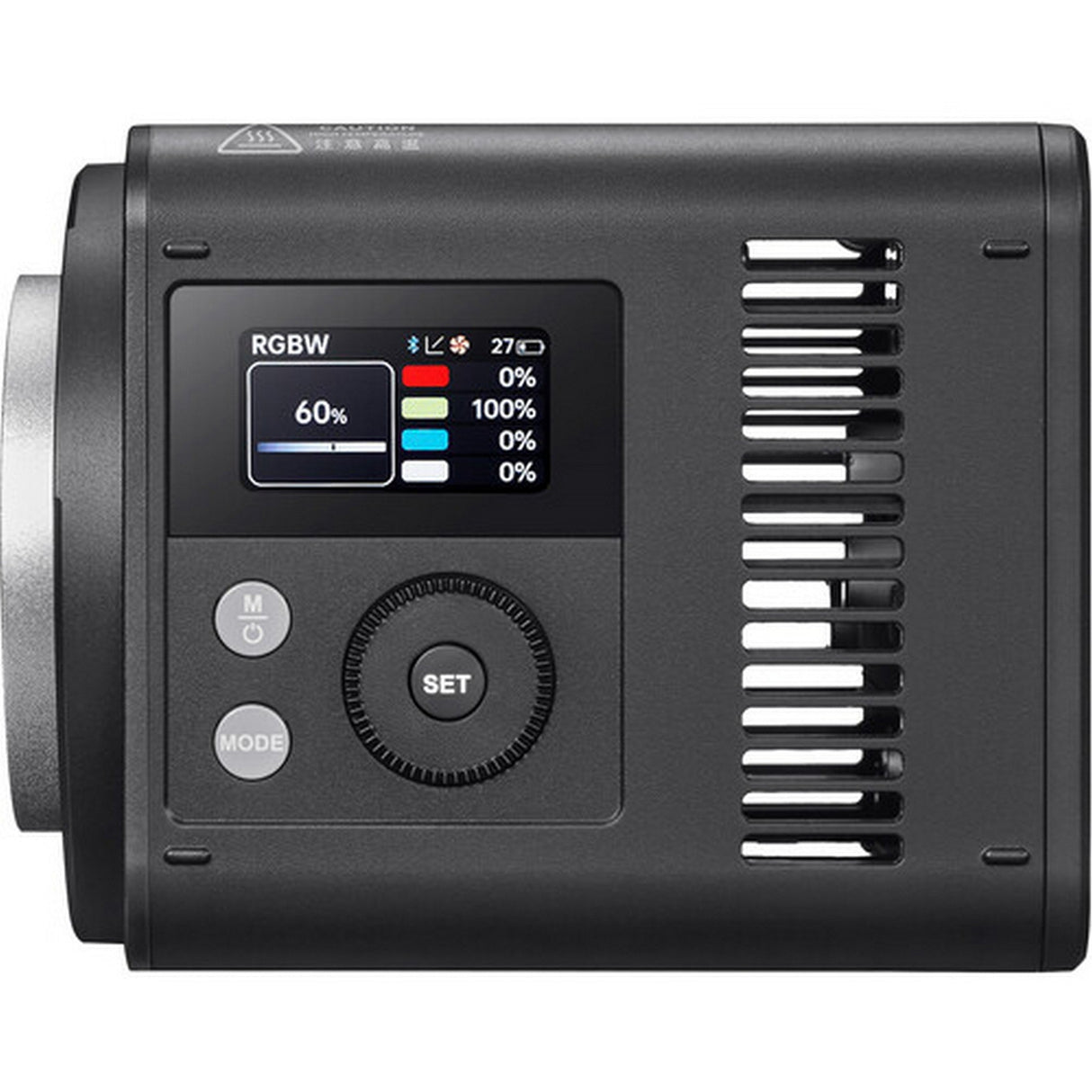

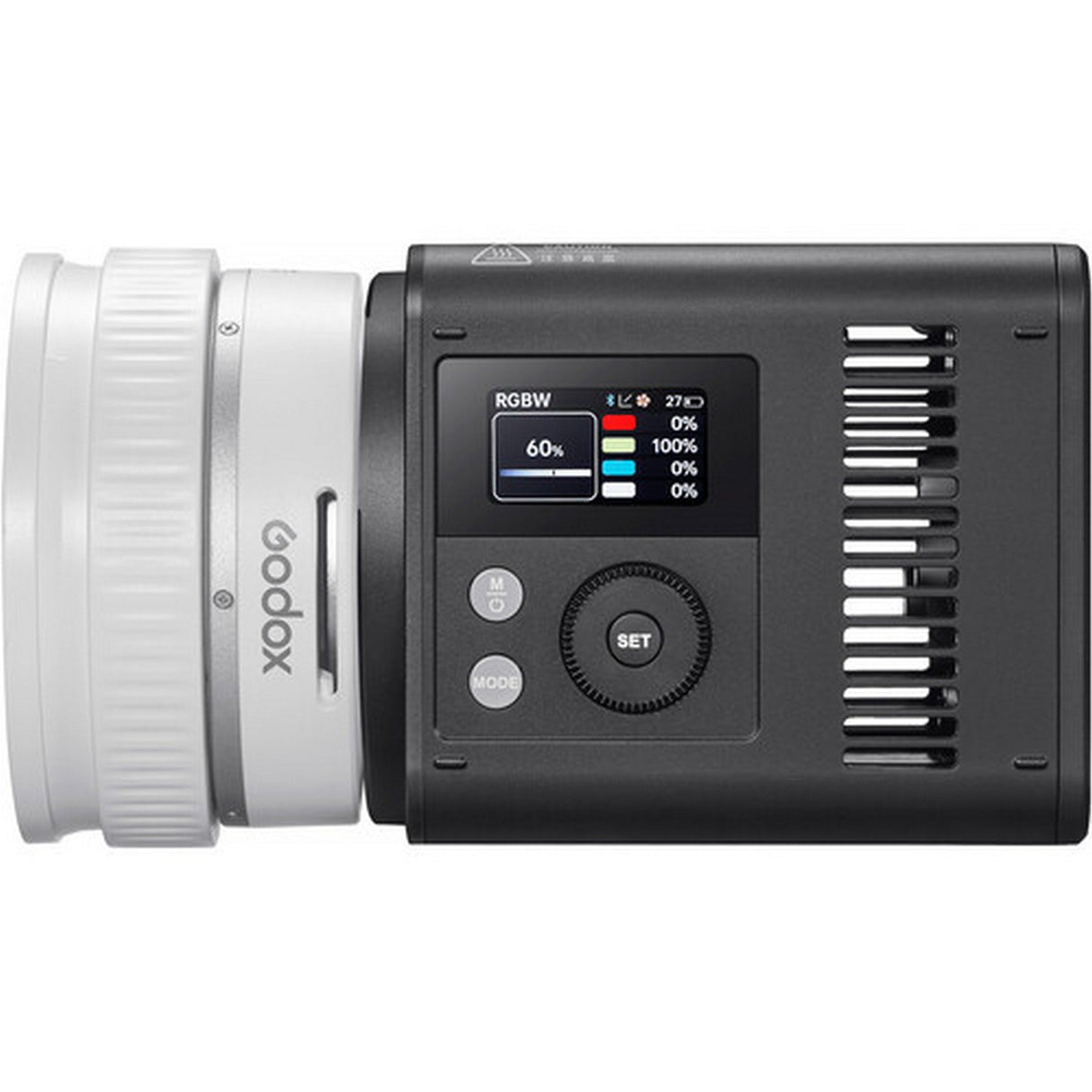

• Onboard Control: Yes
• Wireless Control: Bluetooth
• Bluetooth Range: Approximately 98.4'
• Mobile App: Godox Light app
• NFC Pairing: Supported

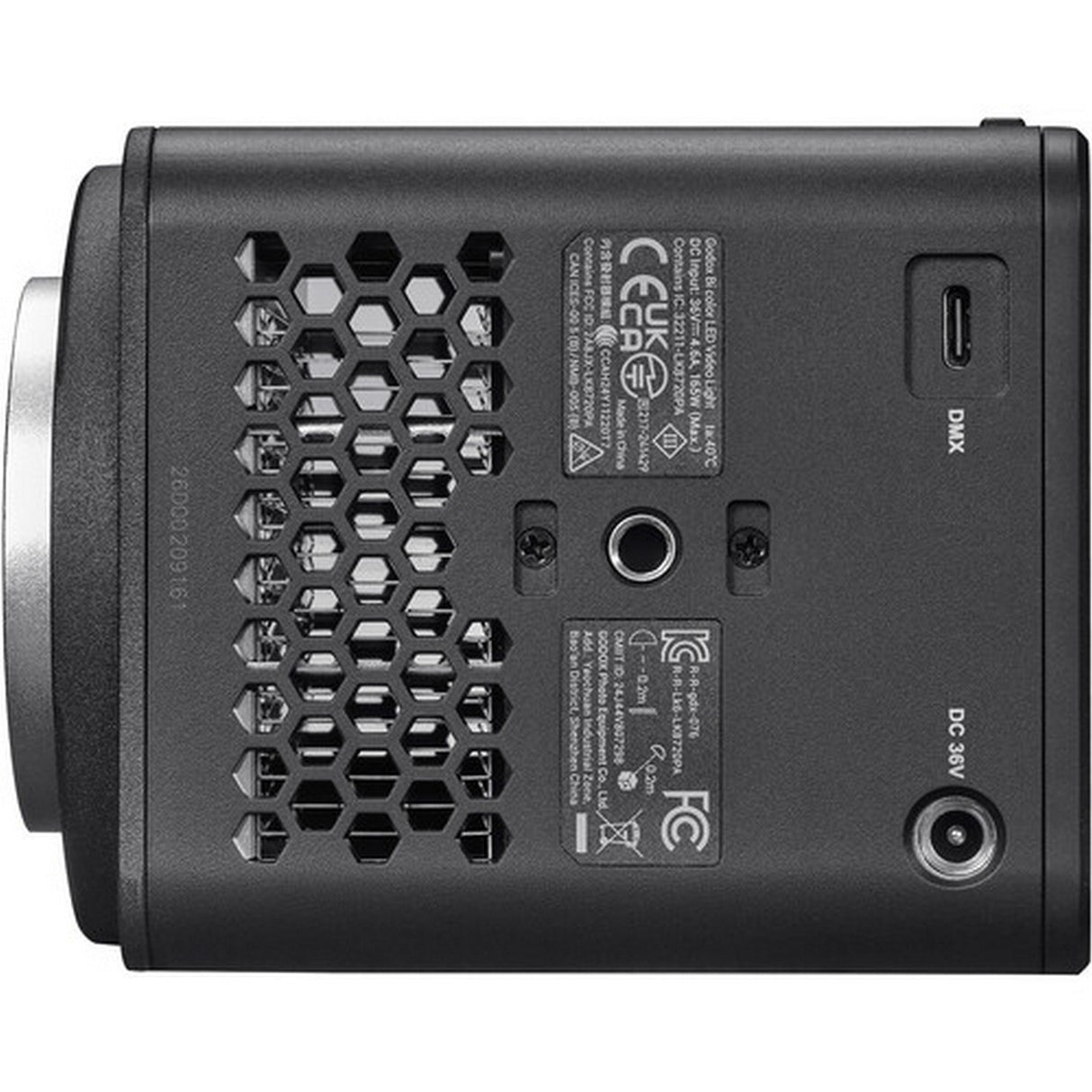

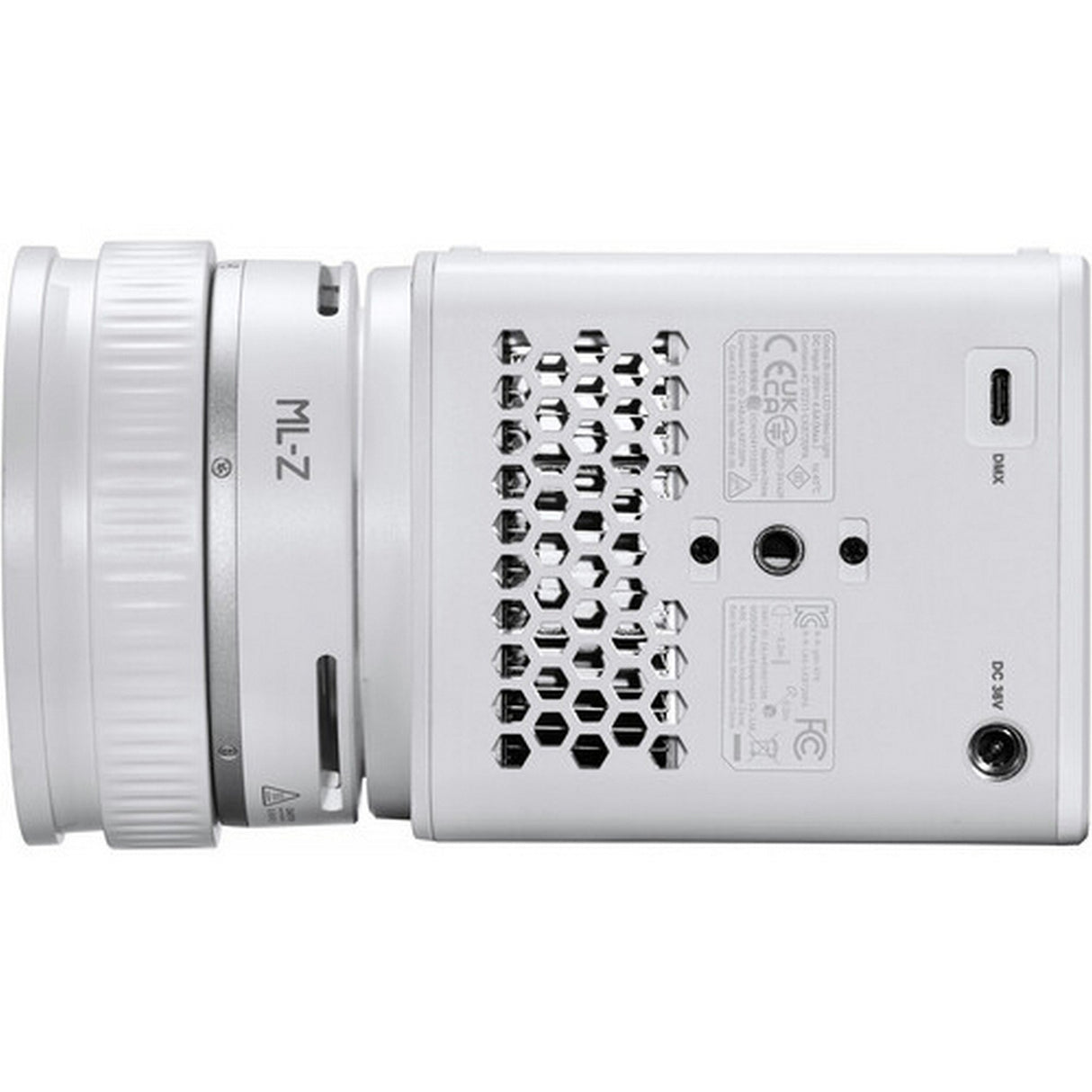

• Wired Control: DMX / RDM
• CRMX Control: Supported with optional TimoLink
• Firmware Updates: Supported through the app

Power and Mounting

• Fixture Input: 36V DC, 4.6A
• Maximum Input Power: 165W
• AC Adapter Input: 120 to 240 VAC, 50/60 Hz

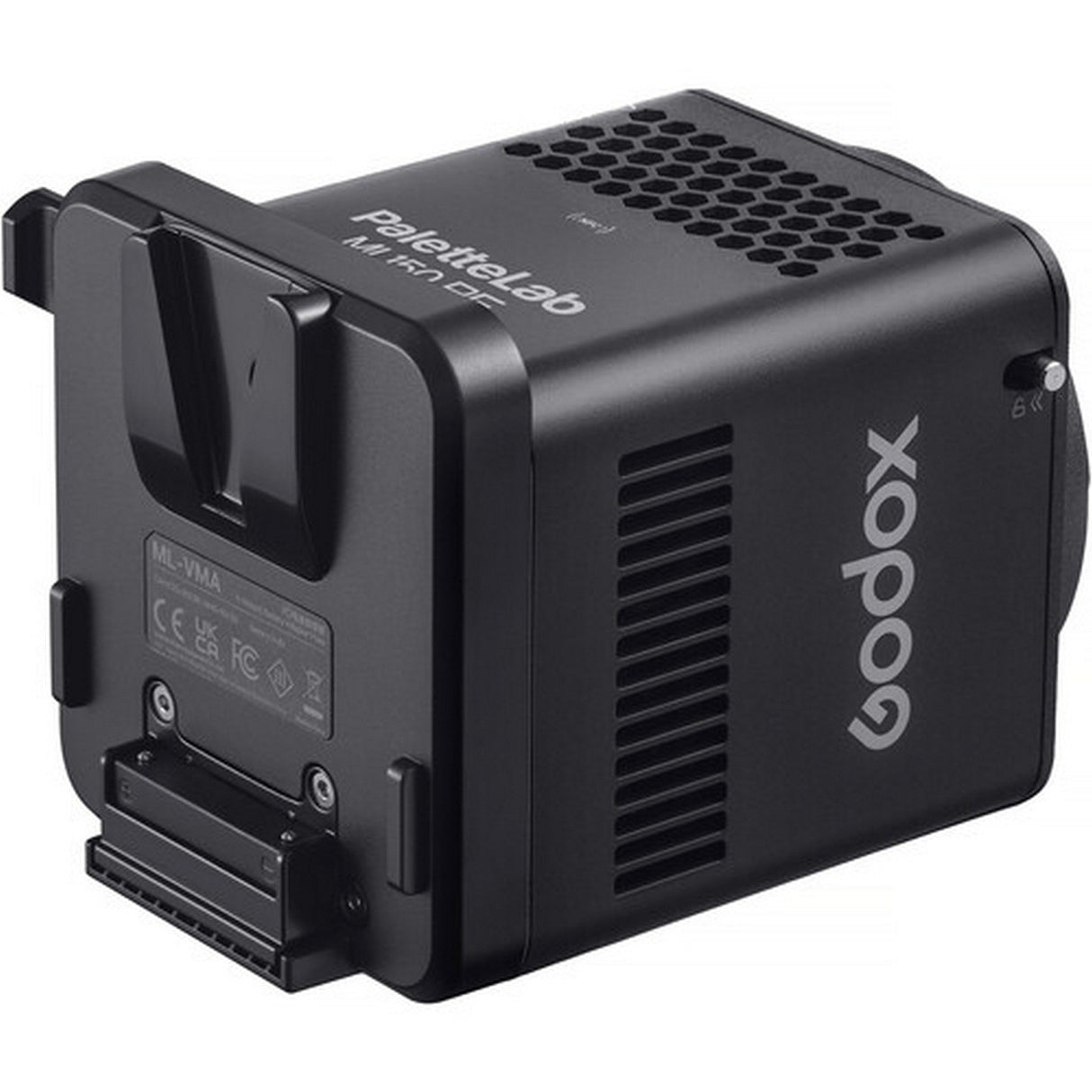

• Battery Support: Optional ML-BA battery or compatible V-Mount battery configuration
• Cooling: Fan
• Fan Modes: Off / Auto / Medium / High

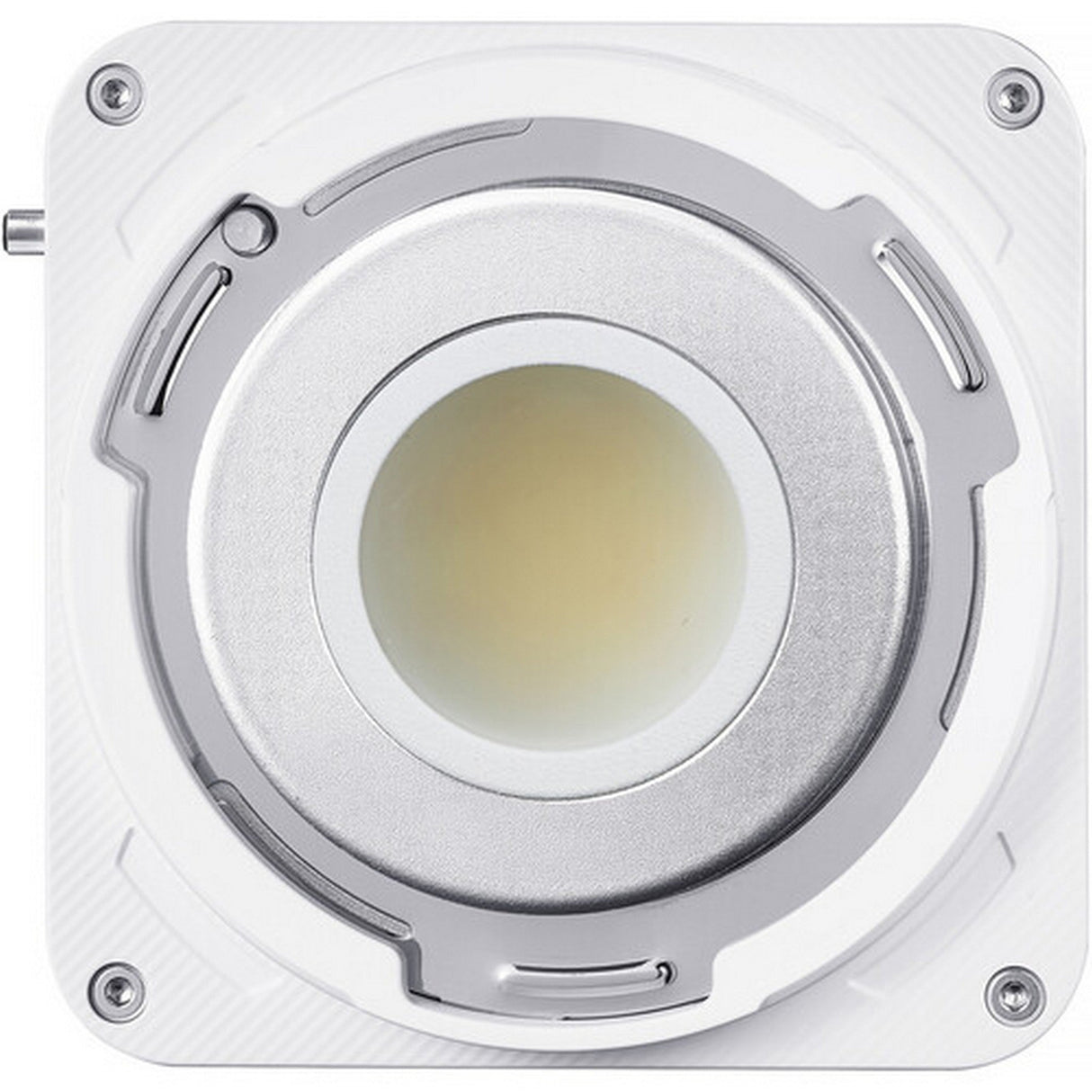

• Accessory Mount: Godox Mount
• Fixture Mounting: 1/4"-20 female thread
• Umbrella Mount: Yes

Physical Specifications

• Operating Temperature: 14 to 104°F
• Dimensions: 4.5 x 3.6 x 3.6"
• Weight: Approximately 2 lb

What's In the Box

• Godox ML150 RF PaletteLab RGB LED Light in selected color

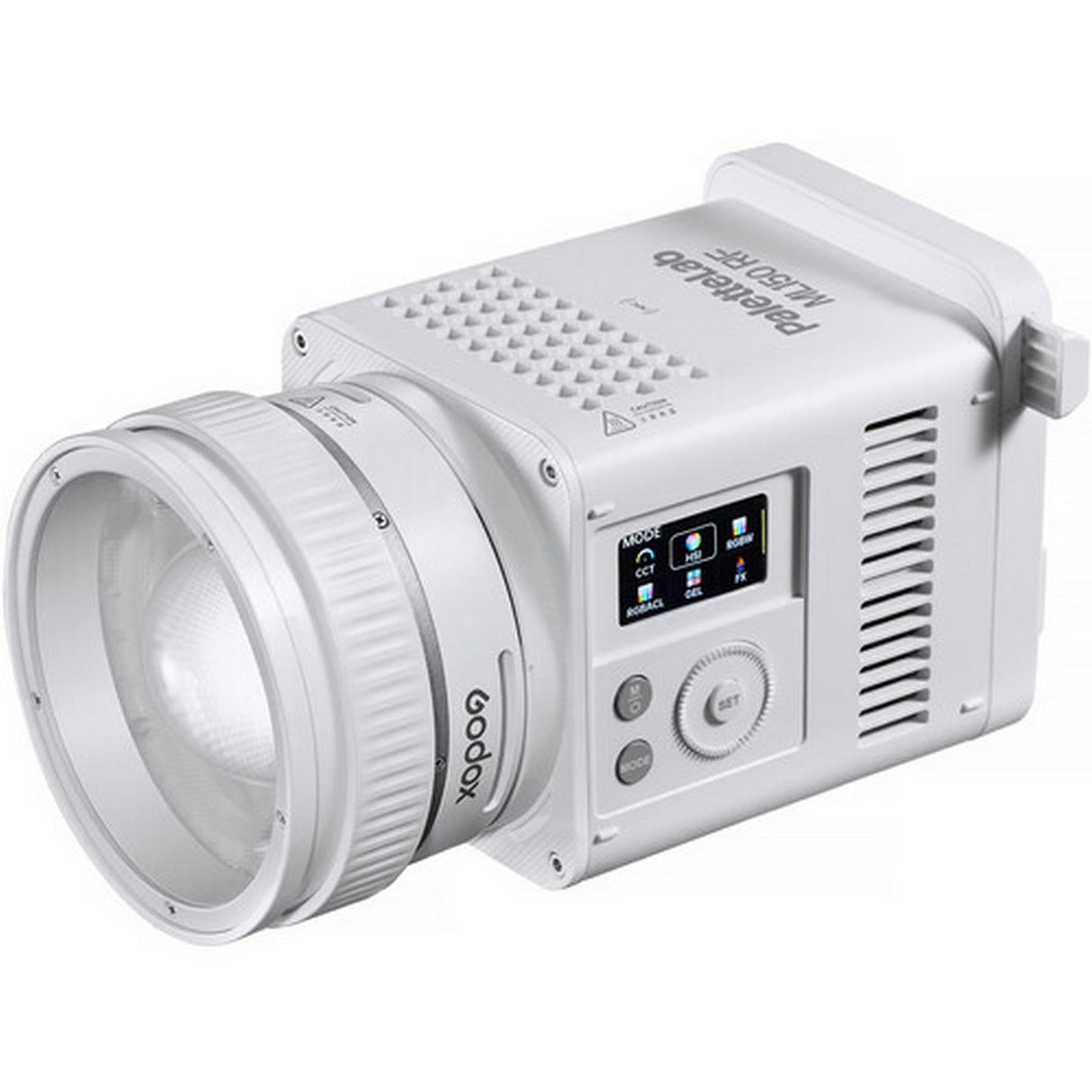

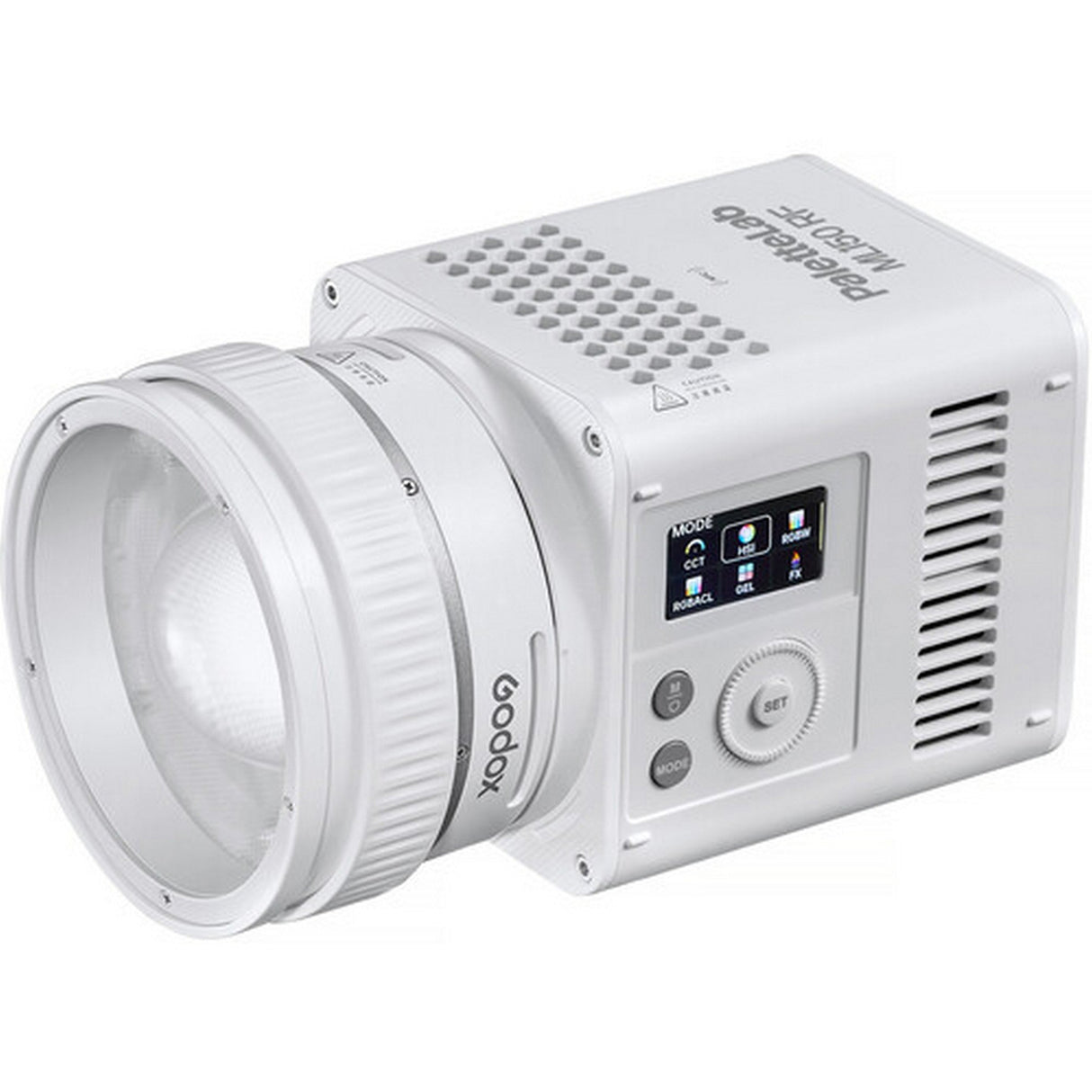

• Zoom lens reflector
• AD-E2 bracket

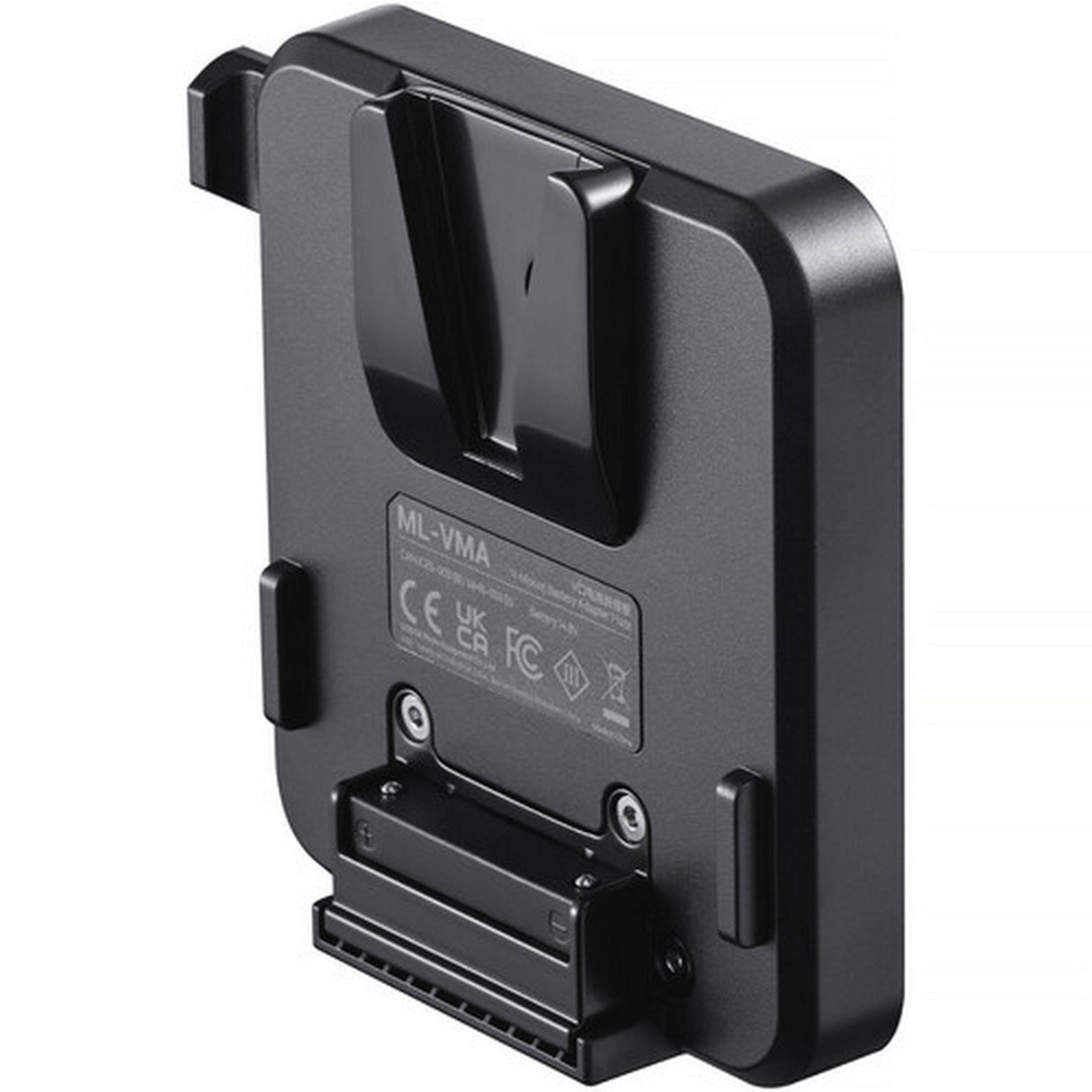

• V-Mount battery adapter
• Power adapter
• Power cord
• Protective cover
• Storage bag
