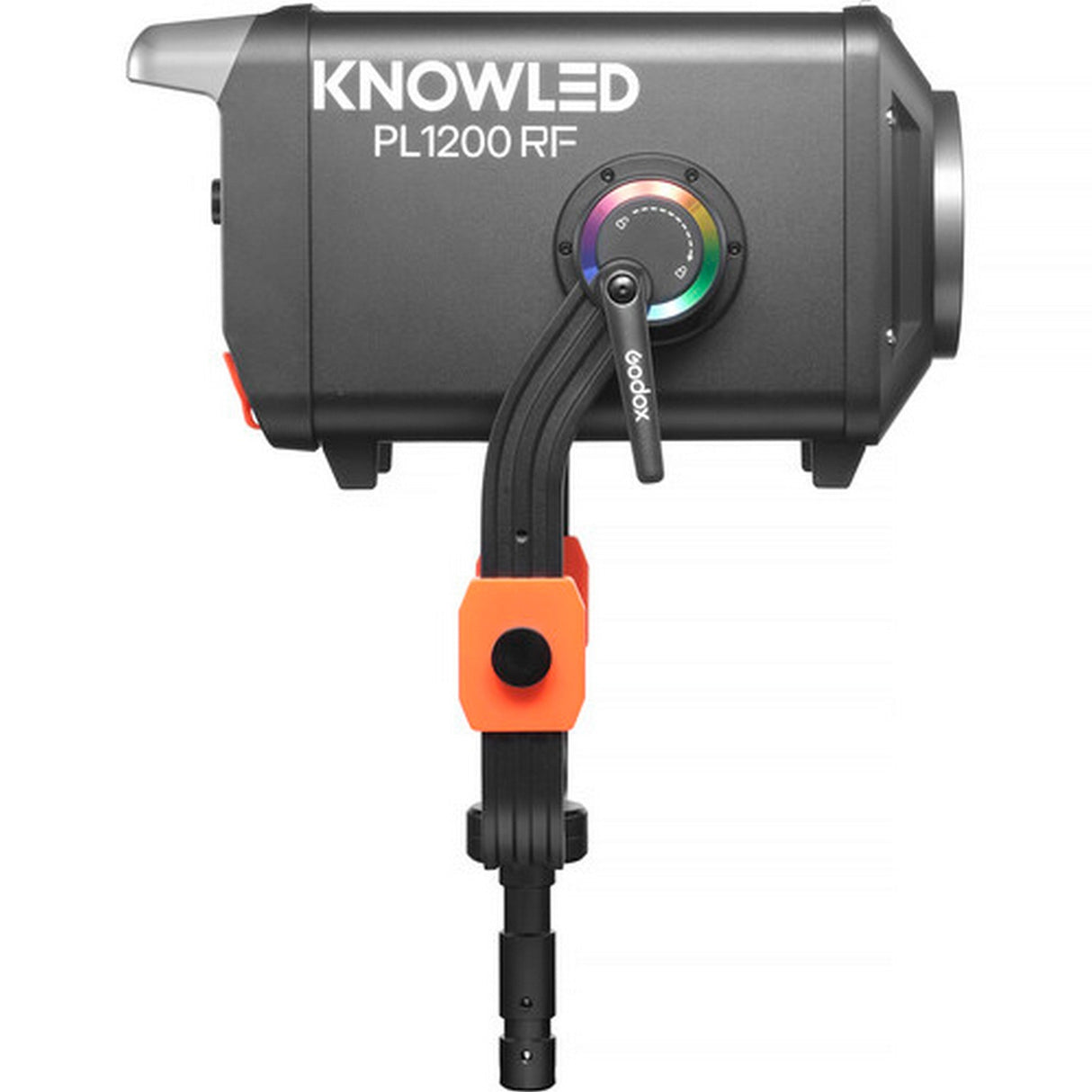

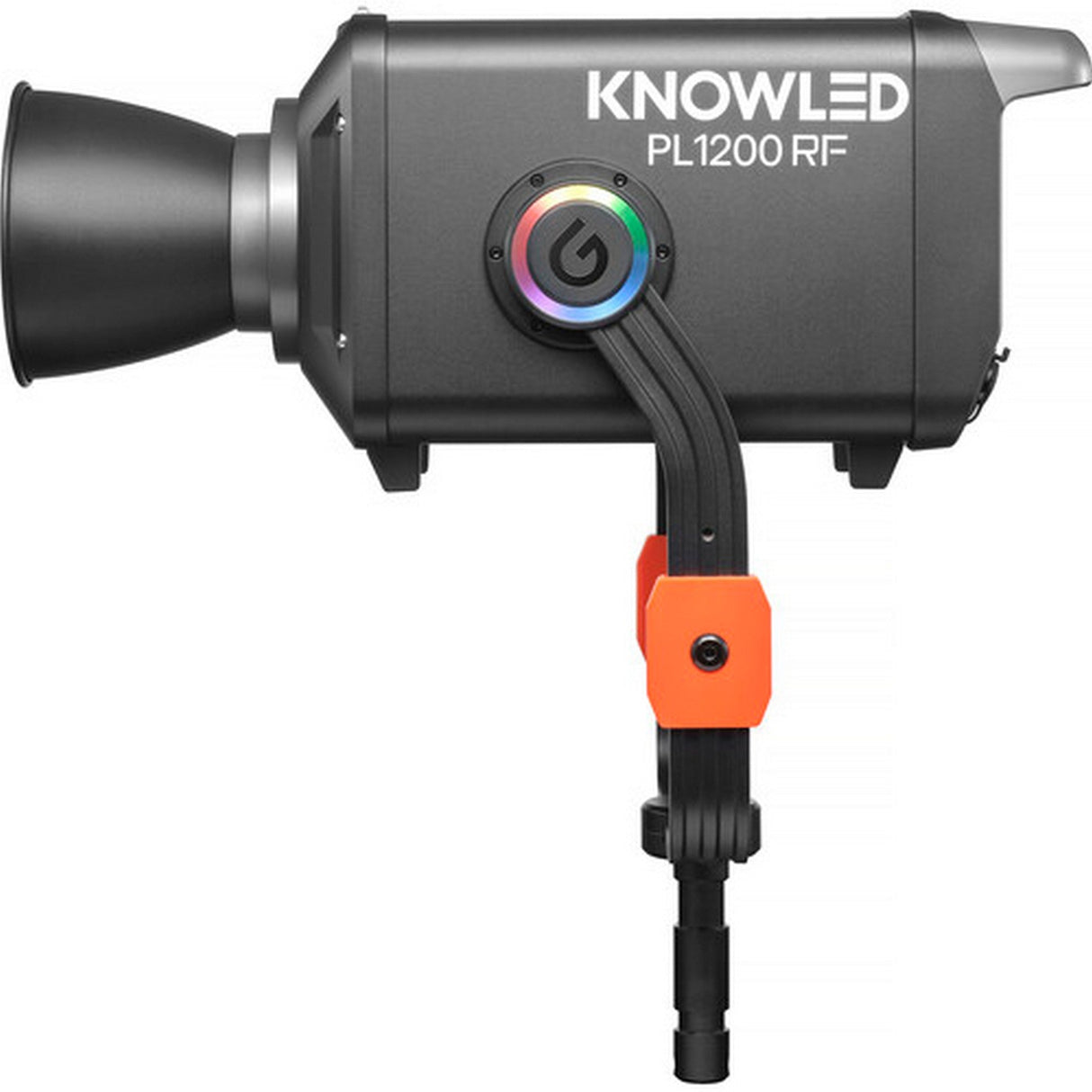

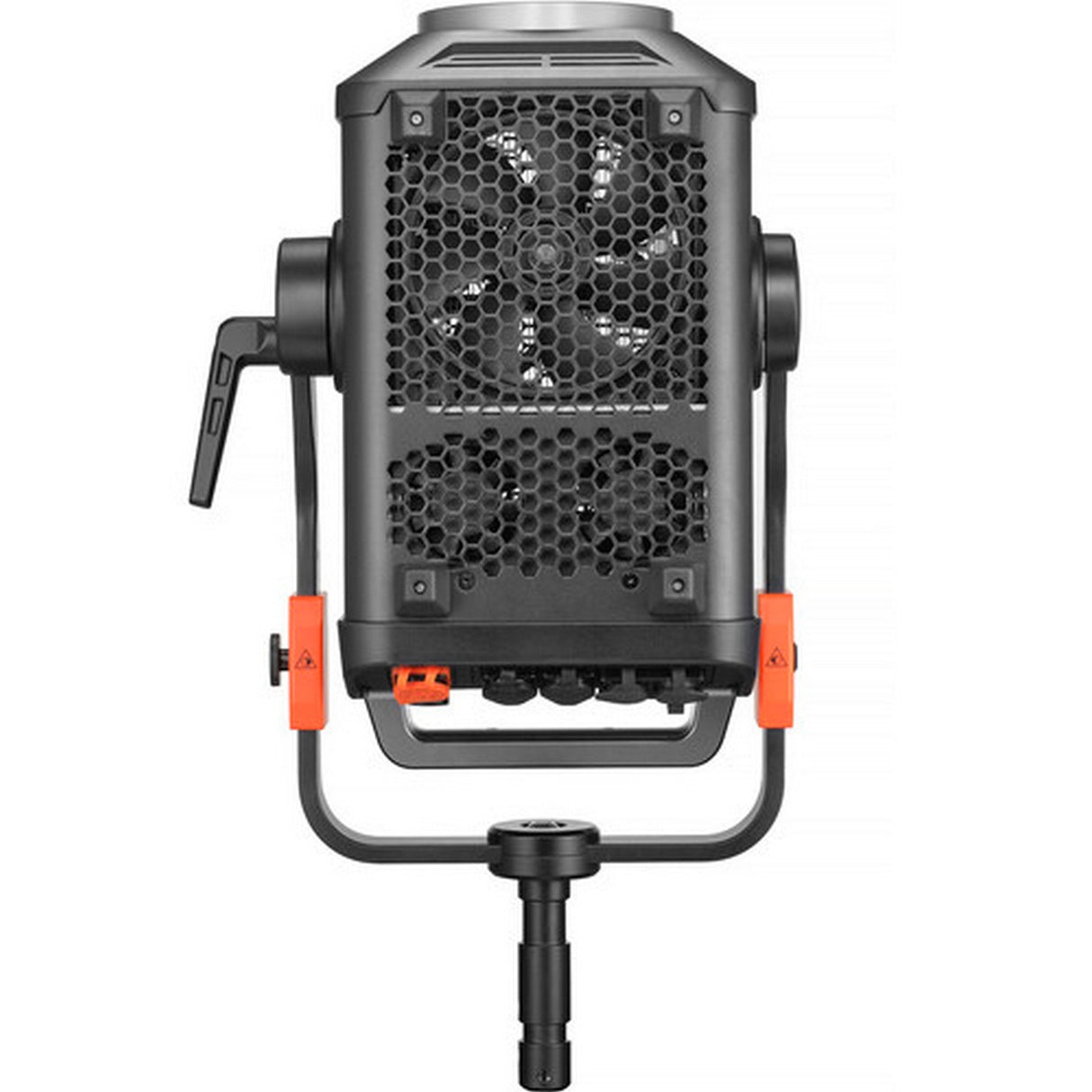

Godox PL1200 RF K1 PaletteLab 1200W Full-Spectral LED Light Kit

Godox PL1200 RF K1 PaletteLab 1200W Full-Spectral LED Light Kit

The Godox PL1200 RF K1 PaletteLab 1200W Full-Spectral LED Light Kit is a high-output production fixture for cinema, broadcast, commercial video, and demanding studio work. Its PaletteLab full-spectrum engine spans 1800K to 10,000K, covers 92% of Rec.2020, and provides approximately CRI 98 and TLCI 99 color accuracy.

Designed for large sets and location production, the PL1200 RF combines a broad color-temperature range with -100% to +100% green-magenta correction and 0 to 100% dimming. Four dimming curves, 14 FX modes, and three calibrated light-response curves expand creative control. Full-spectrum architecture also delivers TM-30 RF 97, CRI R9 99, and a palette exceeding 281 trillion colors.

Professional control includes DMX/RDM, built-in CRMX, Ethernet, Bluetooth, and direct fixture operation. The all-in-one body integrates its power supply to reduce external hardware, while IP65 protection supports demanding studio and outdoor environments. A Flat Bowens Mount accepts compatible modifiers, and the K1 configuration adds transport accessories for production crews moving between locations.

Key Features

• 1200W-Class PaletteLab Fixture: Provides high-output full-spectrum illumination for large film, broadcast, and commercial production environments.
• 1800K to 10,000K CCT: Covers very warm sources through cool daylight with extensive white-light adjustment.
• Full-Spectrum Color Engine: Delivers approximately 281 trillion colors with 92% Rec.2020 gamut coverage.
• High Color Accuracy: Provides approximately CRI 98, TLCI 99, TM-30 RF 97, and CRI R9 99 performance.
• Professional Network Control: Supports DMX/RDM, built-in CRMX, Ethernet, Bluetooth, and direct onboard operation.
• IP65 Protection: Resists dust and water exposure for demanding studio and location production.
• Integrated Power Supply: Eliminates a separate external power adapter for simpler rigging and transport.
• Flat Bowens Mount: Supports a broad selection of compatible professional reflectors and lighting modifiers.

Technical Specifications

Light and Color

• Product Type: Full-spectrum LED monolight kit
• Model: PL1200 RF K1
• Fixture Model: PL1200 RF
• Series: KNOWLED PaletteLab
• Color: Black
• Color Engine: PaletteLab Full Spectrum
• CCT Range: 1800K to 10,000K
• Green-Magenta Adjustment: -100% to +100%
• Brightness Range: 0 to 100%
• Dimming Curves: Linear / S-Curve / Exponential / Logarithmic
• Light Curves: Godox Curve / Blackbody Curve / Daylight Curve
• FX Modes: 14
• CRI: Approximately 98
• TLCI: Approximately 99
• TM-30 RF: 97
• CRI R9: 99
• SSI: 92 / 87
• Rec.2020 Coverage: 92%
• Color Palette: More than 281 trillion colors

Photometric Output

• Output at 1800K, 3.3': 17,900 lux
• Output at 1800K, 9.8': 2160 lux
• Output at 1800K, 16.4': 752 lux
• Output at 1800K, 32.8': 180 lux
• Output at 10,000K, 3.3': 25,600 lux
• Output at 10,000K, 9.8': 2900 lux
• Output at 10,000K, 16.4': 1070 lux
• Output at 10,000K, 32.8': 268 lux

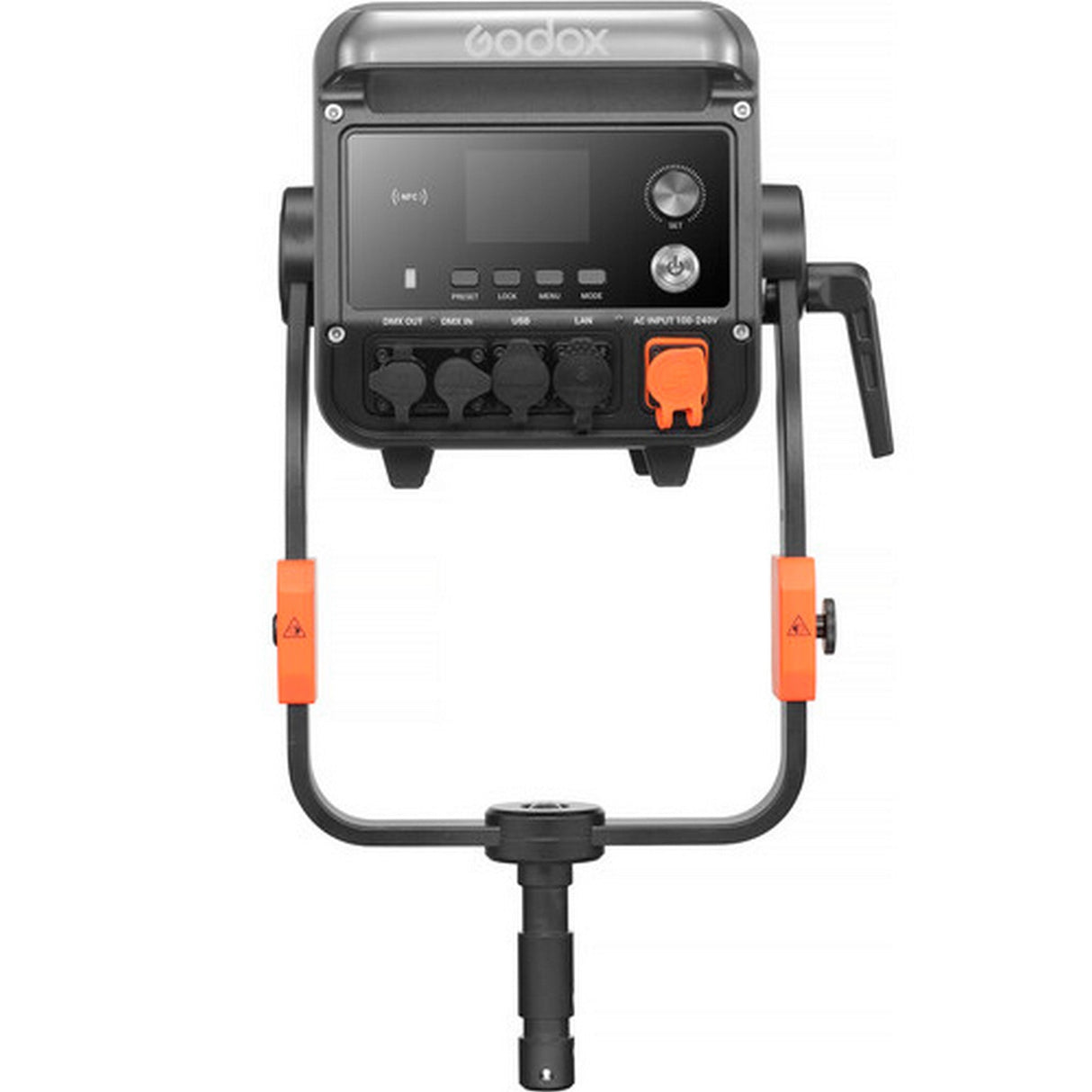

Control and Connectivity

• Control Methods: DMX/RDM / CRMX / Ethernet / Bluetooth / onboard controls
• CRMX: Built-in
• Bluetooth Control Distance: Up to 98.4'
• App Control: KNOWLED app
• USB-A Port: Firmware updates and 5V DC, 1.5A power output
• Display: Yes

Power and Construction

• AC Input at 100V: 60 Hz, 1300W
• AC Input at 240V: 50 Hz, 1240W
• Power Supply: Integrated
• Environmental Rating: IP65
• Housing: Metal
• Cooling: Smart fan control

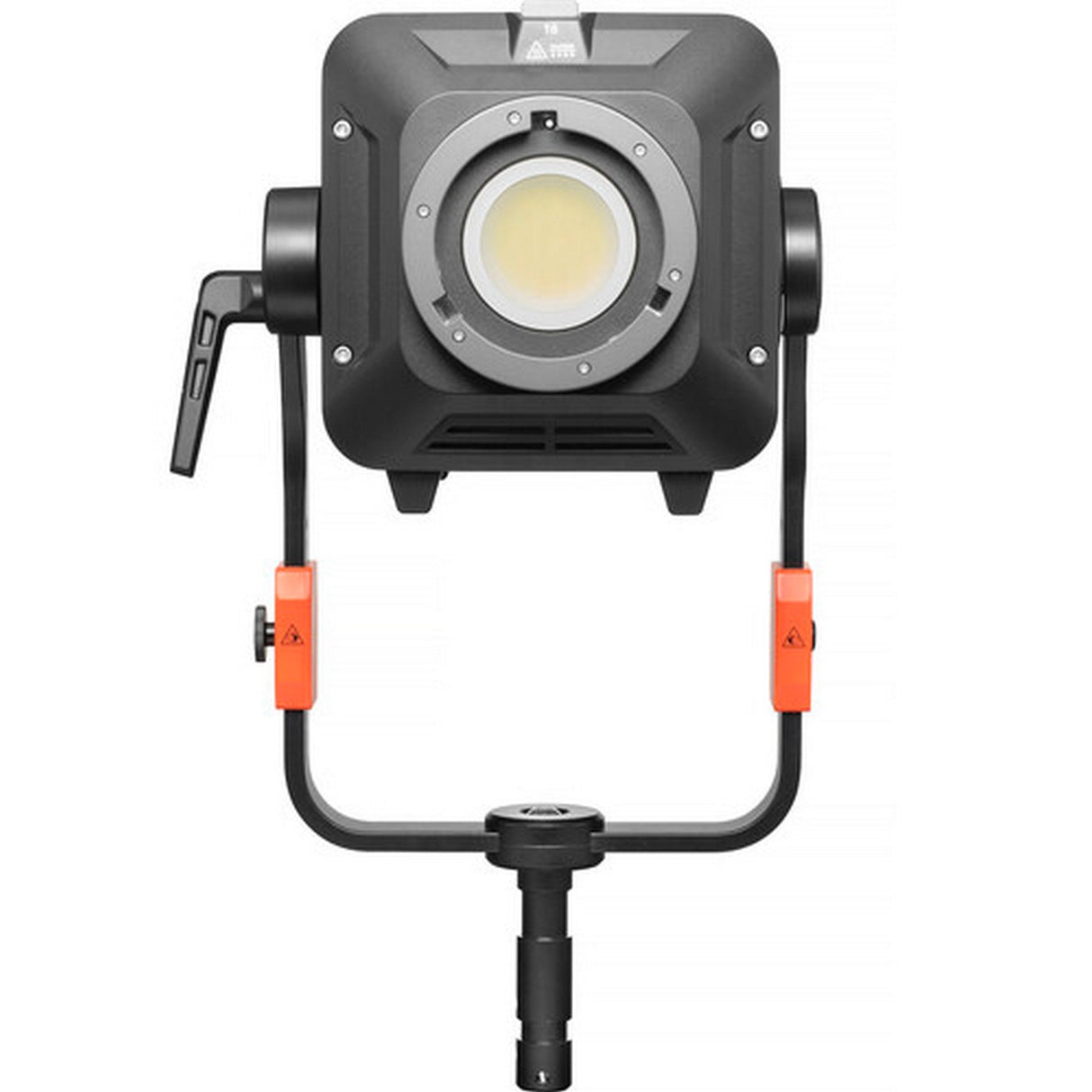

• Accessory Mount: Flat Bowens Mount
• Operating Temperature: -4 to 104°F

Physical Specifications

• Dimensions Excluding Reflector: 12.3 x 15.4 x 22"
• Weight Excluding Reflector: Approximately 24.9 lb

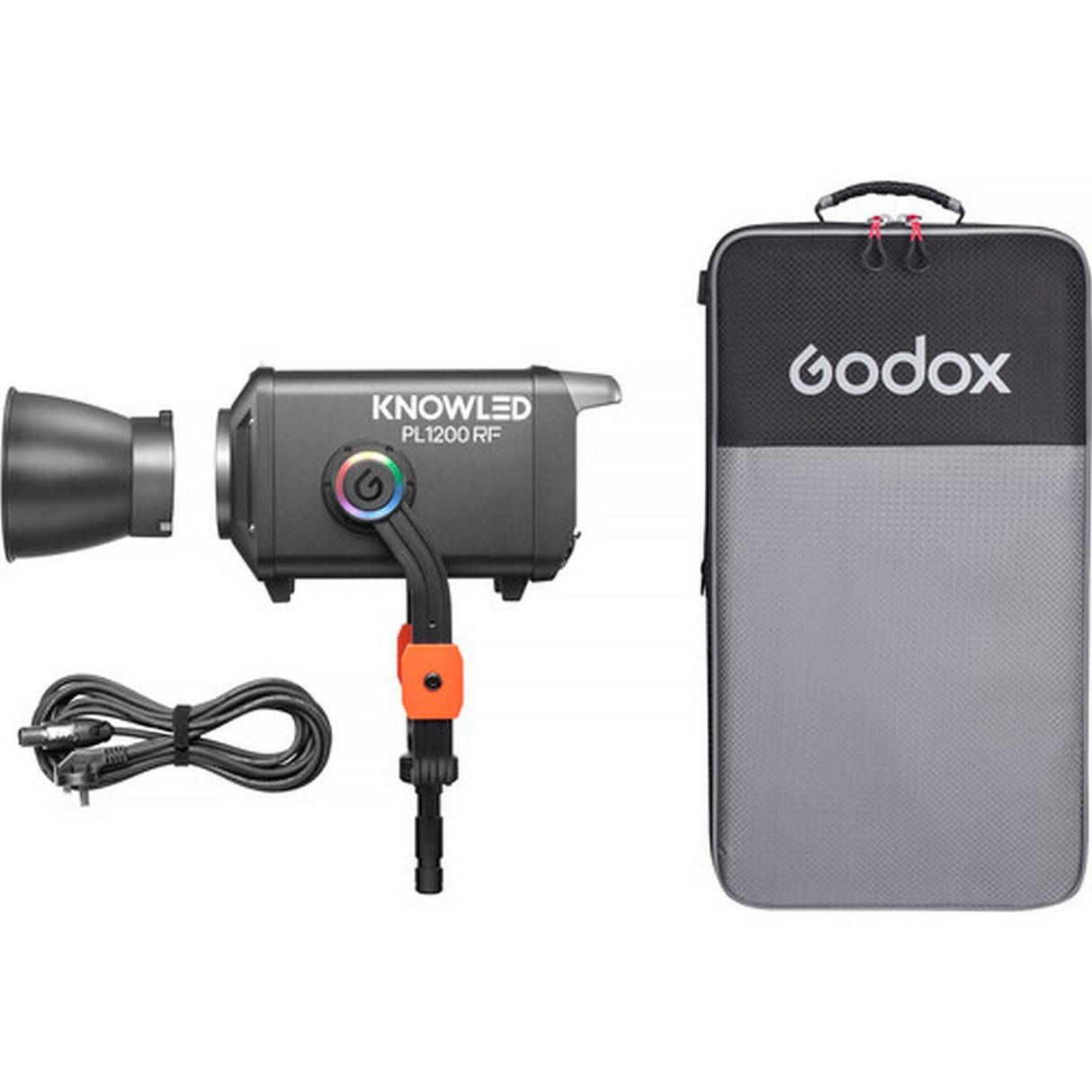

What's In the Box

• Godox PL1200 RF PaletteLab LED Light
• BR30 Bowens-mount reflector
• Power cable
• CB297 carrying bag
• Carry bag
