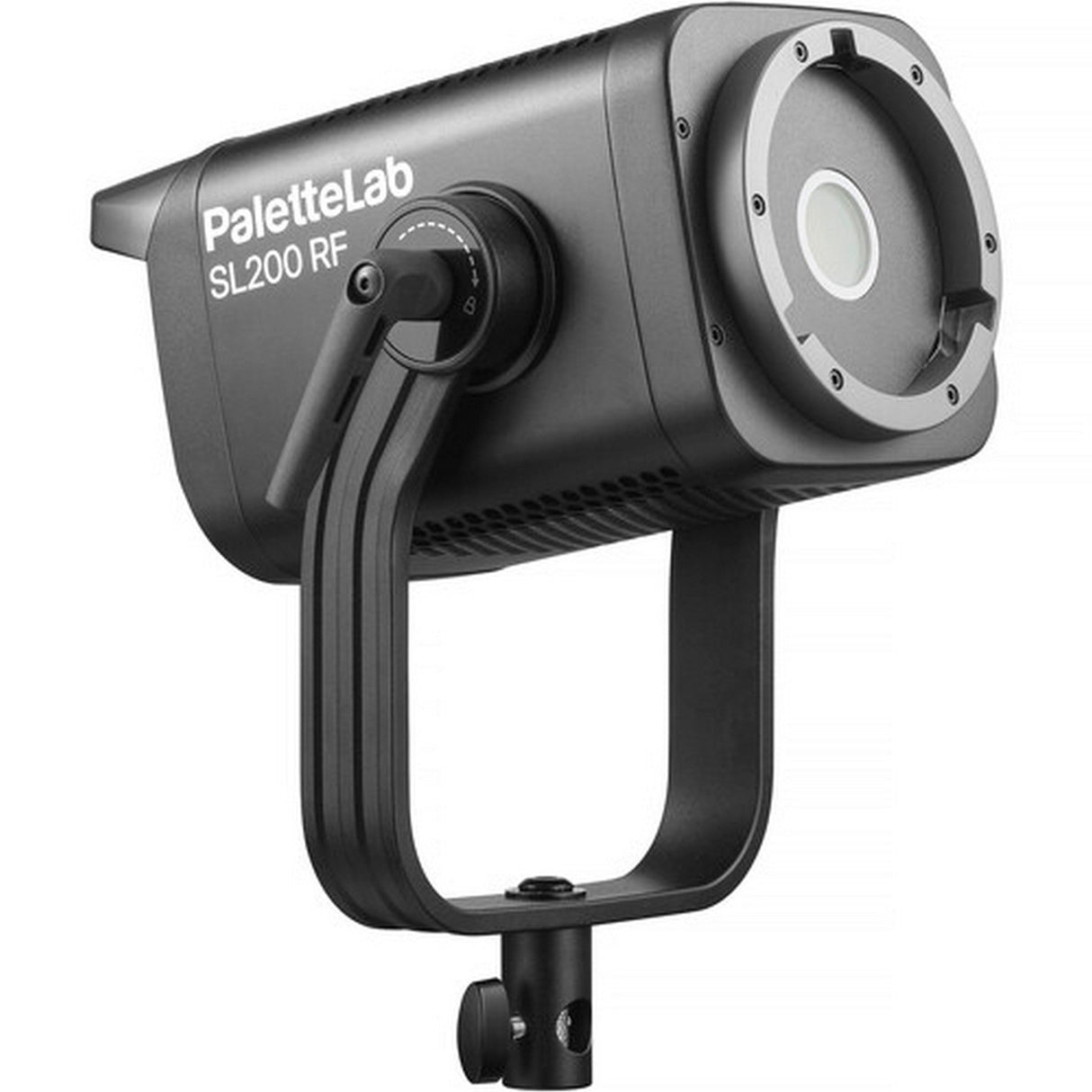

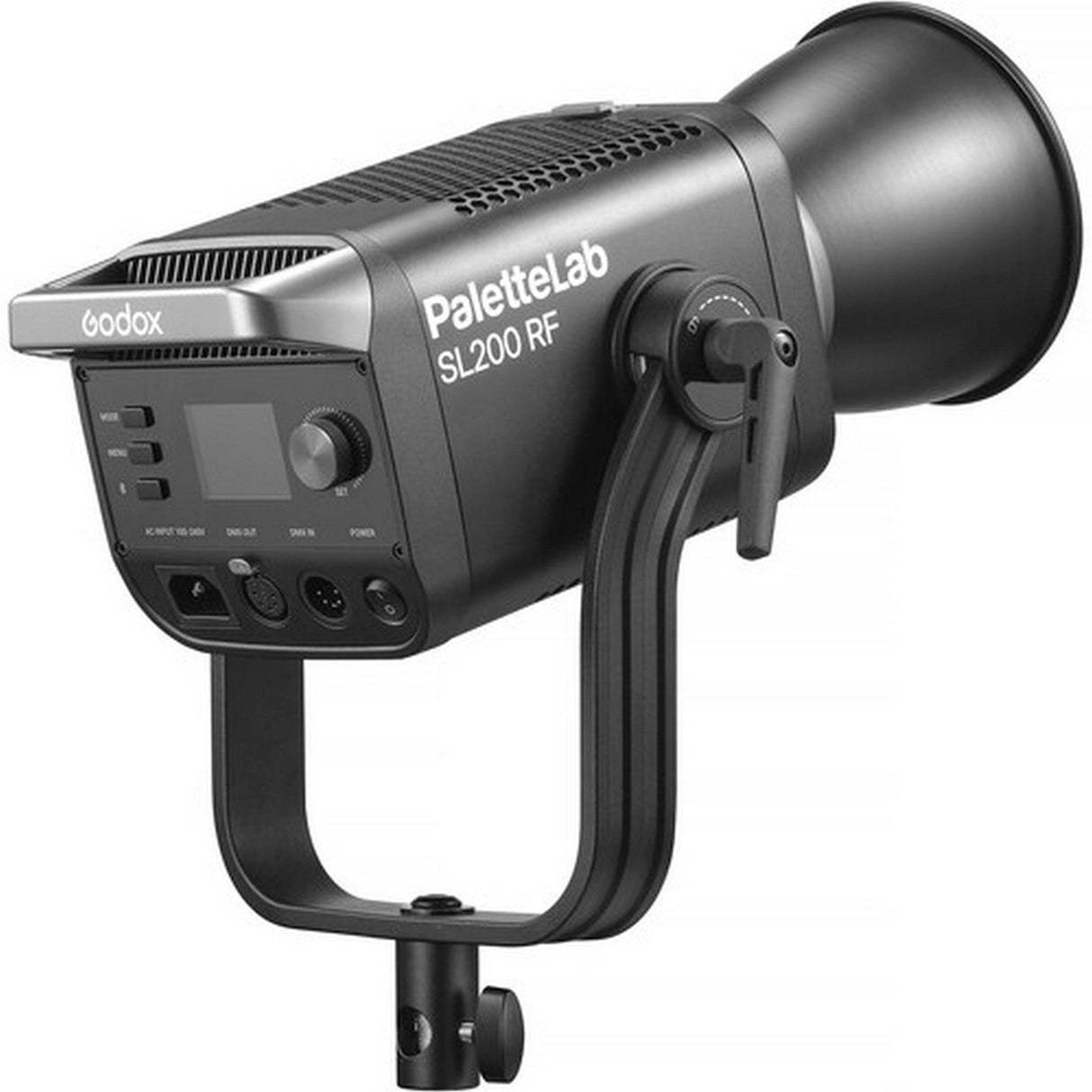

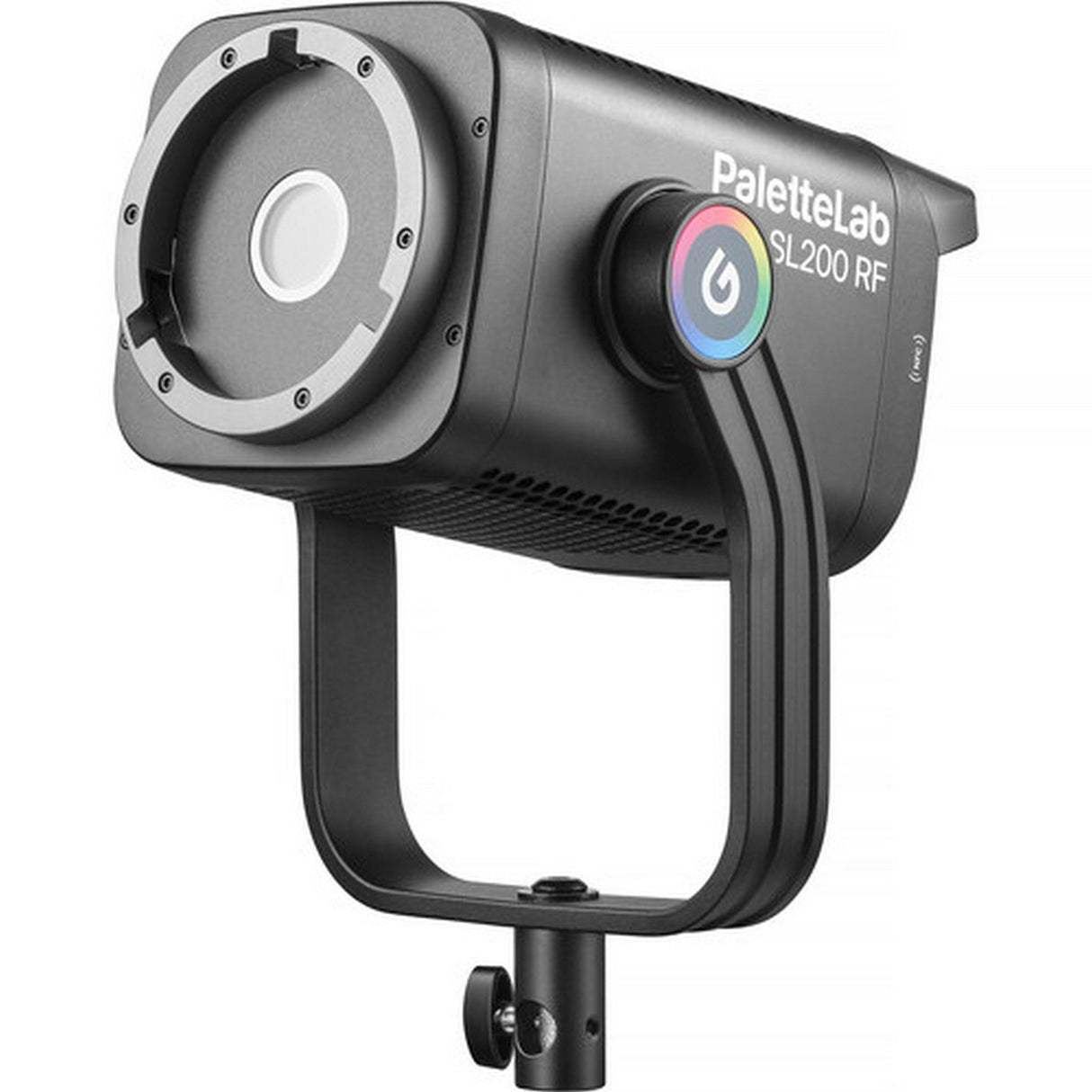

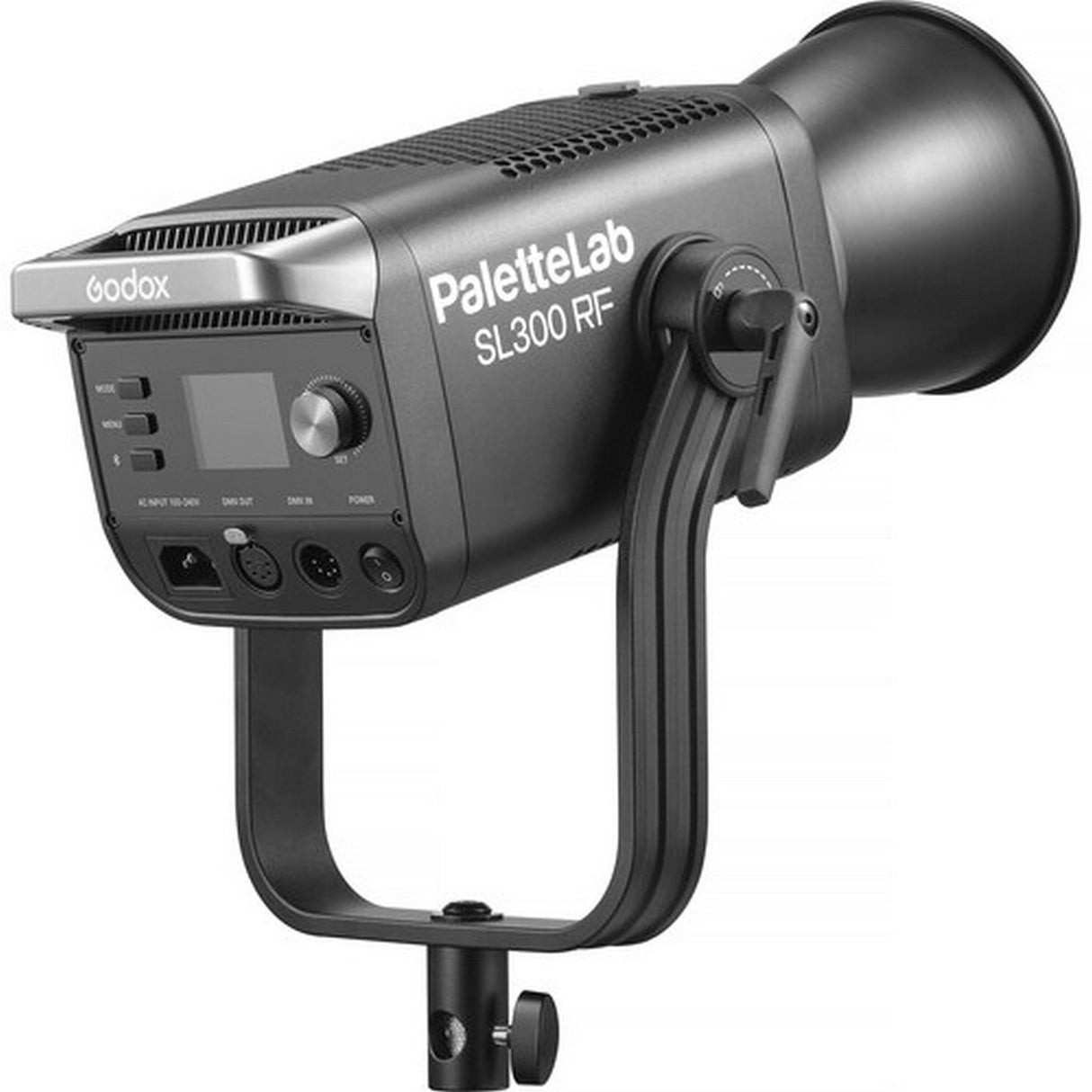

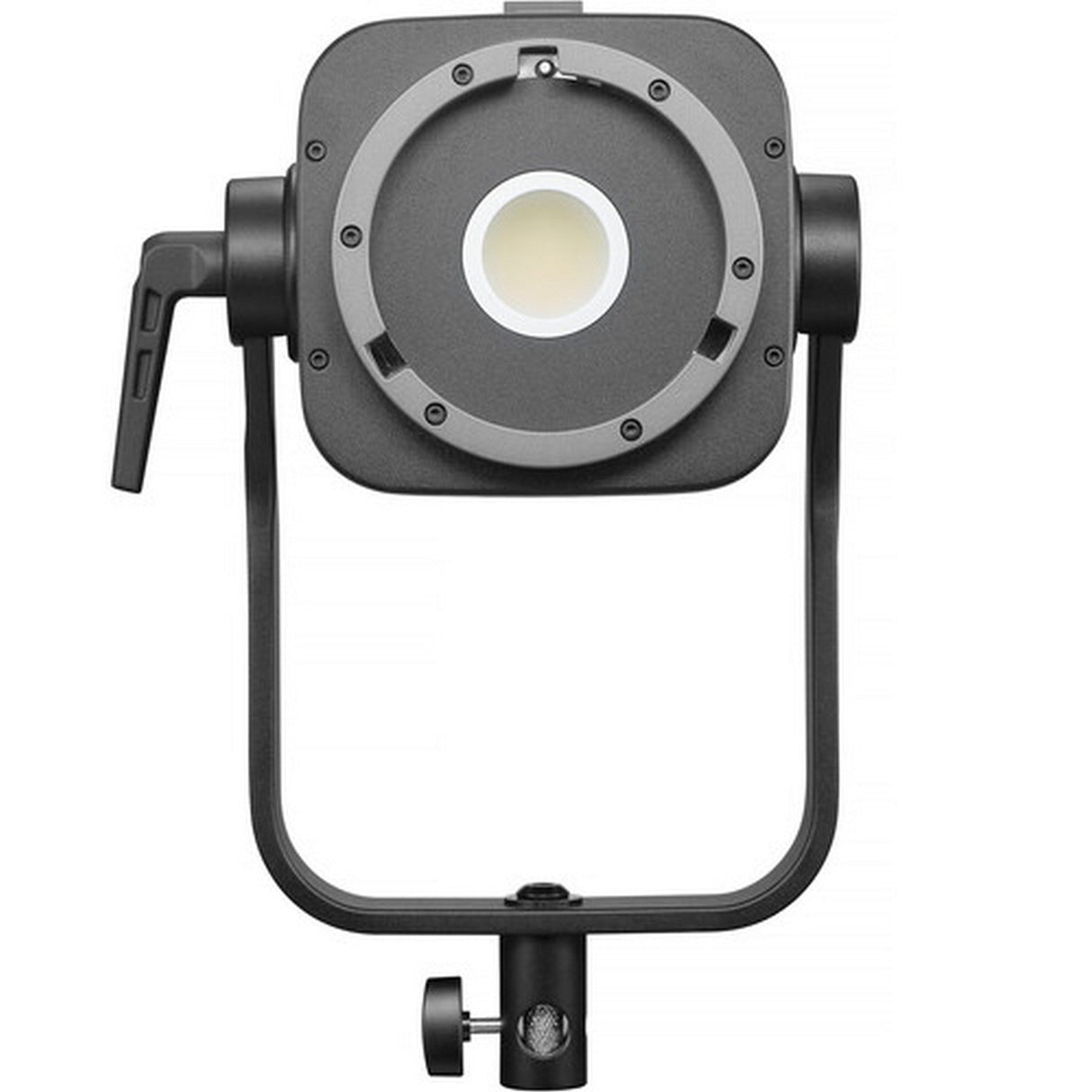

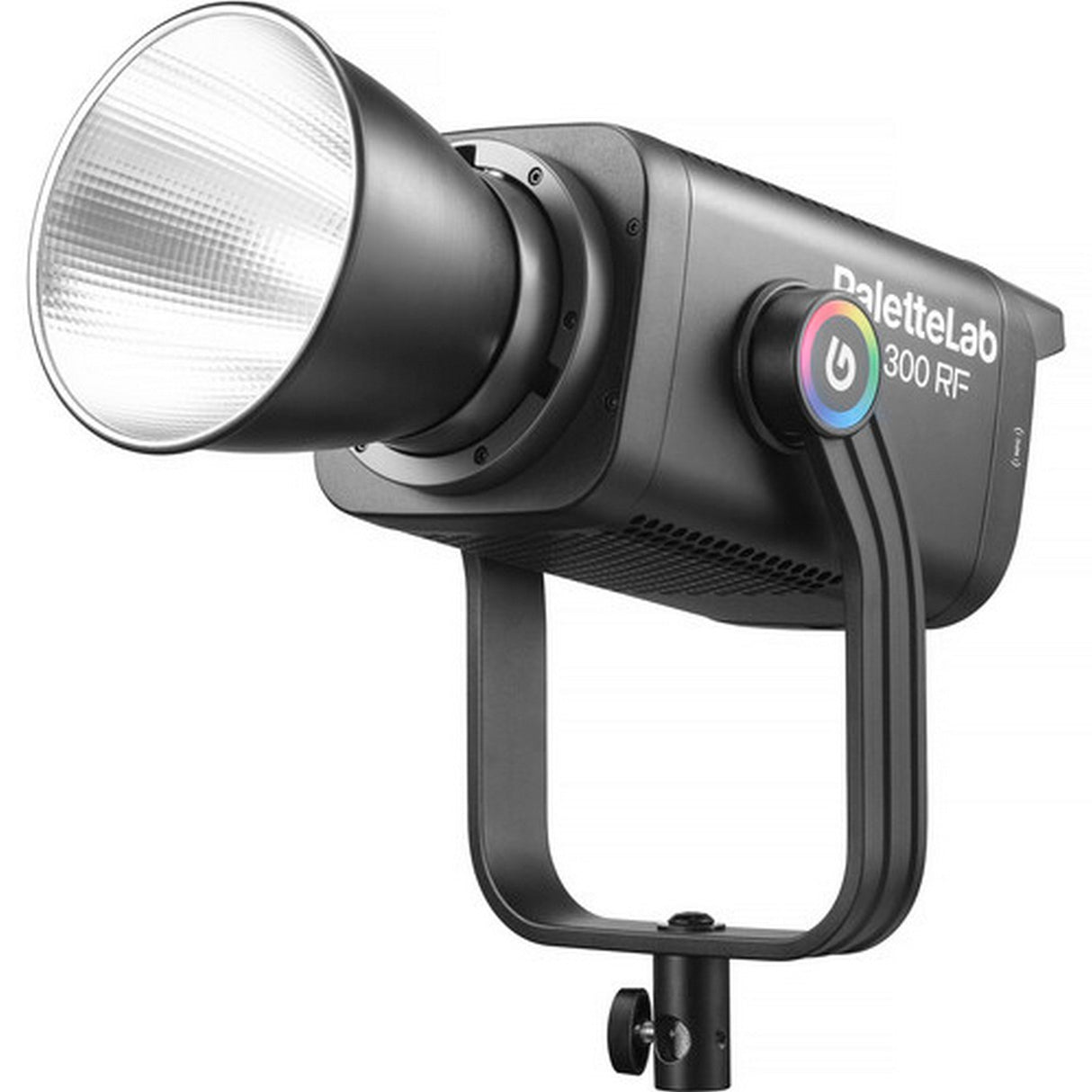

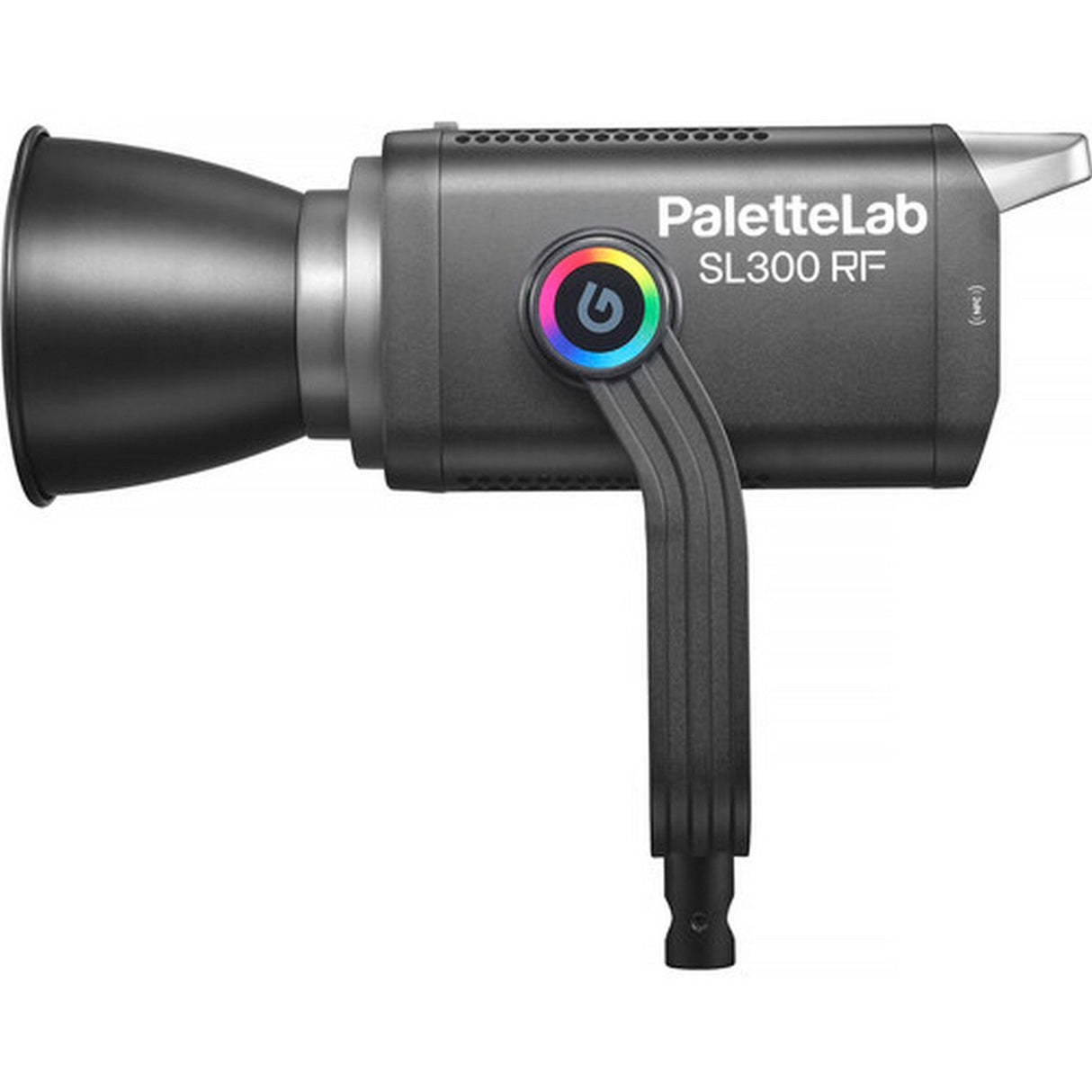

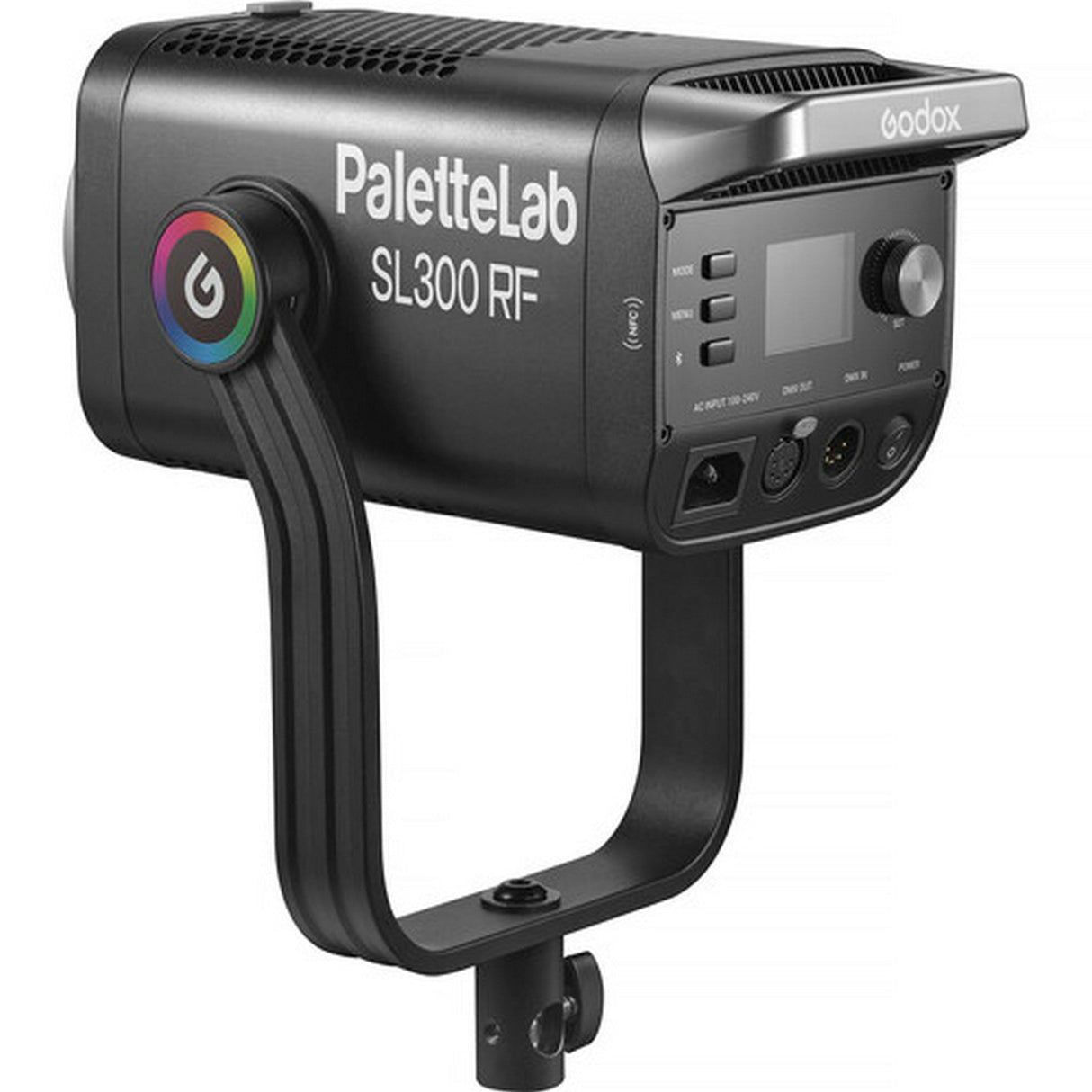

Godox SL200 RF / SL300 RF PaletteLab RGB LED Lights - 230W

Godox SL200 RF / SL300 RF PaletteLab RGB LED Lights

The Godox SL200 RF / SL300 RF PaletteLab RGB LED Lights are full-spectrum RGB fixtures for film, broadcast, commercial video, and studio production. This umbrella listing includes the 230W SL200 RF and 330W SL300 RF, combining an 1800K to 10,000K CCT range, full-color control, CRI 98, TLCI 99, and Bowens-mount modifier compatibility.

Both PaletteLab models provide CCT, HSI, RGBW, XY, GEL, and FX workflows with green-magenta adjustment from -100% to +100%. The SL200 RF reaches up to 72,900 lux at 3.3' with its reflector, while the higher-output SL300 RF reaches 88,800 lux under the same 5600K conditions. Four dimming curves and 14 built-in effects expand creative control for interviews, narrative production, product photography, livestreaming, and studio sets.

Integrated AC power keeps setup streamlined without an external power adapter. Onboard controls, Bluetooth through the Godox Light app, NFC pairing, and wired DMX/RDM support both compact crews and larger lighting systems. An optional TimoLink TRX enables CRMX workflows, while intelligent fan cooling supports demanding continuous operation. Choose the SL200 RF for a lighter 230W fixture or the SL300 RF when additional output is the priority.

Available Power Variants

• SL200 RF: 230W maximum input with up to 72,900 lux at 3.3' and 5600K using the included reflector
• SL300 RF: 330W maximum input with up to 88,800 lux at 3.3' and 5600K using the included reflector

Key Features

• PaletteLab Full-Spectrum Engine: Provides wide-gamut RGB lighting with 92% Rec.2020 coverage for demanding production workflows.
• 1800K to 10,000K CCT: Covers warm tungsten-style tones through cool daylight while maintaining full-color adjustment.
• High Color Accuracy: Delivers approximately CRI 98 and TLCI 99 for consistent color reproduction on camera.
• Two Output Levels: Choose the 230W SL200 RF or higher-output 330W SL300 RF to match production requirements.
• Professional Control: Supports onboard operation, Bluetooth app control, NFC pairing, and wired DMX/RDM integration.
• 14 Creative Effects: Provides built-in effects for flash, lightning, fire, television, emergency vehicles, parties, and other simulated sources.

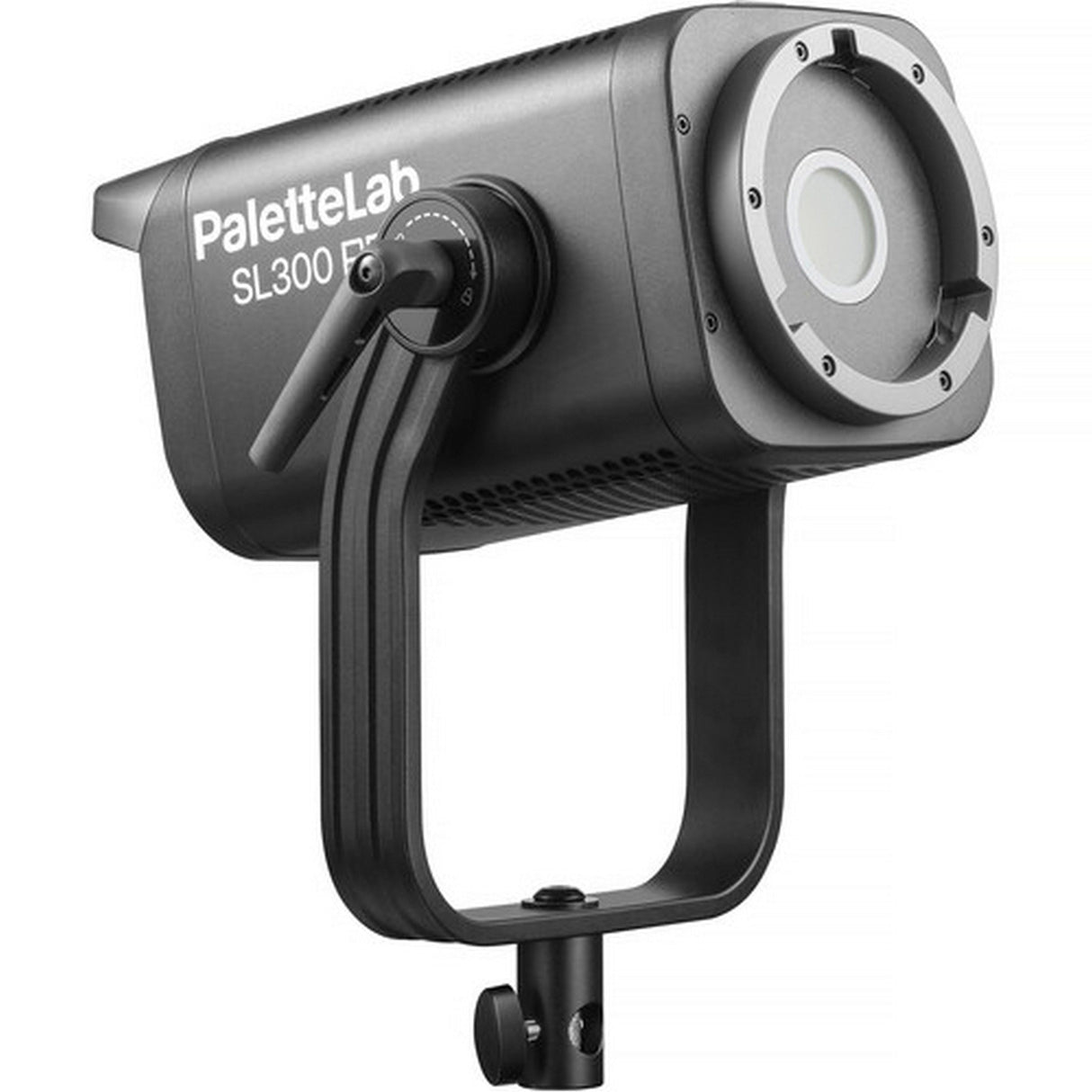

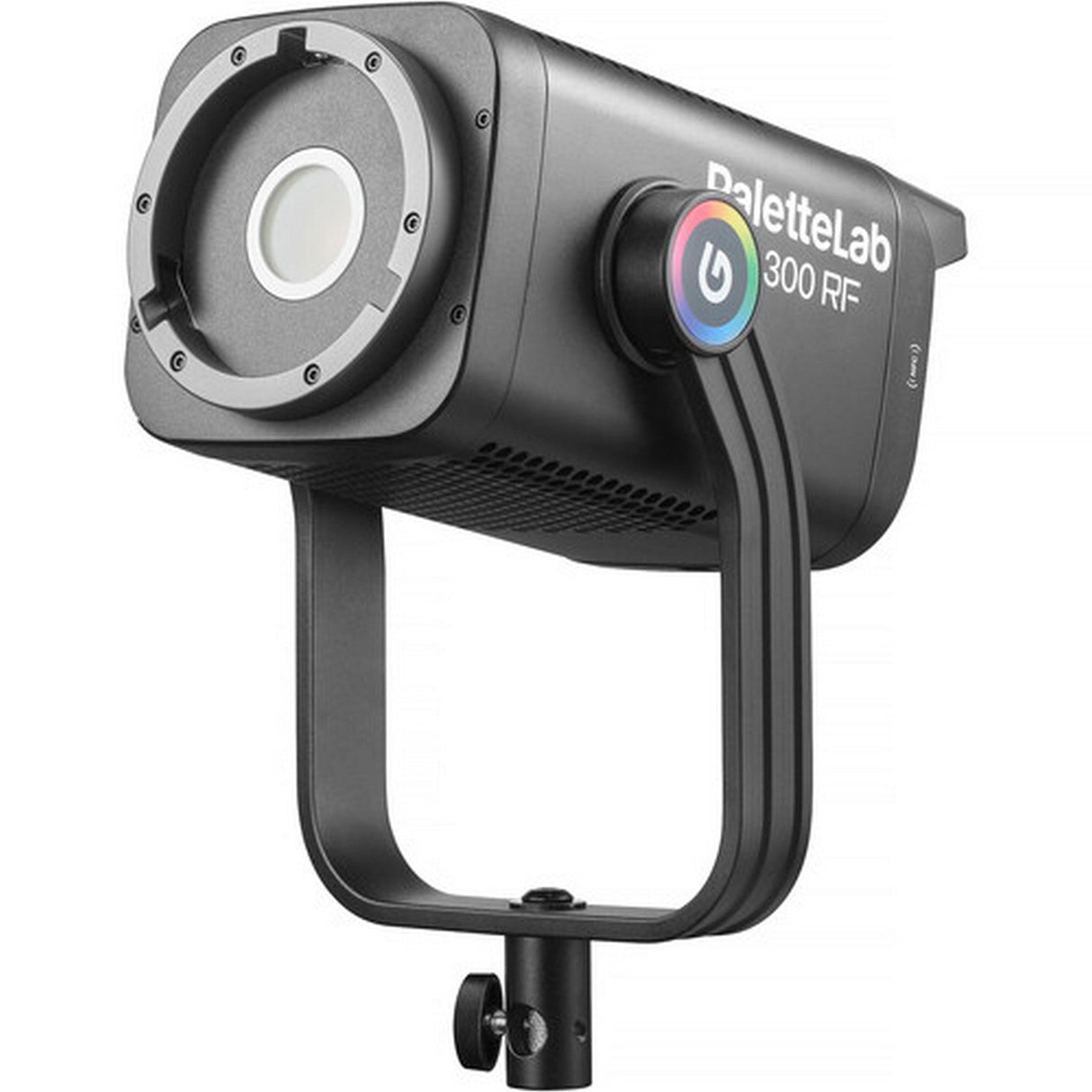

• Bowens Mount: Accepts a broad selection of compatible reflectors, softboxes, projection tools, and other light modifiers.
• Integrated AC Power: Eliminates an external power brick for cleaner rigging, transportation, and studio setup.

Technical Specifications

Shared Light and Color Specifications

• Product Type: Full-color LED monolight
• Series: PaletteLab
• Models: SL200 RF / SL300 RF
• CCT Range: 1800K to 10,000K
• Green-Magenta Adjustment: -100% to +100%
• Brightness Range: 0 to 100%
• Color Modes: CCT / HSI / RGBW / XY / GEL / FX
• CRI: Approximately 98
• TLCI: Approximately 99
• Rec.2020 Coverage: 92%
• Dimming Curves: Linear / S-Curve / Exponential / Logarithmic
• Light Curves: Godox Curve / Blackbody Curve / Daylight Curve
• FX Modes: 14
• FX Effects: Flash / Lightning / Cloudy / Broken Bulb / TV / Candle / Fire / Firework / Explosion / Welding / Police Car / SOS / RGB Cycle / Party

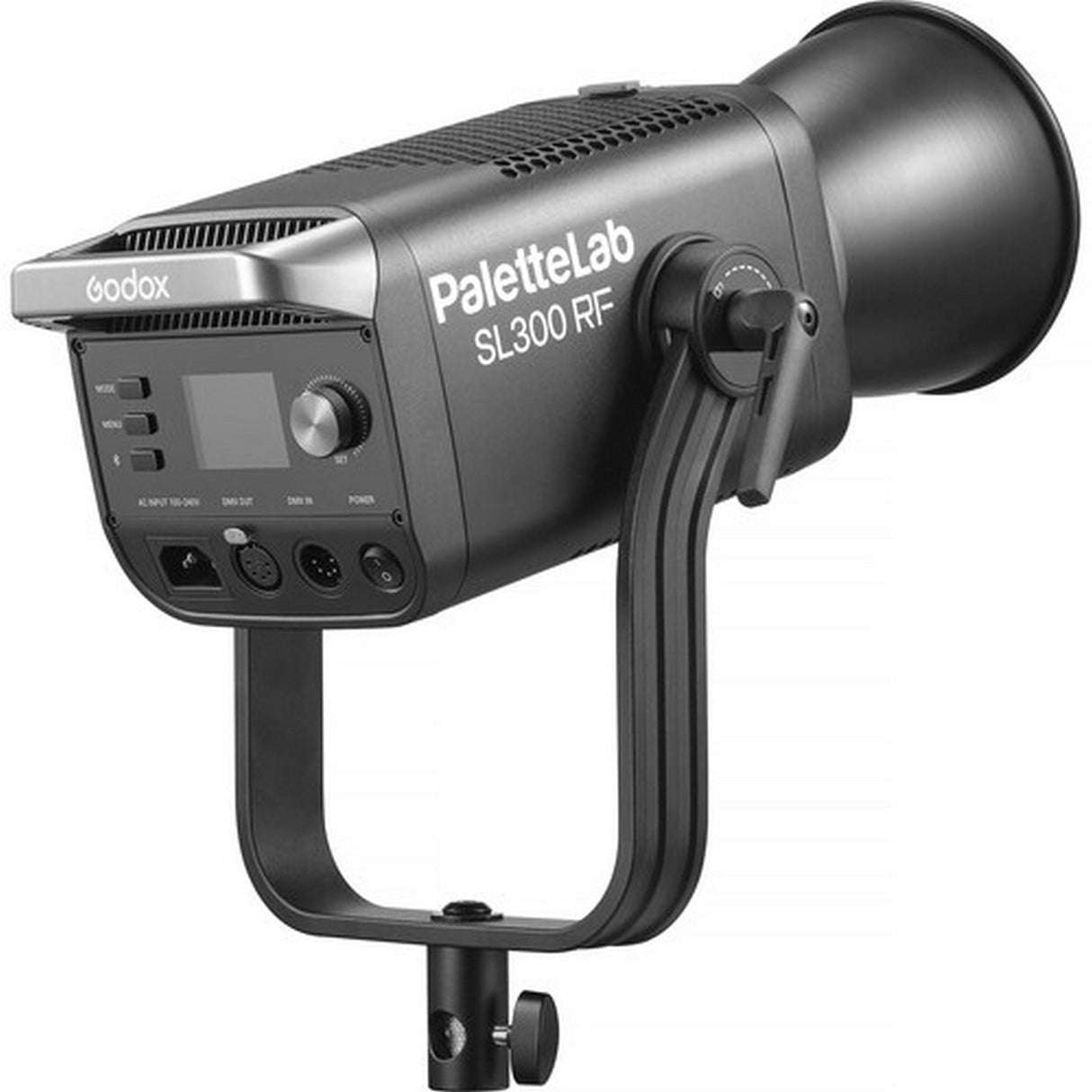

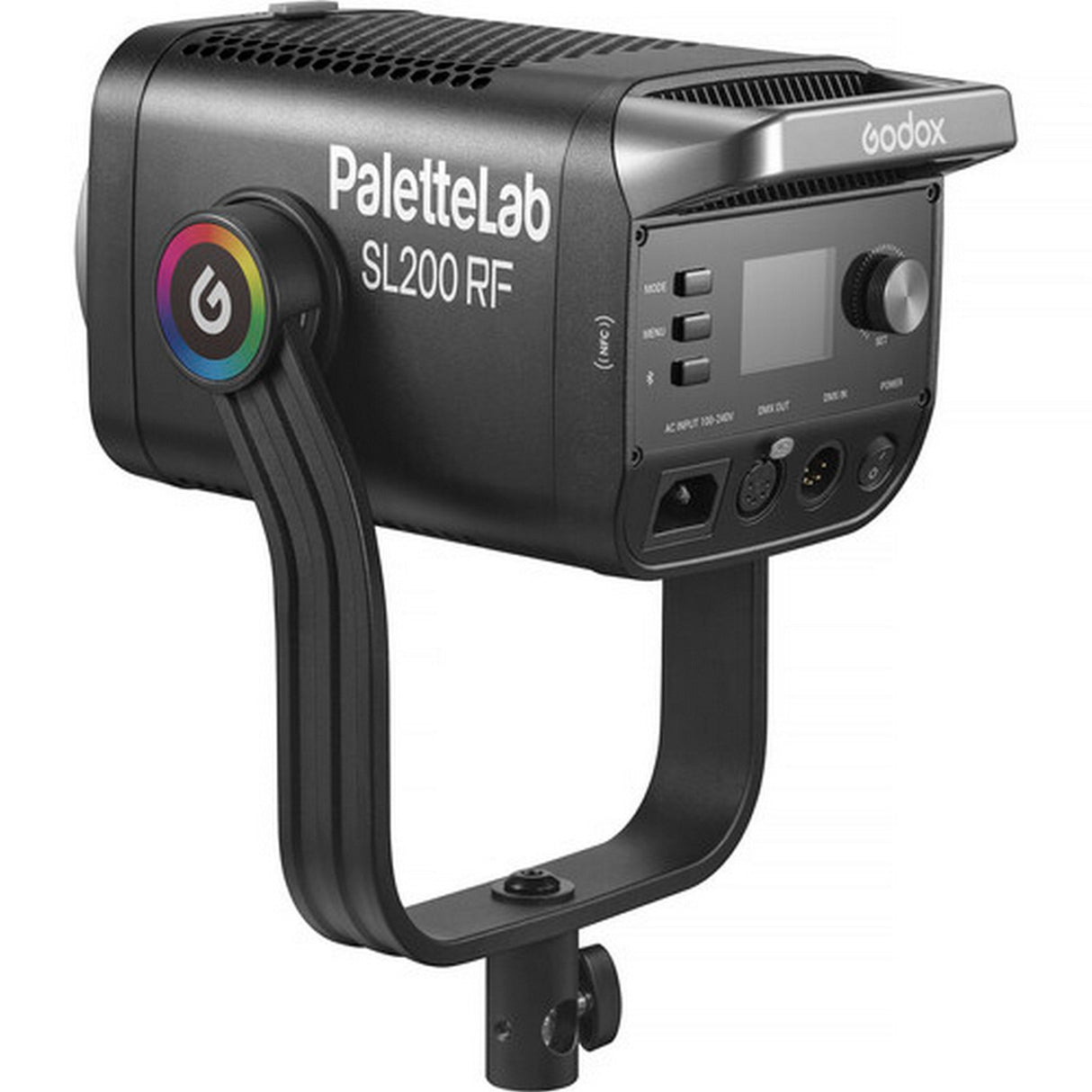

Control and Connectivity

• Onboard Control: Yes
• Onboard Display: Yes
• Wireless Control: Bluetooth
• Bluetooth Range: Up to 98.4'
• Mobile App: Godox Light app for Android and iOS

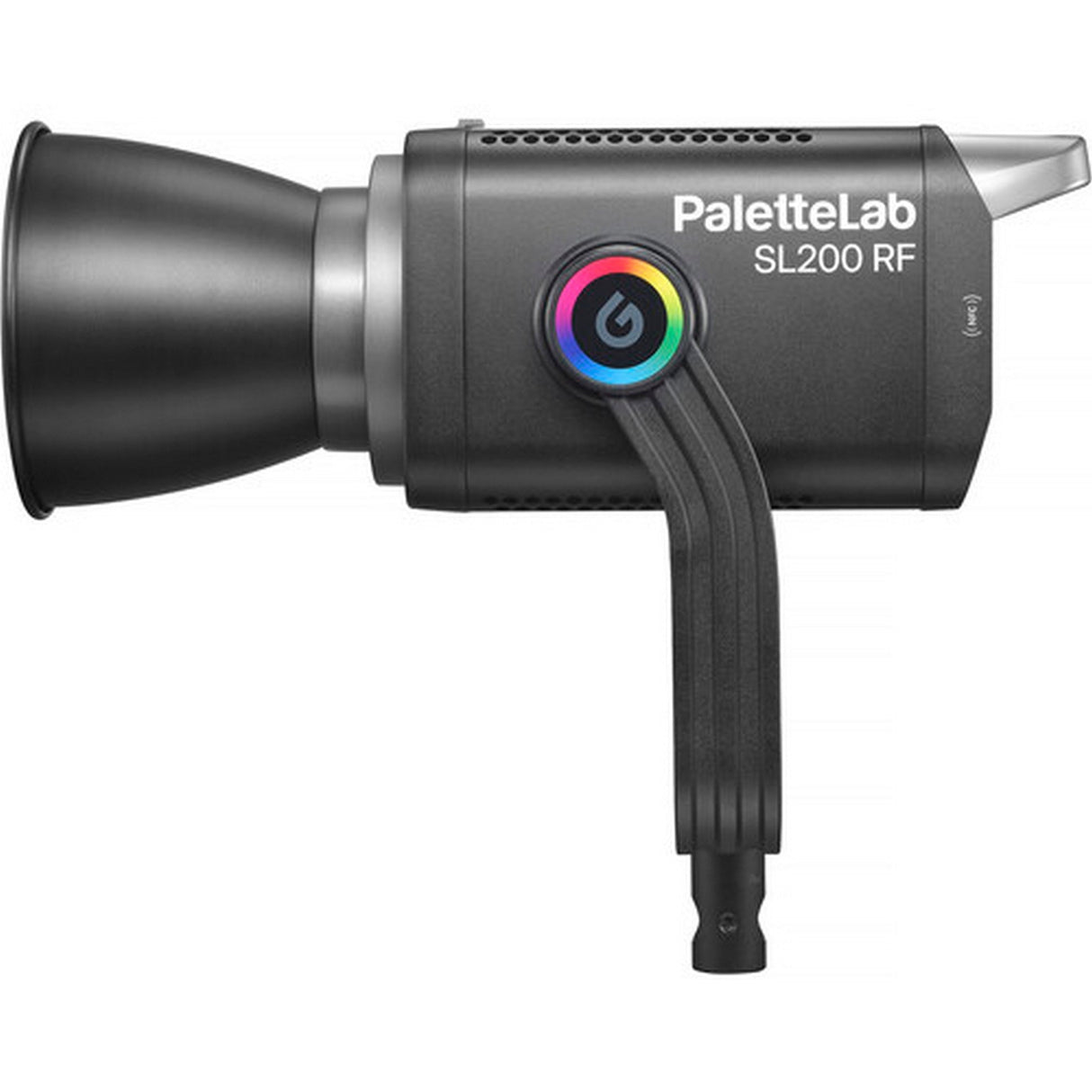

• NFC Pairing: Supported

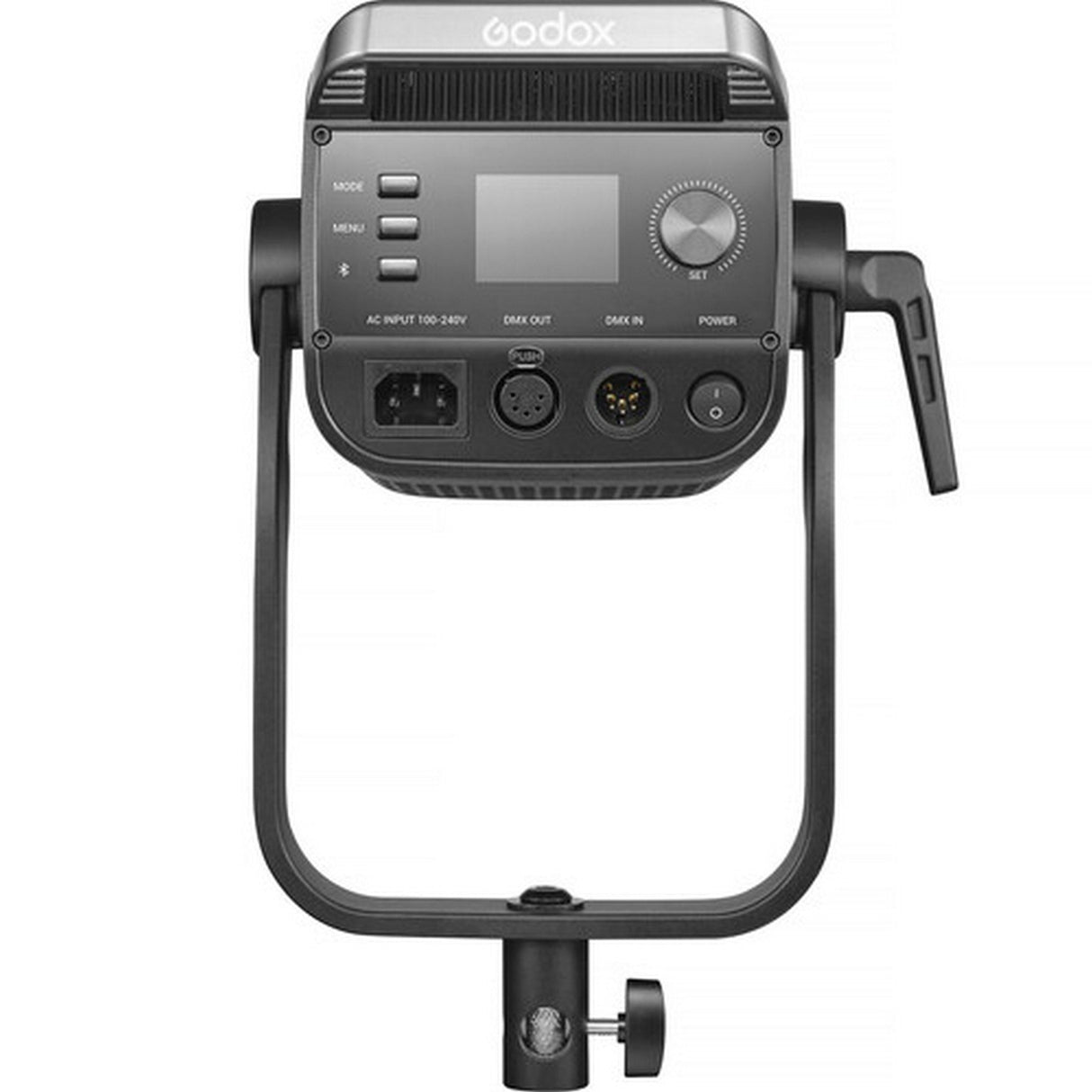

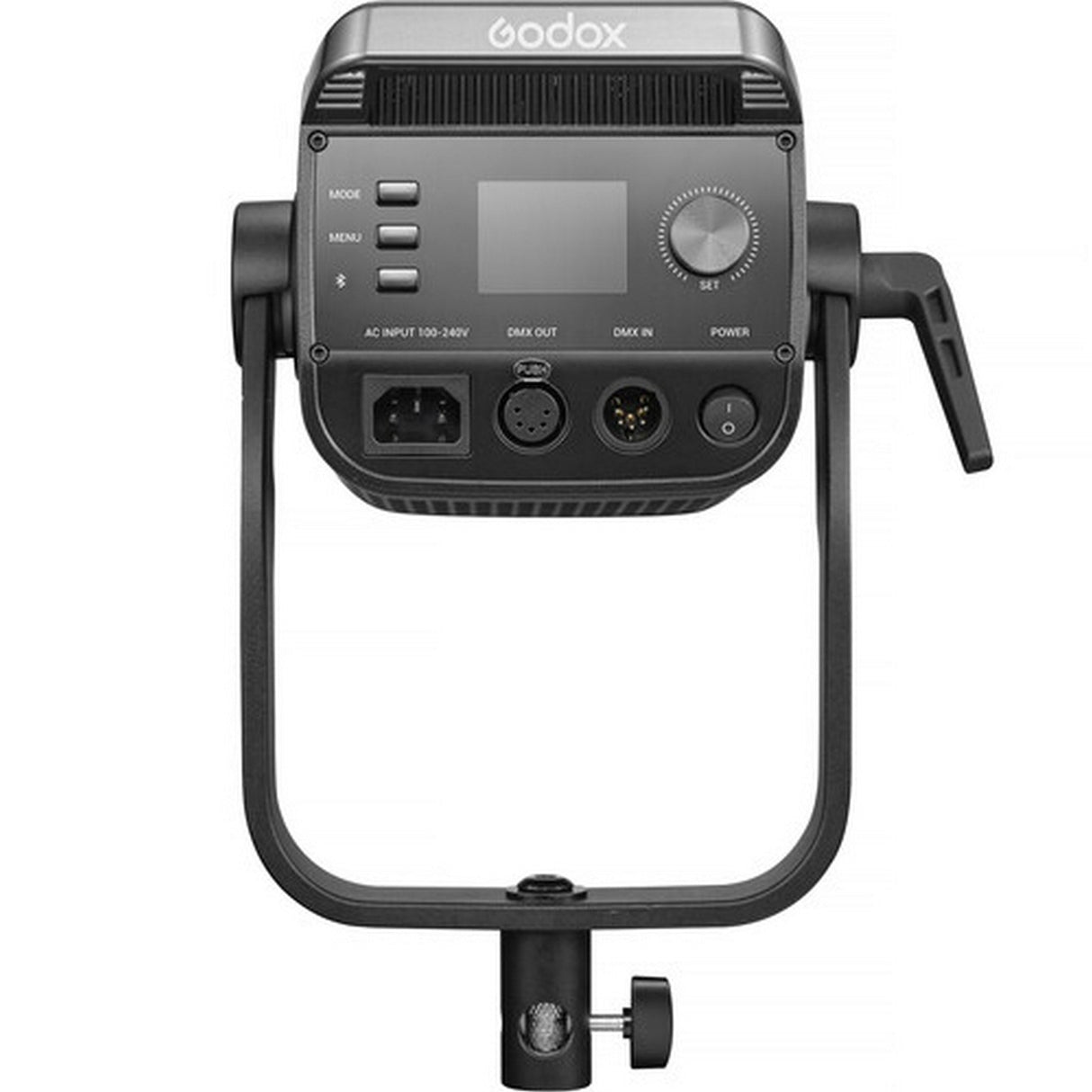

• Wired Control: DMX / RDM
• DMX Input: 5-pin XLR male
• DMX Output: 5-pin XLR female
• CRMX: Supported with optional TimoLink TRX
• USB-A Port: Firmware updates and 5V DC, 1.5A power output

Power and Mounting

• Power Source: AC
• AC Input: 100 to 240 VAC, 50/60 Hz
• SL200 RF Maximum Power Consumption: 230W
• SL300 RF Maximum Power Consumption: 330W

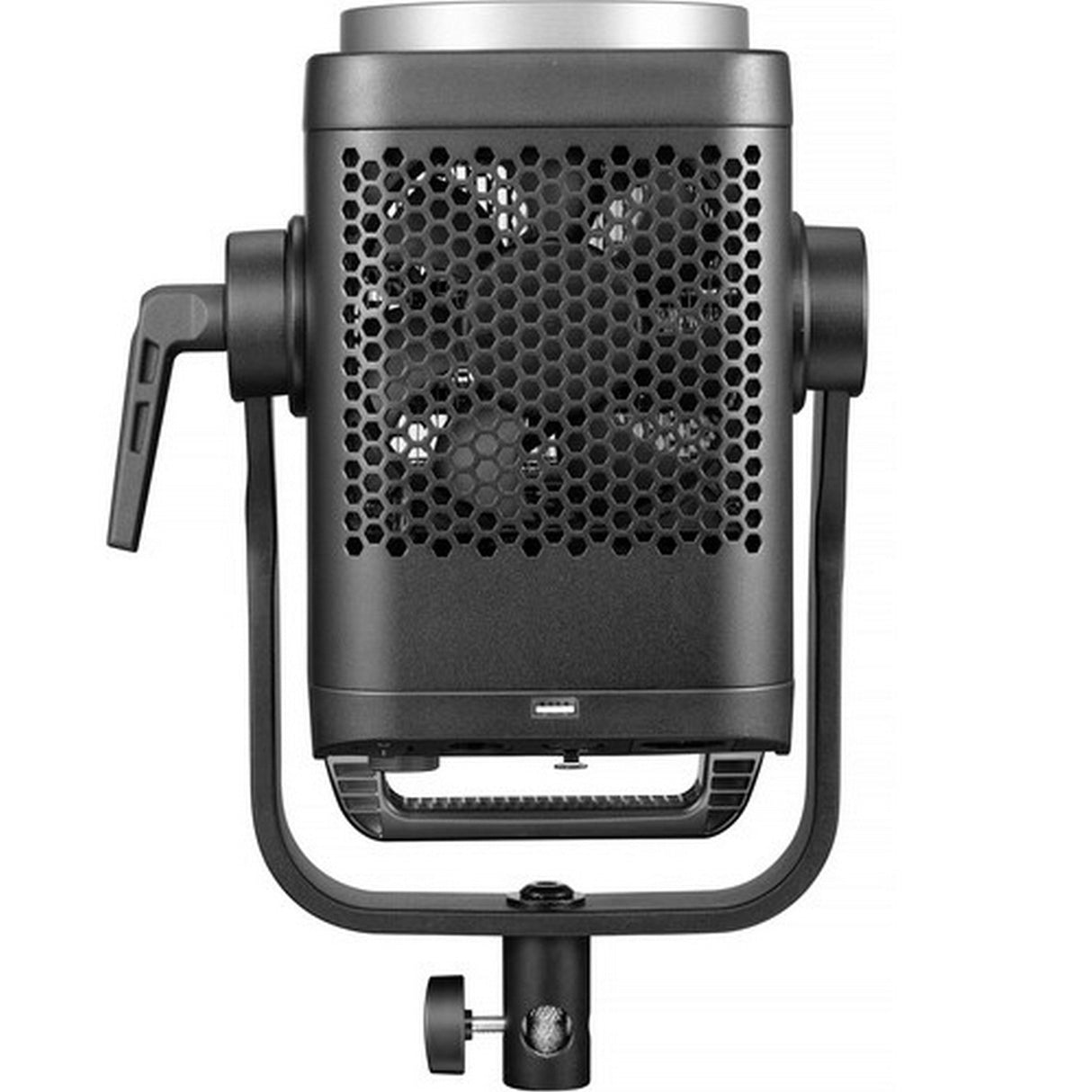

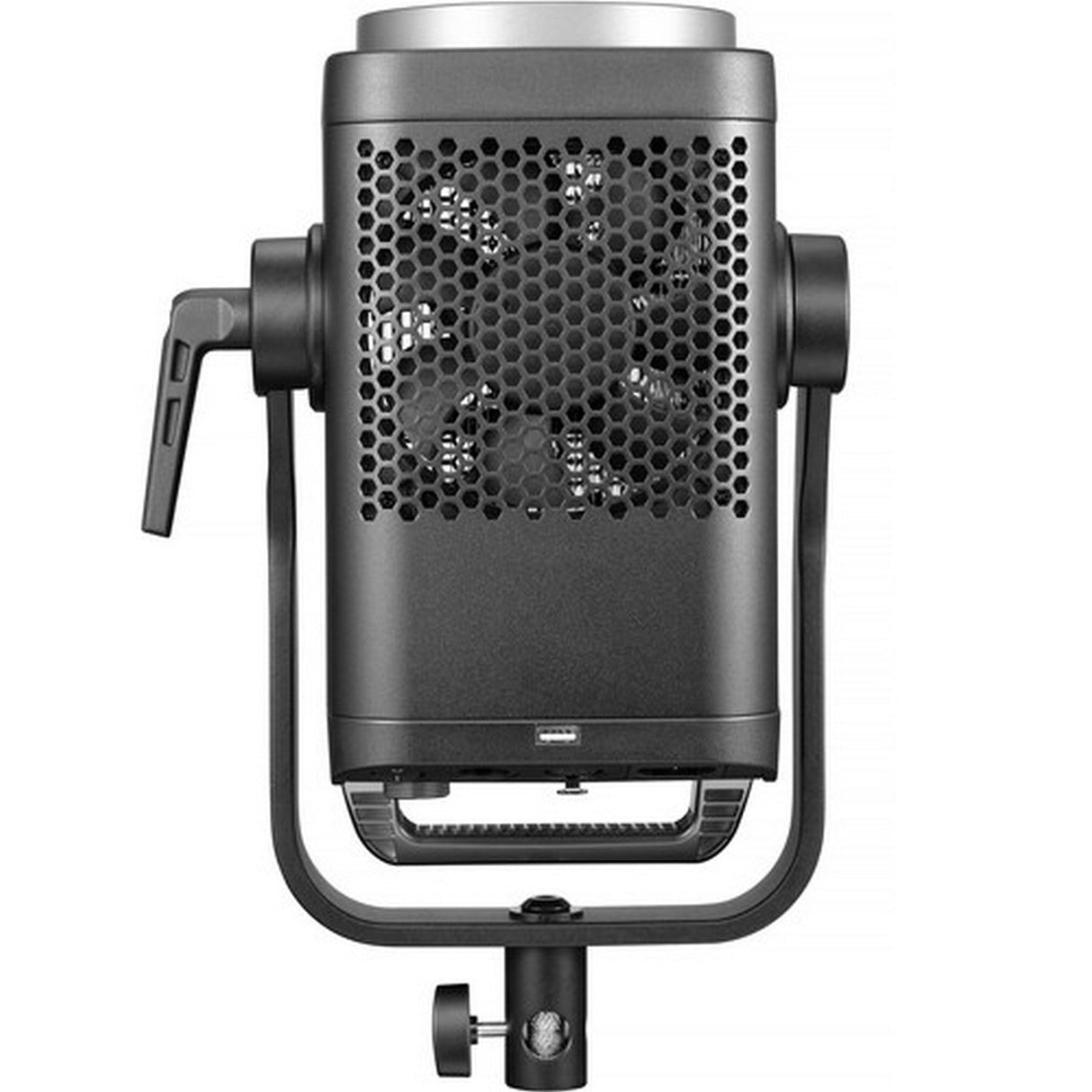

• Cooling: Intelligent fan cooling

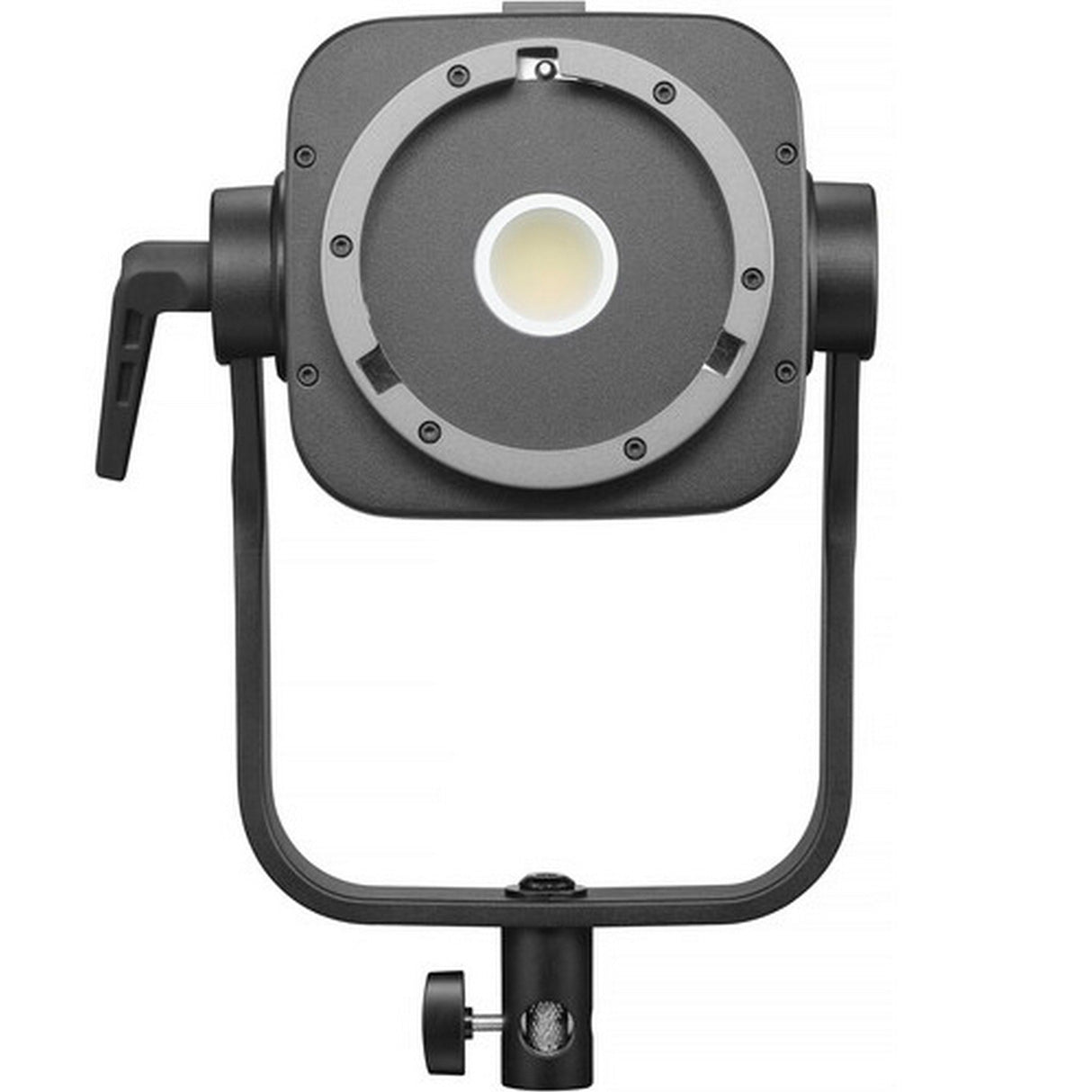

• Accessory Mount: Bowens S

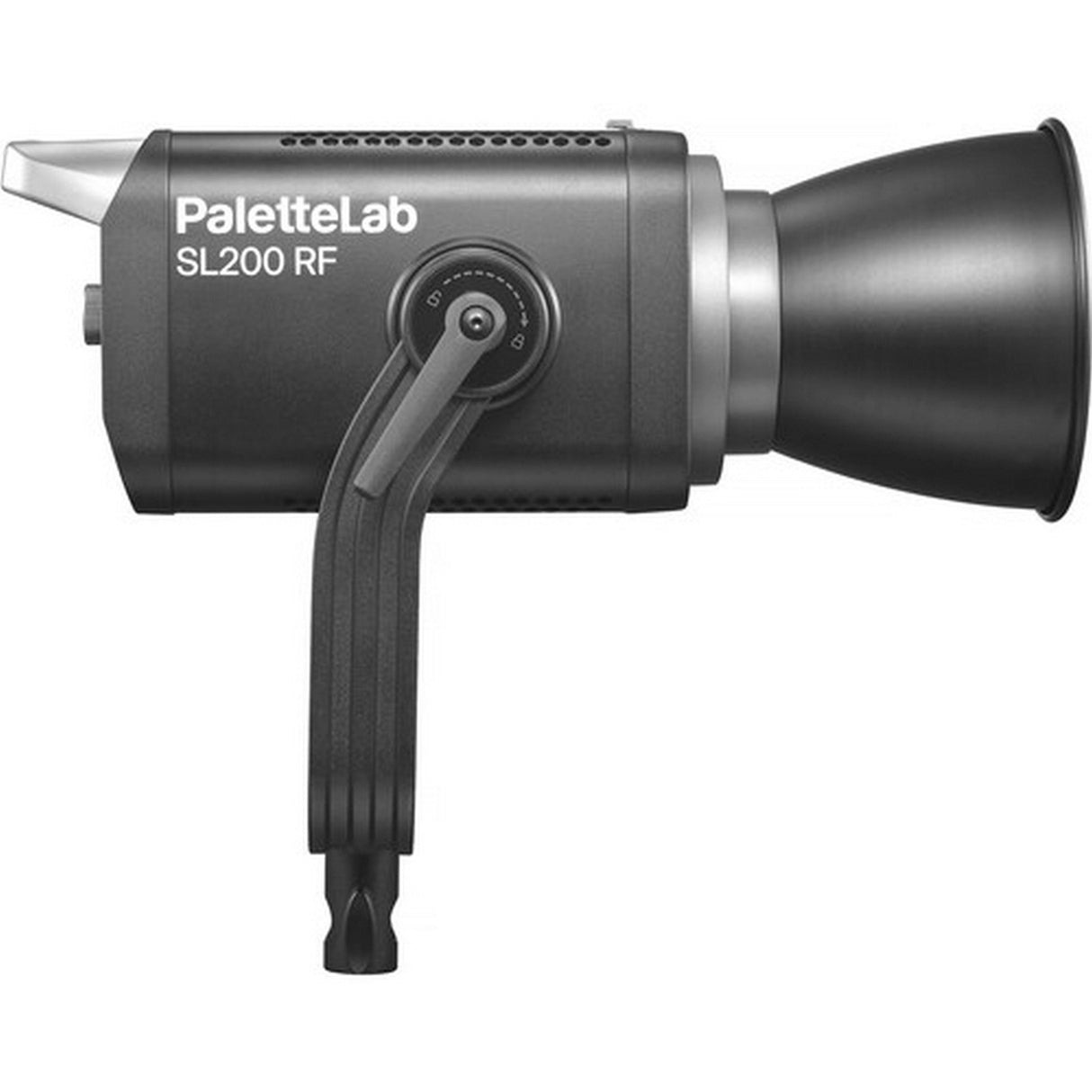

• Yoke: Manually operated U-shaped yoke
• Fixture Mount: 5/8" receiver
• Umbrella Mount: No
• Operating Temperature: -4 to 104°F
• Environmental Resistance: No rated environmental resistance

SL200 RF Photometrics

• Unmodified Output at 3200K, 3.3': 6260 lux
• Unmodified Output at 3200K, 6.6': 1610 lux
• Unmodified Output at 3200K, 9.8': 730 lux
• Unmodified Output at 5600K, 3.3': 7470 lux
• Unmodified Output at 5600K, 6.6': 1930 lux
• Unmodified Output at 5600K, 9.8': 876 lux
• Reflector Output at 3200K, 3.3': 61,300 lux
• Reflector Output at 3200K, 6.6': 12,700 lux
• Reflector Output at 3200K, 9.8': 5080 lux
• Reflector Output at 5600K, 3.3': 72,900 lux
• Reflector Output at 5600K, 6.6': 15,200 lux
• Reflector Output at 5600K, 9.8': 6060 lux
• Dimensions: 12 x 10.2 x 9.1"
• Weight: 8.2 lb

SL300 RF Photometrics

• Unmodified Output at 3200K, 3.3': 8500 lux
• Unmodified Output at 3200K, 9.8': 996 lux
• Unmodified Output at 3200K, 16.4': 349 lux
• Unmodified Output at 5600K, 3.3': 10,200 lux
• Unmodified Output at 5600K, 9.8': 1190 lux
• Unmodified Output at 5600K, 16.4': 417 lux
• Reflector Output at 3200K, 3.3': 74,100 lux
• Reflector Output at 3200K, 9.8': 6640 lux
• Reflector Output at 3200K, 16.4': 2280 lux
• Reflector Output at 5600K, 3.3': 88,800 lux
• Reflector Output at 5600K, 9.8': 7940 lux
• Reflector Output at 5600K, 16.4': 2720 lux
• Dimensions: 13.1 x 11 x 9.1"
• Weight: 8.8 lb

What's In the Box

• Godox SL200 RF or SL300 RF PaletteLab RGB LED Light

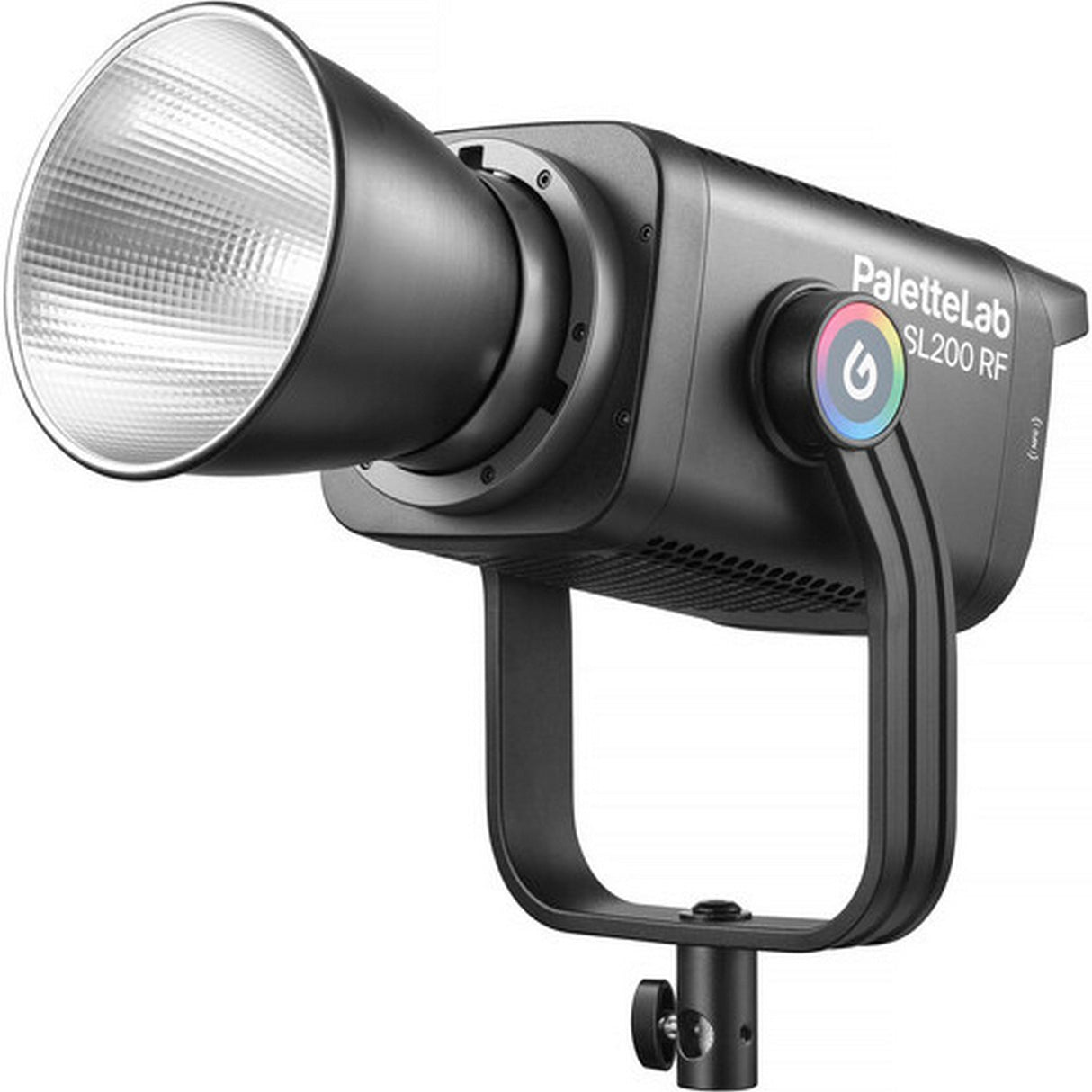

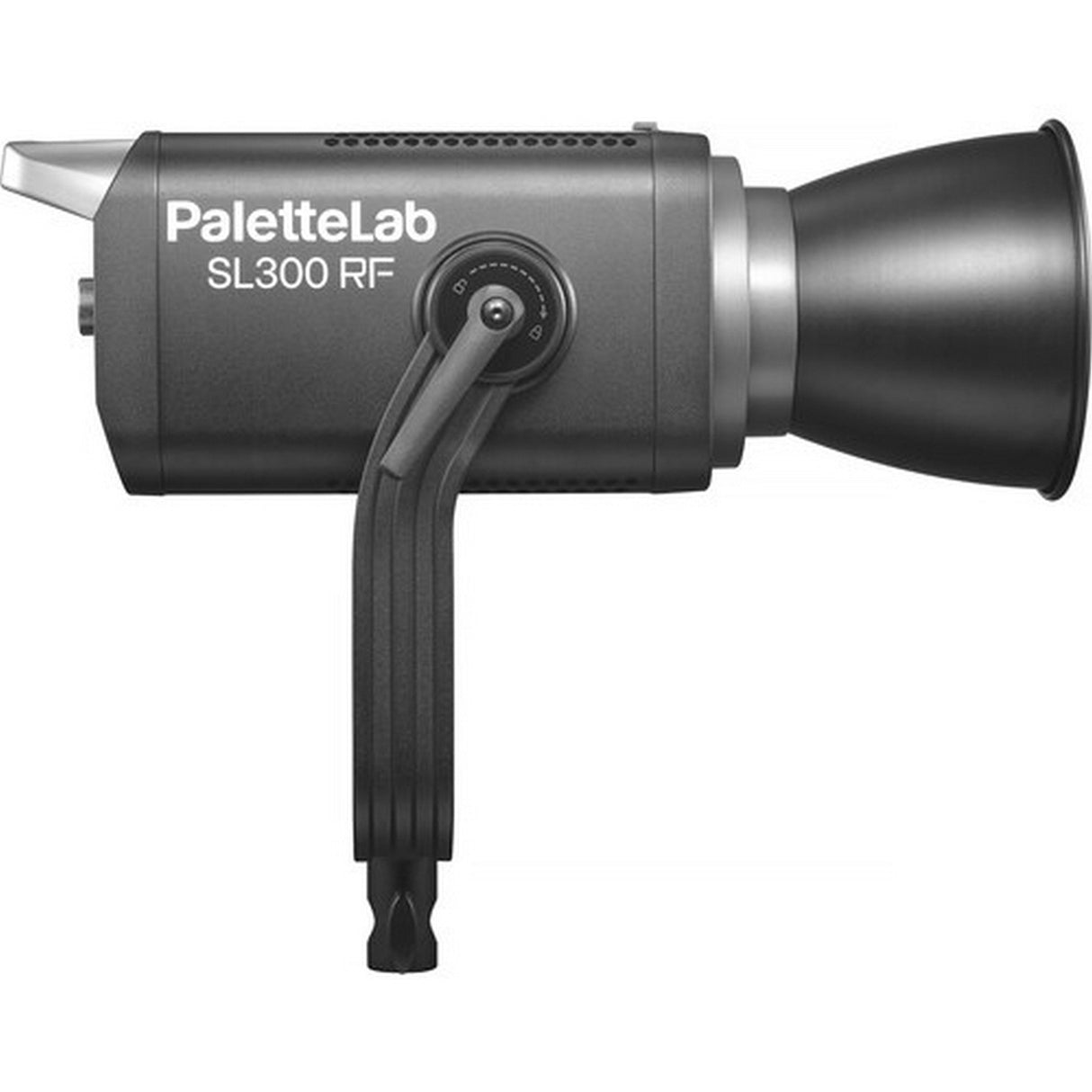

• Reflector
• AC power cord
