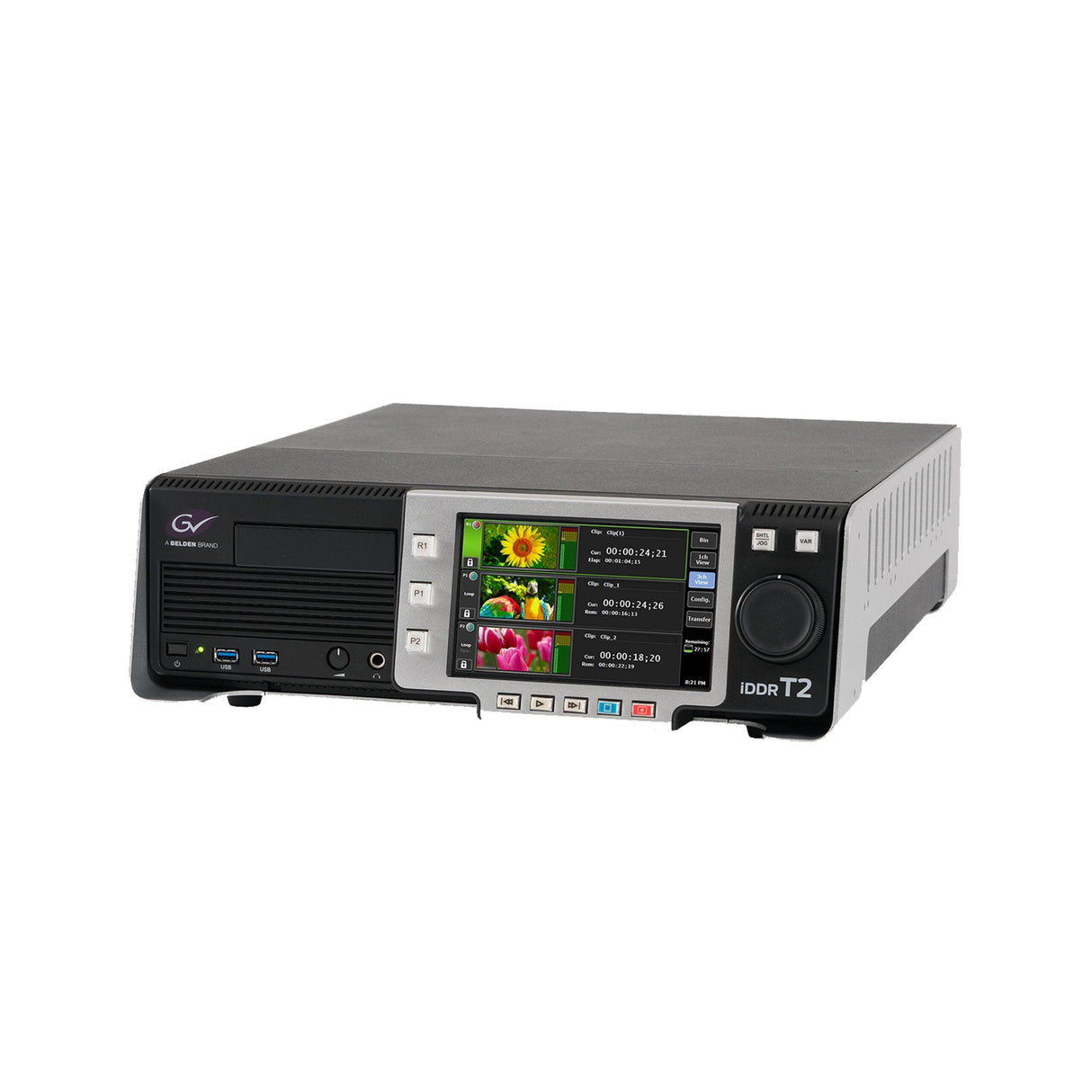

Grass Valley T2 4K Express Intelligent Digital Disk Recorder/Player

The front-panel transport controls have the look and feel of a traditional VTR. In 4K mode (DCI or UHD), one record or one output channel supports 4K content. In HD/SD mode one record and two output channels support SD and HD content. The crisp, clear LCD front panel can display high-quality images and is complemented by a software application suite for managing and selecting media clips, clip editing and trimming, and playout - including playlist creation.

Key Features

• HD (up to 29.97p/25p or 59.94i/50i) (2x player and 1x recorder)
• 4K DCI/4K UHD (up to 29.97p/25p) (1x player or 1x recorder)
• 2 TB usable HDD storage: 1 TB HDD x2 (RAID-0)
• Single power supply unit
• HD 2 channel synchronizes playback for key/fill rolls, edge blend displays, multiscreen and 3D applications
• Native import/playback for most standard formats
• Multicodec support (transcoding to Grass Valley HQX AVI) for most standard and broadcast formats
• FTP transfer rate limited to maintain playback performance
• Easy-to-use front panel interface and jog/shuttle
• Workstation mode included as standard
• Simple on-the-fly editing, including trimming, mark in/out, markers with comments, basic transition effects and insertion of placeholders for playlists
• Keyboard shortcuts and mouse customization on workstation

Technical Specifications

Mode
HD/SD: 1 in 2 out
4K: 1 in 0 out
4K: 0 in 1 out
Storage
System
M.2 SSD
64 GB
Data
HDD (RAID-0)
2 TB
Power supply unit
Single PSU
4K DCI/4K UHD
29.97p, 25p, 24p, 23.98p
HD 1080
29.97p, 25p, 24p, 23.98p, 59.94i, 50i
HD 720
59.94p, 50p
SD
59.94i, 50i
Dimensions (W x D x H)
430 x 550 x 140 mm (16.9 x 21.6 x 5.5 in.)
Weight
16.5 kg (36.4 lbs.)
