Gravity SP 5322 B Wind-Up Speaker Stand with Automatic Lock

Gravity SP 5322 B Wind-Up Speaker Stand with Automatic Lock

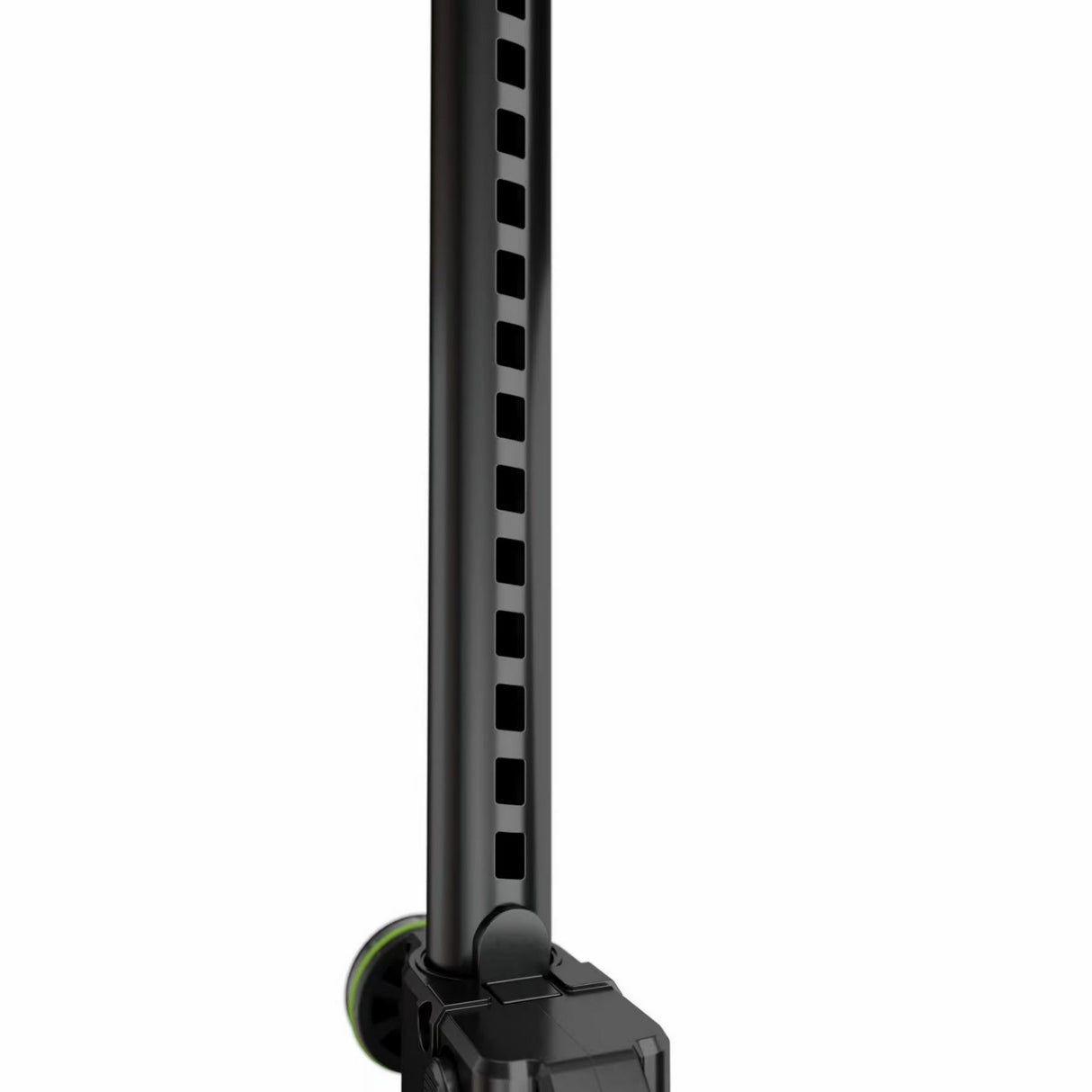

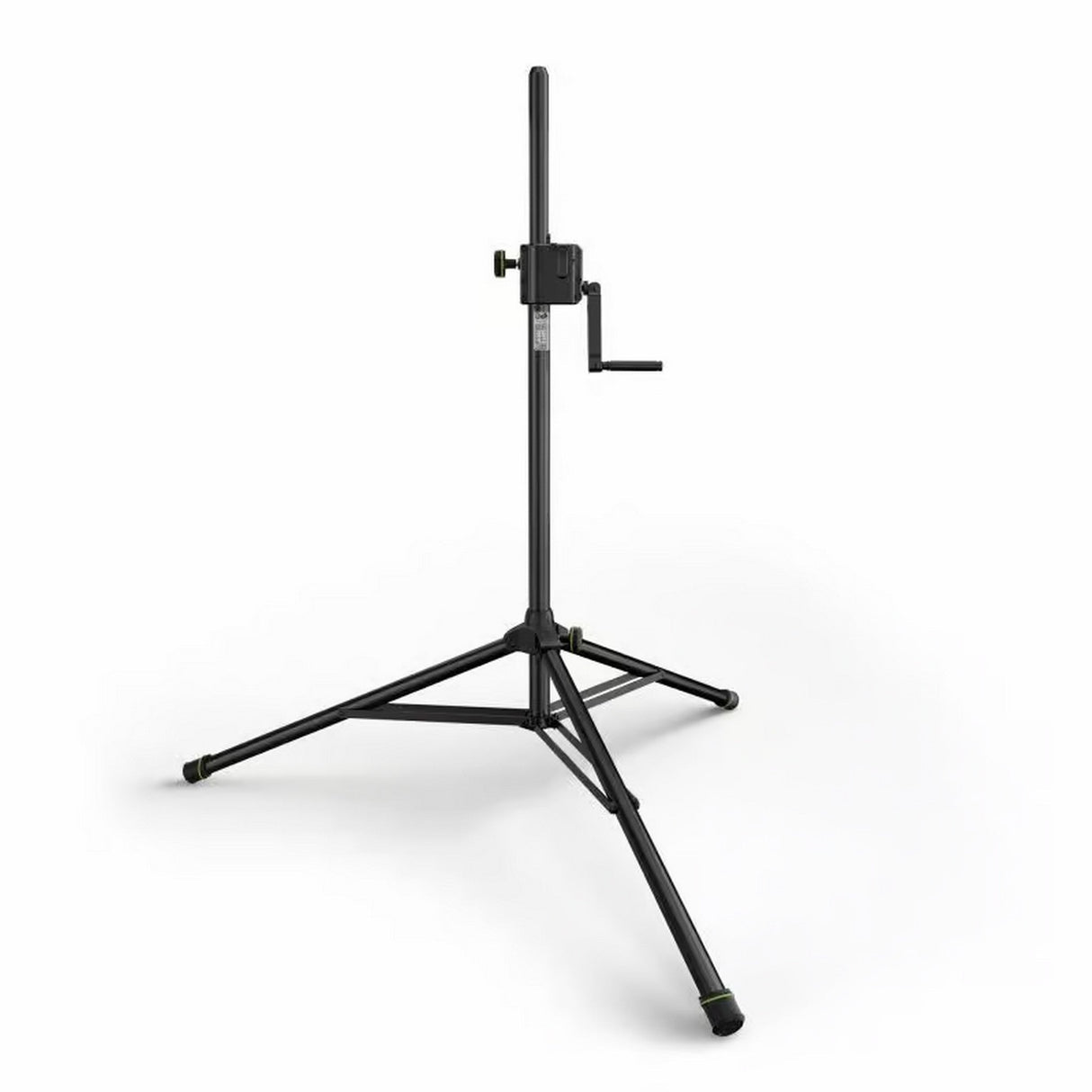

The Gravity SP 5322 B Wind-Up Speaker Stand is a heavy-duty tripod support for professional PA speakers and compatible lighting equipment. A retractable hand crank raises and lowers loads through a 52.4" to 82.7" height range, while an automatic lock pin and additional locking screw help secure the extension tube during use.

Designed for live sound, mobile production, event staging, and professional lighting applications, the SP 5322 B supports loads up to 132.3 lb. Its double-braced folding tripod uses steel construction with a durable cast-zinc foot suspension for stability. The 35 mm mounting tube accepts standard compatible speaker cabinets, while an integrated M10 thread expands its usefulness as a lighting stand.

The crank folds away when not in use for a cleaner transport profile, and the stand collapses to approximately 6.3" W x 46.9" H x 6.7" D. A powder-coated black finish protects the steel and zinc-alloy structure for repeated setup and teardown. Gravity identification rings are also incorporated into the stand, with a black ring set included.

Key Features

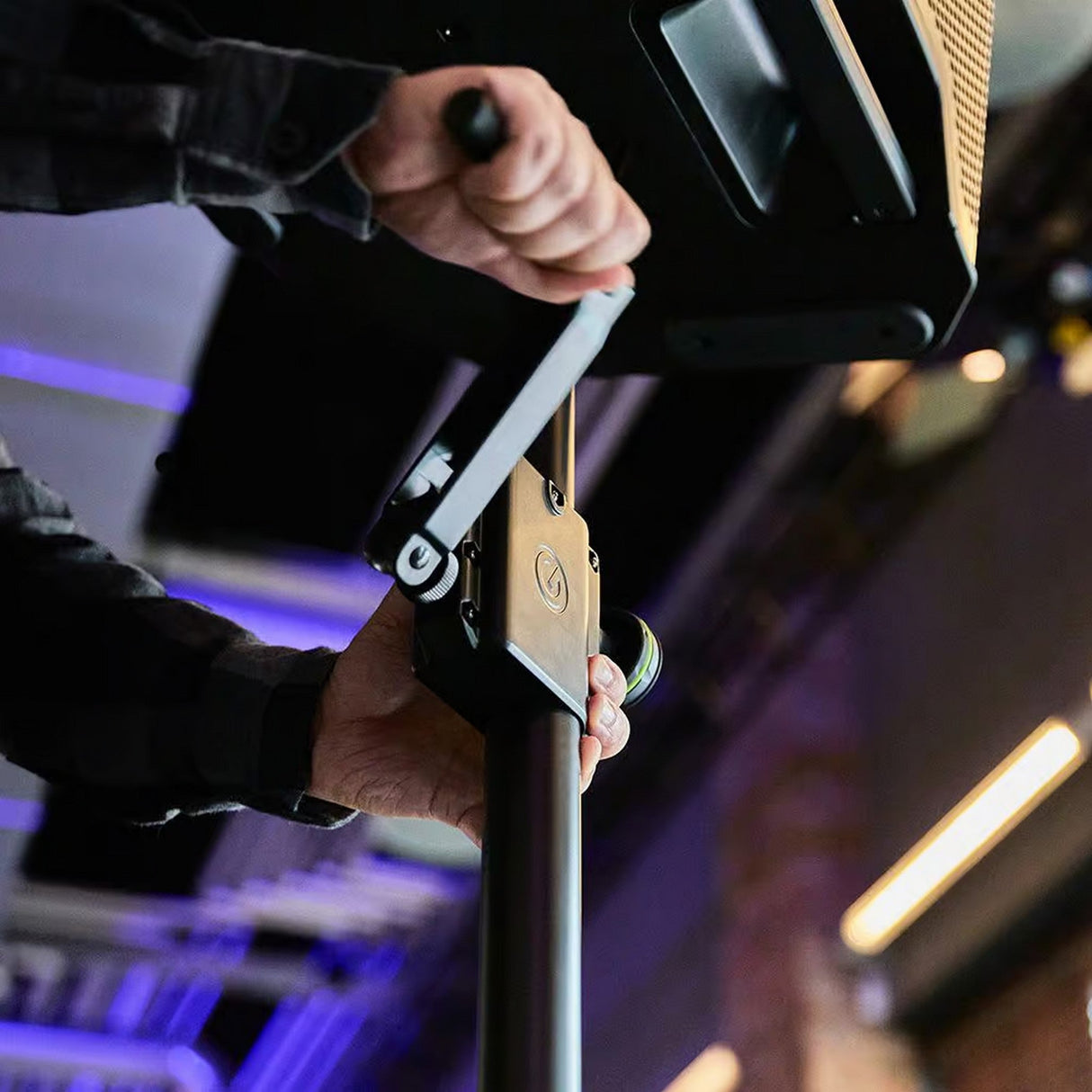

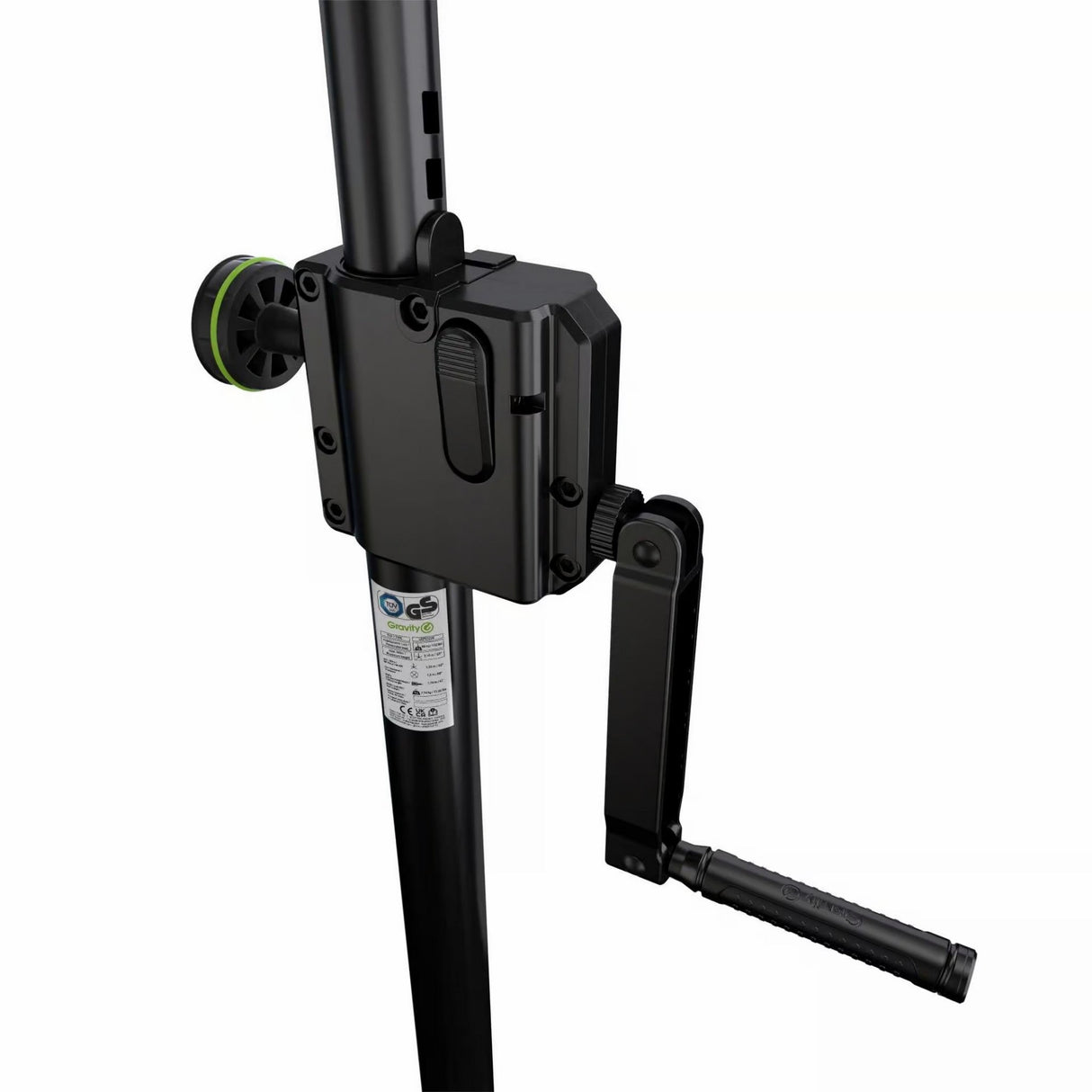

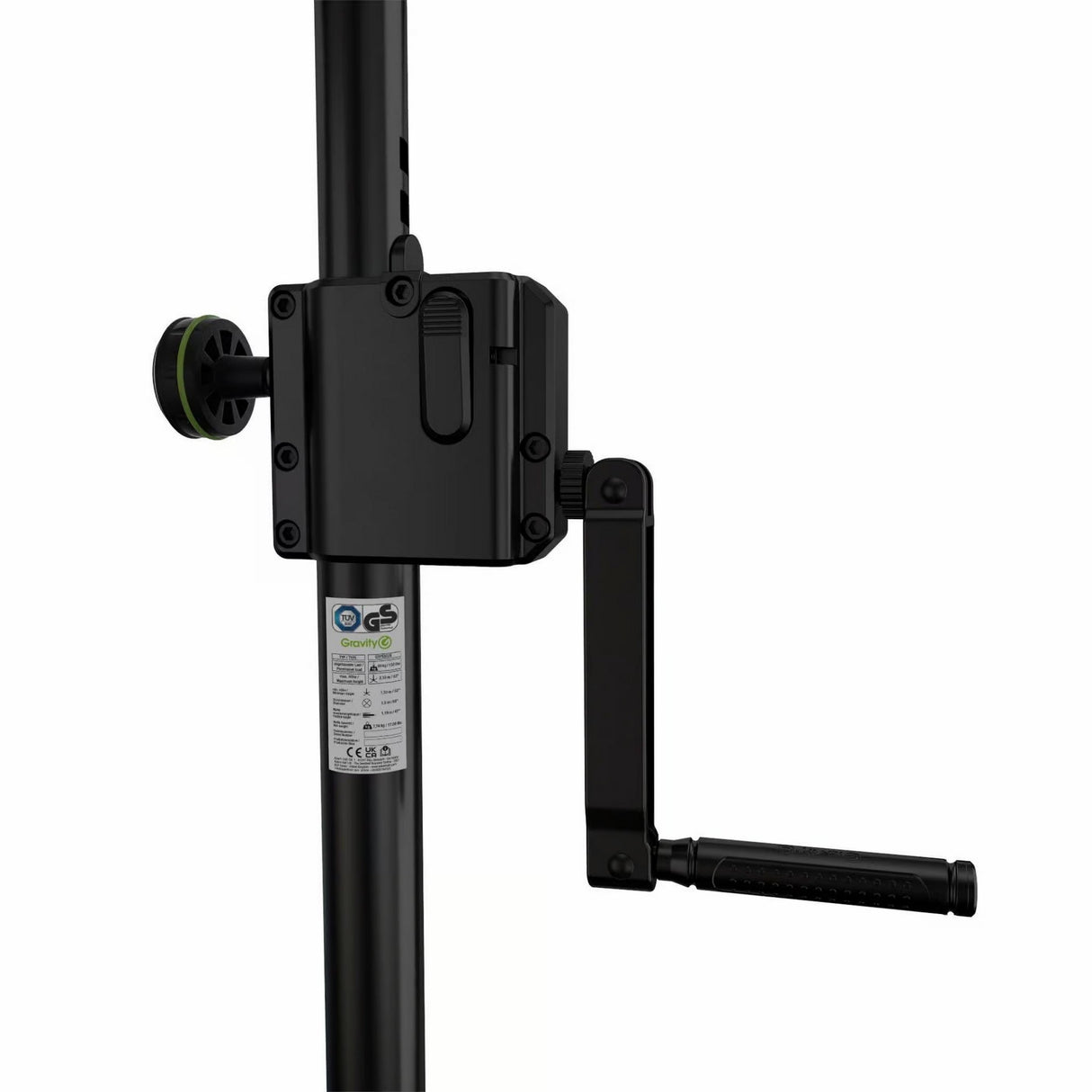

• Wind-Up Height Adjustment: Retractable crank assists with raising and lowering mounted speakers or compatible lighting equipment.
• Automatic Lock Pin: Push-button locking mechanism helps prevent uncontrolled movement of the extension tube.
• Additional Locking Screw: Provides a second securing point after the desired operating height is reached.
• 132.3 lb Load Capacity: Supports substantial professional loudspeakers and compatible lighting loads within the manufacturer's rating.

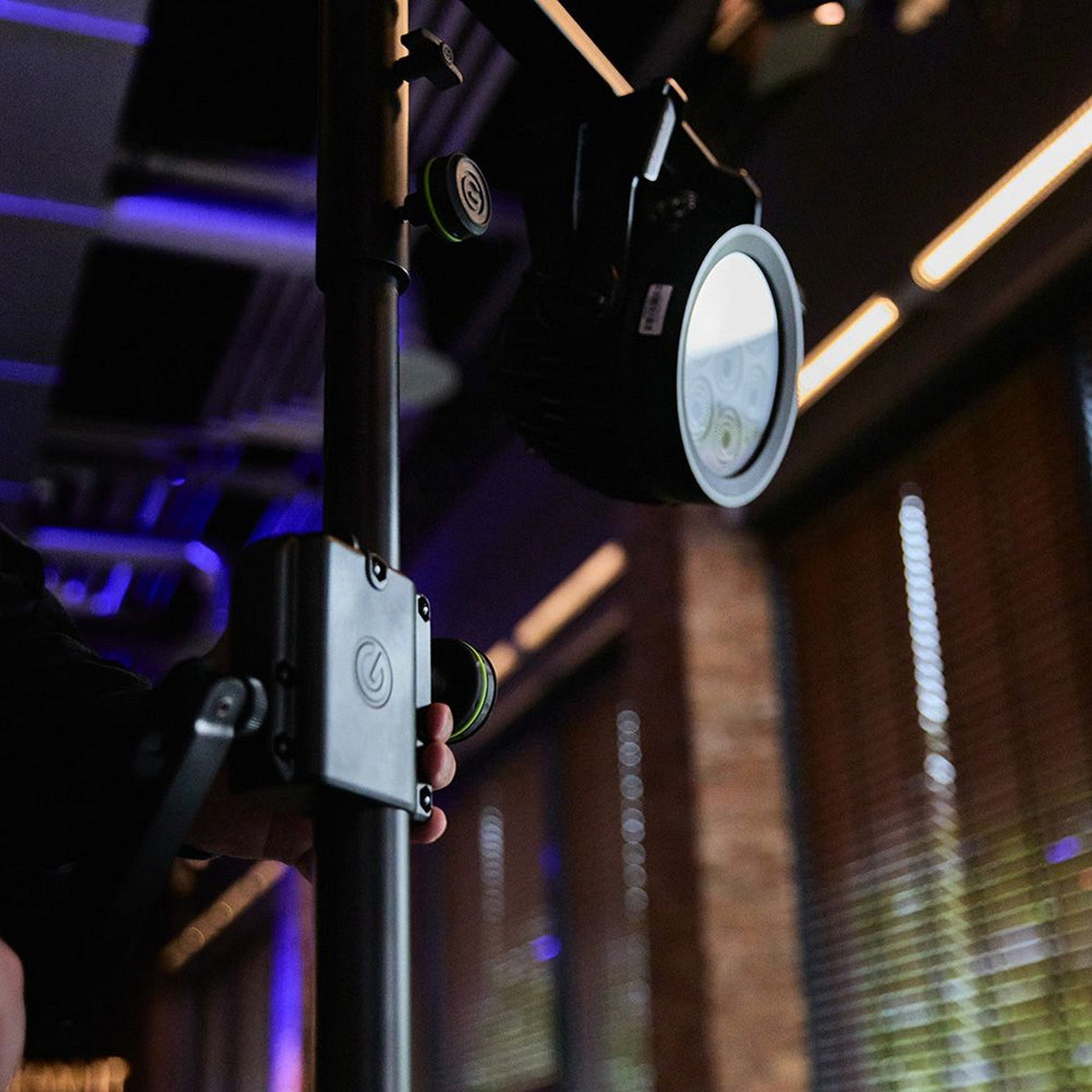

• Speaker and Lighting Compatibility: Combines a standard 35 mm mounting tube with an integrated M10 threaded connection.

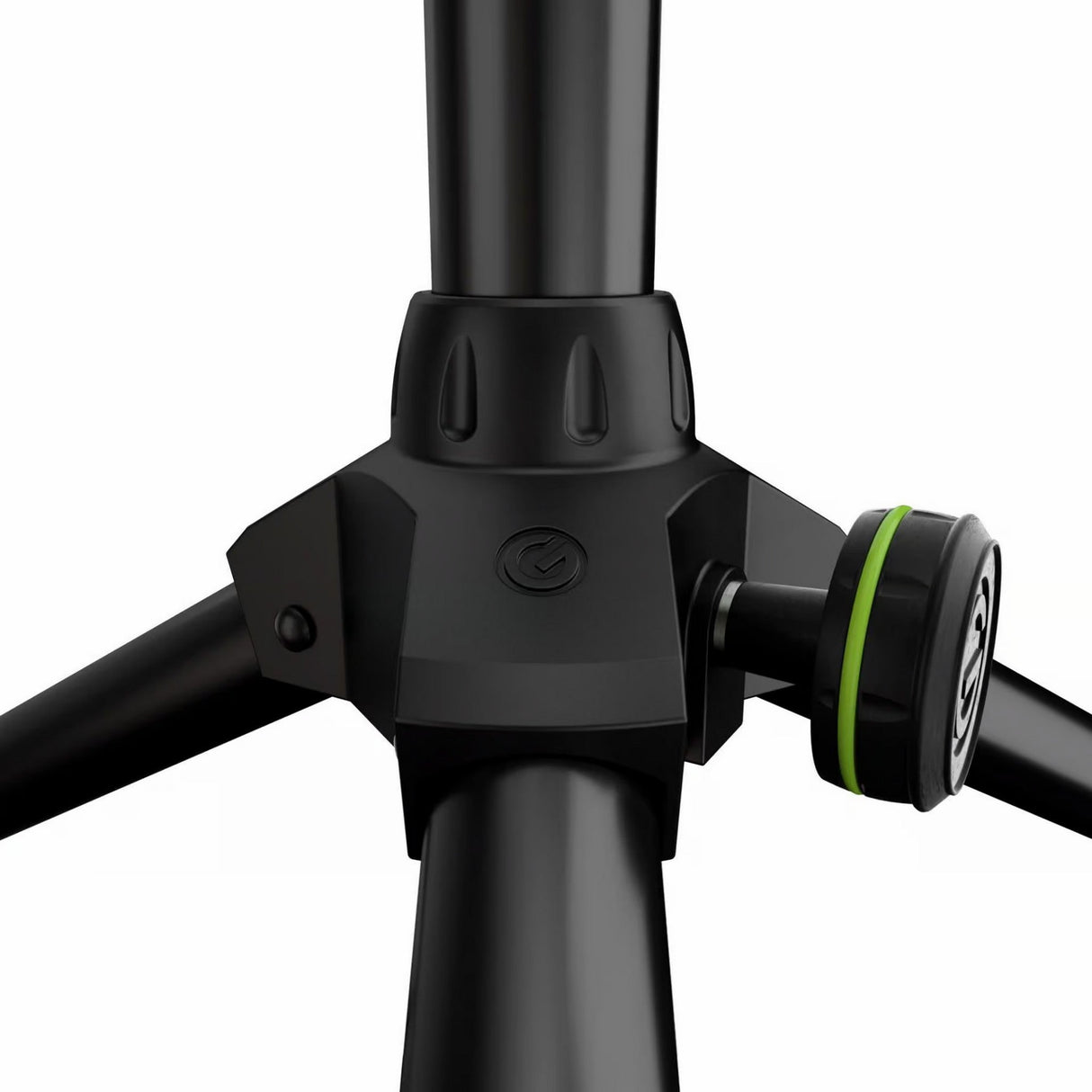

• Double-Braced Tripod: Folding steel legs and cast-zinc components provide a stable base for professional applications.
• Wide Height Range: Adjusts from approximately 52.4" to 82.7" for flexible speaker or lighting placement.

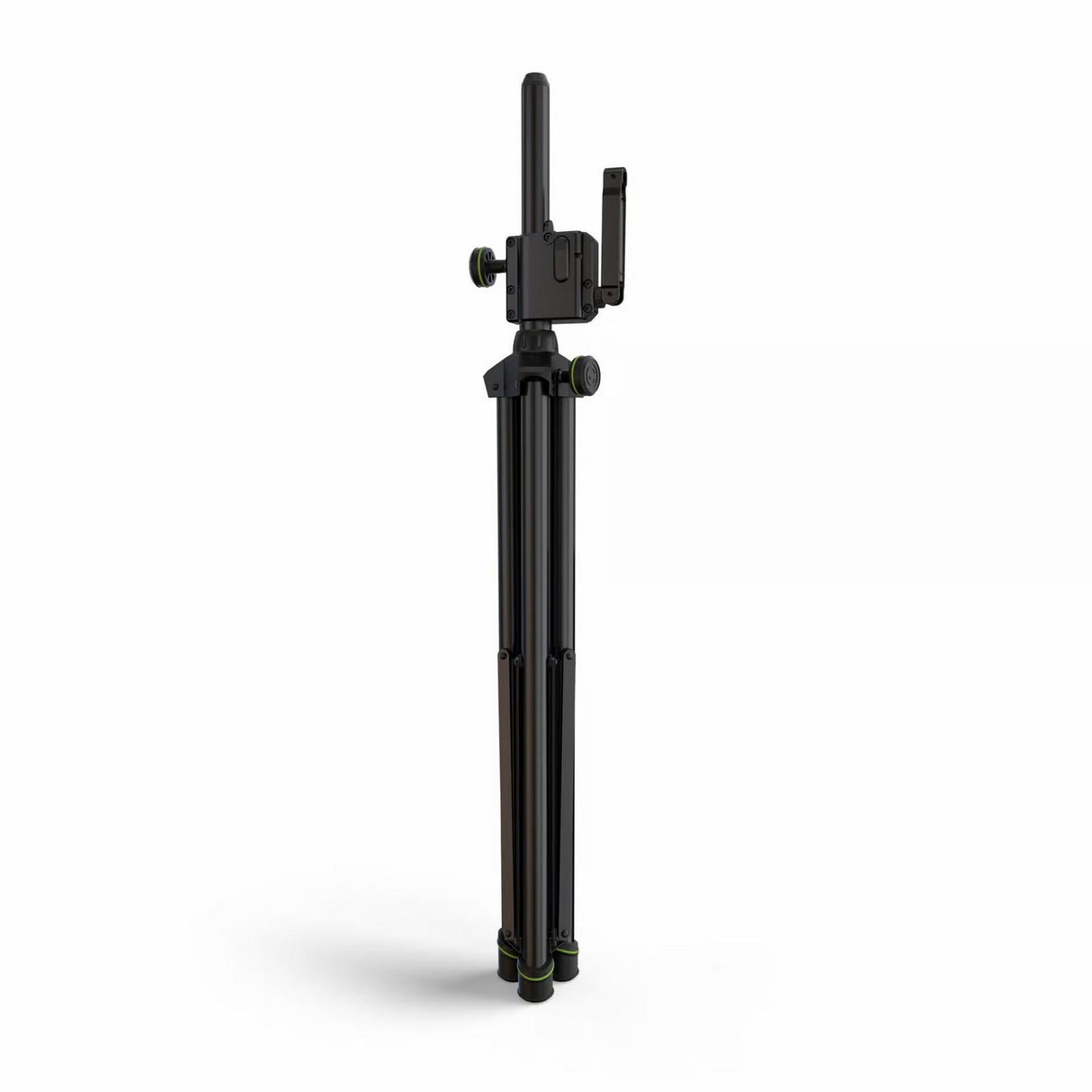

• Compact Transport Profile: Folds down to approximately 6.3" x 46.9" x 6.7" for storage and transport.

Technical Specifications

General

• Brand: Gravity
• Model: SP 5322 B
• Item Number: GSP5322B
• Product Type: Wind-Up Speaker Stand
• Height Adjustment: Crank with push button and locking screw
• Height Adjustment Range: 52.4" to 82.7"
• Mounting: 35 mm tube with M10 thread
• Maximum Load: 132.3 lb
• Material: Plastic, steel, zinc alloy
• Coating: Powder coated
• Color: Black
• EAN: 4049521926389

Base and Construction

• Base Type: Folding tripod
• Base Material: Steel and zinc alloy
• Base Coating: Powder coated
• Base Color: Black
• Footprint Diameter: 59.1"
• Tripod Bracing: Double struts
• Foot Suspension: Cast zinc
• Gravity Rings: 5 x 1.2"
• Black Ring Set Included: Yes

Dimensions and Weight

• Operating Width Range: 6.3" to 63"
• Operating Height Range: 52.4" to 82.7"
• Operating Depth Range: 6.7" to 63"
• Transport Width: 6.3"
• Transport Height: 46.9"
• Transport Depth: 6.7"
• Weight: 17.1 lb
