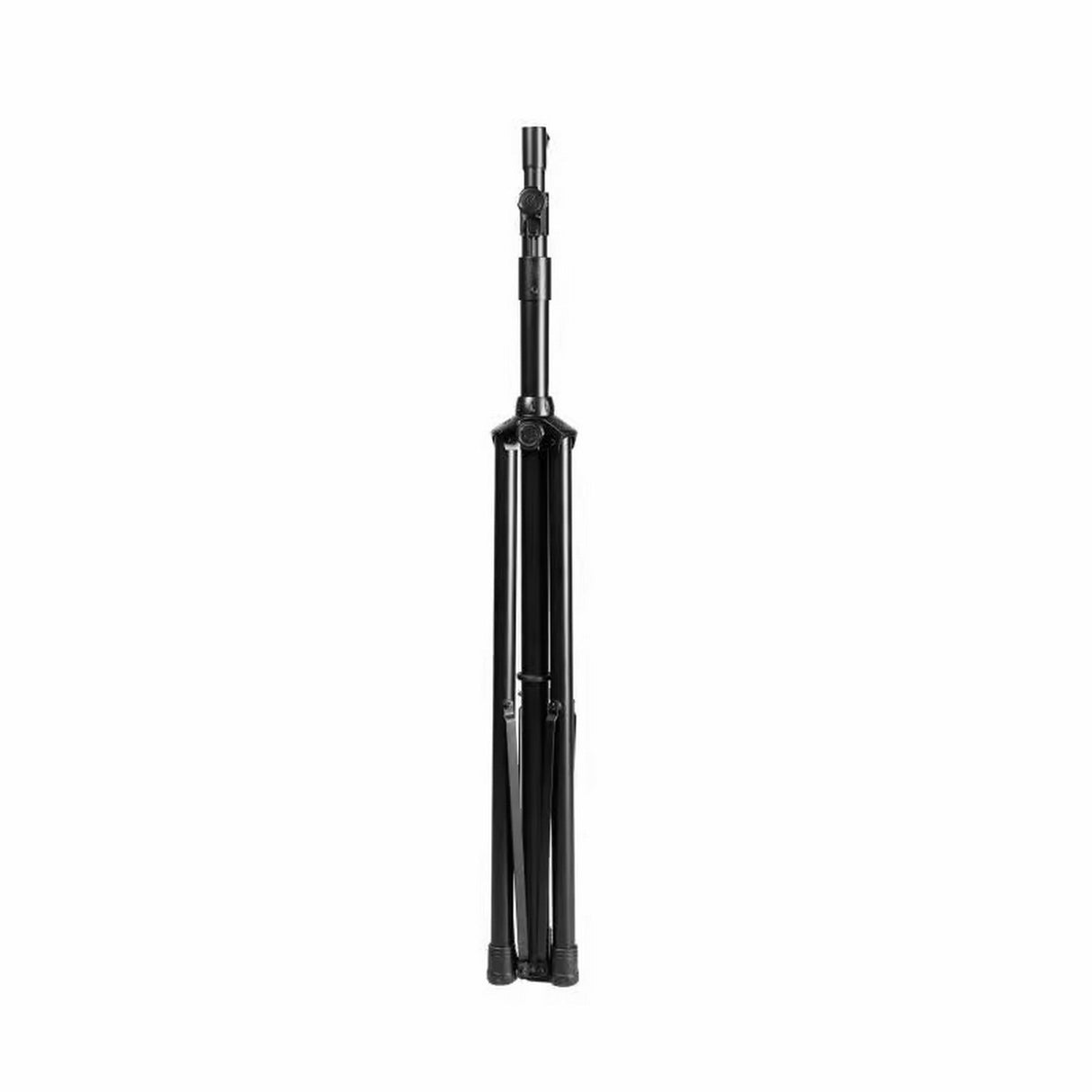

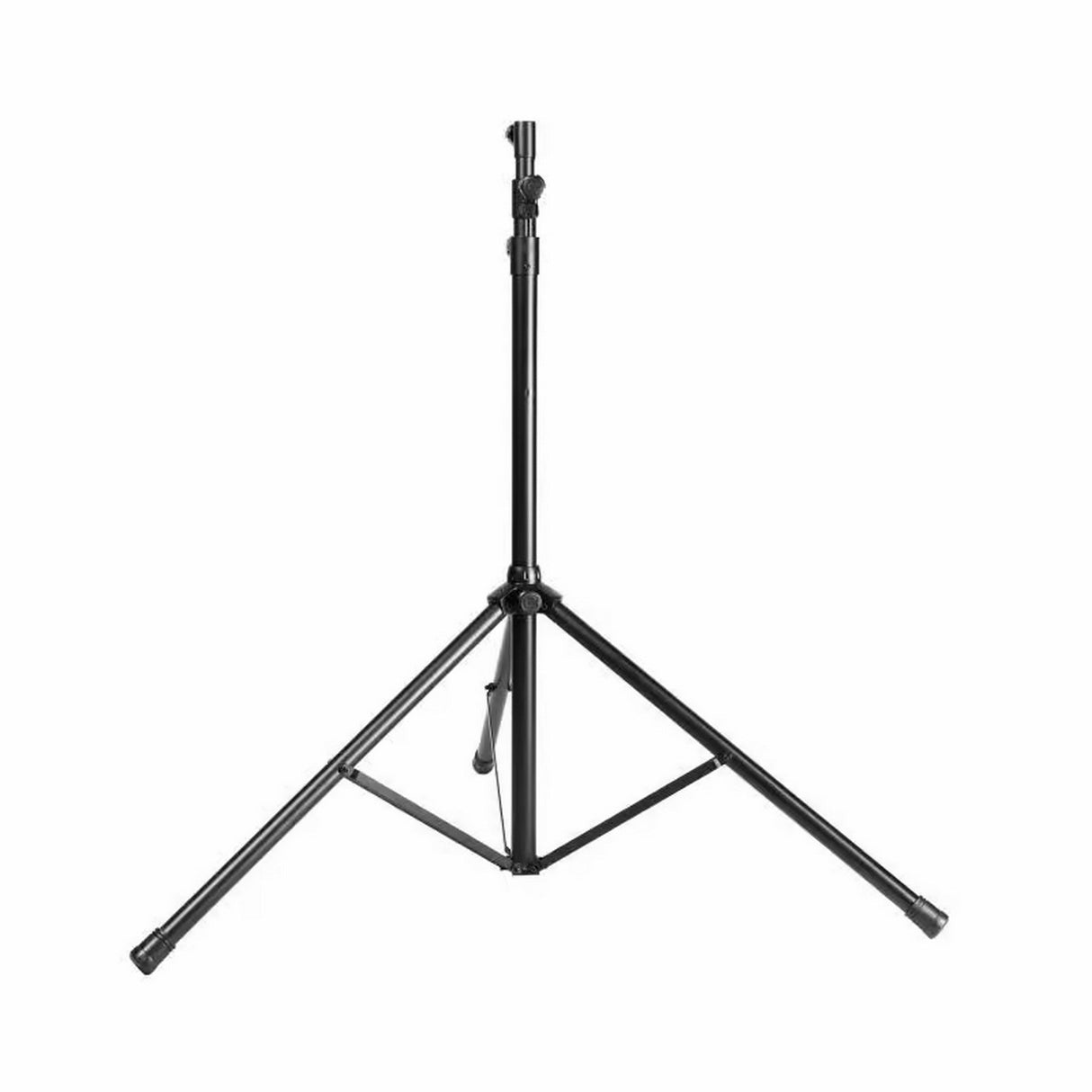

Gravity TLS 551 B Touring Series Steel Light Stand with LockPin

Gravity TLS 551 B Touring Series Steel Light Stand with LockPin

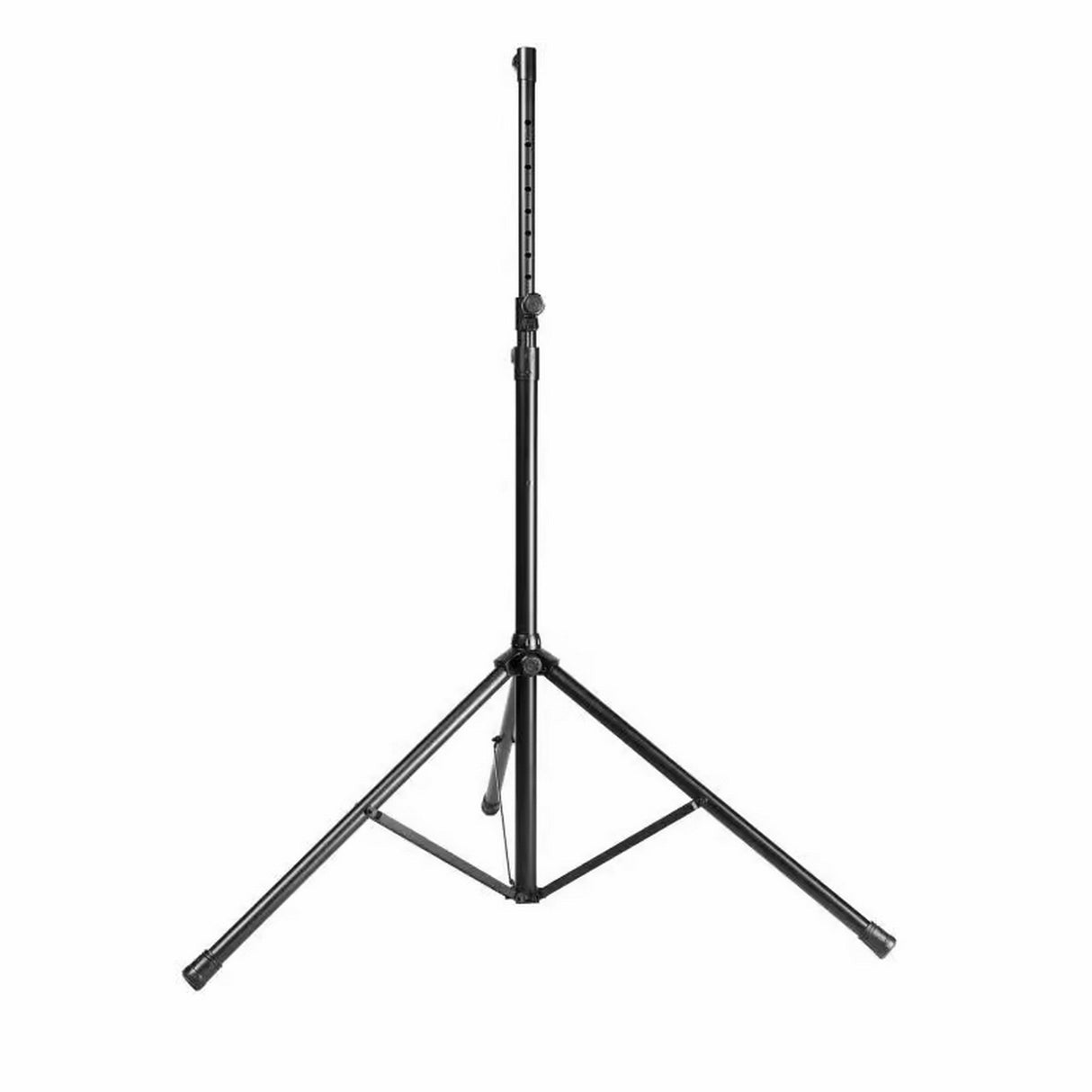

The Gravity TLS 551 B Touring Series Steel Light Stand is a professional tripod stand built for rental, touring, and event production. Its double-extension steel structure adjusts from 56.3" to 132.3", while the automatic LockPin mechanism secures the stand at the selected height and supports loads up to 110.2 lb.

Twin support struts reinforce the tripod base for demanding lighting, truss, and rigging applications. The double-extension design provides substantial overhead placement without adding a crank mechanism, making this professional lighting stand suitable for mobile production companies, venues, staging crews, and rental inventories that require fast setup and dependable mechanical locking.

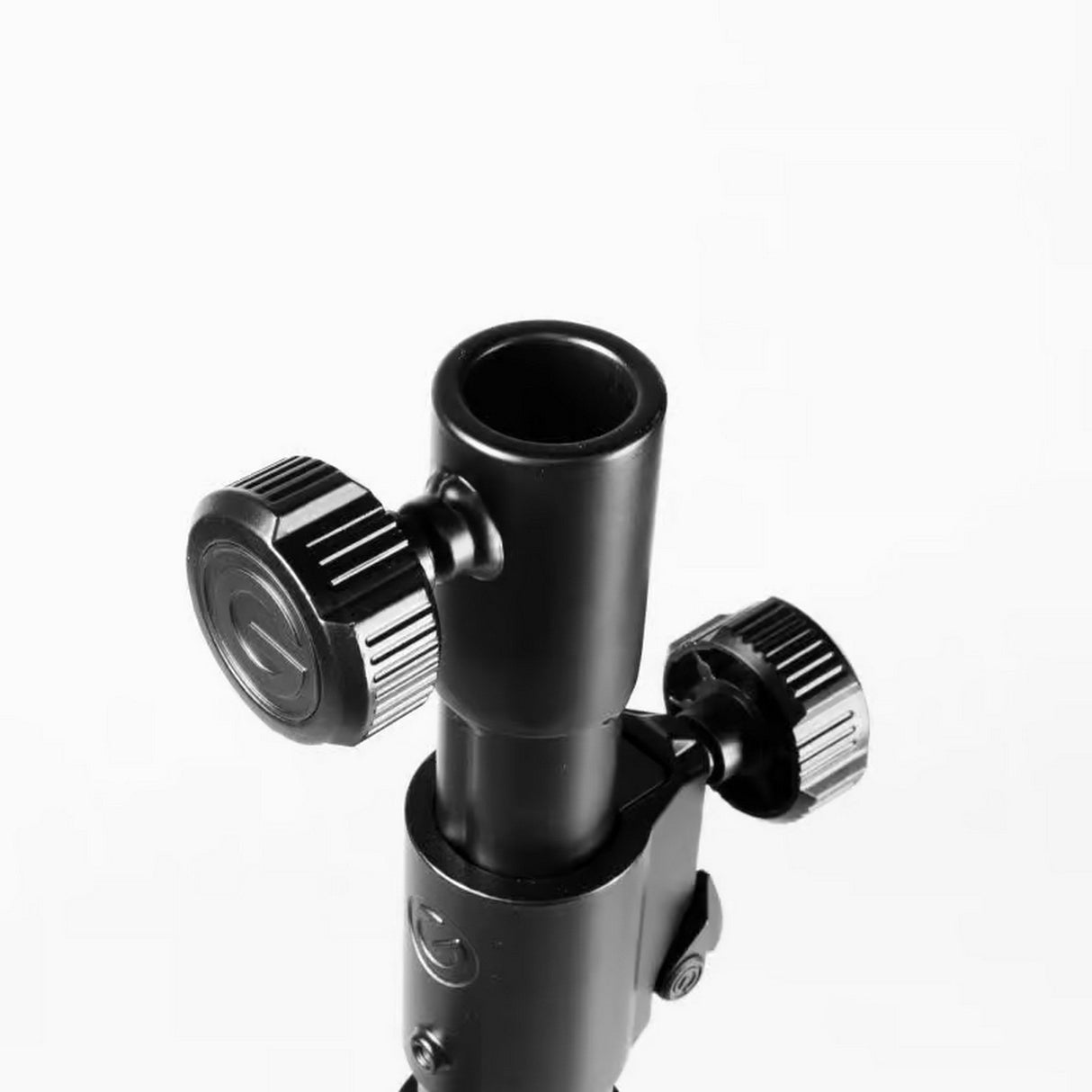

A die-cast aluminum mounting bracket and captive heavy-duty metal knobs support frequent setup and teardown. The integrated TV28 mount accepts compatible TV-spigot accessories, expanding its usefulness with professional lighting and rigging hardware. Black powder-coated steel construction provides a durable touring-ready finish, while the stand collapses to a compact transport profile for storage between events.

Key Features

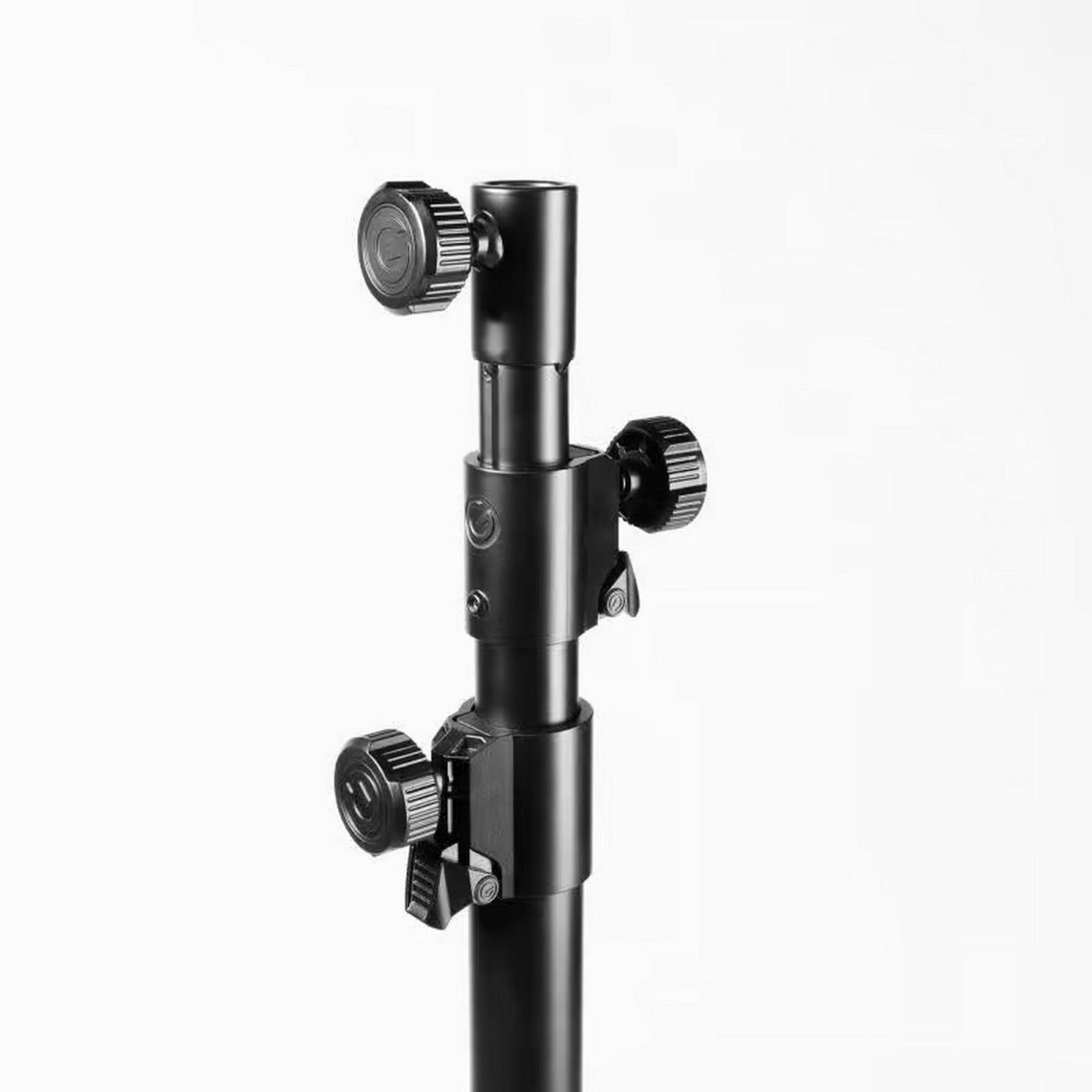

• Automatic LockPin: Secures the extension automatically at the selected position for efficient setup and height adjustment.
• Double Extension: Reaches a maximum working height of 132.3" for elevated professional lighting placement.
• 110.2 lb Load Capacity: Supports substantial lighting and compatible rigging equipment within the manufacturer's rated limit.

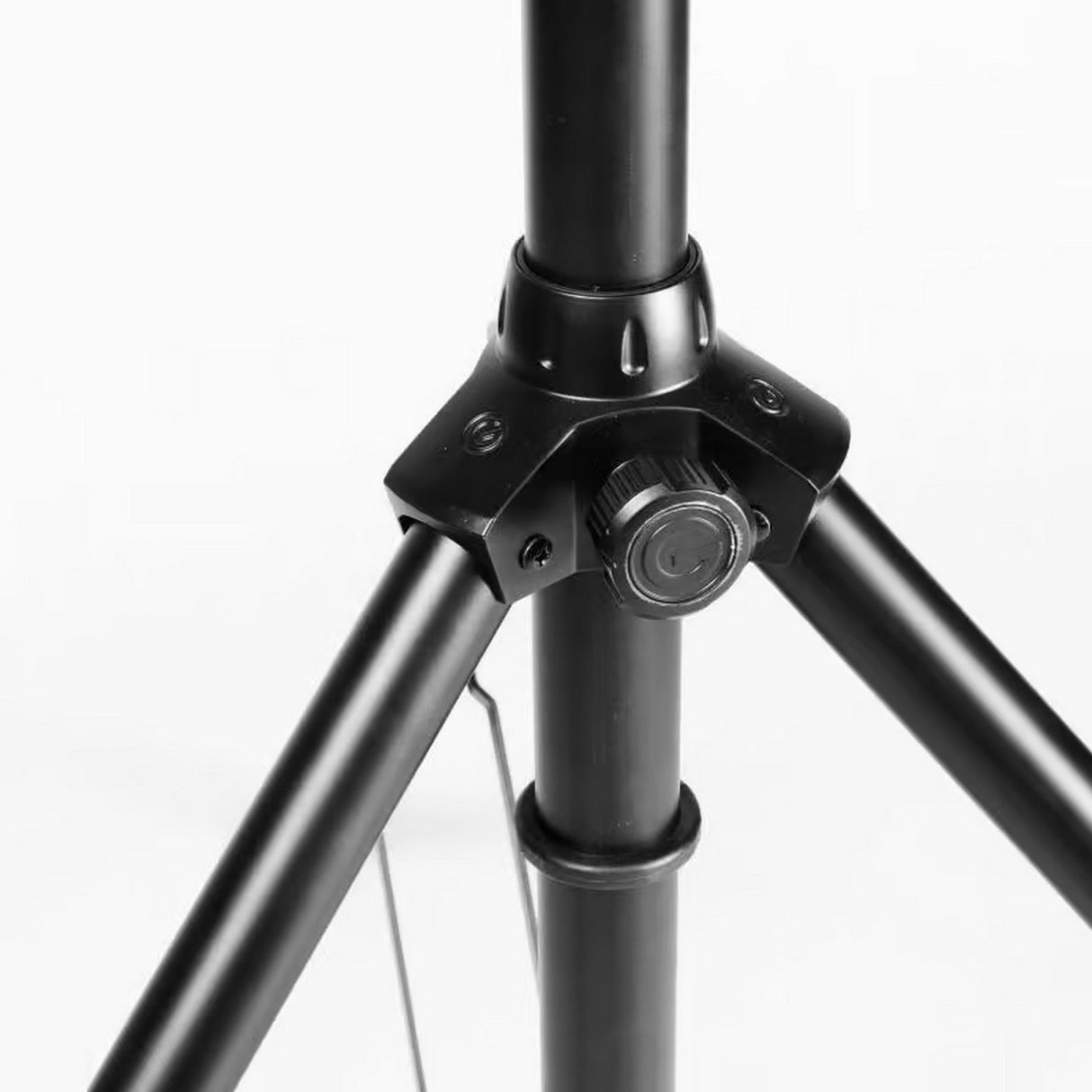

• Twin Support Struts: Reinforce the steel tripod structure for stability in rental, touring, and event environments.

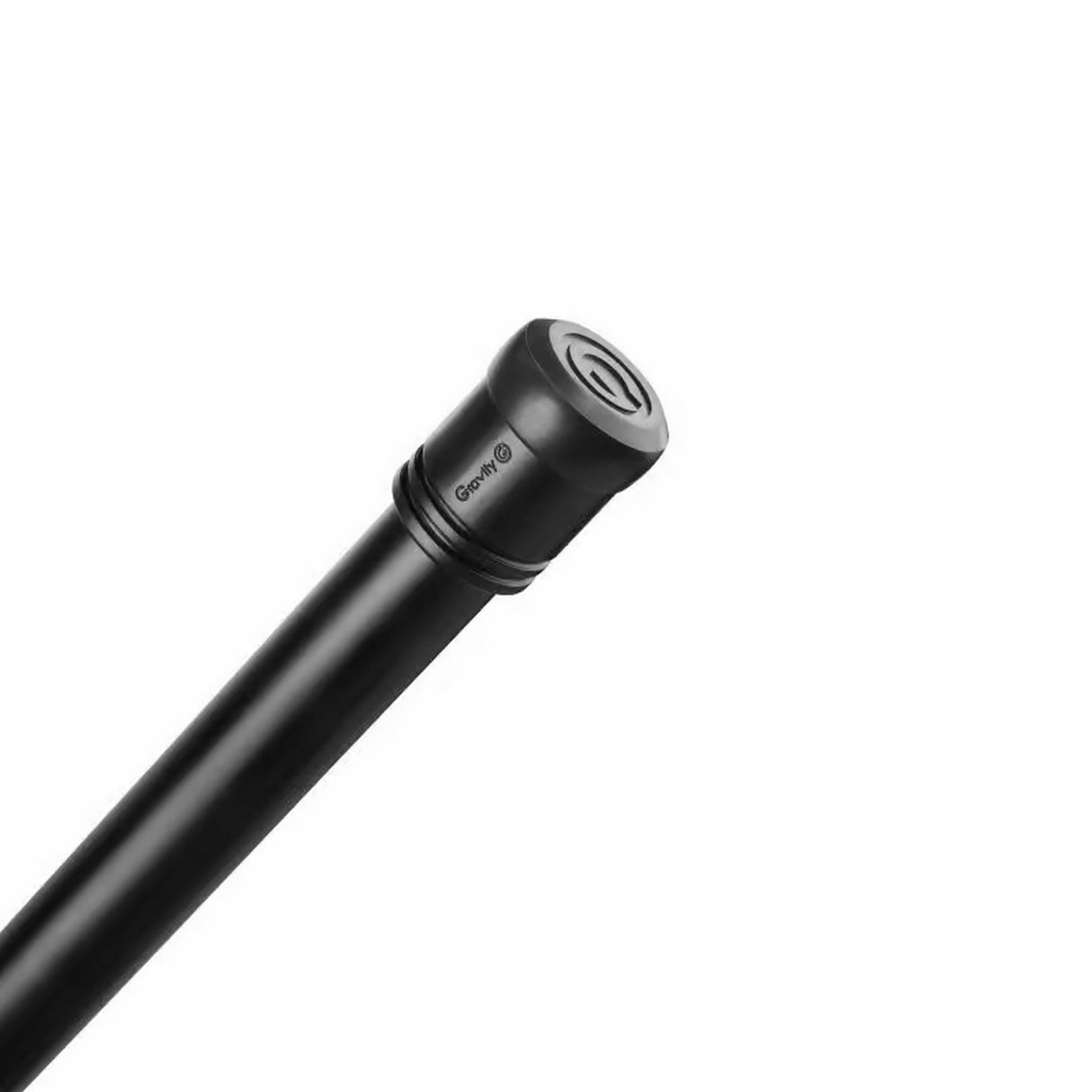

• TV28 Mount: Provides an integrated mounting point for compatible standard TV-spigot lighting and rigging accessories.
• Die-Cast Aluminum Bracket: Adds durability at the mounting assembly for repeated professional use.
• Heavy-Duty Metal Knobs: Captive operating knobs remain attached to the stand during transportation and setup.
• Touring Construction: Powder-coated steel construction withstands repeated deployment while maintaining a professional black finish.

Technical Specifications

General

• Brand: Gravity
• Model: TLS 551 B
• Item Number: GTLS551B
• Series: Touring Series
• Product Type: Steel Lighting Stand
• Height Adjustment: Automatic LockPin locking
• Extension Design: Double extension
• Height Adjustment Range: 56.3" to 132.3"
• Mounting: TV28
• Maximum Load: 110.2 lb
• Material: Steel
• Coating: Powder coated
• Color: Black
• EAN: 4069724177012
• Manufacturer Warranty: 60 months

Base and Hardware

• Base Type: Tripod
• Base Material: Steel
• Base Coating: Powder coated
• Base Color: Black
• Support Structure: Twin support struts
• Mounting Bracket: Die-cast aluminum
• Adjustment Knobs: Captive heavy-duty metal knobs

Dimensions and Weight

• Transport Width: 5.4"
• Transport Height: 56.3"
• Transport Depth: 6"
• Operating Height: 56.3" to 132.3"
• Weight: 23.1 lb
