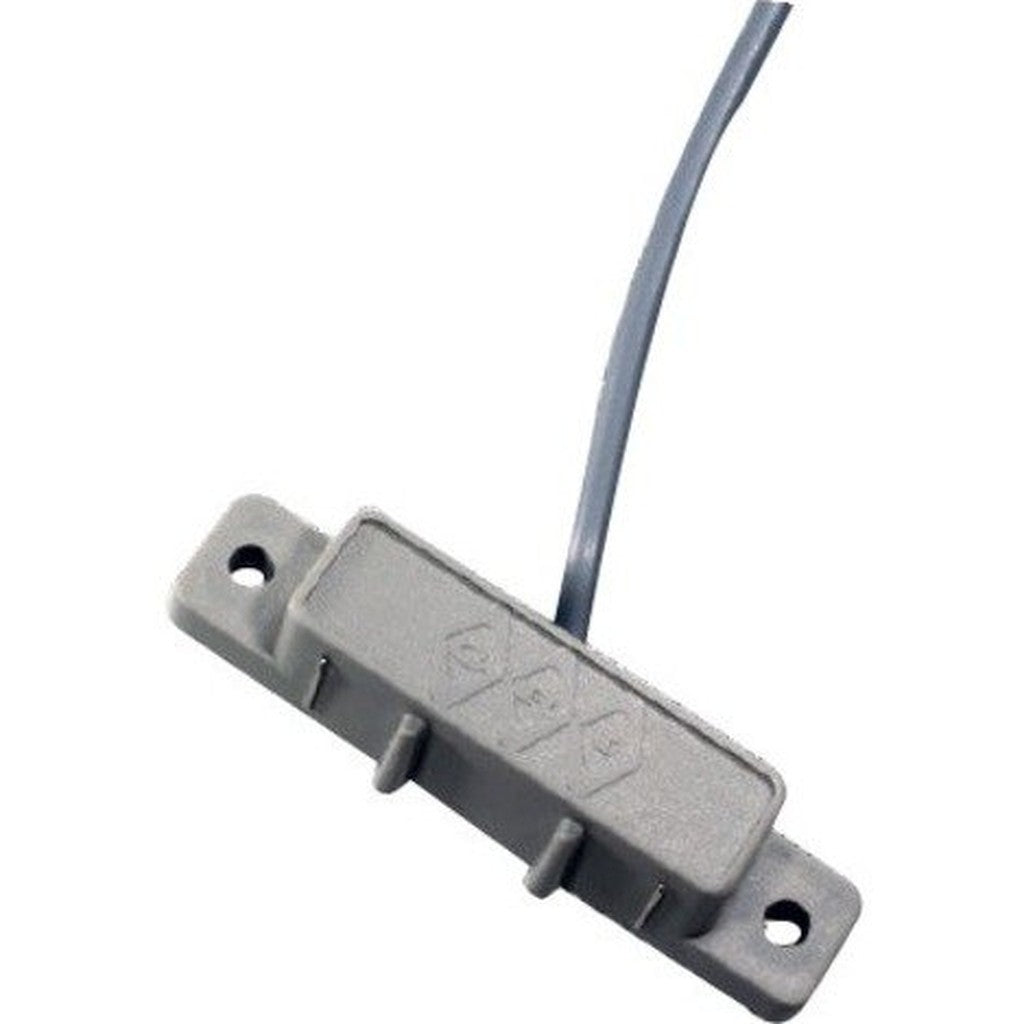

GRI 2600-W 12VDC Closed-Loop Water Sensor with Relay Contact

GRI 2600-W 12VDC Closed-Loop Water Sensor with Relay Contact

The GRI 2600-W 12VDC closed-loop water sensor detects conductive, non-flammable liquid and activates its built-in relay when moisture bridges the sensor contacts. Designed for surface mounting, it can trigger an alarm panel or external annunciator while also signaling loss of power or sensor failure in a normally closed circuit.

This wired water leak detector helps protect computer rooms, telephone equipment rooms, bathrooms, laundry rooms, drip pans, drains, and areas near tanks or piping. It detects water layers as shallow as 1/16 inch without mechanical moving parts. Automatic reset prepares the sensor for continued monitoring after the moisture condition clears.

The four-wire design uses dedicated power and relay-contact leads for straightforward integration with compatible closed-loop alarm zones. Installers can place an end-of-line resistor in series when required by the control panel. A standard 6-foot jacketed lead supports flexible positioning, while the compact white housing provides an unobtrusive solution for professional water-damage monitoring.

Key Features

• Conductive Liquid Detection: Detects water and other conductive, non-flammable liquids through exposed sensor contacts.
• Closed-Loop Relay Output: Connects directly to compatible alarm panels, transmitters, annunciators, or external signaling devices.
• Fail-Safe Monitoring: Produces an alarm condition when moisture is detected, power is lost, or the sensor fails.
• Automatic Reset: Returns to its normal monitoring state after the detected moisture is removed.
• Shallow-Water Sensitivity: Detects a liquid layer as shallow as 1/16 inch.
• No Mechanical Parts: Uses a moisture bridge across the contacts for dependable electronic detection.
• Surface-Mount Housing: Installs near appliances, pipes, drains, tanks, and other potential leak sources.
• Extended Wired Connection: Includes a standard 6-foot jacketed lead for flexible sensor placement.

Technical Specifications

• Brand: GRI
• Manufacturer: George Risk Industries
• Manufacturer Part Number: 2600-W
• ADI Part Number: GI-2600W
• Product Type: Wired water sensor with relay contact
• Detectable Medium: Conductive, non-flammable liquid
• Detection Method: Moisture bridge across sensor contacts
• Minimum Detectable Water Depth: 1/16"
• Circuit Configuration: Normally closed for a closed-loop circuit
• Relay Operation: Built-in relay contact energized by an external power source
• Reset: Automatic
• Connectivity Technology: Wired
• Operating Voltage: 12V DC
• Operating Current: 12 mA
• Battery Power: Not recommended
• Contact Resistance: 100 milliohms
• Maximum Switching Voltage: 30V DC
• Maximum Switching Current: 500 mA
• Maximum Switching Power: 250 mW
• Red Wire: +12V DC
• Black Wire: Ground
• Green Wire: Relay contact
• White Wire: Relay contact
• Lead Length: 6'
• Lead Type: Jacketed
• Custom Lead Lengths: Available
• Form Factor: Surface mount
• Mount Type: Surface mount
• Color: White
• Dimensions (L x W x H): 1.69" x 0.52" x 0.55"
• Recommended Testing: Test after installation with a damp sponge or paper towel
• Recommended Inspection: Inspect annually and replace if corrosion or damage is present
• Applications: Bathrooms, laundry rooms, computer rooms, telephone equipment rooms, drip pans, drains, overflows, tanks, and piping areas
• Country of Origin: United States
