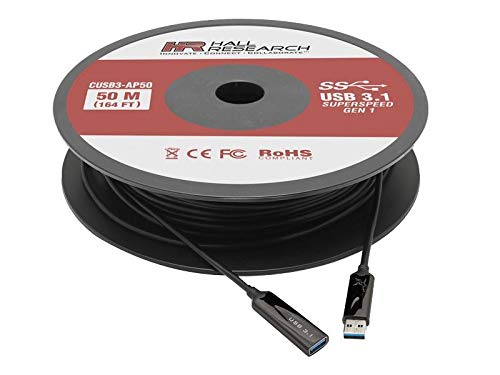

Hall Technologies CUSB3-AP50 4K USB 3.0 and 3.1 Gen1 Javelin AOC Plenum Cable, 164-Foot

The CUSB3-AP cables are members of Hall Research's Javelin family of active optical video and USB cables. The CUSB3-AP cables are used to extend USB 3.0 (USB 3.1 Gen1) Super-Speed signals at data rates of up to 5 Gbps. They support transparent extension of USB 3.1 Gen1 and are compatible with all USB 3.0 devices including 4K USB 3.0 cameras and USB 3.0 memory devices. They are offered at standard lengths of 15, 30, and 50 meters (50, 100 and 164 ft).

The cables are light-weight and are constructed using a hybrid of fiber and copper. Fiber optics offer high immunity to EMI and RFI noise for trouble free operation. The cable uses minimal power and does not require any additional power supply. The USB host connection provides 5v power for operation and the cable sends 5v via its copper wires to the remote (device) end. The cables are constructed using Plenum (CMP) Rated jacket material to ensure compliance with modern building codes. The small cable ends can be easily pulled through most conduits (a pulling sock is recommended).

CUSB3-AP cables are compatible with virtually all USB 3.0 and 3.1 Gen1 devices, and are a perfect solution for extending 4K videoconferencing cameras, video capture, docking stations, and other high-speed data communications.

Note that the CUSB-AP cables only extend USB 3.0 signals.

How can I extend legacy USB 2.0 or 1.1 devices with this cable?

USB 2.0 devices use the 4 pins that you can easily see when you look inside a male A-type connector. USB 3.0 devices however do not use these pins, instead they use their own dedicated USB 3.0 pins that are deep in the back of USB 3 connectors. The designers of USB 3.0 added these new pins in the back to allow backward compatibility so both USB 2.0 and 3.0 devices could be plugged into the same connector.

The CUSB3-AP cables actively extend the signals on the USB 3.0 pins using fiber optic cables, therefore USB 2 or 1.1 devices that are using the legacy pins cannot be extended.

However, Hall Research offers the USB23H-4 which is a unique hub that converts USB 1.1, 2.0 data to USB 3.0. When used at the remote (device) end of the Javelin cable, users will be able to plug in a combination of USB 3 and 2.0/1/1 devices. Please contact our sales team for more information.

Key Features

• Plenum Rated
• Data transfer rates of up to 5 Gigabits per second
• Offers fiber-optic noise immunity
• No additional power supply required
• Supports all USB 3.0 devices
• Thin and flexible with bend radius of 0.3 inch
• Plug and Play, no driver required

Technical Specifications

Input
Male USB 3.0 Type A
Output
Female USB 3.0 Type A
Available Lengths
15m (~50ft), 30m (~100ft) and 50m (~164ft)
USB Standards
USB 3.0 or USB 3.1 Gen 1
Bandwidth
5 Gbps max
Supply Voltage
Powered from USB 5v pin, Nominal
5v (operating range
4.7v~5.3v). Damage will occur if 5v input > 6v.
Supply Current Nominal
50 ma max (not including remote USB device load)
Power Consumption
Nominal
0.25 watts
Grade
Plenum CMP (UL)
Color
Black
Diameter
5 mm (0.2 inch)
Bend Radius
8mm (0.3 inch) minimum
Connector Pull Strength
10 Kg (22 lbs) maximum (never pull on the connector, use a pulling sock
USB A Male (Host side)
1.4 inch x 0.6 inch x 0.3 inch (35.6mm x 15.3mm x 7.6 mm)
Total length including USB and Strain relief
2.3 inch (58.4mm)
USB A Female (device side)
1.8 inch x 0.6 inch x 0.3 inch (45.7mm x 15.3mm x 7.6 mm)
Total length including Strain relief
2.2 inch (55.9mm)
Storage
-4 to +158 °F (-20 to +70 °C) / 5% to 90%, non-condensing
Operating
+32 to +122 °F (0 to +50 °C) / 10% to 85%, non-condensing
Regulatory EMI/EMC
CE, RoHS - CE, FCC Class A
