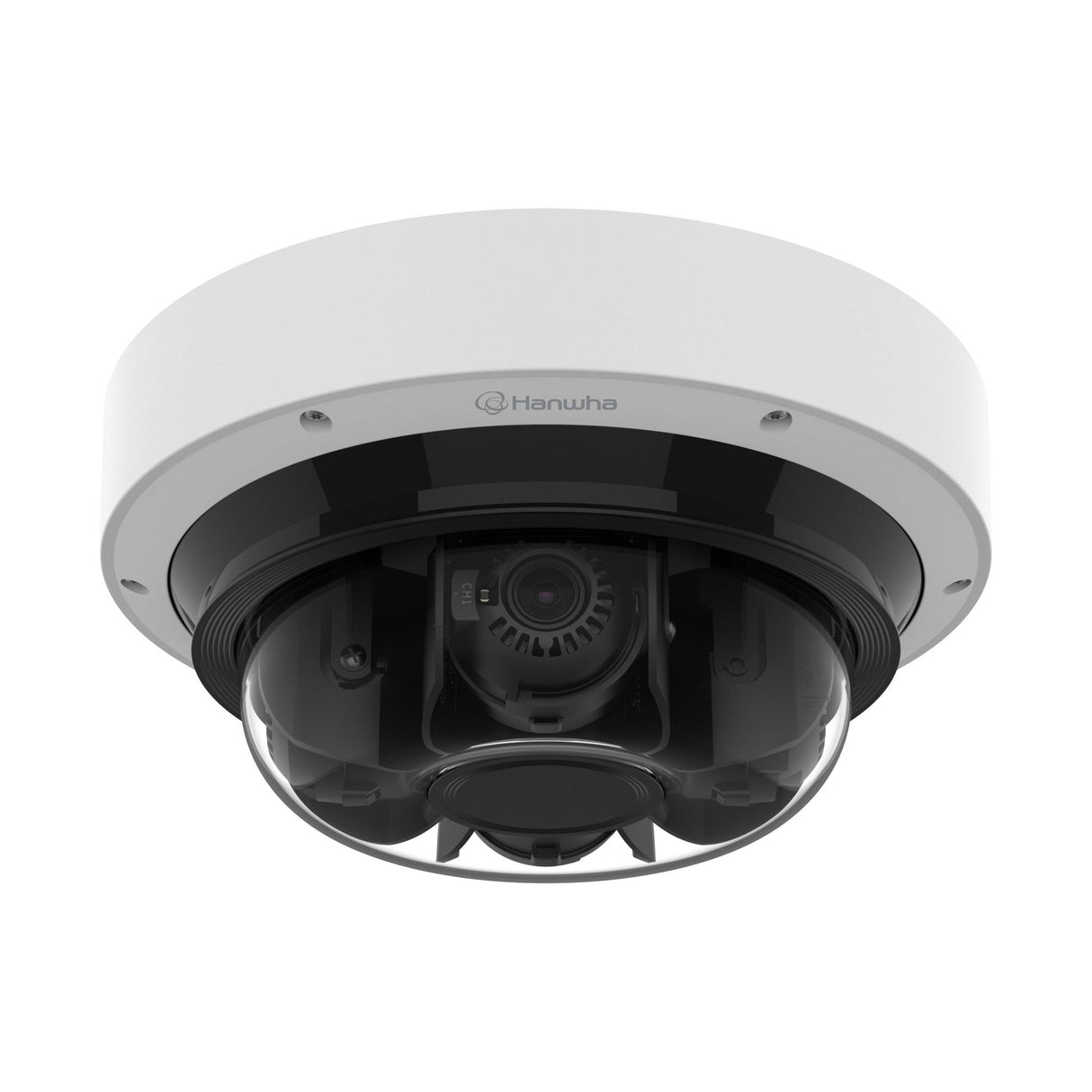

Hanwha PNM-C16083RVQ 4MP 4-Channel Outdoor Vandal-Rated IP Camera
Hanwha PNM-C16083RVQ 4MP 4-Channel Outdoor Vandal-Rated IP Camera
Free Shipping
Hanwha Vision PNM-C16083RQVQ Camera
The Hanwha Vision PNM-C16083RQVQ camera sets a new standard in security and surveillance technology. Designed to deliver exceptional image quality, this camera utilizes a 1/2.8" CMOS sensor across four channels, providing resolutions ranging from 2592x1520 to 320x240. It supports a maximum framerate of 30fps at 4MP and features advanced video compression formats including H.265 and H.264 for efficient data management. With a versatile 3.3~5.7mm motorized varifocal lens and an impressive wide dynamic range of 120dB, it ensures clear and detailed imagery under various lighting conditions. Ideal for both indoor and outdoor use, the camera's robust construction and environmental ratings ensure reliable performance in harsh conditions.
The PNM-C16083RQVQ offers a wide array of features including auto day/night switching, motion detection with polygonal zones, and comprehensive privacy masking options. Its digital noise reduction technologies, including SSNRā ¤ and WiseNRā ”, leverage AI to enhance image quality while minimizing distractions. Additionally, the camera supports various analytics features like object detection and virtual lines, enhancing its utility for security applications. With easy installation options and extensive network protocol support, this camera is a powerful tool for comprehensive surveillance solutions.
Key Features
- High-resolution imaging with multiple resolution options
- 3.3~5.7mm motorized varifocal lens with wide dynamic range
- Advanced video compression with H.265/H.264 and MJPEG
- Comprehensive motion detection and privacy masking capabilities
- Auto day/night functionality and advanced noise reduction
- Robust construction with environmental ratings for various conditions
- Extensive network protocol and security support
Technical Specifications
Imaging Device
1/2.8" CMOS x 4CH
Resolution
2592x1520, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate
H.265/H.264: Max. 30fps/25fps (60Hz/50Hz) MJPEG: Max. 30fps/25fps (@4MP Max. 5fps)
NETD
None
Pixel Size
None
Min. Illumination
Color: 0.075Lux (F1.5, 1/30sec, 30IRE) BW: 0.0075Lux (F1.5, 1/30sec, 30IRE), 0Lux (IR LED on)
Video Out
USB: Micro USB Type B, 1280x720 for installation
Video Transmission Distance
None
Lens
Focal Length (Zoom Ratio)
3.3~5.7mm (1.7x) motorized varifocal
Max. Aperture Ratio
F1.5 (Wide) ~ F1.9 (Tele)
Angular Field of View
H: 100Ā° (Wide) ~ 53Ā° (Tele) V: 54Ā° (Wide) ~ 30Ā° (Tele) D: 125Ā° (Wide) ~ 61Ā° (Tele)
Min. Object Distance
1.3m (4.27ft)
Focus Control
Simple focus
Lens Type
Fixed iris
Mount Type
None
Optional Lens
None
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range
0Ā°~360Ā° / 0Ā°~65Ā° / 0Ā°~90Ā°
Pan Range
None
Pan Speed
None
Tilt Range
None
Tilt Speed
None
Rotate Range
None
Sequence
None
Preset Accuracy
None
Operational
Camera Title
Displayed up to 85 characters
Direction Indicator
None
Day & Night
Auto (ICR)
Backlight Compensation
BLC, WDR, SSDR
Wide Dynamic Range
120dB
Digital Noise Reduction
SSNRā
¤, WiseNRā
” (Based on AI engine)
Digital Image Stabilization
None
Defog
None
Motion Detection
8ea, 8point Polygonal zones
Privacy Masking
6ea, rectangular zones - Color: Grey/Black/White
Gain Control
Low / Middle / High
White Balance
ATW / AWC / Manual / Indoor / Outdoor
LDC
Support
Electronic Shutter Speed
Minimum / Maximum / Anti flicker (2~1/12,000sec) Prefer shutter control (Based on AI engine)
Digital PTZ
None
Video Rotation
Flip, Mirror, Hallway view (90Ā°/270Ā°) - Each channel separately
Analytics
Classified object type: Person/Face/Vehicle/License plate
Attributes: Vehicle (Type: car/bus/truck/motorcycle/bicycle)
Support BestShot Analytics events based on AI engine - Object detection, Virtual line (Crossing/Direction), Virtual area (Loitering/Intrusion/Enter/Exit)
Analytics events - Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtual area (Appear/Disappear)
Business Intelligence
None
Serial Interface
None
Alarm I/O
2 configurable I/O ports * Support extra alarm I/O via optional SPM-4210 I/O box
Alarm Triggers
Analytics, Network disconnect, Alarm input, App event
