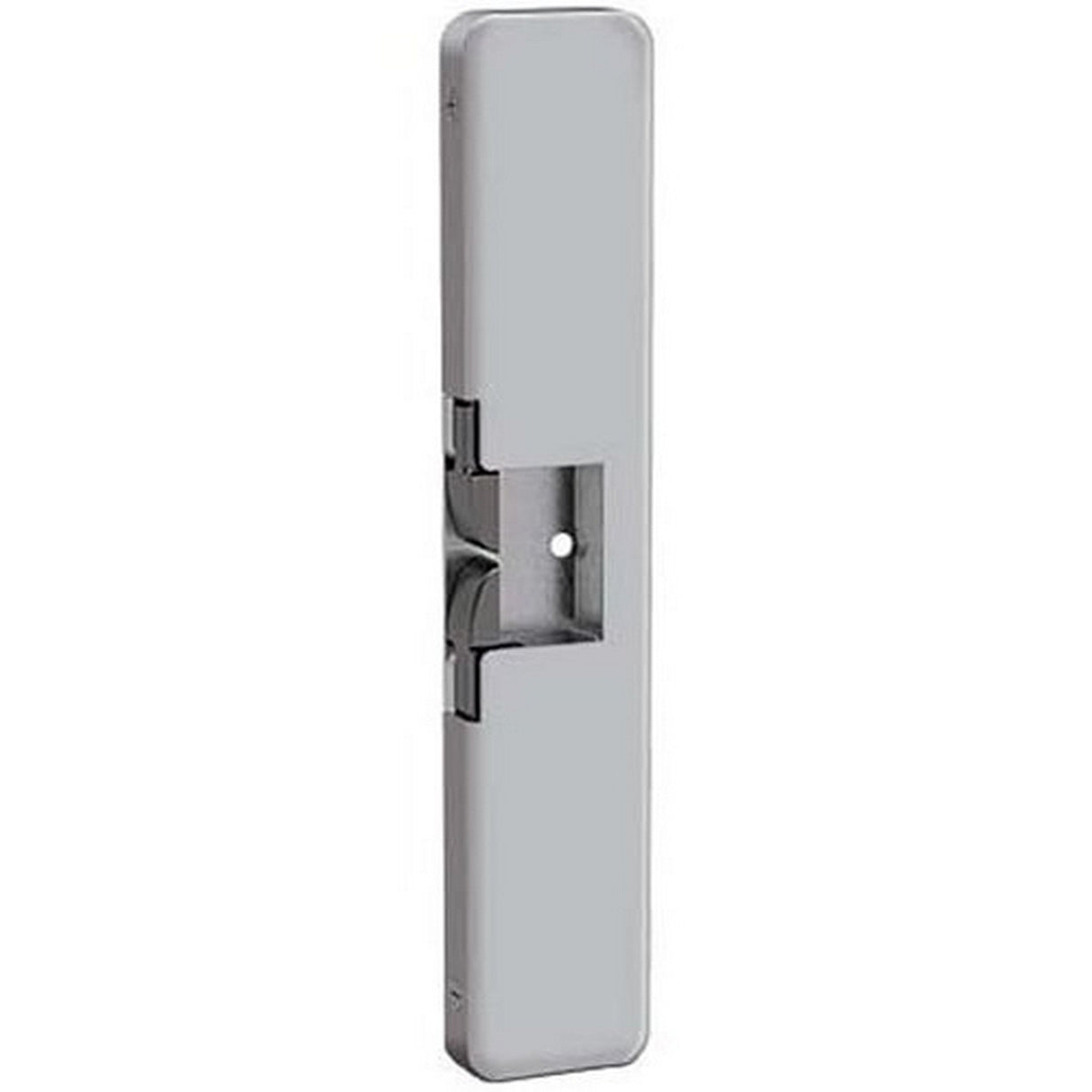

HES 9400 Series Slim-Line Outdoor Rated Surface Mounted Electric Strike, Satin Stainless Steel

HES 9400 Series Slim-Line Outdoor Rated Surface Mounted Electric Strike, Satin Stainless Steel

The HES 9400 Series is a high-performance, slim-line electric strike, ideal for rim exit devices with a 1/2" Pullman latch. Constructed from durable stainless steel, this outdoor-rated strike is designed for easy installation on both metal and wood frames. It requires no frame cutting—simply surface-mount it and align with the exit latchbolt. The strike comes with a 1/8" spacer plate to accommodate door gaps. Featuring tamper-resistant construction and exceeding Grade 1 standards, it offers strength, security, and sleek aesthetics.

The HES 9400 Series is field-selectable for fail-safe or fail-secure operation, and can operate on either 12 or 24VDC. It offers strong performance, with a static strength of 1,500 lbs, dynamic strength of 70 ft-lbs, and an impressive endurance rating of 500,000 cycles. Its smooth, decorative cover provides a refined look, concealing mounting screws for a clean finish. This electric strike offers a superior solution for a variety of commercial security needs.

Key Features

• Installs on both metal and wood frames
• Completely surface mounted with no frame cutting required
• Sleek, decorative cover for a modern appearance
• Durable stainless steel construction
• Tamper-resistant design
• Static strength of 1,500 lbs
• Dynamic strength of 70 ft-lbs
• Endurance rating of 500,000 cycles
• 1/8" + 1/16" spacer plate included for easy adjustment
• Field selectable for fail safe or fail secure operation
