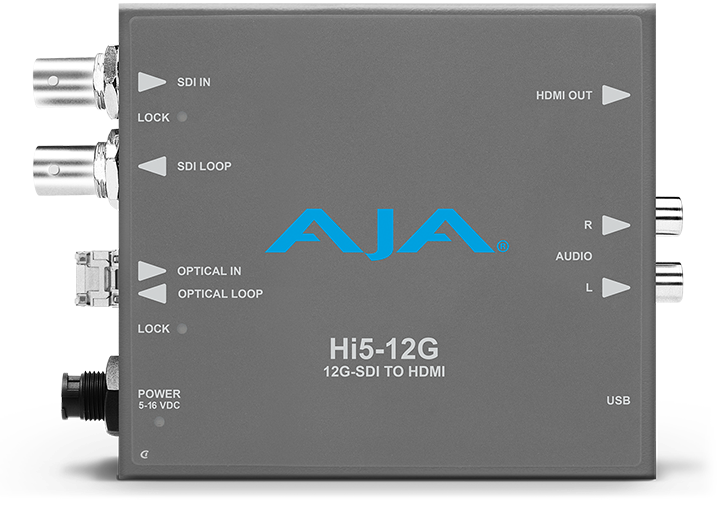

The AJA Hi5-12G-TR pairs 12G-SDI to HDMI 2.0 conversion with a fiber transceiver, delivering a 4K/UltraHD SDI or fiber source to an HDMI display while passing the signal on through SDI or fiber to a secondary destination. It is built for monitoring positions in professional 4K pipelines where one device must both feed a local display and extend the program path downstream.

Pristine image fidelity carries high frame rate support up to 60p for 4K/UltraHD along with 12-bit workflows, and HDR10 metadata is generated per HDMI v2.0b/CTA-861-G with HLG supported over HDMI. Video Source Auto Switch Over changes between SDI and optical inputs automatically with configurable priority, a reclocked SDI loop out simplifies confidence monitoring, and the unit ships with a fiber LC single channel SFP transceiver, USB Mini-Config support, and a five year warranty.

Key Features

• Converts 12G-SDI to HDMI 2.0 with HFR support up to 60p for 4K/UltraHD
• Ships with a fiber LC single channel SFP transceiver for extending 4K signals over long distances
• Passes the source through SDI or fiber to a secondary destination
• Generates HDR10 metadata per HDMI v2.0b/CTA-861-G and supports HLG over HDMI
• Video Source Auto Switch Over with configurable SDI/optical priority
• Reclocked 12G-SDI loop out for confidence monitoring
• USB setup with Mini-Config software; five year warranty

Specifications

• (4K) 4096x2160p
• (UltraHD) 3840x2160p
• (2K) 2048x1080p
• (HD) 1920x1080p
• (HD) 1920x1080i
• (HD) 1280x720p
• (SD) 720x576i
• (SD) 720x480i Note: Raster and Frame Rate Dependent, please see Hi5-12G Video Formats in the Download / Documents section of the website product page.
• 1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
• YCbCr 4:2:2/4:4:4
• RGB 4:4:4, SMPTE or Full level
• 8, 10, 12-bit
• Two Sample Interleave (2SI) 4K/UltraHD source mapping
• 1x 12 Gb SDI (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• 1x 6 Gb SDI (4K) 4096x2160p 23.98, 24, 25, 29.97, 30 (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
• 1x 3 Gb SDI (Level A or B Dual Link) (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920x1080i 50, 59.94, 60 (HD) 1280x720p* 50, 59.94, 60
• 1x 1.5 Gb SDI (2K) 2048x1080p 23.98, 24, 25, 29.97, 30 (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920x1080p 23.98, 24, 25, 29.97, 30 (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920x1080i 50, 59.94, 60 (HD) 1280x720p 50, 59.94, 60
• 1x 270 Mb SDI (SD) 625i 50 (SD) 525i 59.94 *1280x720p is Level A Only
• 1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
• 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082 Nominal Wavelength: Rx 1260 nm (min), 1620 nm (max) Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps) Overload Power: -2 dBm (min)
• 1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
• 1x 12G-SDI Fiber ST connector, SMPTE 297/259/292/424/2081/2082 Nominal Wavelength: Rx 1260 nm (min), 1620 nm (max) Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps) Overload Power: -2 dBm (min)
• 1x HDMI Type A connector*, HDMI v2.0b
• HDR infoframe generation with pass-through or override for Colorimetry and Transfer Characteristic
• YCbCr 4:2:2/4:4:4/4:2:0
• RGB 4:4:4, SMPTE or Full level
• 24, 30, or 36 Bits Per Pixel (HFR 4K/UltraHD 4:4:4 limited to 24 BPP)
• (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1920x1080i 50, 59.94, 60
• (HD) 1280x720p 50, 59.94, 60
• (SD) 720x576i 50
• (SD) 720x480i 59.94 *If a connected monitor doesn’t support HDMI protocol the unit automatically switches to DVI protocol (which does not pass audio)
• PCM
• Dolby Digital (AC-3)
• Dolby Digital Plus (E-AC-3), including Atmos Immersive Sound (JOC)
• 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082 Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max) Optical Power: -5 dBm (min), 0.5 dBm (max) Extinction Ratio: 5.4 dB (min)
• SDI embedded audio, 24-bit (SD limited to 20-bit), 16-channel
• HDMI embedded audio, 24-bit, 8-channel
• 2x RCA style connector, 2-channel -10dBu (nominal)
• USB port used with supplied cable and Mini-Config software application to configure and view device status via Mac or Windows
• 4.6" x 4.02" x 0.9" (116.84 x 102.11 x 22.86 mm)
• 0.5 lb (0.3 kg)
• 5-16VDC regulated, 11 watts, power supply required included with purchase
• AC Adapter: 100-240VAC, 50/60 Hz, universal input
• Safe Operating Temperature: 0 to 40 C (32 to 104 F)*
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet) *Hi5-12G devices use approximately 11 watts of power and convection cooling. It will be very warm to the touch, which is normal. When installing a unit, mount in a location where the device has access to air for proper cooling. Do not stack a Hi5-12G device with other Mini-Converters.
• Video Formats
• Video Input Digital
• Input Signal Selection -Hi5-12G-R and Hi5-12G-TR Only
• Input Signal Selection - Hi5-12G-R-ST Only
• Video Output Digital
• Audio Pass-Through Formats
• Video Output Digital - Additional for Hi5-12G-TR Only
• Audio Input Digital
• Audio Output Digital
• Audio Output Analog
• User Interface
• Size (w x d x h)
• Weight
• Power
• Environment

What's Included

• HI5 12G-SDI to HDMI 2.0 Conversion with Fiber Transceiver
