High End Systems Flex Hog 64-Universe DMX Lighting Console

High End Systems Flex Hog 64-Universe DMX Lighting Console

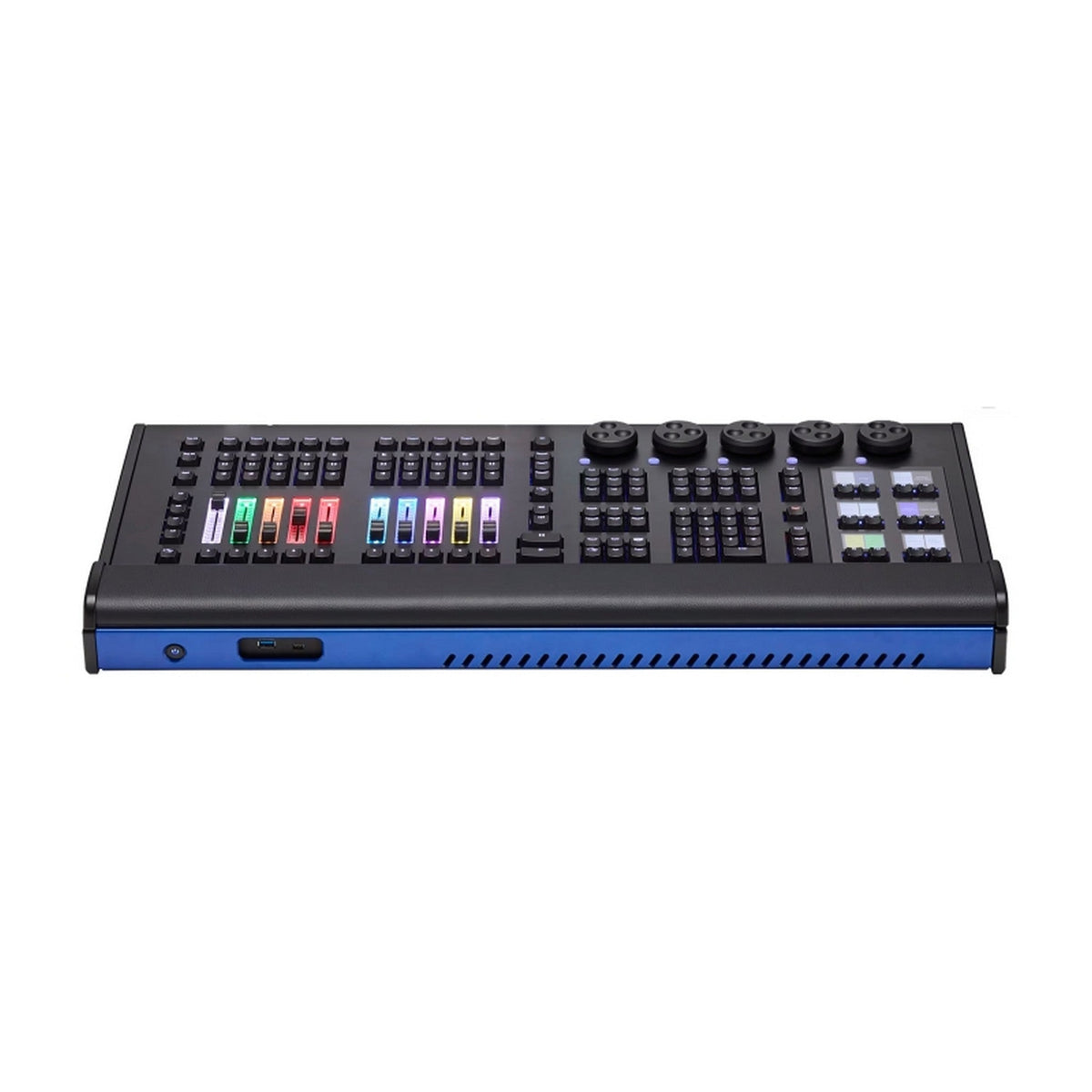

The High End Systems Flex Hog DMX lighting console is a compact professional control surface built around the Hog platform with capacity for 64 universes. It combines RGB-backlit controls, motorized playback faders, high-resolution parameter encoders, local DMX outputs, networking, and external display support for programming and operating sophisticated lighting systems.

Designed for productions that need full console functionality without the larger Tour Hog footprint, Flex Hog suits theaters, touring systems, side stages, backstage control positions, houses of worship, and event production. Ten pageable motorized playbacks, customizable function controls, eight user-defined U-Keys, and five parameter encoders give programmers fast access to fixture selection, palettes, effects, cue timing, and playback functions.

The console integrates into professional lighting networks through dual Neutrik EtherCON connections, four local DMX512-A outputs, SMPTE timecode input, USB connectivity, Wi-Fi, and Bluetooth antennas. It supports two external DisplayPort monitors with optional touch or multi-touch operation and works with Hog ecosystem accessories including Tour Wing, Gig Hog, HPU/HPU+, Response network interfaces, and ETCnomad.

Key Features

• 64-Universe System Capacity: Provides extensive control capacity for complex lighting rigs using local DMX, networked protocols, and supported processing hardware.
• Motorized Playback Control: Ten pageable RGB-backlit master playbacks provide customizable fader and transport functions for flexible show operation.
• Five High-Resolution Encoders: Dedicated parameter encoders with two keys per encoder streamline adjustments to fixture attributes and programming values.

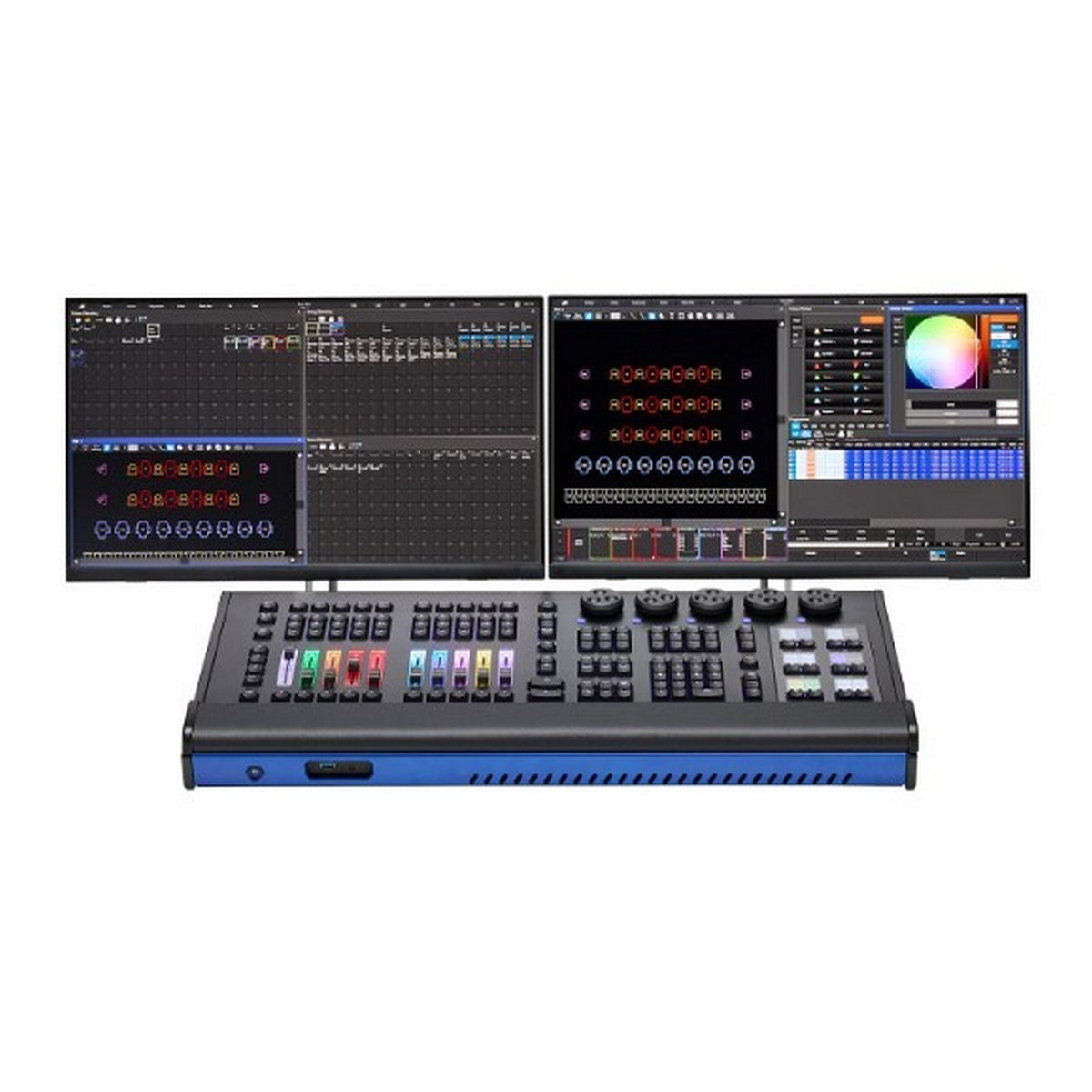

• External Display Support: Drives up to two DisplayPort monitors at a minimum 1280 x 1024 resolution with optional touch or multi-touch control.
• Professional Lighting I/O: Includes four 5-pin DMX outputs, dual EtherCON Ethernet connections, SMPTE input, and a dedicated desk-light connection.
• Flexible Programming Interface: Provides 12 function keys, eight programmable U-Keys, command-line programming, fixture groups, palettes, effects, pixel mapping, and customizable views.
• Integrated USB Connectivity: Four USB 3.0 Type-A and two USB Type-C connections accommodate peripherals and workflow accessories.
• Expandable Hog Platform: Supports Tour Wing playback expansion, Gig Hog, HPU/HPU+, Response network gateways and interfaces, and ETCnomad integration.

Technical Specifications

• Model: 6115A1001
• Product Type: Professional lighting control console
• System Capacity: 64 universes
• Function Key Displays: Six full-color displays
• External Displays: Up to two DisplayPort monitors
• Minimum External Display Resolution: 1280 x 1024
• External Display Control: Optional touch or multi-touch
• Display Modes: Daylight, regular, and dark-environment color schemes
• Command Keypad: Compact RGB-backlit keypad
• Function Keys: 12 user-kind and command function keys
• User Keys: Eight user-defined U-Keys
• Parameter Encoders: Five high-resolution encoders with two keys per encoder
• Programming Functions: Command-line interface, fixture groups, palettes, effects engine, pixel-mapping effects, Park, Undo, Move, Copy, Merge, Knockout, Clear, timing, and text-label functions
• Playback Masters: 10 pageable motorized RGB-backlit master playbacks
• Playback Functions: Customizable faders plus flash, go, halt, back, and choose keys
• Fader Pages: Unlimited
• Playback Features: Virtual masters, scenes, batch controllers, group masters, comment macros, keystroke macros, and command-key triggering
• Control Protocol Support: OSC input/output, MIDI messages, MIDI Show Control, and MIDI/LTC timecode; MIDI requires an optional external MIDI interface
• Ethernet: Two Neutrik EtherCON connections
• USB Type-A: Four USB 3.0 ports
• USB Type-C: Two ports
• Wireless: Wi-Fi and Bluetooth antennas
• Local DMX Outputs: Four DMX512-A outputs via 5-pin XLR
• SMPTE Input: 3-pin XLR
• Desk Light Connection: 3-pin XLR
• Power Input and Thru: Neutrik powerCON TRUE1
• Mains Power: 100-250 VAC, 50/60 Hz
• Maximum Power Consumption: 80 W
• Breaker: 7.5 A
• Compliance: ETL, CETL, and CE
• Dimensions: 29" W x 15.1" D x 4.8" H
• Weight: 27 lb

What's In the Box

• Flex Hog Console
• TRUE1 power input cable
• International power adapter
• Keyboard
• Mouse
• Capture lighting design software, Duet edition
• Dust cover
